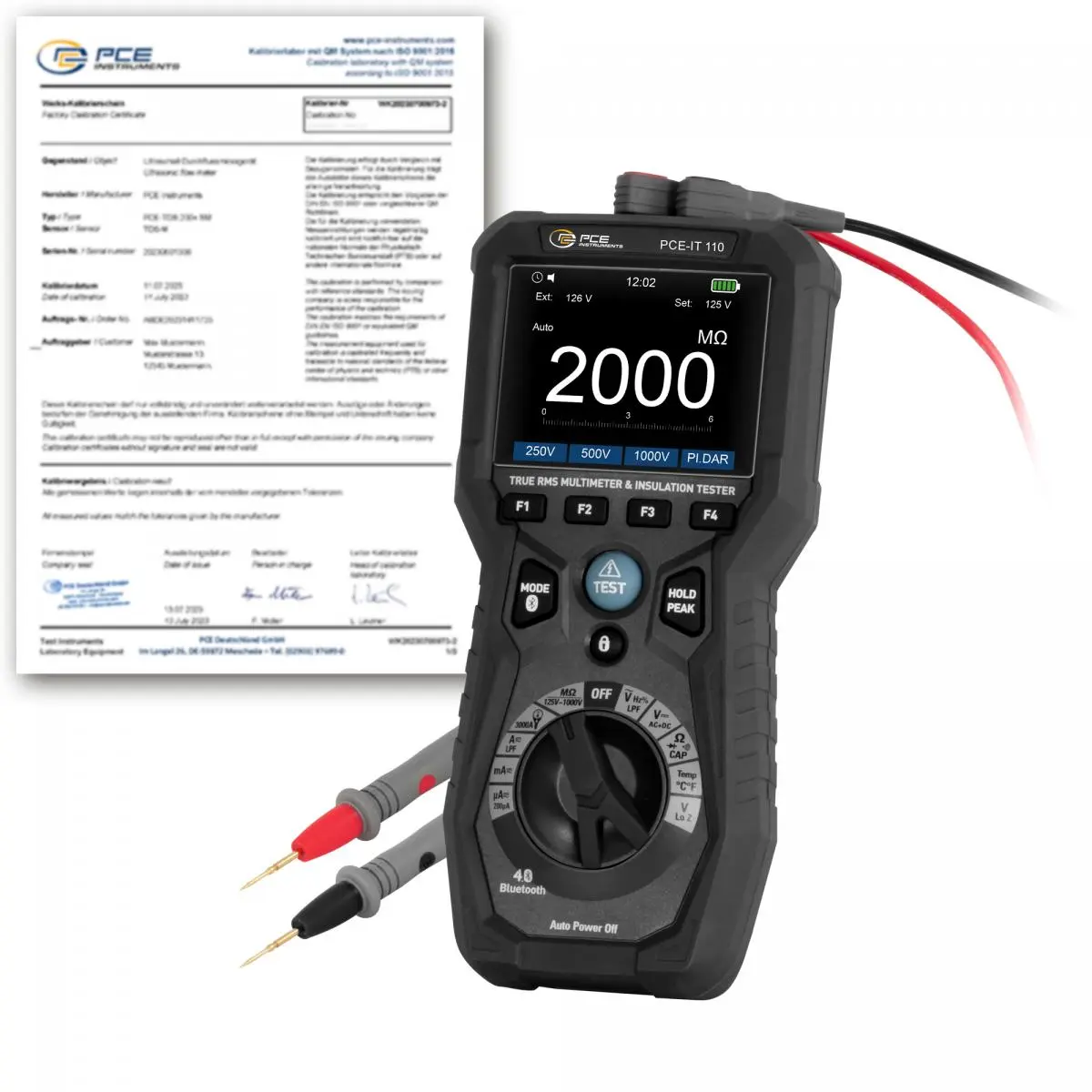

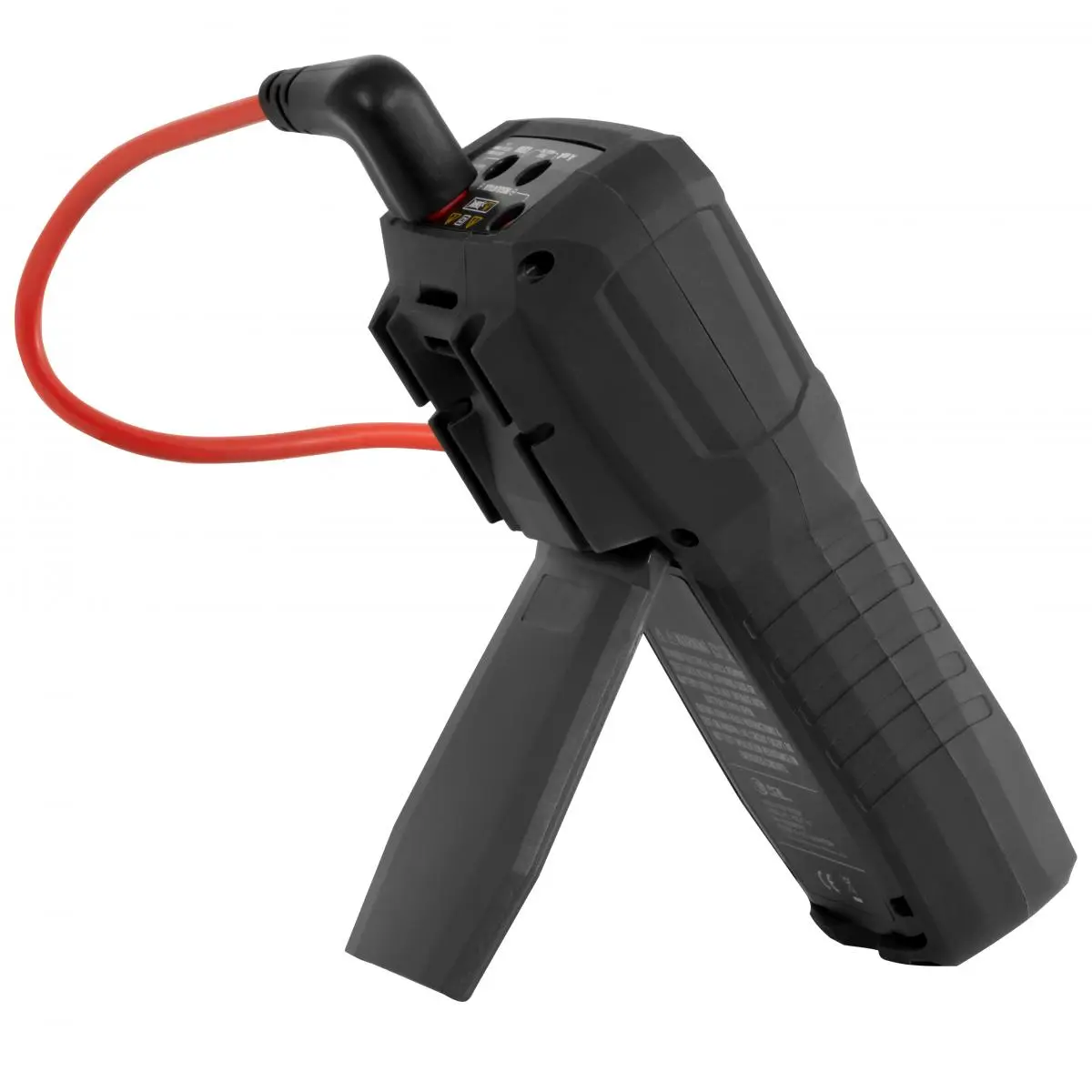

Isolation Meter PCE-IT 110-ICA

Isolation Meter PCE-IT 110-ICA incl. ISO-Calibration Certificate

Order no.: PCE-IT 110-ICA
GTIN (EAN): 4250348738998
1 pc.

Description

Isolation Meter / Test voltage up to 1000V / LCD color display / Time display / Data memory / Automatic switch-off

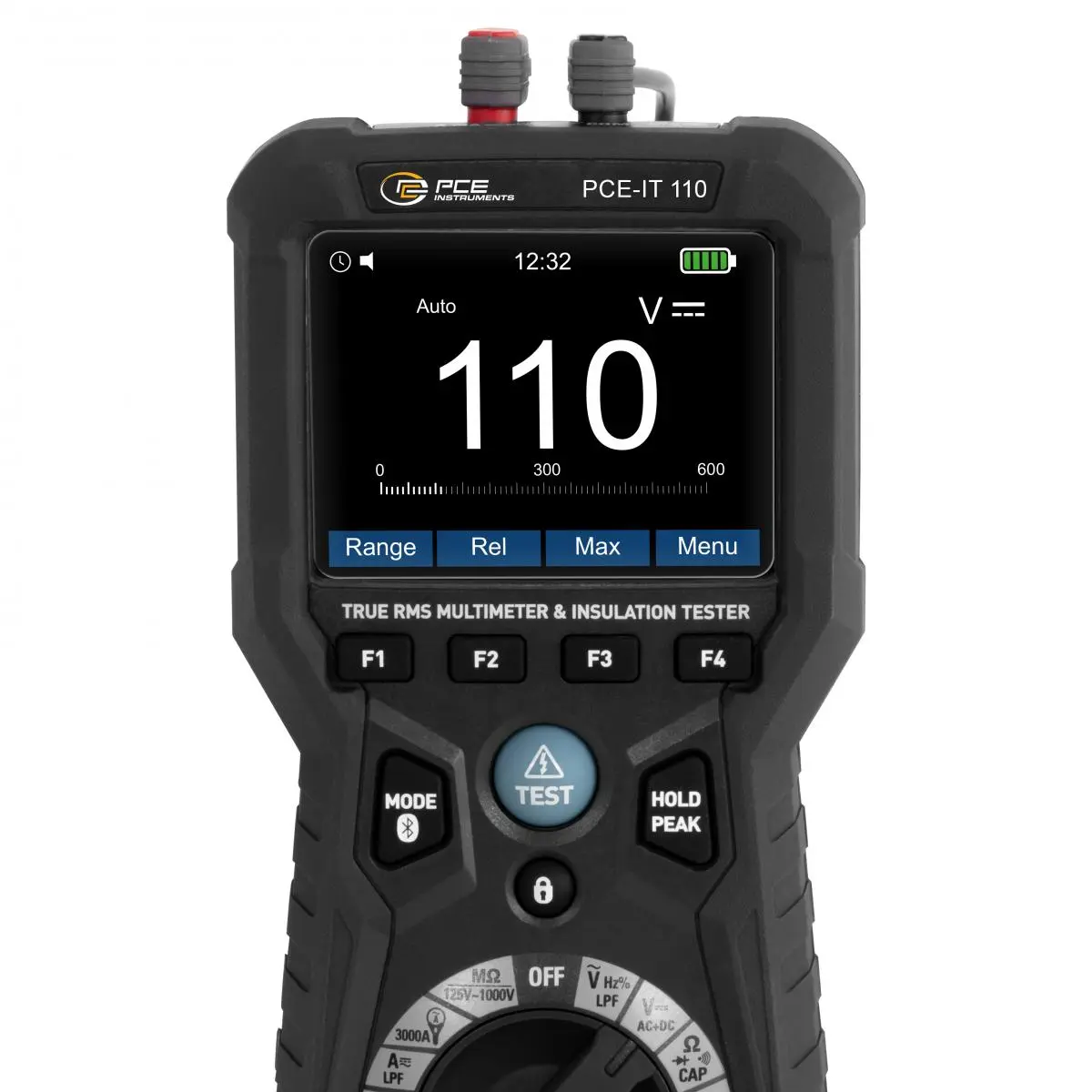

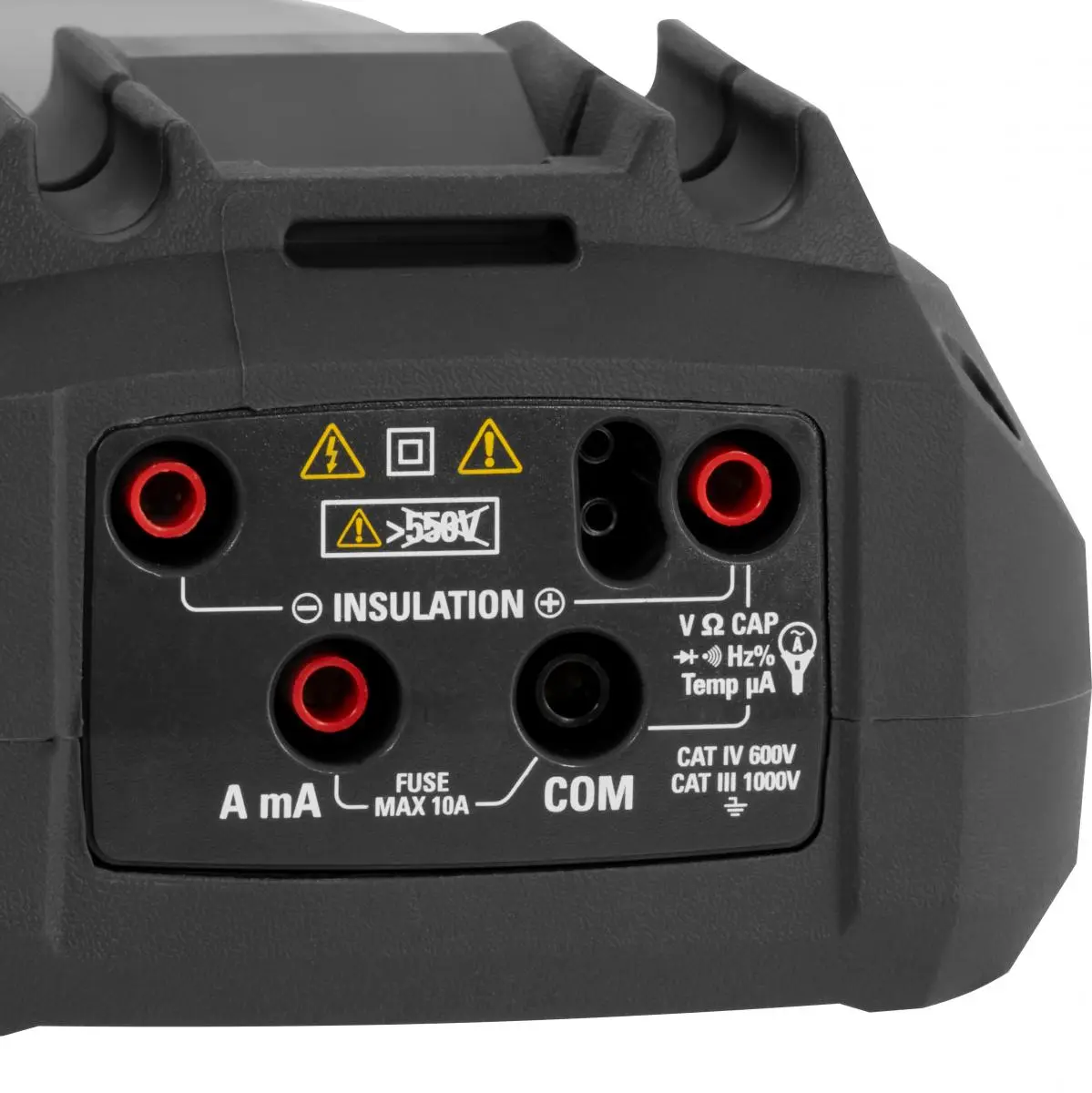

The Isolation Meter combines the functions of a fully-fledged digital multimeter with a powerful Isolation Meter and is ideal for professional applications in industry, trade and energy supply. In addition to measuring voltage, current and resistance, the device also offers frequency and capacitance measurement as well as temperature measurement via the supplied type K thermocouple. The automatic range selection and the 3.5 inch LCD color display enable simple and precise operation. The Isolation Meter allows insulation tests with selectable test voltages from 125 V to 1000 V and measures insulation resistances of up to 6000 MΩ. It also supports the measurement of the polarization index (PI) and the absorption ratio (DAR), which enables a well-founded assessment of the insulation quality of cables, motors, control cabinets and electrical systems.

Thanks to the integrated data memory, measurement results can be called up directly on the device for later analysis. The recorded data can be transferred wirelessly to a smartphone or tablet via Bluetooth - particularly practical for documentation and test reports. Other features such as automatic discharge after the measurement, MIN/MAX/PEAK value recording, hold function and a lock button for hands-free operation round off the device. The Isolation Meter fulfils the highest safety requirements in accordance with CAT IV 600V / CAT III 1000V and can therefore also be used safely for work in energy distribution and on building technology.

Typical areas of application for this Isolation Meter include electrical installation, switch cabinet construction, maintenance of machines and systems, photovoltaic systems, the service sector and technical training centers. With its combination of versatility, precision and modern connectivity, this Isolation Meter is a good tool for any professional.


Highlights

- Insulation test voltages 125V, 250V, 500V, 1000V
- Measuring functions: HOLD, MIN, MAX, PEAK
- PI (polarization index), DAR (absorption ratio)
- High voltage and overload indicator
- Diode test
- Automatic discharge
- Automatic switch-off
- Locking button
- Data memory with logger
- Bluetooth for app connection
- Connections for Rogowski coil
- incl. ISO-Calibration Certificate

Specification

Direct voltage DC
Measurement range up to  0 ... 600 mV
Resolution  0,1 mV
Accuracy  ±(0.9% +5 digits)
Overload  1000 V

Direct voltage DC
Measurement range up to  600 mV ... 6 V
Resolution  0,001 V
Accuracy  ±(0.9% +5 digits)

Direct voltage DC
Measurement range up to  6 ... 60 V
Resolution  0,01 V
Accuracy  ±(0.9% +5 digits)

Direct voltage DC
Measurement range up to  60 ... 600 V
Resolution  0,1 V
Accuracy  ±(1% +5 digits)

Direct voltage DC
Measurement range up to  600 ... 1000 V
Resolution  1 V
Accuracy  ±(1% +5 digits)

Direct current DC
Measurement range up to  0 ... 200 µA
Resolution  0,1 µA
Accuracy  ±(0.9% +8 digits)

Direct current DC
Measurement range up to  200 µA ... 600 mA
Resolution  0,1 mA
Accuracy  ±(1.2% +3 Digits)

Direct current DC
Measurement range up to  600 mA ... 10 A
Resolution  0,01 A
Accuracy  ±(1.5 % +5 digits)

Capacity
Measurement range up to  0 ... 60 nF
Resolution  0,01 nF
Accuracy  ±(5% +35 digits)

Capacity
Measurement range up to  60 ... 600 nF
Resolution  0,1 nF
Accuracy  ±(2.5 % +8 digits)

Capacity
Measurement range up to  600 nF ... 6 µF
Resolution  0,001 µF
Accuracy  ±(3% +5 digits)

Capacity
Measurement range up to  6 ... 60 µF
Resolution  0,01 µF
Accuracy  ±(3% +5 digits)

Capacity
Measurement range up to  60 ... 600 µF
Resolution  0,1 µF
Accuracy  ±(3% +5 digits)

Capacity
Measurement range up to  600 ... 6000 µF
Resolution  1 µF
Accuracy  ±(2.5% +20 Digits)

Temperature K-type
Measurement range up to  -20 ... +600 °C
Resolution  0,1 °C
Accuracy  ±(3 % of Rd +5 °C)

Temperature K-type
Measurement range up to  600 ... 1000 °C
Resolution  1 °C
Accuracy  ±(3 % of Rd +5 °C)

Temperature K-type
Measurement range up to  -4 ... +600 °F
Resolution  0,1 °F
Accuracy  ±(3% v.Mw. +9°C)

Temperature K-type
Measurement range up to  600 ... 1832 °F
Resolution  1 °F
Accuracy  ±(3% v.Mw. +9°C)

AC voltage
Measurement range up to  0 ... 6 V
Resolution  0,001 V
Accuracy  ±(1% +5 Digits) @50 ... 60 Hz / ±(3% +5 Digits) @61 ... 1000 Hz
Overload  1000 V
Frequency range  50 ... 1000 Hz

AC voltage
Measurement range up to  6 ... 60 V
Resolution  0,01 V
Accuracy  ±(1% +5 Digits) @50 ... 60 Hz / ±(3% +5 Digits) @61 ... 1000 Hz
Frequency range  50 ... 1000 Hz

AC voltage
Measurement range up to  60 ... 600 V
Resolution  0,1 V
Accuracy  ±(1% +5 Digits) @50 ... 60 Hz / ±(3% +5 Digits) @61 ... 1000 Hz
Frequency range  50 ... 1000 Hz

AC voltage
Measurement range up to  600 ... 1000 V
Resolution  1 V
Accuracy  ±(1.2% +5 Digits) @50 ... 60 Hz / ±(3% +5 Digits) @61 ... 1000 Hz
Frequency range  50 ... 1000 Hz

Alternating current AC
Measurement range up to  0 ... 200 µA
Resolution  0,1 µA
Accuracy  ±(1.2% +8 digits)
Frequency range  50 ... 1000 Hz

Alternating current AC
Measurement range up to  200 µA ... 600 mA
Resolution  0,1 mA
Accuracy  ±(1.2 % +5 digits)
Frequency range  50 ... 1000 Hz

Alternating current AC
Measurement range up to  600 mA ... 10 A
Resolution  0,01 A
Accuracy  ±(1.5 % +5 digits)
Frequency range  50 ... 1000 Hz

Insulation resistance
Test voltage DC  125V
Measurement range up to  0,125 ... 6 M Ω
Resolution  0,001 M Ω
Accuracy  ±(2 % +10 digits)

Insulation resistance
Test voltage DC  250V
Measurement range up to  0,25 ... 6 M Ω
Resolution  0,001 M Ω
Accuracy  ±(2% +15 Digits)

Insulation resistance
Test voltage DC  500V
Measurement range up to  0,5 ... 6 M Ω
Resolution  0,001 M Ω
Accuracy  ±(2 % +10 digits)

Insulation resistance
Test voltage DC  1000V
Measurement range up to  1 ... 6 M Ω
Resolution  0,001 M Ω
Accuracy  ±(3% +10 Digits)

Insulation resistance
Test voltage DC  125V, 250V, 500V, 1000V
Measurement range up to  6 ... 60 M Ω
Resolution  0,01 M Ω
Accuracy  ±(2 % +10 digits)

Insulation resistance
Test voltage DC  125V, 250V, 500V, 1000V
Measurement range up to  60 ... 600 M Ω
Resolution  0,1 M Ω
Accuracy  ±(4% +5 digits)

Insulation resistance
Test voltage DC  125V, 250V, 500V, 1000V
Measurement range up to  600 ... 6000 M Ω
Resolution  1 M Ω
Accuracy  ±(5% +10 Digits)

Resistance
Measurement range up to  0 ... 600 Ω
Resolution  0,1 Ω
Accuracy  ±(1.2% +10 digits)

Resistance
Measurement range up to  600 Ω ... 6 kΩ
Resolution  0,001 kΩ
Accuracy  ±(1.5 % +5 digits)

Resistance
Measurement range up to  6 ... 60 kΩ
Resolution  0,01 Ω
Accuracy  ±(1.5 % +5 digits)

Resistance
Measurement range up to  60 ... 600 kΩ
Resolution  0,1 kΩ
Accuracy  ±(1.5 % +5 digits)

Resistance
Measurement range up to  600 kΩ ... 6 M Ω
Resolution  0,001 M Ω
Accuracy  ±(1.5 % +5 digits)

Resistance
Measurement range up to  6 ... 60 M Ω
Resolution  0,01 M Ω
Accuracy  ±(2.5% +10 digits)

Frequency
Measurement range up to  40 ... 10000 Hz
Resolution  0,01 Hz
Accuracy  ±(1% +5 digits)

General technical data
Measuring functions  MIN, MAX, HOLD, PI, DAR
Display type  LC colour display
Display size  3,5 Inch
Display refresh rate  3 x per second
Measuring rate  3 Hz
Storage medium  Internal memory
Storage capacity  1800 Values
Storage interval from  1 s
Storage interval to  60 min.
Interface  Bluetooth
Automatic power-off from...to  15 ... 60 min.
Automatic power-off can be deactivated  Yes
Safety standard  CAT III 1000V, CAT IV 600V
Diode test  Test current: <1.5 mA
Max. Voltage in open circuit: 3.2V DC
Menu language  English, English (GB)
Protection class (device)  IP65

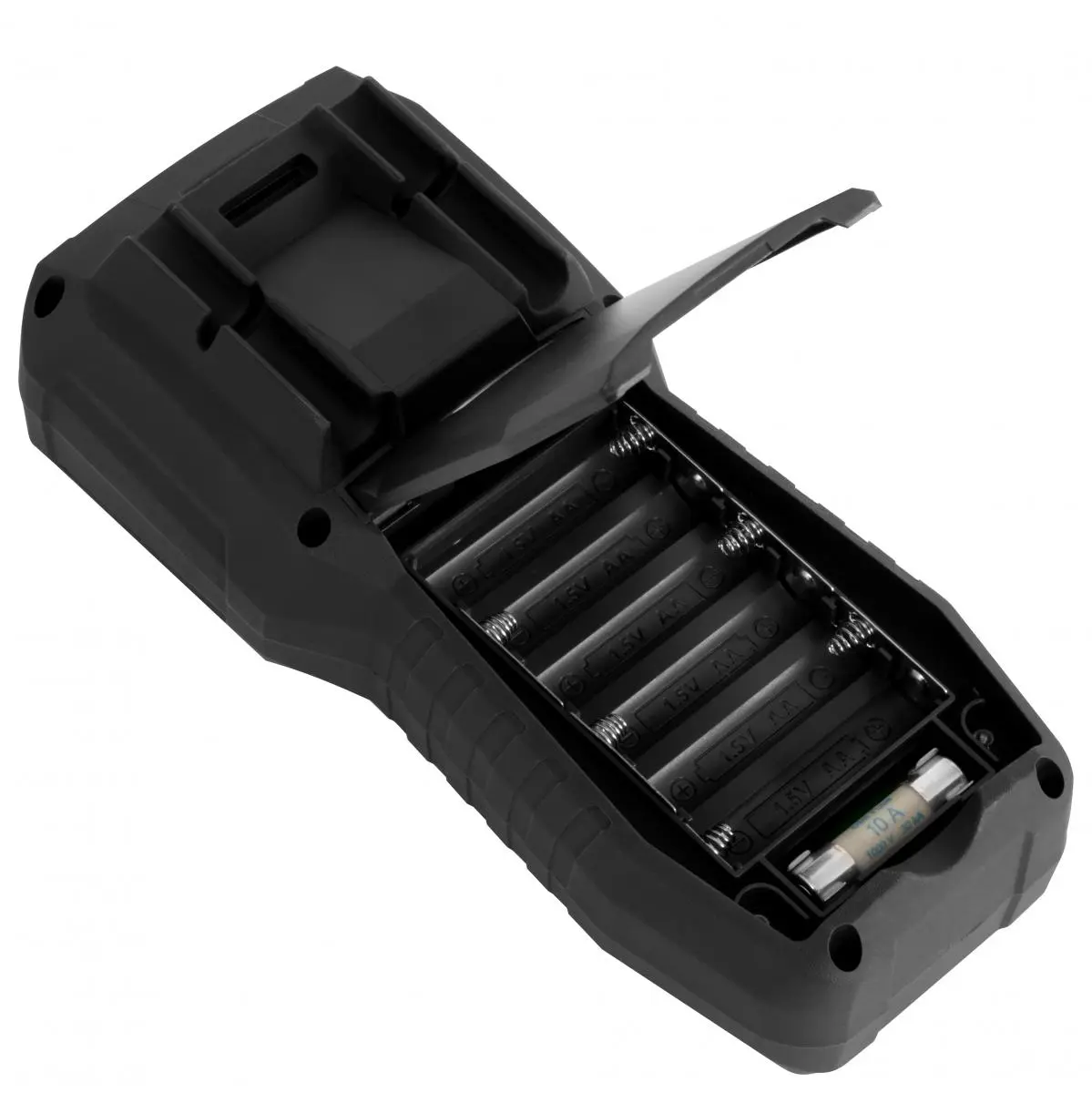

(Rechargeable) battery  6 x 1,5 V AA battery , Alkali-manganese
Capacity  2500 mAh
Operating conditions  5 ... 40 °C , 0 ... 80 % RH
Storage conditions  -20 ... 60 °C , 0 ... 80 % RH
Dimensions ( L x W x H )  215 x 100 x 65 mm
Weight  569 g

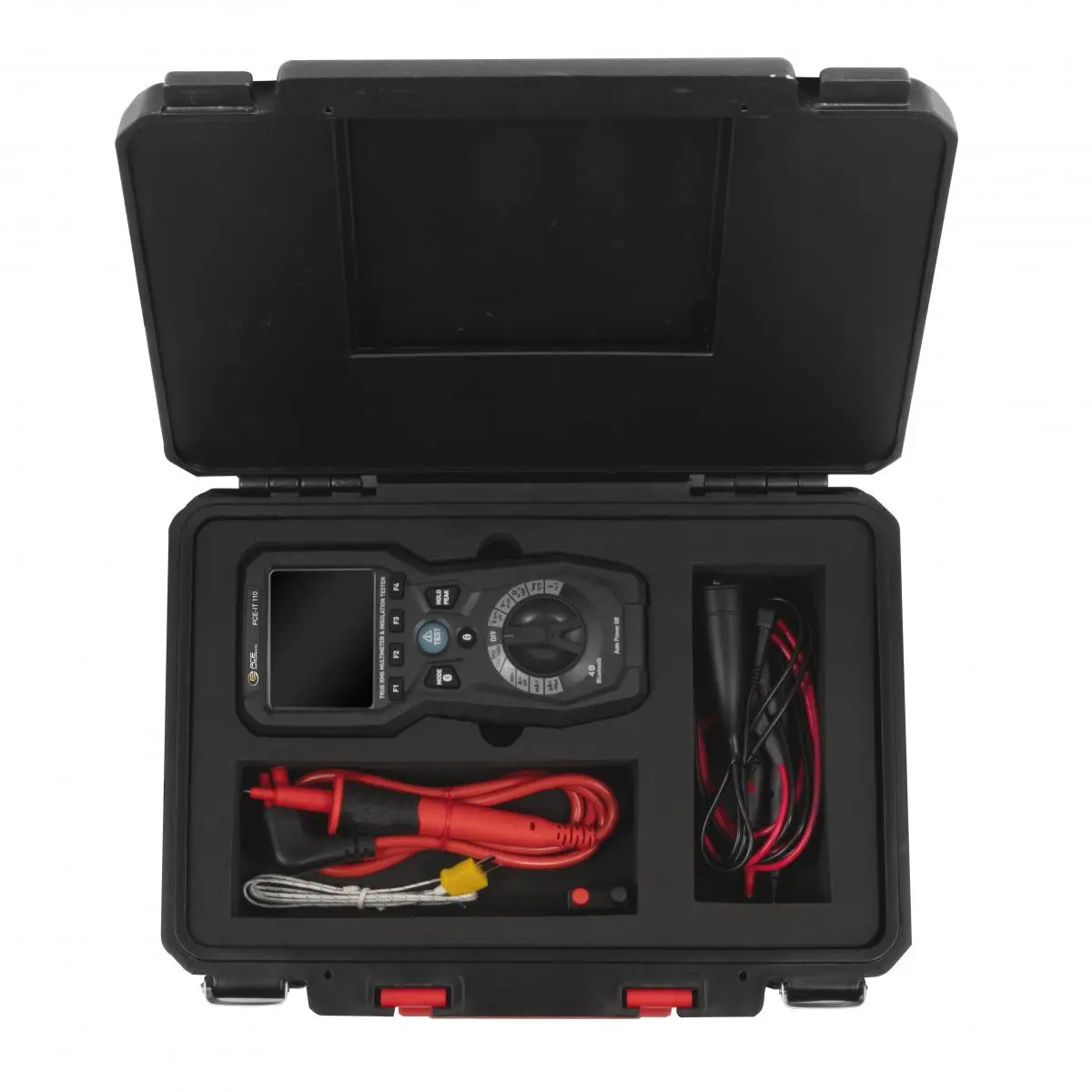

Delivery Scope

1 x Isolation Meter PCE-IT 110-ICA

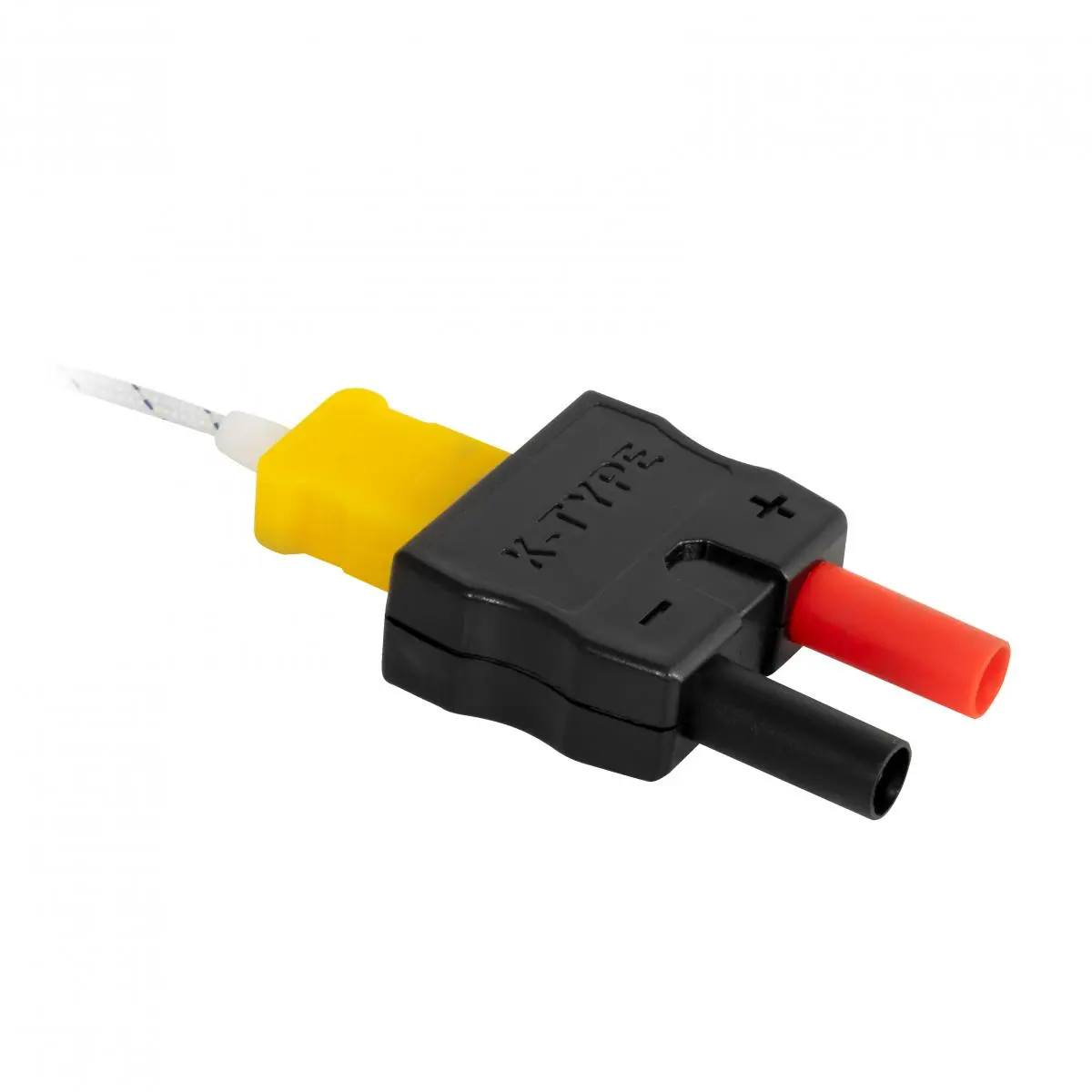

1 x Temperature probe type K

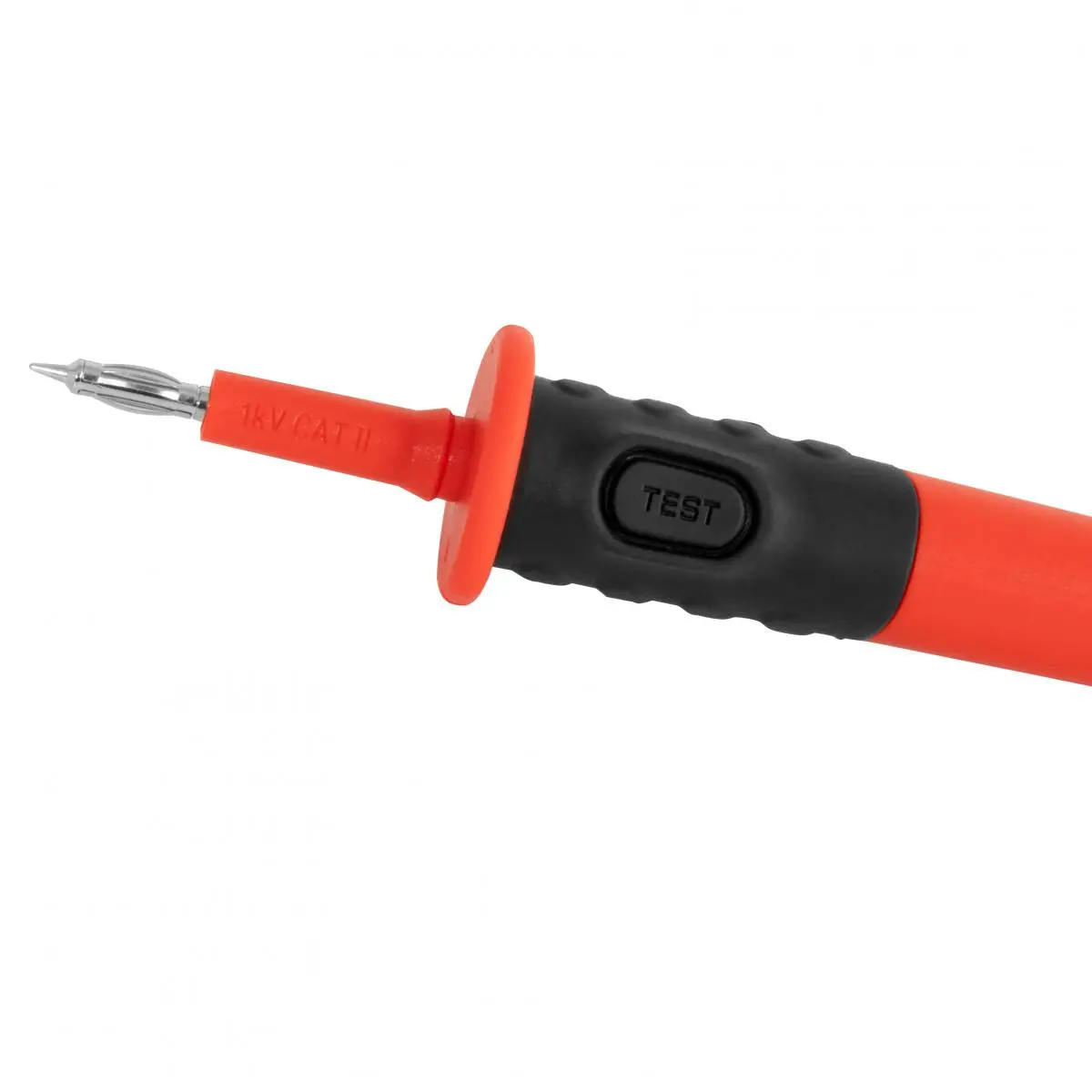

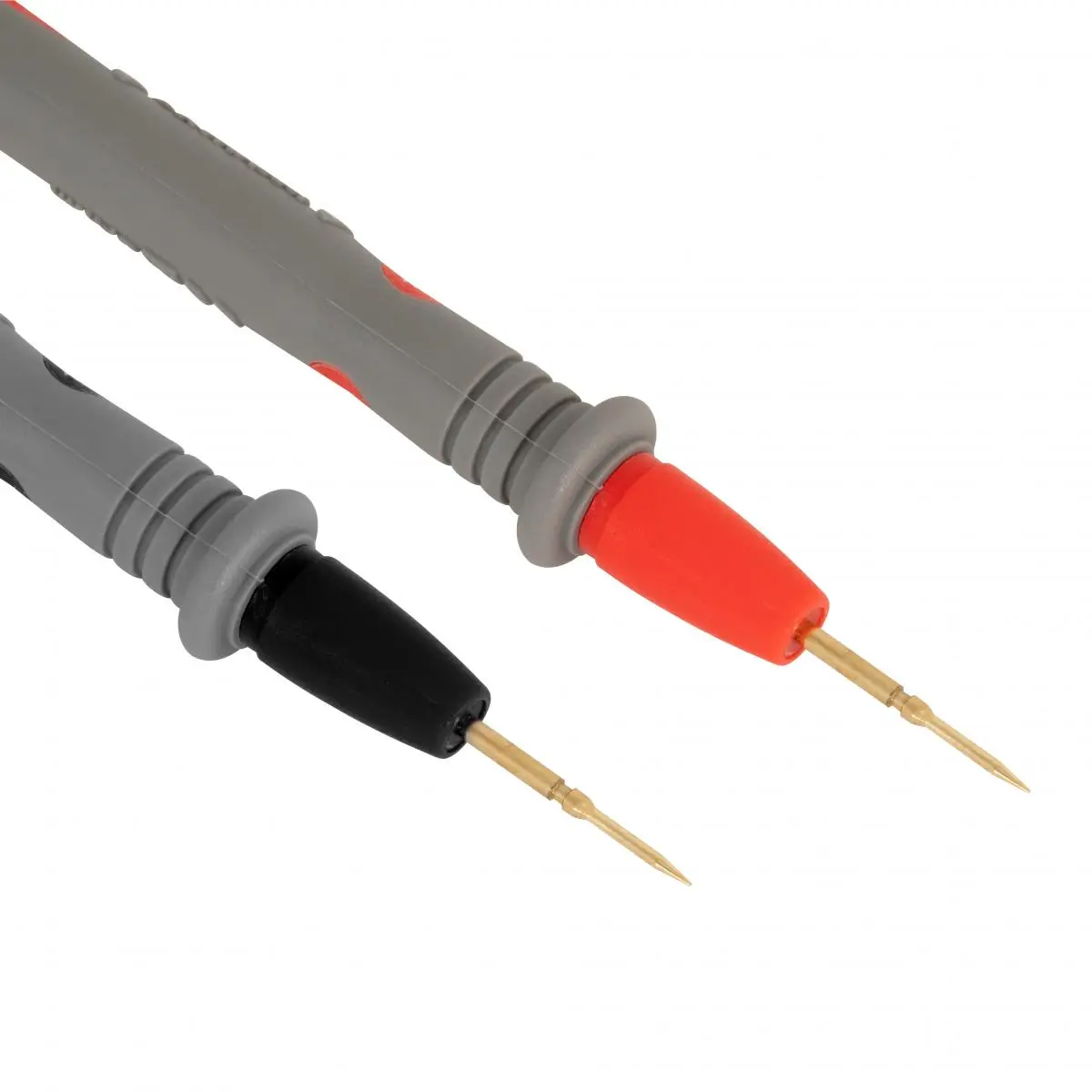

2 x Set of test leads
1 x Transport case
6 x 1.5V AA batteries
1 x Instruction manual
You can find the "Meterbox Pro" app in the App Store
1 x ISO-Calibration Certificate
