IoT Meter / IoT Sensor Calibration standard

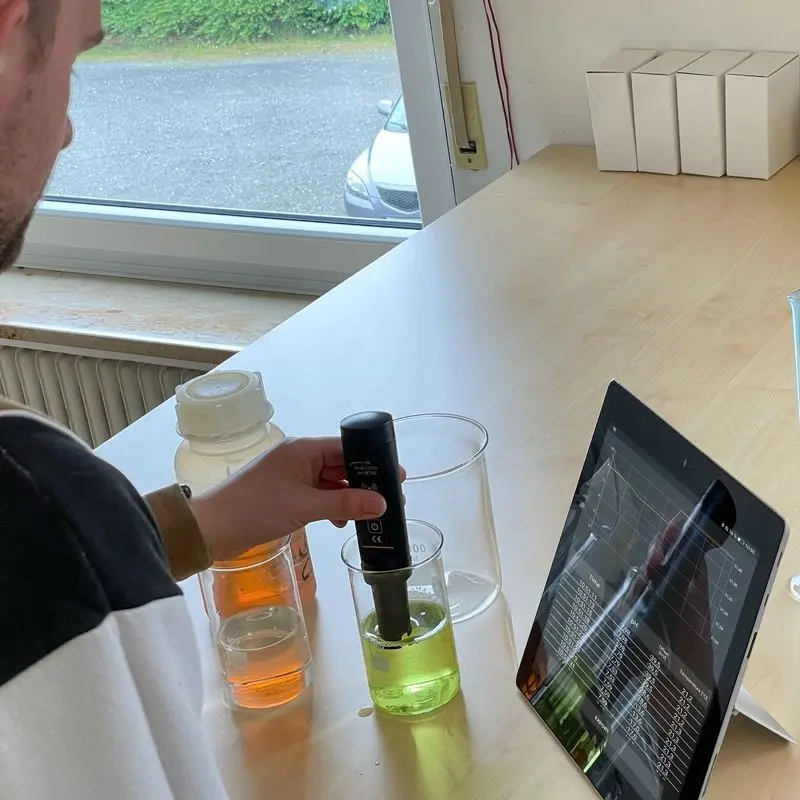

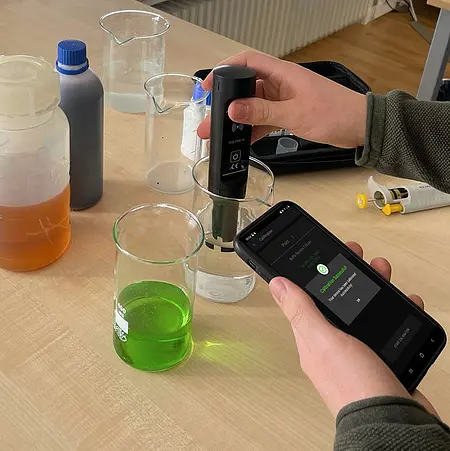

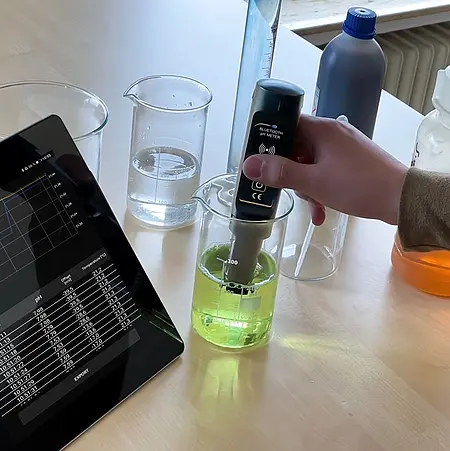

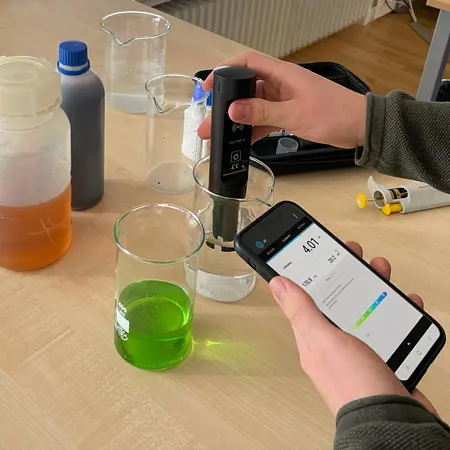

IoT Meter / IoT Sensor Application picture

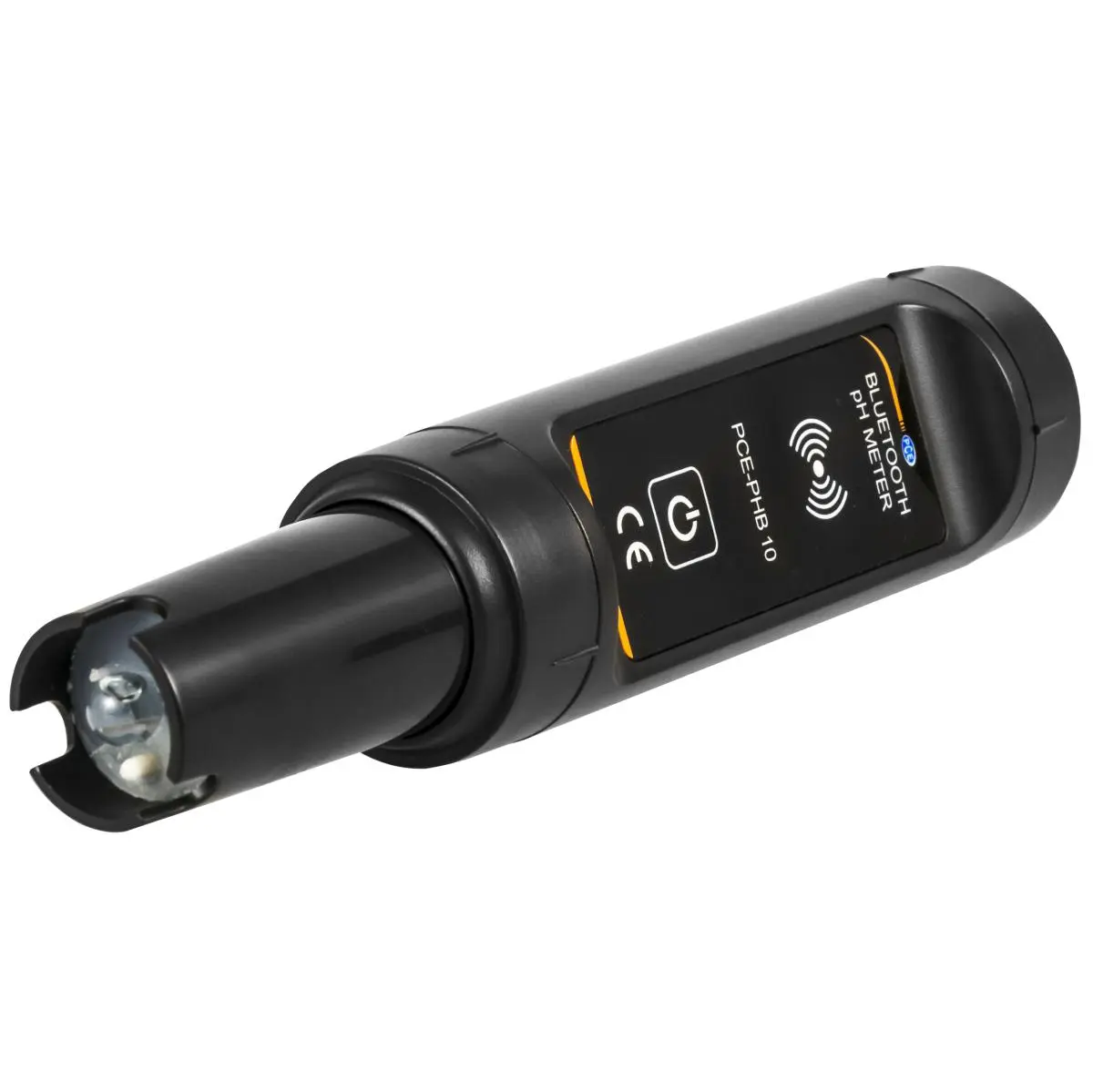

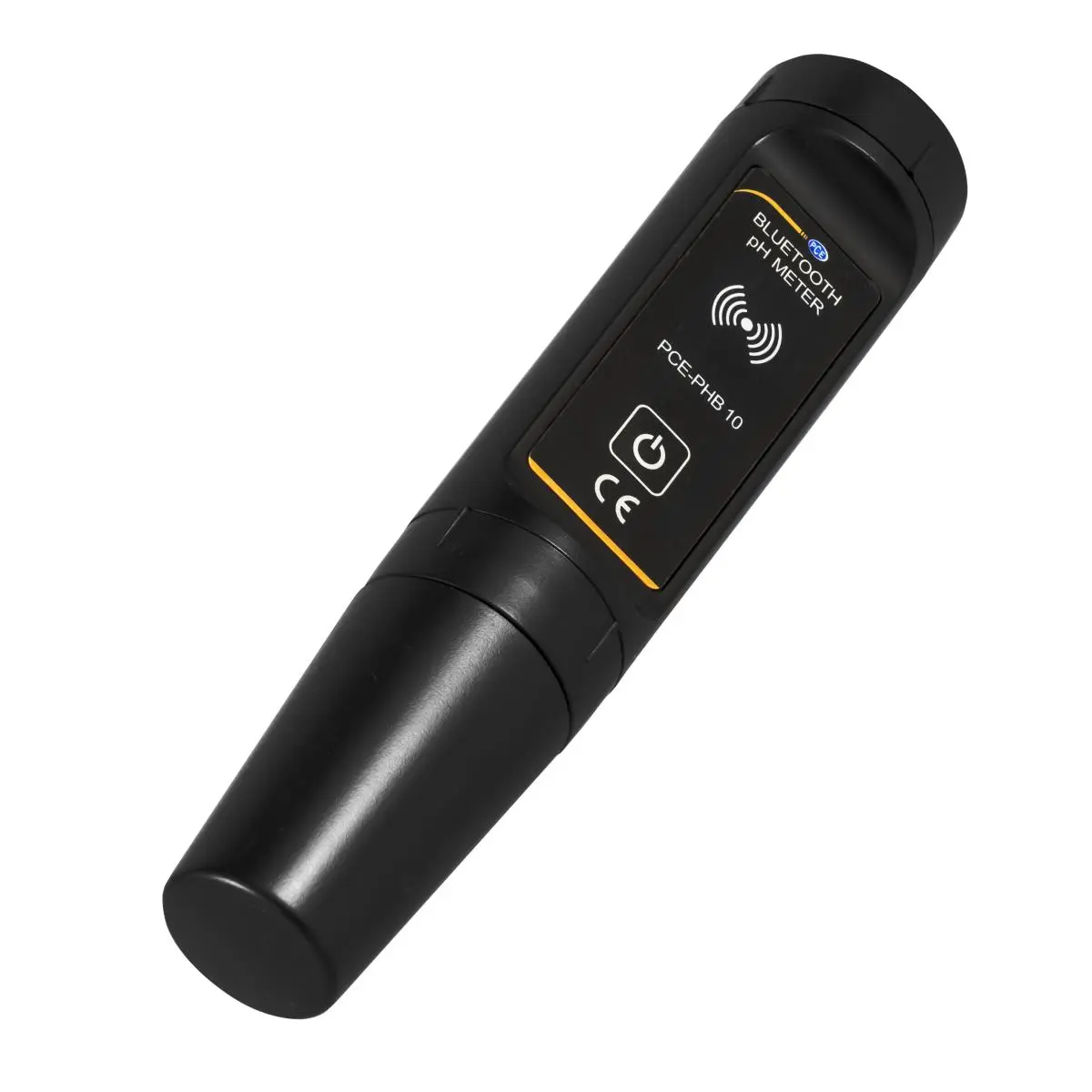

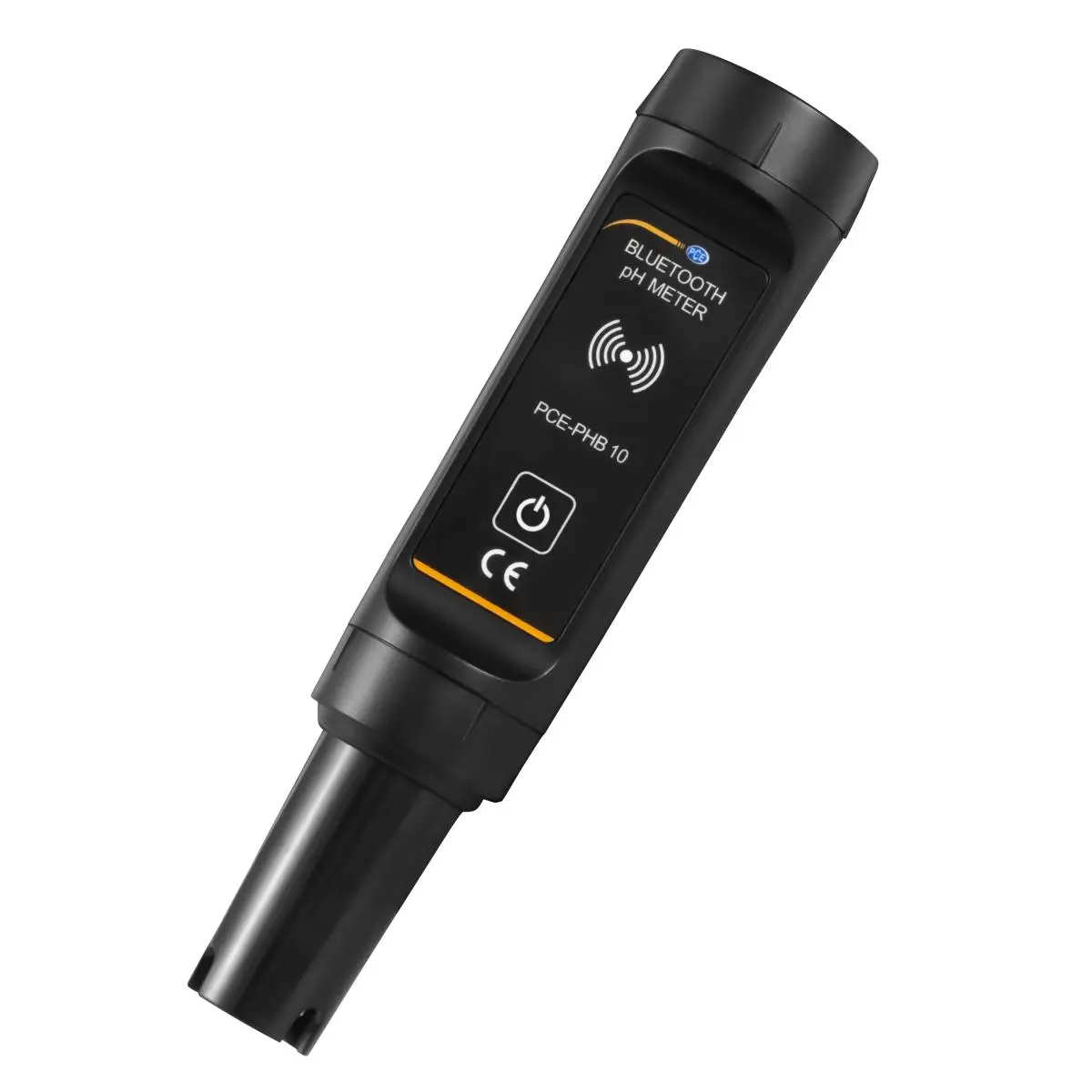

IoT Sensor PCE-PHB 10 Especially for Outdoor Use

Order no.: PCE-PHB 10

GTIN (EAN): 4250348723185

Accessory

ISO certificate CAL-PCE-PH for pH meters

₹11,001.00

Description

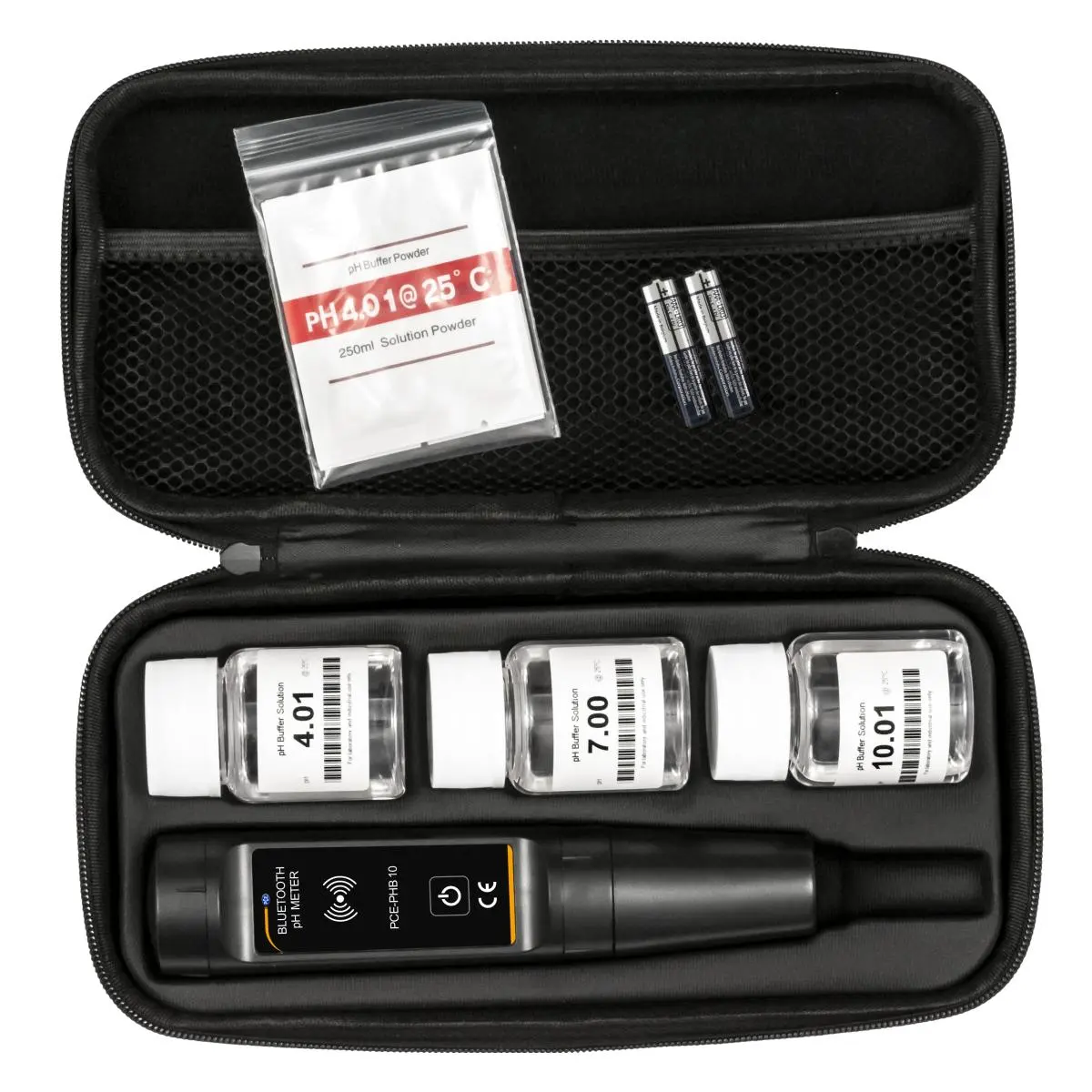

Bluetooth IoT Sensor with references included / Measuring range -2.0 ... 20.0 pH / Optional with calibration certificate / Temperature compensation between 0 ... 100°C (32 ... 212°F) / Exchangeable batteries / Transport bag / Removable electrode

The IoT sensor with a measuring range of -2… 20 pH is used to analyze liquid samples. Thus, the water quality of swimming pools, lakes or rivers can be determined with the IoT sensor. A 3-point calibration can be carried out on the IoT sensor so that the measurement result is as accurate as possible. In addition, an automatic temperature compensation is carried out for each measurement.

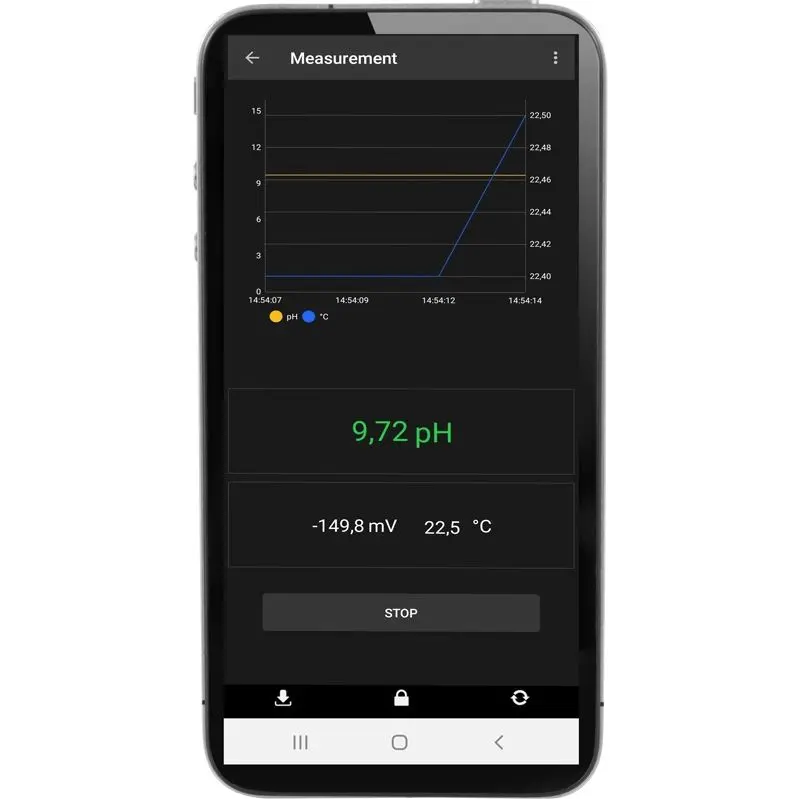

In order to operate the IoT sensor, it must be connected to an Android capable device. The corresponding app for the IoT sensor can be downloaded free of charge from the Play Store. The measured values are displayed and saved with the app for the IoT sensor. After the measurement data have been saved, a PDF report can be generated via the app.

Highlights

Specification

Direct voltage DC
Measuring range	-2000 ... +2000 mV
Resolution	0,1 mV
Accuracy	±0.2 mV

pH
Measuring range	-2 ... +20 pH
Resolution	0,01 pH
Accuracy	±0.02 pH

General technical data
Temperature compensation	Automatic: 0 to 100°C / 32 ... 212°F (resolution 0.1°C / 0.18°F)
Measuring interval	2 ... 3 s
Interface	Bluetooth
Number of calibration points	3

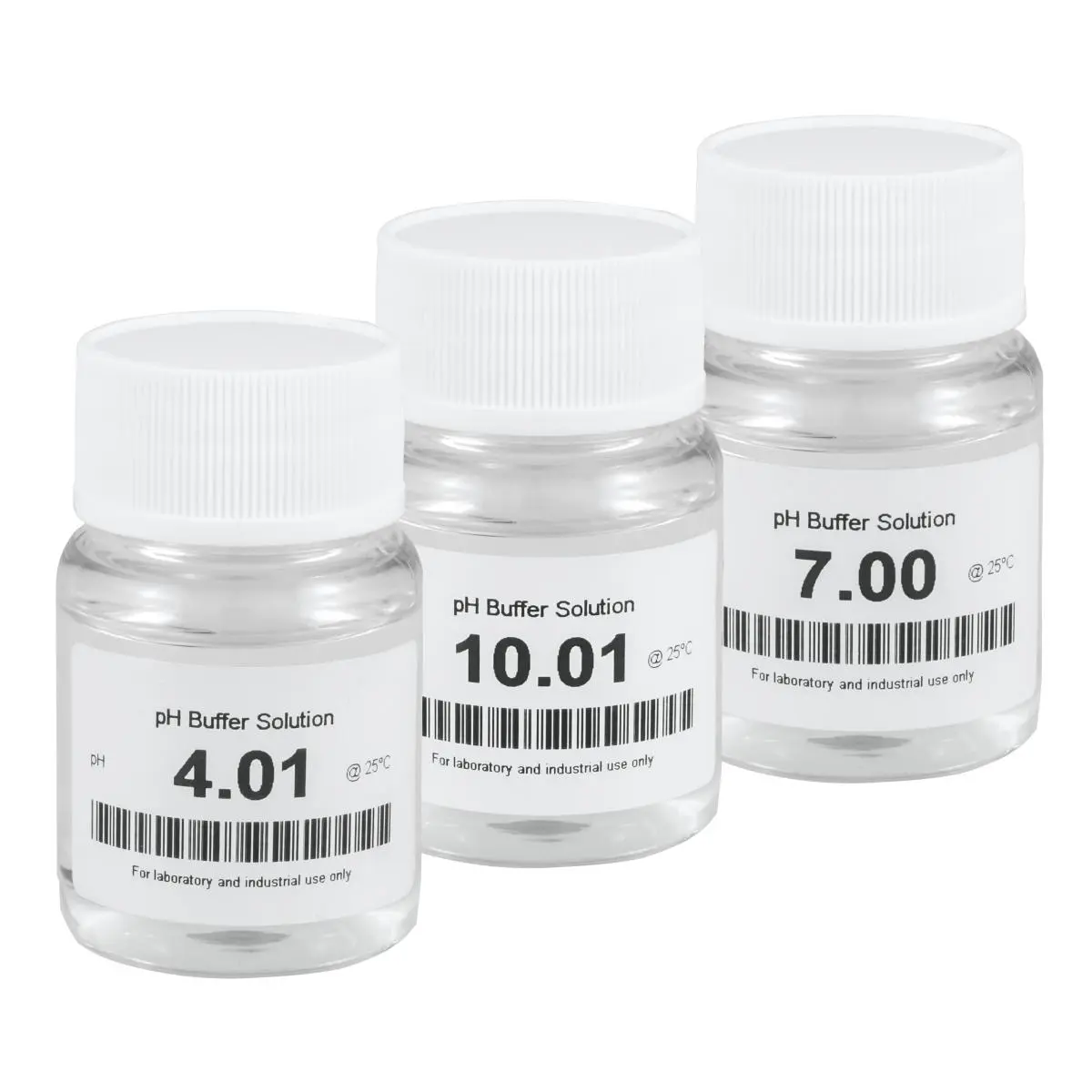

Calibration	Automatically calibrated with pH buffer solutions 4.01 / 7.00 / 10.01 Calibration temperature coefficient: 25°C / 77°F
Measurement mode	continuously
Maximum radio range	10 m
Protection class (device)	IP54
(Rechargeable) battery	2 x 1,5 V AAA battery , Alkali-manganese
Capacity	1200 mAh
Operating conditions	0 ... 50 °C , 0 ... 80 % RH
Storage conditions	0 ... 50 °C , 0 ... 80 % RH
Dimensions ( L x W x H )	185 x 40 x 40 mm
Weight	100 g
