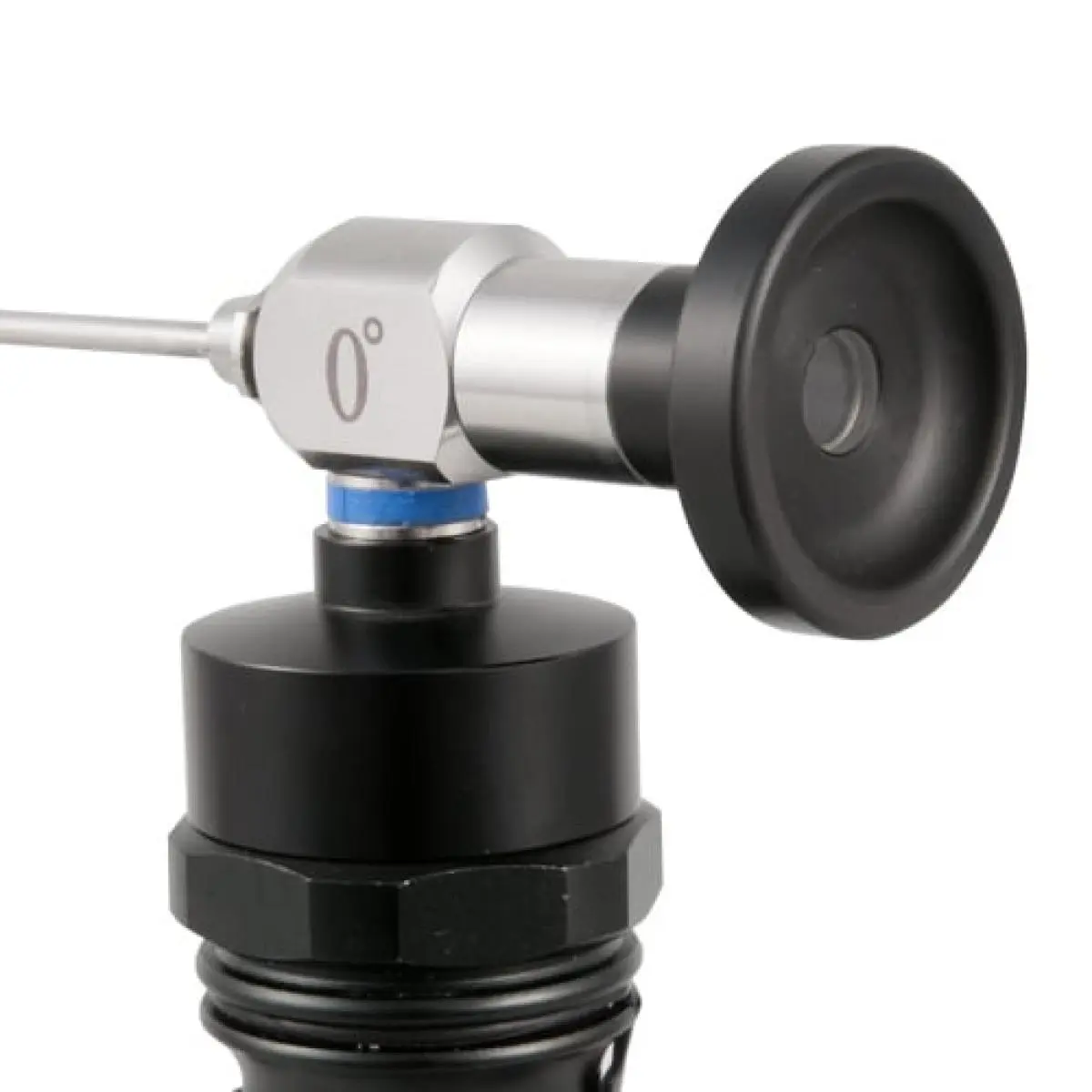

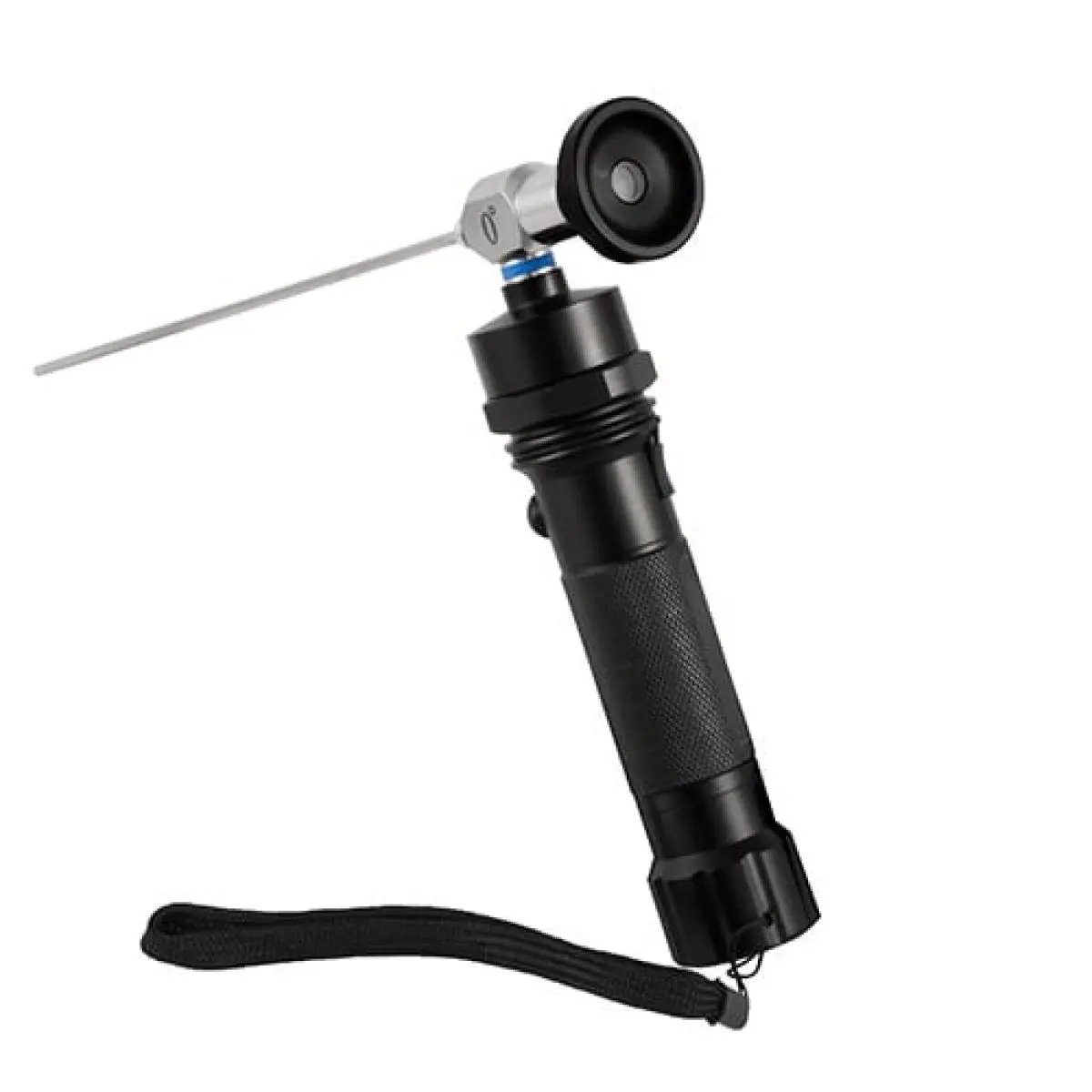

Rigid inspection camera for visual inspection in small and narrow holes and cavities. With a diameter of 2.7 mm / 0.11 in and a length of 175 mm / 6.9 in, this rigid inspection camera is very versatile. The integrated LED lamp allows for a very good illumination of cavities to be inspected. For image transmission, this rigid inspection camera uses a lens system with a field of view of 45°. The rigid inspection camera is robust and designed for industrial environments. This rigid inspection camera provides very high resolution images with high sharpness. A mirror attachment is available as an option on this rigid inspection camera. The rigid inspection camera is very well suited for inspections of small objects.
| General technical data | |
| Light source | LED |
| Field of vision (FOV) | 45°C |
| Dimensions | Useful length: 175 mm Diameter: 2.7 mm |
| angle of view | 0 ° |
| Protection class (device) | IP54 |
| Protection class (additional information) | Probe shaft: IP67 |
| Power supply | Power supply: 4.2V DC, 500 mA |
| Connector type | Device-europlug |
| (Rechargeable) battery | 1 x 3,7 V 18650 , Lithium-ion battery |
| Capacity | 4800 mAh |
| Performance | 17,76 Wh |
| Operating conditions | -10 ... 60 °C , 0 ... 85 % RH |
| Storage conditions | -10 ... 60 °C , 0 ... 85 % RH |
| Dimensions ( L x W x H ) | 230 x 35 x 170 mm |
| Weight | 182 g |
