The Industrial Borescope is used for inspecting hard-to-reach areas such as engines, pipelines, machines and cavities, and enables non-destructive visual inspection without dismantling.
The Industrial Borescope has a 4.5-inch TFT colour display with a resolution of 854 × 480 pixels, as well as an HD camera probe with up to 1280 × 720 pixels. The Industrial Borescope offers direct image and video recording onto a Micro SD card, so no external devices are required. An integrated, adjustable LED illumination ensures good visibility even in dark areas, while the digital zoom allows details to be viewed more closely. The camera probe is also protected to IP67, making it suitable for use in demanding environments. In addition, various attachments such as a magnet, hook or mirror can be used to grip objects or access side viewing areas.
The Industrial Borescope is used by mechanics, tradespeople and technicians to quickly and reliably detect damage, blockages or wear in hard-to-reach areas.
Not suitable for medical use.
| General technical data | |
| Type of cable | PVC |
| Cable length | 3 m |
| Display type | TFT colour display |
| Display size | 4,5 in |
| Display resolution | 854 x 480 pixels |
| Storage medium | Micro SD card |
| Storage capacity | 8 GB |
| Memory capacity (additional information) | Up to 128 GB possible |

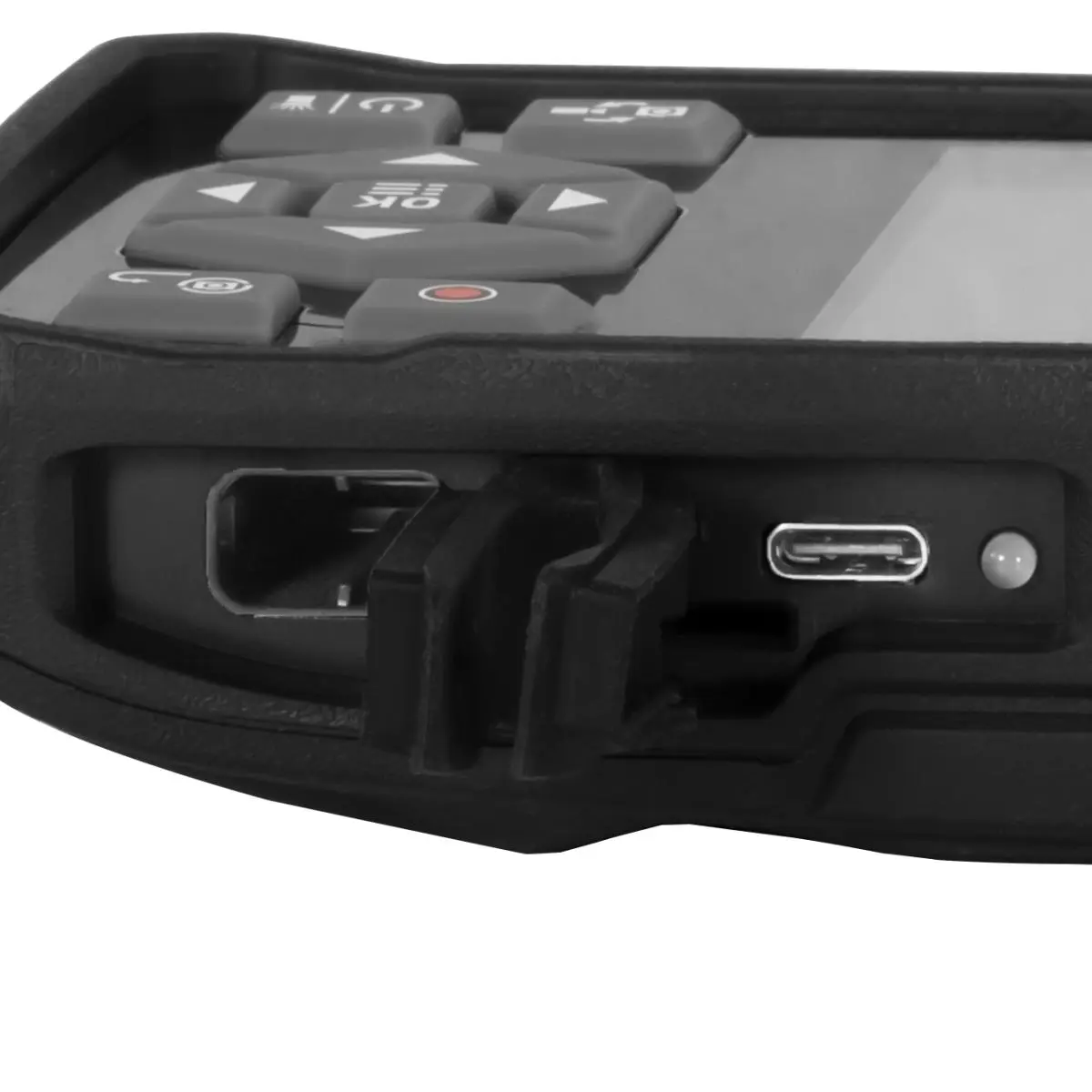

| Interface | USB-C |
| Camera resolution | 1280 x 720 |
| Camera orientation | frontal 0° |
| Operating time | 3 h |
| Automatic power-off from...to | 30 ... 120 min. |
| Camera head diameter | 5,5 mm |
| Camera probe length | 32 mm |
| Camera probe material | Metal |
| Camera probe movement | semi-rigid |
| Protection class camera probe | IP67 |
| Field of vision | 70 ° |
| Depth of field of vision | 30 ... 80 mm |
| Luminous intensity | 6 LEDs |
| Image / video format | mp4, JPG |
| Frame rate | 25 FPS |
| Menu language | English, English (GB), French, Spanish |
| Protection class (device) | IP67 |
| Power supply | 5V DC, 1.5 A |
| (Rechargeable) battery | 1 x 3,7 V internal , Lithium-ion polymer battery |
| Capacity | 2000 mAh |
| Operating conditions | -10 ... 50 °C , 0 ... 85 % RH |
| Storage conditions | -20 ... 60 °C , 0 ... 85 % RH |
| Dimensions ( L x W x H ) | 35 x 170 x 83 mm |
| Weight | 250 g |
