HVAC Meter PCE-IVE 320
Industrial
endoscope, videoscope or borescope on an extension rod / Ideal for
gutter, chimney and home inspections as well as under-vehicle security
and tactical use

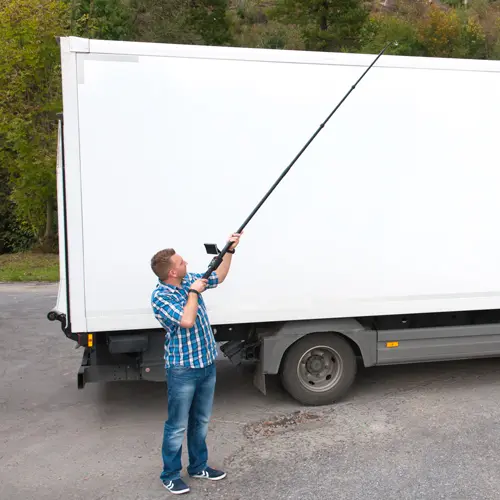

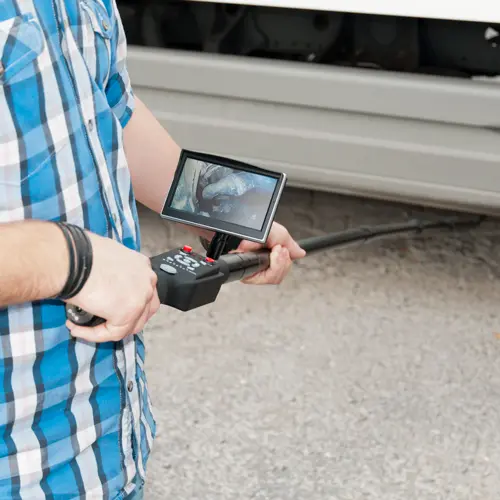

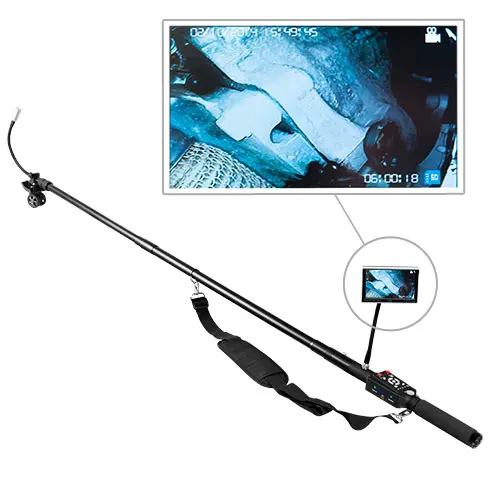

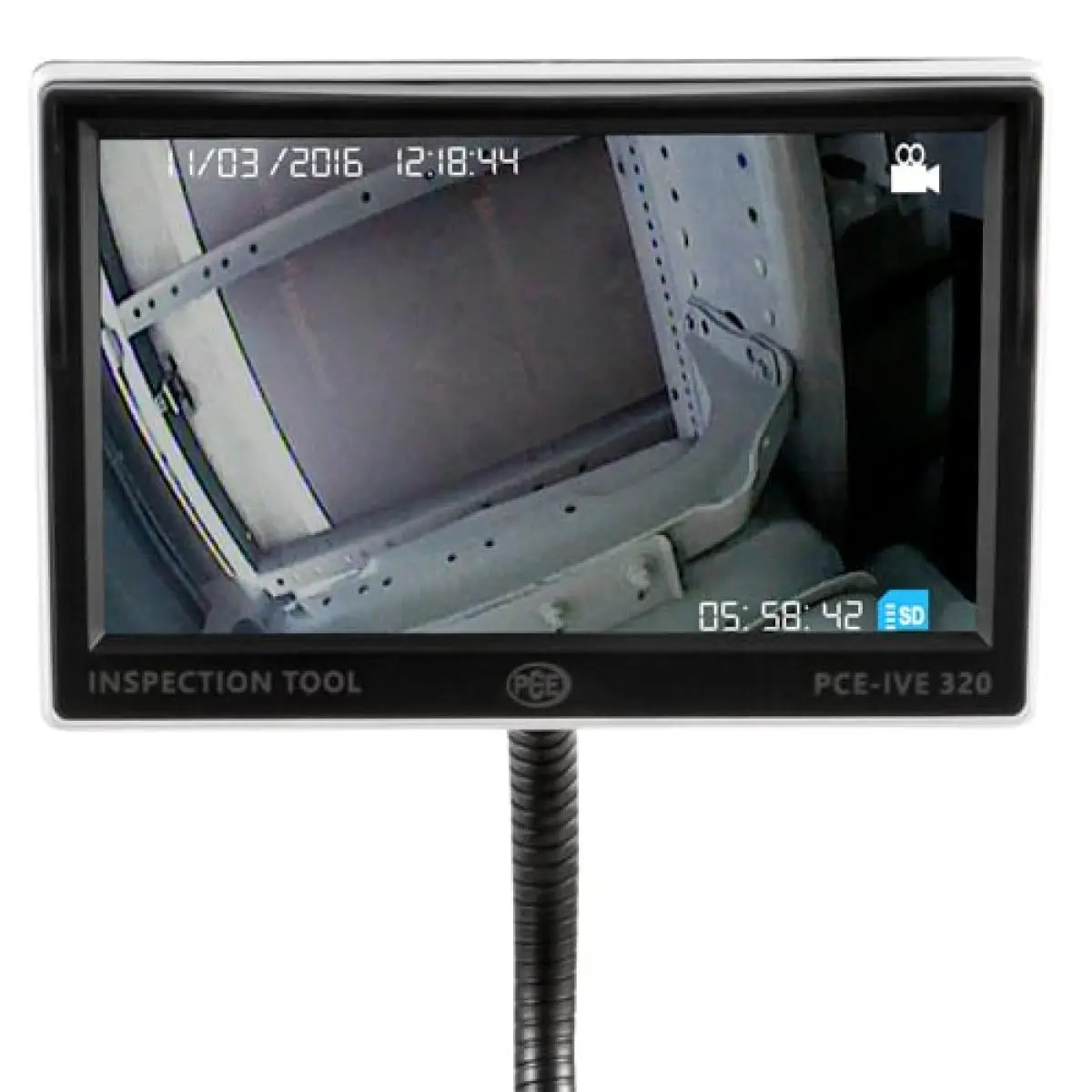

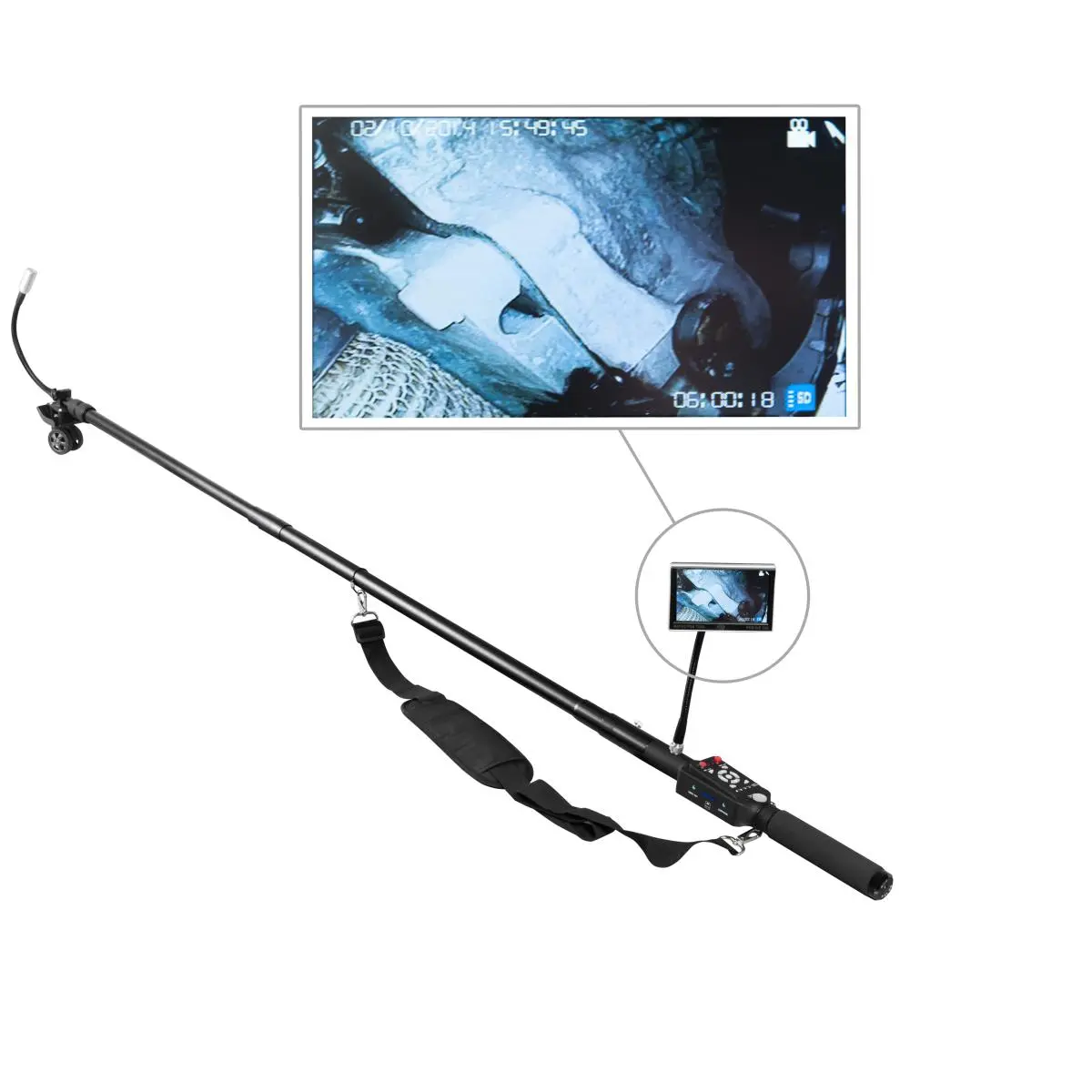

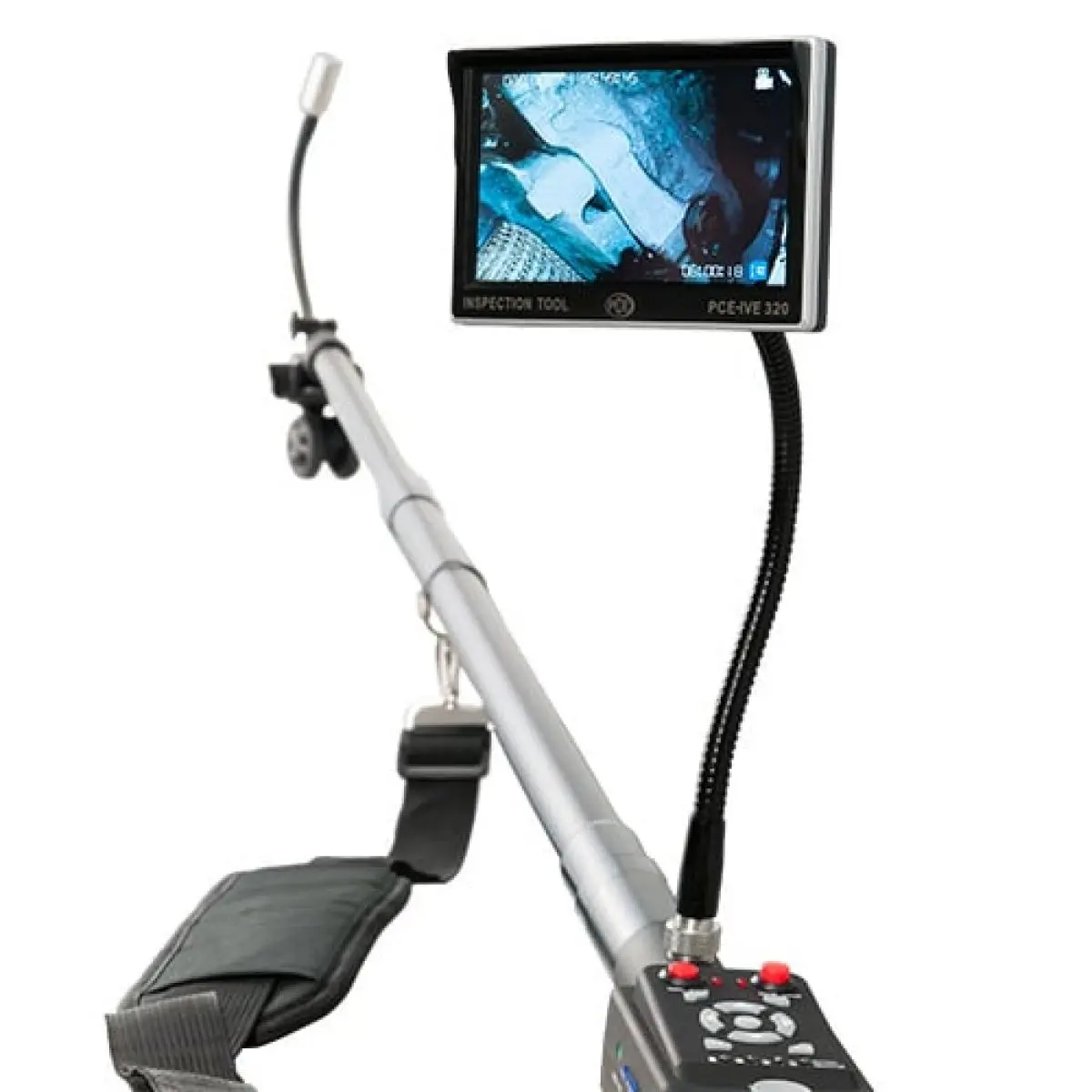

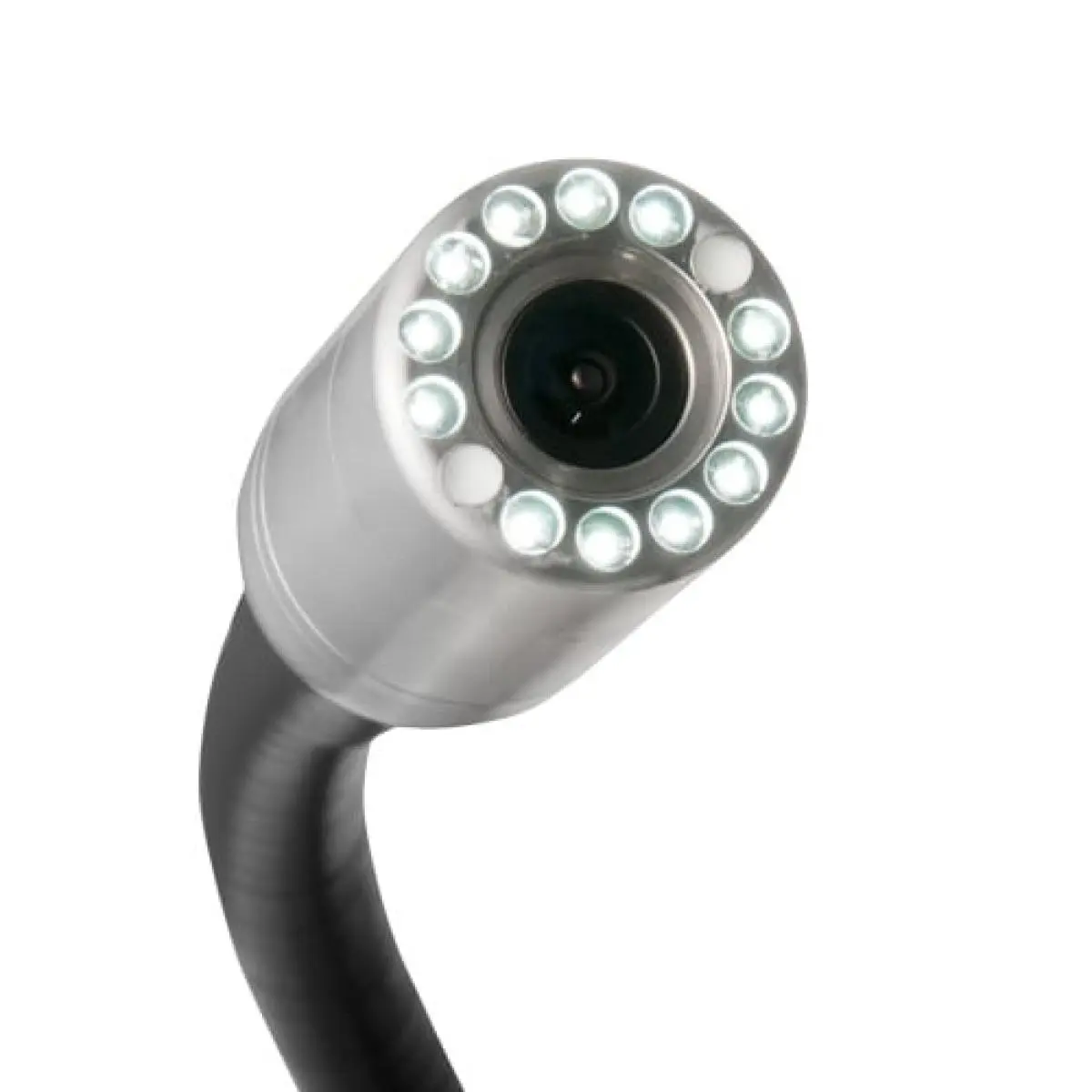

The HVAC meter is the ideal solution for inspecting hard-to-reach places. This HVACR tester , inspection camera, videoscope or industrial borescope comes with a rigid telescoping pole that extends up to 2.3 m (7.55') in length (3 m long total with camera connection). Plus, the HVACR tester's 0.3 megapixel camera has a 23 mm (0.91") diameter flexible head with microphone and 12 white LEDs offering adjustable brightness. A 12.7 cm / 5 " LCD monitor with 800 x 480 pixel resolution allows for live viewing. For video recording, the PCE-IVE 320 accommodates SD memory cards from 2 ... 32 GB. An SD card reader is included in the delivery contents.

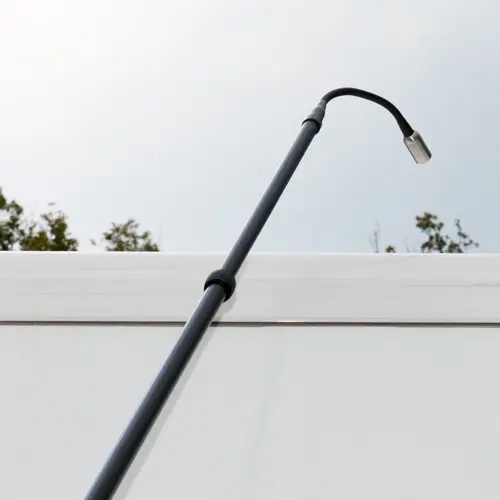

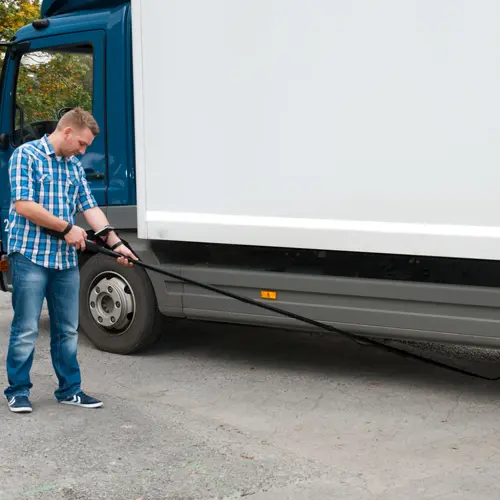

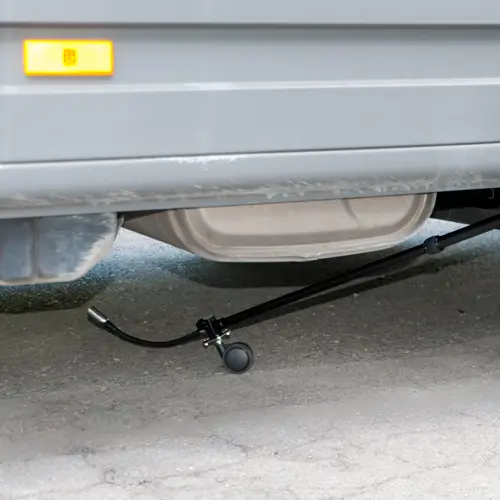

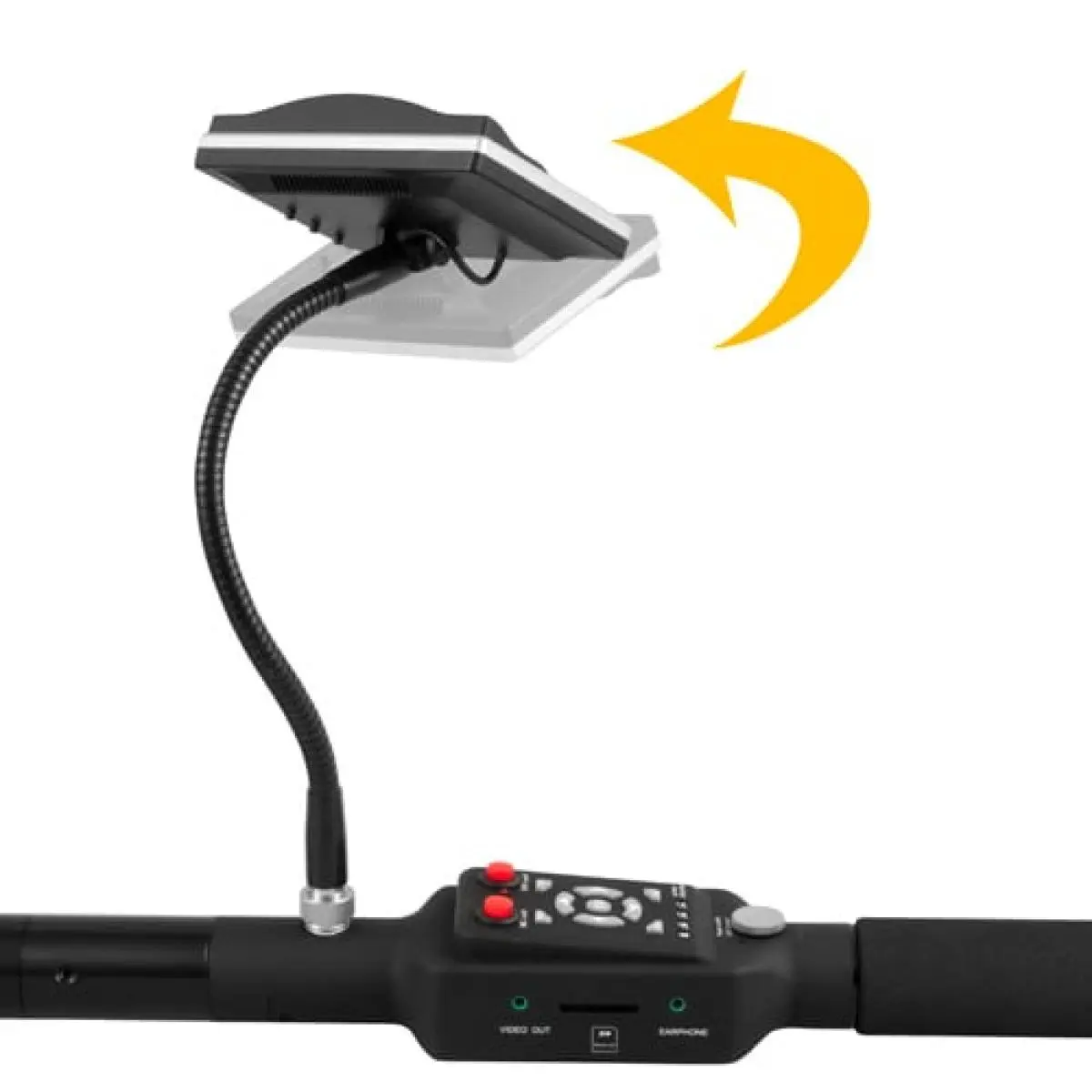

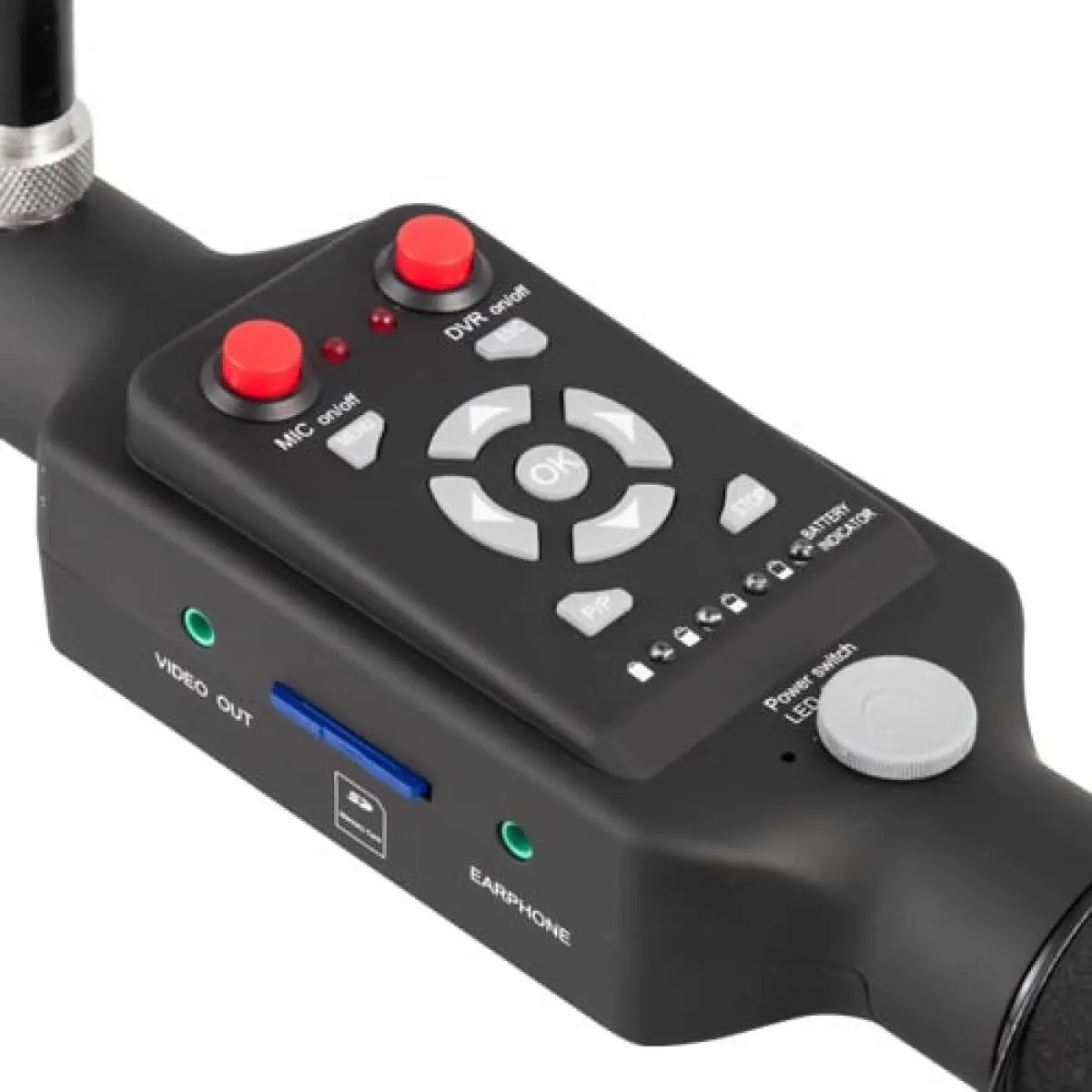

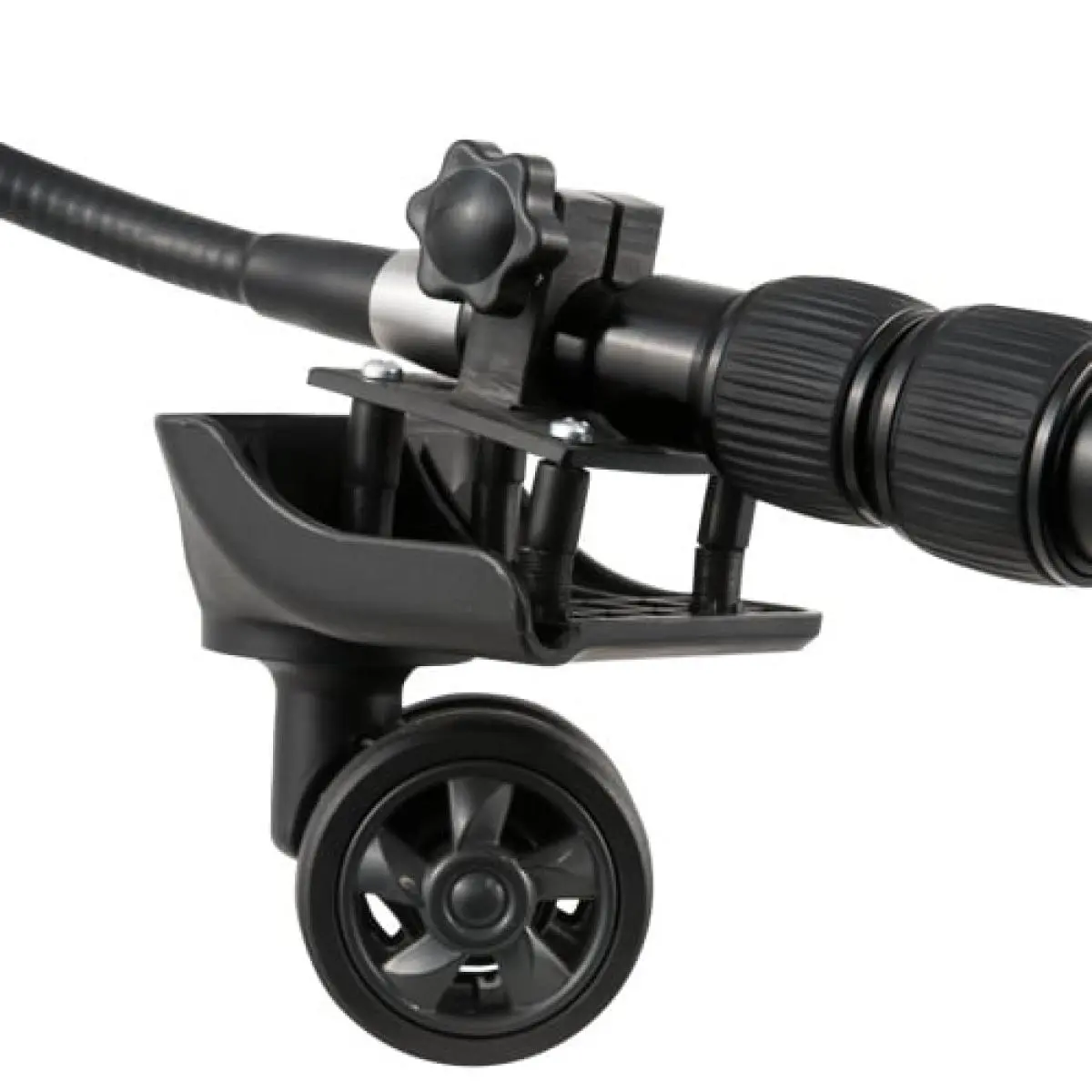

The HVAC meter allows quick and easy viewing, monitoring and diagnosis of inaccessible areas of machines, engines and equipment. The endoscope is a useful tool for recognizing potential hazards or broken parts. The device's flexible camera head can be bent to capture images at any angle. Includes wheel attachment for under vehicle inspection. The brightness of the LEDs on the camera head can be conveniently adjusted by means of a thumb wheel located on the handle of the telescoping pole. The HVACR tester also features a microphone for obtaining audio (headphone included).
***Not for medical use***
| General technical data | |
| Display type | LCD |
| Display size | 5 in |
| Display resolution | 800 x 480 pixels |
| Storage medium | SD card |
| Storage capacity | 32 GB |
| Memory capacity (additional information) | possible SD card capacities 2 ...32 GB |
| Interface | SD card |
| Sensor | CMOS |
| Camera resolution | 0.3 megapixels |
| Camera orientation | frontal 0° |
| Camera head diameter | 23 mm |
| Camera probe length | 320 mm |
| Camera probe movement | flexible |
| Other dimensions | Telescopic pole: Maximum length: 2.3 m Minimum length: 0.9 m |
| Luminous intensity | 12 white LEDs |
| Image / video format | mp4 |
| Menu language | English, German, French |
| Protection class (device) | IP20 |
| Power supply | AC 100 ... 240 V | Hz 50/60 |
| Connector type | Device-europlug |
| (Rechargeable) battery | 1 x 3,7 V internal , Lithium-ion polymer battery |
| Capacity | 1500 mAh |
| Operating conditions | -10 ... 50 °C , 0 ... 95 % RH |
| Storage conditions | -20 ... 70 °C , 0 ... 95 % RH |
| Dimensions ( L x W x H ) | 130 x 80 x 10 mm |
| Weight | 3700 g |
