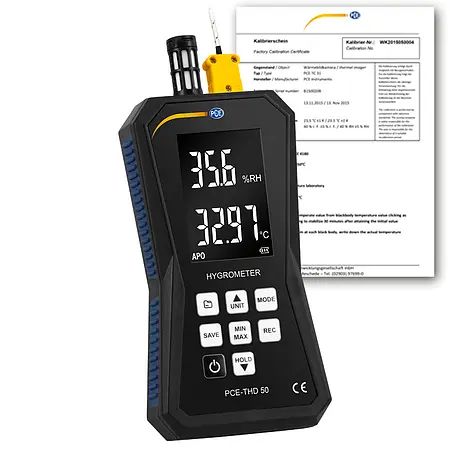

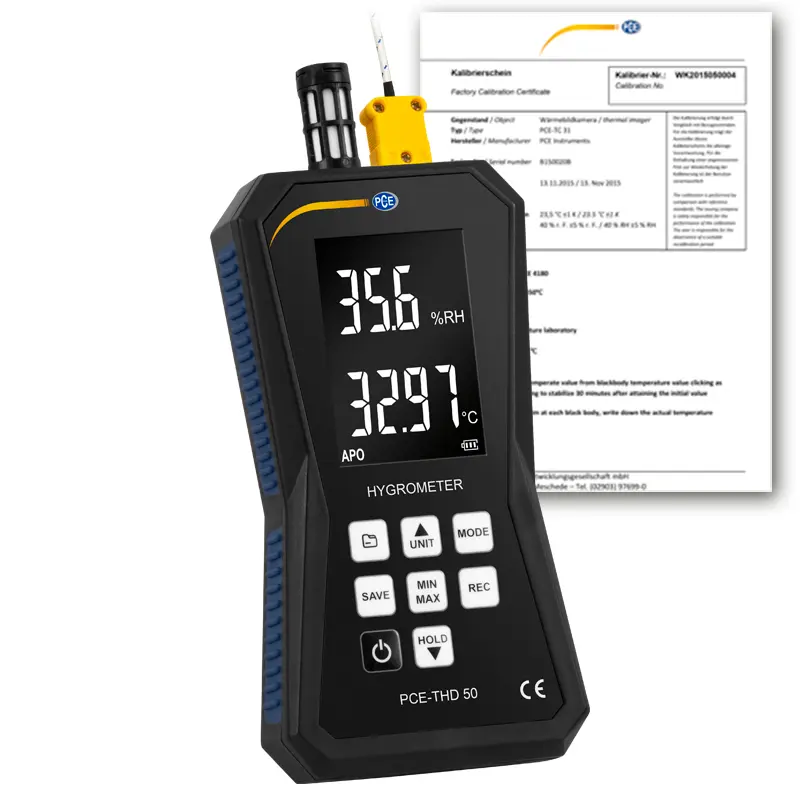

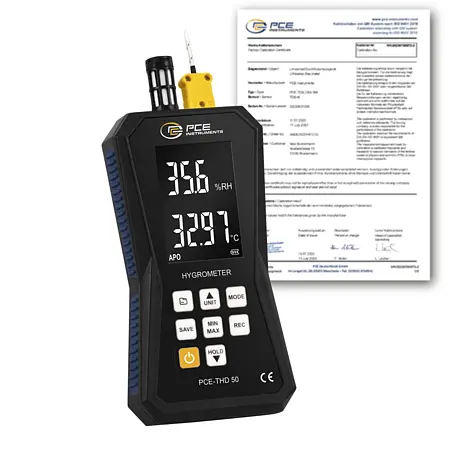

Humidity Detector PCE-THD 50-ICA

Humidity Detector PCE-THD 50-ICA incl. ISO Calibration Certificate

Order no.: PCE-THD 50-ICA
GTIN (EAN): 4250348729583
₹44,661.00
₹52,699.98
price ex. (VAT / delivery)
:
4250348729583
PCE-THD 50-ICA
Delivery time:5-7 working days

Description

Humidity detector with connection for thermocouple type K / Measuring range -20 ... 60 °C /
Rechargeable battery / Micro USB data interface / PC software /
Data memory for 32,000 measuring points / Optionally with ISO calibration certificate


The humidity detector is the ideal measuring device to check the climatic conditions in, for example, warehouses, production halls or greenhouses. The humidity detector can measure the ambient temperature and humidity. Temperatures between -20 ... 60 °C (-4 ... 140 °F) can be measured reliably and quickly by the humidity detector. In addition, the dew point and wet bulb temperature is calculated and displayed by the humidity detector. In addition, any type K thermocouple can be connected to the humidity detector in a temperature range of -100 ... 1372 °C (-148 ... 2501 °F). As soon as the connected thermocouple has been recognized, the temperature display automatically switches from the humidity detector to the thermocouple.

Measured values ​​can be recorded with the data logger function of the humidity detector. The large memory of 32,000 measuring points in the humidity detector allows recording of measured values ​​over a long period of time. After data logging, all logged measuring points can be read out and analyzed via the micro-USB interface of the humidity detector and the free software. The data logged by the humidity detector can be exported in CSV file format for further processing.

A 3.7 V Li-ion battery is installed in the humidity detector to enable mobile use. This battery can be recharged via the micro-USB interface on the humidity detector.

Highlights

- Measuring range -20 ... 60 °C / -4 ... 140 °F
- Temperature, humidity, dew point
- Backlit LC display
- Micro USB interface
- Rechargeable battery
- Data memory for 32,000 readings
- Wet bulb temperature
- Optionally with ISO calibration certificate
- incl. ISO-Calibration Certificate

Specification

Wet bulb temperature
Measuring range  -20 ... +60 °C
Resolution  0,1 °C
Accuracy  ±0.5°C @ 0 … 45°C / ±1.0°C in other ranges

Wet bulb temperature
Measuring range  -4 ... +140 °F
Resolution  0,018 °F
Accuracy  ±1.0°F @ 32 … 113°F, ±2.0°F in other ranges

Type K temperature
Measuring range  -100 ... +1372 °C
Resolution  0,01 °C
Accuracy  ±(1% ±1°C / ±1.8°F)

Type K temperature
Measuring range  -148 ... +2501 °F
Resolution  0,018 °F
Accuracy  ±(1% ±1.8°F)

Dew point
Measuring range  -50 ... +60 °C
Resolution  0,1 °C
Accuracy  ±(1% ±1°C / 1.8°F)

Dew point
Measuring range  58 ... 140 °F
Resolution  0,18 °F
Accuracy  1.8°F

Relative humidity
Measuring range  0 ... 100 %
Resolution  0,1 %
Accuracy  ±2.2 per cent relative humidity (10 to 90 per cent relative humidity) / ±3.2 per cent relative humidity (<10, >90 per cent relative humidity) @ 23°C (73.4 °F)

Temperature
Measuring range  -20 ... +60 °C
Resolution  0,01 °C
Accuracy  ±0.5°C @ 0 … 45°C / ±1.0°C in other ranges

Temperature
Measuring range  -4 ... +140 °F
Resolution  0,018 °F
Accuracy  ±1.0°F @ 32 … 113°F / ±2.0°F in other ranges

General technical data
Measuring functions  MIN, MAX, HOLD
Display type  LCD with backlight
Measuring rate  3 Hz
Storage medium  Internal memory
Storage capacity  32000 Measurements
Memory capacity (additional information)  99 measurement points can only be read on the measuring device, 32,000 measurement points can be read on a PC
Interface  Micro-USB
Response time  10 s
Automatic power-off  10 min
Menu language  English, English (GB)
Protection class (device)  IP20
Power supply  5 V DC
(Rechargeable) battery  1 x 3,7 V internal , Lithium-ion polymer battery
Capacity  2500 mAh
Operating conditions  0 ... 40 °C , 0 ... 80 % RH
Storage conditions  -10 ... 60 °C , 0 ... 80 % RH
Dimensions ( L x W x H )  162 x 88 x 32 mm
Weight  248 g

Delivery Scope

1 x Humidity Detector PCE-THD 50-ICA
1 x Type K thermocouple
1 x USB cable
1 x PC software
1 x Instruction manual
1 x ISO-Calibration Certificate
