Health & Safety PCE-GA 8

Health & Safety PCE-GA 8

Order no.: PCE-GA 8
GTIN (EAN): 4250348747648
1 pc.

Description

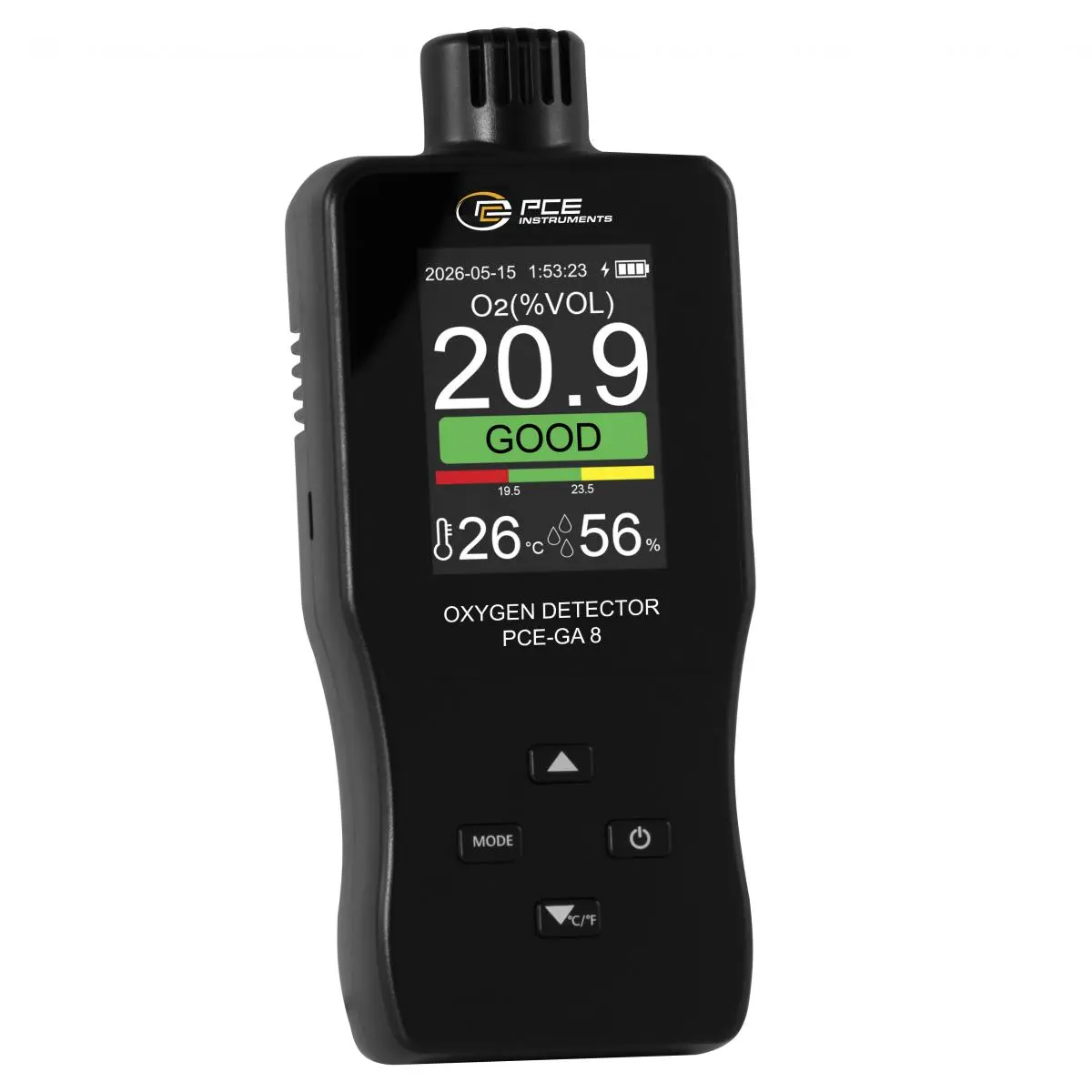

Versatile Health & Safety with real-time data display and USB charging

The Health & Safety is a reliable measuring instrument for monitoring the oxygen concentration in ambient air. With a measuring range of 0 to 30% vol. oxygen and a resolution of 0.1% vol., the Health & Safety delivers precise readings for a wide range of applications in industry, laboratories, storage and occupational safety.

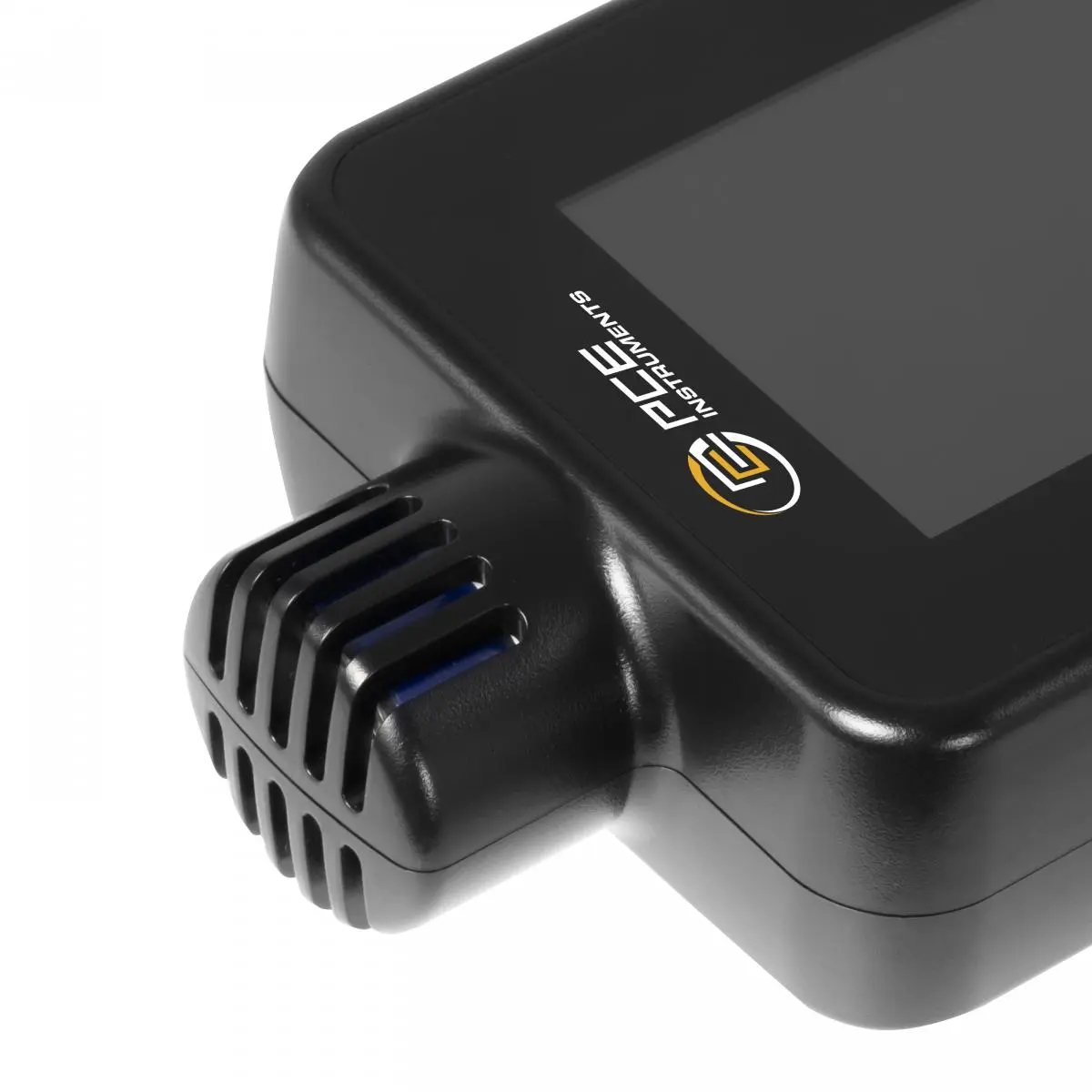

In addition to oxygen measurement, the device also records temperature and humidity. The integrated oxygen, temperature and humidity sensor enables comprehensive monitoring of ambient conditions. Oxygen measurement is performed with an accuracy of ±0.3% of reading, while temperature values in the range of -9 to 55°C and humidity values from 0 to 100% RH are displayed.

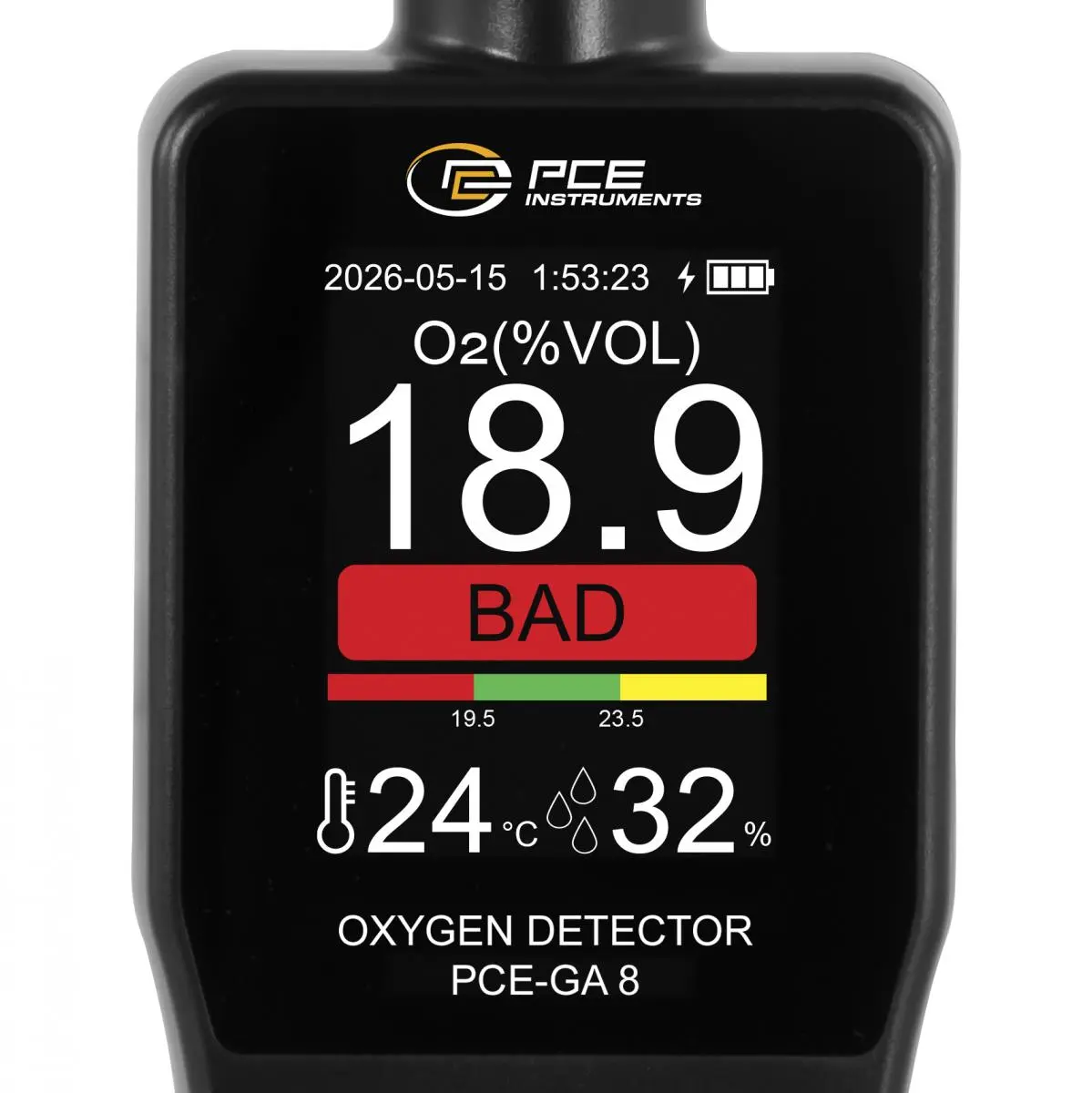

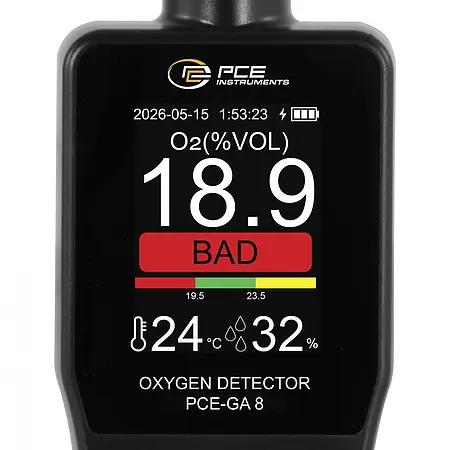

For easy evaluation, the Health & Safety features a graphical trend display. This makes it possible to track changes in measured values directly on the device. In addition, up to 100,000 data sets can be stored, allowing even longer measurement series to be documented reliably.

An adjustable alarm warns the user when oxygen values become critical. This makes the Health & Safety ideal for continuous monitoring of areas where a safe oxygen concentration is important. The built-in 3000 mA lithium battery ensures flexible mobile use and operation independently of a fixed power supply.

This Health & Safety is ideal for applications in industry, laboratories, warehousing, occupational safety and building services. Wherever oxygen concentration needs to be monitored reliably, the Health & Safety supports control of room air and helps to identify critical oxygen values at an early stage.


Highlights

- Oxygen, temperature and humidity sensor
- Memory: 100,000 data sets
- Adjustable alarm
- Graphical trend display
- Built-in 3000 mA lithium battery

Specification

Relative humidity
Measuring range  0 ... 100 %
Resolution  0,1 %
Accuracy  ±5 % RH

Oxygen
Measuring range  0 ... 30 % vol.
Resolution  0,1 % vol.
Accuracy  ±0.3% of reading

Temperature
Measuring range  -9 ... +55 °C
Resolution  1 °C
Accuracy  ±0.5 °C

General technical data
Display type  TFT colour display
Display size  2,8 in
Storage medium  Internal memory
Storage capacity  100000 Data records
Storage interval from  10 s
Storage interval to  600 s
Interface  Micro-USB
Operating time  8 h
Automatic power-off from...to  0 ... 1080 min.
Menu language  English (GB), English
Protection class (device)  IP20
Power supply  5 V DC
(Rechargeable) battery  1 x 3,7 V internal ,
Capacity  3000 mAh
Operating conditions  -9 ... 55 °C , 90 % RH
Storage conditions  -9 ... 55 °C , 90 % RH
Dimensions ( L x W x H )  180 x 76 x 31 mm
Weight  207 g

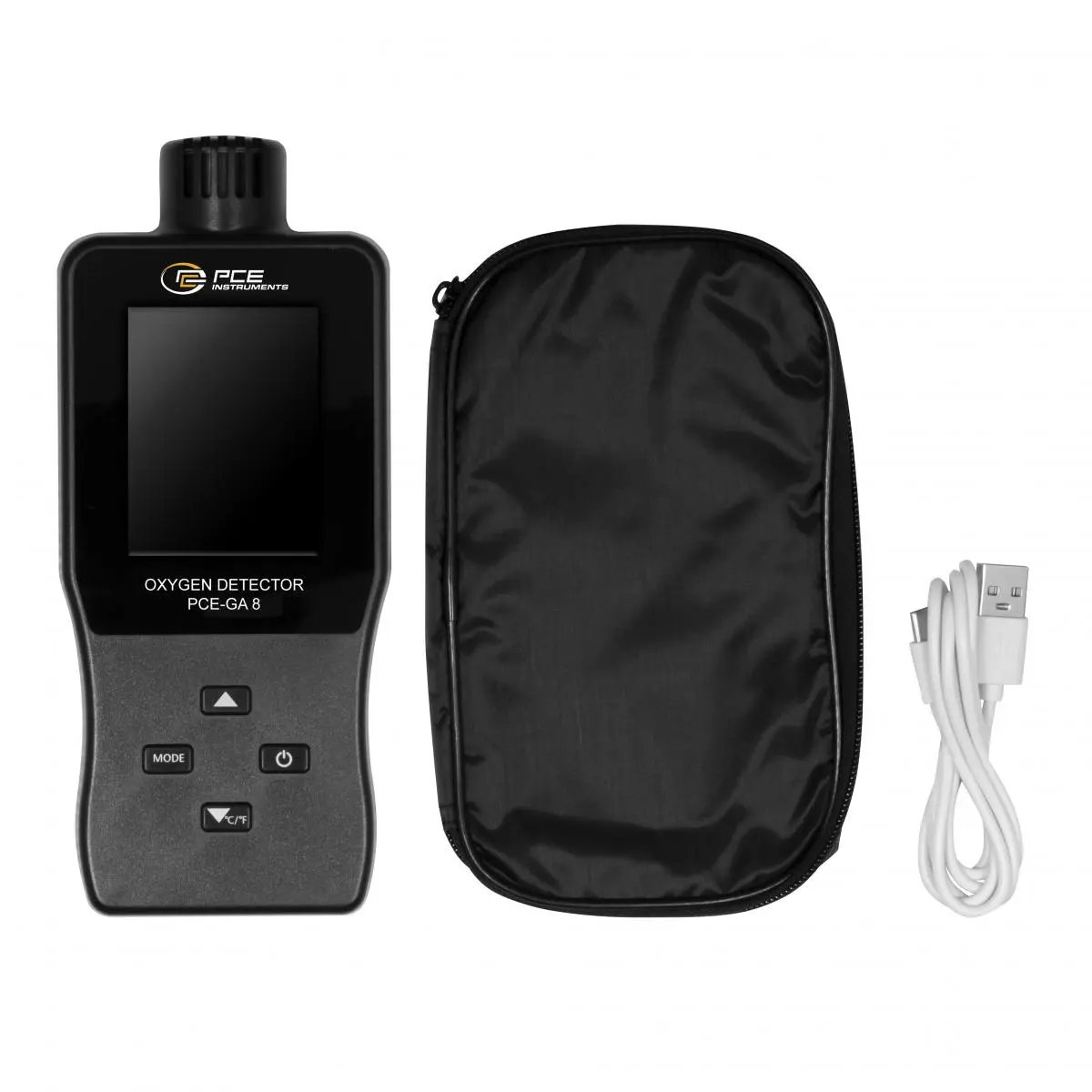

Delivery Scope

1 x Health & Safety PCE-GA 8
1 x USB-C cable
1 x Instruction manual
