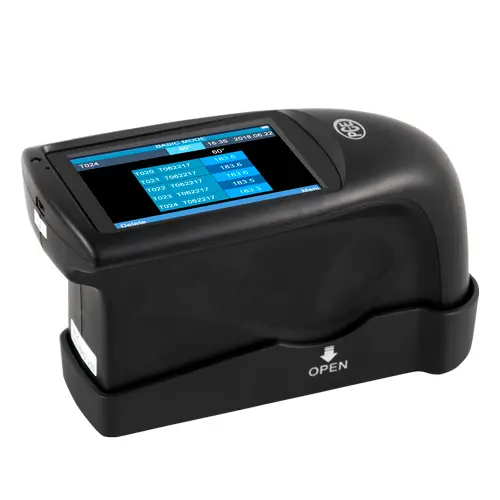

Gloss Meter / Gloss Tester PCE-SGM 60

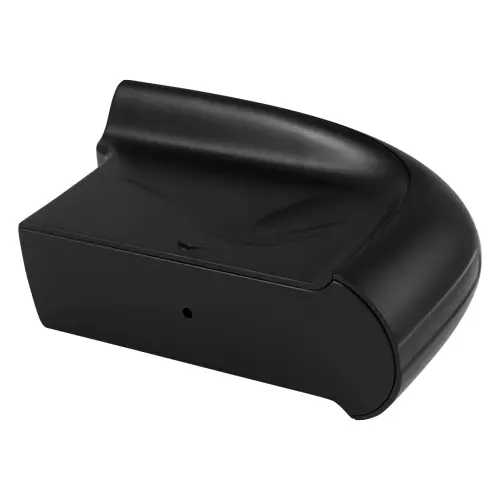

Gloss Meter / Gloss Tester Calibration standard

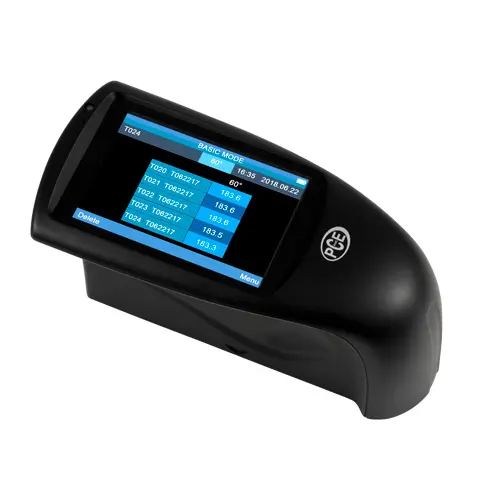

Gloss Meter / Gloss Tester Side view

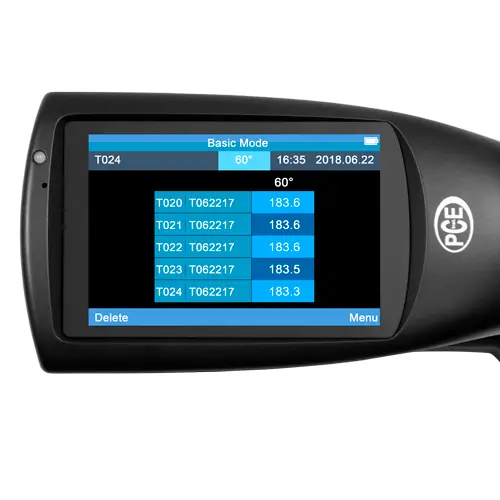

Gloss Meter / Gloss Tester Display
Gloss Meter / Gloss Tester Sensor

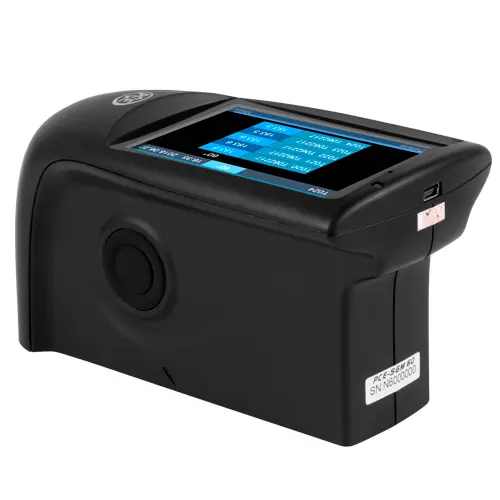

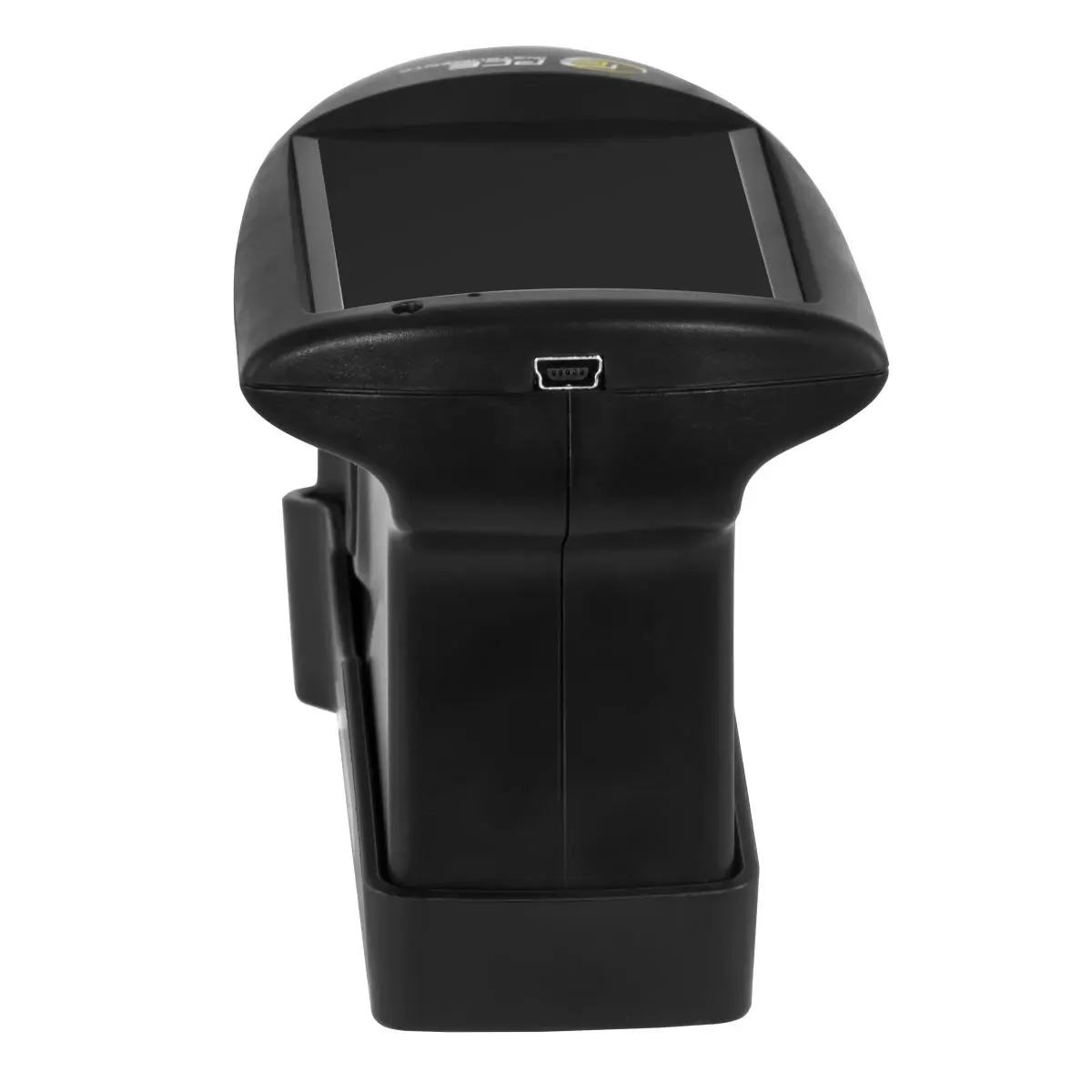

Gloss Meter / Gloss Tester Connections

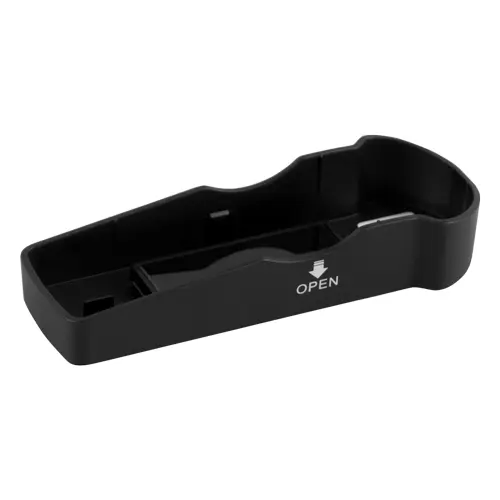

Gloss Meter / Gloss Tester Calibration standard

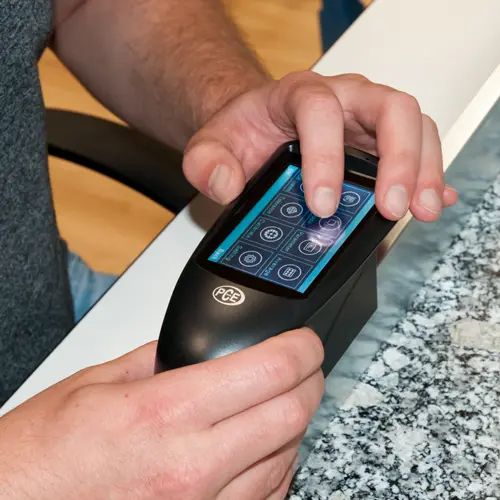

Gloss Meter / Gloss Tester Application picture

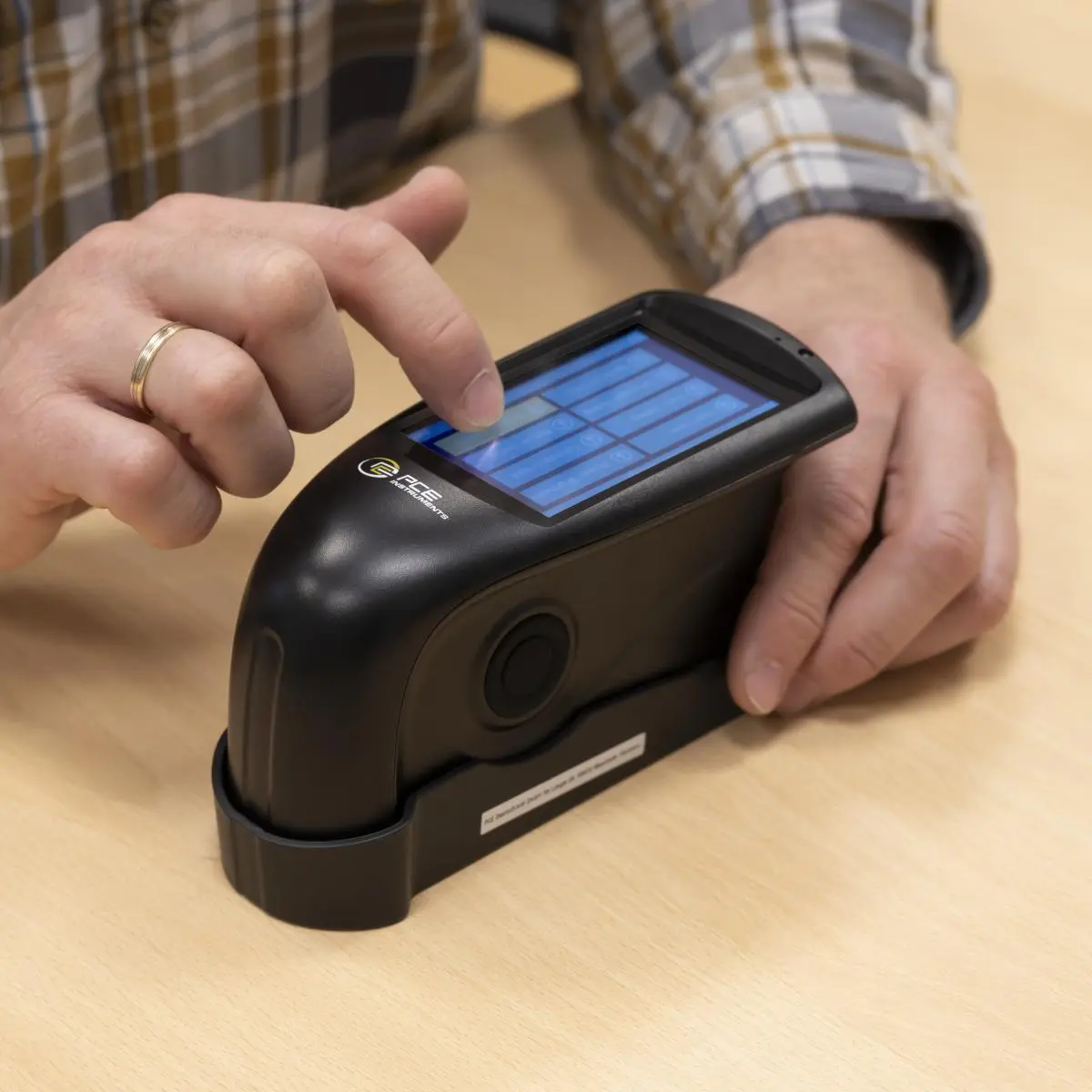

Gloss Meter / Gloss Tester Application picture

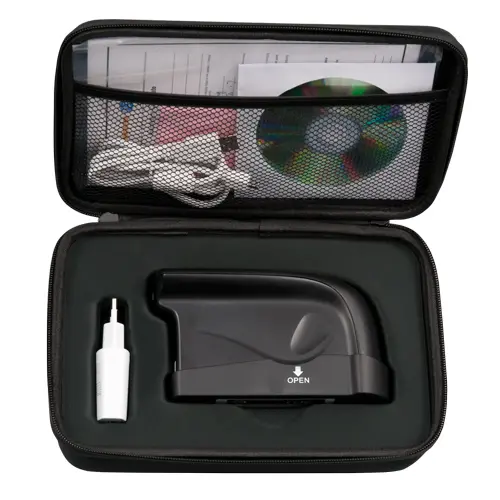

Gloss Meter / Gloss Tester Delivery scope

Gloss Meter PCE-SGM 60

Order no.: PCE-SGM 60
GTIN (EAN): 4250348715821
₹206,535.00
₹243,711.30
price ex. (VAT / delivery)
:
4250348715821
PCE-SGM 60
Delivery time:1-2 working days
60°

Accessory

Description

Gloss meter for use in quality and incoming goods inspection /
60° Measuring Geometry / 3.5" TFT Display / Low measurement time /
Small measurement area / Measurement to 1000 GU


This gloss meter with a small measuring area is used to quantify surfaces that must be measured. The gloss-measuring device operates on the reflection principle by sending light from a known light source onto the surface to be tested and calculates the gloss level of the surface according to the reflection of light particles. The gloss level in gloss units (GU) is then output to the display of the gloss meter.

The measurement geometry of the Gloss Meter PCE-SGM 60 is 60 degrees and is not adjustable. Evaluation software is included with the gloss meter which allows you to read out the measurement data to a computer and analyze and store your results. This gloss meter has data memory installed, which can accommodate up to 5,000 measured values ​​depending on the setting.

Highlights

- Measurement geometry: 60°
- Measurement to 1000 gloss units
- Internal memory up to 5000 readings
- Small measurement area
- Fast measurement time
- Includes evaluation software
- Light source: D65
- Wave length: 400-700 nm

Specification

Gloss
Measuring range  0 ... 1000 GU
Resolution  0,1 GU
Accuracy  ±1.5 / ±1.5 %

General technical data
Display type  TFT touchscreen
Display size  3,5 Inch
Storage medium  Internal memory
Storage capacity  5000 Values
Memory capacity (additional information)  Baseline measurement: 1000, statistical mode: 5000, continuous measurement: 5000
Interface  Mini-USB, RS232
Standard(s)  ISO 2813, GB/T 9754, ASTM D 523, ASTM D 2457
Measuring surface additional information  1.5 x 2 mm
Repeatability  Measuring range 0–10 GU: ±0.1 GU
Measuring range 10–100 GU: ±0.2 GU
Measuring range 100–1000 GU: ±0.2 GU (%)
Measurement time  0,5 s
Reproducibility  ±0.2 GU / ±0.5 GU (%) / ±0.5 GU (%)
Measuring geometry  60°
Chromaticity  corresponds to CIE 1931(2 °) under a CIE C light source
Readability  0,1 GU
Menu language  English, Chinese, English (GB)
Protection class (device)  IP20
Power supply  5 V DC
Connector type  Device-europlug
(Rechargeable) battery  1 x 3,7 V internal , Lithium-ion battery
Capacity  3200 mAh
Operating conditions  0 ... 40 °C , 0 ... 85 % RH
Storage conditions  -20 ... 50 °C , 0 ... 85 % RH
Dimensions ( L x W x H )  160 x 75 x 90 mm
Weight  350 g

Delivery Scope

1 x Gloss Meter / Gloss Tester PCE-SGM 60
1 x Charger
1 x USB cable
1 x Analysis software (on CD-ROM)
1 x Calibration plate
1 x User Manual
