Gas Leak Detector PCE-GD 5

Gas Leak Detector PCE-GD 5

Order no.: PCE-GD 5
GTIN (EAN): 4250348747501
₹5,799.00
₹6,842.82
price ex. (VAT / delivery)
:
4250348747501
PCE-GD 5
Delivery time:1-2 working days

Description

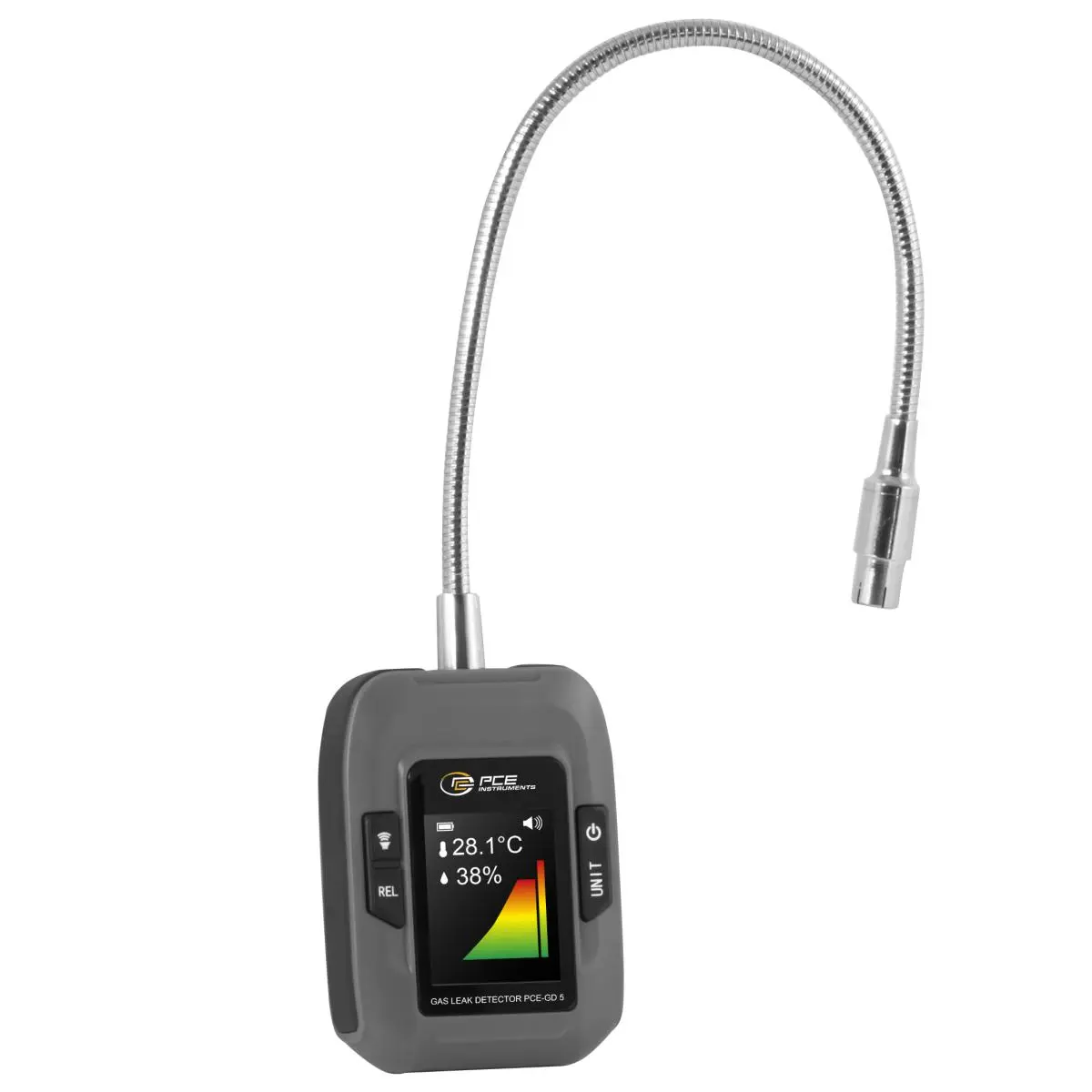

Gas Leak Detector for detecting flammable gases / Optical and acoustic alarm / Flexible 250 mm probe / 1.8 inch colour display / USB-C interface

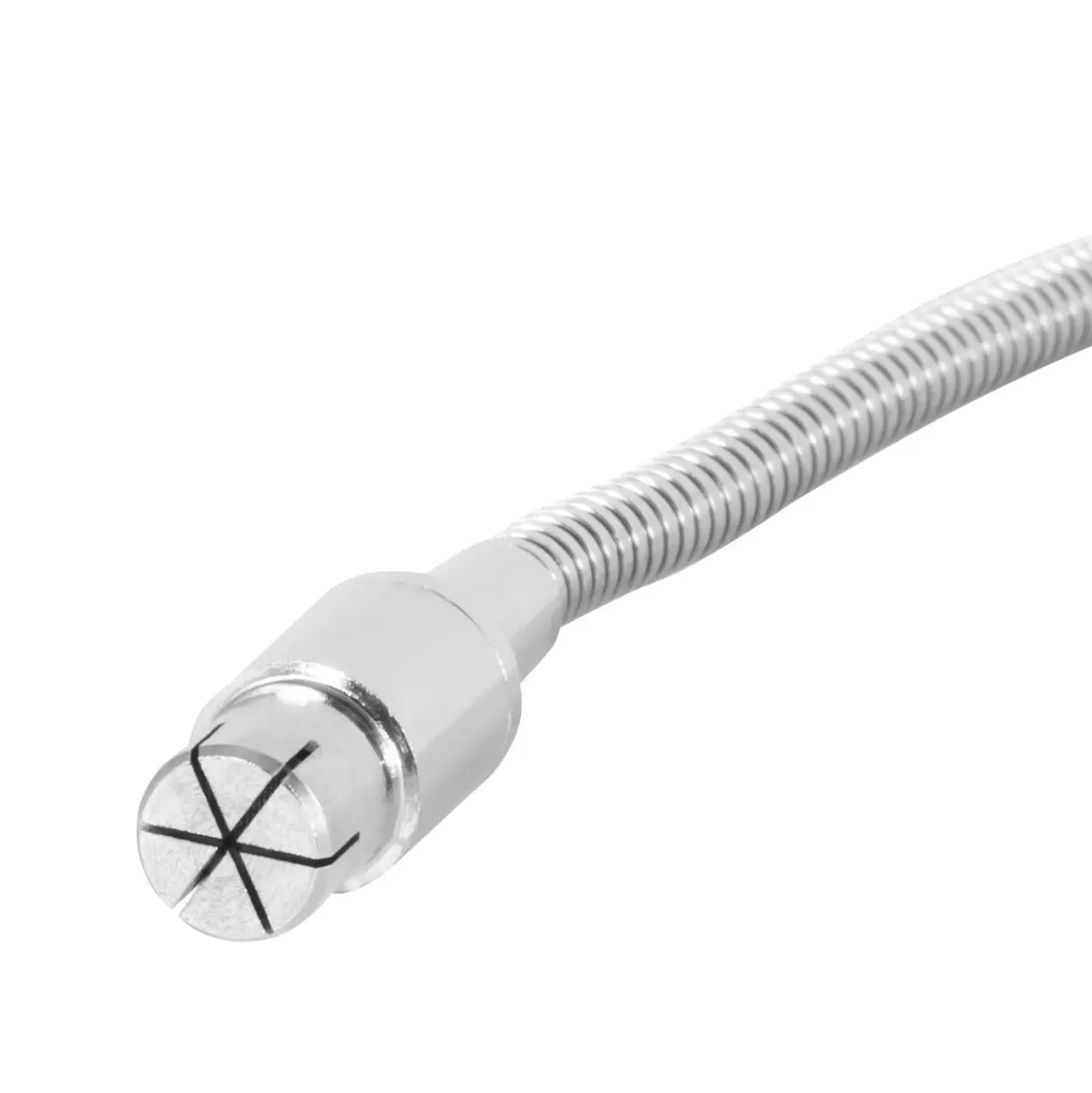

The Gas Leak Detector is used for the reliable detection of flammable gases and assists in locating possible gas leaks in various areas. The Gas Leak Detector is suitable for checking systems, pipelines, and installations where flammable gases such as natural gas, LPG, methane, or hydrogen may occur. Thanks to the flexible probe with a length of approx. 250 mm, hard-to-reach locations can also be checked. The Gas Leak Detector has an optical and acoustic alarm indicator that provides information on the various warning levels as gas concentration increases.

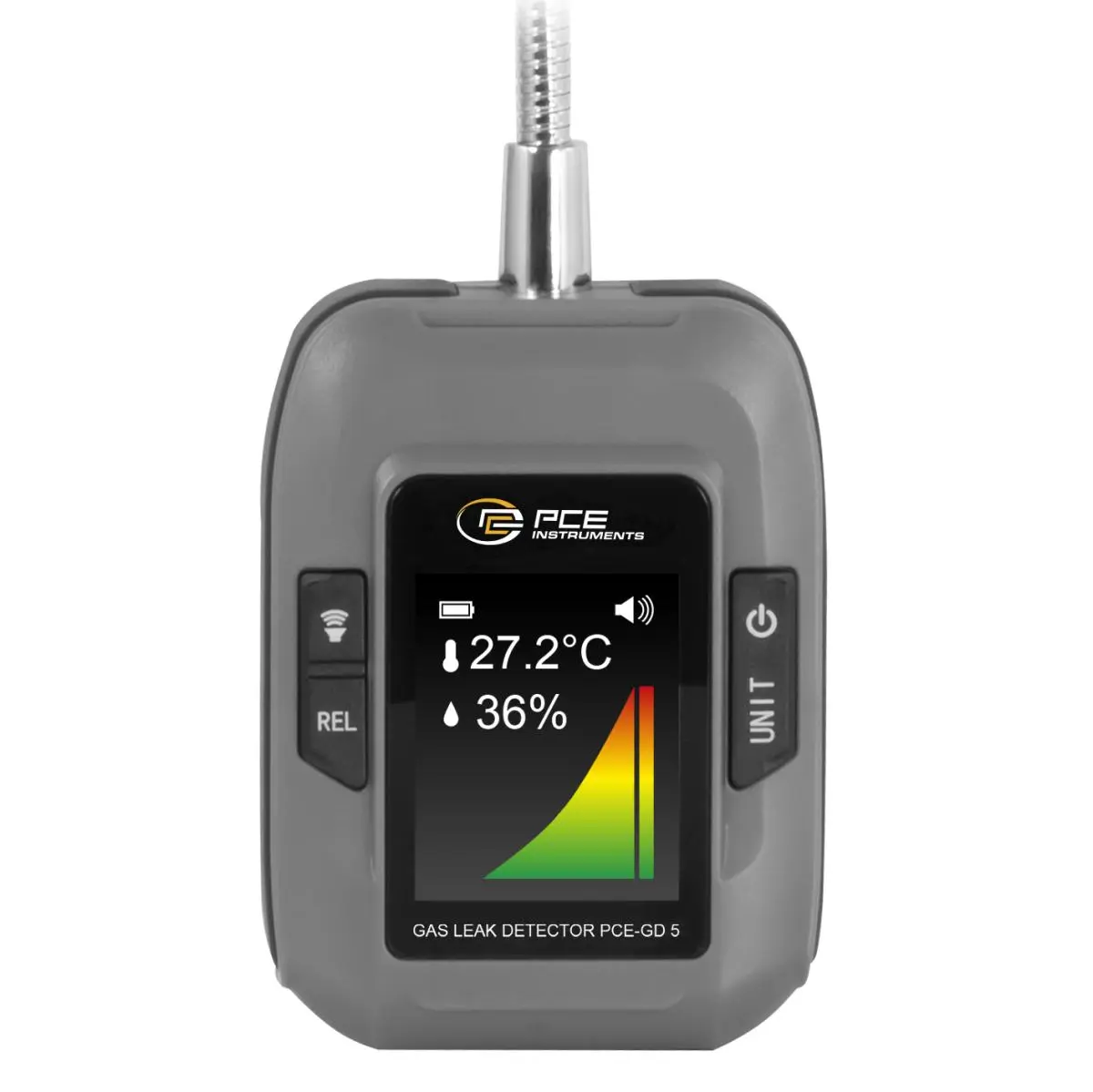

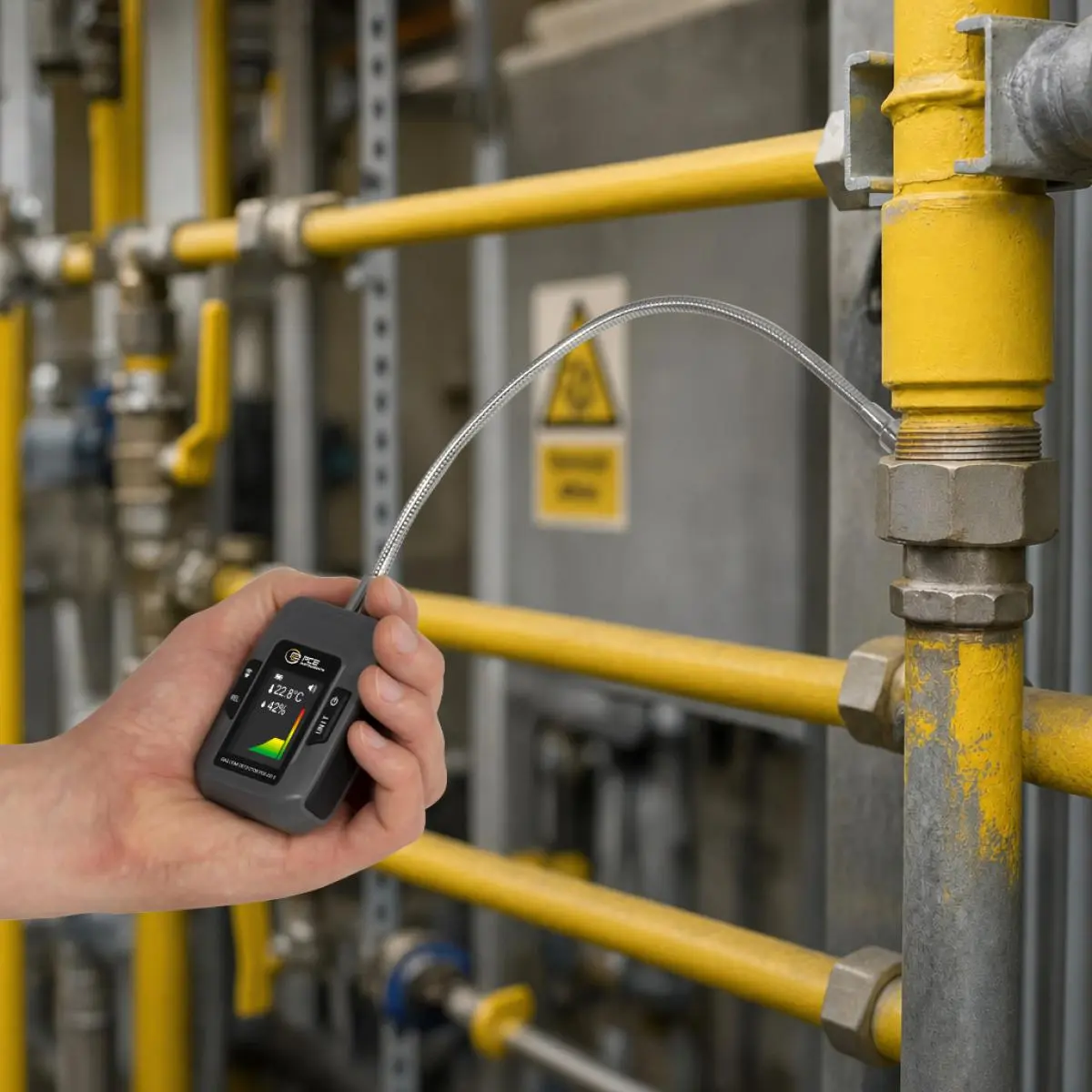

The device has a 1.8 inch colour display and also shows the ambient temperature and relative humidity. It operates with a preheating time of approx. 10 seconds and a response time of less than 10 seconds. Power is supplied by three AAA batteries. The Gas Leak Detector also has a USB-C interface for power supply or connection to an external power source. The Gas Leak Detector can be used, for example, in heating and building services engineering, for maintenance work, in workshops, and for checking gas pipelines and technical systems. Thanks to its compact design and flexible sensor probe, the device is particularly suitable for quick on-site inspection and leak detection.


Highlights

- Detection of flammable gases with colour scale
- Measuring medium: methane, hydrogen, natural gas, LPG
- Optical and acoustic alarm
- Preheating time approx. 10 s
- Response time: < 10 s
- USB-C interface

Specification

Relative humidity
Measuring range  0 ... 100 %
Resolution  1 %
Accuracy  ±3%

Temperature
Measuring range  -40 ... +80 °C
Resolution  0,1 °C
Accuracy  ±1.5 °C

General technical data
Display type  LCD
Display size  1,8 Inch
Interface  USB-C
Response time  10 s
Warm-up time  10 s
Measured medium  Natural gas, Metan, Hydrogen, Liquefied petroleum gas, smoke
Operating time  2 h
Alarm  optical, Acoustic
Menu language  English, English (GB)
Protection class (device)  IP20

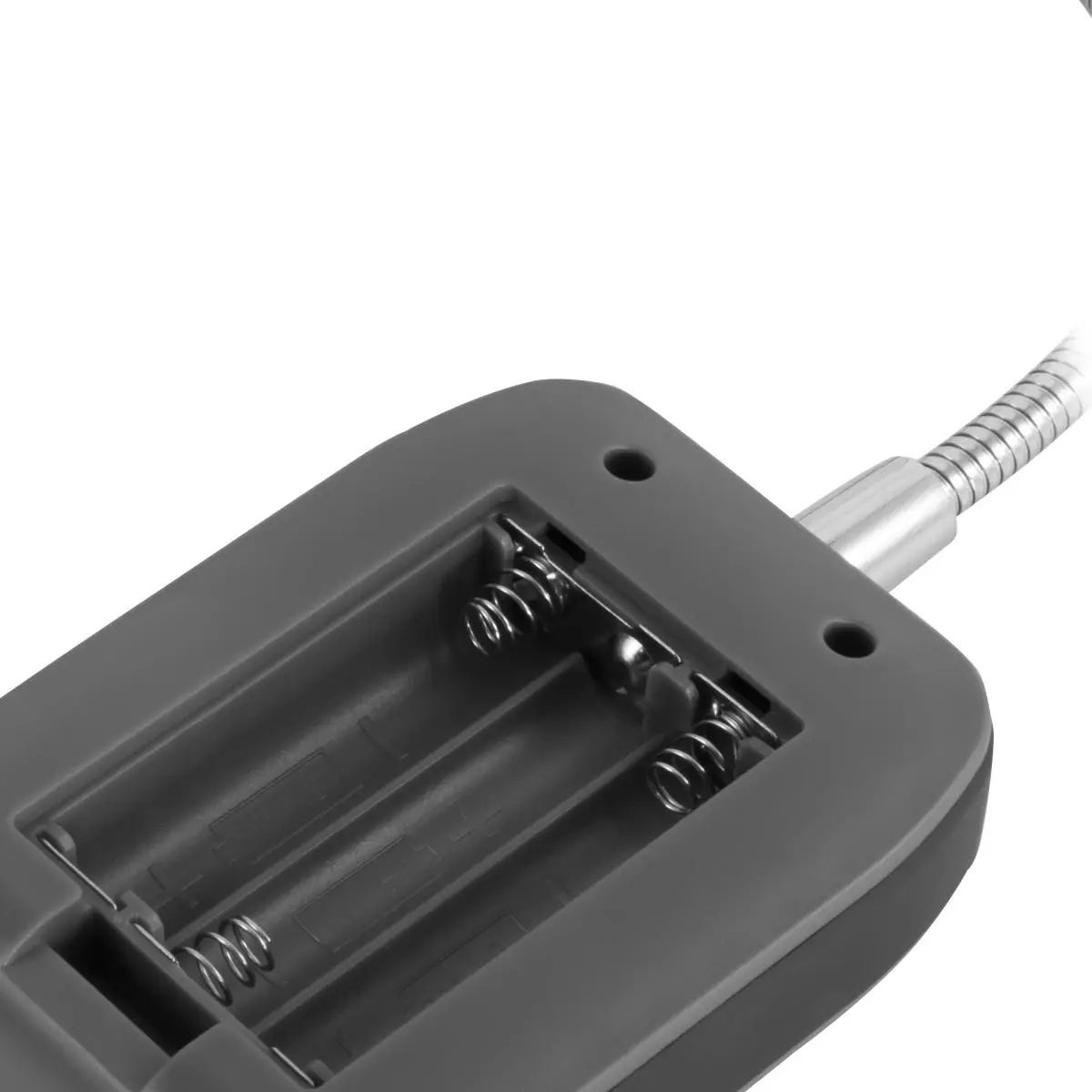

(Rechargeable) battery  3 x 1,5 V AAA battery , Alkali-manganese
Capacity  1270 mAh
Performance  1,91 Wh
Operating conditions  0 ... 40 °C , 0 ... 90 (non-condensing)% RH
Storage conditions  -20 ... 60 °C , 0 ... 90 (non-condensing)% RH
Dimensions ( L x W x H )  80 x 60 x 25 mm
Weight  110 g

Delivery Scope

1 x Gas Leak Detector PCE-GD 5
1 x Operating instructions
3 x 1.5V AAA batteries
1 x USB-C cable
