Environmental Tester PCE-PH 228-ICA

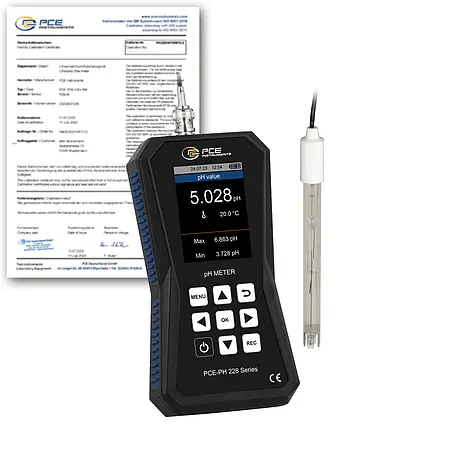

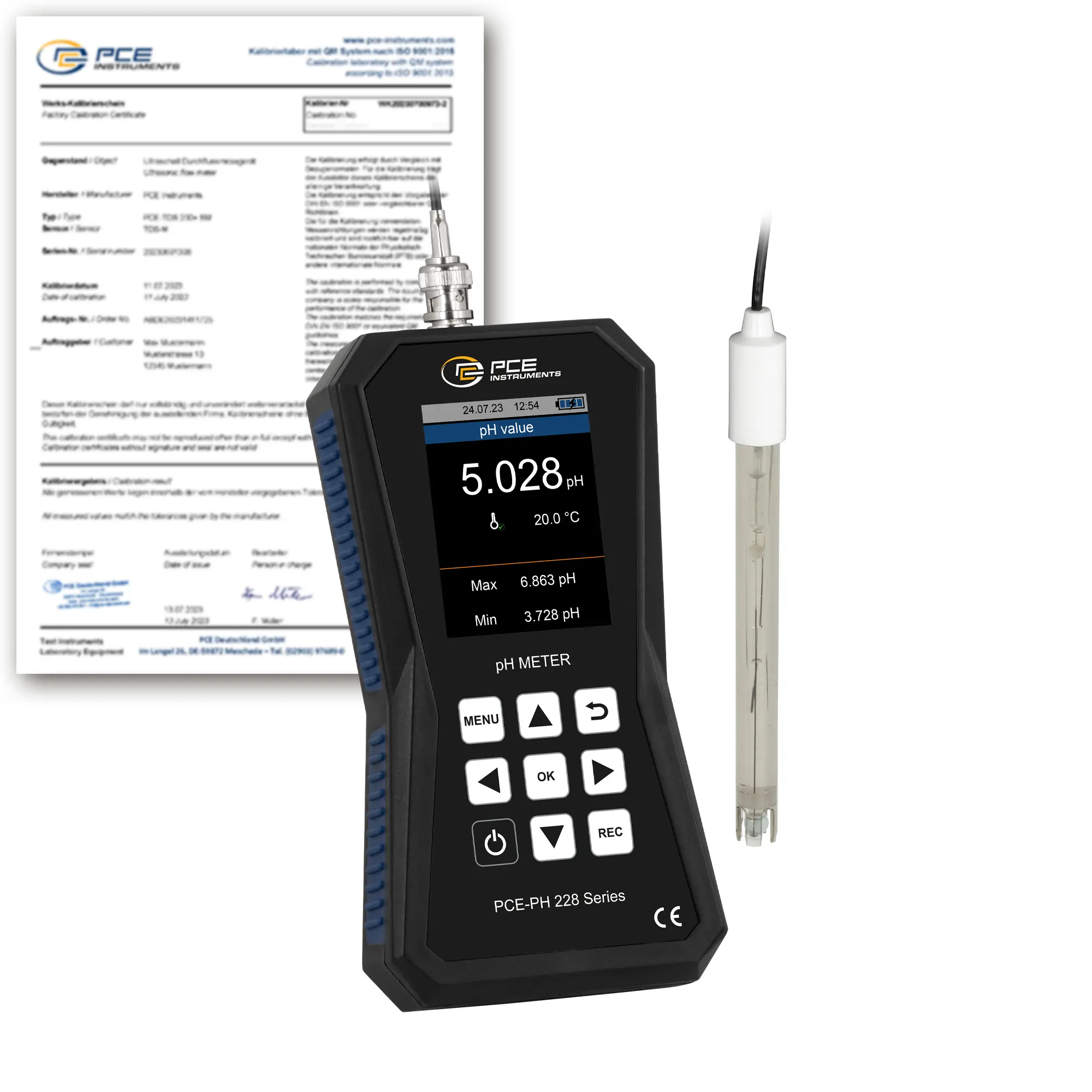

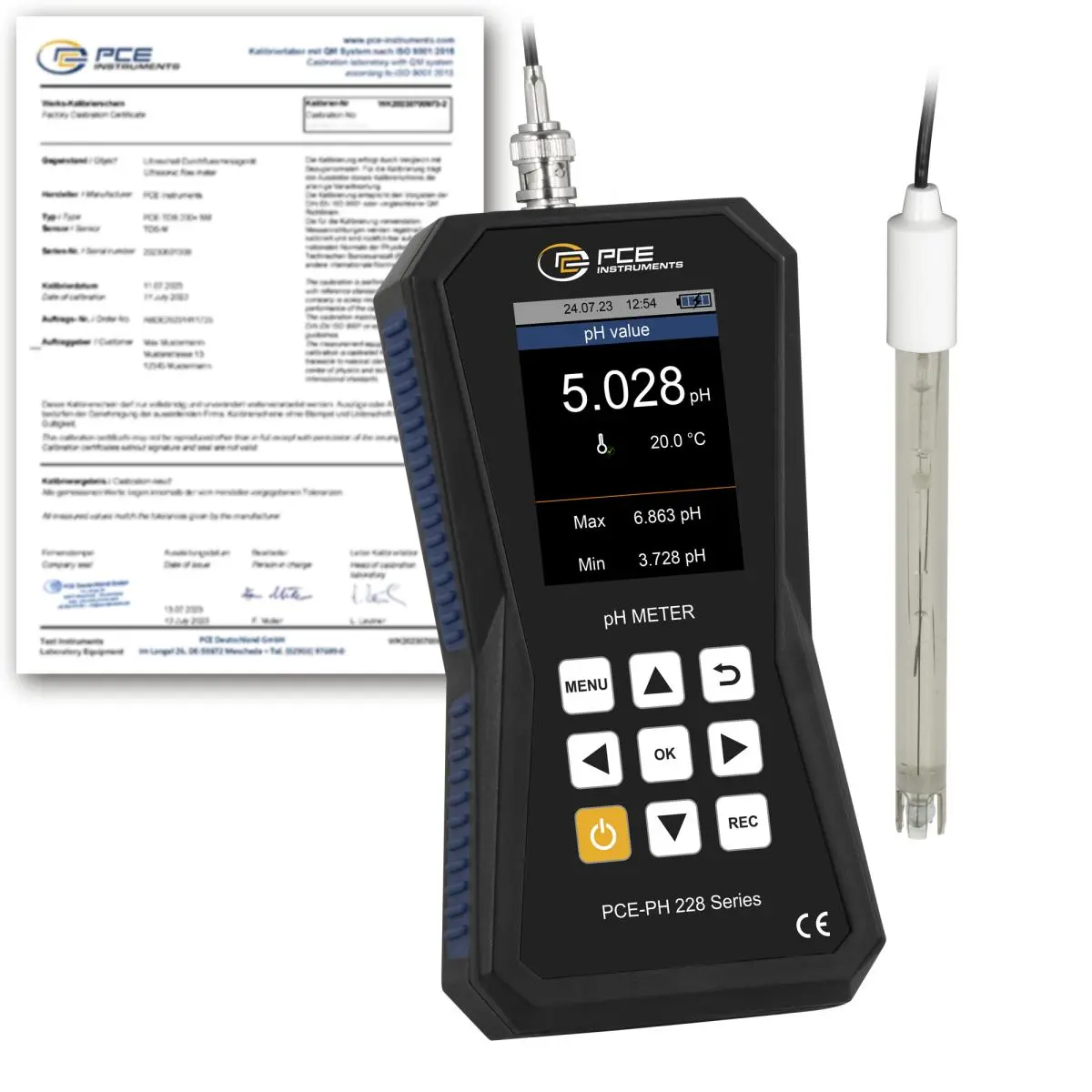

Environmental Tester PCE-PH 228-ICA incl. ISO-Calibration Certificate

Order no.: PCE-PH 228-ICA
GTIN (EAN): 4250348734136
₹92,703.00
₹109,389.54
price ex. (VAT / delivery)
:
4250348734136
PCE-PH 228-ICA
Delivery time:5-7 working days

Description

Environmental Tester with GLP Data Management / High Accuracy ± 0.002 pH + 2 Digits / Data Logger / User with Password Protection / Includes Electrode / Battery-Powered

The advanced environmental tester stands for precision, user-friendliness, and GLP compliance (Good Laboratory Practice). With a high-resolution LCD display, the environmental tester provides a clear and concise presentation of measurement values. GLP compliance is ensured through automatic data recording and traceable documentation. It allows measurement of pH or redox value and temperature with external sensors.

A Permanent Measurement Verification (PMV) indicates to the operator, using a color bar, where the measurement value is located within the calibration range, providing insight into whether the measurement is in the correct range.
The graphically guided calibration makes the process simple and user-friendly. User and sample management enable easy navigation and adjustment of measurement parameters on the environmental tester. Sample information can be stored to facilitate the management and identification of measurements. A generous internal data storage saves extensive records without the need for external storage. The USB-C port on the environmental tester ensures fast data transfer and charging. A powerful LiPo battery allows hours of measurements before needing to be recharged.

Overall, this environmental tester represents a significant step in the development of handheld and laboratory instruments. The high accuracy of ± 0.002 pH + 2 Digits, graphically guided calibration, GLP compliance, user and sample management, and data storage make it an indispensable tool for scientists, researchers, and laboratory technicians relying on precise pH measurements. It not only enhances the accuracy and efficiency of experiments but also streamlines daily work in industry, quality assurance, and the laboratory.

Highlights

- Fast, precise pH and temperature measurement
- Redox measurement (with optional electrode)
- GLP data management
- Easy 2, 3, 4, and 5-point calibration
- Calibration reminder
- Permanent Measurement Verification (PMV)
- Graphical display of measurement history
- Data logger
- incl. ISO-Calibration Certificate

Specification

pH
Measuring range  -2 ... +20 pH
Resolution  0,001 pH
Accuracy  ±0.002 pH +2 digits

Redox
Measuring range  -2000 ... +2000 mV
Resolution  1 mV
Accuracy  ±2 mV

Temperature sensor
Measuring range  -20 ... +100 °C
Resolution  0,1 °C
Accuracy  ±0.5°C (@ 20°C)

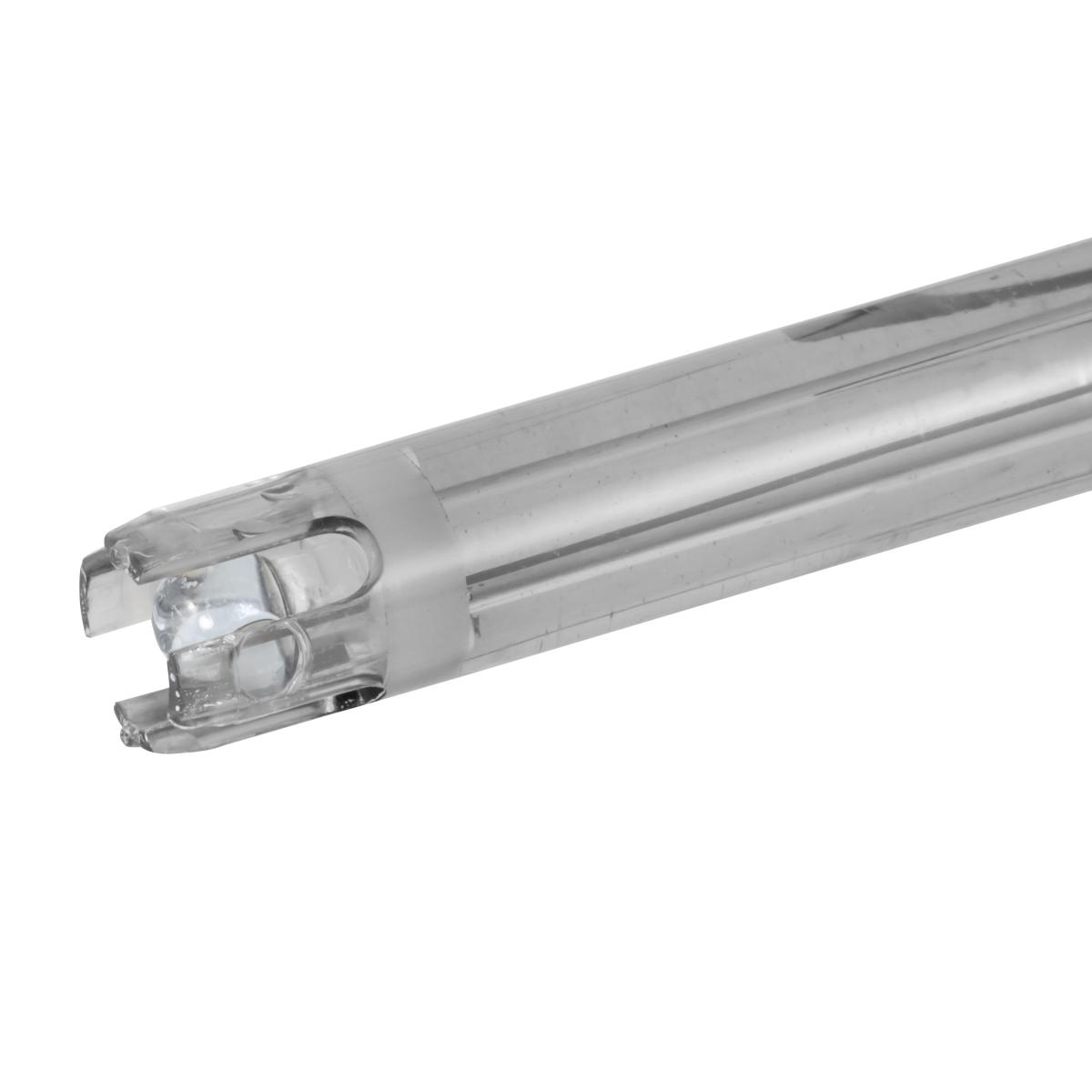

Electrode
Designation  PE-03
Measuring range  1 ... 13 pH
Temperature range  5 ... 60 °C
Application  Aqueous non-corrosive media
Reference electrolyte  Ag/AgCl
Shank material  Epoxy resin
Shank length  160 mm
Shank diameter  12 mm
Cable length  1 m

General technical data
Measuring functions  MIN, MAX
Display type  LCD with backlight
Storage medium  Internal memory
Storage capacity  32 GB
Memory capacity (additional information)  100 recordings with a maximum of 100,000 data points per recording
Storage interval from  1 s
Storage interval to  12 h

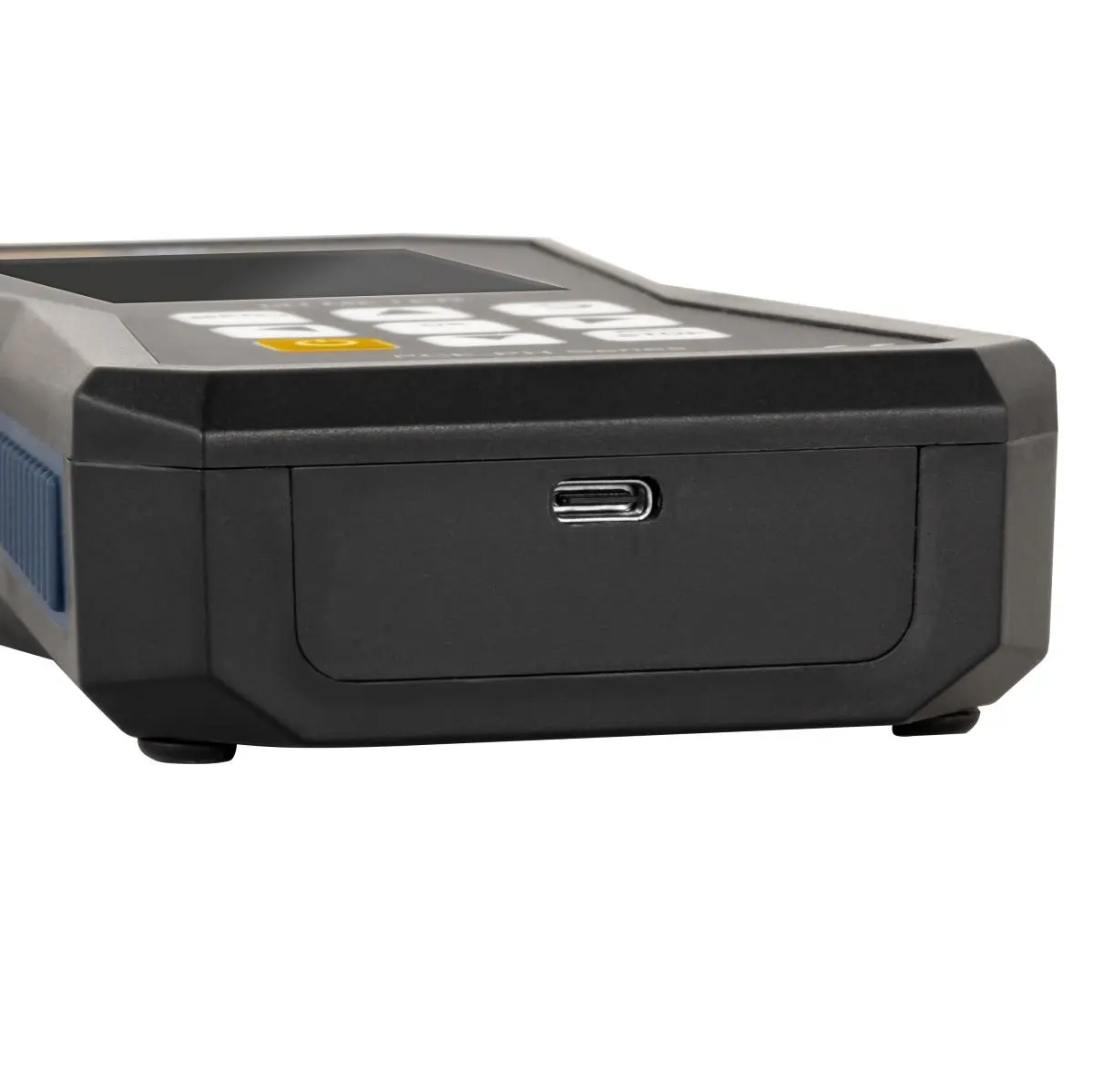

Interface  USB-C
Number of calibration points  5
Menu language  Turkish, English, Polish, Spanish, German, Chinese, Russian, Japanese, French, Danish, Italian, Dutch, Portuguese
Protection class (device)  IP52
Power supply  5 V DC, 500 mA
(Rechargeable) battery  1 x 3,7 V LP785060 , Lithium polymer battery
Capacity  2500 mAh
Performance  9,25 Wh
Operating conditions  -20 ... 65 °C , 10 ... 95 % RH
Storage conditions  -20 ... 65 °C , 10 ... 95 % RH
Dimensions ( L x W x H )  178 x 85 x 32 mm
Weight  252 g

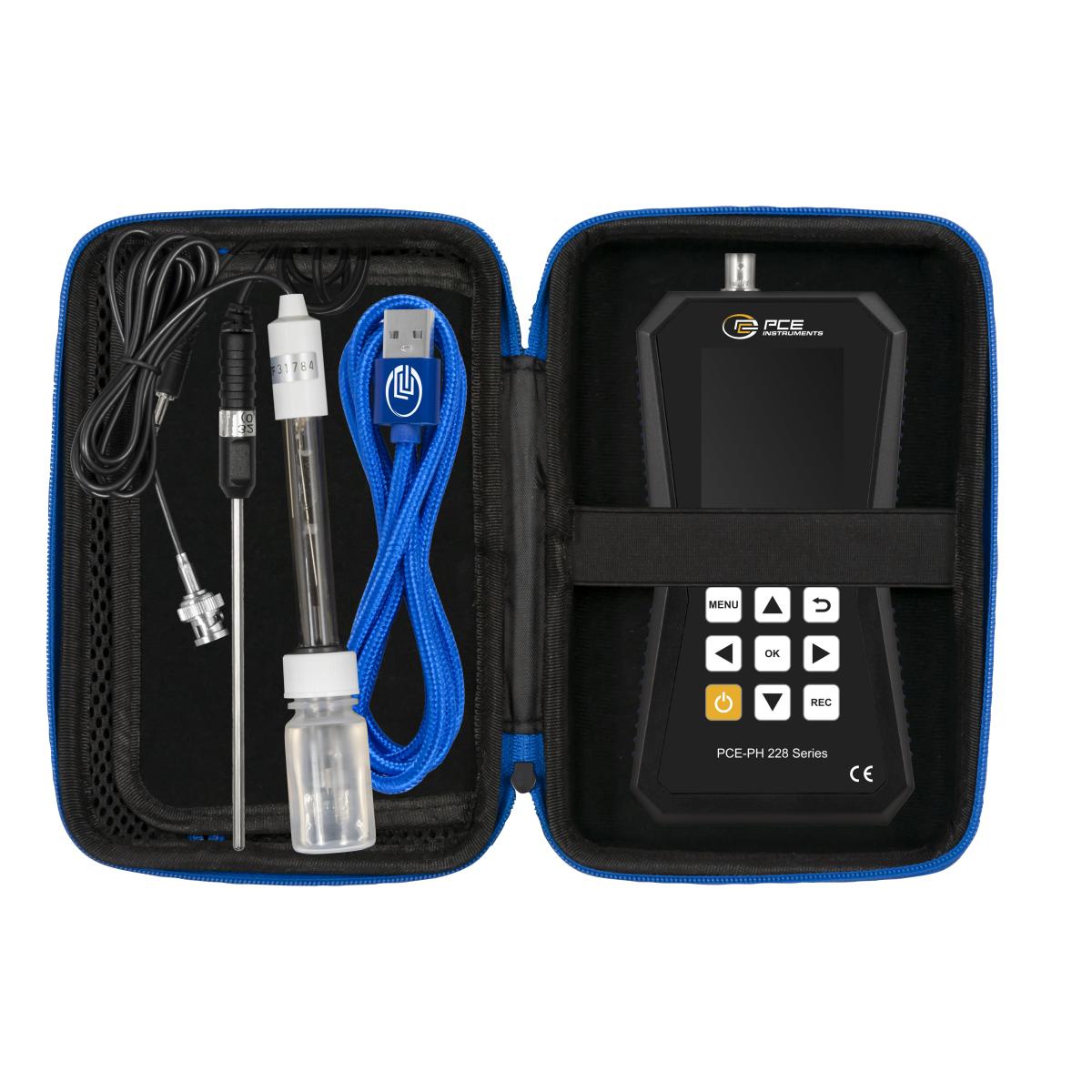

Delivery Scope

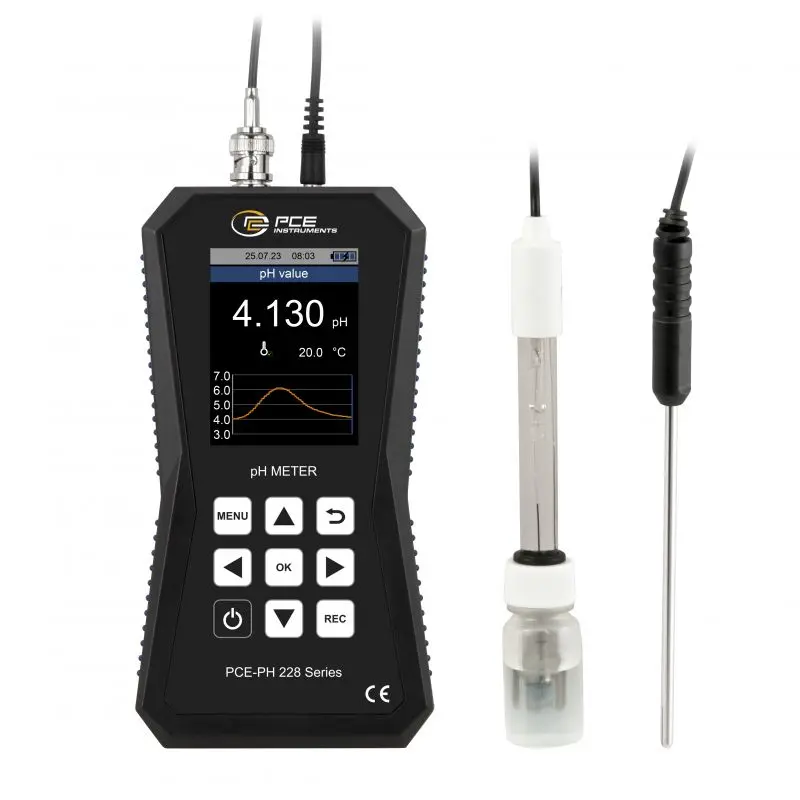

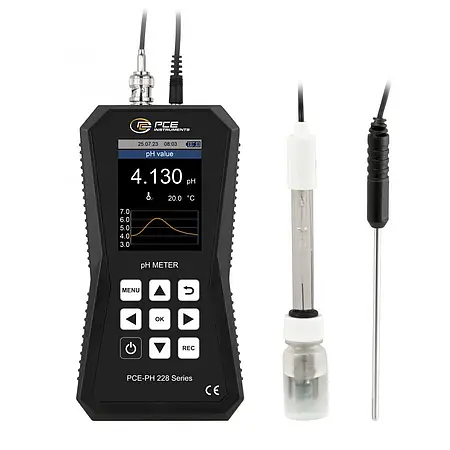

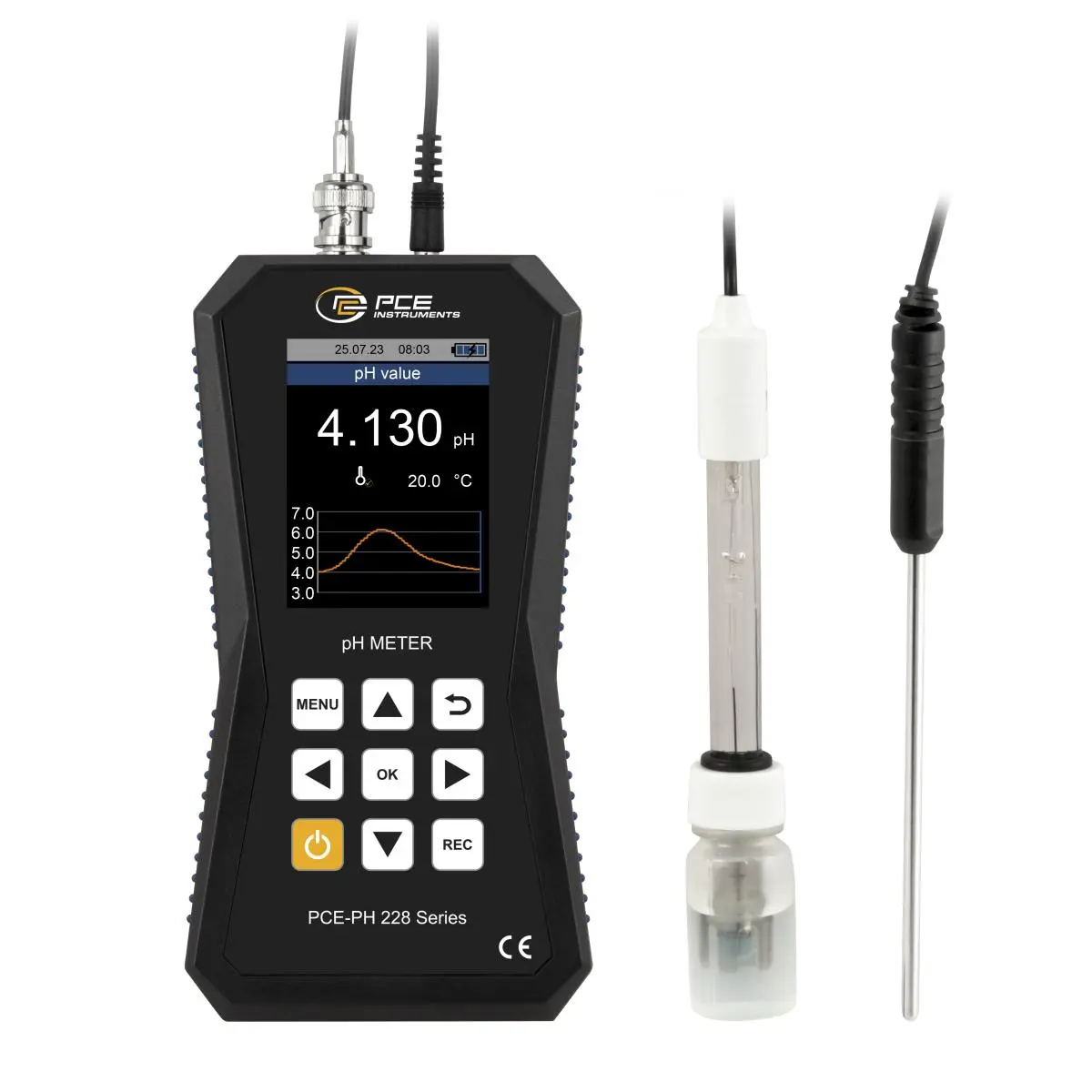

1 x Environmental Tester PCE-PH 228-ICA
1 x pH Electrode PE-03
1 x Temperature Sensor
1 x Service Pouch
1 x USB-C Cable
1 x Quick Start Guide
1 x ISO-Calibration Certificate
