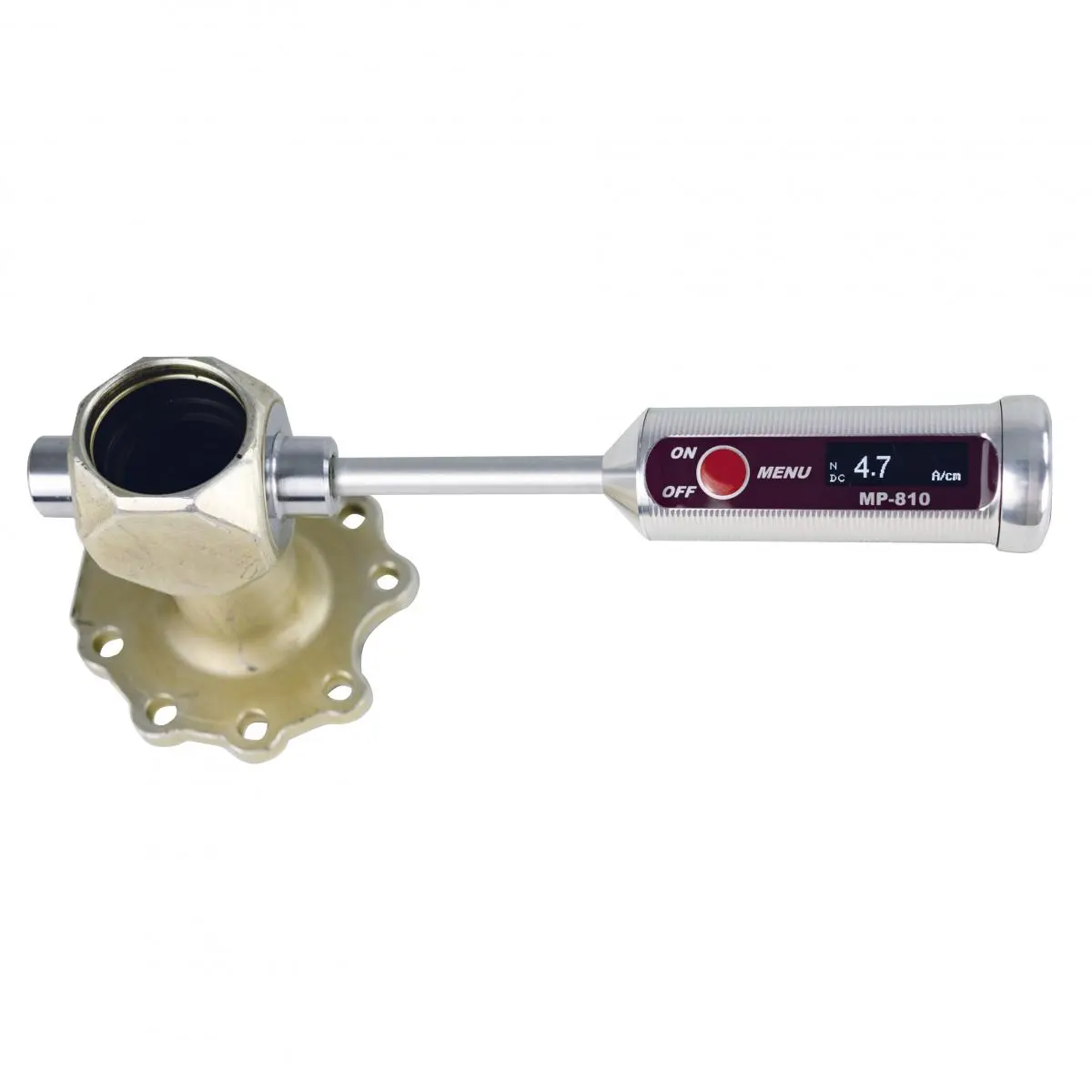

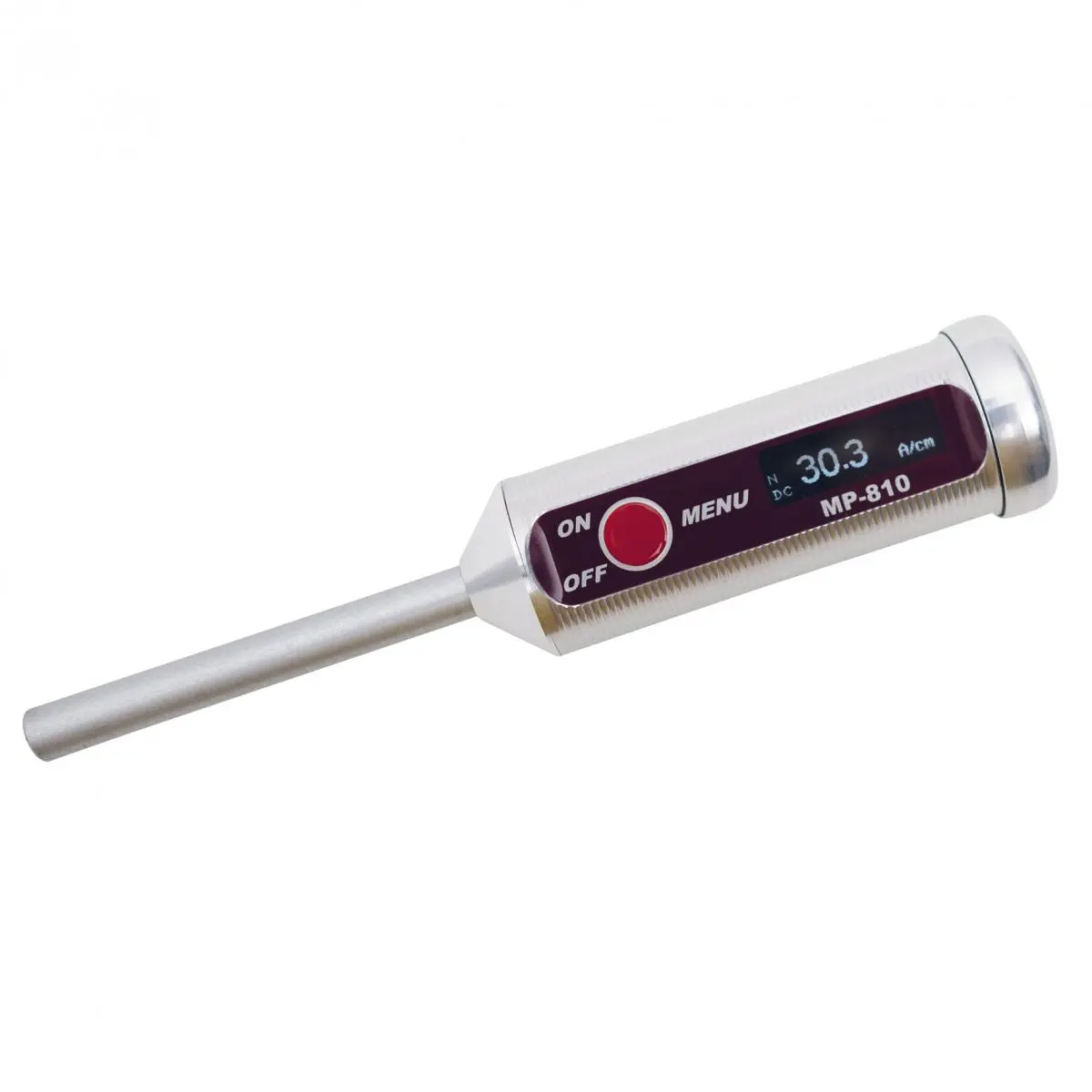

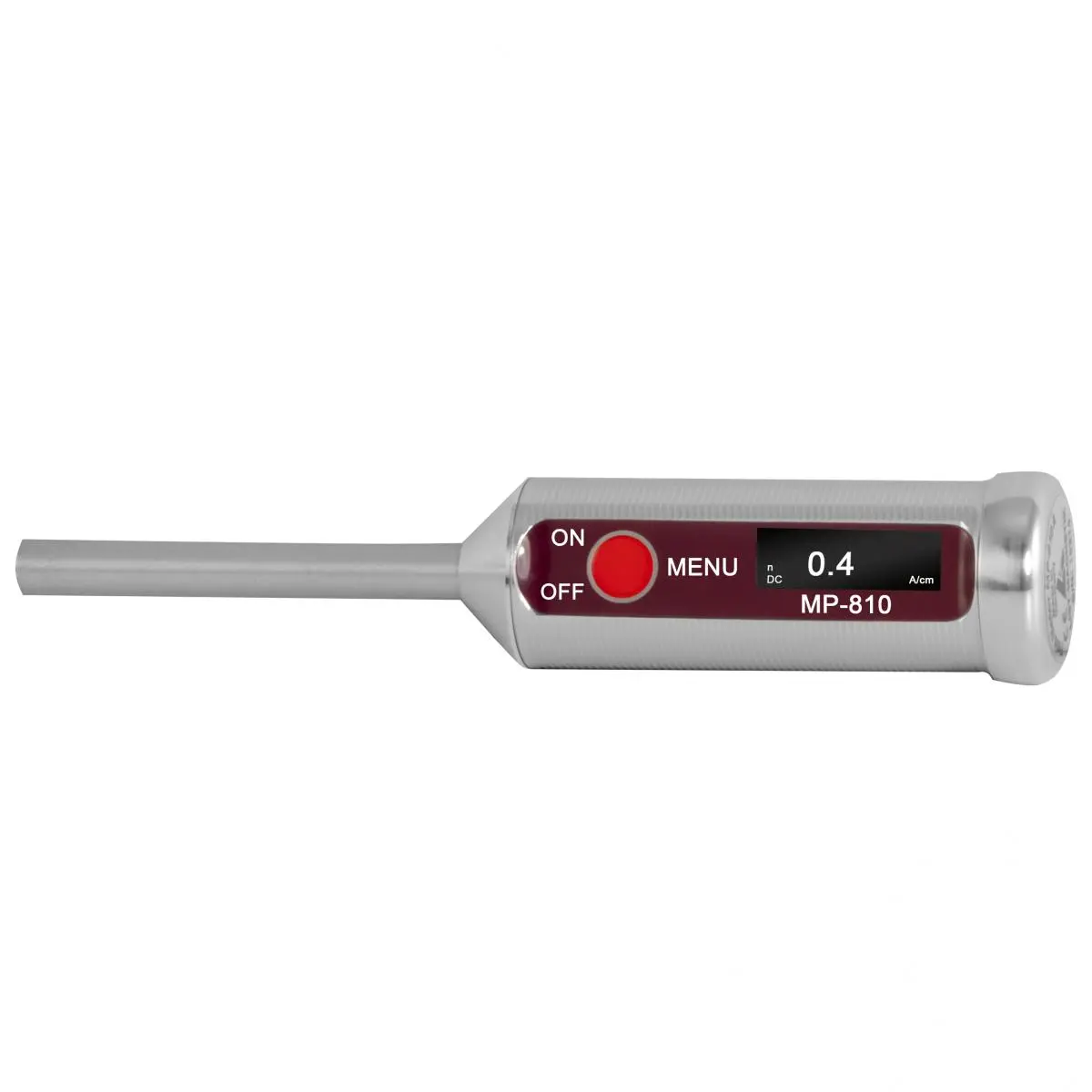

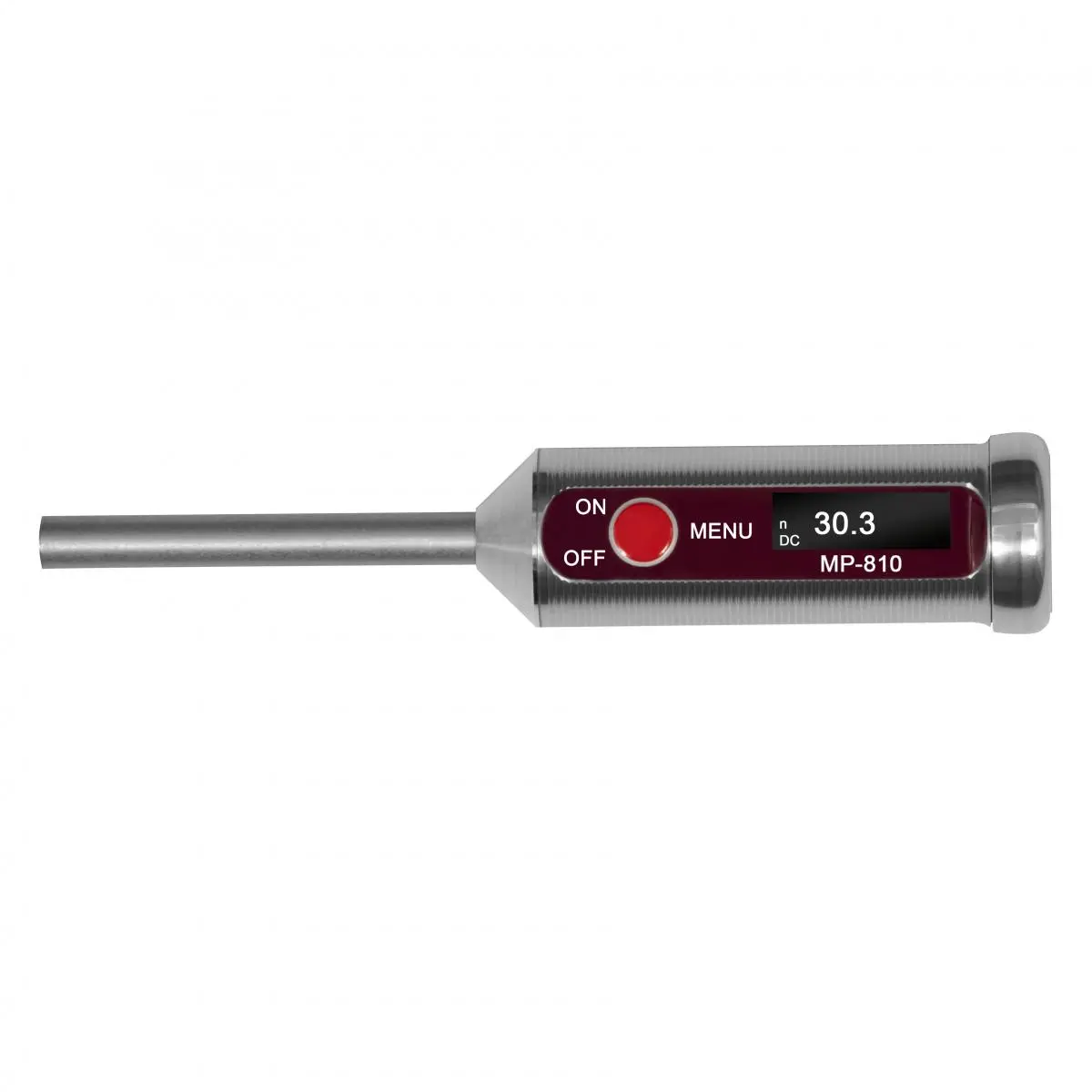

The handy Environmental Tester is available as a single-handed device with an axial probe. This measures the magnetic field along the probe axis with a fixed measuring distance of 2.0 mm from the surface - ideal for precise measurements on flat surfaces or in boreholes. Despite its compact design, the Environmental Tester delivers high-precision measurement results - from weak field values just above the earth's magnetic field to strong magnetic fields in the range of several thousand A/cm. Residual magnetism and remanence can also be reliably detected.

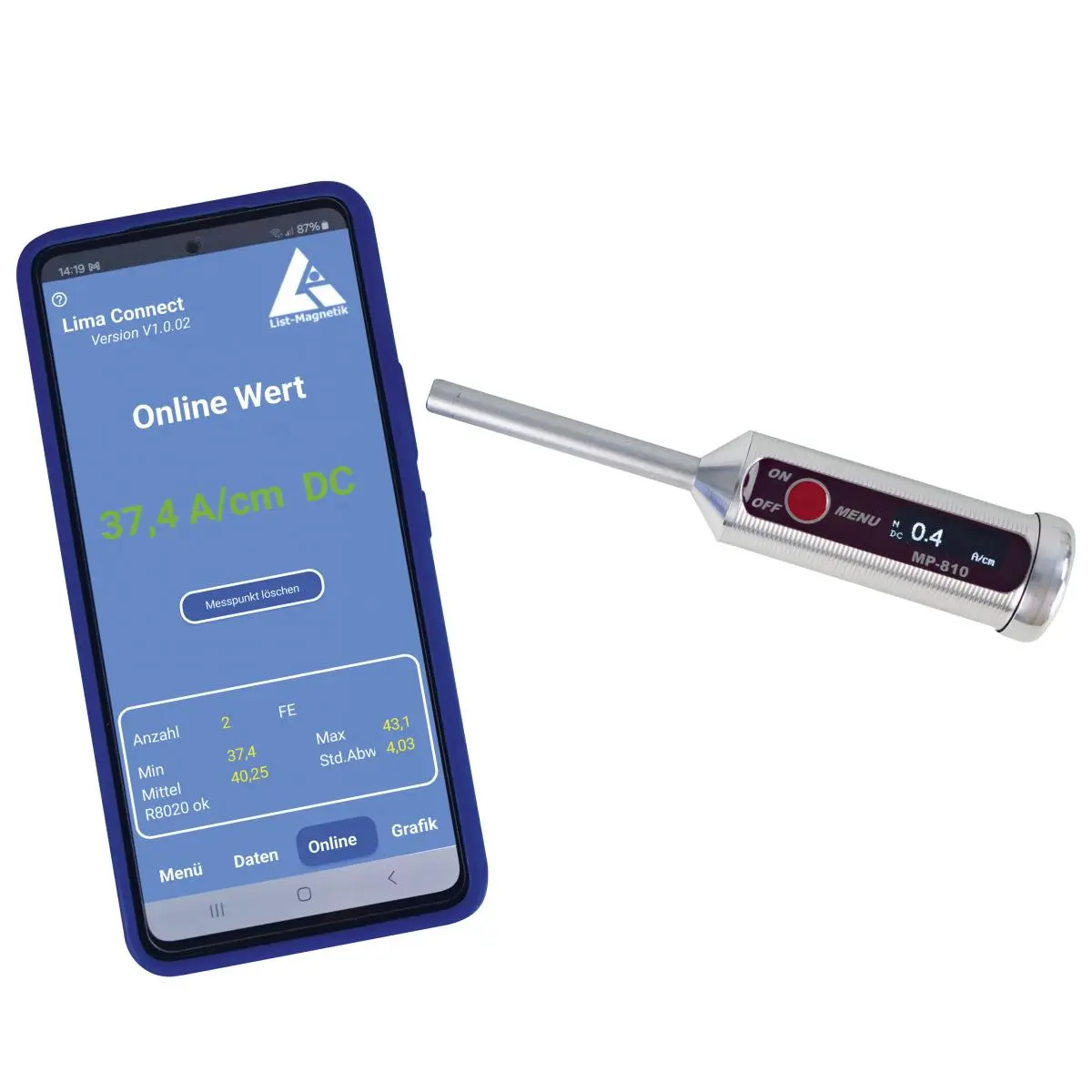

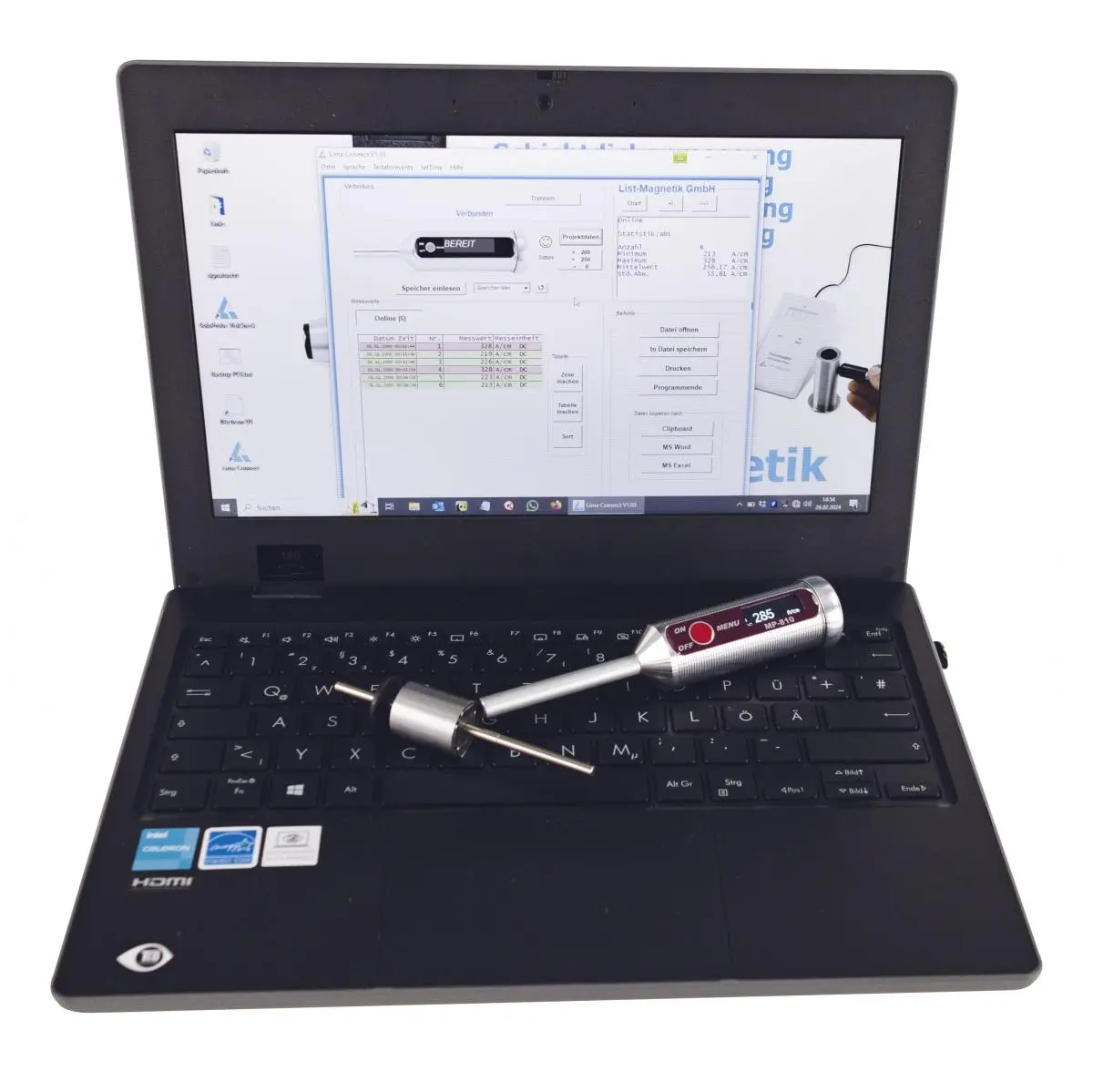

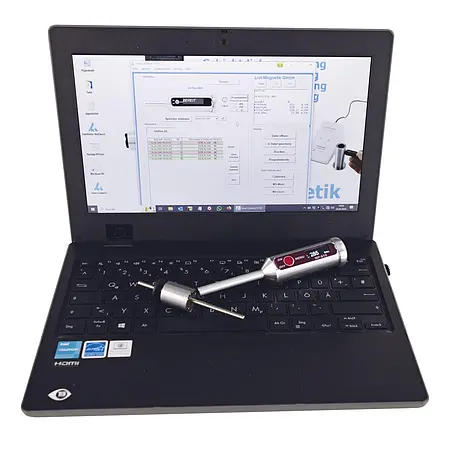

Whether as a Environmental Tester, magnetometer, gaussmeter or tesla meter - the MP-810A fulfils all requirements for modern magnetic field measurements. The terms refer to the same device - the high measuring accuracy and reproducibility of the results are decisive. A calibration standard (reference magnet) is also available, allowing you to check and document the accuracy of your magnetic field tester at any time. The wireless interface enables convenient connection to mobile devices and PCs via the free Lima Connect app. There you can manage projects, mark measuring points on photos, analyze results statistically and display them graphically - ideal for industrial quality assurance and research.
Magnetic field AC | |
Measurement range up to | 2 ... 20000 A/cm |
Resolution | 0,1 A/cm |
Accuracy | in homogeneous field ± 1 A/cm up to 50 A/cm, ± 2% of measured value from 50 A/cm |
Frequency range | 20 ... 100 Hz |
Magnetic field DC | |
Measurement range up to | 0 ... 20000 A/cm |
Resolution | 0,1 A/cm |
Accuracy | in homogeneous field ± 1 A/cm up to 50 A/cm, ± 2% of measured value from 50 A/cm |
General technical data | |
Measuring functions | Quantity, MAX, MIN, Average value, Standard deviation |
Units | A/cm, kA/m, g, Oersted, T |
Units additional information | Units switchable (1 A/cm = 0.1 kA/m = 1.256 Gauss = 1.256 Oersted = 0.1256 mT) |
Display type | OLED |
Storage capacity | 4000 Values |
Memory capacity (additional information) | Peak value memory: Pulse time >= 0.25 sec |
Interface | Wireless |
Operating time | 50 h |
Menu language | German, English (GB), English, French, Italian, Spanish, Hungarian, Polish, Dutch |
Power supply | 1.5V AA Batterie |
(Rechargeable) battery | 1 x 1,5 V AA battery , Alkali-manganese |
Capacity | 3000 mAh |
Dimensions ( L x W x D ) | 140 x 140 x 28 mm |
Weight | 73 g |
