Environmental Meter PCE-HVAC 2

Environmental Meter PCE-HVAC 2 [zoom]

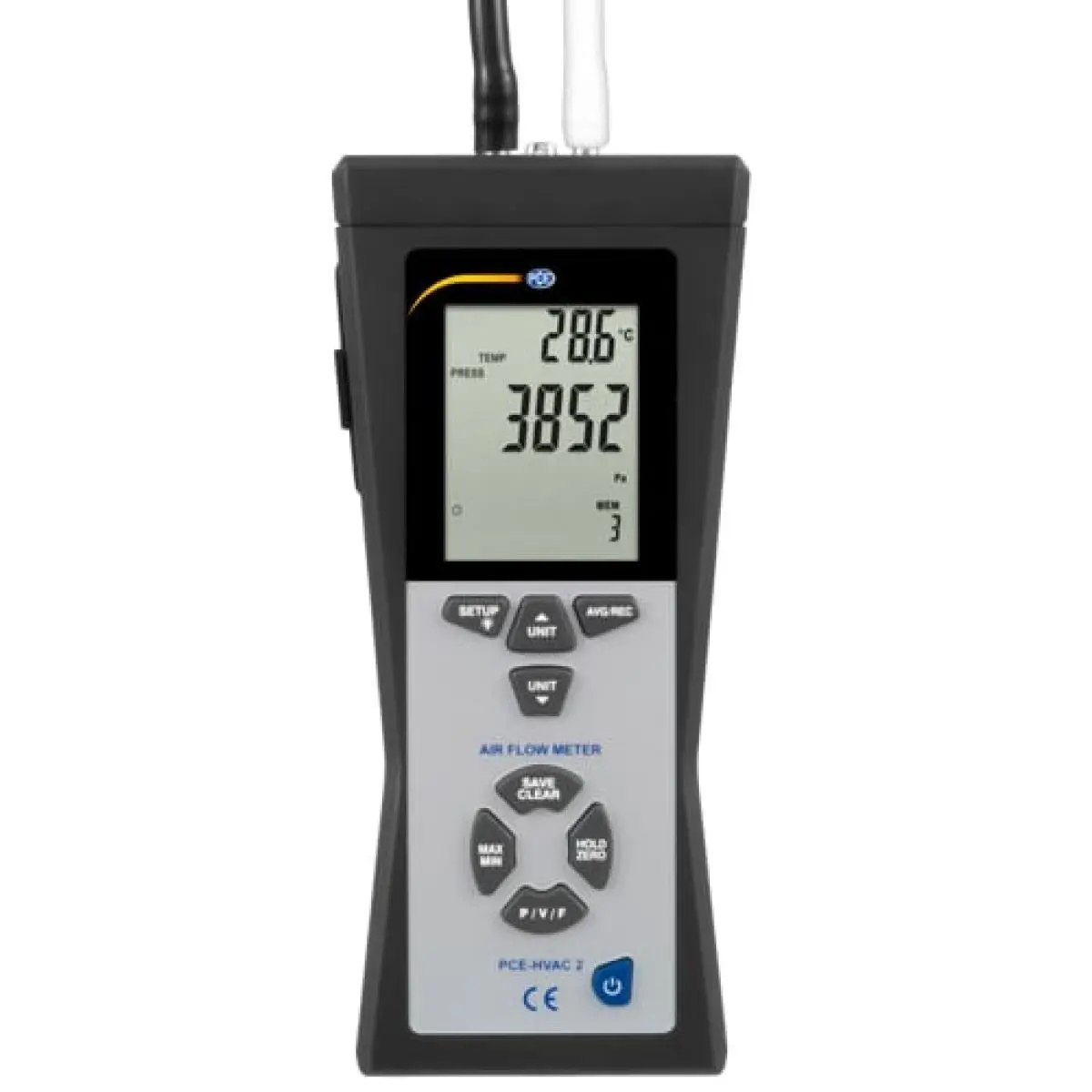

Environmental Meter PCE-HVAC 2

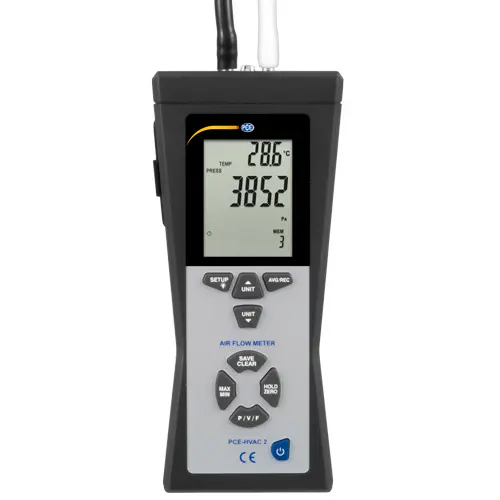

Environmental Meter Frontal
Environmental Meter Connections
Environmental Meter Sensor

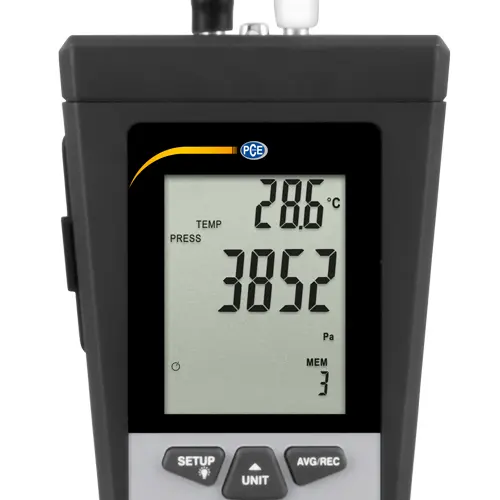

Environmental Meter Display
Environmental Meter Tripod connection
Environmental Meter Connections

Environmental Meter PCE-HVAC 2

Order no.: PCE-HVAC 2
GTIN (EAN): 4250348716026
₹50,475.00
₹59,560.50
price ex. (VAT / delivery)
:
4250348716026
PCE-HVAC 2
Delivery time:1-2 working days
Speed, Temperature, Volume/flow, Pressure
Pitot tube
Yes (integrated)
Yes (USB)

Accessory

Description

Environmental Meter PCE-HVAC 2 with pitot tube
Measures air velocities up to 80 m/s (178.66 mph) / Zero, minimum, maximum, average, record and hold functions / Stores to memory up to 99 measurement values per parameter

PCE-HVAC 2 is an environmental meter with a pitot tube. This portable environmental meter can be used to determine air speed, air pressure, air flow, differential pressure and ambient temperature. The pitot tube allows access through tiny openings to take measurements in small pipe systems and other confined spaces.


Stored measurement values ​​can be called or read out later on the device itself or on the computer. The transfer to a computer works easily via a USB interface. A real-time measurement can also be carried out via this interface. When a USB connection is established, the measured values ​​are displayed on the computer screen using the downloadable PC-compatible software. In addition to an ergonomic design, the environmental meter boasts a backlit display that enables use in low-light conditions. The environmental meter has a thread on the bottom, so the device can be mounted on a tripod. The measuring hoses are inserted at the top of the device allowing for connection to the pitot tube.

Highlights

- Measures air speed, air pressure, airflow
- Displays ambient temperature
- Zero adjustment function
- MIN, MAX, AVR, REC and HOLD functions
- Backlit LCD
- Dual display on the LCD
- Suitable for high flow rates
- Internal memory for 99 measurement values per parameter
- USB cable included
- Downloadable PC-compatible software
- Real-time measurement
- Pitot tube measurement
- Differential pressure and standard measurement
- 2 connecting hoses (each 85 cm / 33.46 in)
- Adjustable measuring units (adjustable)
- ISO calibration available - see accessories for details

Specification

Speed
Measuring range  1 ... 80 m/s
Resolution  0.01 m/s
Accuracy  ±2.5 % of Rd

Speed
Measuring range  200 ... 15733 ft/min
Resolution  1 ft/min
Accuracy  depending on the air velocity and the size of the air duct

Speed
Measuring range  3,6 ... 288 km/h
Resolution  0.1 km/h
Accuracy  depending on the air velocity and the size of the air duct

Speed
Measuring range  2,24 ... 178,66 mph
Resolution  0.01 mph
Accuracy  depending on the air velocity and the size of the air duct

Speed
Measuring range  2 ... 154,6 knots
Resolution  0.1 knots
Accuracy  depending on the air velocity and the size of the air duct

Air pressure
Measuring range  0 ... 5000 hPa
Resolution  1 hPa
Accuracy  ±0.3% FS at 25°C

Air pressure
Measuring range  0 ... 0,7252 psi
Resolution  0,0001 psi
Accuracy  ±0.3% FS at 25°C

Air pressure
Measuring range  0 ... 50 mbar
Resolution  0,01 mbar
Accuracy  ±0.3% FS at 25°C

Air pressure
Measuring range  0 ... 20,07 inH₂O
Resolution  0,01 inH₂O
Accuracy  ±0.3% FS at 25°C

Air pressure
Measuring range  0 ... 509,8 mmH₂O
Resolution  0,1 mmH₂O
Accuracy  ±0.3% FS at 25°C

Volume flow
Measuring range  0 ... 99999 ft³/min
Resolution  0,0001 ft³/min
Accuracy  ±2.5 % of Rd

Volume flow
Measuring range  0 ... 99999 m³/min
Resolution  0,001 m³/min
Accuracy  ±2.5 % of Rd

Temperature
Measuring range  0 ... 50 °C
Resolution  0,1 °C
Accuracy  ±1 °C

Temperature
Measuring range  32 ... 122 °F
Resolution  0,1 °F
Accuracy  ±2 °F

General technical data
Measuring functions  HOLD, MAX, MIN
Display type  LCD with backlight
Display size  2,5 Inch
Display refresh rate  1 x per second
Storage medium  Internal memory
Storage capacity  297 Values
Memory capacity (additional information)  99 measured values per parameter
Interface  Micro-USB
Response time  0,5 s
Automatic power-off  20 min
Repeatability  0,2 % (Max. ±0.5% FS)
Housing  ABS (acrylonitrile-butadiene-styrene copolymers)
Dimensions  Pitot tube:

- Length: 335 mm
- Tube diameter: Ø 8 mm
- Head diameter: Ø 8 mm
- Head length: 195 mm
- Length of measuring hoses: 850 mm each
Linearity  0.29 % of range.
Menu language  English, English (GB)
Protection class (device)  IP20
(Rechargeable) battery  1 x 9 V 9V block , Alkali-manganese
Capacity  640 mAh
Operating conditions  0 ... 50 °C , 0 ... 90 % RH
Storage conditions  -10 ... 60 °C , 0 ... 90 % RH
Dimensions ( L x W x H )  225 x 95 x 46 mm
Weight  600 g

Delivery Scope

1 x Environmental Meter PCE-HVAC 2
1 x Pitot tube (angled)
1 x USB cable
1 x Carrying case
1 x Software
2 x Connecting hose (85 cm each)
1 x 9 V block battery
1 x Instruction manual
