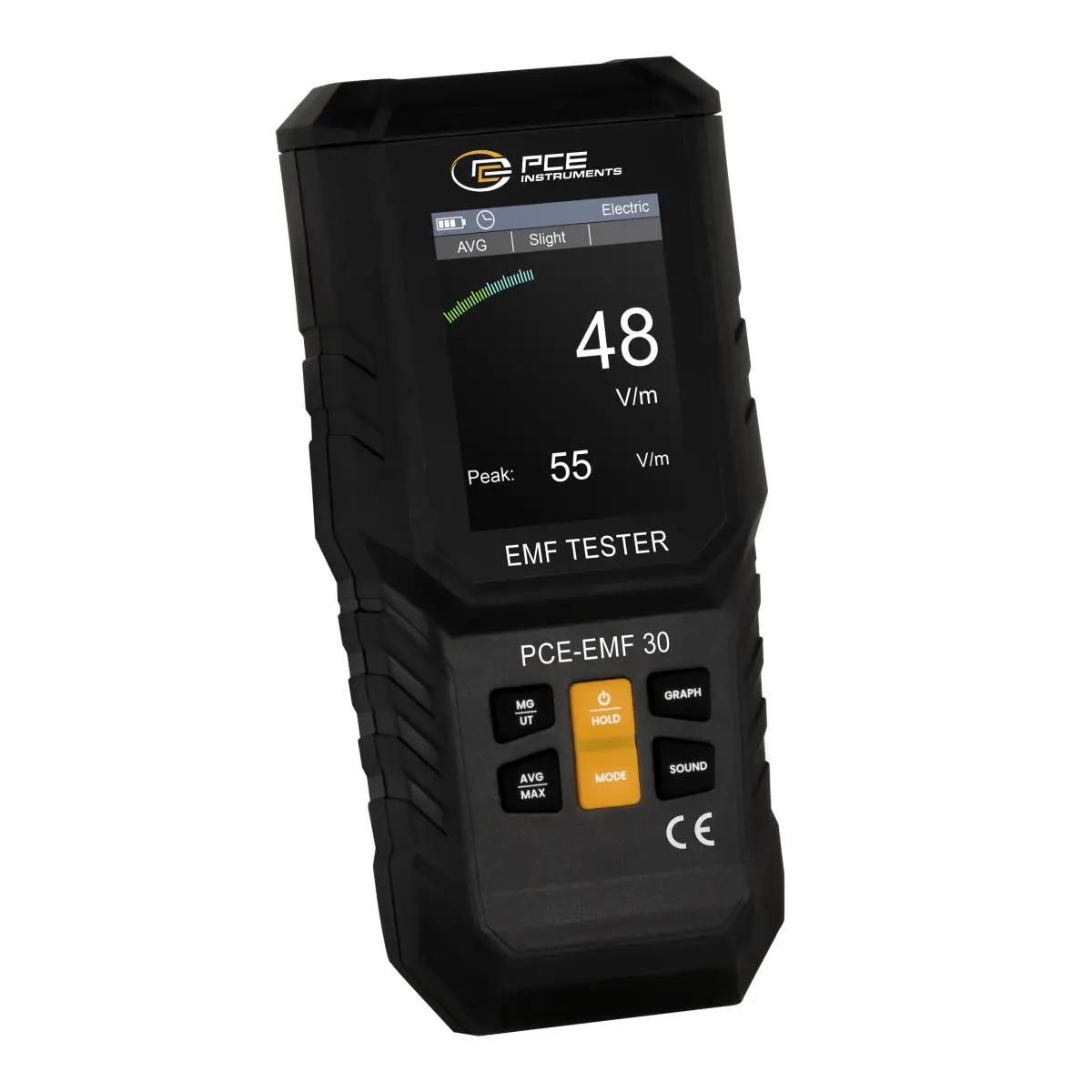

Electromagnetic Field Meter PCE-EMF 30

Electromagnetic Field Meter PCE-EMF 30

Order no.: PCE-EMF 30
GTIN (EAN): 4250348732163
₹10,695.00
₹12,620.10
price ex. (VAT / delivery)
:
4250348732163
PCE-EMF 30
Delivery time:1-2 working days

Description

Electromagnetic Field Meter with LCD display
 Measuring range up to 1800 V/m / 3-axis measurement / for mobile and fast use

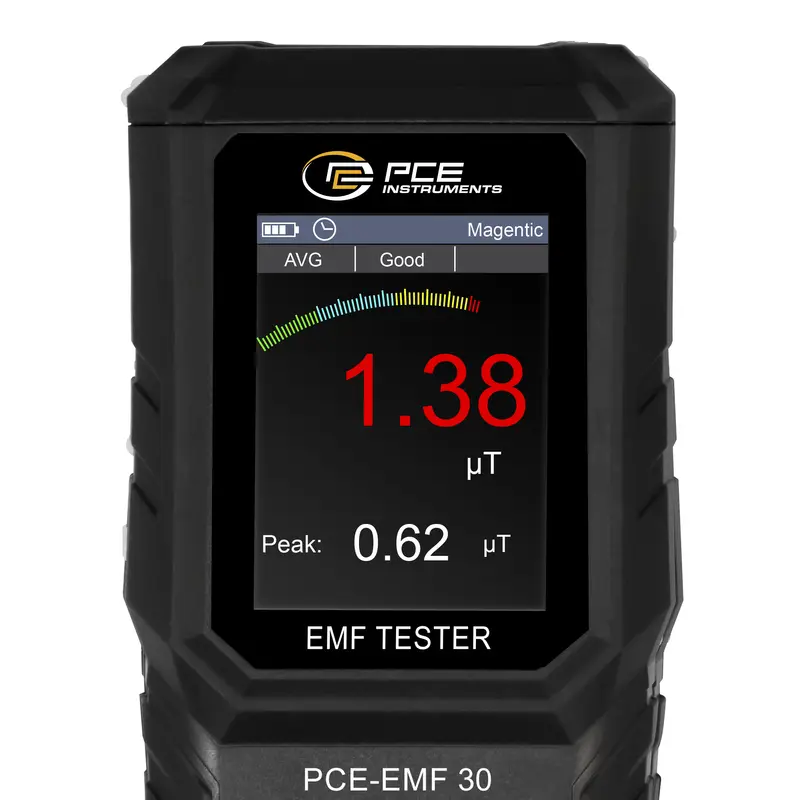

With this electromagnetic field meter it is possible to measure magnetic fields up to 999.9 mG directly. At the same time, the electromagnetic field meter displays the strength of the magnetic field numerically using an X, Y and Z axis. The electromagnetic field meter is a multifunctional 3-in-1 meter for electric fields (EF), magnetic fields (MF) and radio frequency fields (RF). The default mode is EF mode when the electromagnetic field meter is turned on. The measured value can be affected by the influence of the electric field of the environment.

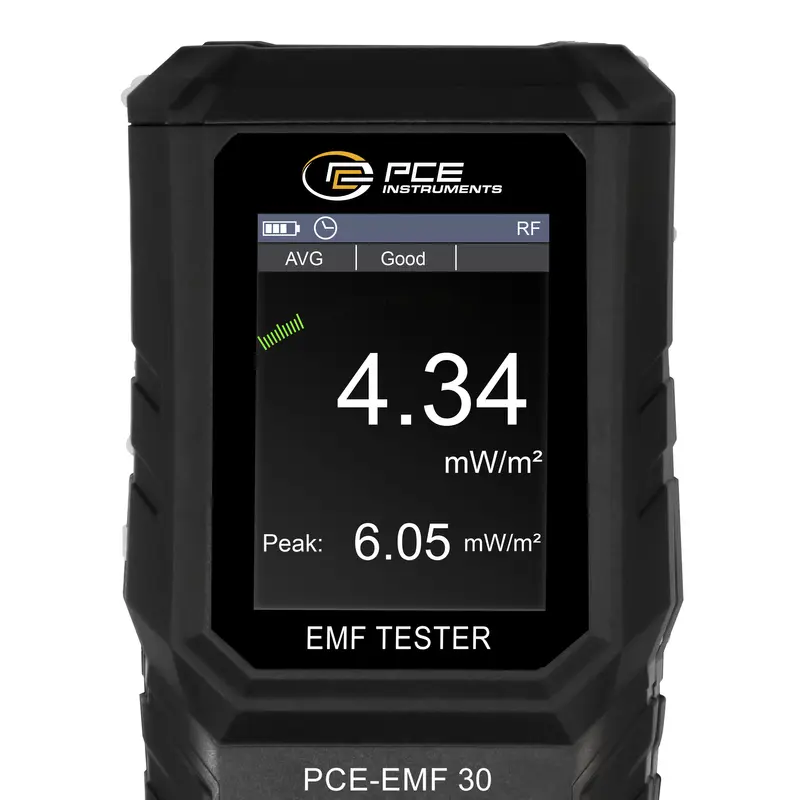

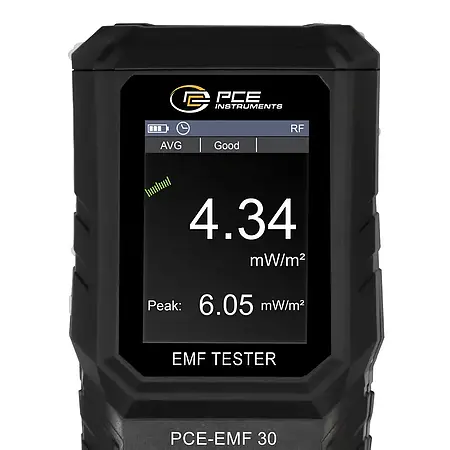

The electromagnetic field meter is equipped with a built-in electromagnetic radiation sensor that displays the radiation value on the LCD screen. You can take appropriate precaution or take effective measures against the electromagnetic radiation according to the test result.

Highlights

- LCD screen
- Average/Peak mode
- Auto-Off
- EF/MF/RF test display
- Graphic display

Specification

Radiation
Measuring range  0,01 ... 1800 mW/m²
Resolution  0,01 mW/m²
Accuracy  ±8 % of Rd

Radiation
Measuring range  1 ... 1999 V/m
Resolution  1 V/m

Radiation
Measuring range  0,1 ... 999,9 mG
Resolution  0,1 mG

Radiation
Measuring range  0,01 ... 99,99 µT
Resolution  0,01 µT

General technical data
Automatic power-off  15 min
RF bandwidth from  1 MHz
Bandwidth RF to  10 GHz
Bandwidth MF from  5 Hz
Bandwidth MF to  3,5 GHz
Bandwidth EF from  5 Hz
Bandwidth EF to  3,5 GHz
Menu language  English
Protection class (device)  IP20
Power supply  3.7 V
Capacity  1000 mAh
Operating conditions  0 ... 50 °C , 0 ... 80 % RH
Storage conditions  0 ... 50 °C , 0 ... 80 % RH
Dimensions ( L x W x H )  147 x 70 x 31 mm
Weight  150 g

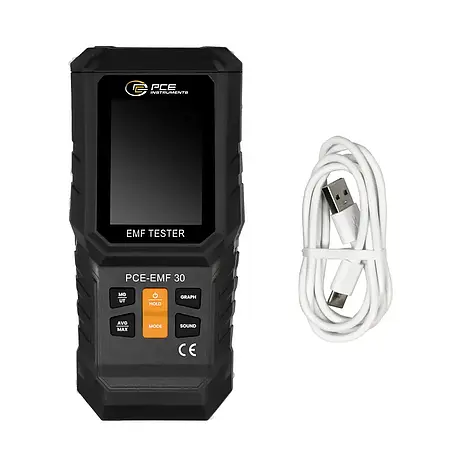

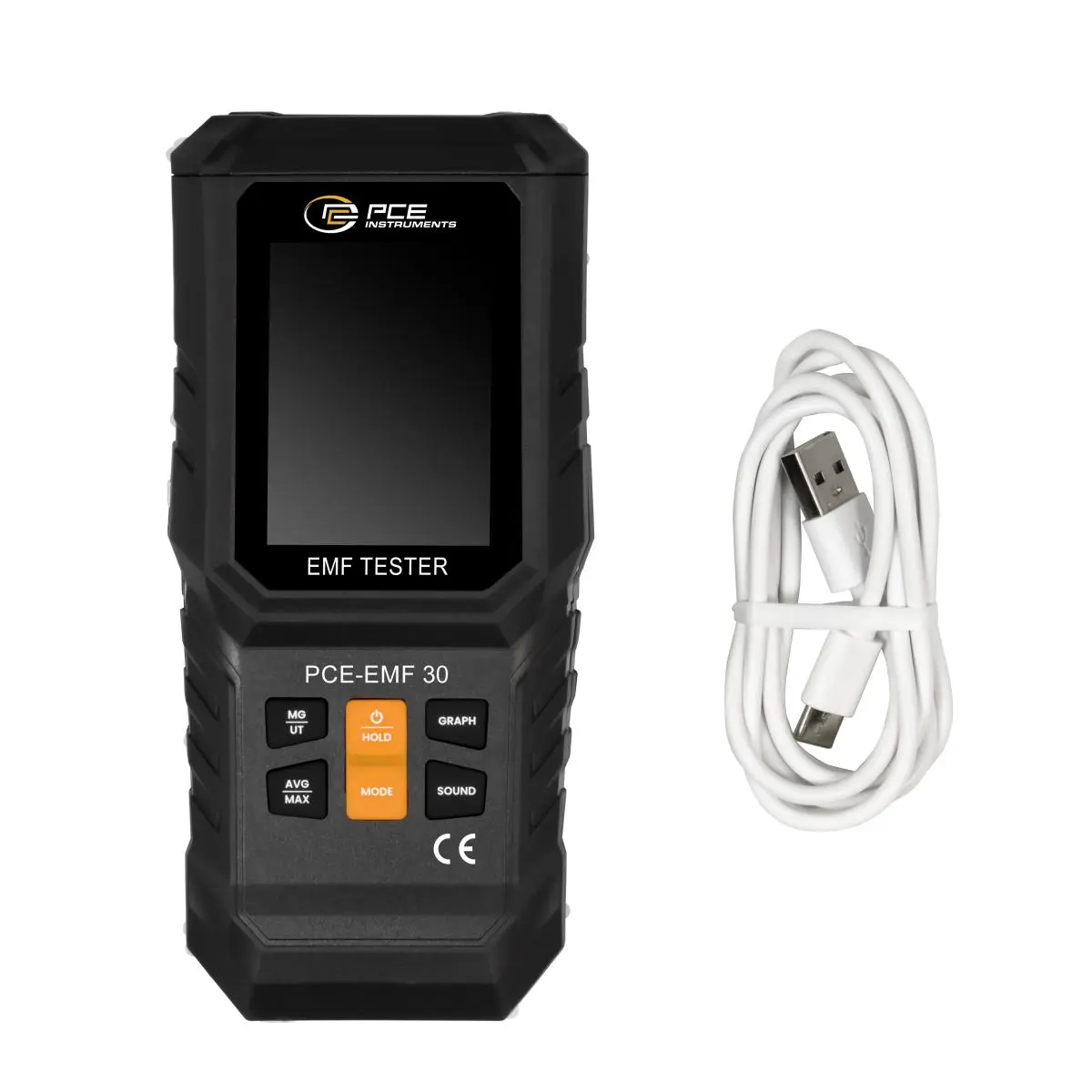

Delivery Scope

1 x Electromagnetic Field Meter PCE-EMF 30
1 x instruction manual
