Electrical Tester PCE-MO 2001-ICA

Electrical Tester PCE-MO 2001-ICA [zoom]
Electrical Tester PCE-MO 2001-ICA

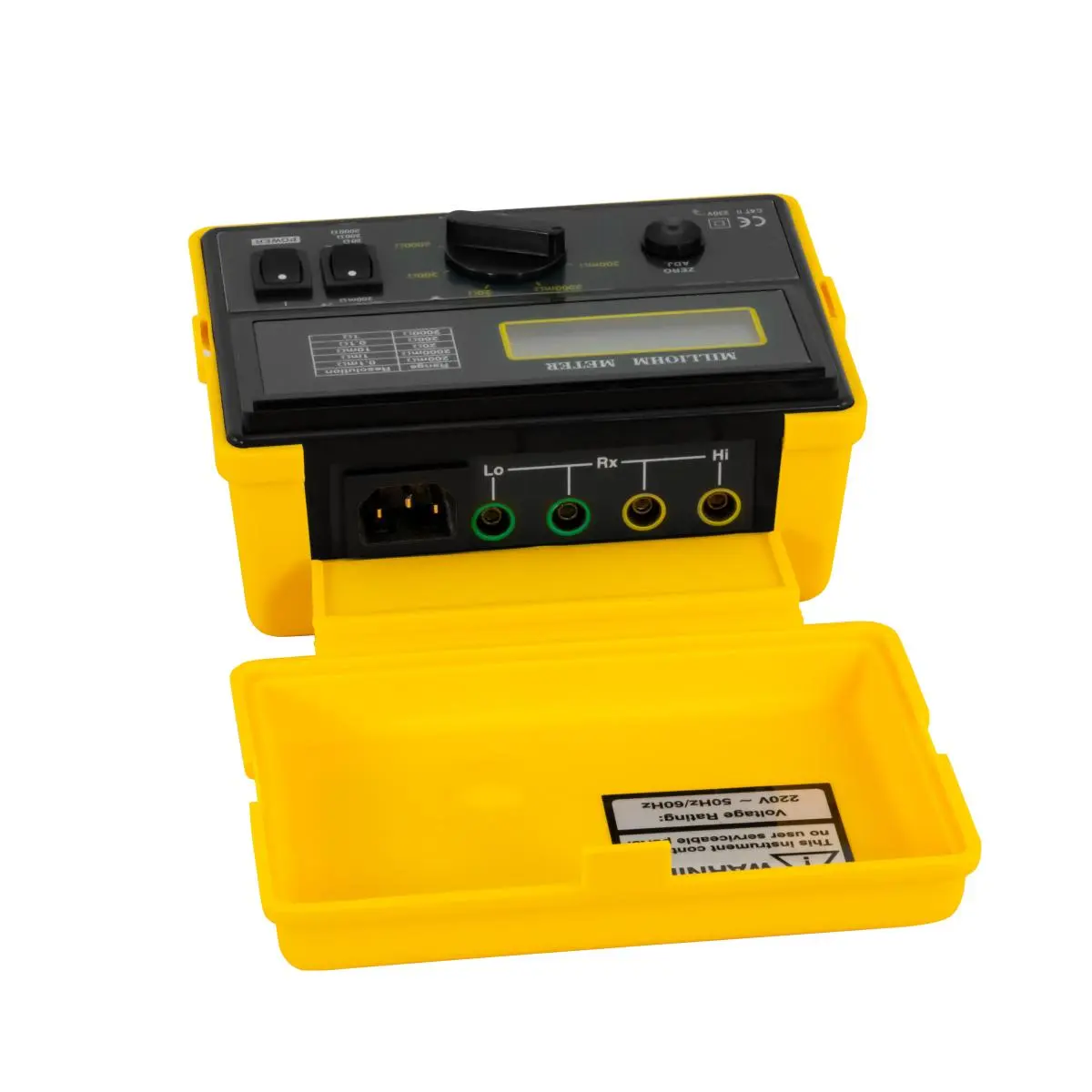

Electrical Tester Connections

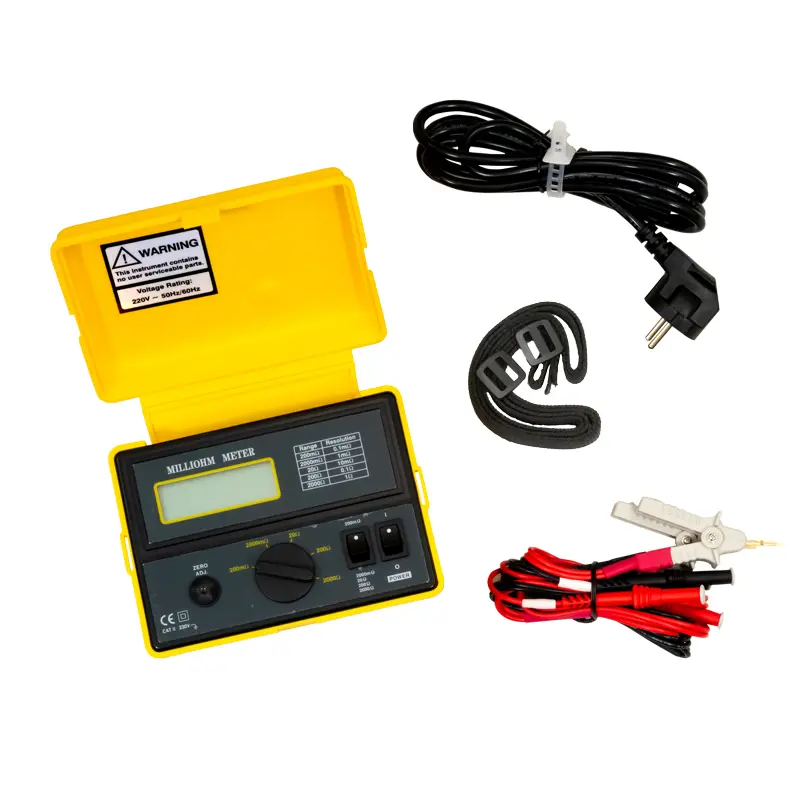

Electrical Tester Delivery scope

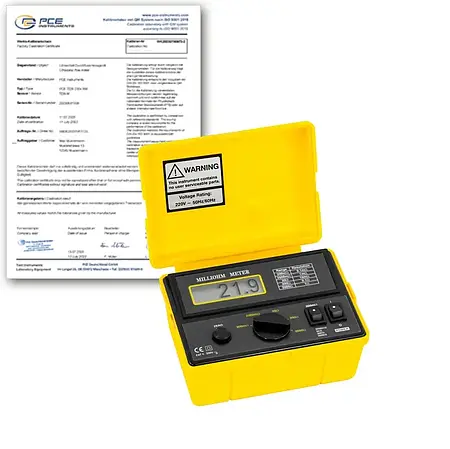

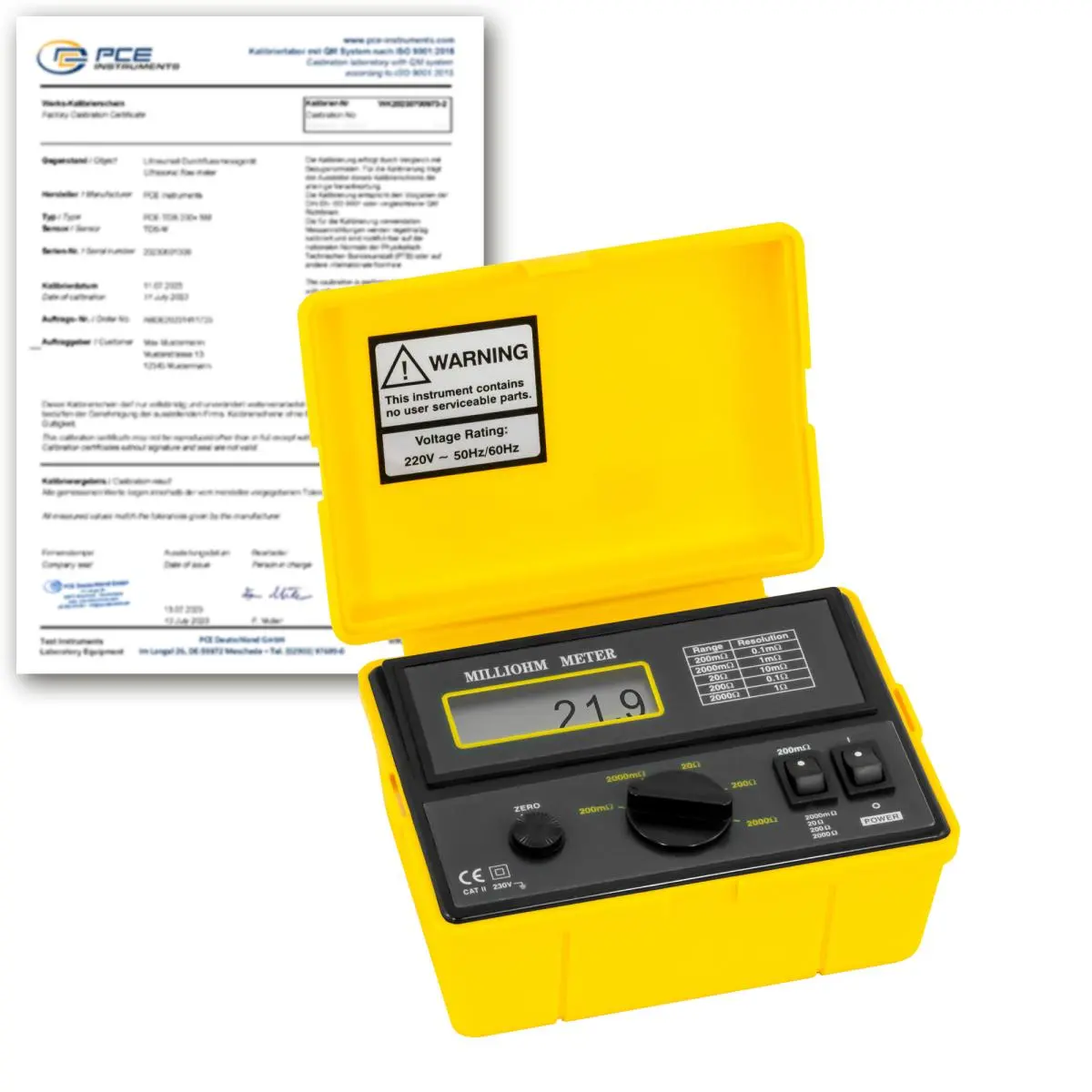

Electrical Tester PCE-MO 2001-ICA incl. ISO-Calibration Certificate

Order no.: PCE-MO 2001-ICA
GTIN (EAN): 4250348733917
₹79,545.00
₹94,658.55
price ex. (VAT / delivery)
:
4250348733917
PCE-MO 2001-ICA
Delivery time:5-7 working days

Accessory

Description

Electrical Tester
(it comes with a water resistant brief-case, for measuring ranges from 100 μΩ to 2000 Ω)

This Electrical Tester is supplied with a big 3½ positions LCD display that shows the measurement values, which is very easy to read. With the Electrical Tester you will be able to measure electric resistance form 100 μΩ a 2000 Ω.To obtain measurement values, a constant electric current is introduced inside an object to test the voltage drop in it. Electrical Tester has a housing protected against water splash and also it is delivered calibrated. If you wish, an ISO calibration certificate can be requested.

Highlights

- It can be used to measure electric resistance in engine coils, generators,
transformers, commutation circuits, for instance in parallel or adjoining
commutation circuits, compressed commutation circuits or commutators and
relays.
- To measure binding energy in mines, planes, boats and also for both
industrial and home installations.
- Pitch control in cyclic systems (Ringbus) to be used in industry and home.
- To test and measure Read contacts.
- Compression elements control in over line current cables, for the control and
maintenance of components such as connectors, contacts.
- Security: IEC-1010-1; CAT II 20 V
- incl. ISO-Calibration Certificate

Specification

Resistance
Measuring range  0 ... 200 mΩ
Resolution  0,1 µΩ
Accuracy  ±0.75 % of Rd +4 digits (range up to 20 Ω), ±0.75 % of Rd +2 digits (range over 20 Ω)

Resistance
Measuring range  0 ... 2000 mΩ
Resolution  1 mΩ
Accuracy  ±0.75 % of Rd +4 digits (range up to 20 Ω), ±0.75 % of Rd +2 digits (range over 20 Ω)

Resistance
Measuring range  0 ... 20 Ω
Resolution  10 mΩ
Accuracy  ±0.75 % of Rd +4 digits (range up to 20 Ω), ±0.75 % of Rd +2 digits (range over 20 Ω)

Resistance
Measuring range  0 ... 200 Ω
Resolution  0,1 Ω
Accuracy  ±0.75 % of Rd +4 digits (range up to 20 Ω), ±0.75 % of Rd +2 digits (range over 20 Ω)

Resistance
Measuring range  0 ... 2000 Ω
Resolution  1 Ω
Accuracy  ±0.75 % of Rd +4 digits (range up to 20 Ω), ±0.75 % of Rd +2 digits (range over 20 Ω)

General technical data
Cable length  50 cm
Display type  LCD
Display size  0,7 Inch
Measuring rate  0,4 s
Standard(s)  IEC 1010-1
Housing  ABS (acrylonitrile-butadiene-styrene copolymers)
Safety standard  CAT II 20 V
Measuring method  4-wire method for mΩ measurement
Test current  1 mA: 2000 Ω / 200 Ω
10 mA: 20 Ω / 2 Ω
100 mA: 200 mΩ
Accuracy: ±0.1 %
Fuse(s)  100 mA / 250 V
Performance  2,5 W
Protection class (device)  IP20
Power supply  230 V AC, 50/60 Hz
Connector type  Schuko plug
Operating conditions  0 ... 40 °C , 0 ... 80 % RH
Storage conditions  0 ... 40 °C , 0 ... 80 % RH
Dimensions ( L x W x H )  170 x 120 x 90 mm
Weight  680 g

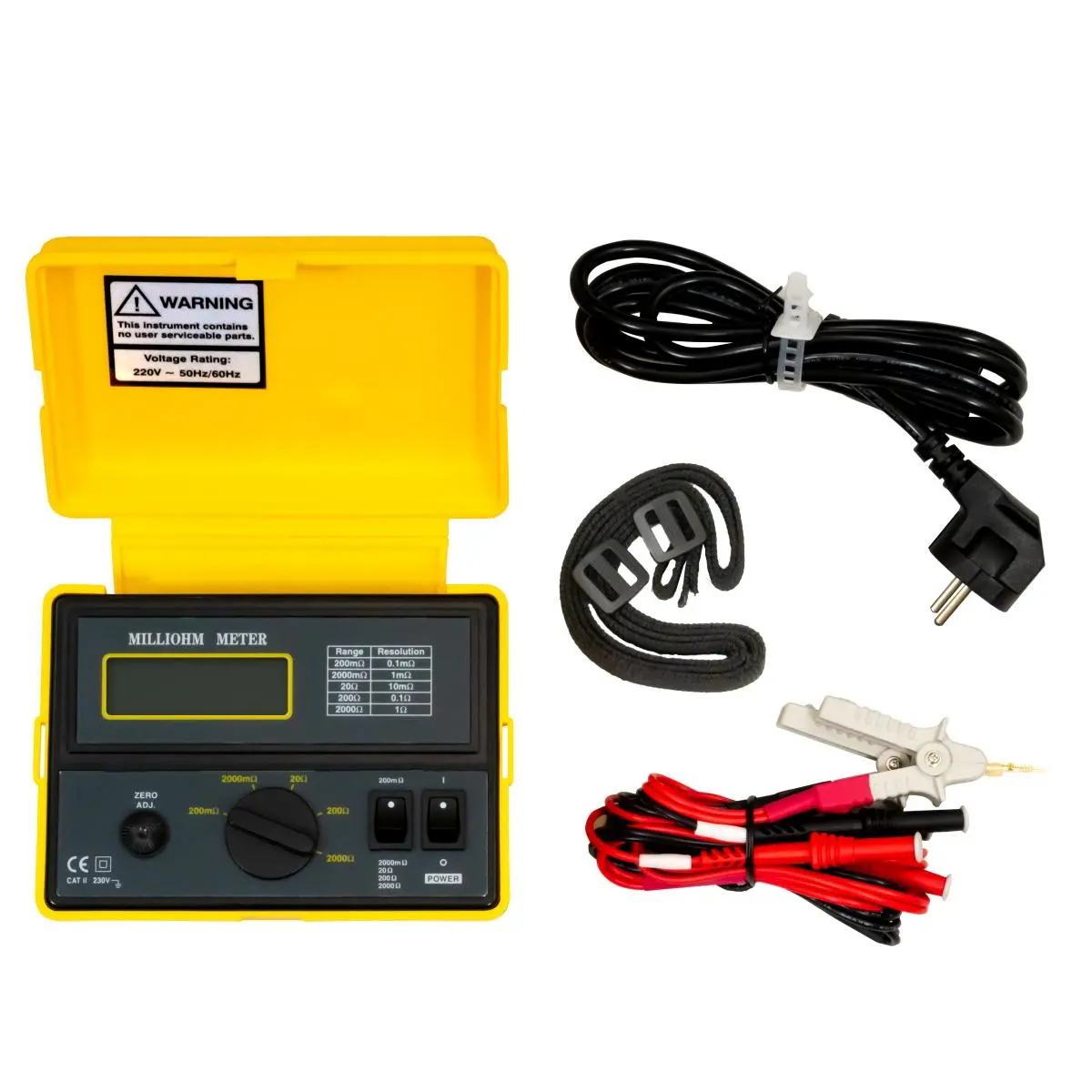

Delivery Scope

1x Electrical Tester PCE-MO 2001-ICA
1x testing cables,
1x AC cable
1x user's manual
1 x ISO-Calibration Certificate
