₹20,640.00

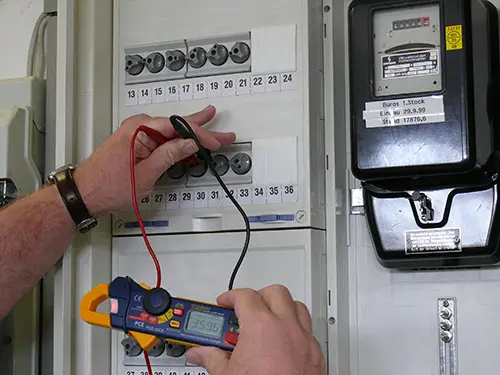

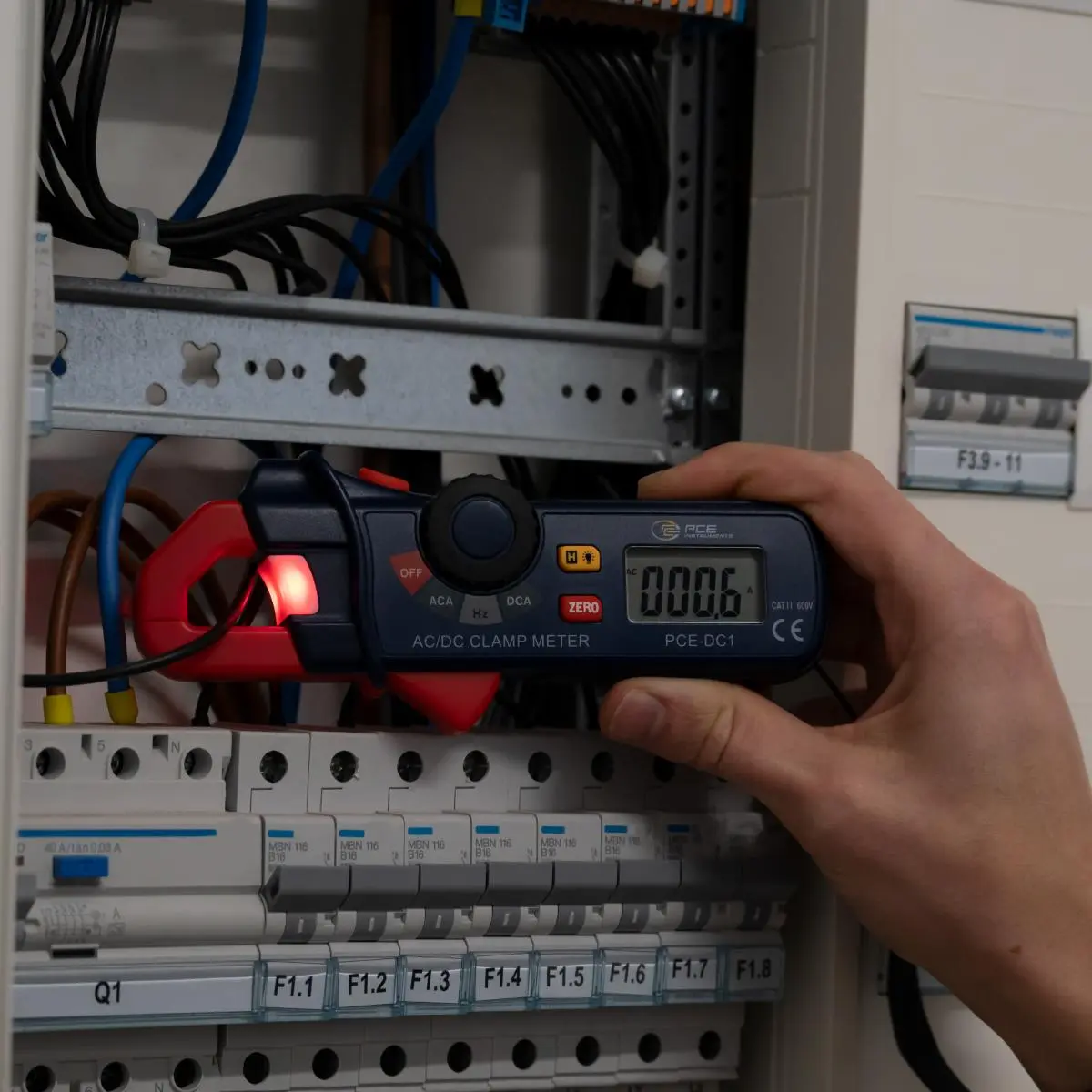

The PCE-DC1 Electrical Tester has been designed to detect, indirectly, AC/DC current and ohms. The Electrical Tester has white LEDs integrated to allow for the point of measurement to be illuminated, and a function to test the voltage without contact. The reduced dimensions of this device allow for measurements to be taken in places with limited access. The backlit display ensures that it is easy to read, even in places with limited light available, such as electrical cabinets or in cabling ducts. Testing voltage without contact helps when detecting dangerous power lines, and it allows makes it easier to detect the location of cuts in power lines.
| Direct voltage DC | |
| Measuring range | 0 ... 600 mV |
| Resolution | 0,1 mV |
| Accuracy | ±(1.0 % +2 digits) |
| Direct current DC | |
| Measuring range | 0 ... 200 A |
| Resolution | 0,1 A |
| Accuracy | ±(2.0% +5 digits) |
| AC voltage | |
| Measuring range | 0 ... 600 V |
| Resolution | 0,1 V |
| Accuracy | ±(1.5 % +8 digits) |
| Frequency range | 50 ... 60 Hz |
| Alternating current AC | |
| Measuring range | 0 ... 200 A |
| Resolution | 0,1 A |
| Accuracy | ±(2.5 % +8 digits) |
| Frequency range | 50 ... 60 Hz |
| Resistance | |
| Measuring range | 0 ... 999,9 Ω |
| Resolution | 0,1 Ω |
| Accuracy | ±(1.5 % +8 digits) |
| General technical data | |
| Measuring functions | MIN, MAX, HOLD |

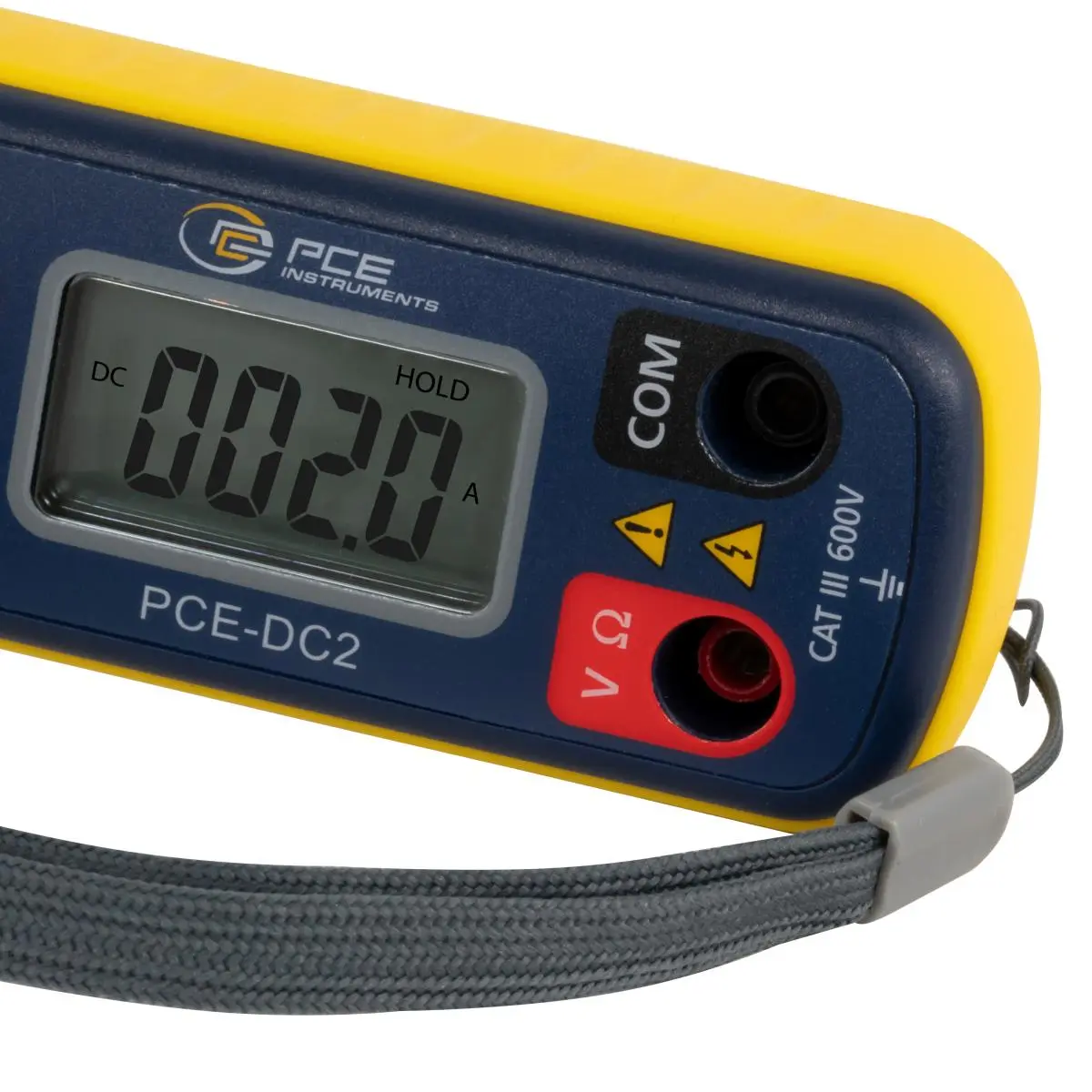

| Display type | LCD with backlight |
| Display size | 1,4 Inch |
| Measuring rate | 10 Hz |
| Maximum cable diameter | 18 mm |
| Automatic power-off | 10 min |
| Safety standard | CAT III 600V, CAT IV 300V |
| Test current | <0.5 mA |
| Menu language | English, English (GB) |
| Protection class (device) | IP20 |
| (Rechargeable) battery | 2 x 1,5 V AAA battery , Alkali-manganese |
| Capacity | 1200 mAh |
| Operating conditions | -10 ... 50 °C , 0 ... 75 % RH |
| Storage conditions | -30 ... 60 °C , 0 ... 75 % RH |
| Dimensions ( L x W x H ) | 164 x 65 x 32 mm |
| Weight | 175 g |
