Barcol Hardness Testing Durometer PCE-1000N

Order no.: PCE-1000N

GTIN (EAN): 4250348716088

Accessory

ISO Calibration Certificate CAL-HBa

₹21,405.00

Description

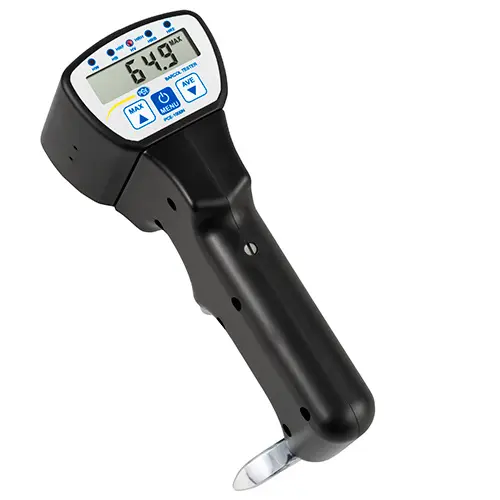

PCE-1000N Barcol Hardness Testing Durometer

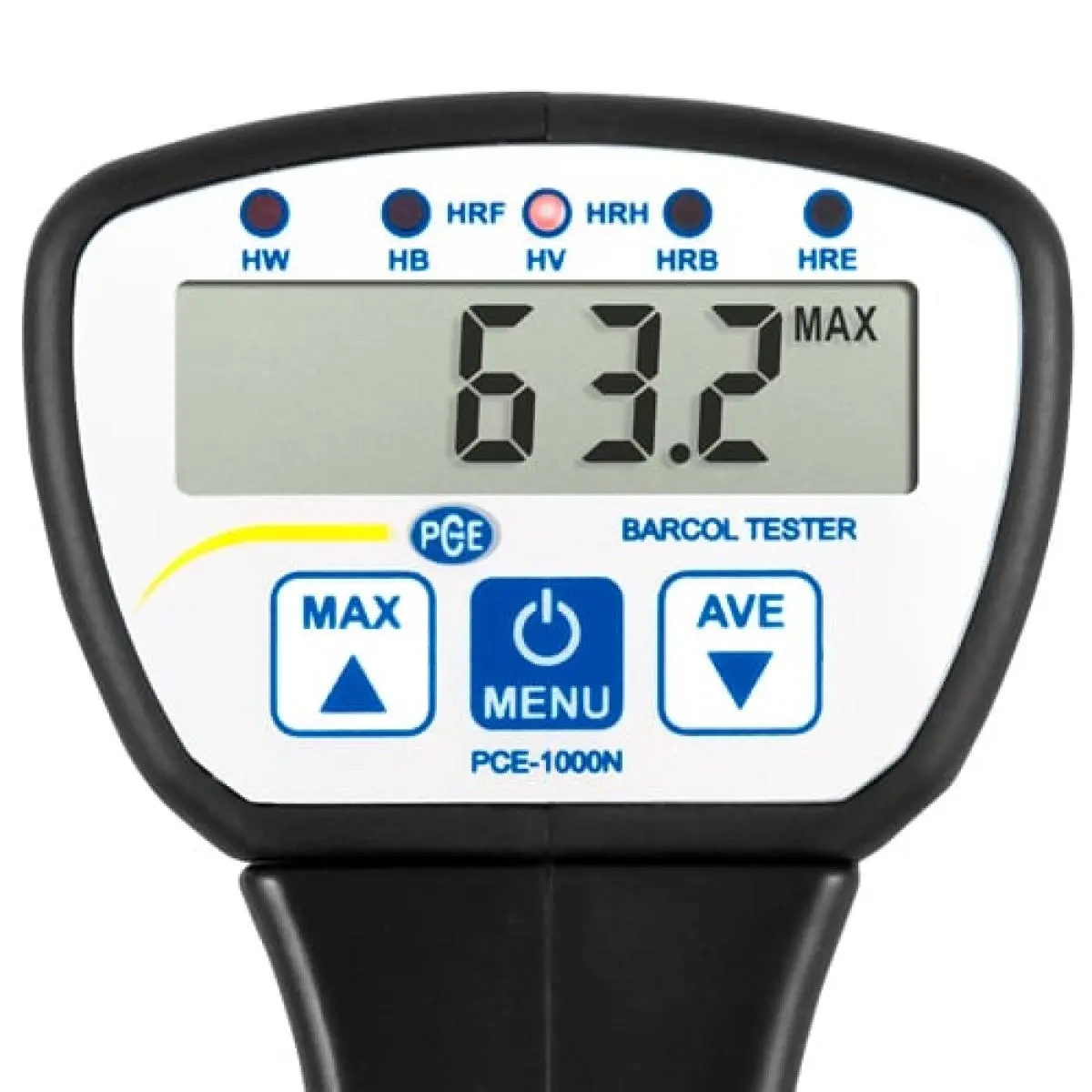

Barcol impressor hardness meter with backlit LCD, power-saving automatic shutdown, maximum and average functions

PCE-1000N is a portable handheld Barcol hardness testing durometer used to measure the hardness of pure aluminum, soft aluminum, thick aluminum alloy and aluminum sheets, strips, rods, castings and forgings. The hardness of fiber-reinforced (FRP) plastics, glass-reinforced (GRP) plastics, hard plastics and soft metals (such as copper or lead) also can be tested using this battery-powered digital Barcol impressor hardness meter. The digital meter offers a wide measuring range, high accuracy and direct display of the measured values on the built-in backlit LCD. In addition to Barcol (HBA) hardness units, the meter displays hardness measurements in Brinell (HB), Vickers (HV), Webster (HW) and Rockwell (HRB / HRE / HRF / HRH) hardness units. Adding to the meter's versatility is its sleek design, allowing for quick and easy one-handed operation.

The Barcol Hardness Tester meets the following ASTM (American Society for Testing and Materials) standards: E140-97; D2583-75; B648-78: E140-97 Standard Hardness Conversion Tables for Metals; D2583-75 Standard Method of Testing for Indentation Hardness of Plastics by means of a Barcol Impressor; B648-78 Standard Method of Testing for Indentation Harness of Aluminum Alloys by means of a Barcol Hardness Tester.

Highlights

- Direct display of measured value

- High accuracy

- Maximum and average value functions

- Easy-to-read backlit LCD screen

- Power-saving automatic shutdown

- Wide measuring range

- One-handed operation

Specification

Hardness
Measuring range	0 ... 100 HBa
Resolution	0,1 HBa
Accuracy	81 ... 88 HBa: ±1 HBa 42 ... 48 HBa: ±2 HBa

General technical data
Measuring functions	MAX, HOLD, Average value
Display type	LCD with backlight
Display size	1,7 Inch
Standard(s)	ASTM B648-00, ASTM HD2583-07, GB/ T 3854-2005
Materials	Copper, Other soft metals
Automatic power-off	10 min
Repeatability	2,5 HBa
Impact device	D-type
Hardness scales	HBa, HB, HV, HW, HRB, HRE, HRF, HRH
Test specimen	Minimum thickness of test specimen: 1.5 mm
Menu language	English
Protection class (device)	IP20
(Rechargeable) battery	2 x 1,5 V AAA battery , Alkali-manganese
Capacity	1200 mAh
Operating conditions	0 ... 50 °C , 0 ... 50 % RH
Storage conditions	0 ... 50 °C , 0 ... 50 % RH
Dimensions ( L x W x H )	170 x 82 x 63 mm
Weight	390 g
