Digital Thermometer PCE-313 S-ICA

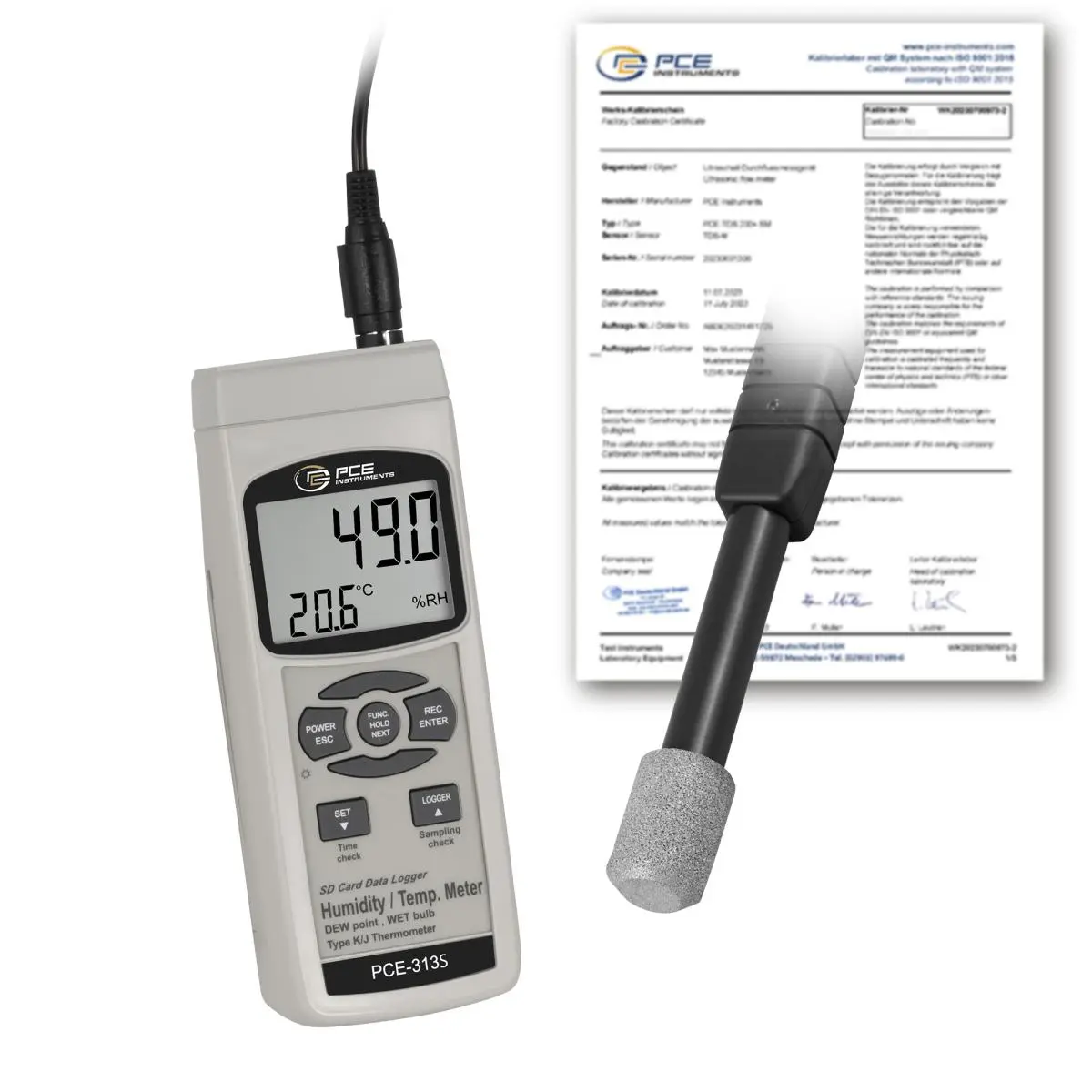

Digital Thermometer PCE-313 S-ICA incl. ISO-Calibration Certificate

Order no.: PCE-313 S-ICA
GTIN (EAN): 4250348740120
1 pc.

Description

Digital Thermometer PCE-313 S   Digital Thermometer with SD memory card and sintered hood humidity tester for measuring relative humidity and temperature, with internal memory through the SD card (1 to 16 GB) / Interface for real-time data transfer / Power

The PCE-313 S Digital Thermometer has been designed for professional use in fields such as the air-conditioning sector. The PCE-313 S Digital Thermometer determines both relative humidity and ambient temperature. The PCE-313 S Digital Thermometer can be connected to type K thermo-elements to detect, for instance, the temperature of a wall by means of a surface probe. The internal memory of the PCE-313 S Digital Thermometer allows you to record humidity and temperature values, with a freely adjustable measurement rate for real-time measurements or data storage thanks to its SD memory card (1 to 16 GB). The PCE-313 S Digital Thermometer can be programmed in advance via the keypad so the device can record values without the need to be present during the process. For long-term records, we recommend powering the PCE-313 S Digital Thermometer by means of a power adapter (optional). Recorded values can be transferred to a PC for further analysis (.xls file on the SD card). This property allows you to check measured values or design a graph by means of the Excel calculation program.


Highlights

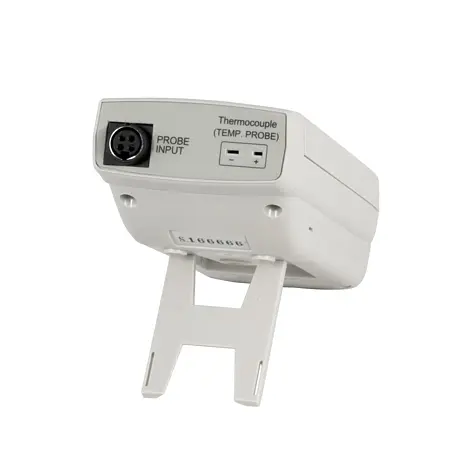

- Measures temperature, humidity, dew point and temperature via the connection
to a thermo-element.
- Memory with possibility of real time registration by means of the SD memory
card (1 to 16 GB)

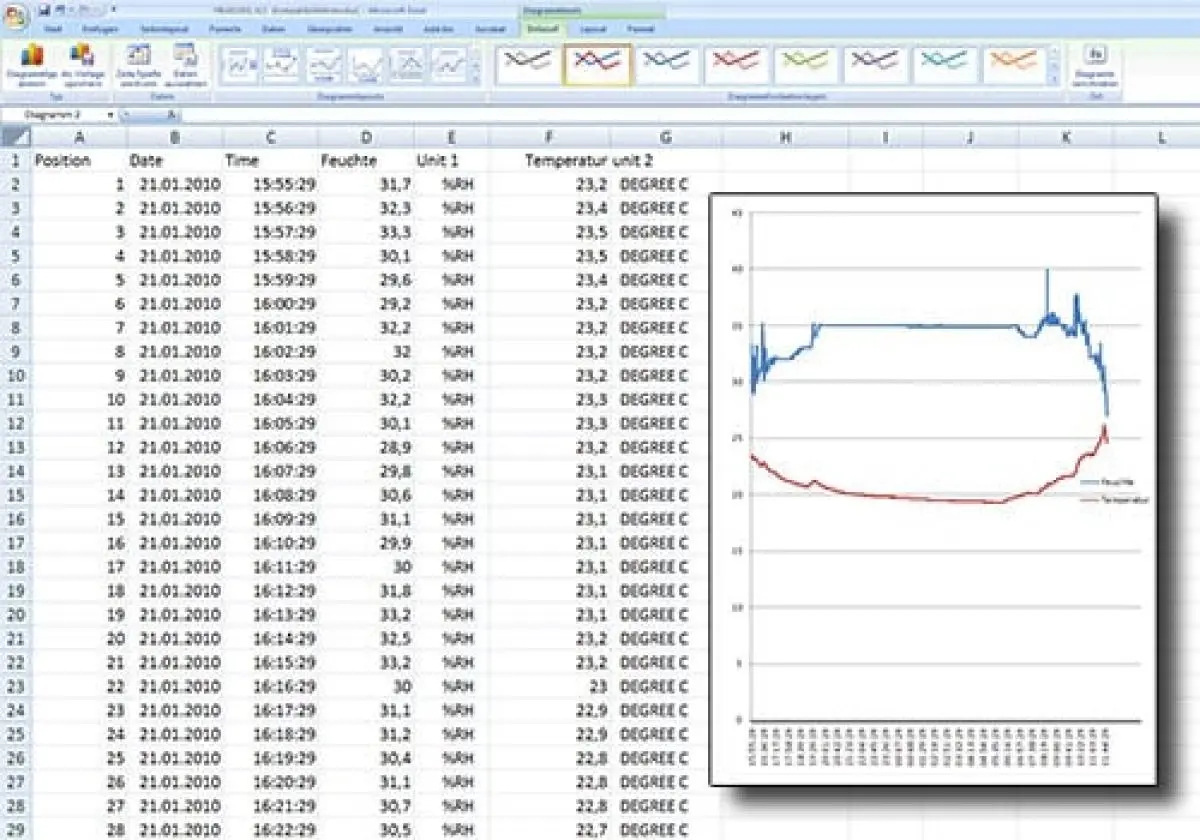

- Data is directly stored in Excel format in the SD card.
- The SD card can be formatted in the Climate Meter
- Data-Hold Function
- External sensor for an easy and flexible measurement of the environmental
conditions.
- Low battery indication
- Large LCD display
- Connection for tripod
- Measurement rate adjustment from 1 to 3600 seconds
- Easy-to-use
- Solid case
- 2 GB SD card and card reader included in the delivery
- Optional software for real time data transference to a computer or portable
computer (no additional
software is required for data analysis).
- incl. ISO-Calibration Certificate

Specification

Wet bulb temperature
Measuring range  -21,6 ... +50 °C
Resolution  0,1 °C

Type K temperature
Measuring range  -50 ... +1300 °C
Resolution  0,1 °C
Accuracy  ±(0.4 % +0.5 °C)

Dew point
Measuring range  -25,3 ... +48,9 °C
Resolution  0,1 °C

Relative humidity
Measuring range  5 ... 95 % RH
Resolution  0,1 % RH
Accuracy  ±3 % RH

Temperature
Measuring range  0 ... 50 °C
Resolution  0,1 °C
Accuracy  ±0.8 °C

General technical data
Number of measuring channels  1
Display type  LCD with backlight
Display size  2,5 Inch
Storage medium  SD card
Storage capacity  16 GB
Memory capacity (additional information)  SD card possible from 1 ... 16 GB / 2 GB SD card included in the delivery scope
Storage interval from  1 s
Storage interval to  3600 min.

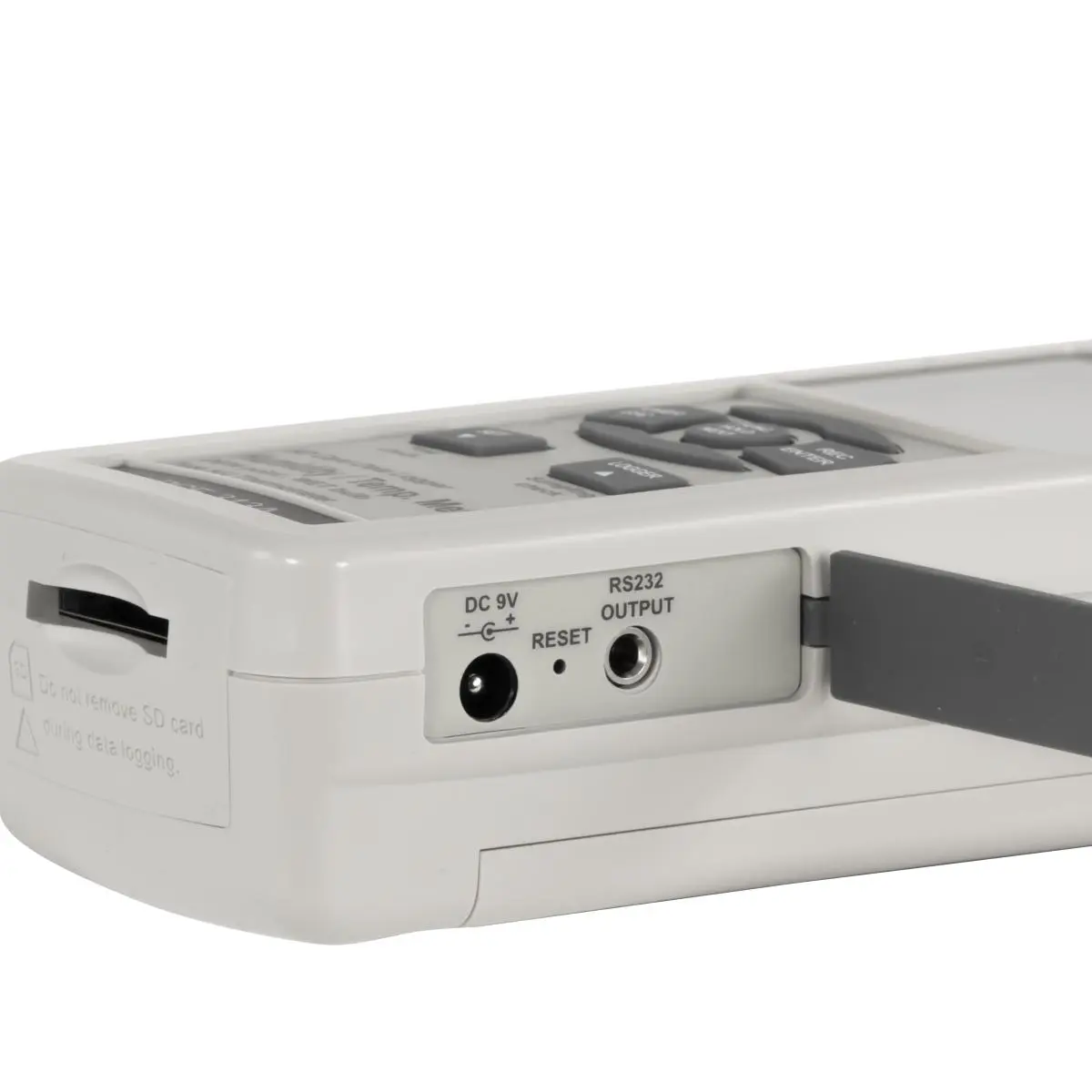

Interface  RS232
Menu language  English, English (GB)
Protection class (device)  IP20
Power supply  9 V DC

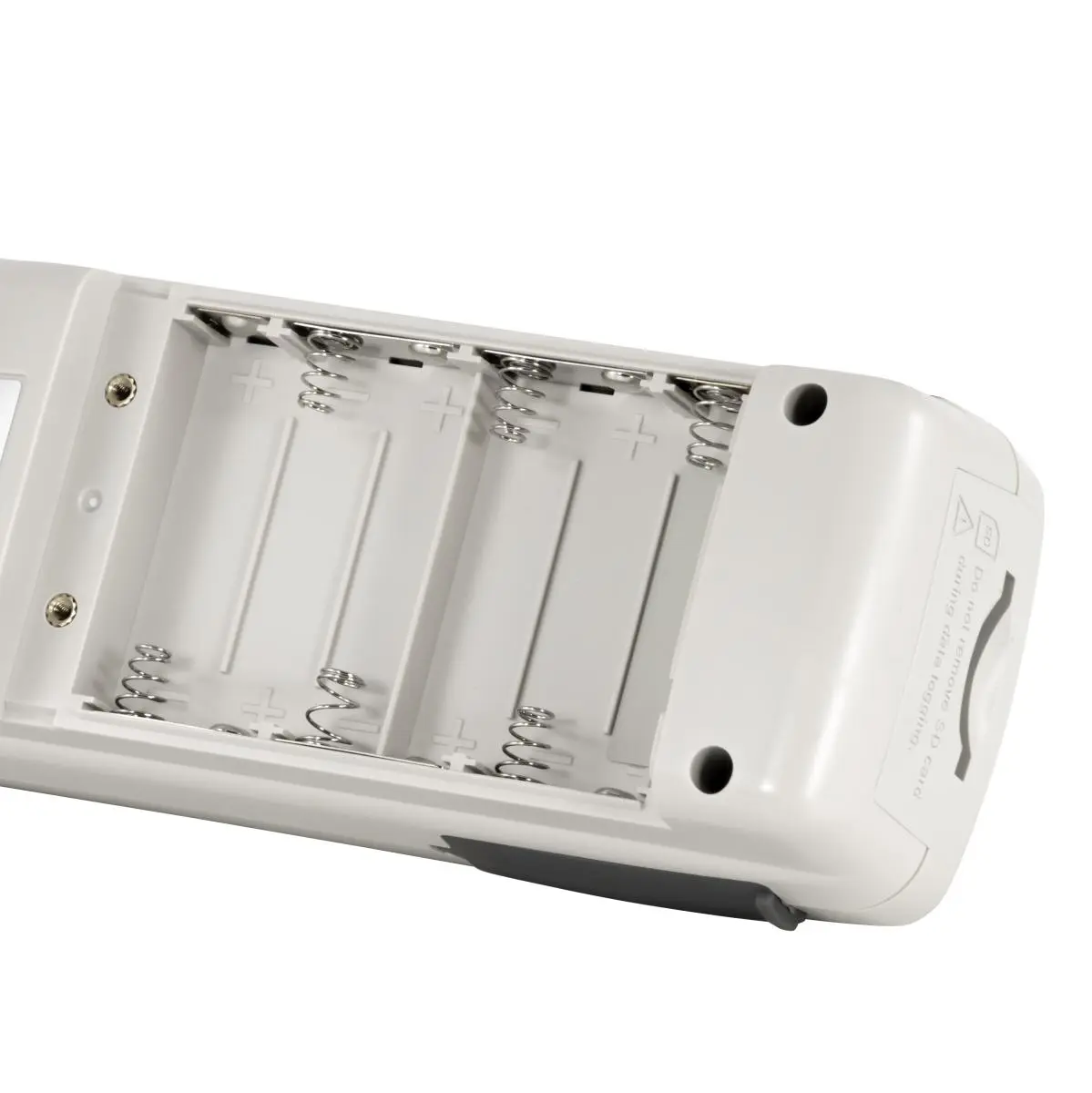

(Rechargeable) battery  6 x 1,5 V AA battery , Alkali-manganese
Capacity  3000 mAh
Operating conditions  0 ... 50 °C , 0 ... 85 % RH
Storage conditions  0 ... 50 °C , 0 ... 85 % RH
Dimensions ( L x W x H )  177 x 68 x 45 mm
Weight  490 g

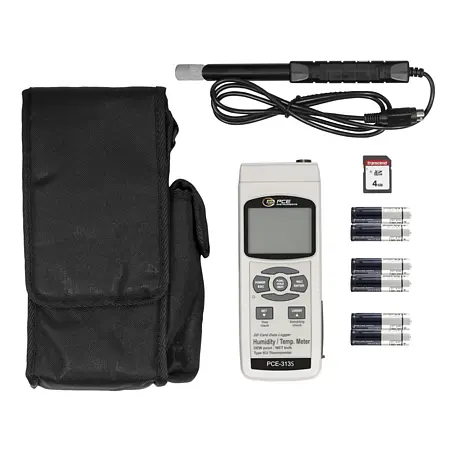

Delivery Scope

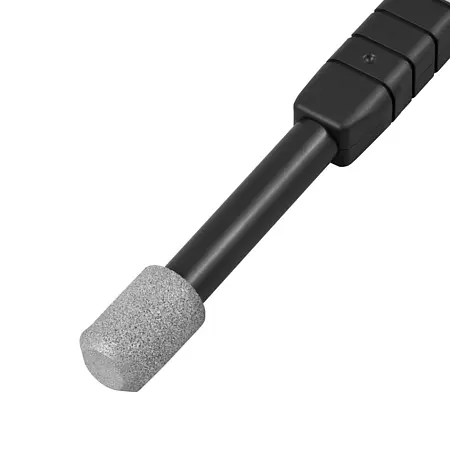

1 x PCE-313 S-ICA Digital Thermometer (with sintered hood)

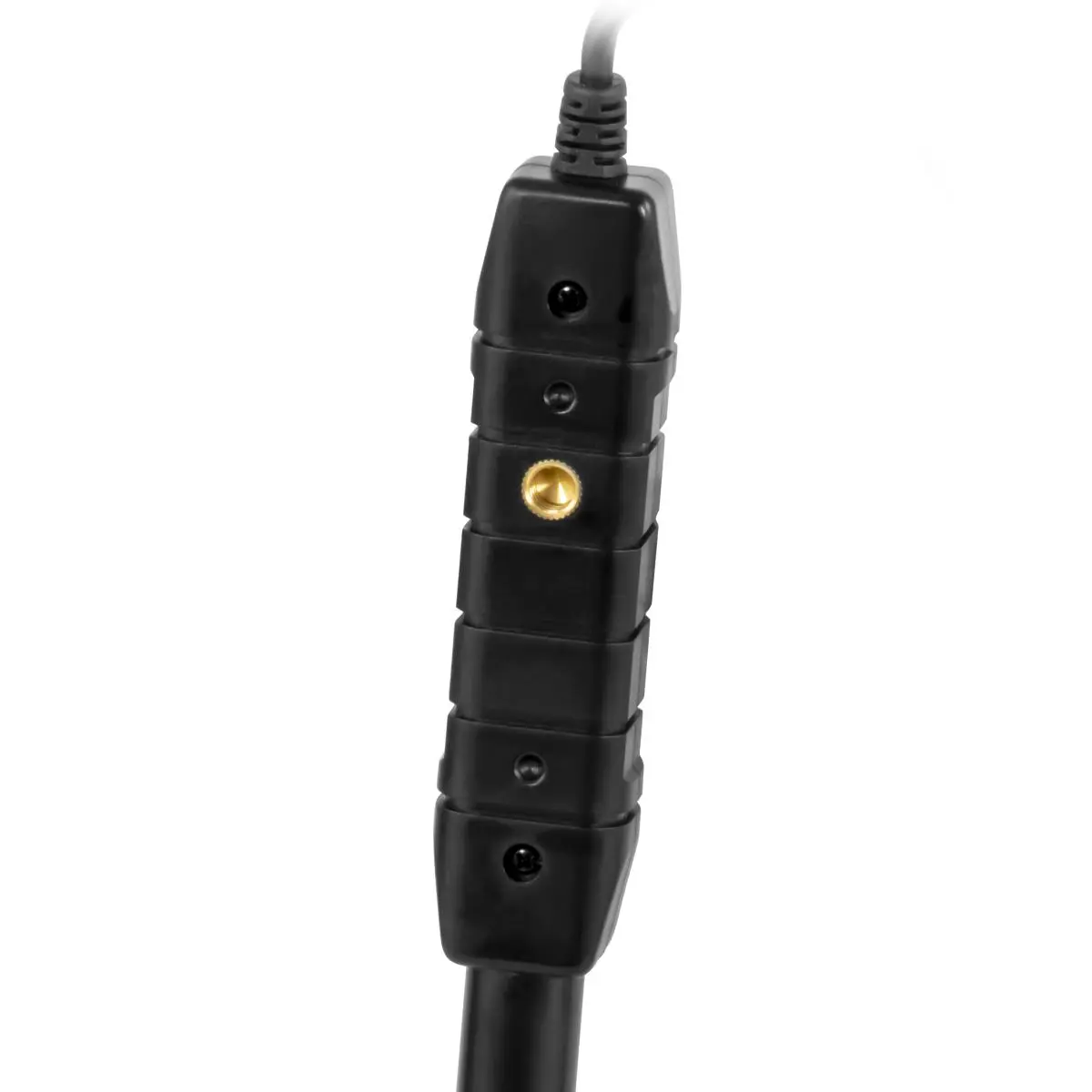

1 x Combined sensor for temperature and humidity
1 x SD card (2 GB)
1 x Card reader
6 x Batteries
1 x User's manual
1 x ISO-Calibration Certificate
