The Digital Multimeter with thermal imaging function combines precise electrical measurements with a practical infrared thermal imaging camera. This makes it possible to record electrical values and visualise temperature distributions at the same time - ideal for fast and reliable fault finding.

With the Digital Multimeter with thermal imaging function, alternating voltages from 0 to 750 V and direct voltages from 0 to 1000 V can be measured. In addition, the integrated thermal imaging camera enables temperature measurements from -20 to 400 °C and offers an infrared resolution of 120 × 90 pixels. Automatic hot and cold spot tracking helps to quickly identify unusual temperature areas.

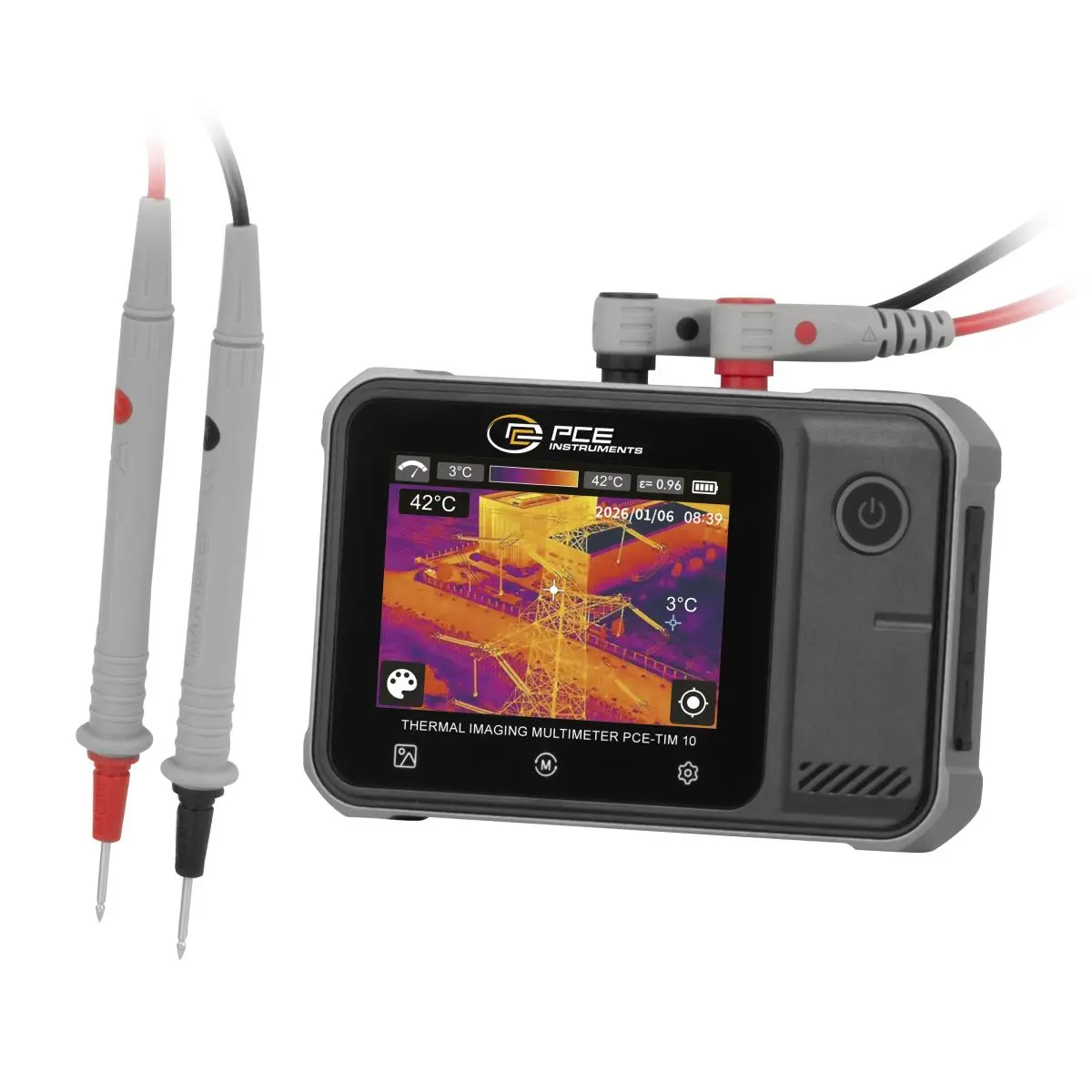

Operation is convenient via the 2.8-inch LCD touchscreen. With a total of 7 colour palettes, the thermal image can be optimally adapted to different measurement situations. As a Digital Multimeter with thermal imaging function, the device combines the advantages of a classic True RMS multimeter with visual temperature diagnostics in one compact measuring instrument.

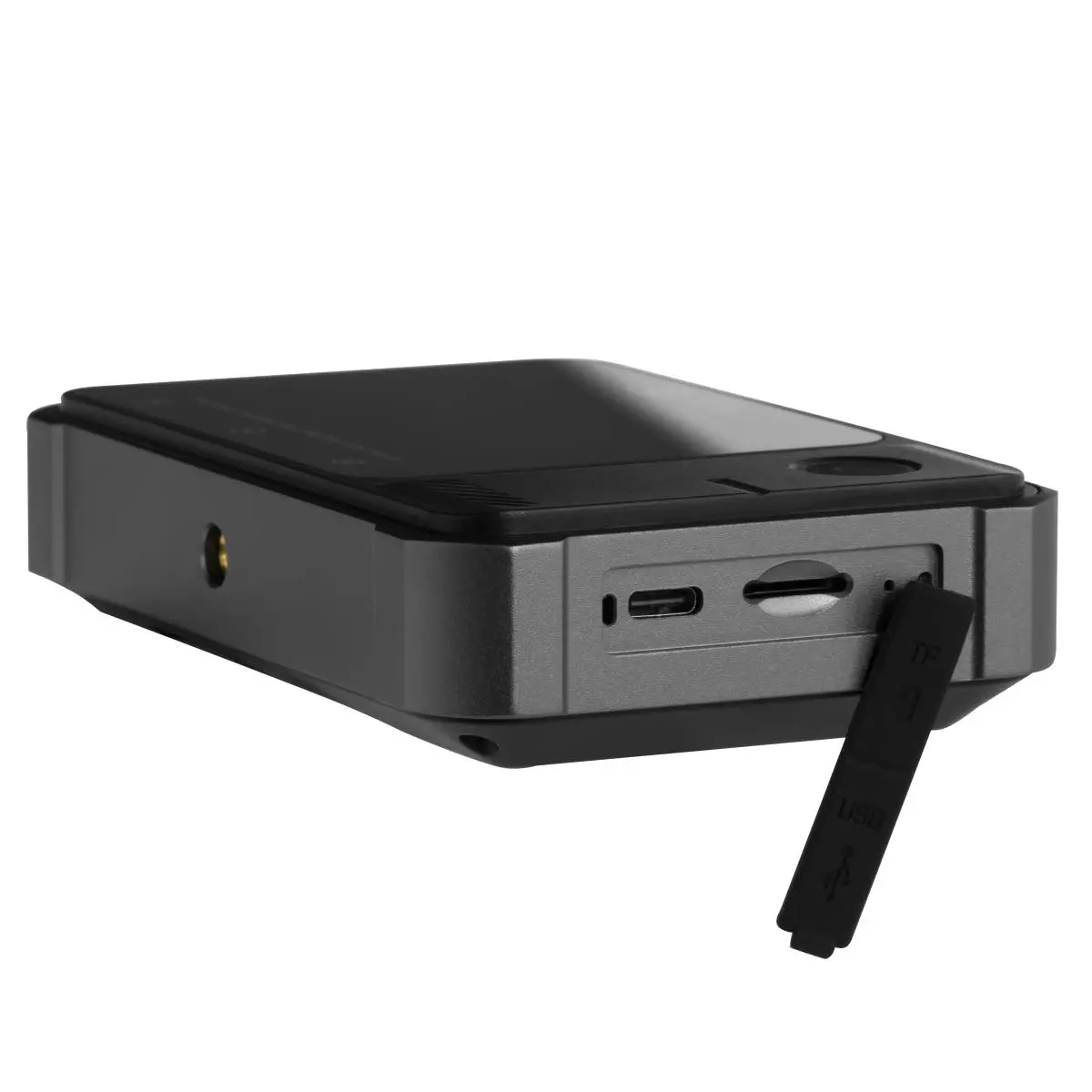

For documentation, measurement and thermal image data can be saved on an SD card and then exported via USB. This means the Digital Multimeter with thermal imaging function is suitable not only for direct on-site fault finding, but also for later analysis and documentation of measurement results.

The device is particularly suitable for electrical installations, control cabinet testing, maintenance work and fault finding on electrical systems and equipment. Thanks to the combination of electrical measurement and thermal imaging, overheated components, cables or contacts can be identified quickly. The Digital Multimeter with thermal imaging function is also a versatile aid for maintenance, building services engineering and technical diagnostics.
