₹5,034.00

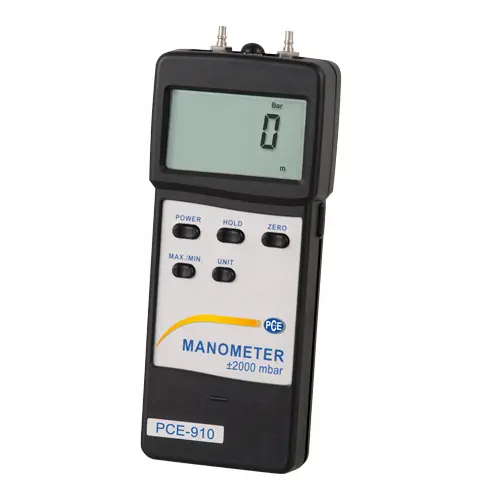

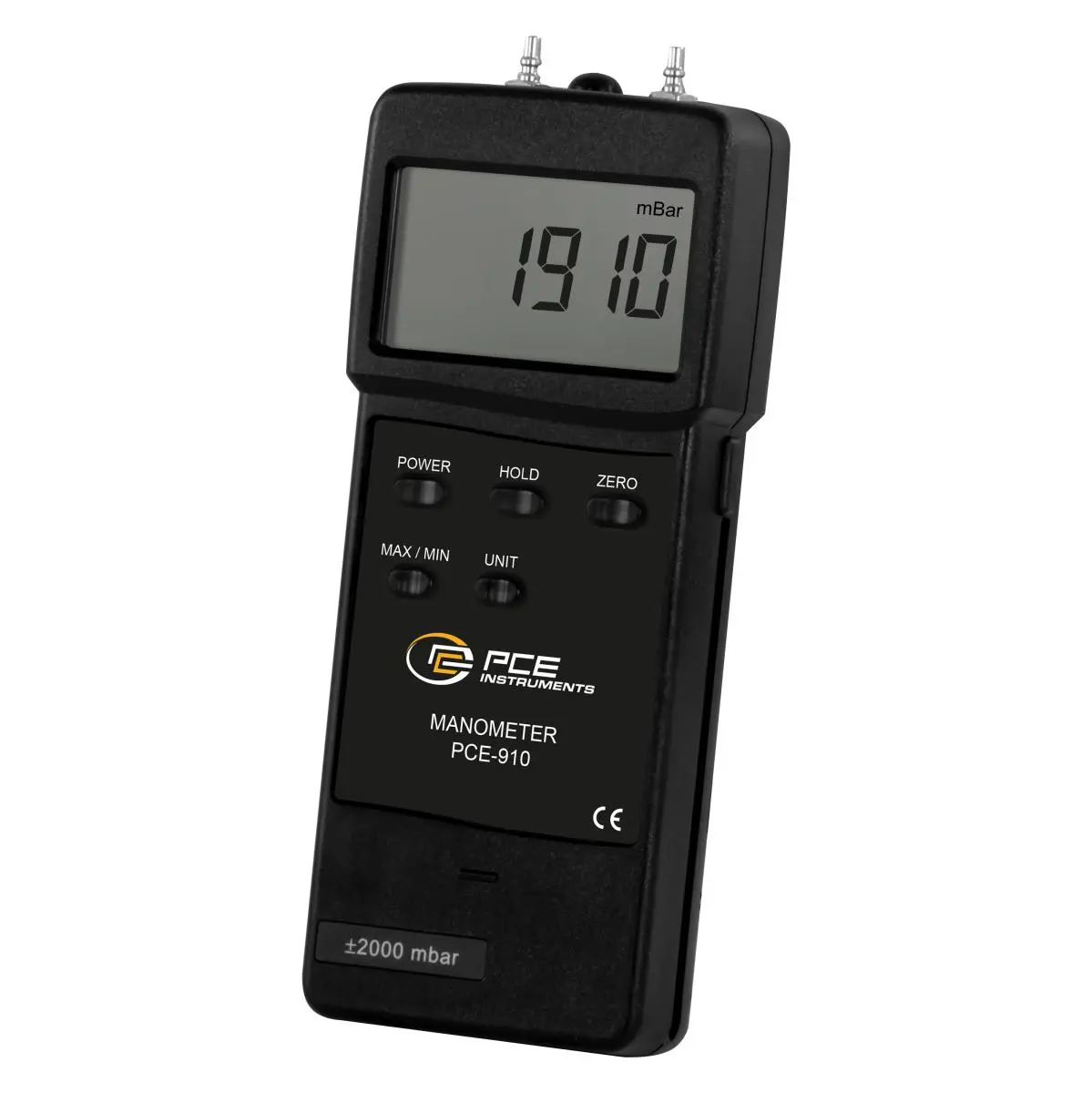

PCE-910 Differential Pressure Meter
Portable handheld manometer measures differential pressure from ± 1 to 2000 mbar (± 0.01 to 29.00 psi) / Optional PC software with RS-232 cable sold separately as a data transfer accessory
PCE-910 is a portable handheld digital differential pressure meter or manometer used to measure differential pressure in pneumatic, compressor and pump installations, valves, tanks and heating, ventilation and air conditioning (HVAC) systems. The PCE-910 features a dust-proof, splash-resistant housing, allowing the meter to be used under adverse conditions.

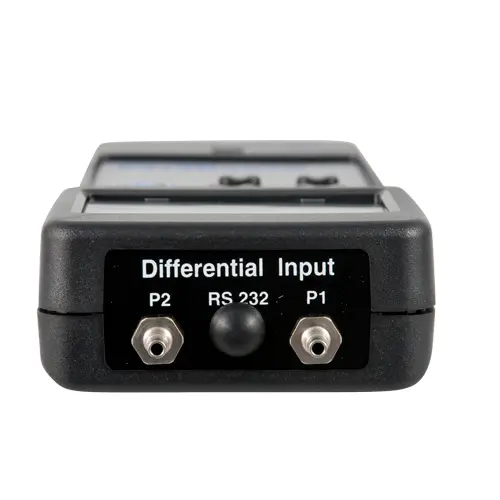

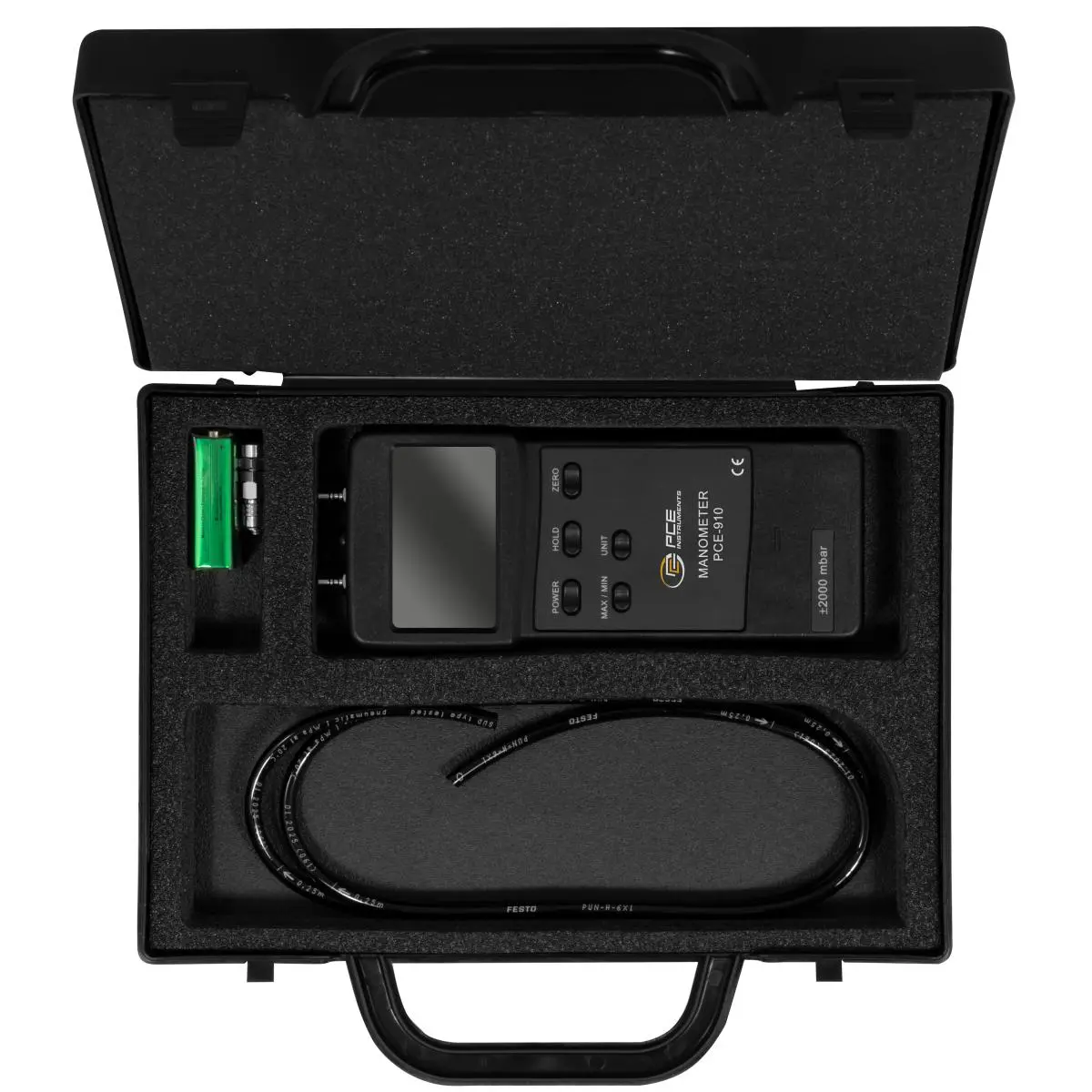

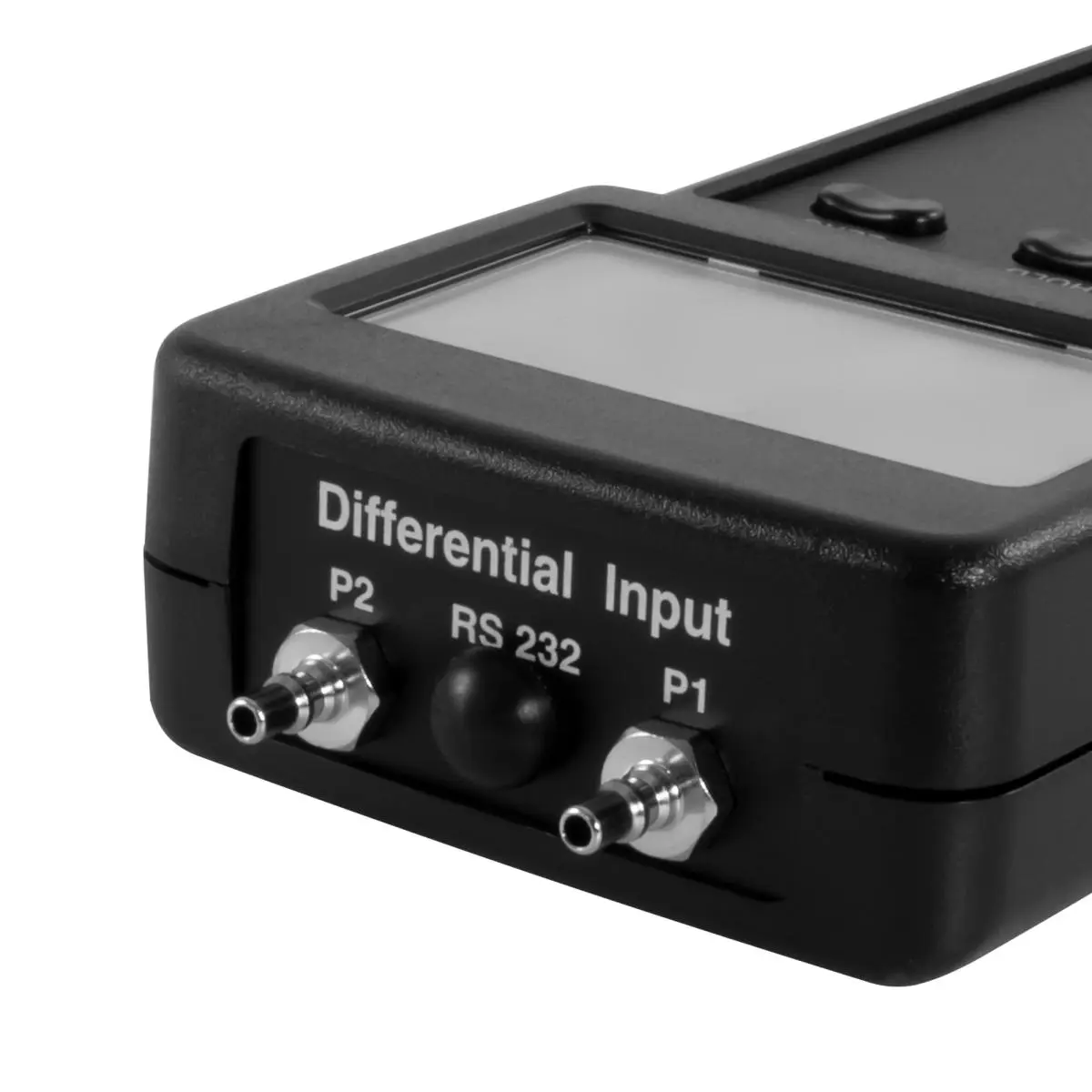

The PCE-910 differential pressure manometer comes with 1 x 1 m / 3 ft long silicon tube, 2 x stainless steel tube adapters and 1 x 9V block battery. Optional PC software with RS-232 cable sold separately as a data transfer accessory. The software can be used to transmit the data to a computer for evaluating, documenting and storing pressure fluctuations. Simply connect the differential manometer via RS-232 to your computer for analysis. If your computer doesn't have an RS-232 interface, you may acquire an RS-232 to USB adapter (see accessories tab for details).
| Pressure | |
| Measuring range | -2000 ... +2000 mbar |
| Resolution | 1 mbar |
| Accuracy | ±2% FS % |
| Pressure | |
| Measuring range | -29 ... +29 psi |
| Resolution | 0,01 psi |
| Accuracy | ±2% FS % |
| Pressure | |
| Measuring range | -802 ... +802 inH₂O |
| Resolution | 0,5 inH₂O |
| Accuracy | ±2% FS |
| Pressure | |
| Measuring range | -20,4 ... +20,4 mH₂O |
| Resolution | 0,01 mH₂O |
| Accuracy | ±2% FS |
| Pressure | |
| Measuring range | -59 ... +59 inHg |
| Resolution | 0,02 inHg |
| Accuracy | ±2% FS |
| Pressure | |
| Measuring range | -1500 ... +1500 mmHg |
| Resolution | 1 mmHg |
| Accuracy | ±2% FS |
| Pressure | |
| Measuring range | -1,974 ... +1,974 atm |
| Resolution | 0,001 atm |
| Accuracy | ±2% FS |
| Pressure | |
| Measuring range | -2,04 ... +2,04 kg/cm² |
| Resolution | 0,001 kg/cm² |
| Accuracy | ±2% FS |
| General technical data | |
| Measuring functions | MIN, MAX, HOLD, peak |
| Display type | LCD |
| Display size | 2,8 Inch |
| Interface | RS232 |
| Automatic power-off | 10 min |
| Repeatability | 1 % |
| Housing | Plastic |
| Measuring interval | 0,8 s |
| Menu language | English, English (GB) |
| Protection class (device) | IP20 |
| Power supply | Battery |

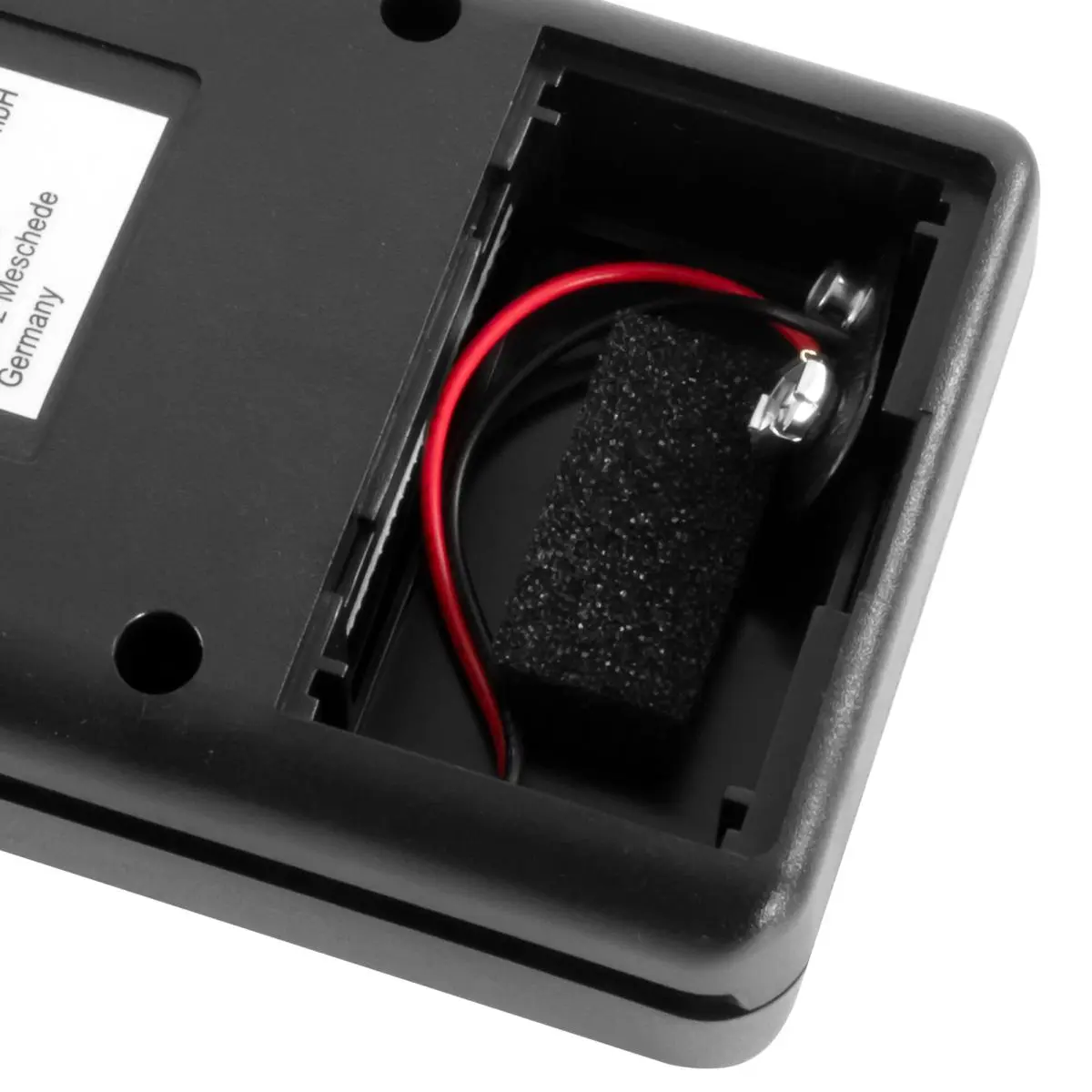

| (Rechargeable) battery | 1 x 9 V 9V block , Alkali-manganese |
| Capacity | 550 mAh |
| Operating conditions | 0 ... 50 °C , 0 ... 80 % RH |
| Storage conditions | 0 ... 50 °C , 0 ... 80 % RH |
| Dimensions ( L x W x H ) | 190 x 76 x 32 mm |
| Weight | 205 g |
