₹2,433.00
PCE-PA 8000 Three Phase Power Data Logger
real time measurement with registration in the SD card / Integrated timer and calendar to record data / Active, apparent, and reactive power

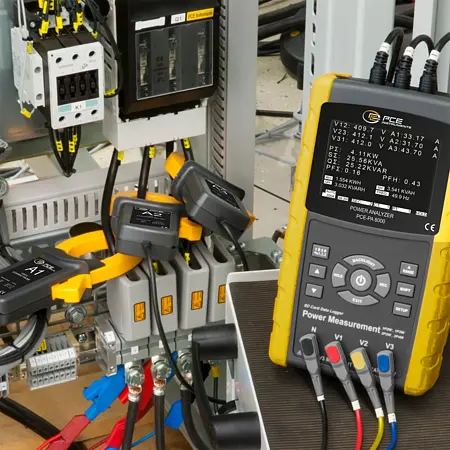

The PCE-PA 8000 Three Phase Power Data Logger is able to measure and record the power in both single-phase or three-phase circuits. With the PCE-PA 8000 Three Phase Power Data Logger you will be able to perform prolonged measurements. Measurement values are saved in xls format on the included SD card of our Three Phase Power Data Logger to be easily analyzed on the computer. Measurement sample rate can be set from 2 to 7200 seconds. The PCE-PA 8000 Three Phase Power Data Logger can also measure power and determine both power factor and phase angle. The clamps of the PCE-PA 8000 Three Phase Power Data Logger can be used for cables with a diameter of 50 mm / 2.0 in. The PCE-PA 8000 is the ideal tool to be used in power supply networks. Its 3.7 in / 94 mm display allows you to read all measured values for a quick analysis as well as providing a view of the current, voltage, and power.
| AC voltage | |
| Measuring range | 10 ... 600 V |
| Resolution | 0,1 V |
| Accuracy | ±(0.5 % +0.5 V) |
| Overload | 720 V RMS |
| Alternating current AC | |
| Measuring range | 0,2 ... 10 A |
| Resolution | 0,001 A |
| Accuracy | ±(0.5 % +1 A) |
| Overload | 1300 A with current clamp |
| Frequency range | 40 ... 1000 Hz |
| Alternating current AC | |
| Measuring range | 10 ... 20 A |
| Resolution | 0,01 A |
| Accuracy | ±(0.5 % +1 A) |
| Frequency range | 40 ... 1000 Hz |
| Alternating current AC | |
| Measuring range | 0,2 ... 100 A |
| Resolution | 0,01 A |
| Accuracy | ±(0.5 % +5 A) |
| Frequency range | 40 ... 1000 Hz |
| Alternating current AC | |
| Measuring range | 100 ... 200 A |
| Resolution | 0,1 mA |
| Accuracy | ±(0.5 % +5 A) |
| Frequency range | 40 ... 1000 Hz |
| Alternating current AC | |
| Measuring range | 0,2 ... 1000 A |
| Resolution | 0,1 mA |
| Accuracy | ±(0.5 % +5 A) |
| Frequency range | 40 ... 1000 Hz |
| Alternating current AC | |
| Measuring range | 1000 ... 1200 A |
| Resolution | 1 A |
| Accuracy | ±(0.5% +5 A) |
| Frequency range | 40 ... 1000 Hz |
| Active power | |
| Measuring range | 0 ... 9,999 kW |
| Resolution | 0,001 kW |
| Accuracy | ±(1 % +0.008 kW) |
| Active power | |
| Measurement range up to | 10 kW |
| Measurement range from | 99,99 kW |
| Resolution | 0,01 kW |
| Accuracy | ±(1% +0.08 kW) |
| Active power | |
| Measuring range | 100 ... 999,9 kW |
| Resolution | 0,1 kW |
| Accuracy | ±(1% +0.8 kW) |
| Active power | |
| Measuring range | 1 ... 9,999 MW |
| Resolution | 0,001 MW |
| Accuracy | ±(1 % +0.008 MW) |
| Reactive power | |
| Measuring range | 0 ... 9,99 kVAR |
| Resolution | 0,001 kVAR |
| Accuracy | ±(1 % +0.008 kVAR) |
| Reactive power | |
| Measuring range | 10 ... 99,9 kVAR |
| Resolution | 0,01 kVAR |
| Accuracy | ±(1 % +0.08 kVAR) |
| Reactive power | |
| Measuring range | 100 ... 999,9 kVAR |
| Resolution | 0,1 kVAR |
| Accuracy | ±(1 % +0.8 kVAR) |
| Reactive power | |
| Measuring range | 1 ... 9,9 MVAR |
| Resolution | 0,001 MVAR |
| Accuracy | ±(1% +0.008 MVAR) |
| Phase angle | |
| Measuring range | -180 ... +180 ° |
| Resolution | 0,1 ° |
| Accuracy | ±1 ° |
| Apparent power | |
| Measuring range | 0 ... 9,9 kVA |
| Resolution | 0,001 kVA |
| Accuracy | ±(1% +0.008 kVA) |
| Apparent power | |
| Measuring range | 10 ... 99,99 kVA |
| Resolution | 0,01 kVA |
| Accuracy | ±(1% +0.08 kVA) |
| Apparent power | |
| Measuring range | 100 ... 999,9 kVA |
| Resolution | 0,1 kVA |
| Accuracy | ±(1 % +0.8 kVA) |
| Apparent power | |
| Measuring range | 1 ... 9,99 MVA |
| Resolution | 0,001 MVA |
| Accuracy | ±(1 % +0,008 MVA) |
| Power factor | |
| Measuring range | 0 ... 1 |
| Resolution | 0.01 |
| Accuracy | ±0.04 |
| Active energy | |
| Measuring range | 0 ... 9,9 kWh |
| Resolution | 0,001 kWh |
| Accuracy | ±(1% +0.008 kWh) |
| Active energy | |
| Measuring range | 10 ... 99,9 kWh |
| Resolution | 0,01 kWh |
| Accuracy | ±(1% +0.08 kWh) |
| Active energy | |
| Measuring range | 100 ... 999,9 kWh |
| Resolution | 0,1 kWh |
| Accuracy | ±(1% +0.8 kWh) |
| Active energy | |
| Measuring range | 1 ... 9,99 MWh |
| Resolution | 0,001 MWh |
| Accuracy | ±(1% +0.008 MWh) |
| Apparent energy | |
| Measuring range | 0 ... 9,9 kVAh |
| Resolution | 0,001 kVAh |
| Accuracy | ±(1 % +0.008 kVAh) |
| Apparent energy | |
| Measuring range | 10 ... 99,9 kVAh |
| Resolution | 0,01 kVAh |
| Accuracy | ±(1% +0.08 kVAh) |
| Apparent energy | |
| Measuring range | 100 ... 999,9 kVAh |
| Resolution | 0,1 kVAh |
| Accuracy | ±(1% +0.8 kVAh) |
| Apparent energy | |
| Measuring range | 1 ... 9,9 MVAh |
| Resolution | 0,001 MVAh |
| Accuracy | ±(1% +0,008 KVAH) |
| Reactive energy | |
| Measuring range | 0 ... 9,9 kVArh |
| Resolution | 0,001 kVArh |
| Accuracy | ±(1% +0.008 KVARh) |
| Reactive energy | |
| Measuring range | 10 ... 99,9 kVArh |
| Resolution | 0,01 kVArh |
| Accuracy | ± (1% + 0.08 KVARh) |
| Reactive energy | |
| Measuring range | 100 ... 999,9 kVArh |
| Resolution | 0,1 kVArh |
| Accuracy | ±(1% +0.8 KVARh) |
| Reactive energy | |
| Measuring range | 1 ... 9,99 MVARh |
| Resolution | 0,001 MVARh |
| Accuracy | ±(1% +0.008 KVARH) |
| Frequency | |
| Measuring range | 45 ... 65 Hz |
| Resolution | 0,1 Hz |
| Accuracy | 0.1 Hz |
| General technical data | |
| Measuring functions | HOLD |
| Display type | LCD with backlight |
| Display size | 3,7 Inch |
| Storage medium | SD card |
| Storage capacity | 2 GB |
| Storage interval from | 2 s |
| Storage interval to | 120 min. |
| Interface | USB, RS232 |
| Standard(s) | IEC 1010 |
| Current consumption meter | 300 mA DC |
| Current consumption current clamp | 34 mA DC |
| Maximum cable diameter | 50 mm |
| Safety standard | CAT III 600V |
| Overload protection | Voltage AC 720 V / current AC 1300 A |
| Dimensions | Current clamp: 210 x 85 x 33 mm |
| Measuring range selection | Automatic, Manual |
| Menu language | English, English (GB) |
| Protection class (device) | IP21 |
| Power supply | 9V |
| Connector type | Device-europlug |
| (Rechargeable) battery | 8 x 1,5 V AA battery , Alkali-manganese |
| Capacity | 3000 mAh |
| Operating conditions | 0 ... 50 °C , 0 ... 80 % RH |
| Storage conditions | 0 ... 50 °C , 0 ... 80 % RH |
| Dimensions ( L x W x H ) | 225 x 125 x 64 mm |
| Weight | 811,5 g |
