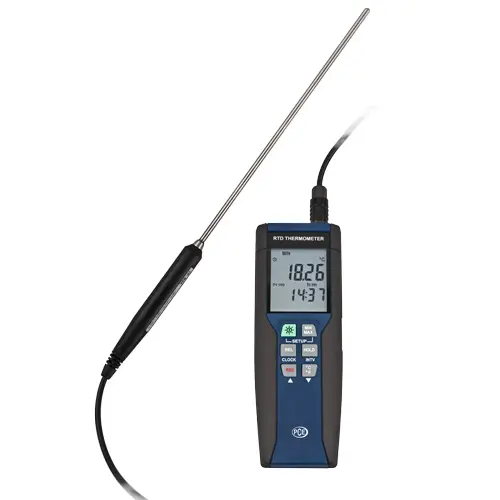

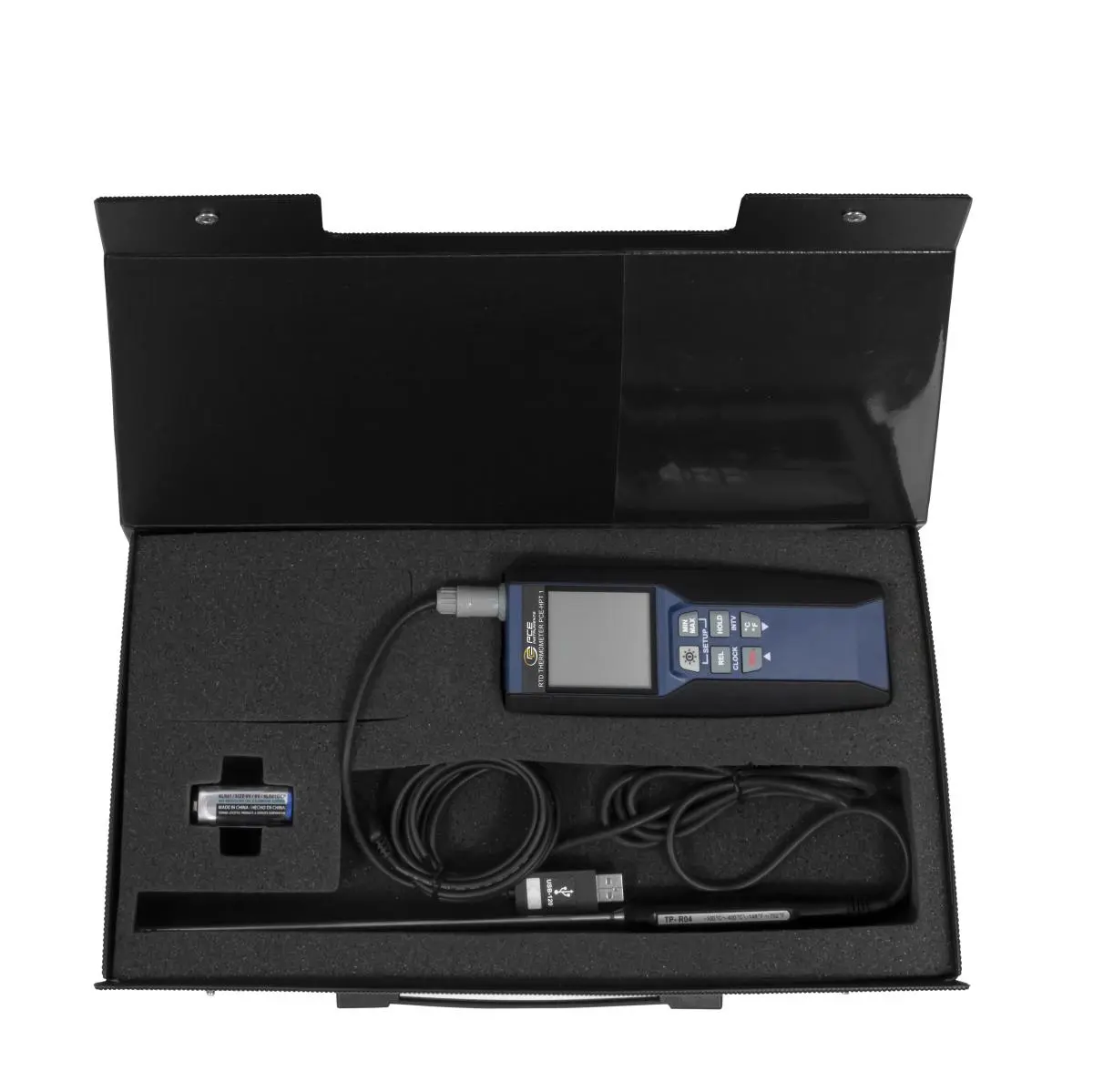

The Temperature Data- Logger with microprocessor is a high precision 1-channel temperature gauge. The Data- Logger with microprocessor is ideal for use with various Pt100 sensors. Due to the fact that it uses 4-wire technology it has a very fast response time and precision. Therefore, the sensors of the Data- Logger with microprocessor are ideal for all processes that require precision and quick response. The temperature range of the Data- Logger with microprocessor reaches of -100 to 400ºC / -148 ... 752ºF. The comprehensive software and easy to use Data- Logger with the microprocessor allows a simple assessment to see the values of a real-time measurement. The internal clock with date and time allows the user to accurately assign the results. The Data- Logger has an internal Data- Logger with adjustable measuring range.
| Temperature | |
| Measuring range | -100 ... +400 °C |
| Resolution | 0,01 °C |
| Accuracy | ±0.05% +0.1°C (at 18°C ... 28°C) device only |
| Temperature | |
| Measuring range | -148 ... +752 °F |
| Resolution | 0,018 °F |
| Accuracy | ±0.45°F |
| General technical data | |
| Measuring functions | HOLD, MIN, MAX |
| Display type | LCD with backlight |
| Measuring rate | 0,5 s |
| Storage medium | Internal memory |
| Storage capacity | 5000 Values |

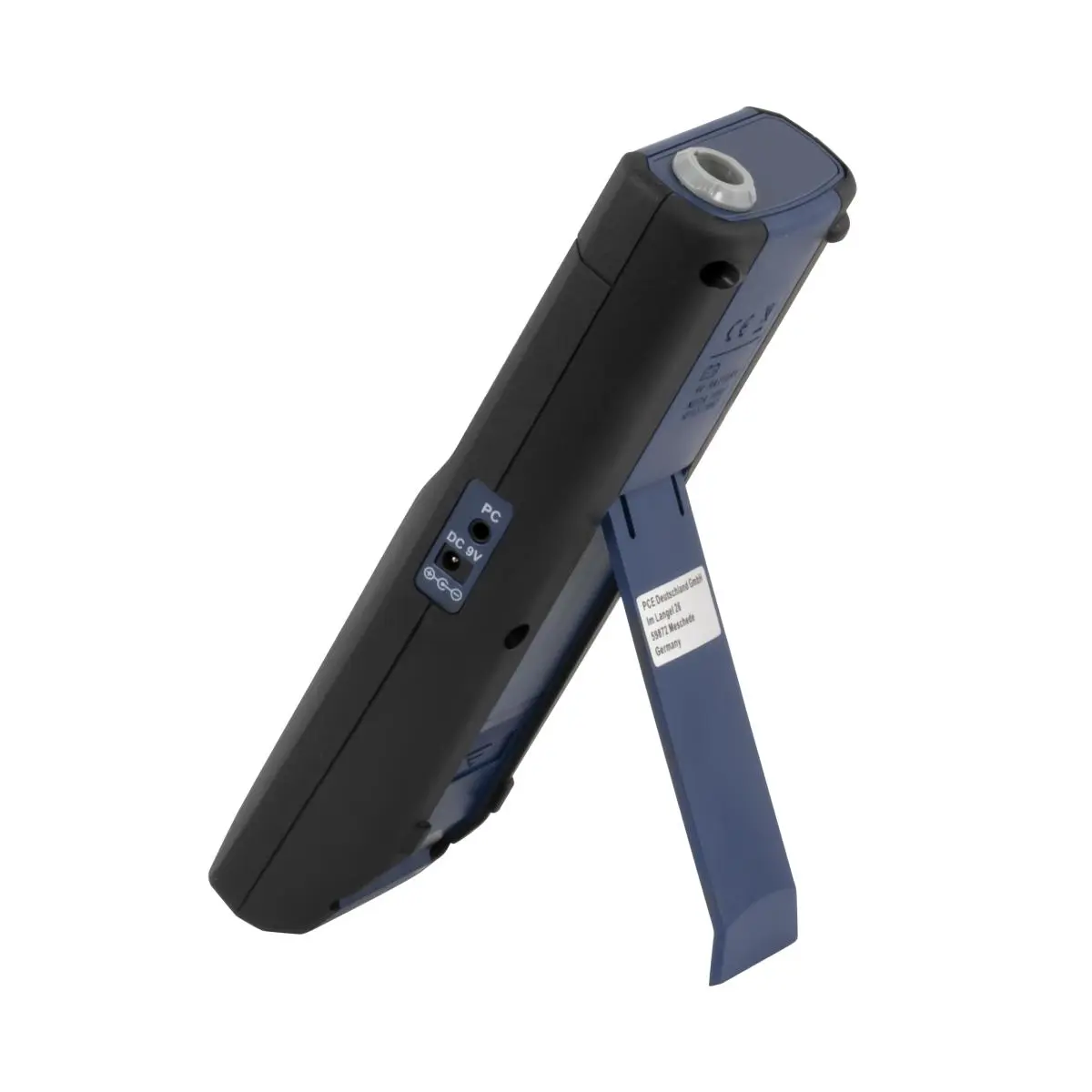

| Interface | USB |
| Sensor | Resistance sensor |
| Automatic power-off | 30 s |
| Dimensions | Probe 235 x 5 mm Handle 123 mm Connection cable 1.5 m |
| Menu language | English, English (GB) |

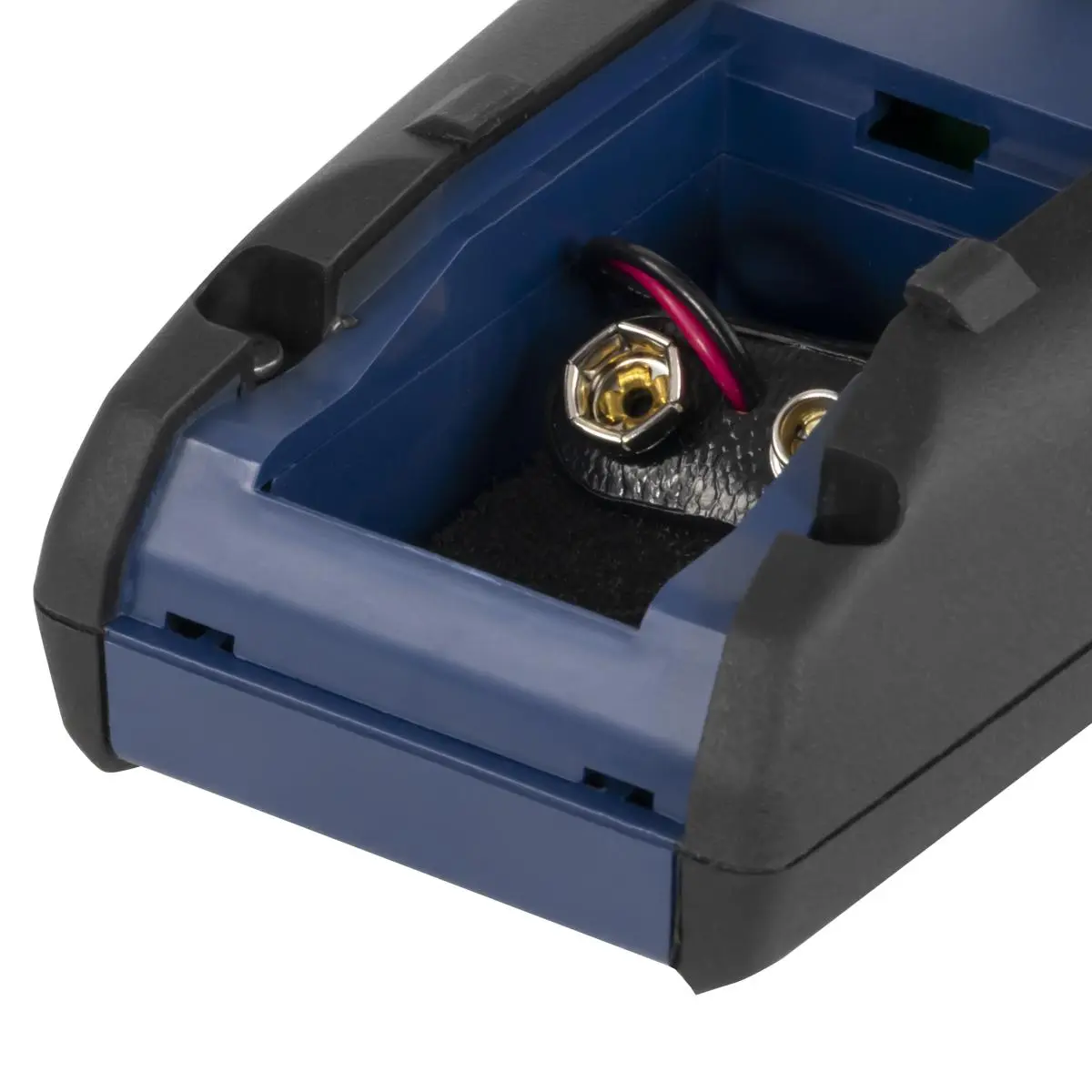

| (Rechargeable) battery | 1 x 9 V 9V block , Alkali-manganese |
| Capacity | 640 mAh |
| Operating conditions | 0 ... 50 °C , 0 ... 80 % RH |
| Storage conditions | -10 ... 60 °C , 0 ... 80 % RH |
| Dimensions ( L x W x H ) | 185 x 65 x 36 mm |
| Weight | 360 g |
