₹22,170.00

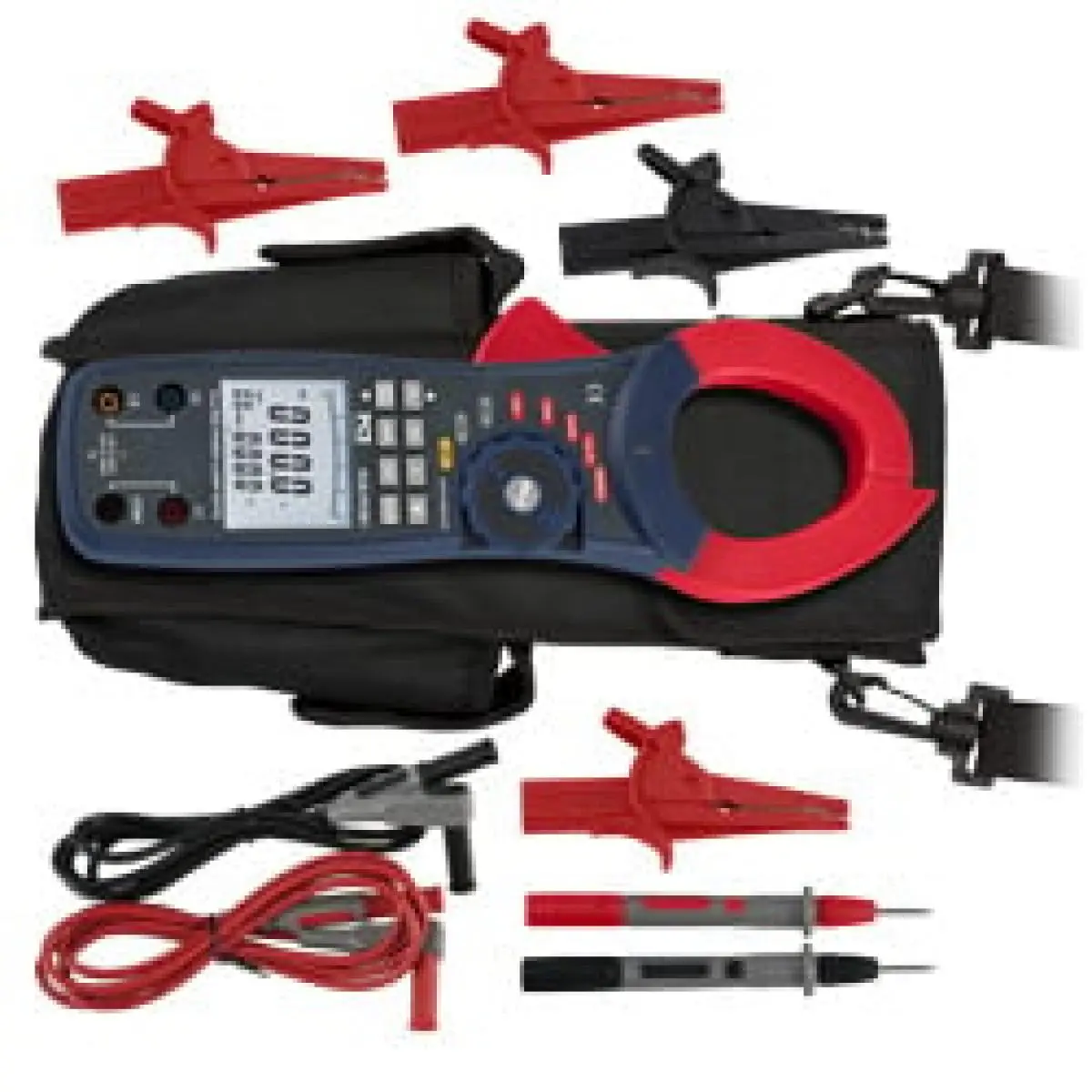

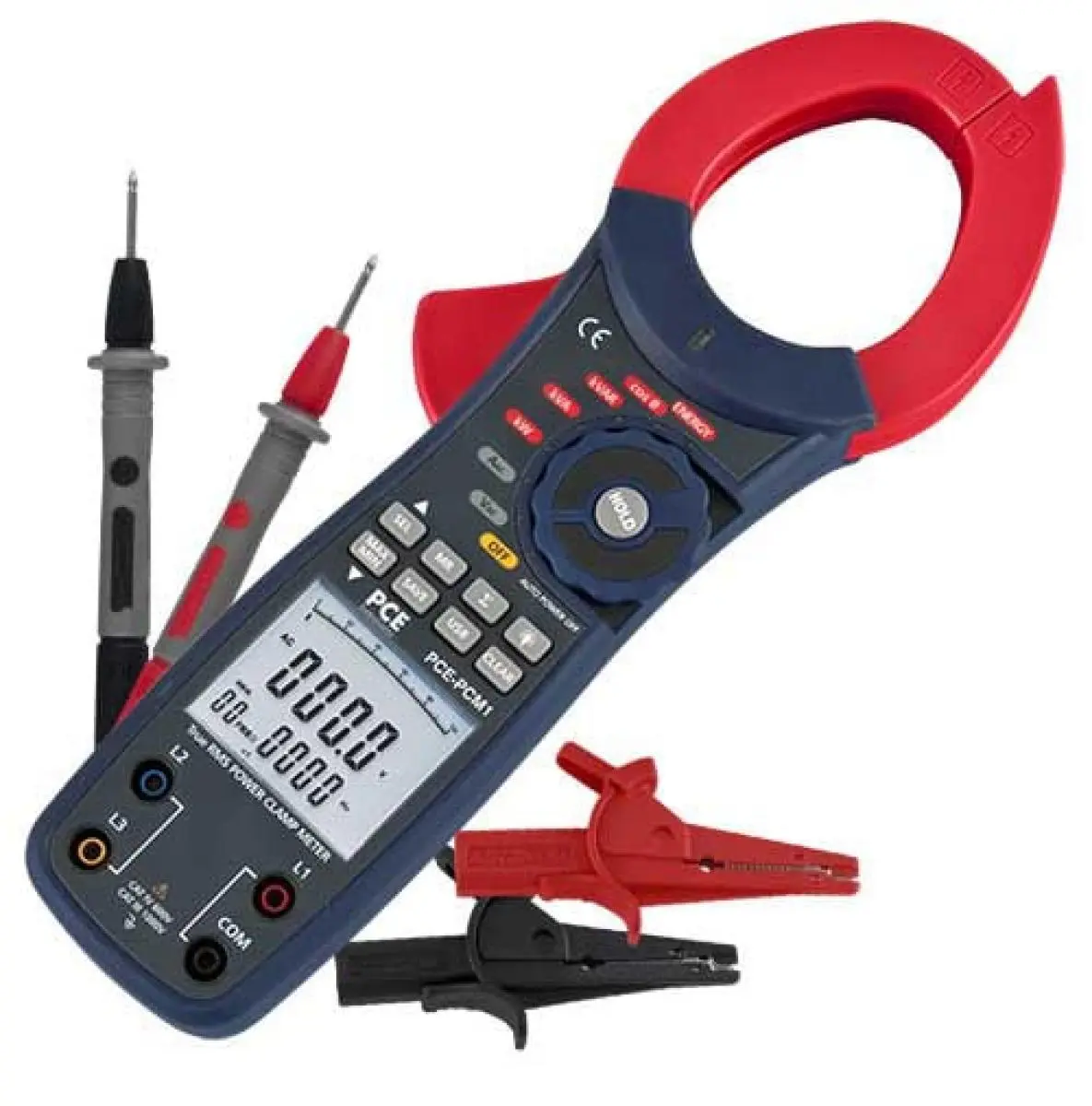

PCE-PCM 1 Current Clamp
Internal memory, USB cable and PC software / Three-phase power measurement / True RMS
PCE-PCM 1 is a multipurpose current clamp or power analyzer used to measure alternating current (AC), voltage (TRMS) and frequency to determine active (kW), apparent (kVA) and reactive (kVAR) power as well as active energy (kWh) consumption. Both the phase angle and the power factor (cos φ) are shown on the handheld power meter's large and easy-to-read backlit display.
The power analyzer aids in evaluating power and energy use in machines and electrical installations. The device's compact design allows for measurements to be taken in the field and on the go. Up to 99 measurement values can be saved to the internal memory of the power meter. The meter features a USB port, allowing for quick and easy data transfer to a PC for detailed analysis.
| AC voltage | |
| Measuring range | 1 ... 100 V |
| Resolution | 0,1 V |
| Accuracy | ±(1.2 % +5 digits) |
| Frequency range | 50 ... 200 Hz |
| AC voltage | |
| Measuring range | 1 ... 400 V |
| Resolution | 0,1 V |
| Accuracy | ±(1.2 % +5 digits) |
| Frequency range | 50 ... 200 Hz |
| AC voltage | |
| Measuring range | 1 ... 750 V |
| Resolution | 0,1 V |
| Accuracy | ±(1.2 % +5 digits) |
| Frequency range | 50 ... 200 Hz |
| Alternating current AC | |
| Measuring range | 1 ... 40 A |
| Resolution | 0,1 A |
| Accuracy | ±(2% +5 digits) |
| Frequency range | 50 ... 60 Hz |
| Alternating current AC | |
| Measuring range | 1 ... 100 A |
| Resolution | 0,1 A |
| Accuracy | ±(2% +5 digits) |
| Frequency range | 50 ... 60 Hz |
| Alternating current AC | |
| Measuring range | 1 ... 400 A |
| Resolution | 0,1 A |
| Accuracy | ±(2% +5 digits) |
| Frequency range | 50 ... 60 Hz |
| Alternating current AC | |
| Measuring range | 1 ... 1000 A |
| Resolution | 1 A |
| Accuracy | ±(2% +5 digits) |
| Frequency range | 50 ... 60 Hz |
| Active power | |
| Measuring range | 0 ... 100 kW |
| Resolution | 0,01 kW |
| Accuracy | ±(3% +5 digits) W |
| Active power | |
| Measurement range up to | 101 kW |
| Measurement range from | 750 kW |
| Resolution | 0,1 kW |
| Accuracy | ±(3% +5 digits) W |
| Reactive power | |
| Measuring range | 0 ... 100 kVAR |
| Resolution | 0,01 kVAR |
| Accuracy | ±(3% +5 digits) |
| Reactive power | |
| Measuring range | 101 ... 750 kVAR |
| Resolution | 0,1 kVAR |
| Accuracy | ±(3% +5 digits) |
| Phase angle | |
| Measuring range | 0 ... 90 ° |
| Resolution | 1 ° |
| Accuracy | 2 ° |
| Apparent power | |
| Measuring range | 0 ... 100 kVA |
| Resolution | 0,01 kVA |
| Accuracy | ±(3% +5 digits) |
| Apparent power | |
| Measuring range | 101 ... 750 kVA |
| Resolution | 0,1 kVA |
| Accuracy | ±(3% +5 digits) |
| Power factor | |
| Measuring range | 0,3 ... 1 |
| Resolution | 0.001 |
| Accuracy | 0.022 |
| Active energy | |
| Measuring range | 1 ... 9999 kWh |
| Resolution | 0,001 kVAh |
| Accuracy | ±(3% +2 Digits) |
| Frequency | |
| Measuring range | 50 ... 200 Hz |
| Resolution | 1 Hz |
| Accuracy | ±(0.5% +5 digits) |
| General technical data | |
| Measuring functions | MIN, MAX, HOLD |
| Display type | LCD with backlight |
| Storage medium | Internal memory |
| Storage capacity | 99 Values |
| Safety standard | CAT III 1000V, CAT IV 600V |
| Menu language | English, English (GB) |
| Protection class (device) | IP20 |
| (Rechargeable) battery | 1 x 9 V 9V block , Zinc carbon |
| Capacity | 310 mAh |
| Operating conditions | 10 ... 60 °C , 0 ... 85 % RH |
| Storage conditions | 10 ... 60 °C , 0 ... 85 % RH |
| Dimensions ( L x W x H ) | 294 x 105 x 47 mm |
| Weight | 495 g |
