Current Clamp PCE-LCT 1

Current Clamp PCE-LCT 1

Order no.: PCE-LCT 1
GTIN (EAN): 4250348707178
₹28,443.00
₹33,562.74
price ex. (VAT / delivery)
:
4250348707178
PCE-LCT 1
Delivery time:1-2 working days

Description

Current Clamp to test leakage current / RMS measurement / Continuity and resistance test / Measures voltage up to 600 V

With the Current Clamp it is possible to measure leakage currents up to a range of 100 A. The Current Clamp can measure leakage currents which appear when current flows through electrical conductors which are not designed for conduction current. The Current Clamp can detect leakage currents and show them on the display. With the help of the Current Clamp you can detect insulation failures in places where machines cannot be disconnected, however insulation must be checked, as for instance according to the VDE 701/702 standard. The Current Clamp measures current flow, voltage up to 600 V, resistance and continuity. The Current Clamp is the ideal instrument for electricians according to the VDE standard. The Current Clamp has a compact design which allows to be placed in any pocket. The rubber protection protects the instrument against falls, so it is the ideal instrument to be used in electrical inspections and in workshops.


Highlights

- Measures leakage current
- Measures current up to 100 A
- Measures voltage up to 600 V
- Continuity test
- Measures resistance up to 400 Ω
- Digital bar graph
- High resolution
- Max./min. values are viewed on the display
- Rubber protector
- Test cables are included

Specification

AC voltage
Measuring range  0 ... 400 V
Resolution  0,1 V
Accuracy  50 / 60 Hz: ±(1.5 % +2 digits) / 400 Hz ... 1 kHz: ±(2 % +4 digits)

Alternating current AC
Measuring range  0 ... 40 mA
Resolution  10 µA
Accuracy  50 / 60 Hz: ±(1 % +0.5 mA) / 400 Hz ... 1 kHz: ±(4.5 % +0.5 mA)

Alternating current AC
Measuring range  0 ... 400 mA
Resolution  100 µA
Accuracy  50 / 60 Hz: ±(3% +5 mA) / 400 Hz ... 1 kHz: ±(3% +5 mA)

Alternating current AC
Measuring range  0 ... 4 A
Resolution  1 mA
Accuracy  50 / 60 Hz: ±(4% +0.1 A) / 400 Hz ... 1 kHz: ±(4% +0.1 A)

Alternating current AC
Measuring range  0 ... 40 A
Resolution  10 mA
Accuracy  50 / 60 Hz: ±(4% +1 A) / 400 Hz ... 1 kHz: ±(4% +1 A)

Alternating current AC
Measuring range  0 ... 80 A
Resolution  100 mA
Accuracy  50 / 60 Hz: ±(2.5% +1 A) / 400 Hz ... 1 kHz: ±(3% +1 A)

Alternating current AC
Measuring range  80 ... 100 A
Resolution  100 mA
Accuracy  50 / 60 Hz: ±(5% +1 A) / 400 Hz ... 1 kHz: ±(5% + 1A)

Resistance
Measuring range  40 ... 400 Ω
Resolution  0,1 Ω
Accuracy  ±(1% +2 Digits)

Oscilloscope specifications
Input impedance  10 M Ω

General technical data
Measuring functions  MIN, MAX, HOLD
Display type  LCD
Current consumption meter  10 mA
Maximum cable diameter  30 mm
Automatic power-off  30 min
Other dimensions  Pliers diameter: 30 mm
Safety standard  CAT III 300V, CAT II 400V
Menu language  English, English (GB)
Protection class (device)  IP21
(Rechargeable) battery  1 x 9 V 9V block , Alkali-manganese
Capacity  640 mAh
Operating conditions  -10 ... 50 °C , 0 ... 85 % RH
Storage conditions  -20 ... 60 °C , 0 ... 85 % RH
Dimensions ( L x W x H )  210 x 62 x 35,6 mm
Weight  200 g

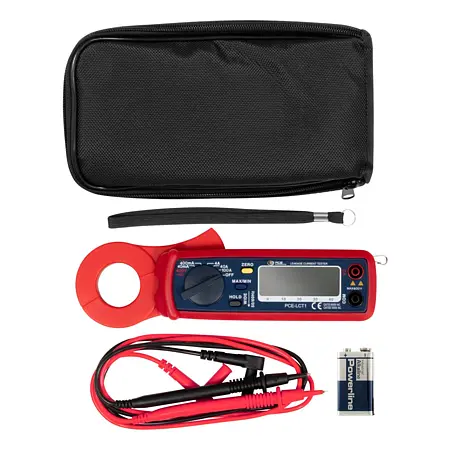

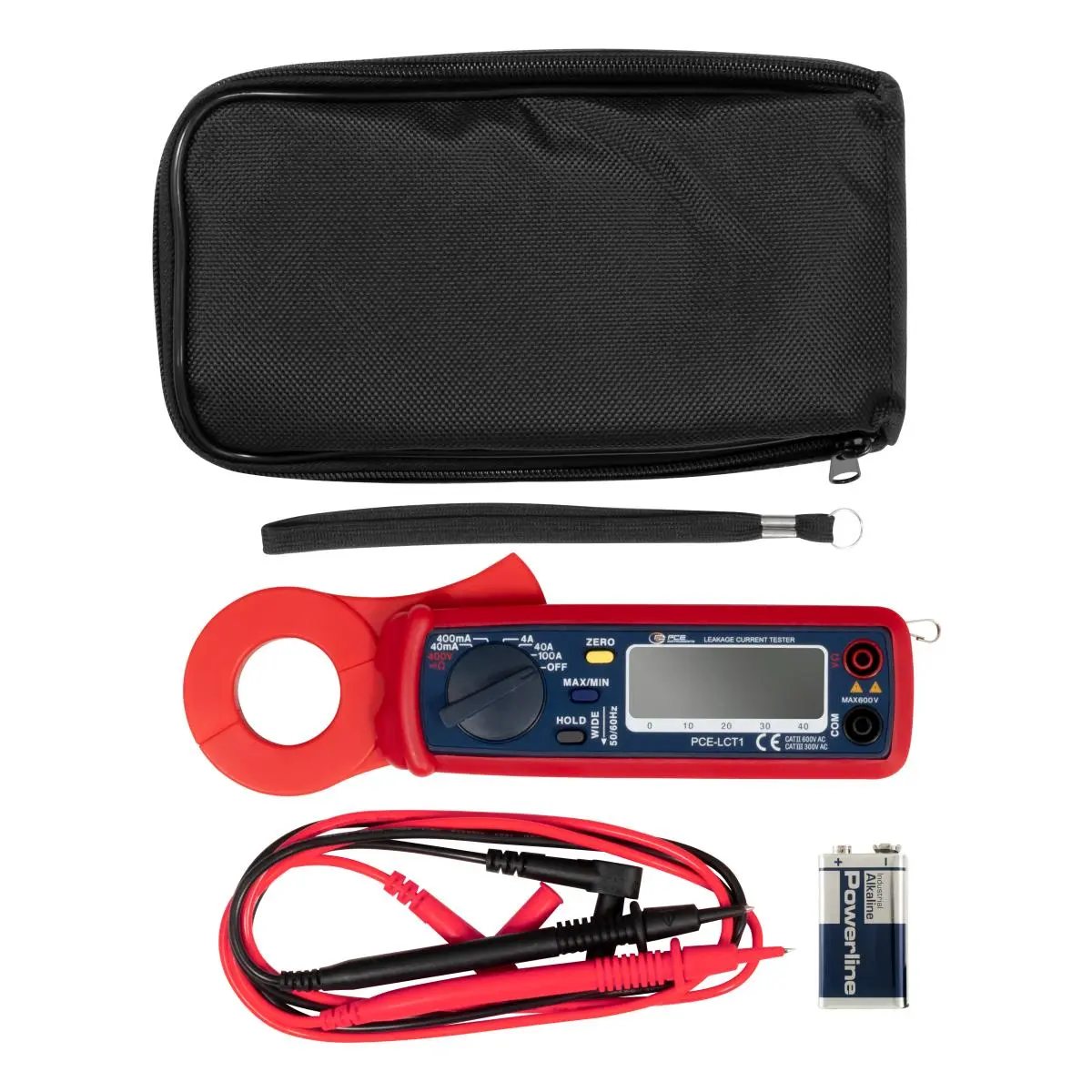

Delivery Scope

1 x Current Clamp
1 x 9 V battery
2 x Test cables
1 x Carrying case
1 x User's manual
