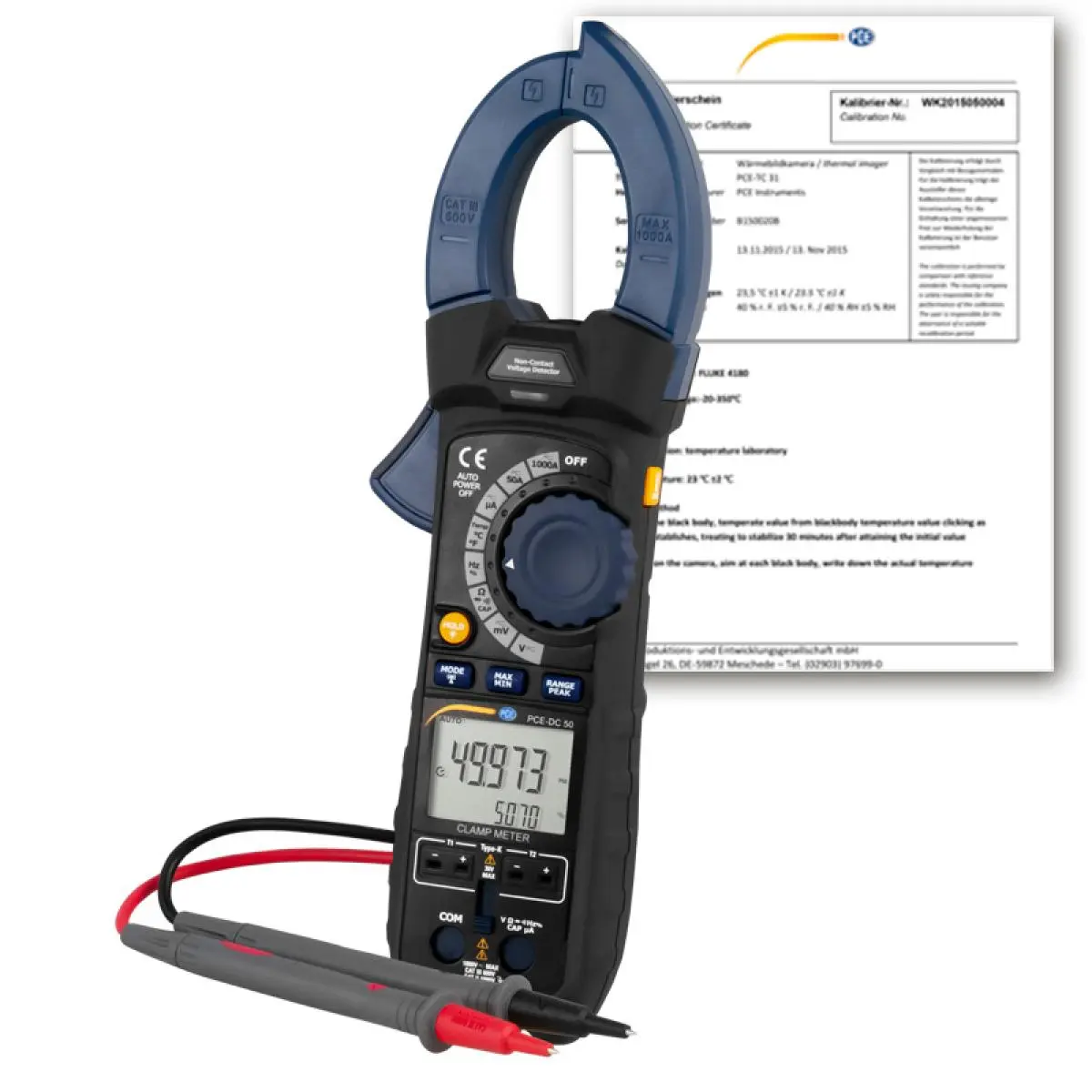

Current Clamp PCE-DC 50-ICA incl. ISO Calibration Certificate

Order no.: PCE-DC 50-ICA

GTIN (EAN): 4250348725424

Description

Current Clamp PCE-DC 50-ICA incl. ISO Calibration Certificate
Clamp meter with true rms measurement / AC current measurement / Voltage measurement / Temperature measurement / Bluetooth interface / Rubberized housing / Display hold / Automatic switch-off / Test lead max. 48 mm / Many measuring functions

The current clamp PCE-DC 50 is a measuring device for measuring currents of up to 1000 A AC / DC. In addition to current measurement, the clamp can also measure and test voltage, frequency, duty cycle, resistance, continuity test, capacitors and diodes. The enclosure diameter of the clamp is 48 mm. Thus, you can also perform measurements on cables with a large cross-section. Thanks to the NCVD function, it is possible to use the measuring clamp to check contactlessly whether a voltage is applied to a cable.

This clamp has an integrated Bluetooth interface. Via this Bluetooth interface a connection to the PC or the smartphone can be established with the measuring pliers. This allows the measured data of the measuring clamp to be stored and analyzed. If the PC does not have a Bluetooth interface to connect the measuring pliers, a suitable Bluetooth adapter is included in the delivery.

Another special feature of the measuring clamp is the measurement of temperatures. Two type-K thermocouples can be connected to the measuring clamp and read out at the same time. Here, temperatures of up to 1000°C / 1832°F can be measured. The housing of the measuring pliers consists of a robust plastic, which is additionally coated with a rubber coating. Thanks to the additional rubber coating, the measuring pliers can easily withstand impacts.

Highlights

- Sample rate 2 Hz

- Cover on the test sockets

- AC A and AC V measurement

- Bluetooth interface

- Cable diameter max. 48 mm

- Temperature measurement via 2 thermocouples

- Automatic shutdown

- Non-contact voltage detection

- incl. ISO-Calibration Certificate

Specification

Direct voltage DC
Measuring range	0 ... 500 mV
Resolution	0,01 mV
Accuracy	±(0.1% v.Mw. +8 digits)

Direct voltage DC
Measuring range	0 ... 5 V
Resolution	0,0001 V
Accuracy	±( 0.1% v.Mw. +4 digits)

Direct voltage DC
Measuring range	0 ... 50 V
Resolution	0,001 V
Accuracy	±( 0.1% v.Mw. +4 digits)

Direct voltage DC
Measuring range	0 ... 500 V
Resolution	0,01 V
Accuracy	±( 0.1% v.Mw. +4 digits)

Direct voltage DC
Measuring range	0 ... 600 V
Resolution	0,1 V
Accuracy	±( 0.5% v.Mw. +4 digits)

Direct current DC
Measuring range	0 ... 500 µA
Resolution	0,01 µA
Accuracy	±(1 % of Rd +6 digits)

Direct current DC
Measuring range	0 ... 5000 µA
Resolution	0,1 µA
Accuracy	±(1 % of Rd +6 digits)

Direct current DC
Measuring range	0 ... 50 A
Resolution	0,01 A
Accuracy	±(2.5 % of Rd +5 digits)

Direct current DC
Measuring range	0 ... 1000 A
Resolution	0,1 A
Accuracy	±(2.5% +30 Digits)

Capacity
Measuring range	0 ... 500 nF
Resolution	0,01 nF
Accuracy	±(3.5% v.Mw. +40 digits)

Capacity
Measuring range	0 ... 5000 nF
Resolution	0,1 nF
Accuracy	±(3.5% v.Mw. +10 Digits)

Capacity
Measuring range	0 ... 50 µF
Resolution	0,001 µF
Accuracy	±(3.5% v.Mw. +10 Digits)

Capacity
Measuring range	0 ... 500 µF
Resolution	0,01 µF
Accuracy	±(3.5% v.Mw. +10 Digits)

Capacity
Measuring range	0 ... 5 mF
Resolution	0,0001 mF
Accuracy	±(5% v.Mw. +10 Digits)

AC voltage
Measuring range	0 ... 500 mV
Resolution	0,01 mV
Accuracy	±( 0.8% +9 digits)
Frequency range	50 ... 1000 Hz

AC voltage
Measuring range	0 ... 5 V
Resolution	0,0001 V
Accuracy	±(1% v.Mw. +30 Digits)
Frequency range	50 ... 1000 Hz

AC voltage
Measuring range	0 ... 50 V
Resolution	0,001 V
Accuracy	±(1% v.Mw. +30 Digits)
Frequency range	50 ... 1000 Hz

AC voltage
Measuring range	0 ... 500 V
Resolution	0,01 V
Accuracy	±(1% v.Mw. +30 Digits)
Frequency range	50 ... 1000 Hz

AC voltage
Measuring range	0 ... 600 V
Resolution	0,1 V
Accuracy	±(1% v.Mw. +30 Digits)
Frequency range	50 ... 1000 Hz

Alternating current AC
Measuring range	0 ... 500 µA
Resolution	0,01 µA
Accuracy	±(1.5% v.Mw. +30 Digits)
Frequency range	50 ... 1000 Hz

Alternating current AC
Measuring range	0 ... 5000 µA
Resolution	0,1 µA
Accuracy	±(1.5% v.Mw. +30 Digits)
Frequency range	50 ... 1000 Hz

Alternating current AC
Measuring range	0 ... 50 A
Resolution	0,01 A
Accuracy	±(2.5% v.Mw. +30 Digits)
Frequency range	50 ... 1000 Hz

Alternating current AC
Measuring range	0 ... 1000 A
Resolution	0,1 A
Accuracy	±(2.8% v.Mw. +30 Digits)
Frequency range	50 ... 1000 Hz

Resistance
Measuring range	0 ... 500 Ω
Resolution	0,01 Ω
Accuracy	±(1% v.Mw. +9 Digits)

Resistance
Measuring range	0 ... 5 kΩ
Resolution	0,0001 kΩ
Accuracy	±(1 % of Rd +5 digits)

Resistance
Measuring range	0 ... 50 kΩ
Resolution	0,001 kΩ
Accuracy	±(1 % of Rd +5 digits)

Resistance
Measuring range	0 ... 500 kΩ
Resolution	0,01 kΩ
Accuracy	±(1 % of Rd +5 digits)

Resistance
Measuring range	0 ... 5 M Ω
Resolution	0,0001 M Ω
Accuracy	±(2% v.Mw. +10 Digits)

Resistance
Measuring range	0 ... 50 M Ω
Resolution	0,001 M Ω
Accuracy	±(3% v.Mw. +10 Digits)

Frequency
Measuring range	0 ... 50 Hz
Resolution	0,001 Hz
Accuracy	±(0.3% v.Mw. +2 Digits)

Frequency
Measuring range	0 ... 500 Hz
Resolution	0,01 Hz
Accuracy	±(0.3% v.Mw. +2 Digits)

Frequency
Measuring range	0 ... 5 kHz
Resolution	0,0001 kHz
Accuracy	±(0.3% v.Mw. +2 Digits)

Frequency
Measuring range	0 ... 50 kHz
Resolution	0,001 kHz
Accuracy	±(0.3% v.Mw. +2 Digits)

Frequency
Measuring range	0 ... 500 kHz
Resolution	0,01 kHz
Accuracy	±(0.3% v.Mw. +2 Digits)

Frequency
Measuring range	0 ... 5 MHz
Resolution	0,0001 MHz
Accuracy	±(0.3% v.Mw. +2 Digits)

Frequency
Measuring range	0 ... 10 MHz
Resolution	0,001 kHz
Accuracy	±(0.3% v.Mw. +2 Digits)

Temperature
Measuring range	-100 ... +1000 °C
Resolution	0,1 °C
Accuracy	±(1% v.Mw. +2.5°C)

Temperature
Measuring range	-148 ... +1832 °F
Resolution	0,18 °F
Accuracy	±(1% of measured value + 4.5°F)

General technical data
Measuring functions	MIN, MAX, HOLD
Frequency	10 ... 10000 Hz
Display type	LCD with backlight
Display size	1,8 Inch
Measuring rate	2 Hz
Interface	Wireless
Standard(s)	IEC 1010-1, EN 61010-1
Maximum cable diameter	48 mm
Automatic power-off	30 min
Bandwidth	50 ... 400 kHz
Safety standard	CAT III 600V
Fuse(s)	500 mA Ceramic Flink
Diode test	0.3 mA / 2.8V DC
Menu language	English, English (GB)
Protection class (device)	IP20
(Rechargeable) battery	1 x 9 V 9V block , Alkali-manganese
Capacity	640 mAh
Operating conditions	5 ... 40 °C , 0 ... 80 % RH
Storage conditions	-20 ... 60 °C , 0 ... 80 % RH
Dimensions ( L x W x H )	230 x 76 x 40 mm
Weight	315 g
