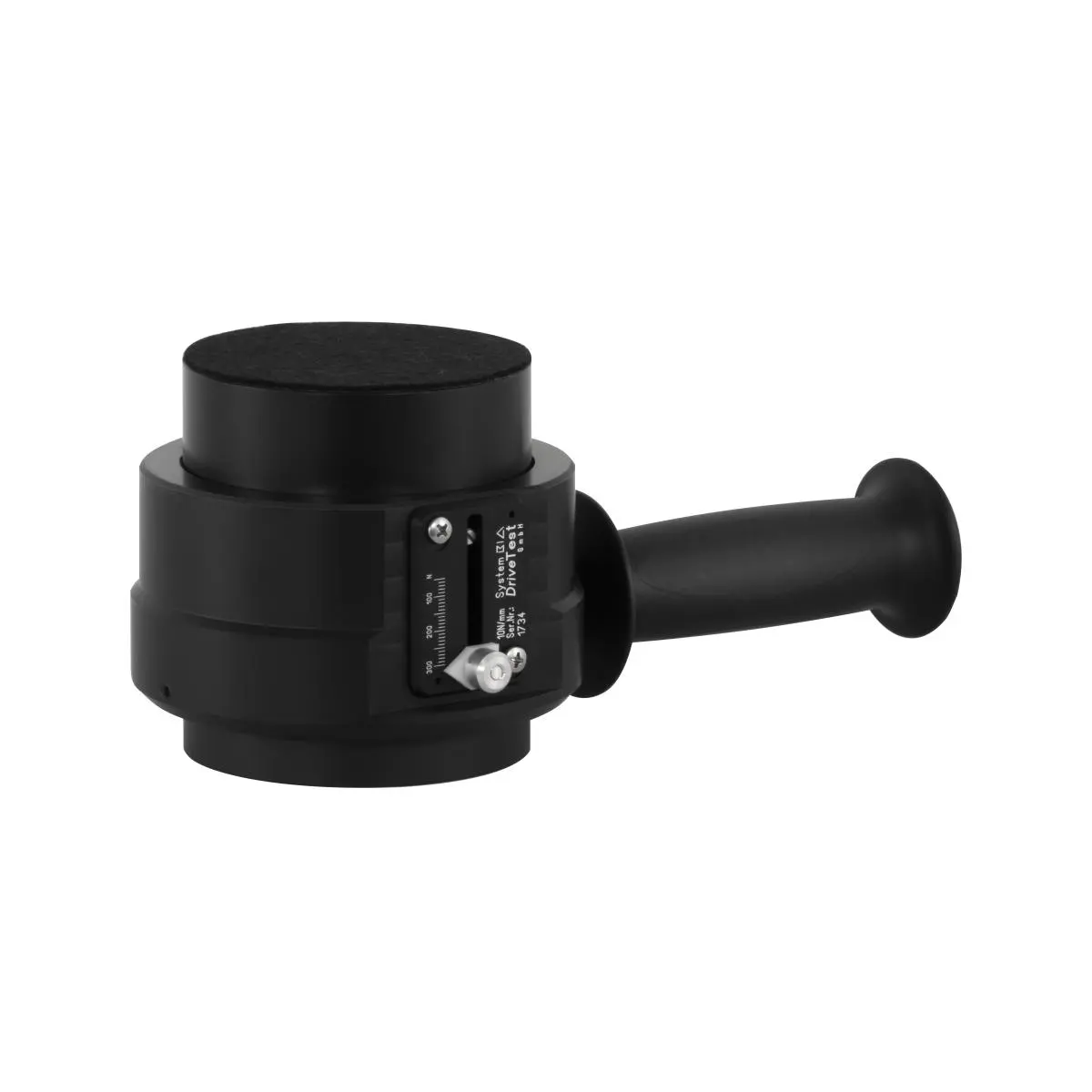

Closing Force Measuring Device / Closing Force Transducer

[zoom]

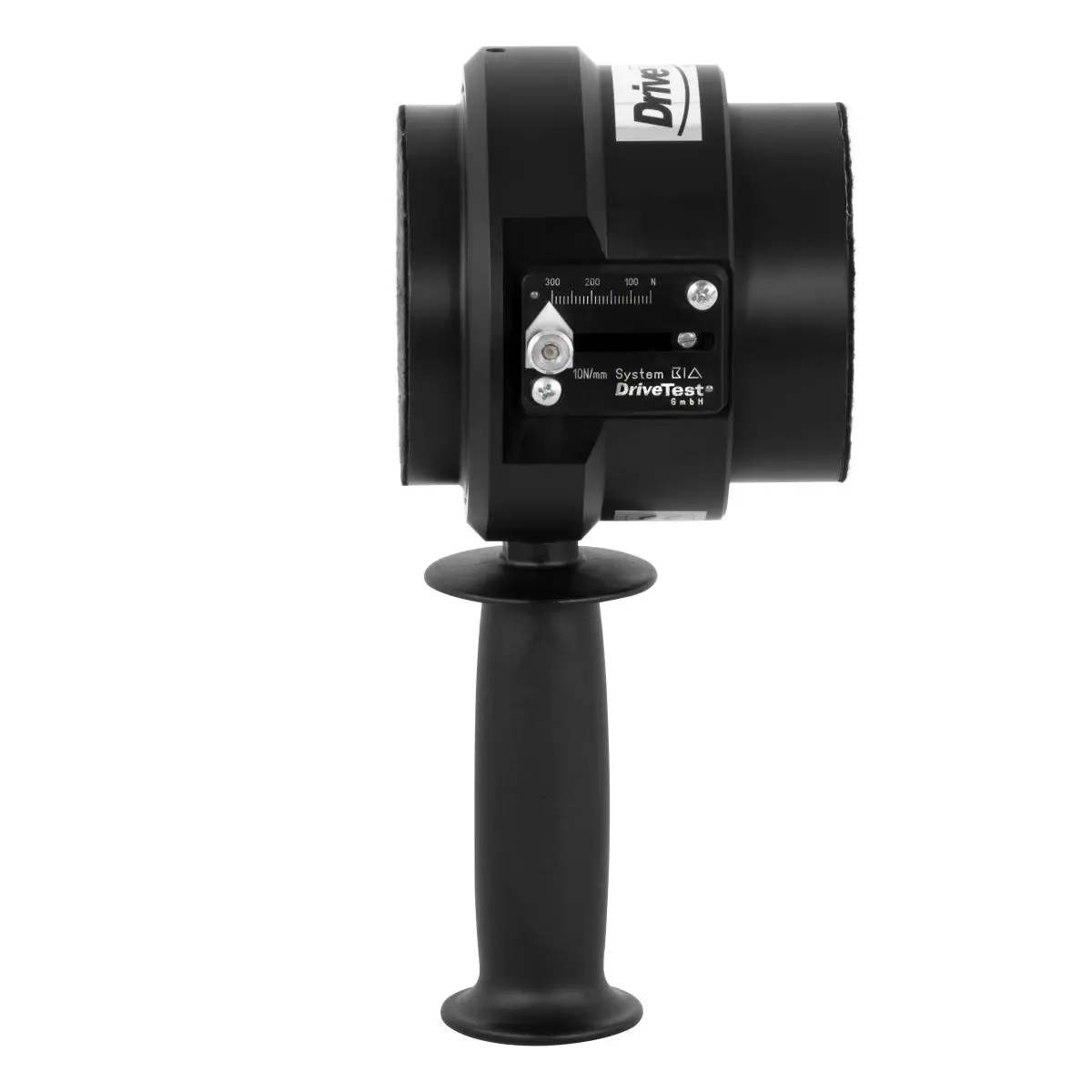

Closing Force Measuring Device / Closing Force Transducer Frontal

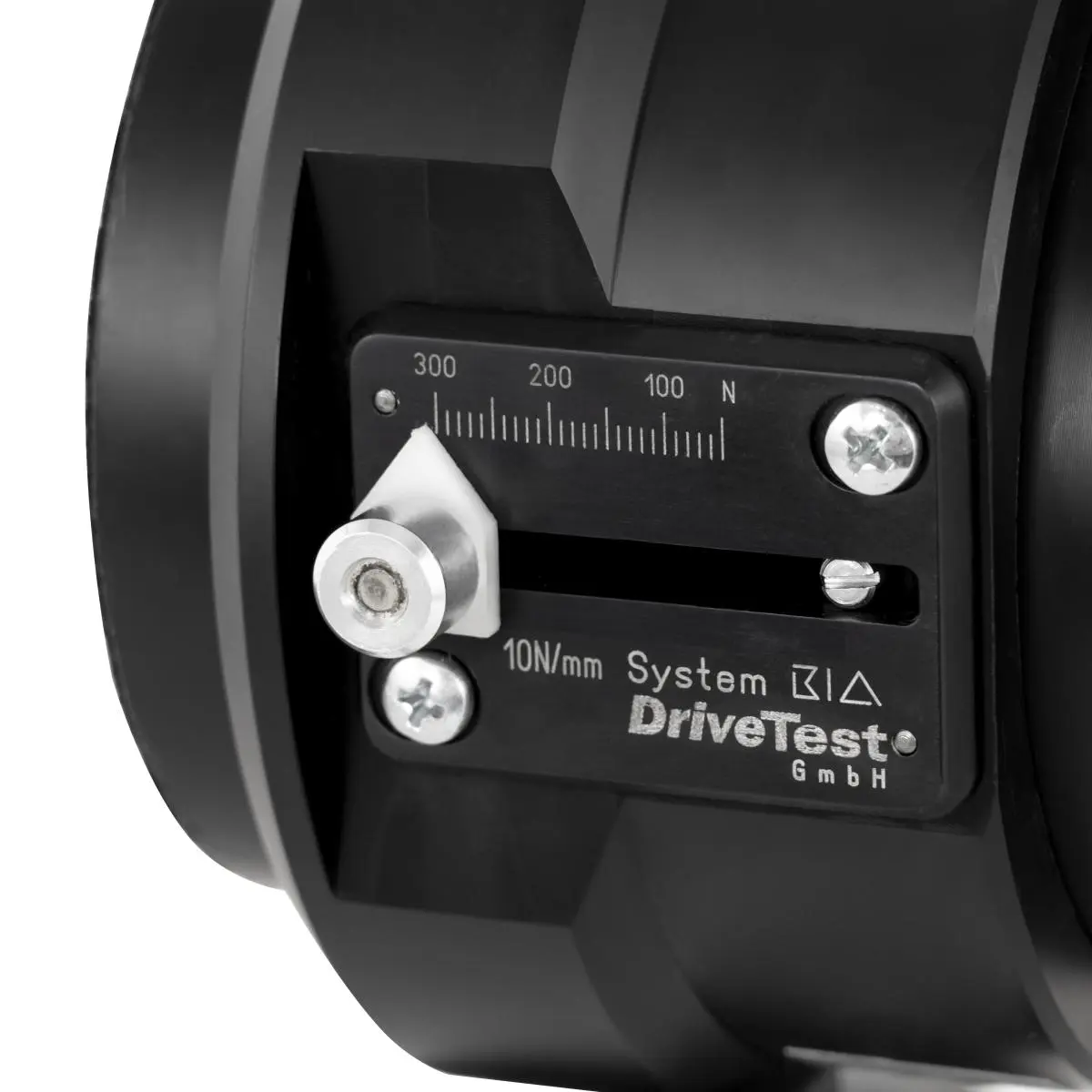

Closing Force Measuring Device / Closing Force Transducer Scale

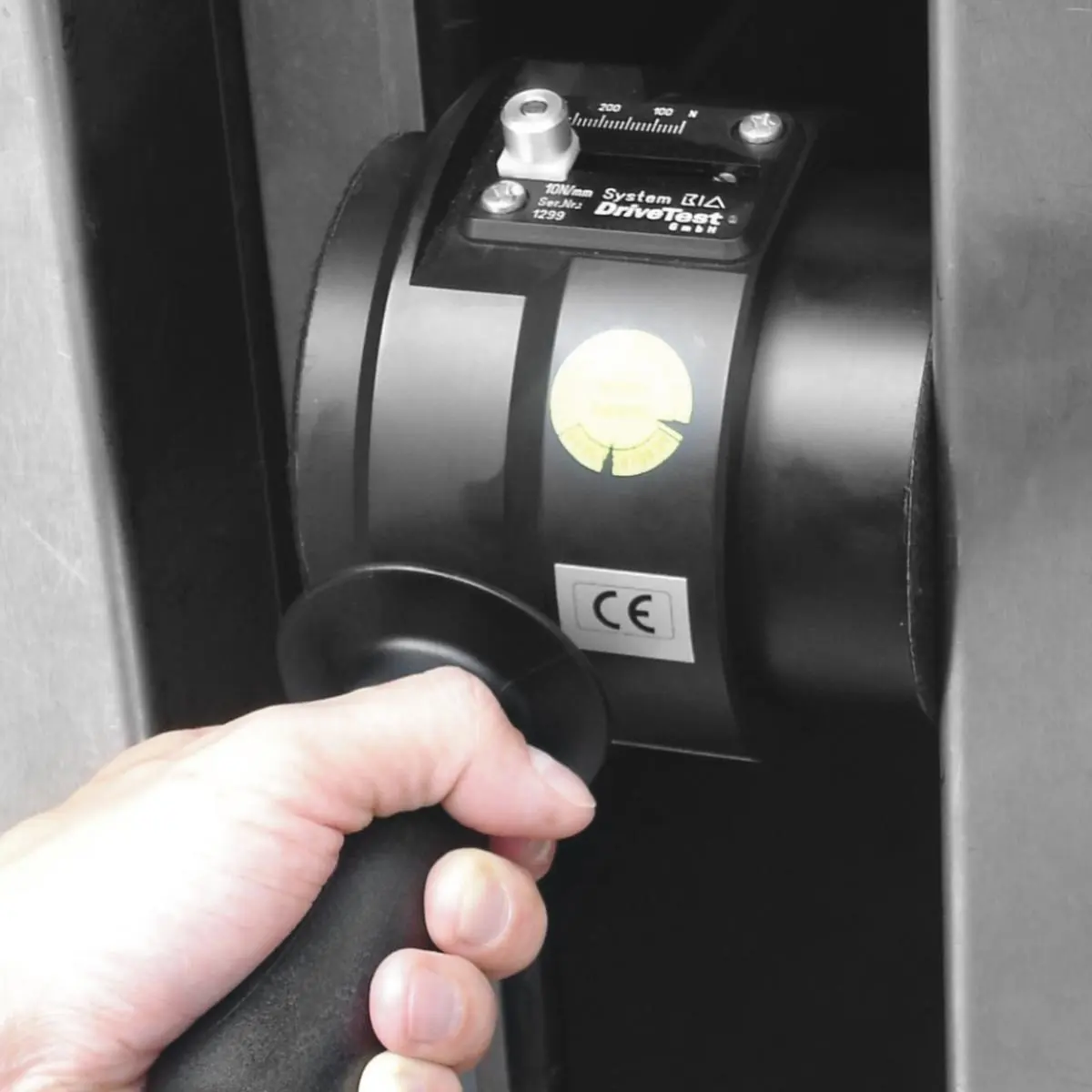

Closing Force Measuring Device / Closing Force Transducer Application picture

Closing Force Measuring Device BIA Class 2 for bus doors

Order no.: BIA2-SE-10-300

GTIN (EAN): 4260650210129

Accessory

ISO calibration certificate for closing force measuring device BIA Class 2

DAkkS calibration certificate for closing force measuring device (mechanical)

₹46,956.00

Description

Measuring device for closing force / safety through closing force measurement

The original BIA class 2 is a mechanical closing force measuring device for bus doors. The elaborate design combines precision with practical robustness and ensures accurate measured values even after years of use in harsh environments.

Highlights

- Precise measurements

- Robust design

- Easy to use

- Complete scope of delivery - including high-quality transport case

- Extensive user support

- Calibration service

Specification

Force
Measuring range	50 ... 300 N
Resolution	10 N
Accuracy	±10 N or 5% of Rd

General technical data
Stiffness	10 N/mm
Gap width	115 mm
Protection class (device)	IP43
Operating conditions	-10 ... 40 °C , 0 ... 90 % RH
Storage conditions	-40 ... 50 °C , 0 ... 90 % RH
Dimensions ( L x W x H )	230 x 130 x 115 mm
Weight	2100 g

Delivery Scope

1 x Closing force measuring device original BIA class 2

1 x Transport case with foam insert for the complete scope of delivery

1 x Manual

1 x ISO calibration

Downloads

Datasheet

CE Certificate
