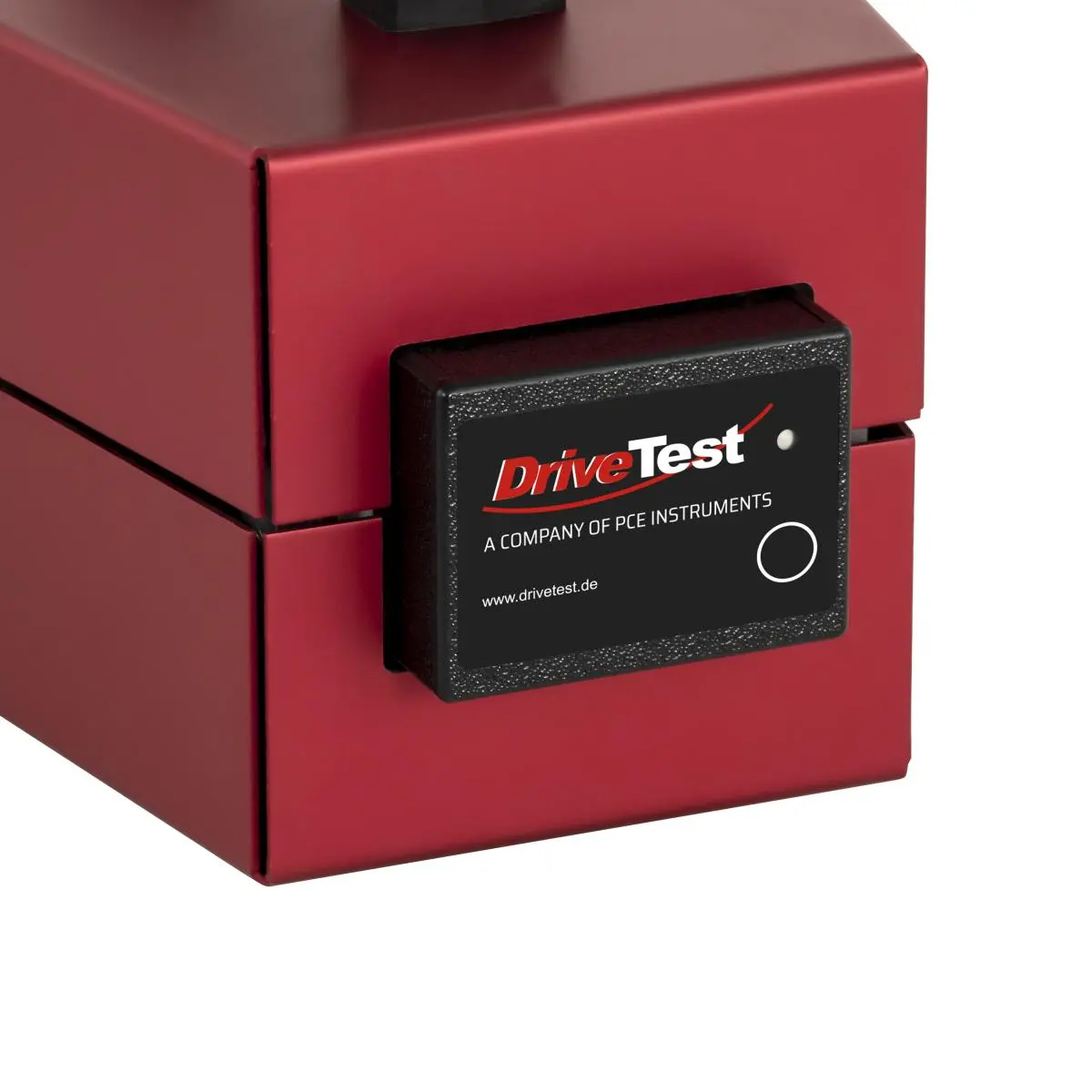

Closing Force Measuring Device / Closing Force Transducer Sensor
Closing Force Measuring Device / Closing Force Transducer Foot

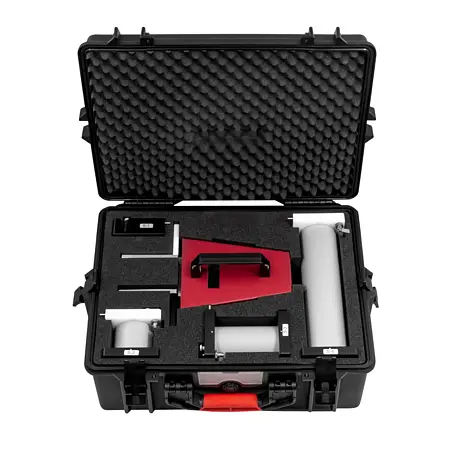

Closing Force Measuring Device / Closing Force Transducer Delivery scope

Closing Force Measuring Device BIA 600 BT for rail vehicle doors, sliding steps

Order no.: BIA600BT-SY-10-700
GTIN (EAN): 4260650210952
₹689,265.00
₹813,332.70
price ex. (VAT / delivery)
:
4260650210952
BIA600BT-SY-10-700
Delivery time:1-2 working days

Accessory

Description

Closing force measuring device - Bluetooth
Wireless closing force measuring system for rail vehicle doors and sliding steps

The closing force measuring device is a wireless, electronic measuring device for rail vehicle doors and sliding steps. The closing force measuring device is a further development of the well-established BIA600 closing force measuring device. It combines the well-known robust construction for years of use in harsh environments and lasting precision with the flexibility of a wireless application and a user-friendly app.

This results in many advantages for you in daily use, such as automatic measuring point identification via QR and barcodes, the immediate availability of the measured values and the direct creation of a PDF report.

Highlights

- Support of relevant standards - user guidance and evaluation according to EN
14752:2015,
EN14752:2005 (optional)
- Precise measurements - granted by friction-free guidance and platform load
cell
- Robust design - housing made of high-strength material for a long service
life in tough applications
Wireless - no more annoying cables
- Measuring point identification - via QR and barcodes (integrated solution)
- Easy to use – implements experience from years of use
- Extensive customer service - in-house calibration service and software
updates ensure the
Use of current guidelines
- Immediate evaluation - according to selected guidelines and standards
- Process reliability - integrated test instructions ensure that the
measurement is in line with the guidelines
- Large temperature working range
- Language selection - Available in DE/ EN/ ES/ FR/IT/ CN

Specification

Force
Measuring range  0 ... 700 N
Resolution  1 N
Accuracy  ±3 N (0-100 N)
±3% (>100 N)

General technical data
Interface  Bluetooth, Micro-USB
Standard(s)  EN 14752:2015
Standard(s) additional information  - EN 81-1 2000-4-EG
- FMVSS118
- APTA PR-M-S-18-10
- ASME A17.1 2000
- DIN EN 14752:2005
- 2001-85-EG / ECE R. 107 §35 e (5) StVZO (German Road Traffic Licensing Regulations)
- EN14120 DIN 18650-1
- DIN EN 12453
- DIN EN 16005
- DIN EN 60335-2-103
- ASR A1.7
- ECE R-21
- prEN 12650-1
Stiffness  10 N/mm
Gap width  90 mm
Menu language  English, Spanish, German, French, Italian
Protection class (device)  IP43
Power supply  3.7V / 700 mAh
Capacity  700 mAh
Performance  2,59 Wh
Operating conditions  -10 ... 40 °C , 0 ... 90 % RH
Storage conditions  -40 ... 50 °C , 0 ... 90 % RH
Dimensions ( L x W x H )  320 x 250 x 110 mm
Weight  3000 g

Delivery Scope

1 x Closing force measuring device BIA-600 BT
1 x Spacer (4 pieces) according to EN 14752:2015
1 x App Force Meter available for download in the Google Play Store
1 x Software PinchPilot (USB stick)
1 x USB Cable
1 x Manual
1 x Transport case with foam insert
1 x ISO calibration certificate
