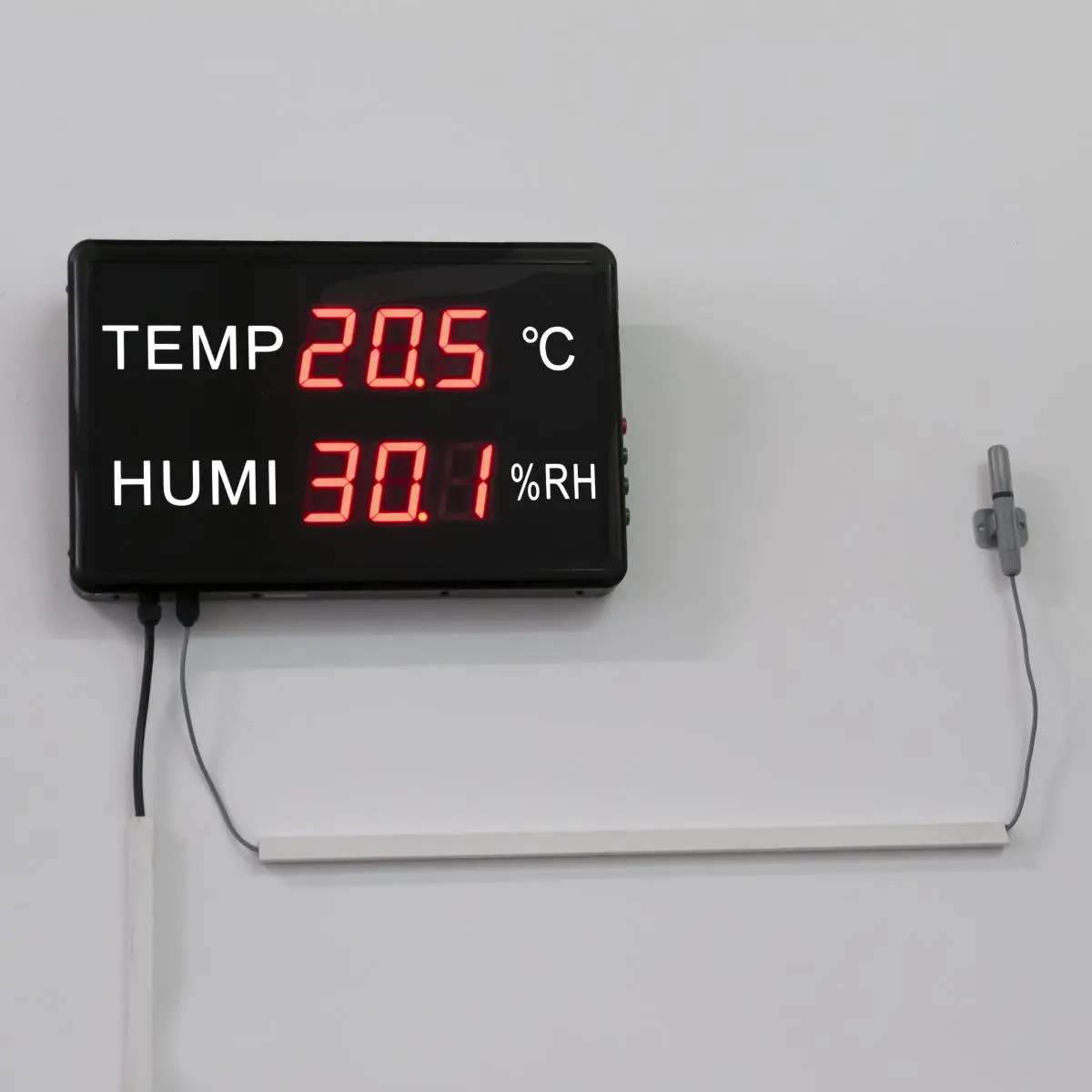

The Climate Meter is used to measure the environmental parameters of temperature and humidity. The Climate Meter finds its application in warehouses, open-plan offices, schools, etc. The Climate Meter has 55 mm high digits that indicate the temperature and humidity.

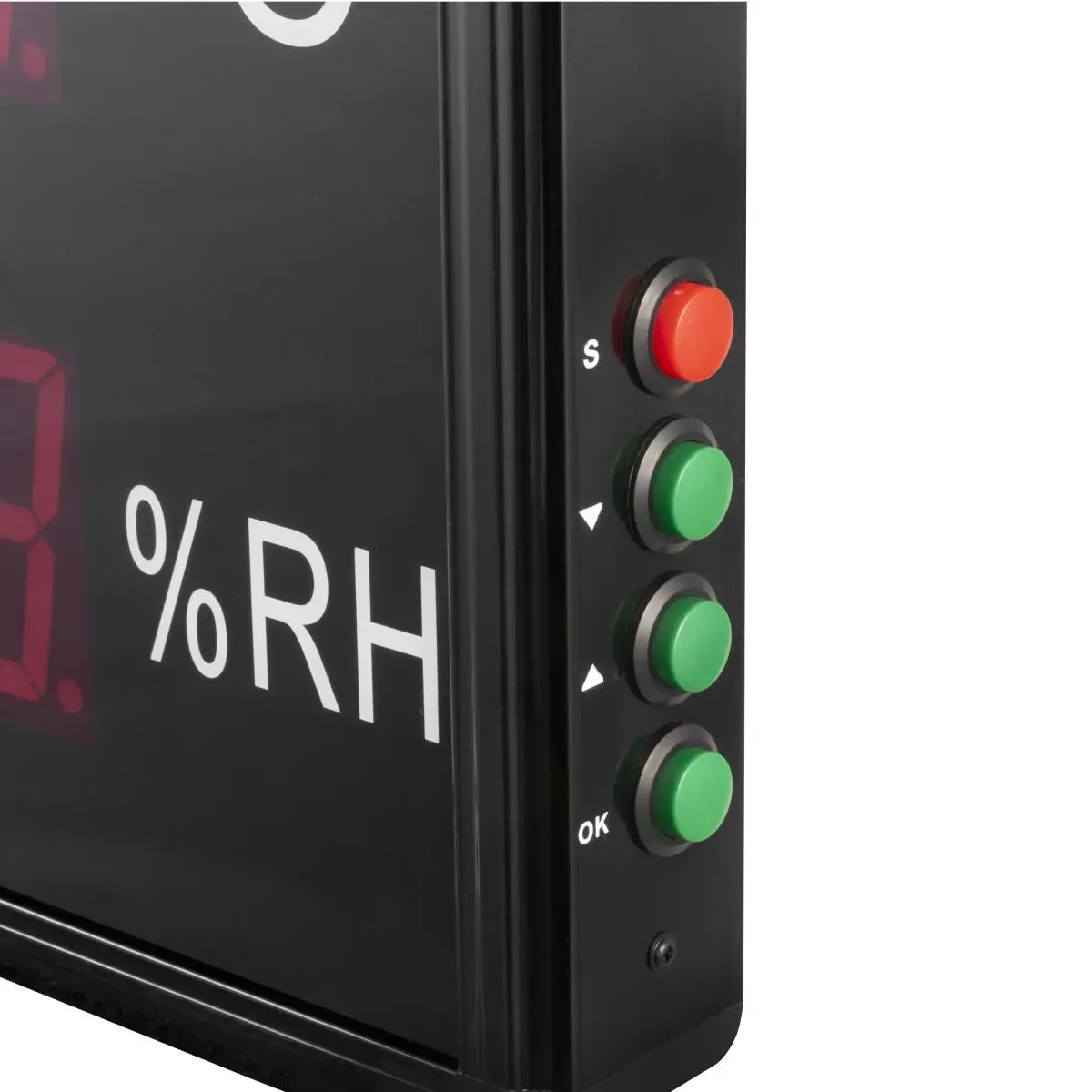

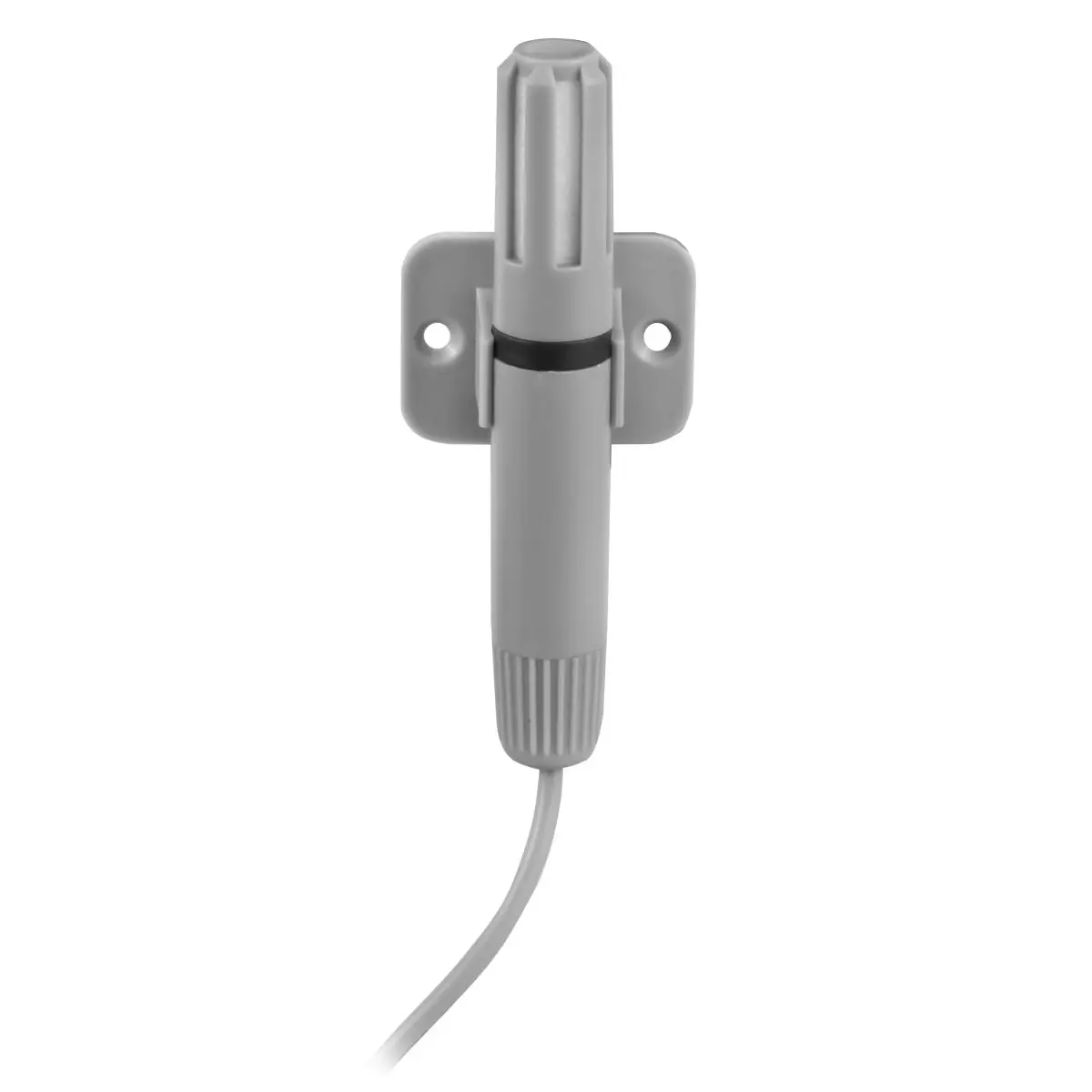

Due to the large size of the digits, the Climate Meter display can be read from distances up to 30 m. The temperature and humidity sensor of the Climate Meter is connected by a 2 m long cable. The Climate Meter is operated with 230 V AC mains voltage. Via the side-mounted buttons, alarm levels can be set on the Climate Meter.
| Relative humidity | |
| Measuring range | 0 ... 99 % RH |
| Resolution | 0,1 % RH |
| Accuracy | ±3 % RH |
| Temperature | |
| Measuring range | -40 ... -10 °C |
| Resolution | 1 °C |
| Accuracy | ±0.3 °C |
| General technical data | |
| Display type | LCD |
| Alarm | Acoustic |
| Dimensions | Sensor cable: approx. 2 m Power supply cable: approx. 1 metre |
| Visibility | 30 m |
| Protection class (device) | IP54 |
| Power supply | Primary: 100 ... 240 V AC 50/60 Hz Secondary: 12 V DC, 0.5 A |
| Connector type | Schuko plug |
| Operating conditions | -20 ... 70 °C , 0 ... 85 % RH |
| Storage conditions | -20 ... 70 °C , 0 ... 85 % RH |
| Dimensions ( L x W x H ) | 395 x 255 x 50 mm |
| Weight | 2500 g |
