Carbon Dioxide Meter PCE-PQC 34EU Incl. Calibration Certificate

Order no.: PCE-PQC 34EU

GTIN (EAN): 4250348720580

Accessory

Isokinetic sensor for PCE-PQC series

₹13,143.00

Cleaning filter for PCE-PQC series

₹16,815.00

PCE-PQC-WIFI Antenna for PCE-PQC series

₹52,464.00

Re-Calibration Certificate CAL-PCE-PQC

₹106,779.00

Description

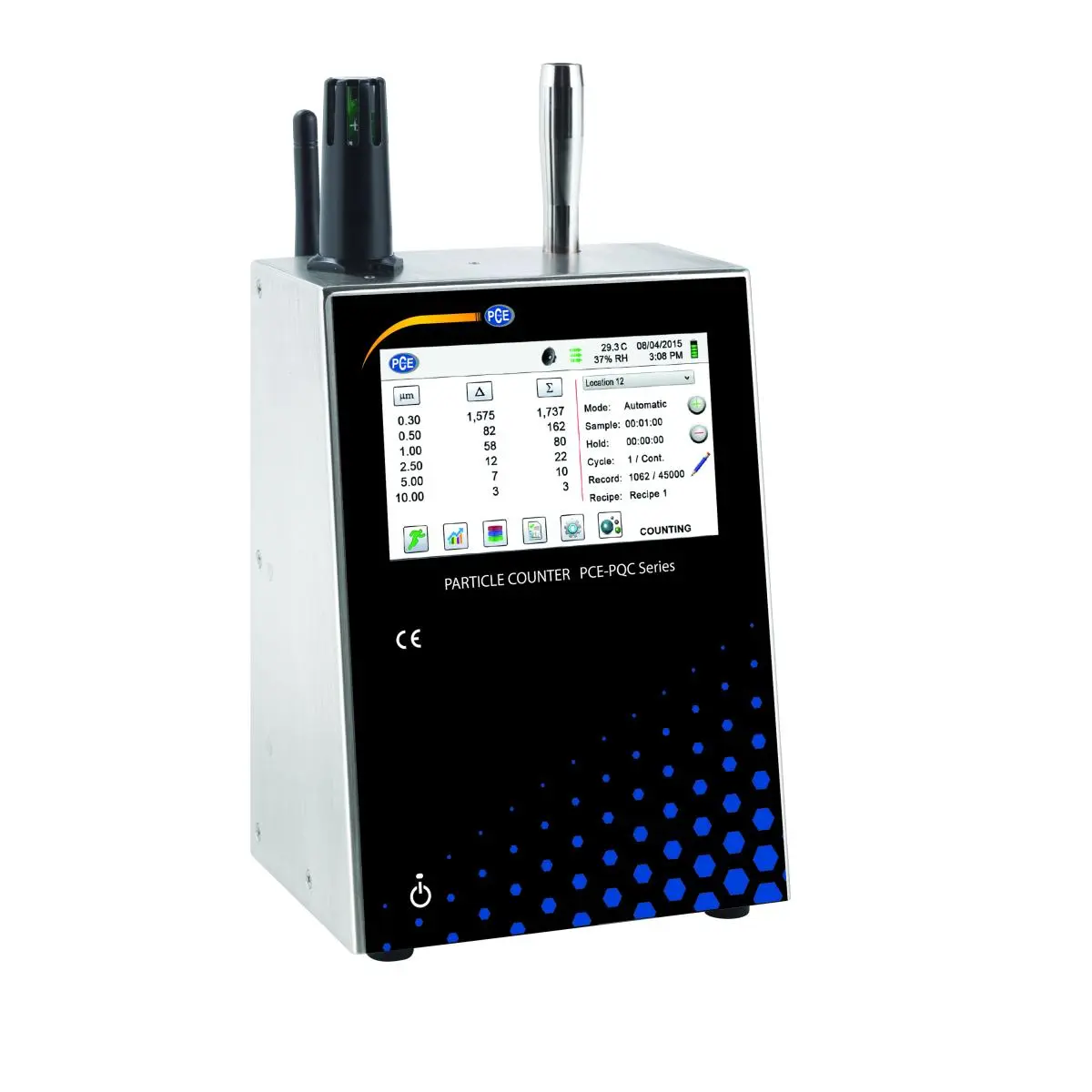

Carbon Dioxide Meter PCE-PQC 34EU incl. calibration certificate
Environmental Particle Counter with CO2 Sensor / Optional PID Sensor / Internal memory / Wall mounting / Large measuring range

The Carbon Dioxide Meter PCE-PQC 3xEU series is characterized by its small size and easy wall mounting. The stationary installation of the environmental particle counter PCE-PQC 3xEU series ensures high-precision air quality studies. Both available models measure particles (PM), temperature, humidity and CO2. The PCE-PQC 35EU also has a high-quality PID (Photo Ionization Detector) sensor for recording total volatile organic compounds (TVOC).

The environmental particle counters use very powerful electronics to be able to effectively measure the simultaneous displays of PM1.0, PM2.5, PM5 .0, PM10.0 and total particles. These measurements are stored simultaneously with the other built-in sensors in a large memory of 45,000 data records. With a large color touchscreen display, the visual indication of the environmental conditions is easy to see.

Highlights

- large measuring range up to 25 µm
- CO2 sensor
- integrated memory
- optional PID sensor available
- optional wifi interface available
- compact design

Specification

PCE-PQC 34EU
Measuring range	0.3 ... 25 µm
Measuring channel sizes	factory calibrated at 0.3, 0.5, 1.0, 2.5, 5.0, 10.0 µm

Counting efficiency	50% at 0.3 μm, 100% at > 0.45 μm according to JIS
Particle mass display	PM0,5, PM1,0, PM2,5, PM5,0, PM10 and TPM
Flow rate	2.83 l/min (0.1 ft³/min)
Random loss	10% at 30000000 particles / ft³
Battery operation	10 h
Light source	long-life laser diode
Zero count	<1 count / 5 min (<2 particles/ft³) according to ISO 21501-4 and JIS
Counting modes	automatic, manual, real-time display, cumulative/
	differential, mass concentration
Acoustic alarm	adjustable, integrated alarm
Calibration	traceable to NIST
Display	4.3" WQVGA color touch display, 480x272 px
Printer	external thermal printer
Air intake	internal pump with automatic
	flow rate control
Air outlet	interner HEPA filter
Battery	replaceable Li-Ion battery
Charging time	ca. 4 h
Reports	ISO 14644-1
	EU GMP appendix 1
	FS 209E
Configuration	memory for 50 user-defined configurations
Standards	ISO 21501-4 and JIS B9921
Dimensions	13.3 x 10.5 x 21 cm
Weight	1.8 kg
Memory	45000 data records (ring memory) consisting of
	particle counting, temperature and humidity, CO2, places and times

Sample duration	1 s ... 99 h adjustable
Power supply	110 ... 240 V AC 50/60 Hz
Operating conditions	+5 ... +40 °C
	up to 95% r.H. not condensing
Storage conditions	0 ... +50 °C
	up to 98% r.H. not condensing

CO2 Sensor
Measuring range	0 ... 5000 ppm
Resolution	1 ppm
Accuracy	±1 % of measuring range


Temp/humidity sensor internal	0 ... +50 °C, 15 ... 90 % r.H.
Resolution	0.5 °C
Accuracy	±0.5 °C, ±2 % r.H.

Interface	Ethernet, USB
Optional interface	Wifi 802.11 b/g, RS485 or RS232
Number of measuring channels	6
Housing material	stainless steel

Delivery Scope

1 x Carbon Dioxide Meter PCE-PQC 34EU
1 x Isokinetic probe
1 x Temperature and humidity sensor
1 x Cleaning filter
1 x Software for data download
1 x USB cable
1 x Mains power adapter
1 x Calibration certificate according to NIST
1 x User manual
