Carbon Dioxide Meter PCE-AQD 10-ICA

[zoom]

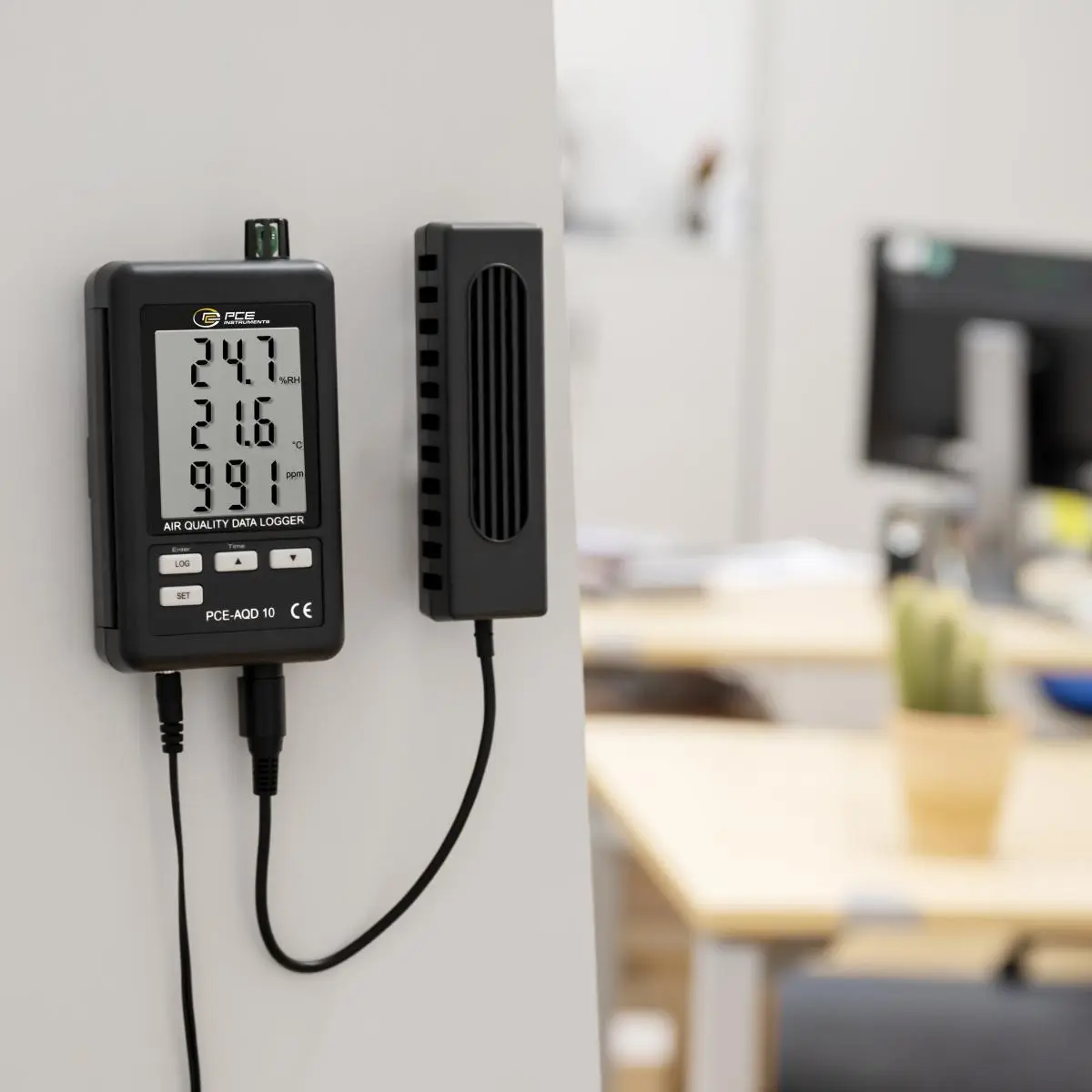

Carbon Dioxide Meter Application picture

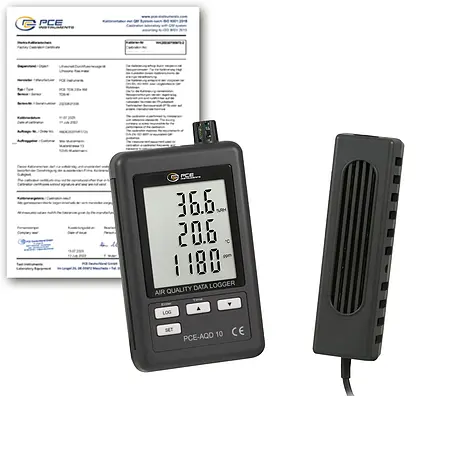

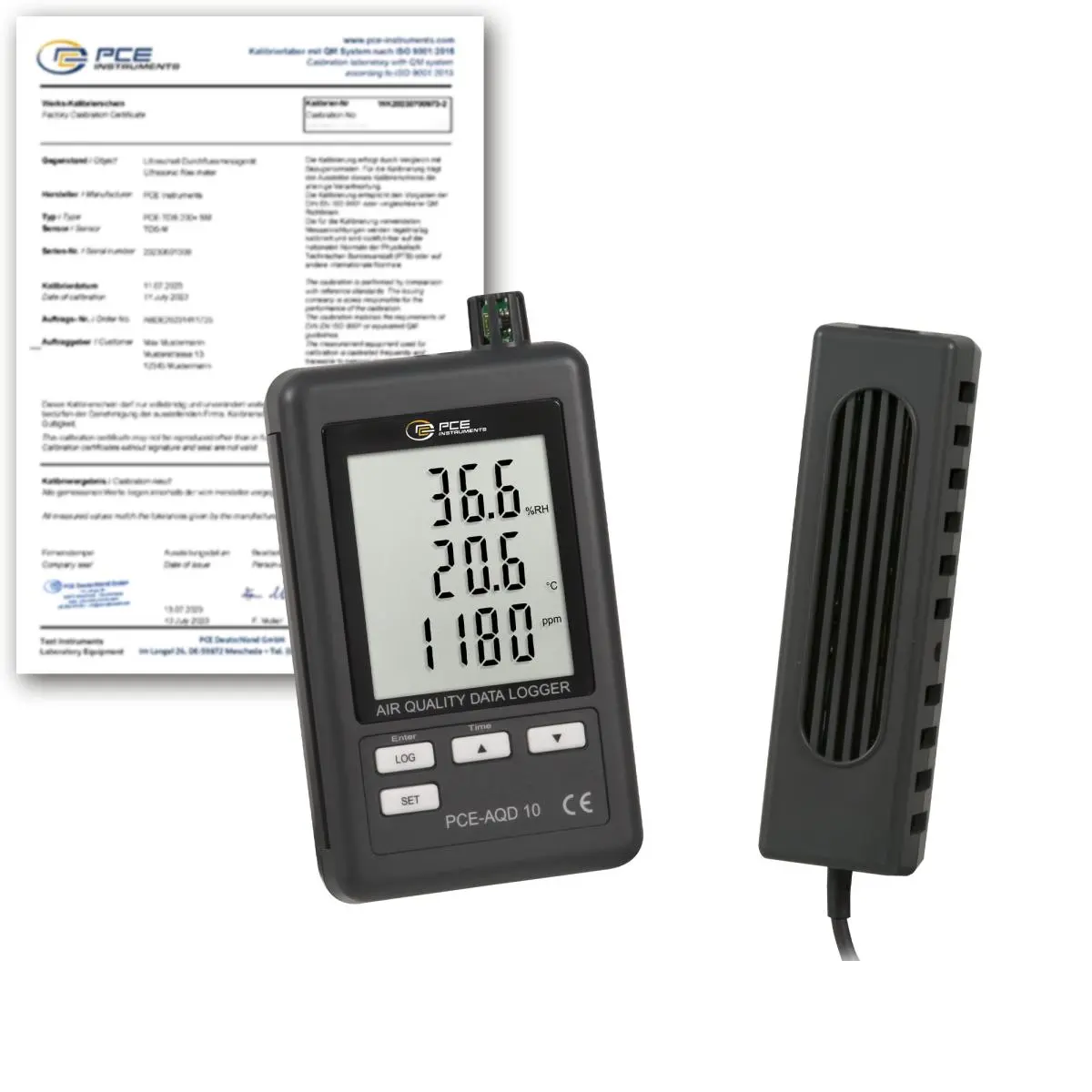

Carbon Dioxide Meter PCE-AQD 10-ICA incl. ISO Calibration Certificate

Order no.: PCE-AQD 10-ICA

GTIN (EAN): 4250348725103

Accessory

ISO Calibration Certificate for Temperature and Humidity

₹24,465.00

Calibration certificate for PCE-AQD 10 (CO2 function only)

₹18,139.00

Description

PCE-AQD 10-ICA Carbon Dioxide Meter incl. ISO Calibration Certificate
CO2 datalogger for air quality testing / Adjustable storage rate / Backlit LCD / Storage on SD card / Storage as XLS

The CO2 data logger PCE-AQD 10 is used to measure air quality. The CO2 data logger measures carbon dioxide, temperature and humidity. The CO2 sensor from the CO2 data logger is separated from the main unit with a connection cable. The measured values are displayed on the large display of the CO2 data logger. The air quality measurement data is stored on an SD card. The CO2 data logger can set the measured data in adjustable intervals of 1 ... 600 seconds.

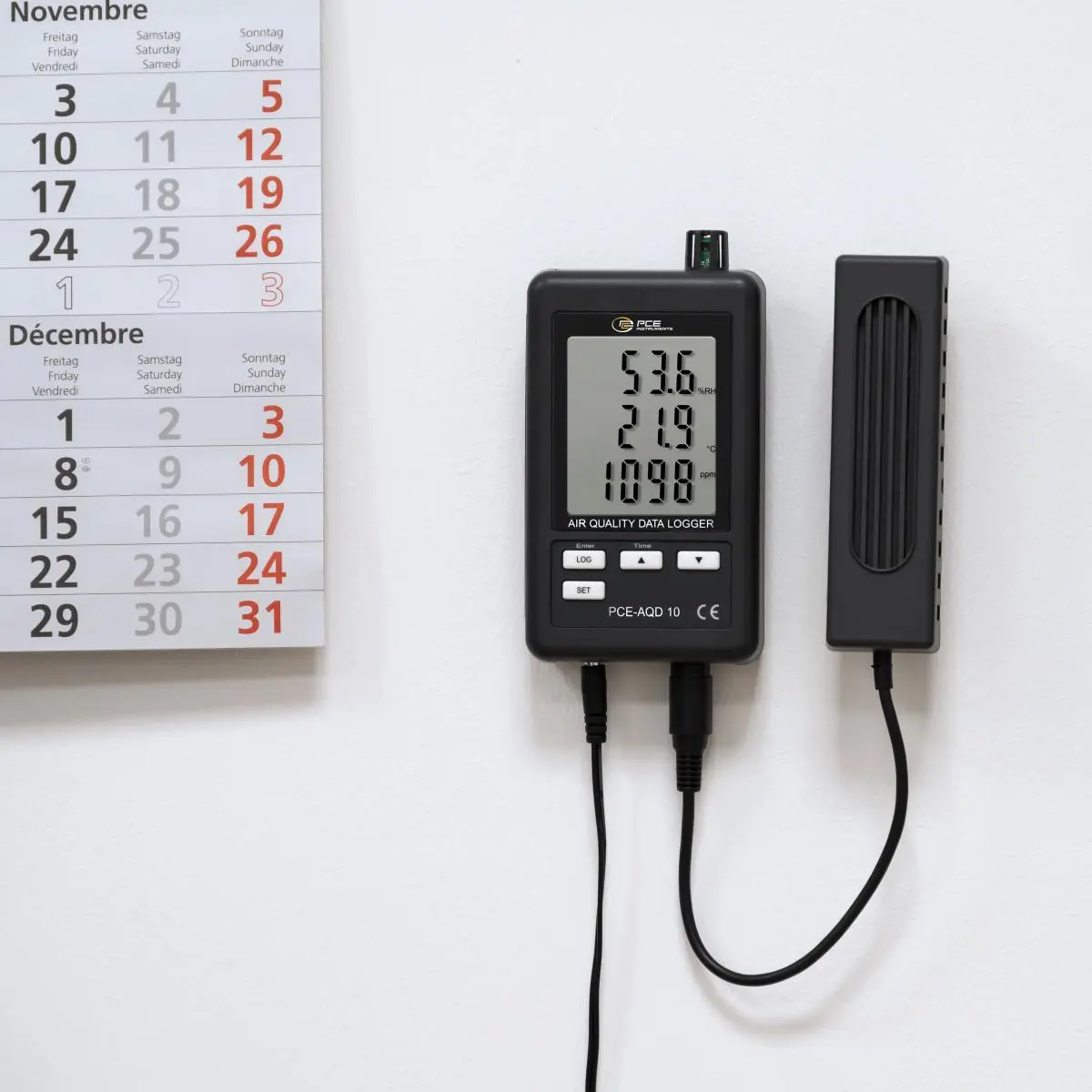

The CO2 data logger is used to monitor indoor air quality in lounges, offices, schools, etc. Through the SD memory, the CO2 measurement data can be monitored over a long period of time to initiate further measures to improve the room air quality.

Highlights

- Memory on SD card

- 3 parameters of air quality

- CO2, air temperature and humidity

- Mains operation, A/C power adapter

- Save as XLS file

- Large display with lighting

- incl. ISO-Calibration Certificate

Specification

CO²
Measuring range	0 ... 1000 ppm
Resolution	1 ppm
Accuracy	±70 ppm

CO²
Measuring range	1000 ... 3000 ppm
Resolution	1 ppm
Accuracy	±5 % of Rd

CO²
Measuring range	3000 ... 4000 ppm
Resolution	1 ppm
Accuracy	±250 ppm

Relative humidity
Measuring range	10 ... 70 % RH
Resolution	0,1 % RH
Accuracy	±4 % RH

Relative humidity
Measuring range	70 ... 90 % RH
Resolution	0,1 % RH
Accuracy	±(4 % of Rd + 1 % RH)

Temperature
Measuring range	0 ... 50 °C
Resolution	0,1 °C
Accuracy	±0.8 °C

General technical data
Display type	LCD with backlight
Display size	3,1 Inch
Display refresh rate	1 x per second
Adjustable measuring rate	5 ... 600 s
Sampling rate (additional information)	Automatic: if the value changes by ±1 °C, ±1 % RH or ±50 ppm, the data record is automatically written to the memory.

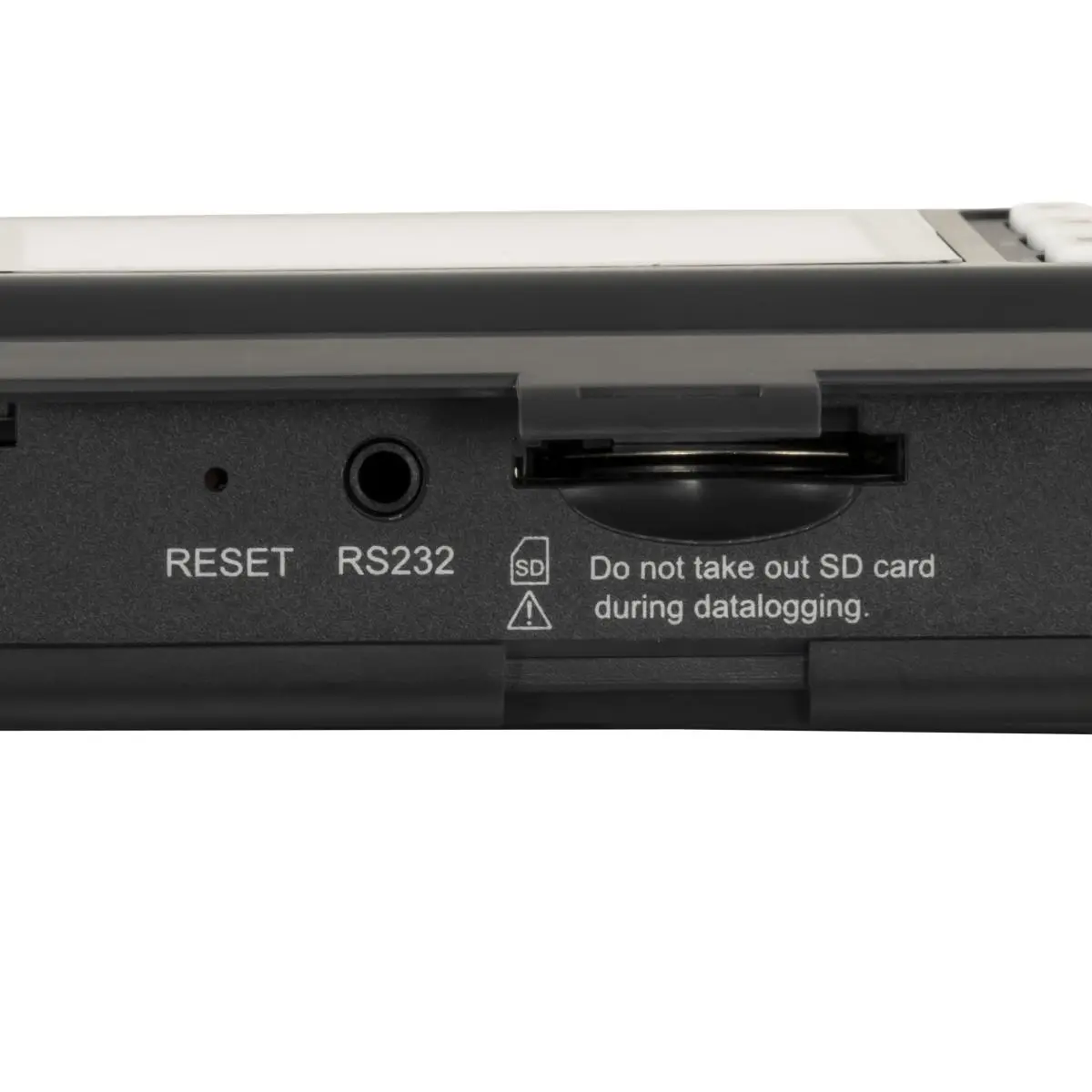

Storage medium	SD card
Storage capacity	16 GB
Memory capacity (additional information)	4 GB SD card included in the delivery
Menu language	English, English (GB)
Protection class (device)	IP20

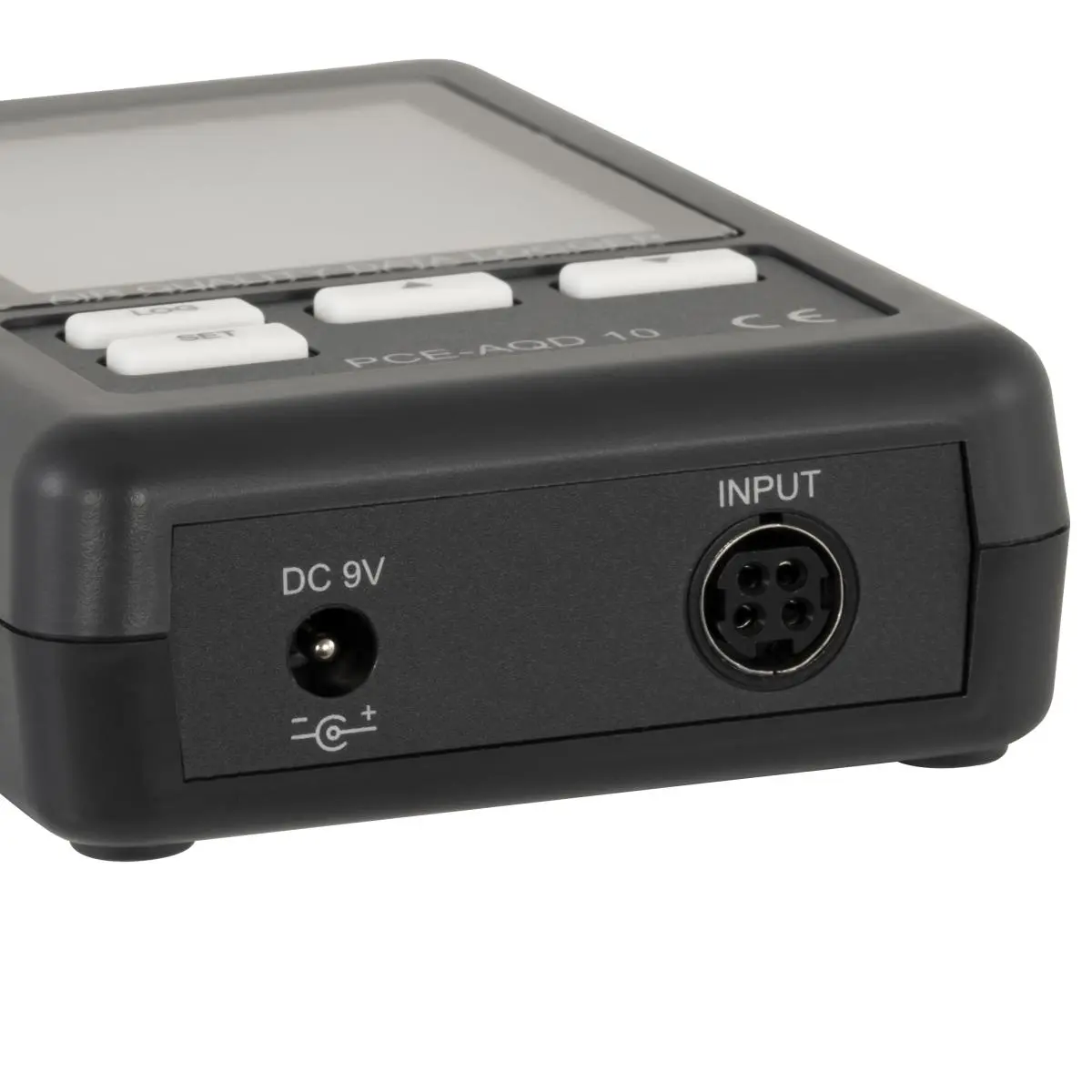

Power supply	100 ... 240V AC \| 50/60 Hz
Connector type	Device-europlug
(Rechargeable) battery	6 x 1,5 V AAA battery , Alkali-manganese
Capacity	1200 mAh
Operating conditions	0 ... 50 °C , 0 ... 90 % RH
Storage conditions	0 ... 50 °C , 0 ... 90 % RH
Dimensions ( L x W x H )	145 x 80 x 32 mm
Other dimensions	CO2 sensor: 132 x 38 x 32 mm
Weight	180 g

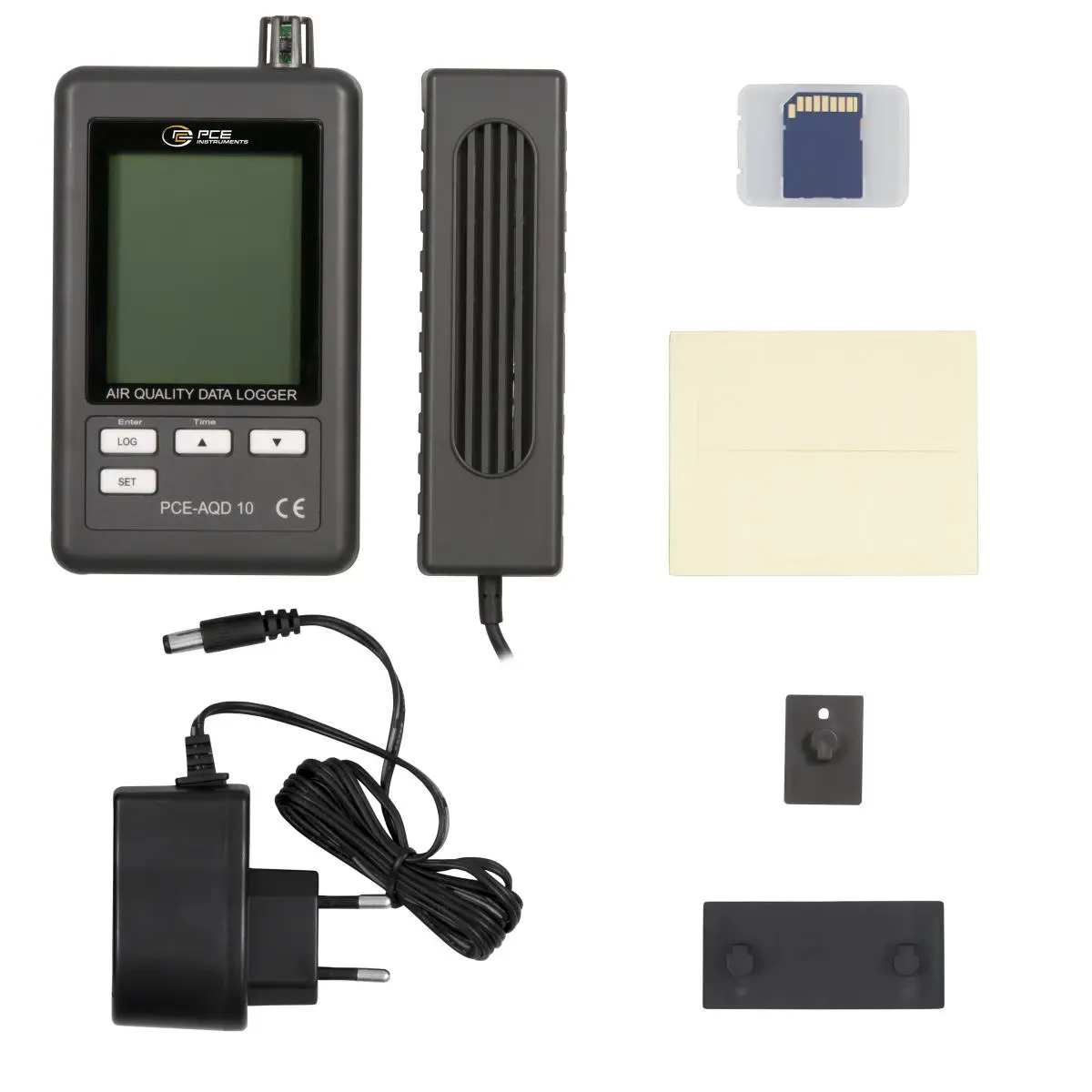

Delivery Scope

1 x Carbon Dioxide Meter PCE-AQD 10-ICA

1 x CO2 sensor

1 x Mains power adapter

1 x SD memory card

2 x Wall holder

1 x Adhesive pad

1 x User manual

1 x ISO-Calibration Certificate
