₹20,640.00

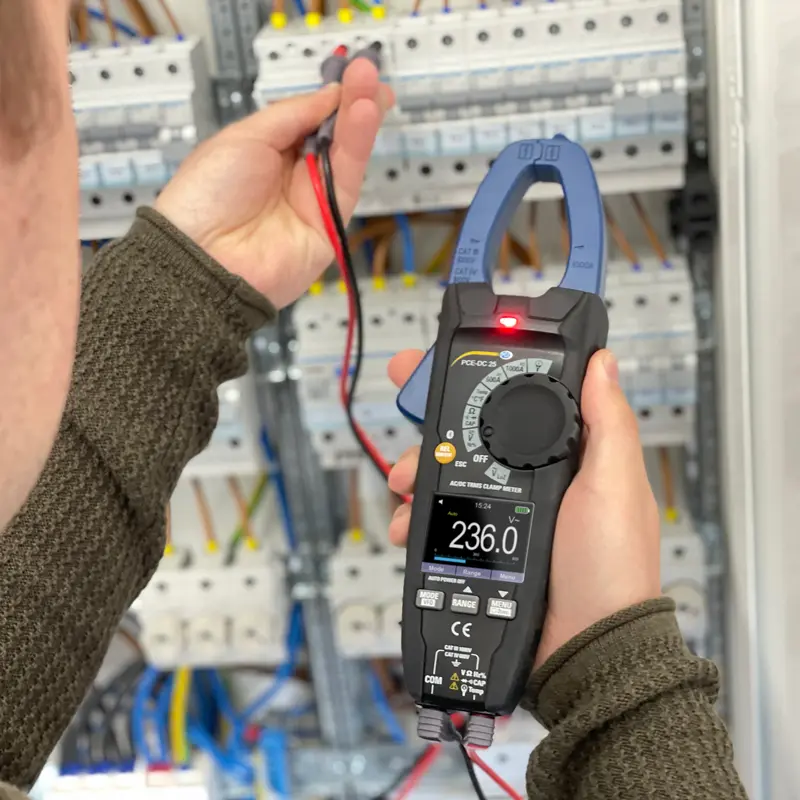

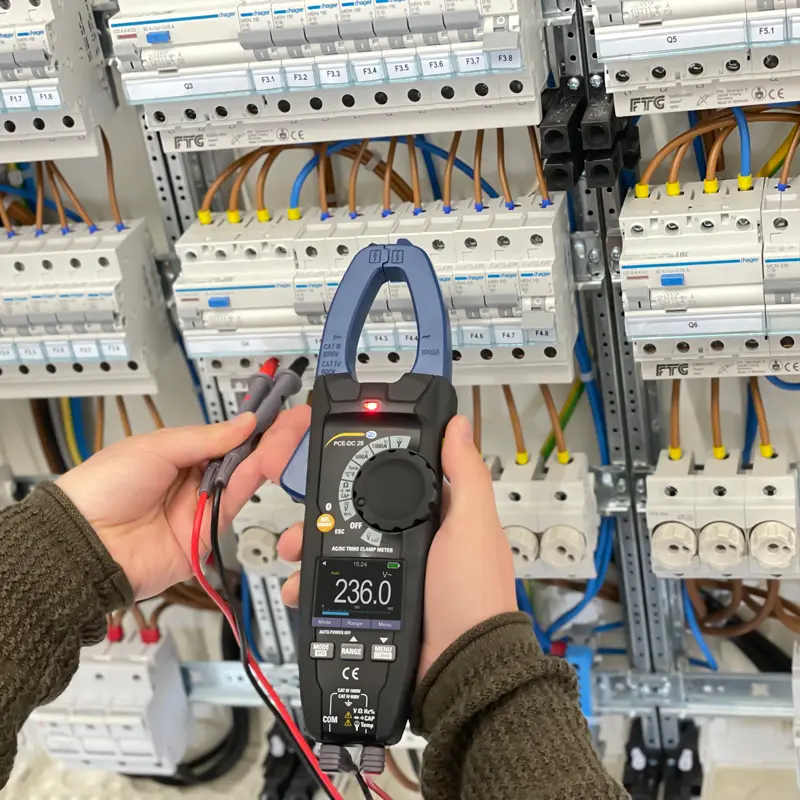

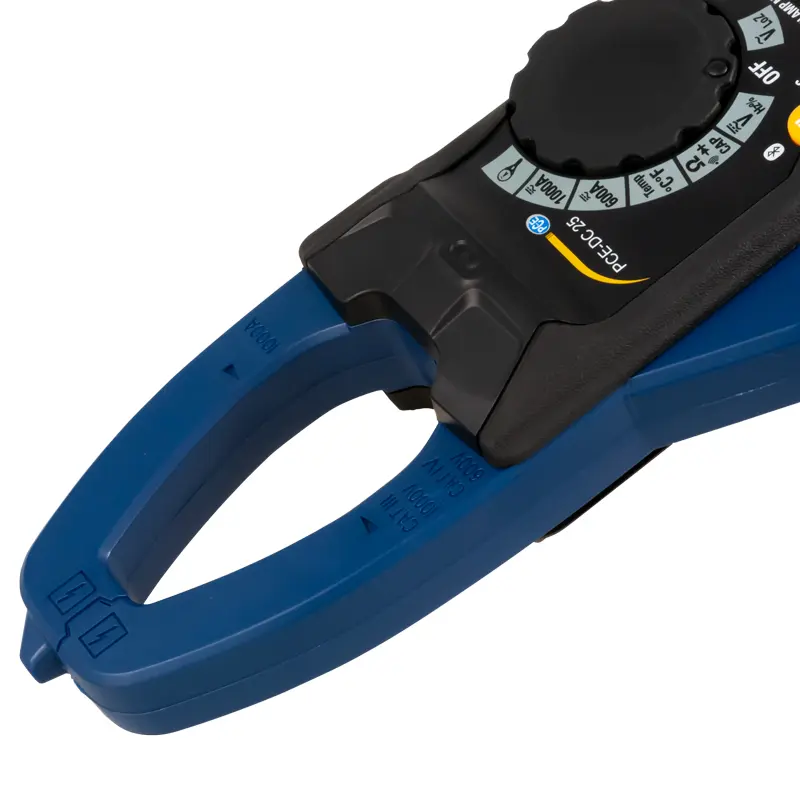

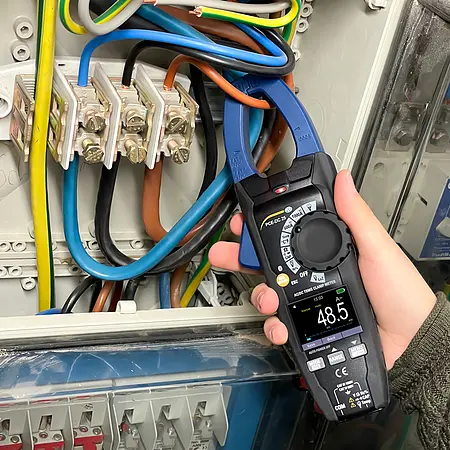

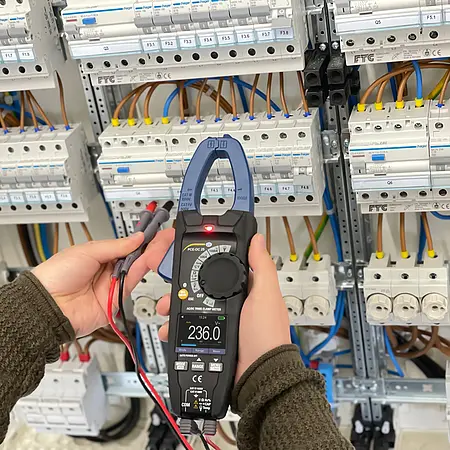

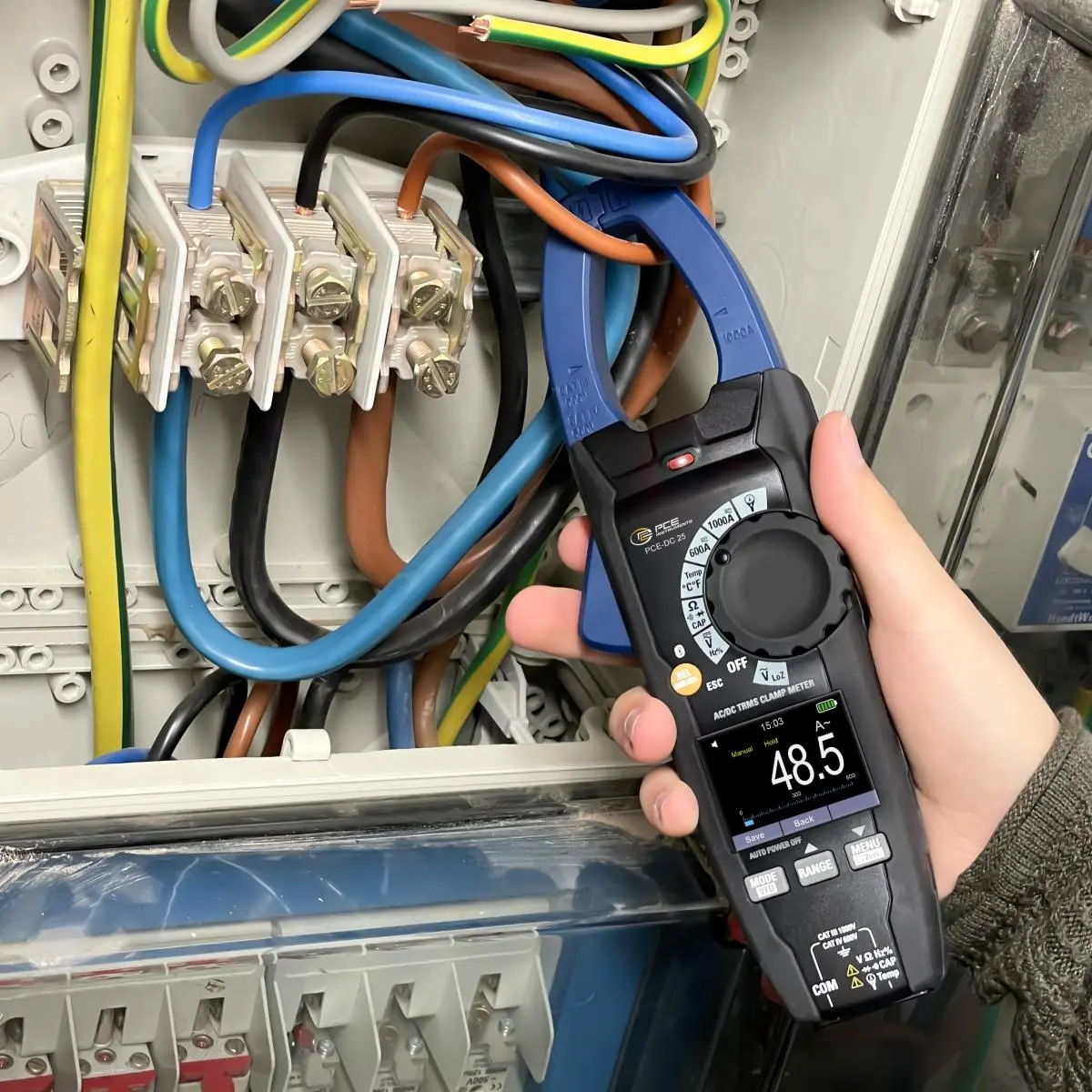

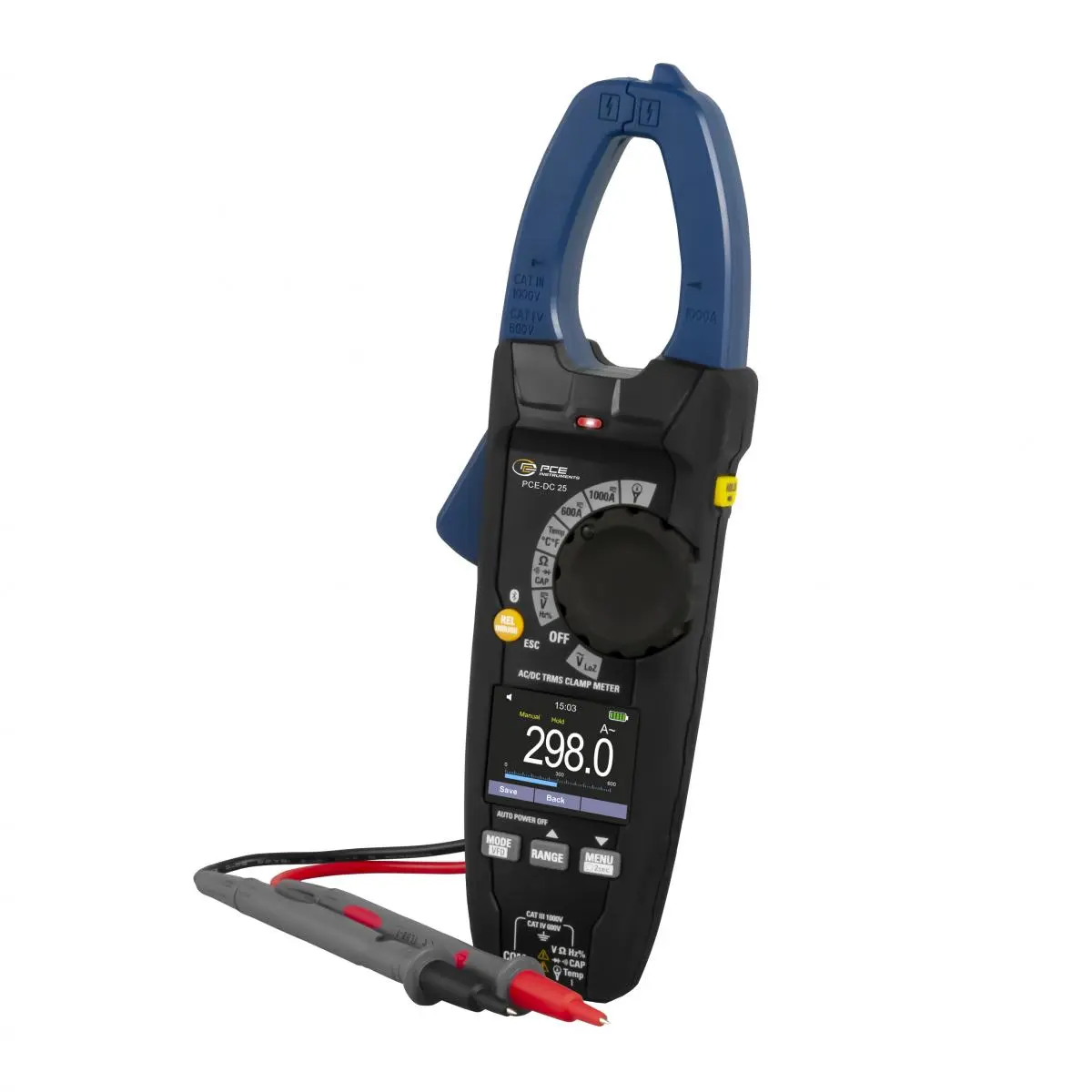

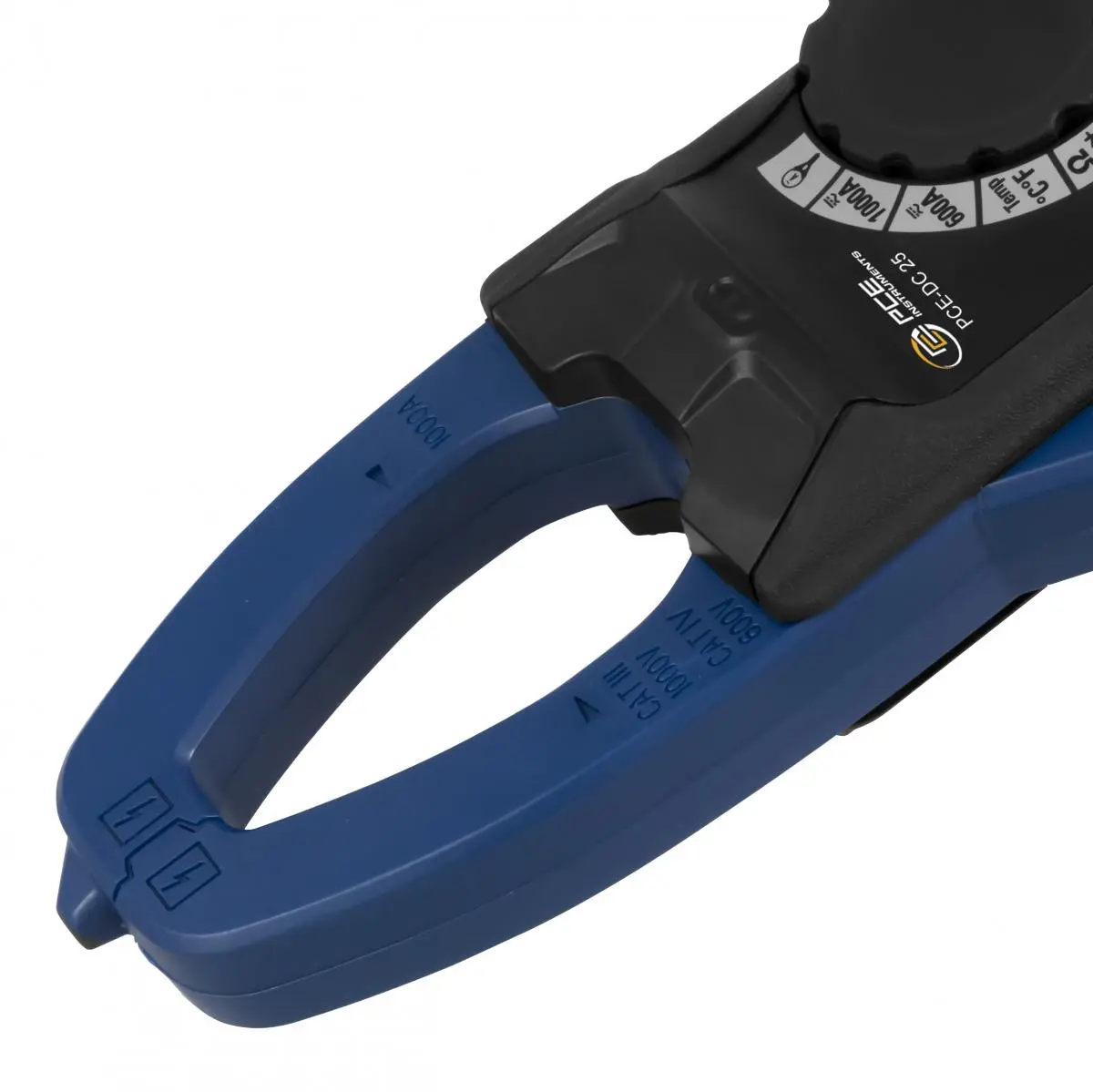

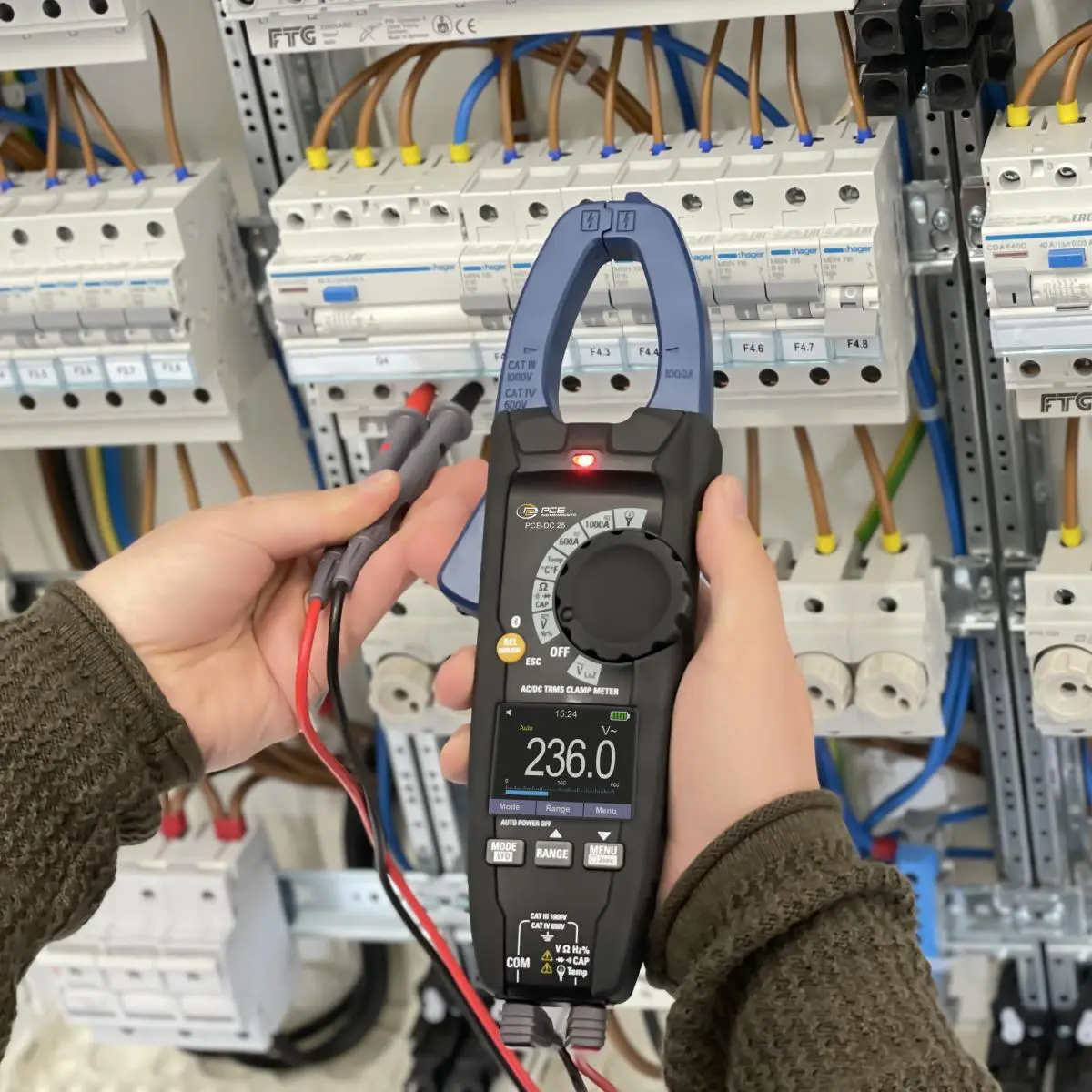

The Car Measuring Device has a measuring range of 0… 1000 A AC/DC. The current is measured inductively using the clamp on the measuring device. Live supply lines with a diameter of up to 32 mm (1.2") can be connected to the Car Measuring Device. With the optional Rogowski coil, the measuring range of the Car Measuring Device can be extended to up to 3000 A AC. The Car Measuring Device has sub-functions for current measurement. The inrush current can be measured with the Car Measuring Device. This is a particularly important function, as motors such as those installed in ventilation systems or hall lighting require a particularly high current when switched on.

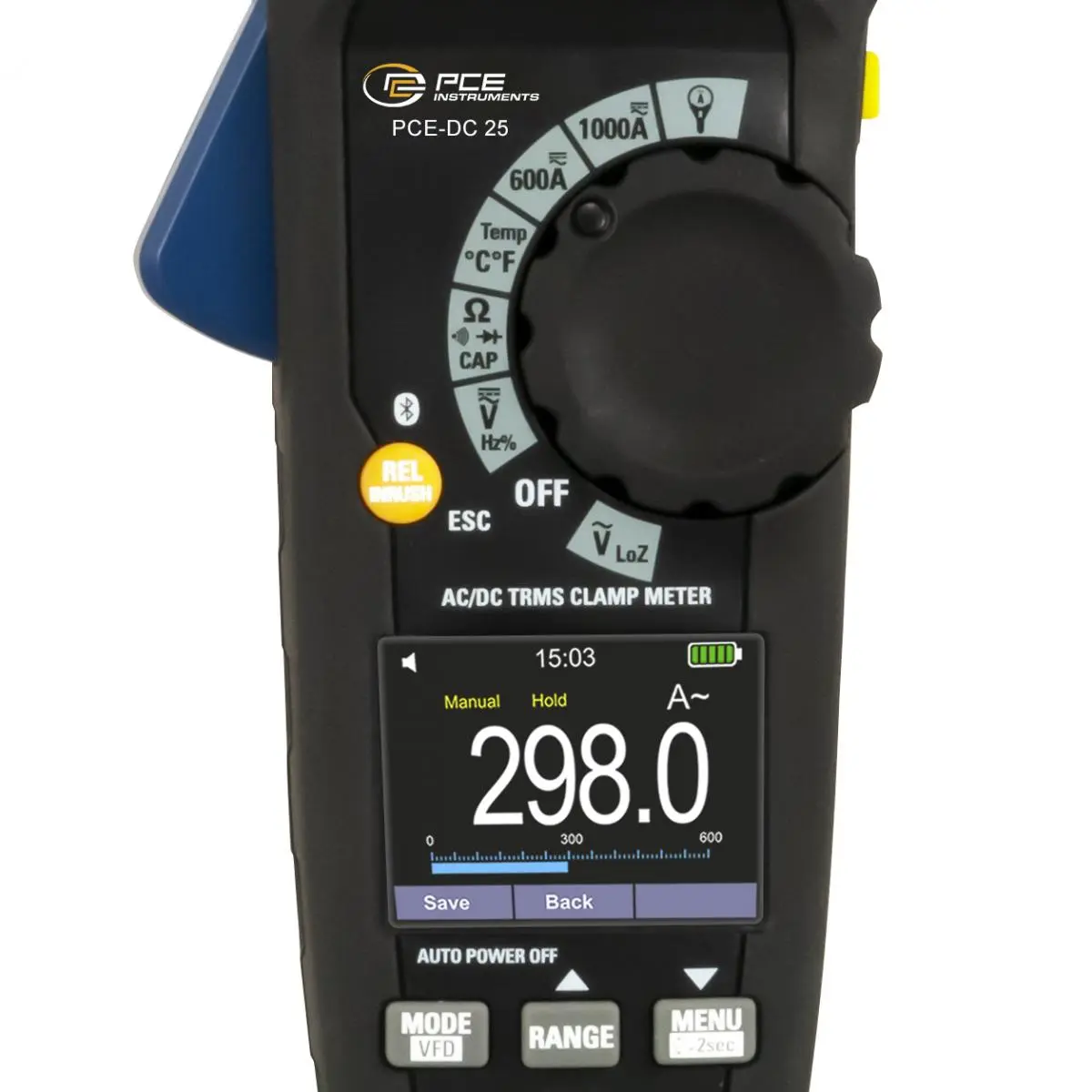

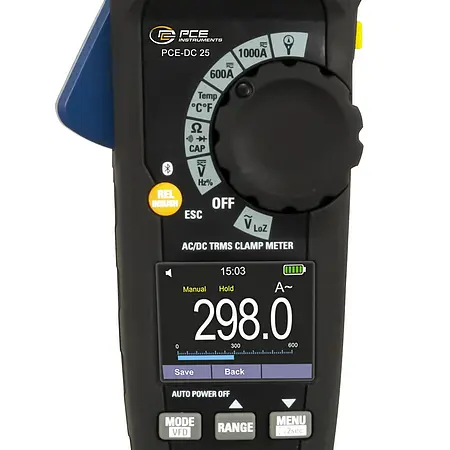

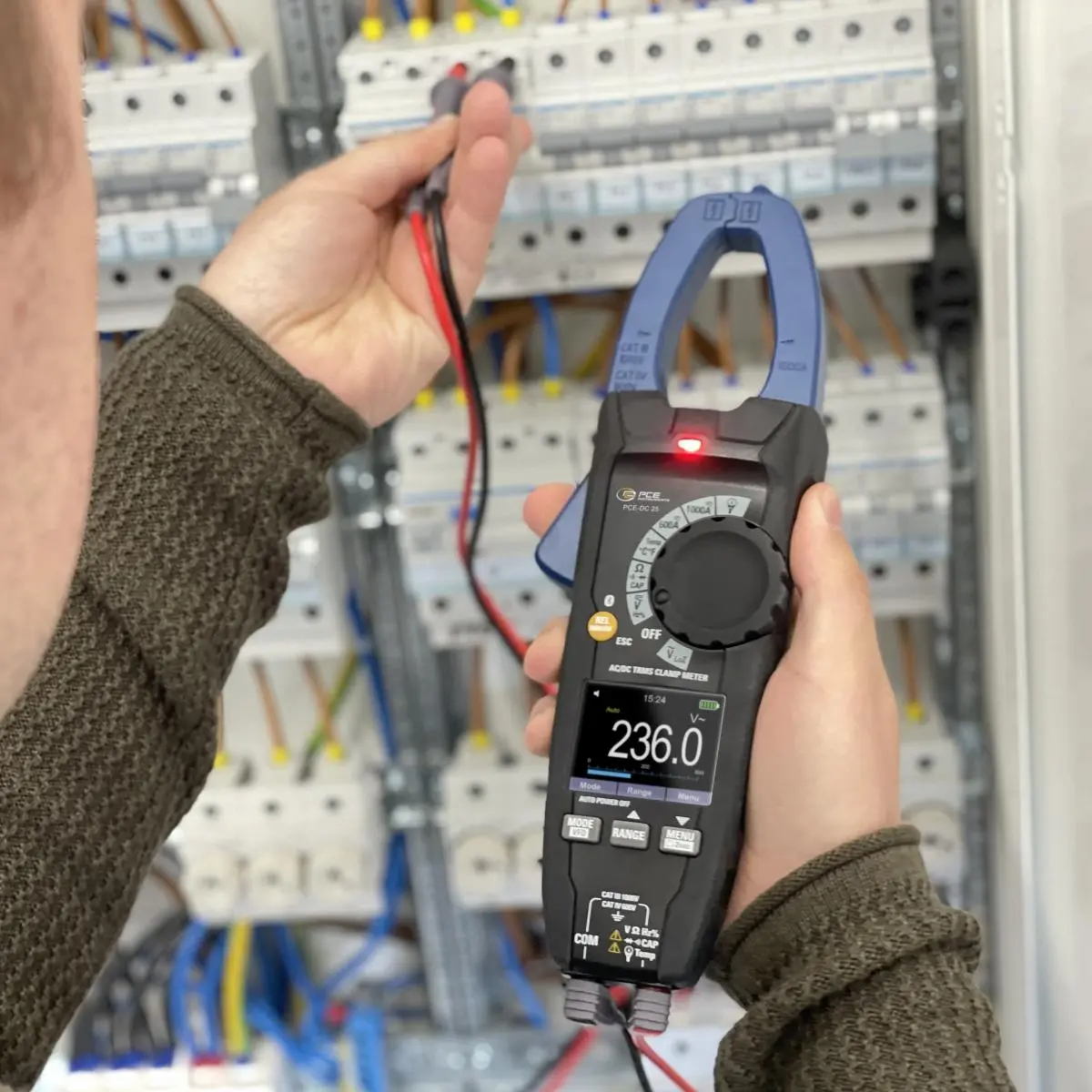

In addition to current measurement, the Car Measuring Device can also measure voltages from 0… 1000 V AC/DC, resistances, frequencies and capacitances. The functions can be set using the rotary selector switch on the Car Measuring Device. With the NCV function, the Car Measuring Device can be used to determine the absence of voltage without contact. As soon as a voltage of 150 V AC is applied, this is indicated by an additional red LED. This function is active for every measuring function selected using the rotary selector switch. An LED lamp is integrated in the Car Measuring Device for optimal illumination of the measuring point.
The Car Measuring Device can be connected to an Android or iOS device via the Bluetooth interface. With the free app for the Car Measuring Device, the measured values can be displayed, saved and further processed. The Car Measuring Device thus covers a wide range of measuring tasks due to the multitude of functions.
| Direct voltage DC | |
| Measuring range | 0 ... 600 mV |
| Resolution | 0,1 mV |
| Accuracy | ±(0.5 % +8 digits) |
| Overload | 1000 V AC/DC |
| Direct voltage DC | |
| Measuring range | 0 ... 6 V |
| Resolution | 0,001 V |
| Accuracy | ±(1.5 % +5 digits) |
| Direct voltage DC | |
| Measuring range | 0 ... 60 V |
| Resolution | 0,01 V |
| Accuracy | ±(1.5 % +5 digits) |
| Direct voltage DC | |
| Measuring range | 0 ... 600 V |
| Resolution | 0,1 V |
| Accuracy | ±(1.5 % +5 digits) |
| Direct voltage DC | |
| Measuring range | 0 ... 1000 V |
| Resolution | 1 V |
| Accuracy | ±(1.5 % + 5 digits) |
| Direct current DC | |
| Measuring range | 0 ... 600 A |
| Resolution | 0,1 A |
| Accuracy | ±(2.5 % +5 digits) |
| Direct current DC | |
| Measuring range | 0 ... 1000 A |
| Resolution | 1 A |
| Accuracy | ±(2.8% +5 digits) |
| Capacity | |
| Measuring range | 0 ... 60 nF |
| Resolution | 0,01 nF |
| Accuracy | ±(4% +20 digits) |
| Capacity | |
| Measuring range | 0 ... 600 nF |
| Resolution | 0,1 nF |
| Accuracy | ±(3% +8 digits) |
| Capacity | |
| Measuring range | 0 ... 6 µF |
| Resolution | 0,001 µF |
| Accuracy | ±(3% +8 digits) |
| Capacity | |
| Measuring range | 0 ... 60 µF |
| Resolution | 0,01 µF |
| Accuracy | ±(3% +8 digits) |
| Capacity | |
| Measuring range | 0 ... 600 µF |
| Resolution | 0,1 µF |
| Accuracy | ±(3% +8 digits) |
| Capacity | |
| Measuring range | 0 ... 6000 µF |
| Resolution | 1 µF |
| Accuracy | ±(5% +8 digits) |
| Capacity | |
| Measuring range | 0 ... 60 mF |
| Resolution | 0,01 mF |
| Accuracy | ±(5% +20 digits) |
| Capacity | |
| Measuring range | 0 ... 100 mF |
| Resolution | 0,1 mF |
| Accuracy | ±(5% +20 digits) |
| Alternating current AC | |
| Measuring range | 0 ... 600 A |
| Resolution | 0,1 A |
| Accuracy | ±(2.5 % +5 digits) |
| Overload | 1000 A AC |
| Frequency range | 50 ... 60 Hz |
| Alternating current AC | |
| Measuring range | 0 ... 1000 A |
| Resolution | 1 A |
| Accuracy | ±(2.8% +5 digits) |
| Frequency range | 50 ... 60 Hz |
| Resistance | |
| Measuring range | 0 ... 600 Ω |
| Resolution | 0,1 Ω |
| Accuracy | ±(1% +10 Digits) |
| Resistance | |
| Measuring range | 0 ... 6 kΩ |
| Resolution | 0,001 kΩ |
| Accuracy | ±(1.5 % +5 digits) |
| Resistance | |
| Measuring range | 0 ... 60 kΩ |
| Resolution | 0,01 kΩ |
| Accuracy | ±(1.5 % +5 digits) |
| Resistance | |
| Measuring range | 0 ... 600 kΩ |
| Resolution | 0,1 kΩ |
| Accuracy | ±(1.5 % +5 digits) |
| Resistance | |
| Measuring range | 0 ... 6 M Ω |
| Resolution | 0,001 M Ω |
| Accuracy | ±(2.5 % +5 digits) |
| Resistance | |
| Measuring range | 0 ... 60 M Ω |
| Resolution | 0,01 M Ω |
| Accuracy | ±(3.5% +10 Digits) |
| Frequency | |
| Measuring range | 9,999 Hz ... 99,9 kHz |
| Resolution | 10 Hz |
| Accuracy | ±(1.2 % +5 digits) |
| Temperature | |
| Measuring range | -40 ... +600 °C |
| Resolution | 0,1 °C |
| Accuracy | ±(1.5 % +5 digits) |
| Temperature | |
| Measuring range | 600 ... 1000 °C |
| Resolution | 1 °C |
| Accuracy | ±(1.5 % +5 digits) |
| Temperature | |
| Measuring range | -40 ... +1112 °F |
| Resolution | 0,1 °F |
| Accuracy | ±(1.5% +9 Digits) |
| Temperature | |
| Measuring range | 1112 ... 1800 °F |
| Resolution | 1 °F |
| Accuracy | ±(1.5% +9 Digits) |
| General technical data | |
| Display type | LC colour display |
| Measuring rate | 3 x per second |
| Interface | Wireless |
| Maximum cable diameter | 34 mm |
| Automatic power-off from...to | 15 ... 60 min. |
| Dimensions | Clamp opening: 34 mm / 1.3 inches |
| Diode test | Test current: <1.5 mA Maximum voltage with open circuit: 3.3V DC |
| Menu language | English, English (GB) |
| Protection class (device) | IP20 |
| Power supply | batteries |
| (Rechargeable) battery | 3 x 1,5 V AAA battery , Alkali-manganese |
| Capacity | 1200 mAh |
| Operating conditions | 5 ... 40 °C , 0 ... 80 % RH |
| Storage conditions | -20 ... 40 °C , 0 ... 80 % RH |
| Dimensions ( L x W x H ) | 250 x 80 x 40 mm |
| Weight | 210 g |
