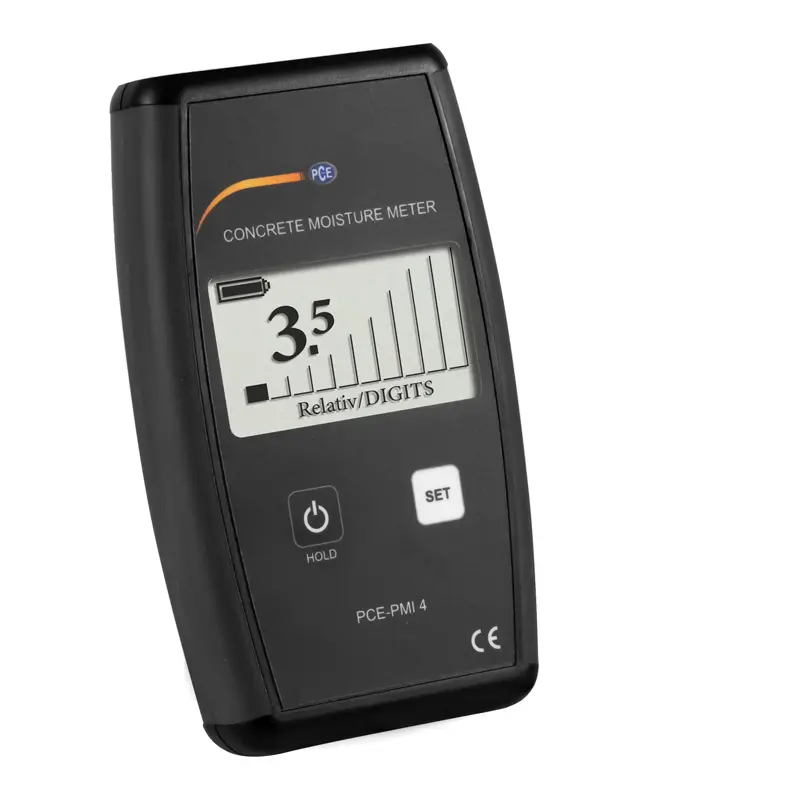

Building Moisture Meter / Building Material Moisture Meter PCE-PMI 4 [zoom]

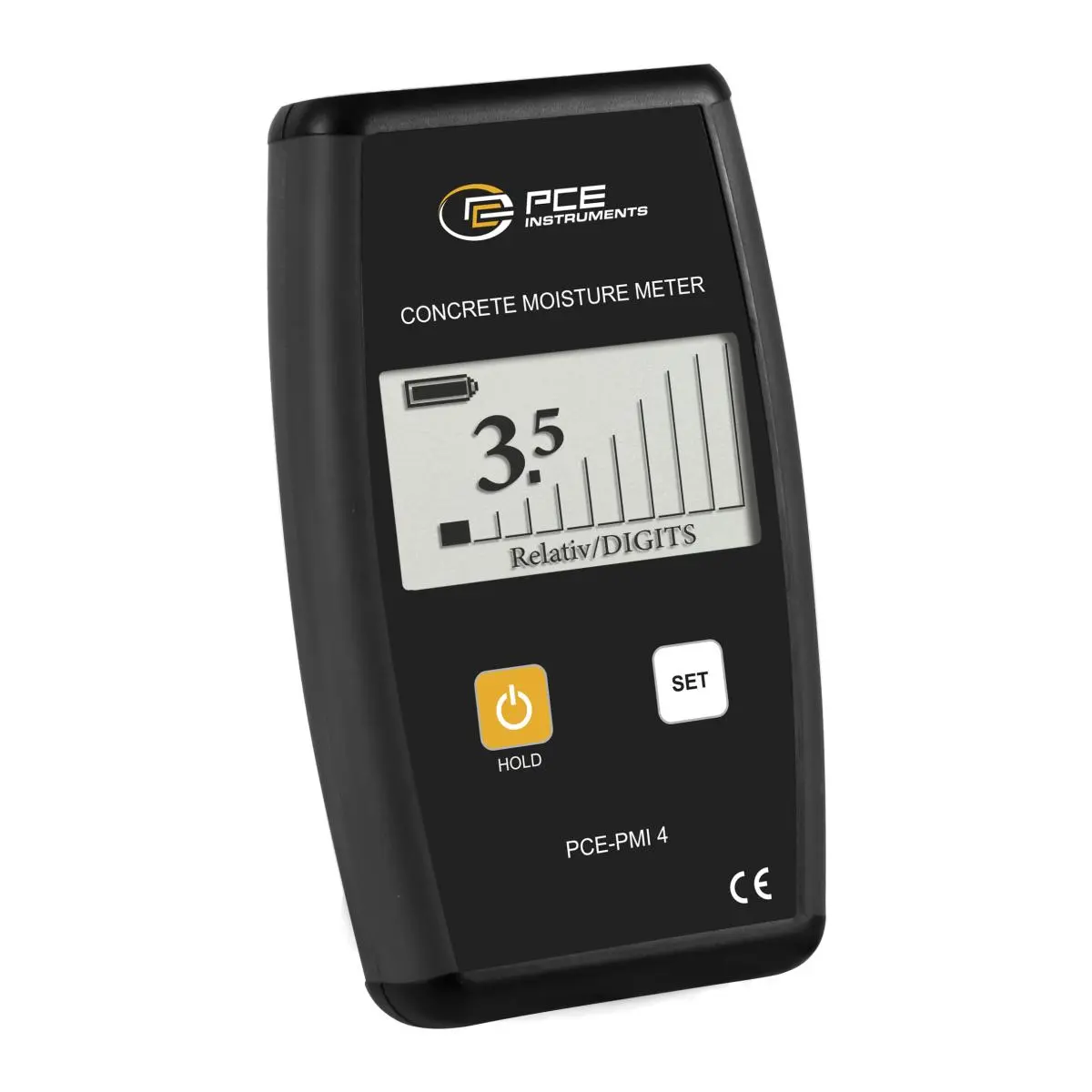

Building Moisture Meter / Building Material Moisture Meter PCE-PMI 4

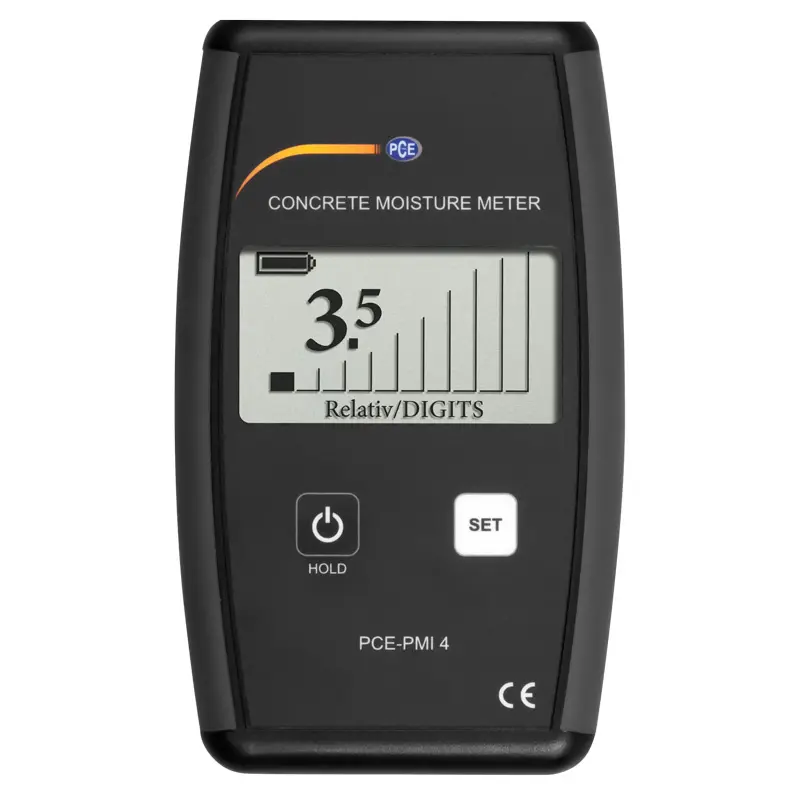

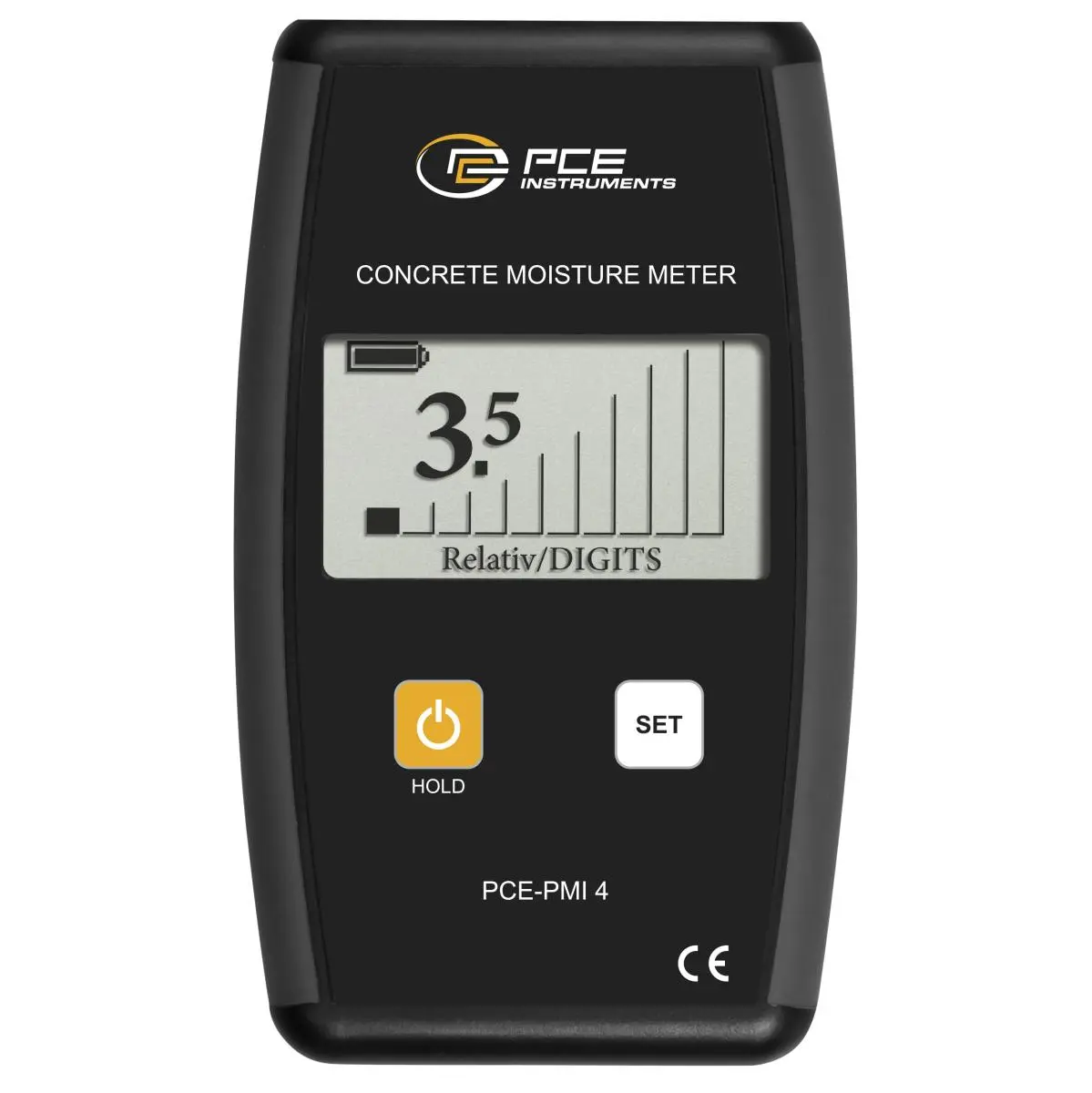

Building Moisture Meter / Building Material Moisture Meter Frontal

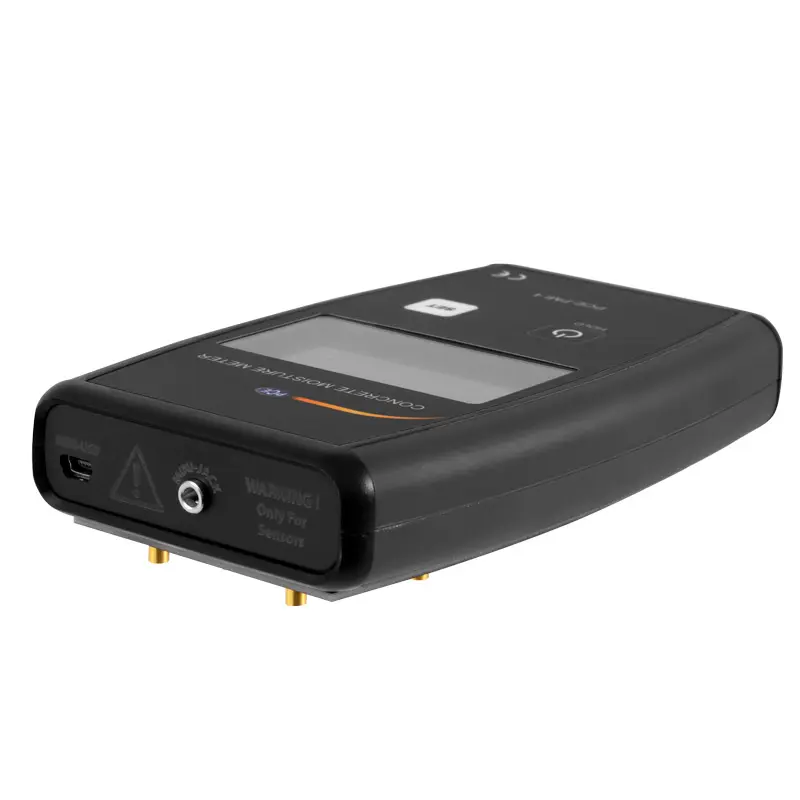

Building Moisture Meter / Building Material Moisture Meter Connections

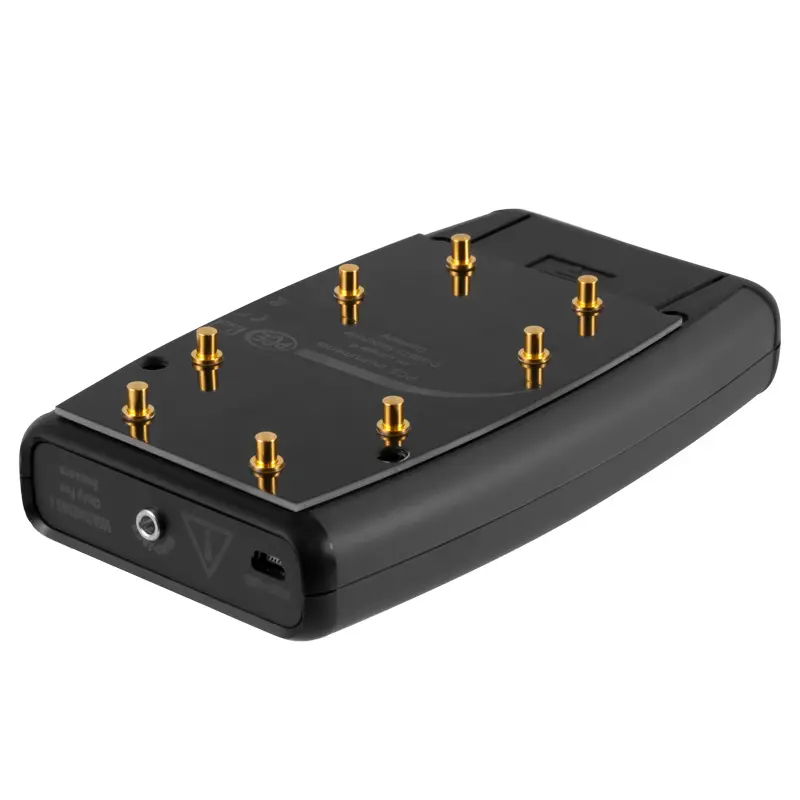

Building Moisture Meter / Building Material Moisture Meter Sensor

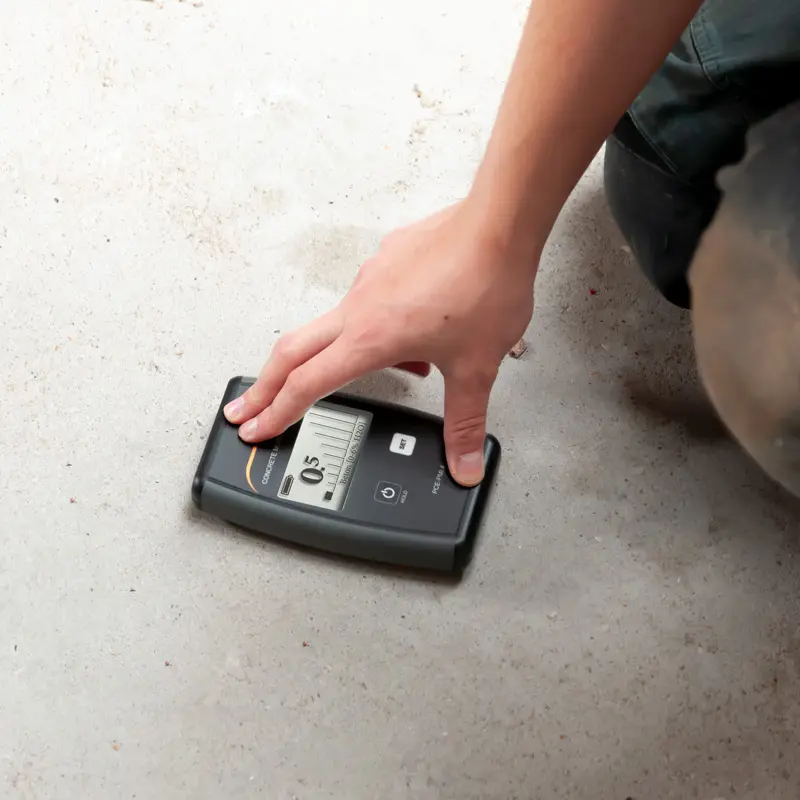

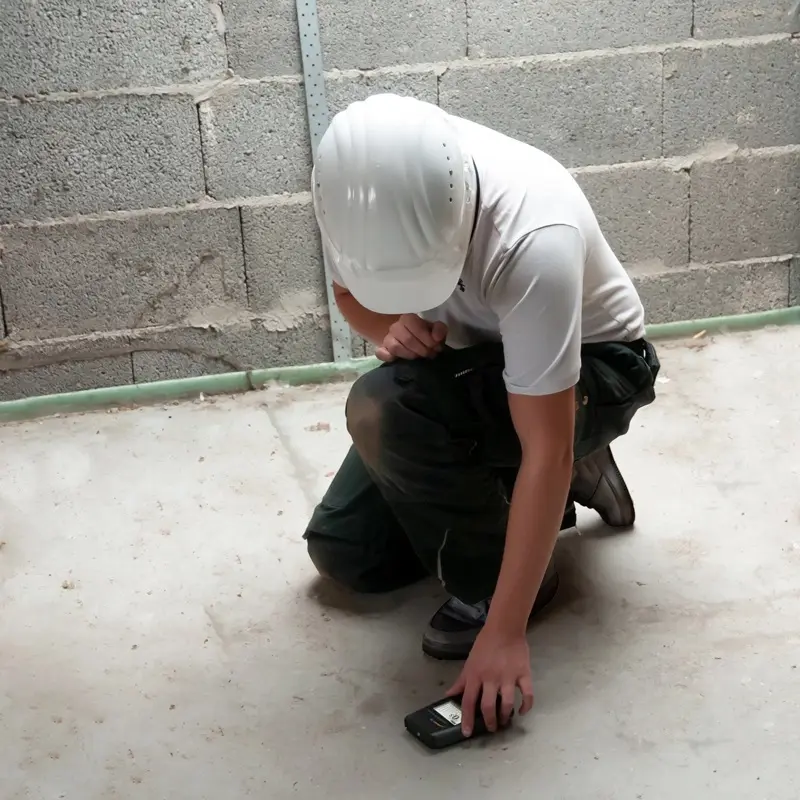

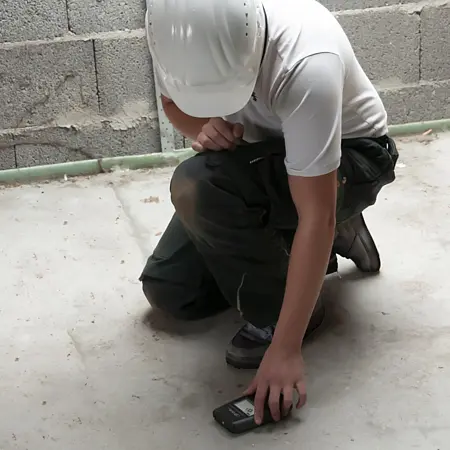

Building Moisture Meter / Building Material Moisture Meter Application picture
Building Moisture Meter / Building Material Moisture Meter Application picture
Building Moisture Meter / Building Material Moisture Meter Application picture

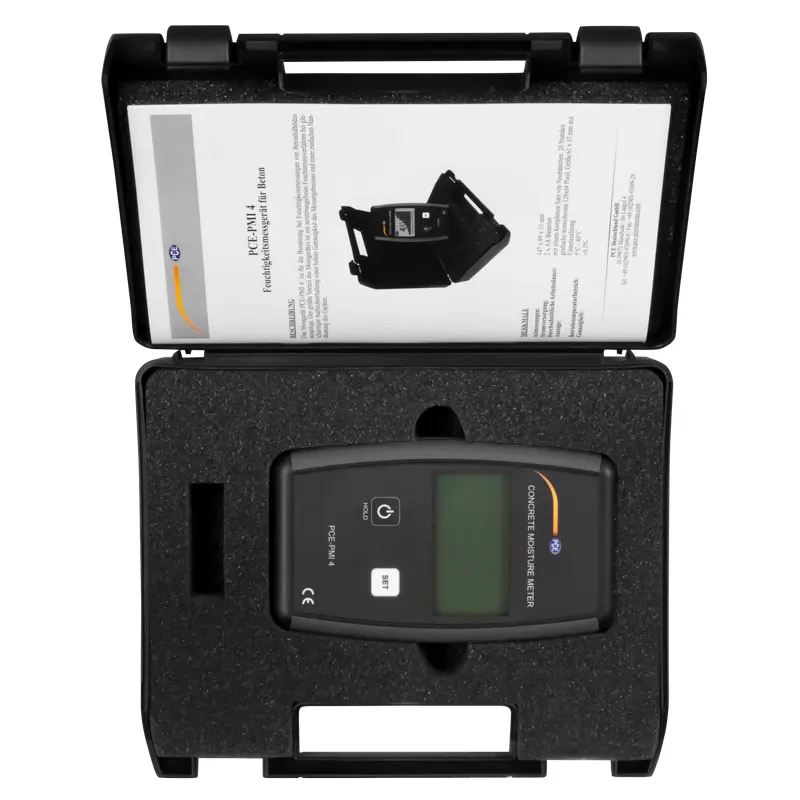

Building Moisture Meter / Building Material Moisture Meter Delivery scope

Building Moisture Meter PCE-PMI 4

Order no.: PCE-PMI 4
GTIN (EAN): 4250348722270
₹76,485.00
₹90,252.30
price ex. (VAT / delivery)
:
4250348722270
PCE-PMI 4
Delivery time:1-2 working days

Accessory

Description

Building Moisture Meter
Moisture meter with eight spring electrodes / Many scales already deposited /
Non-destructive measurement on floors and walls / Large graphic display /
Measurement display both numerical and graphical / Max HOLD function

The building moisture meter is a measuring device for nondestructive moisture measurement on concrete and screed. Here, the spring electrodes of the building moisture meter are pressed onto the surface to be tested. Within seconds, the building moisture meter will show the moisture content to the operator. Different scales are already stored in the building moisture meter for a wide variety of surfaces. These are available to the operator directly from the building moisture meter.

As another special feature, the building moisture meter has an automatic shutdown. This feature automatically shuts off the meter if the building moisture meter is not used for 5 minutes. This prevents a sudden discharge of the battery in the building moisture meter. Another function of the building moisture meter is the Max HOLD function. This feature only displays the highest reading to the operator.

Highlights

- For measuring the moisture in concrete and screed
- Numeric and graphical view

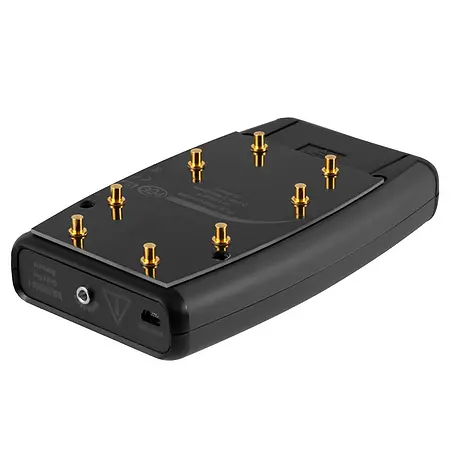

- Eight spring electrodes are used for the measurement
- Automatic shutdown
- Ergonomic shape with anti-slip rubber
- Normal measurement and max. HOLD display

Specification

Humidity
Material  Concrete (H₂O)
Measuring range  0 ... 6 %
Resolution  0,1 %
Accuracy  ±0.5%

Humidity
Material  Cement screed (H₂O)
Measuring range  0 ... 6 %
Resolution  0,1 %
Accuracy  ±0.5%

Humidity
Material  Cement screed (CM%)
Measuring range  0 ... 4 %
Resolution  0,1 %
Accuracy  ±0.5%

Humidity
Material  Anhydrite screed (H₂O)
Measuring range  0 ... 3,5 %
Resolution  0,1 %
Accuracy  ±0.5%

Humidity
Material  Anhydrite screed (CM%)
Measuring range  0 ... 1,9 %
Resolution  0,1 %
Accuracy  ±0.5%

Caisson scale
Measuring range  0,3 ... 15,3 m
Resolution  0,1 %
Accuracy  ±0.5%

Relative humidity
Measuring range  0 ... 100 %
Resolution  0,1 %
Accuracy  ±0.5%

General technical data
Display type  LCD with backlight
Display resolution  128x64 pixels
Operating time  20 h
Automatic power-off  5 min
Menu language  English, English (GB)
Protection class (device)  IP20
(Rechargeable) battery  2 x 1,5 V AA battery , Alkali-manganese
Capacity  3000 mAh
Operating conditions  5 ... 40 °C , 10 ... 90 % RH
Storage conditions  5 ... 40 °C , 10 ... 90 % RH
Dimensions ( L x W x H )  147 x 89 x 33 mm
Weight  250 g

Delivery Scope

1 x Building Moisture Meter / Building Material Moisture Meter PCE-PMI 4
1 x Transport case
1 x 2 x 1.5V AA battery
1 x User manual
