The Anemometer / Anemometers for all applications provide precise and comprehensive weather data for professional applications, agriculture, building management or demanding weather observers. The outdoor sensors reliably record temperature, humidity, wind speed, rainfall, UV radiation and solar light intensity, enabling detailed analysis of current weather conditions.

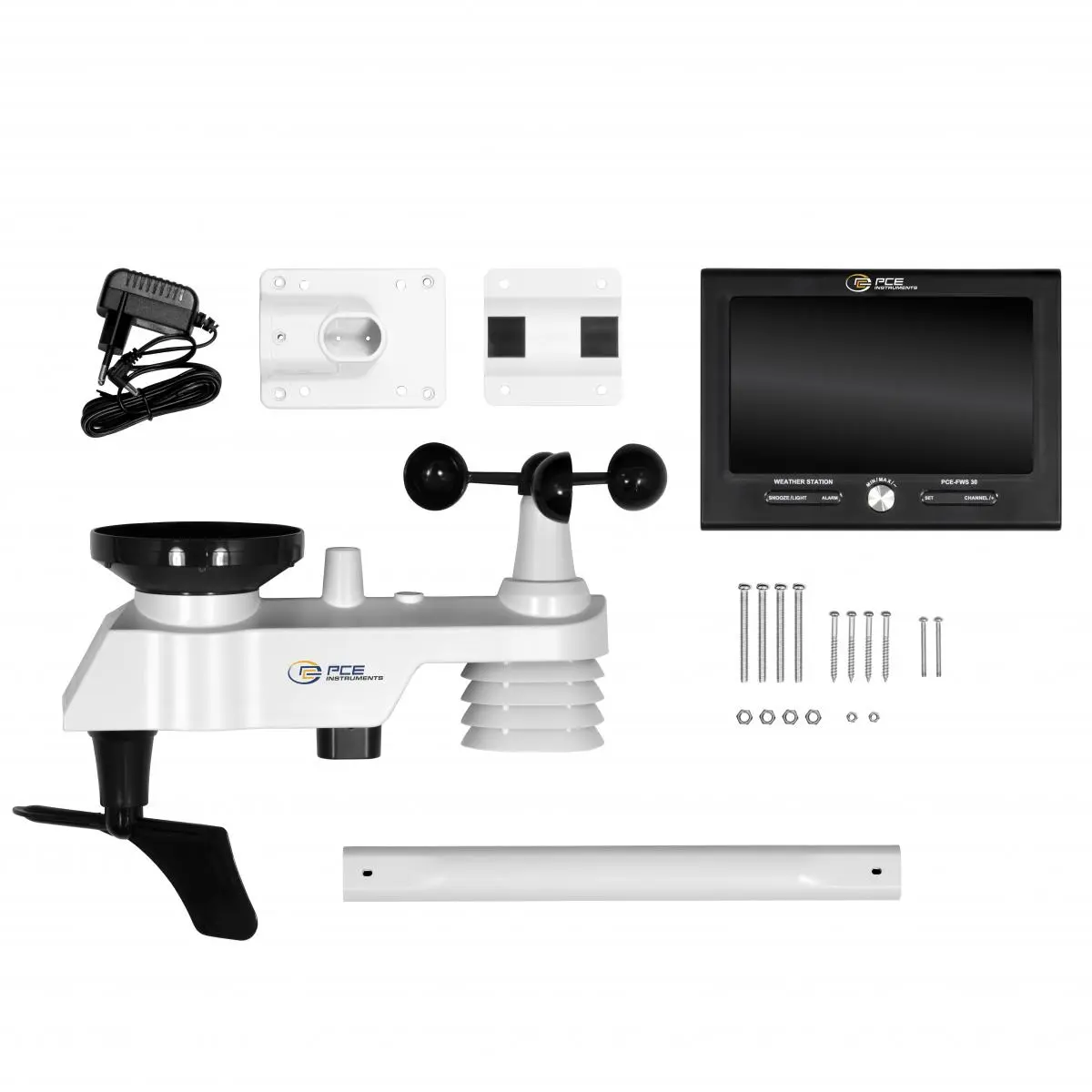

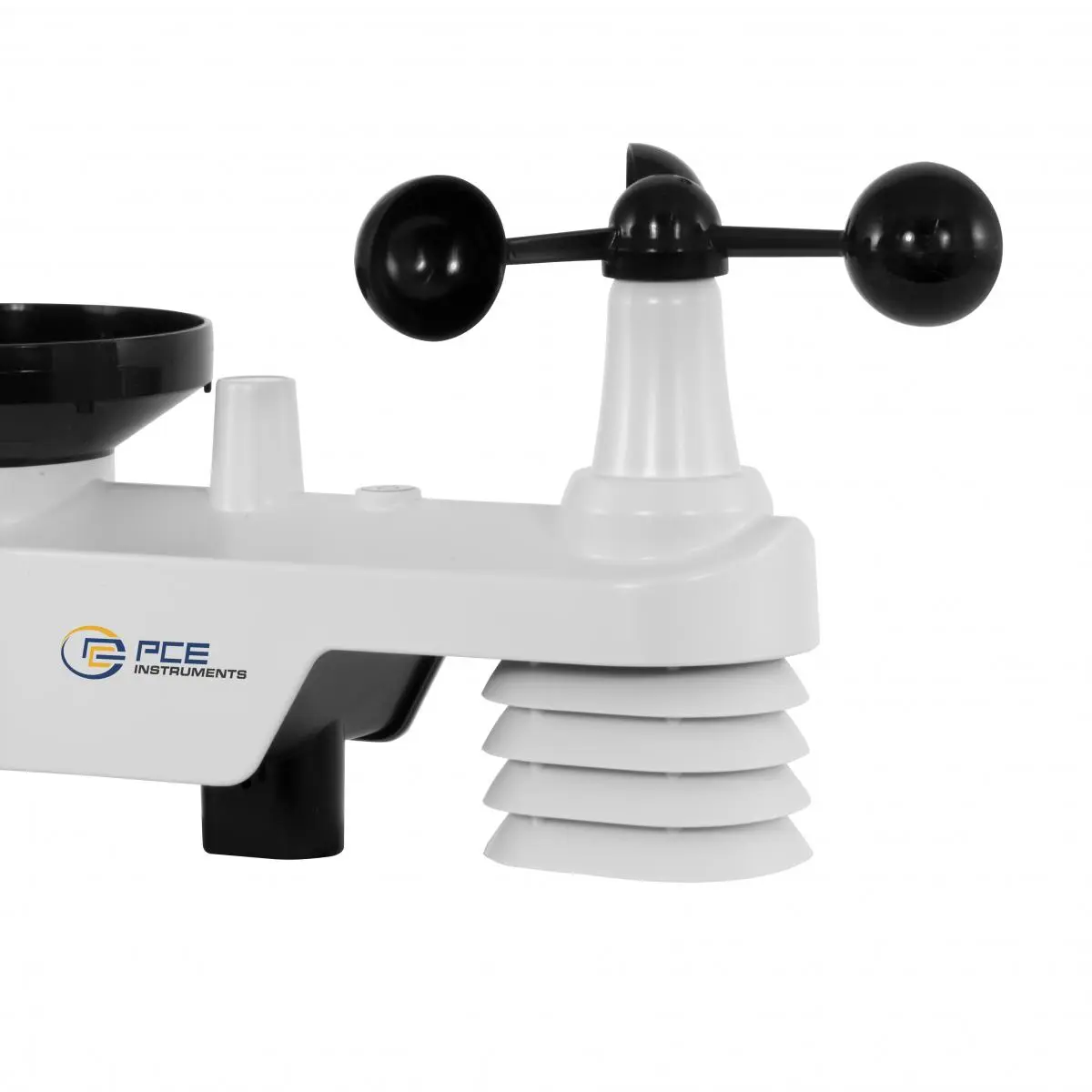

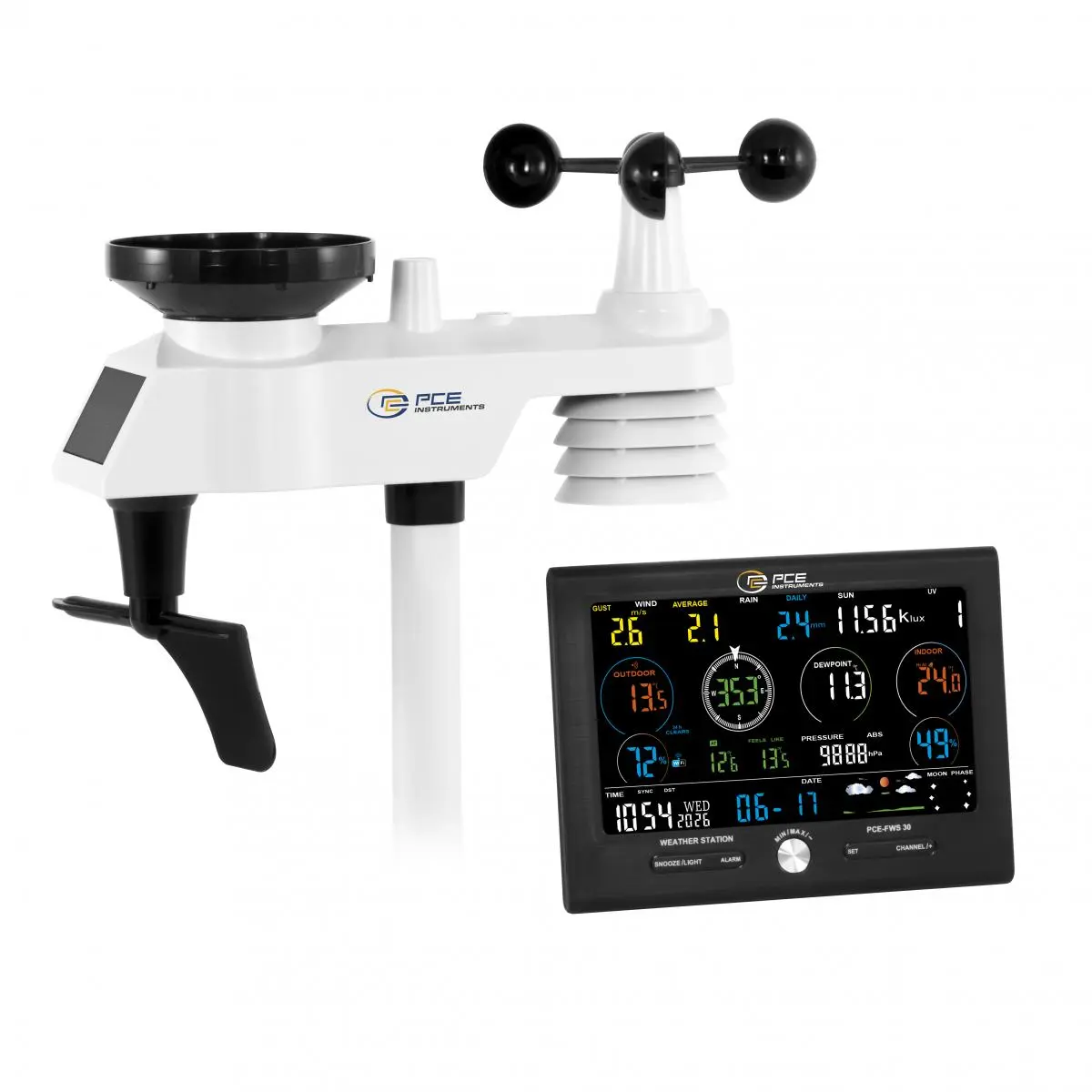

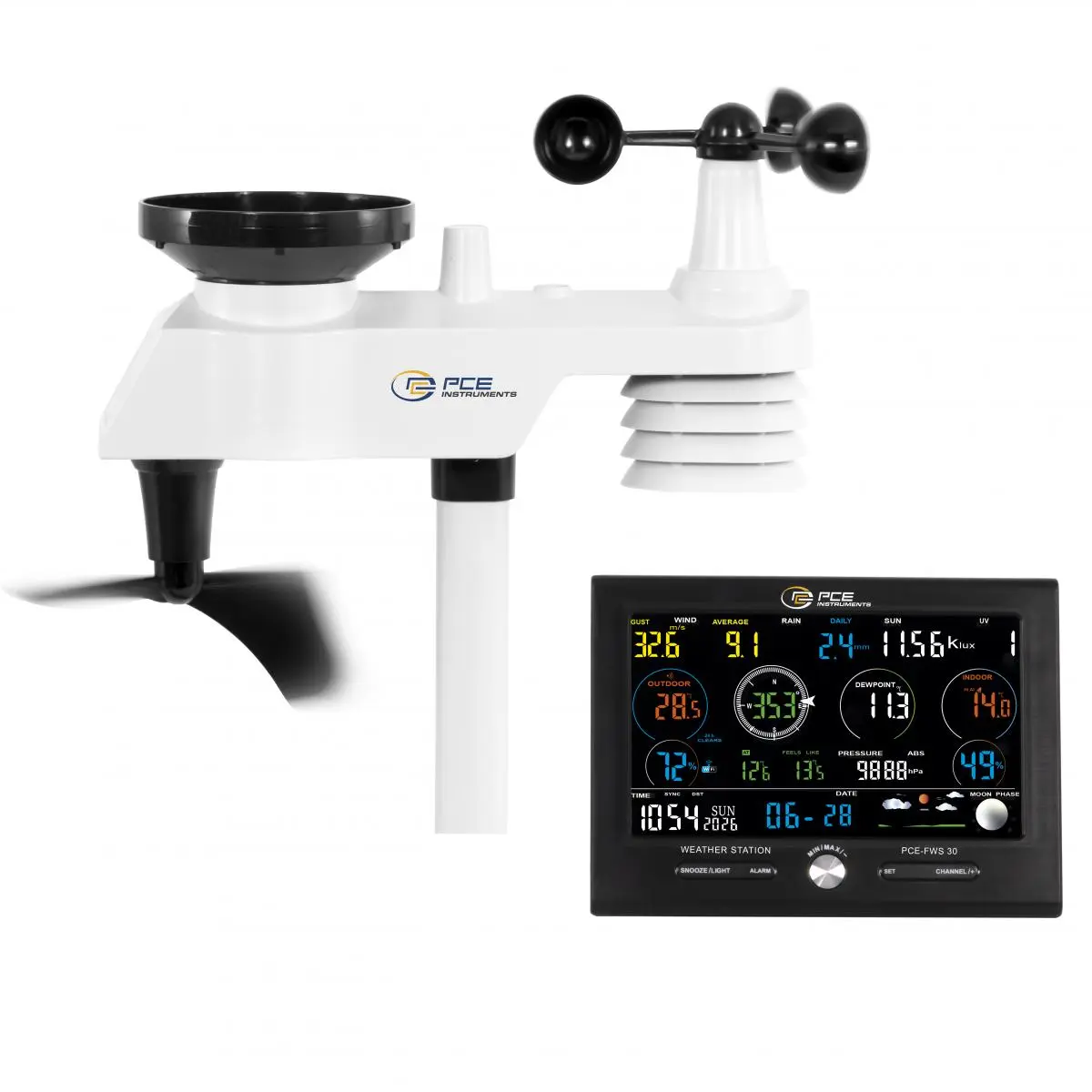

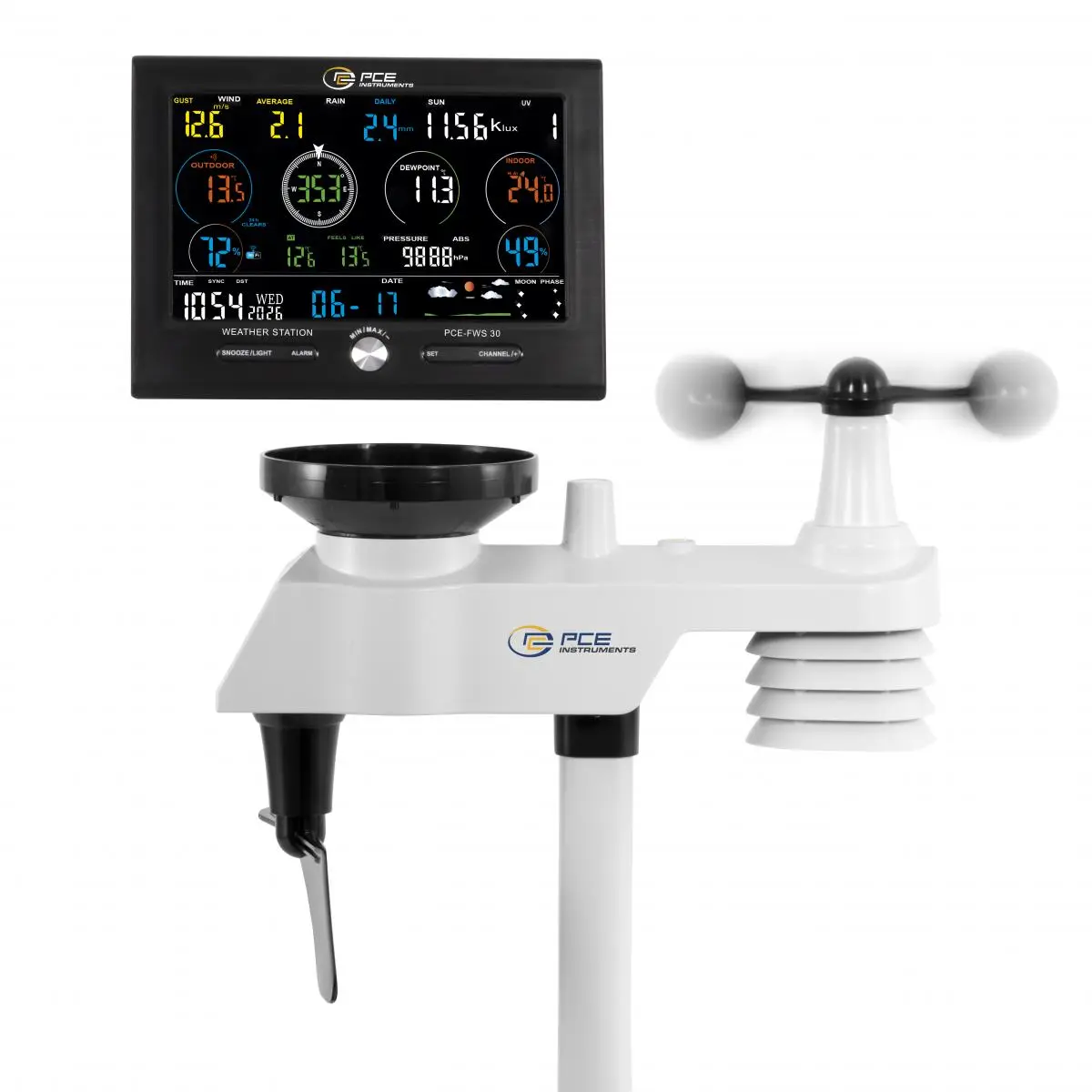

The sensor system consists of a thermo-hygrometer, anemometer, rain gauge and UV and light sensor. Wireless data transmission takes place in the 868 MHz frequency range (Europe) and achieves a range of up to 1500 m in free field. All measured values are clearly displayed on the color display.
In addition to current weather data, the Anemometer / Anemometers for all applications offers a weather forecast based on barometric pressure trends. Individually adjustable alarm functions reliably inform users about defined limit values for various weather parameters. In addition, temperature, humidity, wind speed, rainfall and sunlight can be calibrated to increase measurement accuracy.

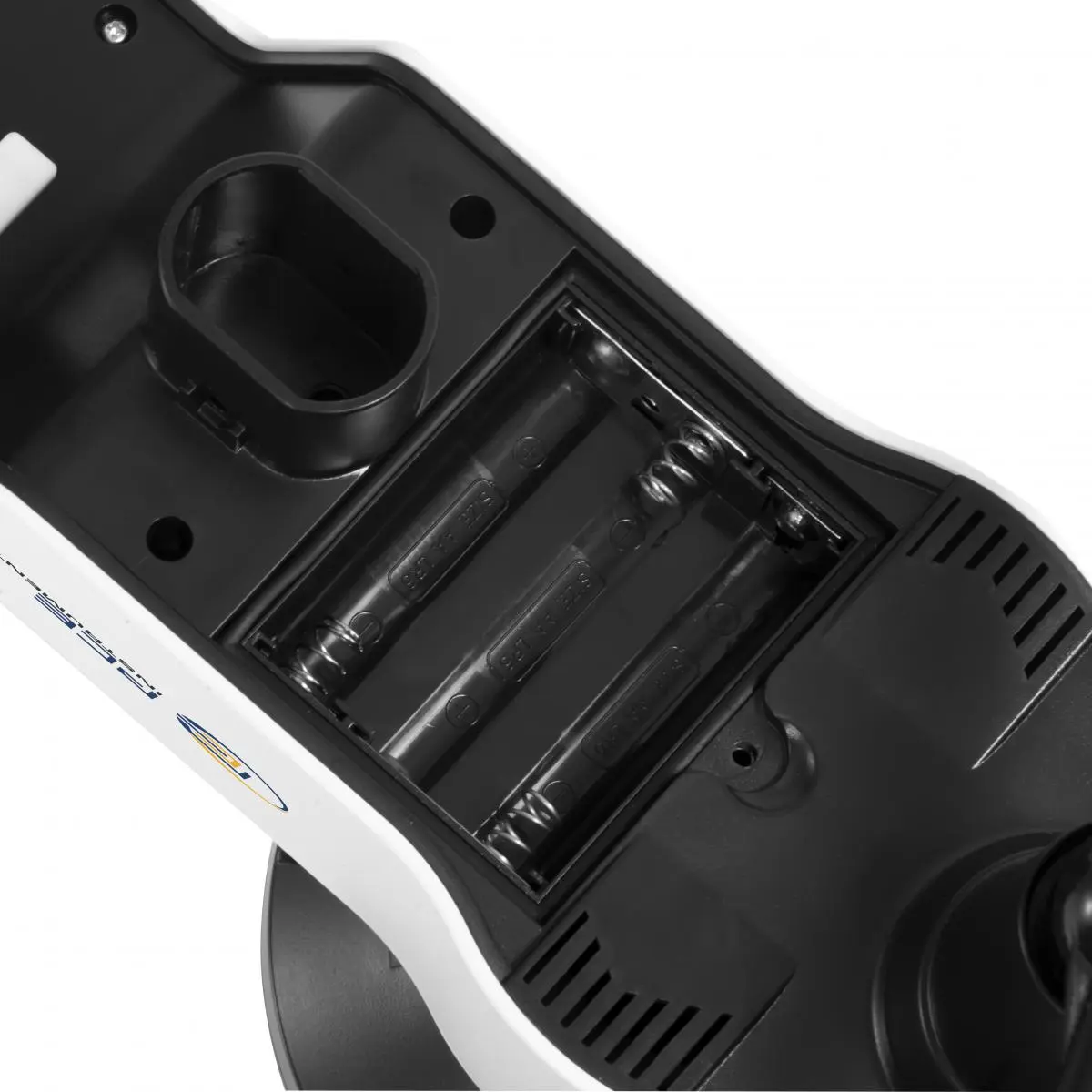

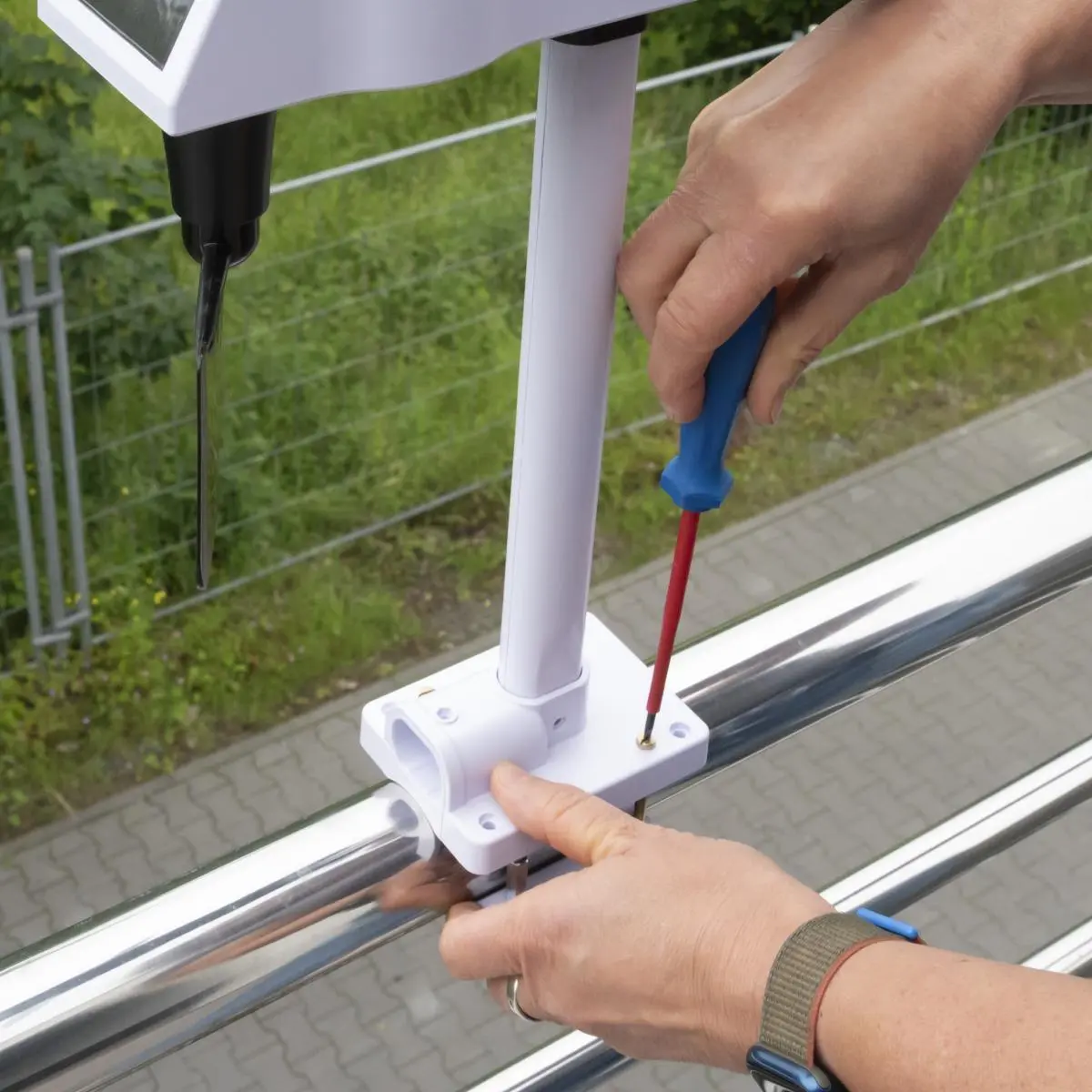

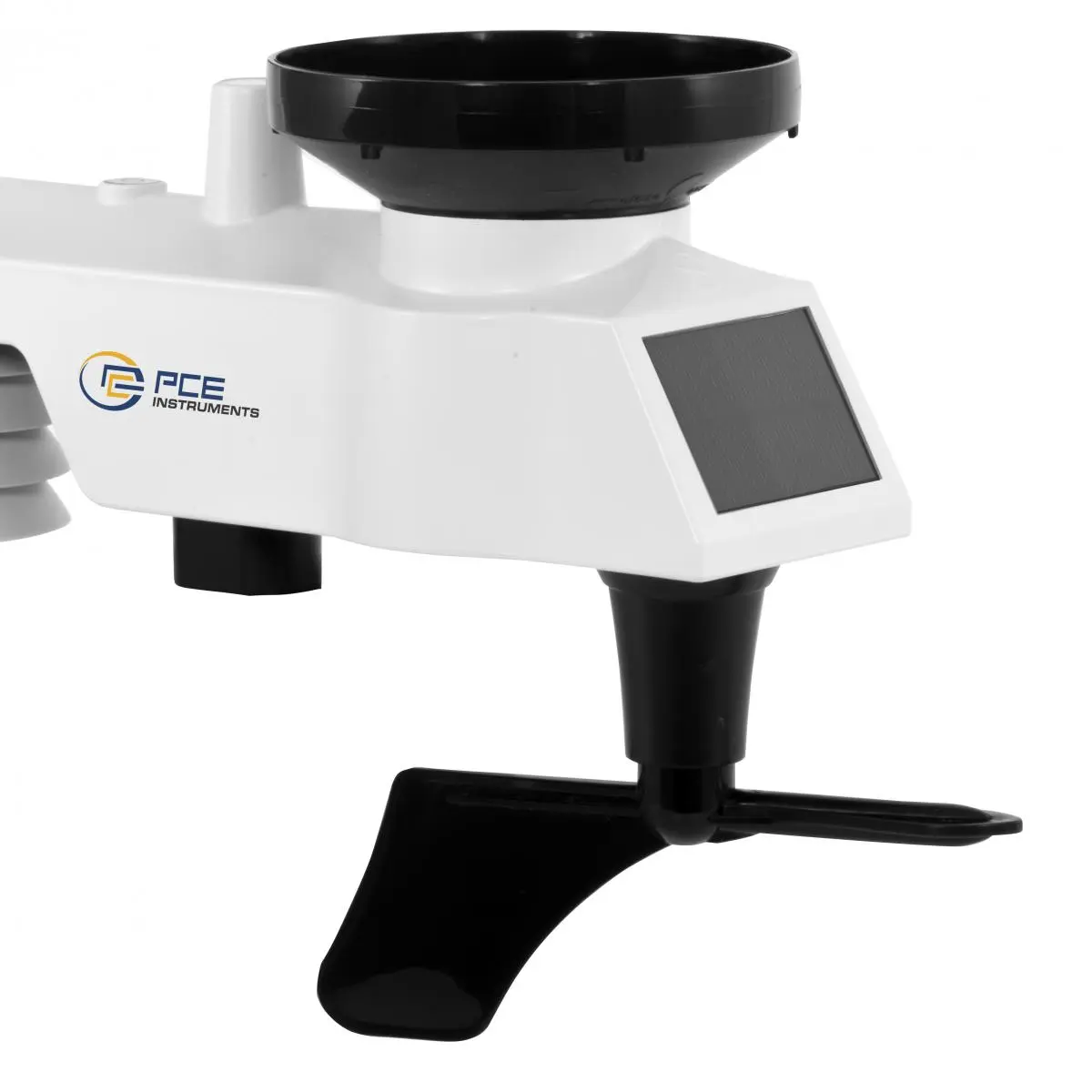

The Anemometer / Anemometers for all applications is suitable for use in the northern and southern hemispheres and is characterized by its simple installation and low maintenance requirements. For permanently reliable rainfall measurement, the rain gauge can be cleaned easily. Power is supplied by AAA and AA batteries. An integrated solar panel supports the power supply of the outdoor sensor and contributes to a long battery life of at least 12 months.

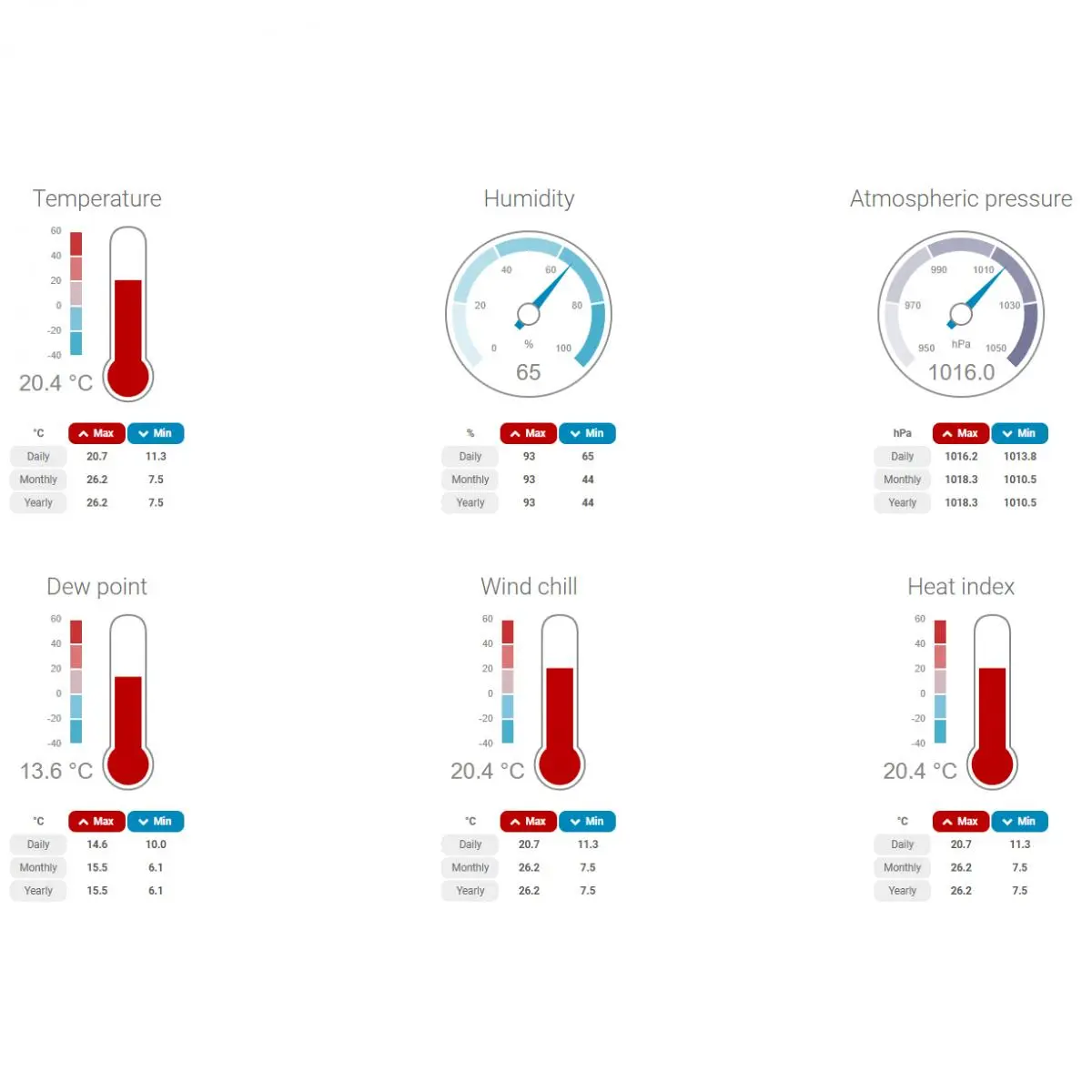

For convenient long-term monitoring and evaluation of the measured data, the Anemometer / Anemometers for all applications can also be connected to the Weather data clouds Weathercloud and Weather Underground.
| Absolute pressure | |
| Measuring range | 300 ... 1100 hPa |
| Resolution | 0,1 hPa |
| Accuracy | ±3 hPa |
| Relative humidity | |
| Measuring range | 10 ... 99 % |
| Resolution | 1 % |
| Accuracy | ±5 % of Rd |
| Relative humidity sensor | |
| Measuring range | 10 ... 99 % |
| Resolution | 1 % |
| Accuracy | ±5% f.s. |
| Speed | |
| Measuring range | 0 ... 10 m/s |
| Resolution | 0.1 m/s |
| Accuracy | ±0.3 m/s |
| Speed | |
| Measuring range | 10 ... 50 m/s |
| Resolution | 0.1 m/s |
| Accuracy | ±10 % of Rd |
| Light | |
| Measuring range | 0 ... 200 klx |
| Resolution | 1 lx |
| Accuracy | ±15 % of Rd |
| Wind direction | |
| Measuring range | 0 ... 360 ° |
| Resolution | 1 ° |
| Accuracy | ±10° |
| UV | |
| Measuring range | 1 ... 15 |
| Resolution | 1 |
| Accuracy | ±1 |
| Precipitation | |
| Measuring range | 0 ... 9999 mm |
| Resolution | 1 mm |
| Accuracy | <15 mm: ±1 mm >15 mm: ±7% of meas. val. |
| Temperature | |
| Measuring range | 0 ... 60 °C |
| Resolution | 0,1 °C |
| Accuracy | ±1 °C |
| Temperature sensor | |
| Measuring range | -40 ... +60 °C |
| Resolution | 0,1 °C |
| Accuracy | ±1°C |
| General technical data | |
| Display type | LC colour display with backlight |
| Display size | 7 in |
| Interface | WiFi |
| Alarm | optical, Acoustic |
| Alarm modes | Upper alarm, lower alarm See operating instructions for details |
| Menu language | English (GB), English |
| Protection class (device) | IP20 |
| Protection class (additional information) | Outdoor unit IP52 |

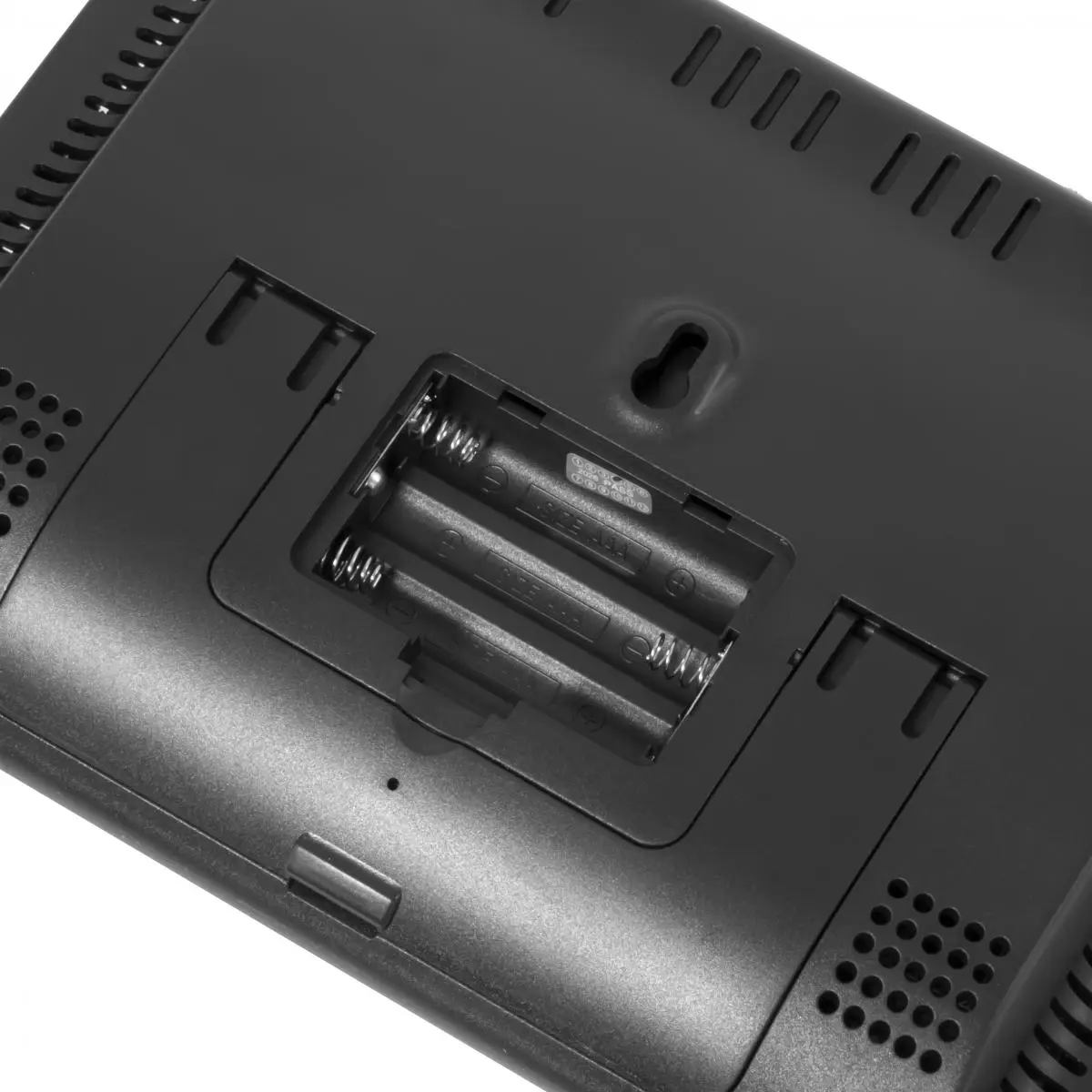

| Power supply | Display: 5.9V DC (power supply or 3x AAA battery) Outdoor unit: 3x AA battery |
| Connector type | Euro plug |
| (Rechargeable) battery | 3 x 1,5 V AA battery , Alkali-manganese |
| Capacity | 3000 mAh |
| Operating conditions | 0 ... 60 °C , 10 ... 99 % RH |
| Storage conditions | 0 ... 60 °C , 10 ... 99 % RH |
| Dimensions ( L x W x H ) | 193 x 140 x 30 mm |
| Weight | 400 g |
