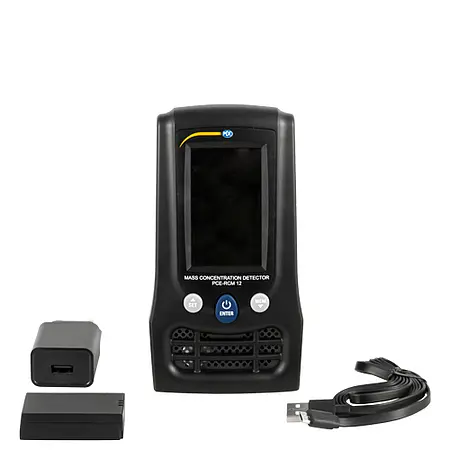

Aerosol measuring device PCE-RCM 12
Air quality monitor for indicative measurement of environmental conditions
/ Determination of CO2, HCHO, particulate matter (PM2.5 / PM10) / Temperature und relative humidity / 3" TFT LCD Display

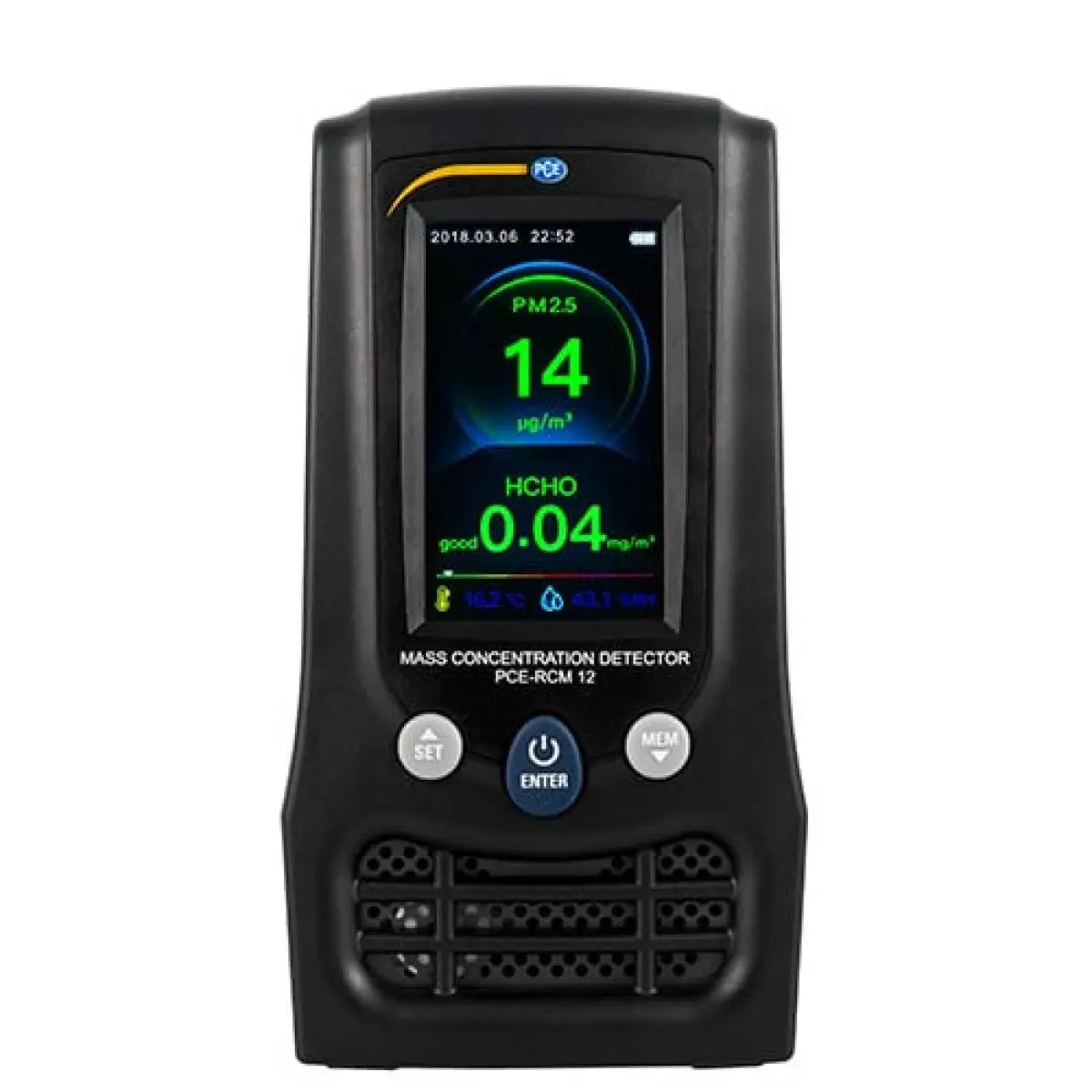

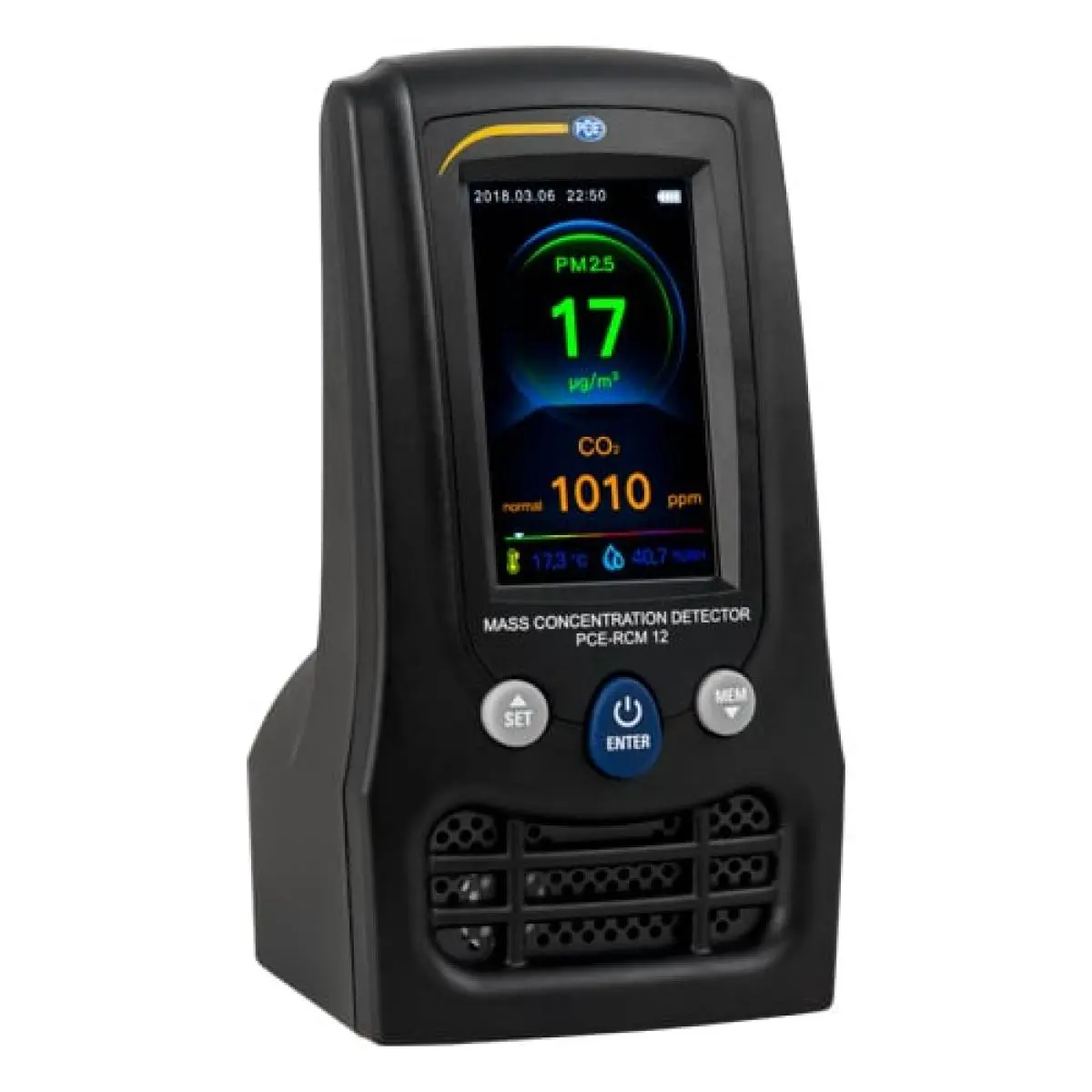

The Aerosol measuring device PCE-RCM 12 is used for indicative testing of environmental parameters. The Aerosol measuring device enables the measurement of CO2, fine dust, temperature and relative humidity. The bright display of the Aerosol measuring device provides information about these parameters. Environmental monitoring can be done continuously with the Aerosol measuring device for up to five hours without the device being connected to a power source.

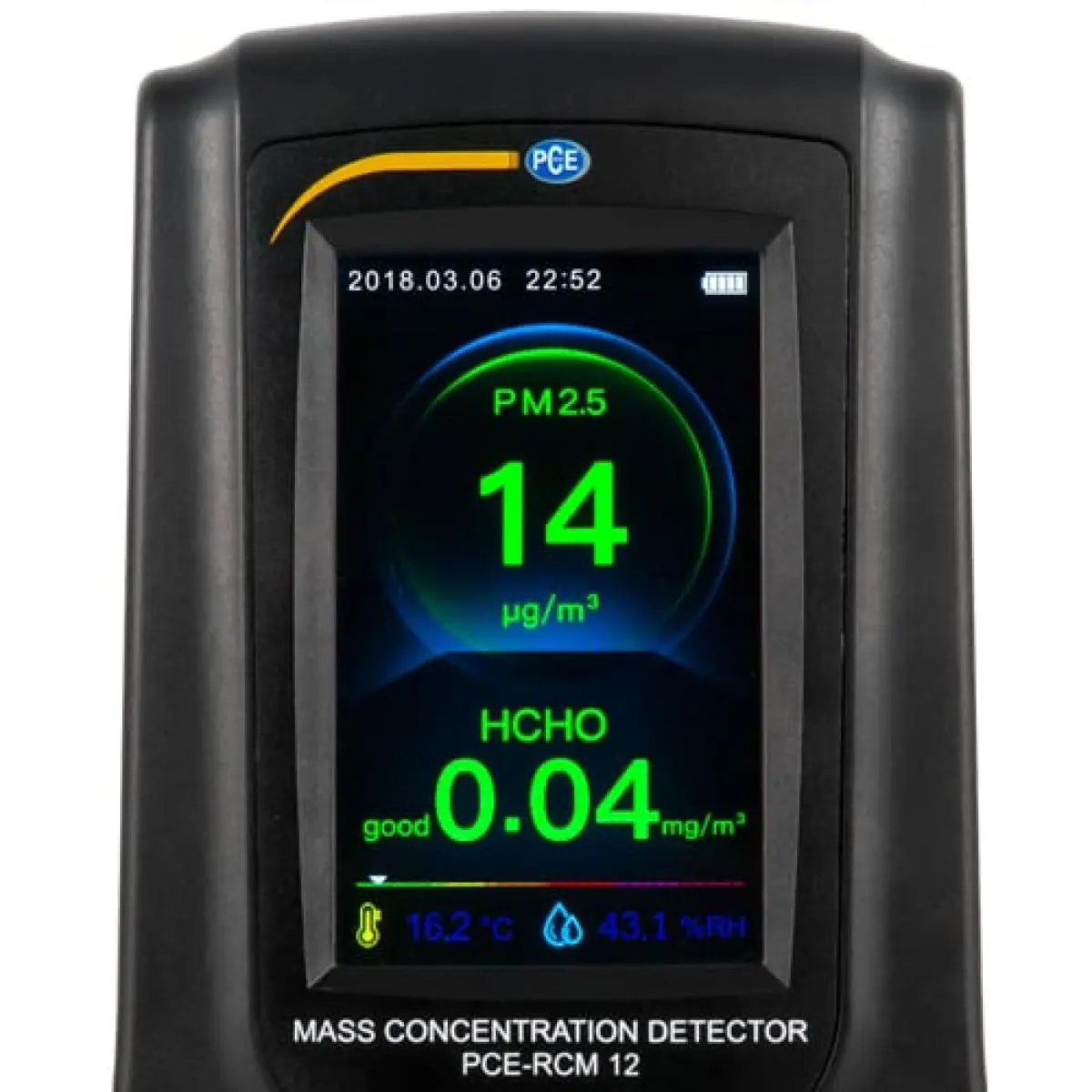

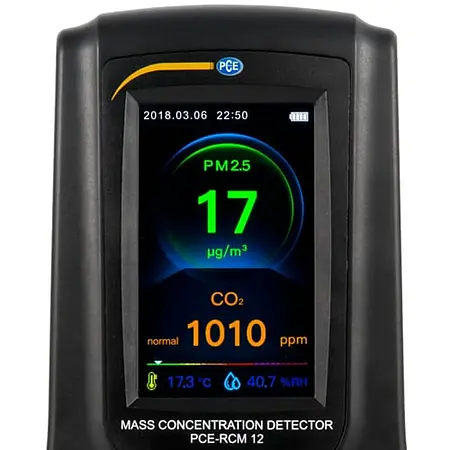

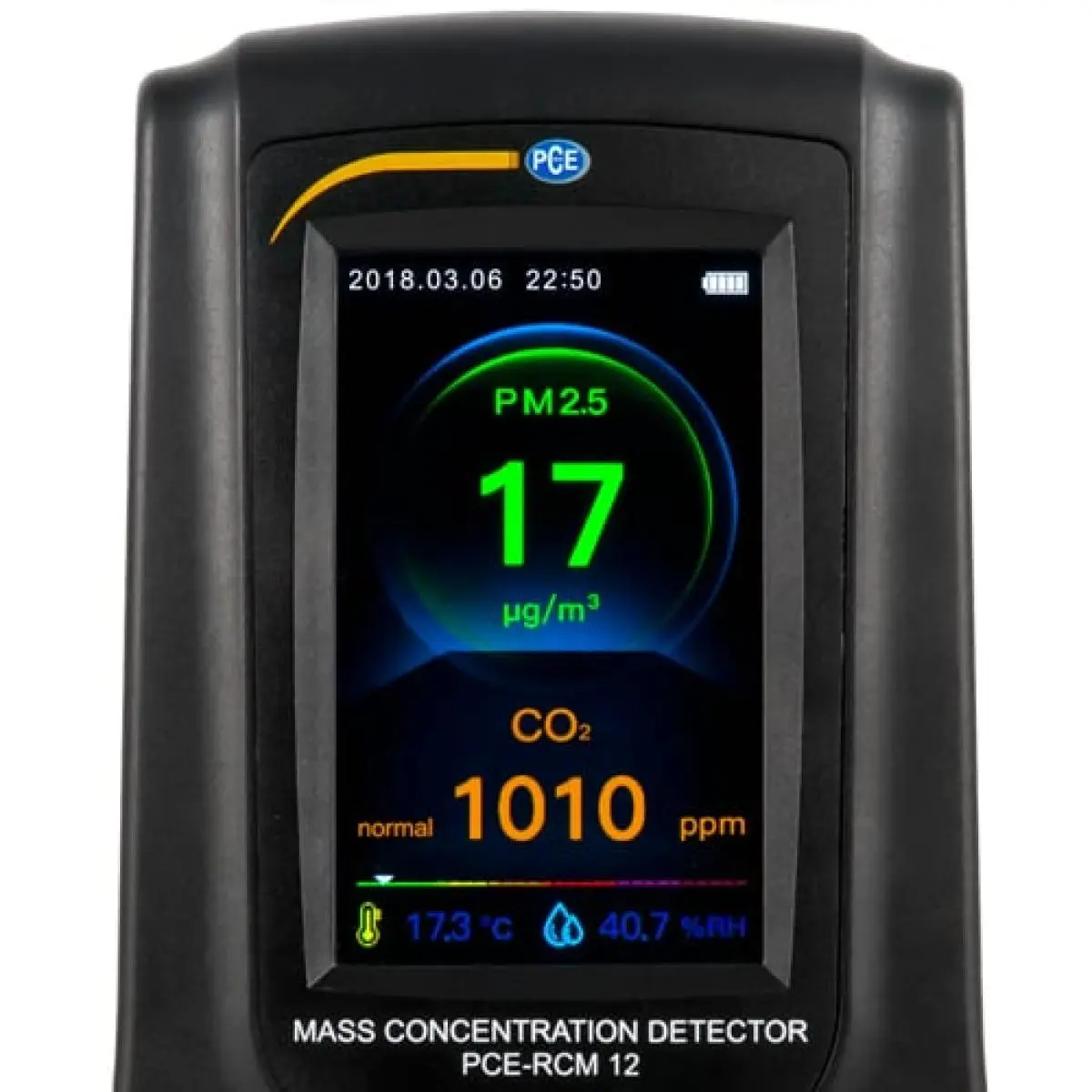

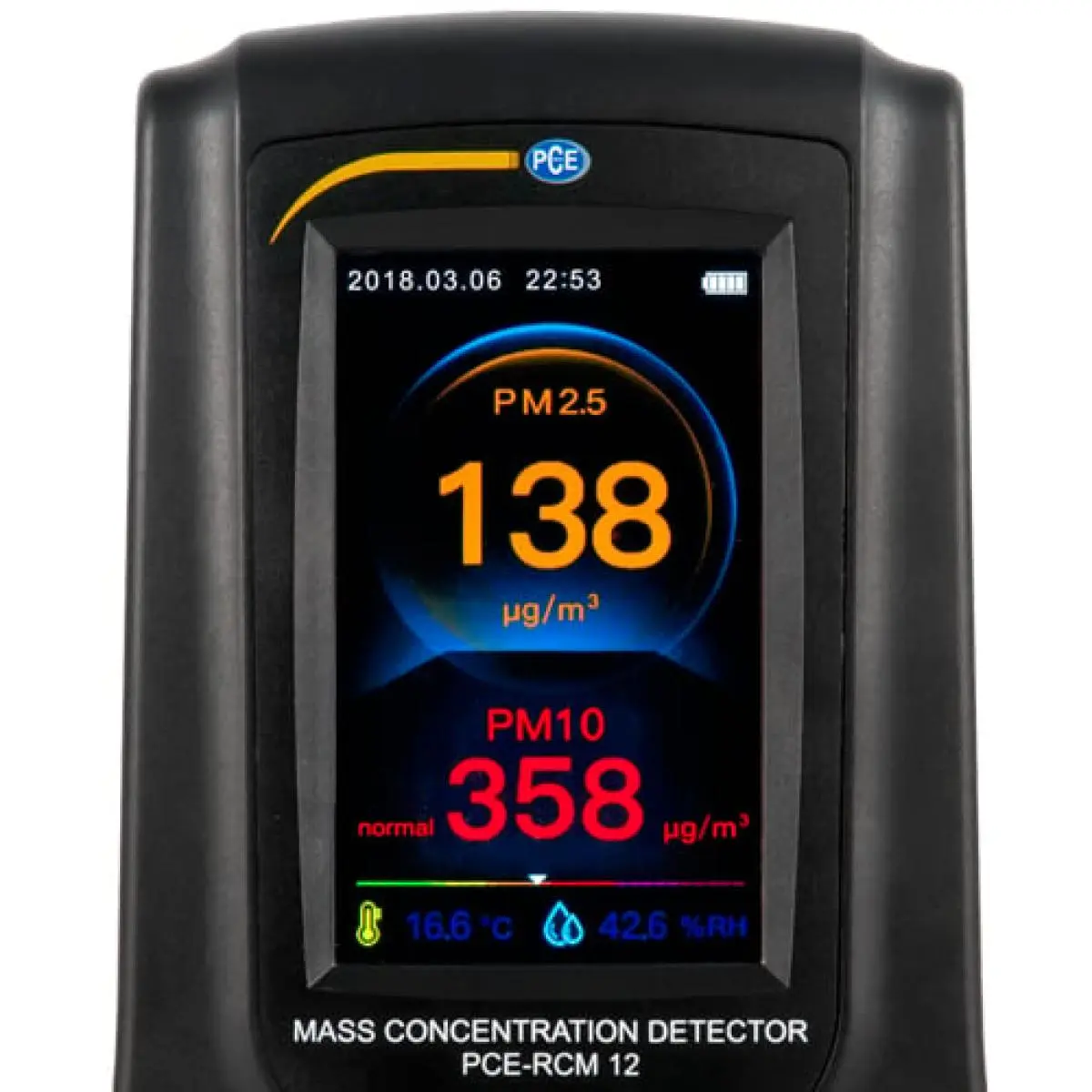

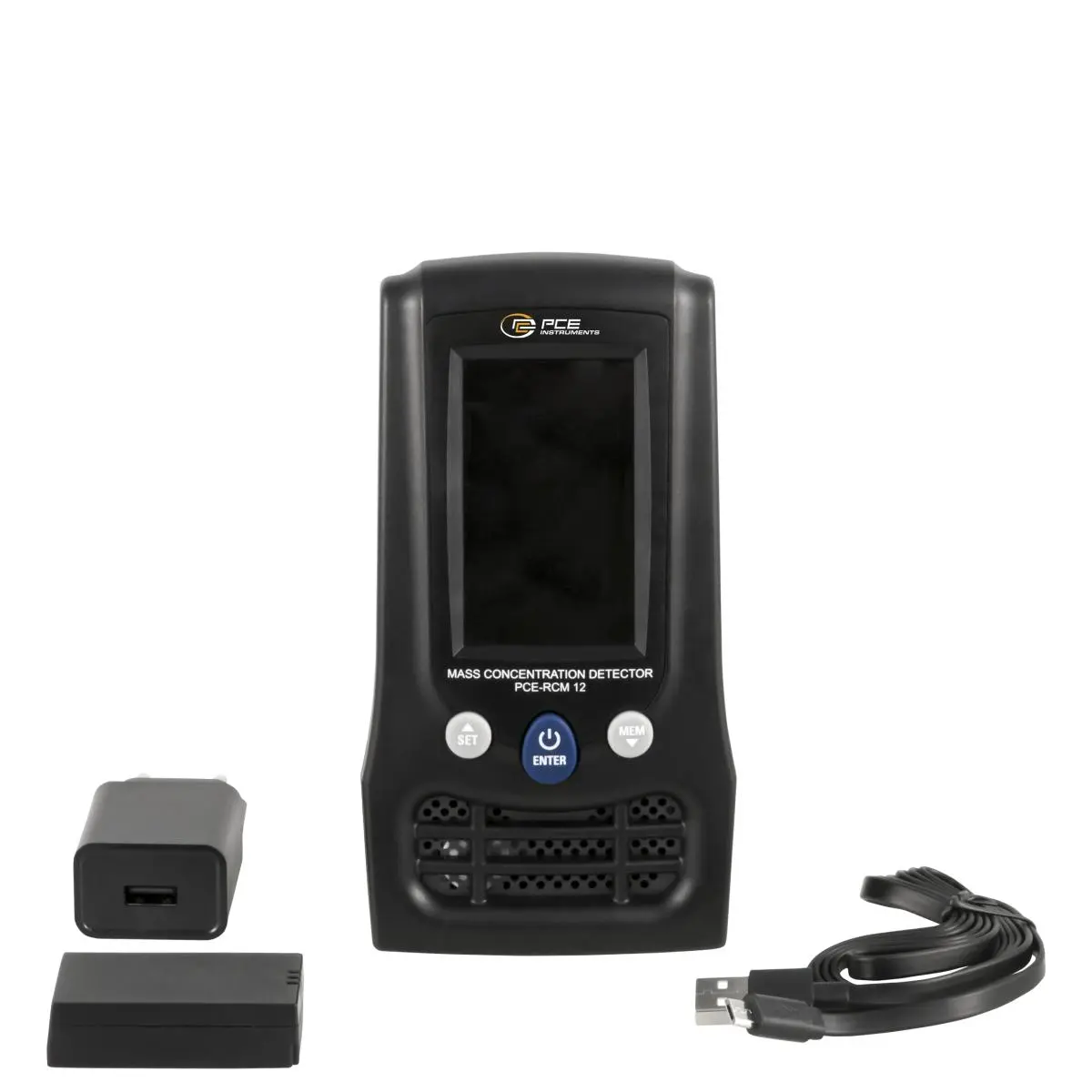

For permanent measurement, the Aerosol measuring device can be connected to AC power via a USB interface. The rechargeable battery will be recharged within two hours if the air quality monitor is turned off. When measuring carbon dioxide, the meter has a wide measuring range from 0 to 9,999 ppm. The display of the concentrations is further facilitated by the use of a color rating scale, as this provides direct information about the air quality to the user.
| CO² | |
| Measuring range | 0 ... 9999 ppm |
| Resolution | 1 ppm |
| Accuracy | ±5 % of Rd or ±75 ppm |
| Formaldehyde | |
| Measuring range | 0 ... 5 mg/m³ |
| Resolution | 0,01 mg/m³ |
| Accuracy | ±5 % of range |
| Particle | |
| Measuring channel sizes | PM2,5, PM10 |
| Measuring range | 2,5 ... 10 µm |
| Resolution | 1 µm |
| Accuracy | 10 % |
| Particle | |
| Measuring range | 0 ... 2000 µg/m³ |
| Resolution | 1 µg/m³ |
| Measuring channel sizes | PM2,5, PM10 |
| Relative humidity | |
| Measuring range | 0 ... 20 % RH |
| Resolution | 0,1 % RH |
| Accuracy | ±5 % RH |
| Relative humidity | |
| Measuring range | 20 ... 80 % RH |
| Resolution | 0,1 % RH |
| Accuracy | ±3.5 % RH |
| Temperature | |
| Measuring range | -20 ... +70 °C |
| Resolution | 0,1 °C |
| Accuracy | ±2 °C |
| General technical data | |
| Display type | TFT colour display |
| Display size | 3 in |
| Display resolution | 240 x 400 pixels |
| Storage medium | Internal memory |
| Storage capacity | 5000 Data records |
| Interface | Micro-USB |
| Operating time | 5 h |
| Automatic power-off from...to | 10 ... 120 min. |
| Menu language | English, Chinese |
| Power supply | Rechargeable battery: 3.7 V USB: 5V |
| Connector type | Device-europlug |
| Capacity | 2400 mAh |
| Operating conditions | 0 ... 50 °C , 10 ... 90 % RH |
| Storage conditions | -10 ... 60 °C , 10 ... 90 % RH |
| Dimensions ( L x W x H ) | 155 x 85 x 75 mm |
| Weight | 360 g |
