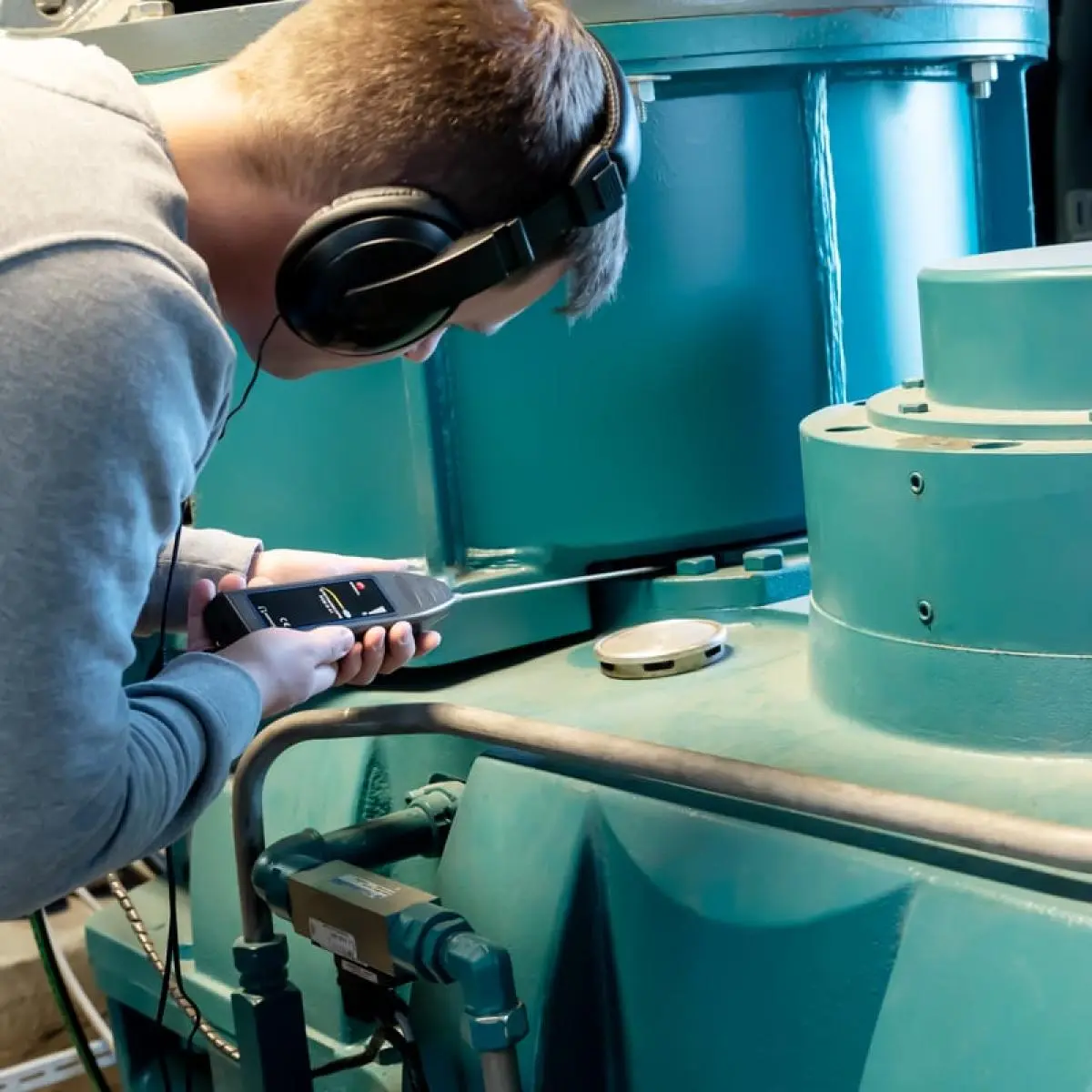

The Accelerometer is battery powered and easy to use. This Accelerometer can be used for detecting noise in machine components, such as gears, valves, vents, and pumps. This makes the Accelerometer a useful tool in inspecting noise and vibration, giving the maintenance team the chance to locate the source of a problem before it becomes too costly. The enclosure of the Accelerometer is made of ABS plastic, which is comfortable to hold and operate. The device uses a piezoelectric transducer, which can detect very low resonant noises. The earpiece is equipped with an adjustable headset that has a 2 m cable.
| General technical data | |
| Frequency | 100 ... 10000 Hz |
| Display type | without display |
| Operating time | 30 h |
| Housing | ABS (acrylonitrile-butadiene-styrene copolymers) |
| Dimensions | Needle probe 1 x 290 mm, 1 x 70 mm (length) |
| Protection class (device) | IP20 |
| Power supply | Battery |
| (Rechargeable) battery | 1 x 9 V 9V block , Alkali-manganese |
| Capacity | 640 mAh |
| Dimensions ( L x W x H ) | 206 x 50 x 32 mm |
| Weight | 240 g |
