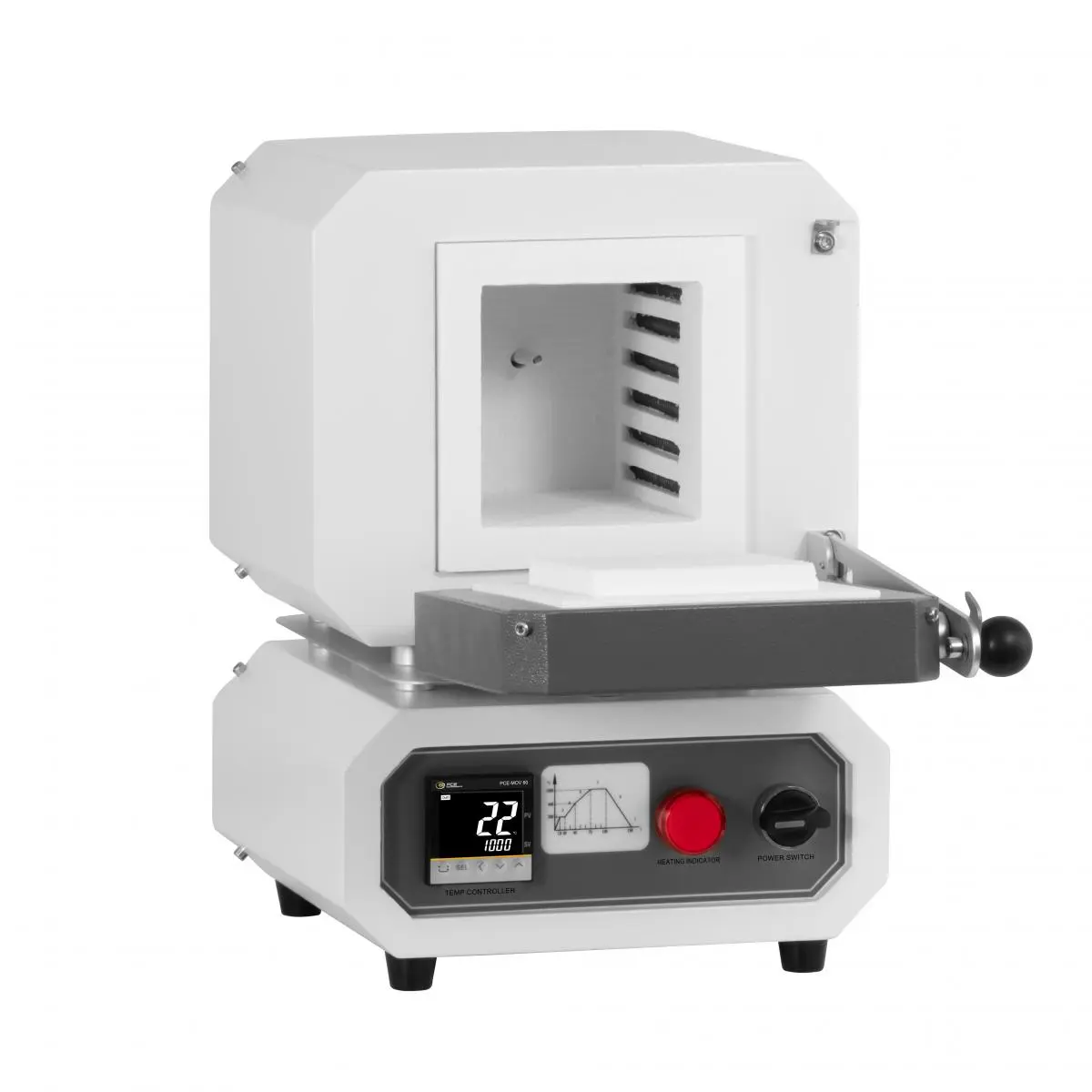

Muffle Furnace PCE-MOV 60

Muffle Furnace PCE-MOV 60

Order no.: PCE-MOV 60
GTIN (EAN): 4250348738561
1 pc.

Description

Muffle Furnace up to 1000°C (1832°F) / Chamber size: 100 x 100 x 100 mm (3.9 x 3.9 x 3.9 in) / Built-in temperature controller / Acoustic alarm / PID control

This compact Muffle Furnace is ideal for precise applications in the laboratory and in materials testing. With a maximum temperature of 1000°C / 1832°F and a continuous working temperature of up to 900°C / 1652°F, the Muffle Furnace is ideal for sintering processes, annealing tests or material analyses. The heating chamber is made of high-purity, polycrystalline alumina ceramic and boasts excellent insulation properties, which reduces heat loss and saves energy.

The spirally wound resistance wire made of HRE alloy is mounted on a ceramic carrier tube and ensures uniform temperature distribution throughout the entire furnace chamber. The free-radiating heating method in the interior achieves particularly efficient heat transfer with a long service life. Equipped with a precise PID controller, the Muffle Furnace allows temperature control with an accuracy of ±1°C / 1.8°F and the programming of up to 30 heating sections. The robust powder-coated steel housing is corrosion-resistant and durable.

Additional safety features such as a door contact switch, overtemperature protection and multi-layer thermal insulation made of fireproof lightweight material ensure reliable and safe operation. This Muffle Furnace combines modern control technology with a compact design and offers an energy-efficient solution for a wide range of thermal applications.


Highlights

- for temperatures up to 1000°C / 1832°F
- Heating chamber made of high-purity polycrystalline alumina ceramic
- PID control with ±1°C / 1.8°F accuracy
- Programmable with up to 30 heating sections
- Housing made of powder-coated, corrosion-resistant steel
- Multi-layer thermal insulation with fire-resistant lightweight material
- Door contact switch and overtemperature protection for maximum safety
- Ideal for laboratories, research, materials testing and thermal treatments

Specification

Temperature
Measurement range up to  20 ... 1000 °C
Resolution  1 °C
Accuracy  ±1 °C

General technical data
Sensor  Thermocouple Type N
Heating element  HRE spiral heating element
Dimensions  Chamber size: 100x100x100 mm
Menu language  English (GB), English
Protection class (device)  IP20
Power supply  220V / 1.2 KW
Connector type  Schuko plug
Operating conditions  -10 ... 50 °C , 0 ... 90 % RH
Storage conditions  -10 ... 50 °C , 0 ... 90 % RH
Dimensions ( L x W x H )  290 x 260 x 360 mm
Weight  11,2 kg

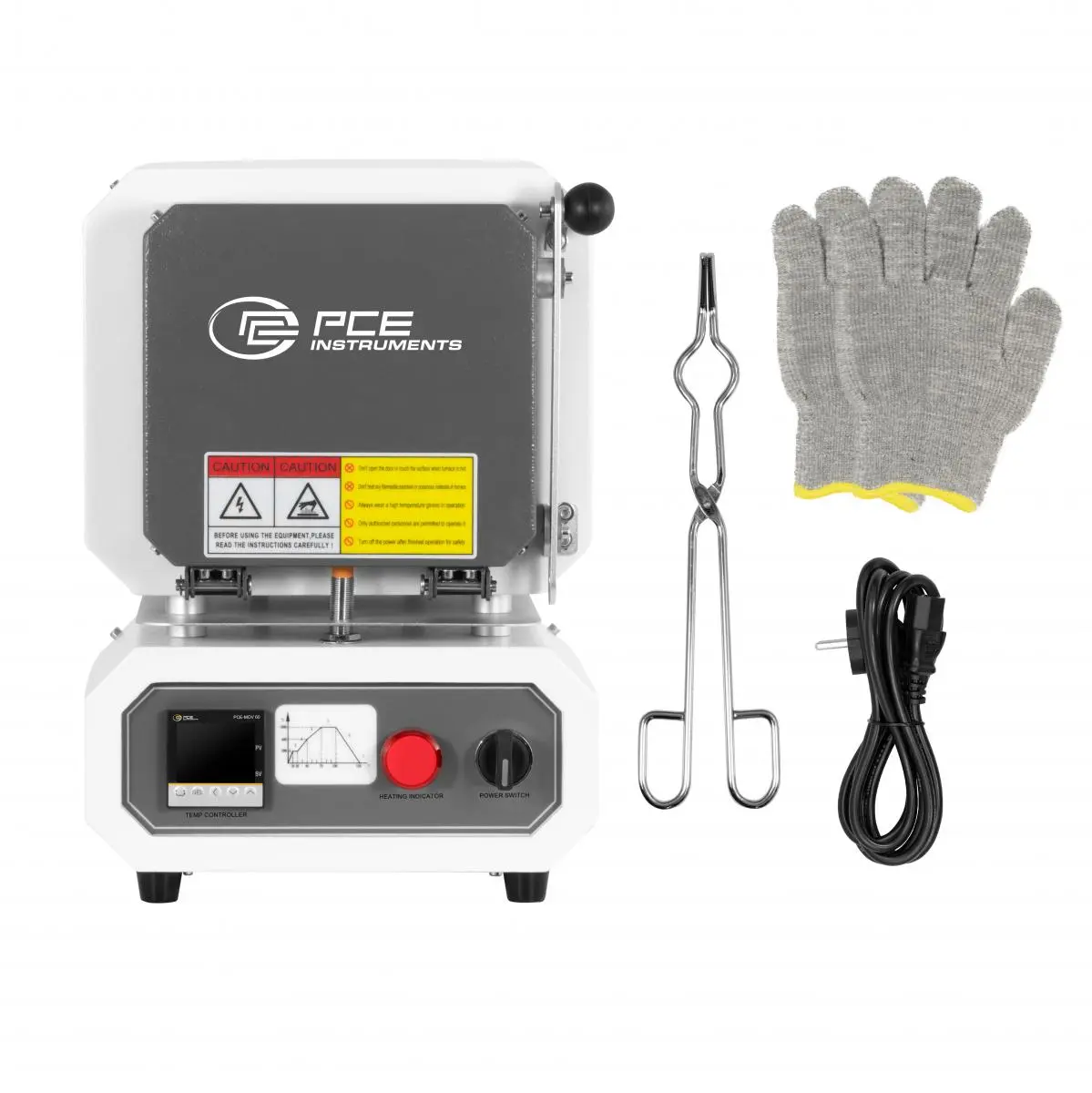

Delivery Scope

1 x PCE-MOV 60 Muffle Furnace
1 x Heat gloves
1 x Crucible tongs
1 x Connection cable
