Muffle Furnace PCE-MOV 500

Muffle Furnace PCE-MOV 500

Order no.: PCE-MOV 500
GTIN (EAN): 4250348738578
1 pc.

Description

Muffle Furnace / High operating temperature up to 1700°C (3092°F) / High-quality MoSi₂ heating elements / Sintering, annealing, material tests / Programmable controller with up to 30 heating profiles

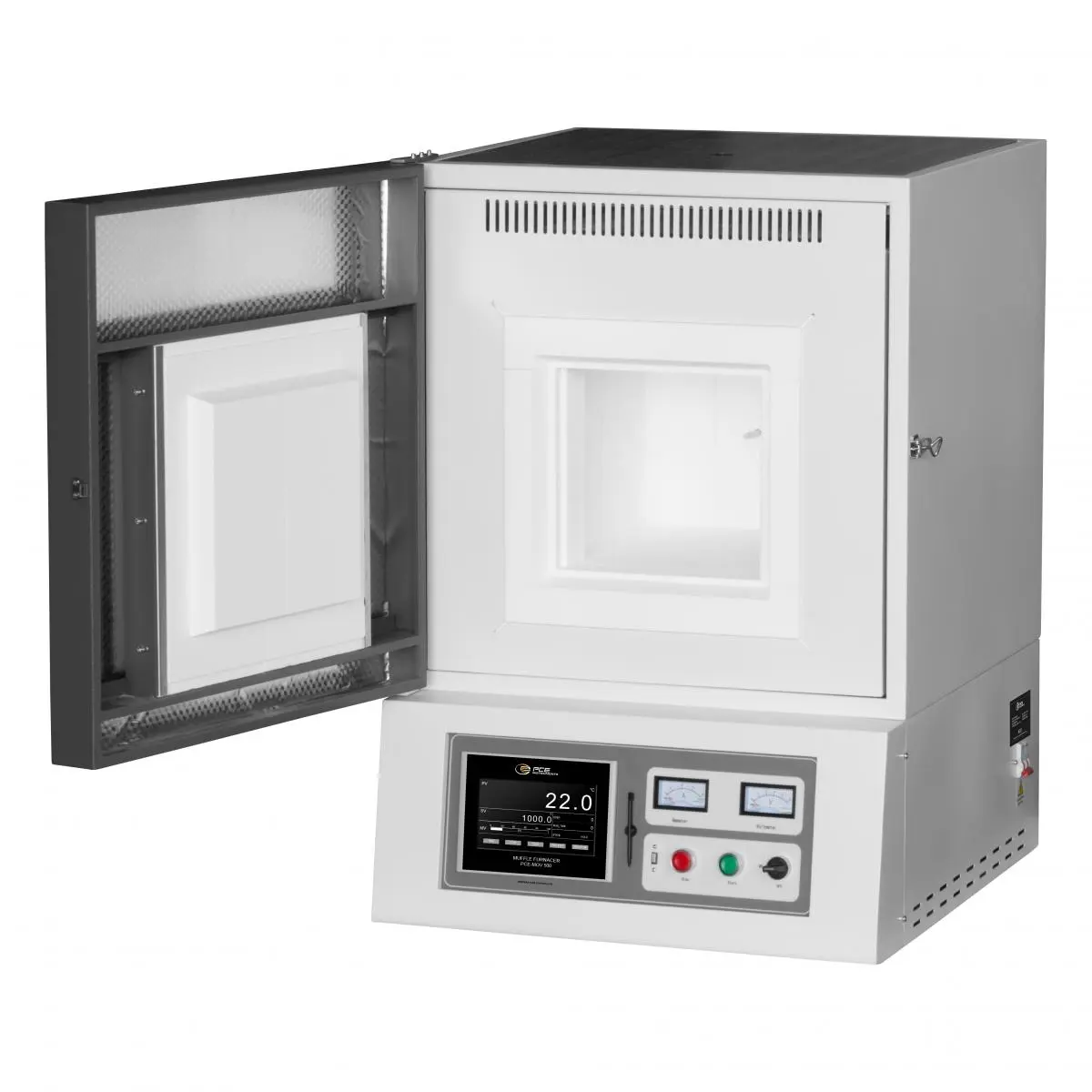

The high-temperature Muffle Furnace is a professional device for laboratories, research and industry that is characterized by maximum precision and reliability. With a maximum temperature of 1700°C / 3092°F, this Muffle Furnace is ideal for demanding applications such as the sintering of ceramics, the heat treatment of metals and material development in the high-temperature range. Thanks to state-of-the-art molybdenum disilicide heating elements and effective ceramic fiber insulation, the Muffle Furnace ensures even temperature distribution and energy-efficient operation.

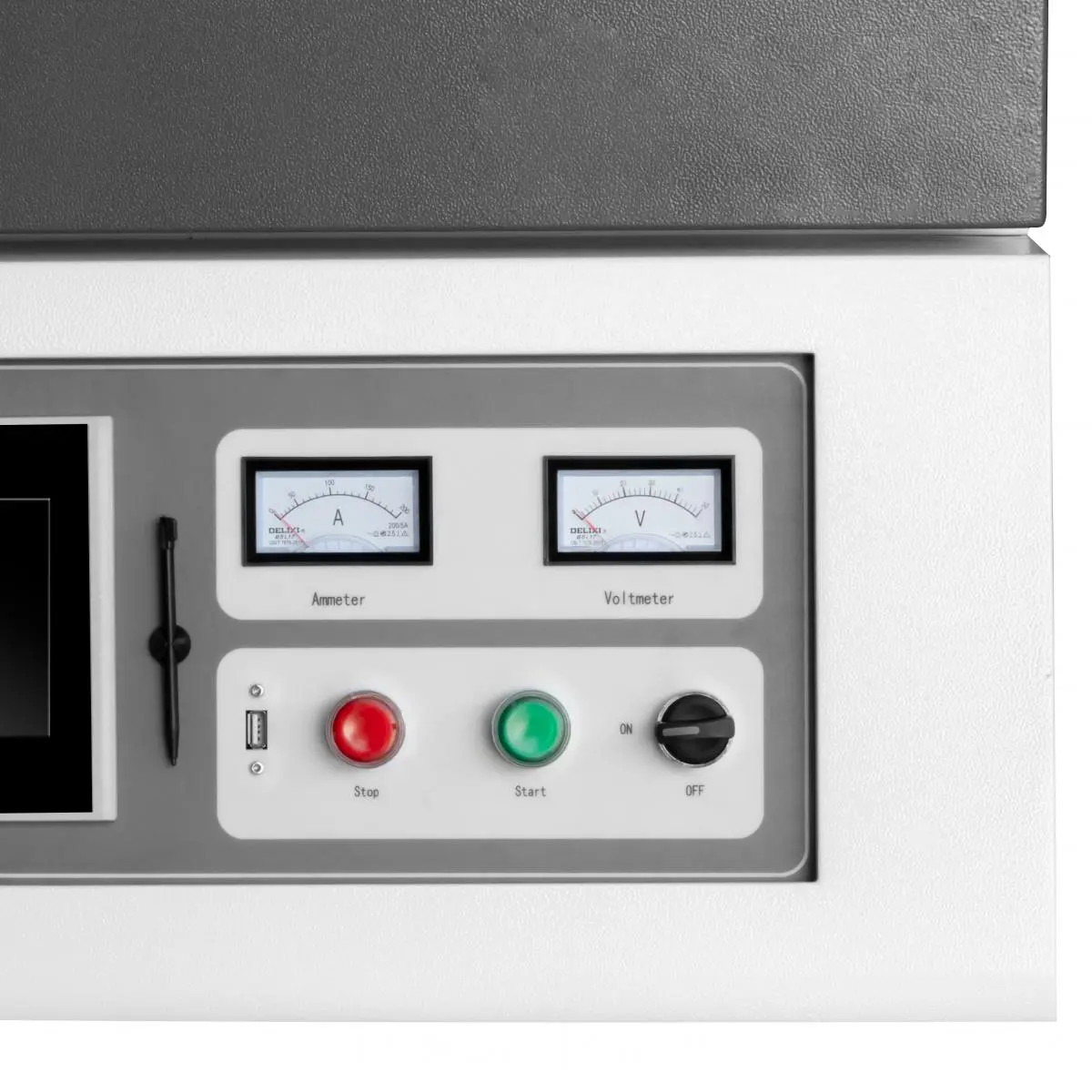

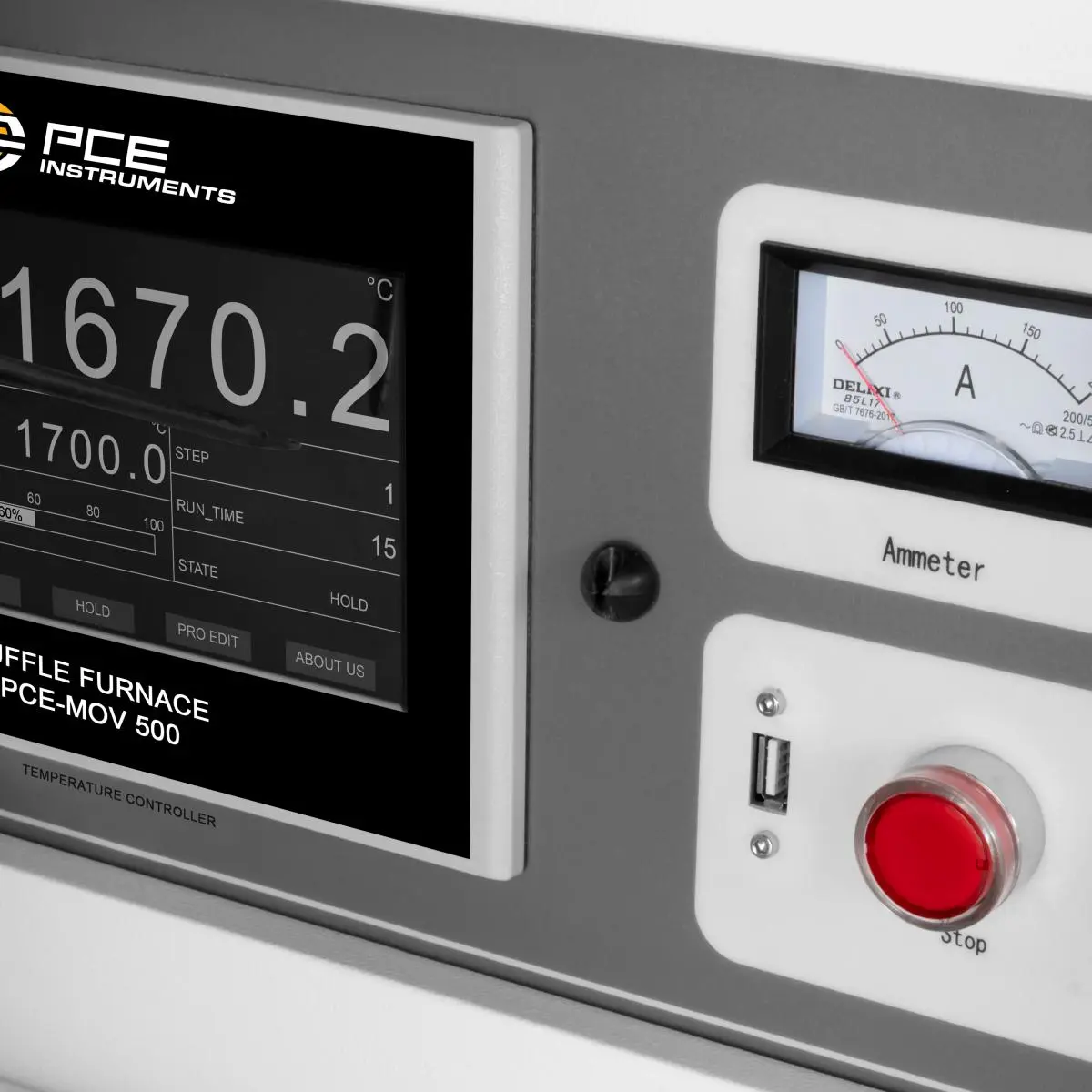

The temperature is controlled digitally via a PID-controlled system with up to 30 freely programmable heating, holding and cooling phases. An integrated safety system with door contact switch, overtemperature protection and acoustic alarms ensures reliable and safe operation of the Muffle Furnace, even for sensitive processes. The robust design made of powder-coated steel protects against corrosion and ensures a long service life in daily use.

This Muffle Furnace is particularly popular in research and university facilities, but is also widely used in industrial laboratories. With its combination of performance, durability and precision, the Muffle Furnace is an excellent choice for anyone who requires the highest quality in high-temperature processes.


Highlights

- Precise temperature control
- Programmable control

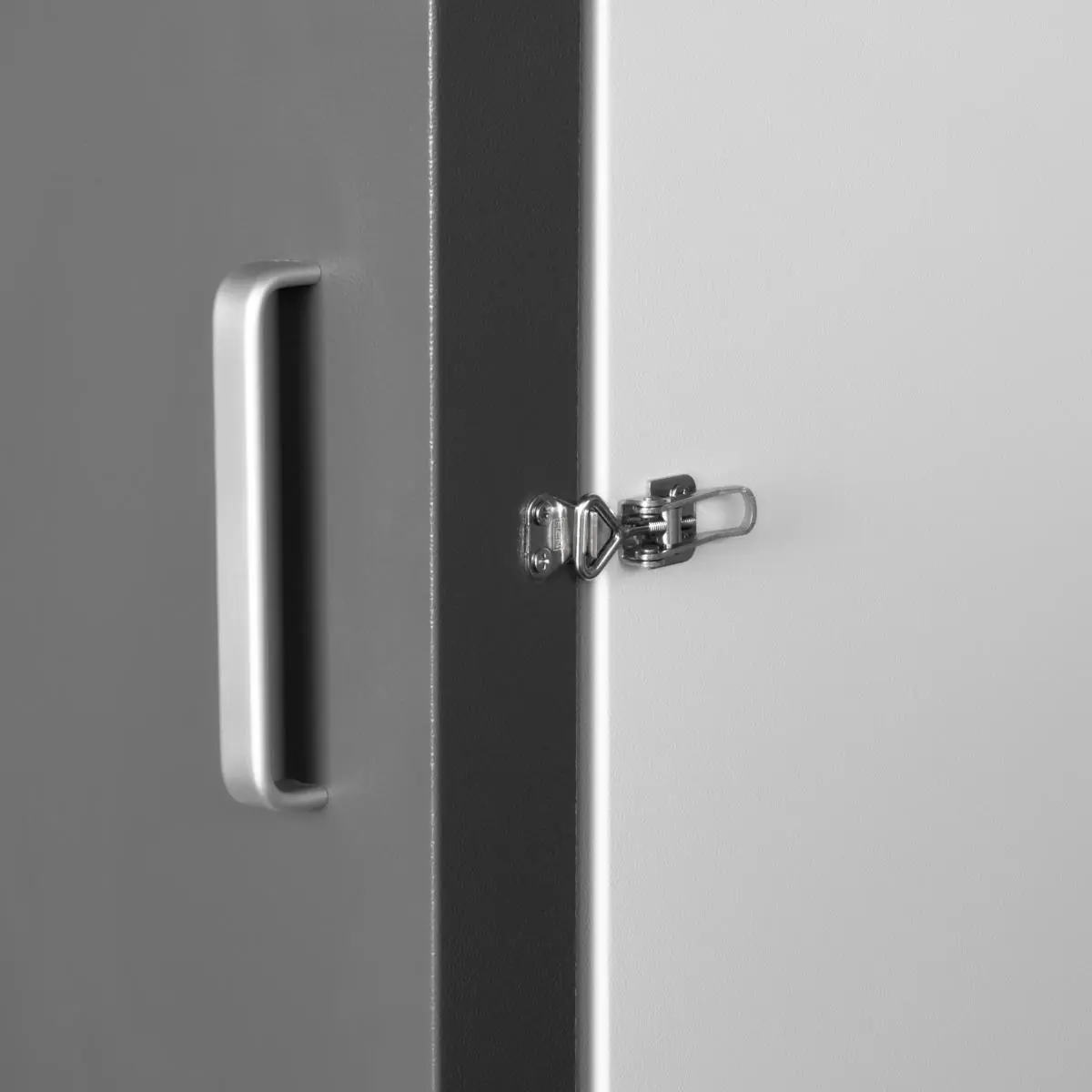

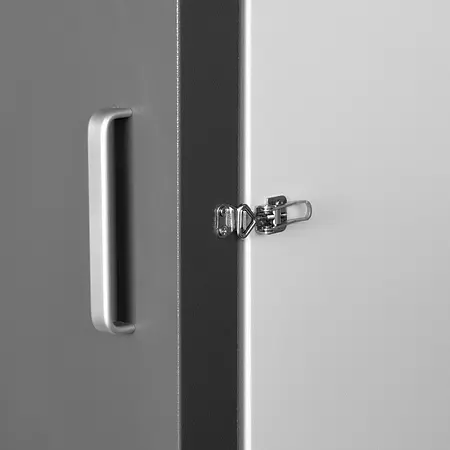

- Door contact switch
- High-quality insulation
- Robust steel construction

Specification

Temperature
Measurement range up to  20 ... 1700 °C
Resolution  0,1 °C
Accuracy  ±1 °C

General technical data
Sensor  Thermocouple Type B
Heating element  Molybdenum disilicide

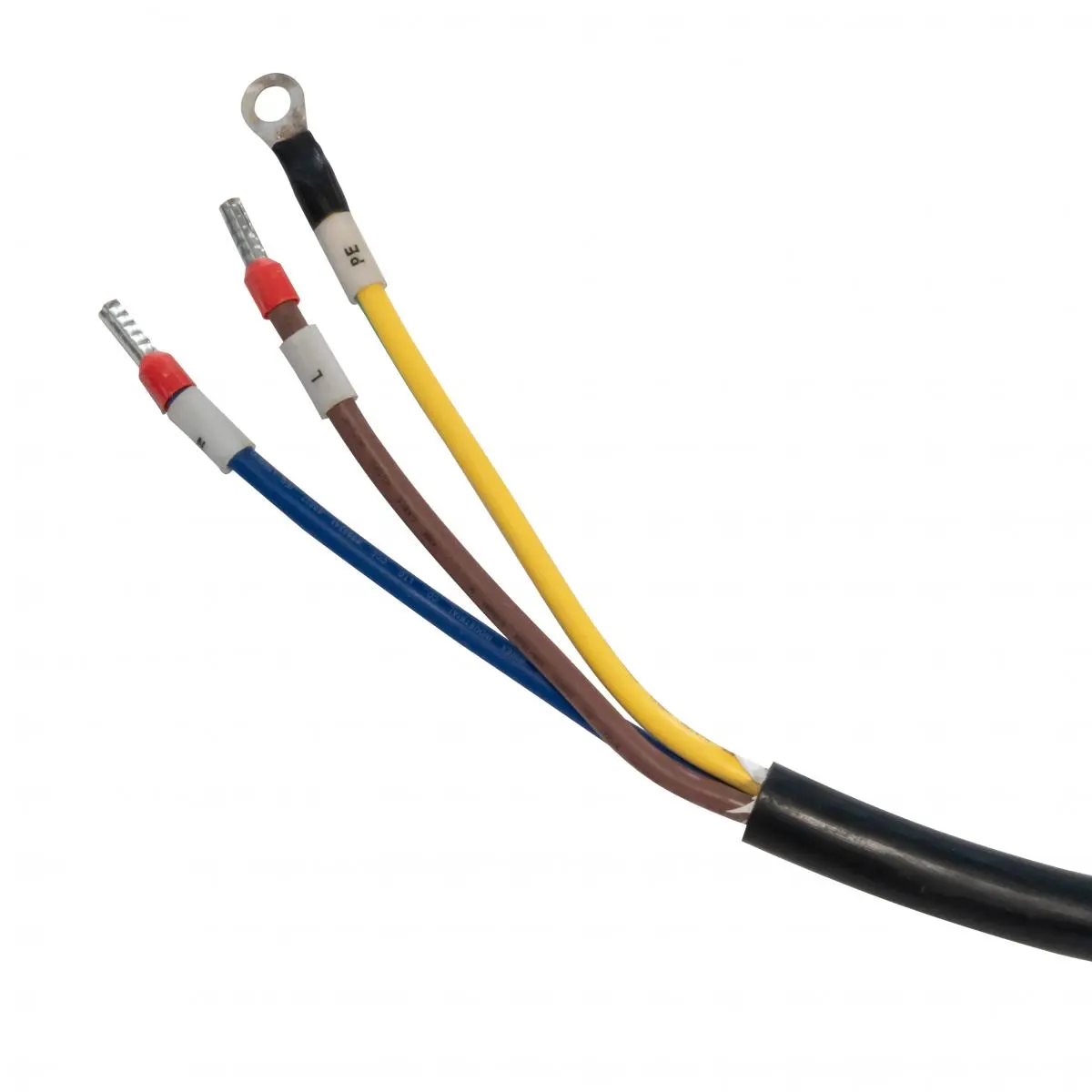

Cable length  2,5 m
Dimensions  Chamber size: 250 × 320 × 250 mm (W×D×H)
Menu language  English (GB), English
Protection class (device)  IP20

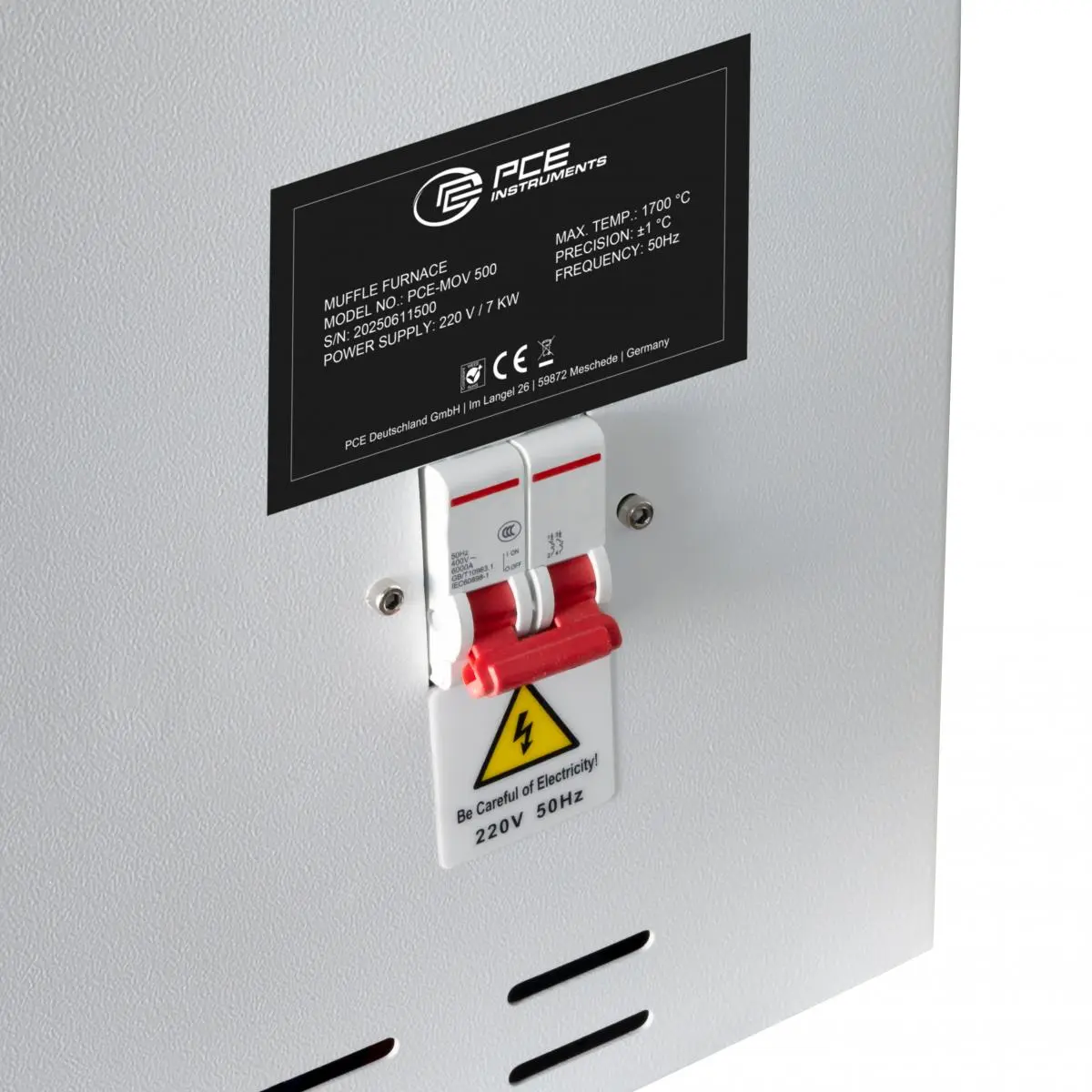

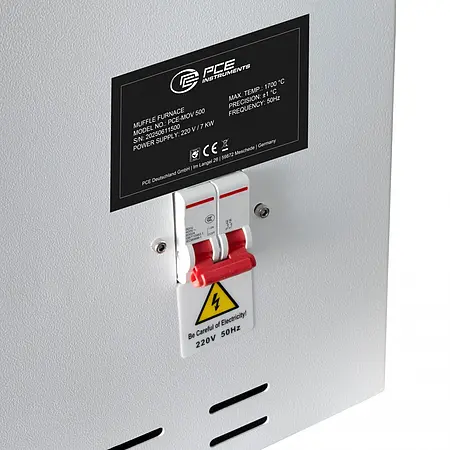

Power supply  220V / 7 KW
Operating conditions  5 ... 50 °C , 0 ... 90 % RH
Storage conditions  0 ... 50 °C , 0 ... 90 % RH
Dimensions ( L x W x H )  75 cm x 65 cm x 97 cm mm
Weight  215 kg

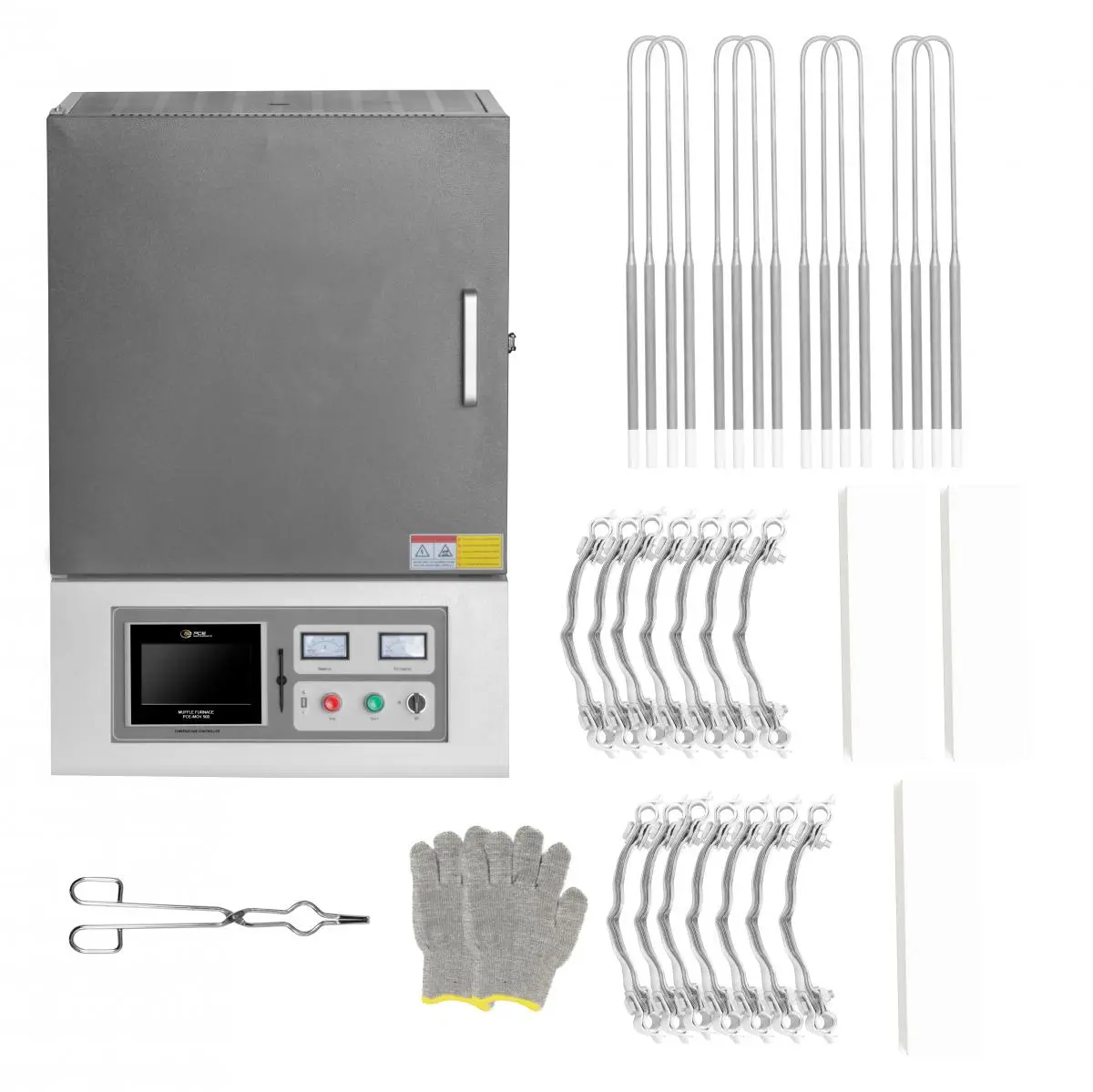

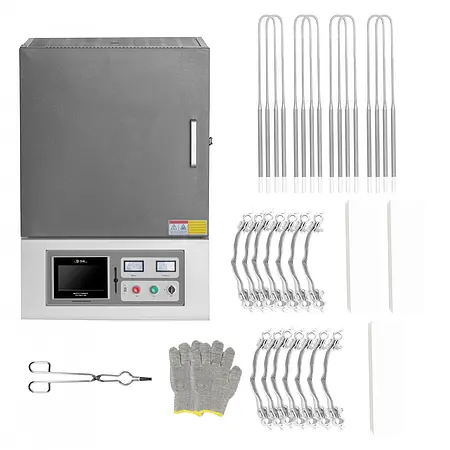

Delivery Scope

1 x PCE-MOV 500 Muffle Furnace
1 x Heat gloves
3 x Combination spanners
1 x Crucible tongs
8 x Heating element
6 x Holder for heating elements
7 x Connecting bridge for power transmission
3 x Ceramic element
1 x CEE plug 230 V/32 A, 3-pin
