Magnetometer PCE-MFM 3500-ICA Incl. ISO Calibration Certificate

Order no.: PCE-MFM 3500-ICA

GTIN (EAN): 4250348726339

Accessory

ISO Calibration Certificate for Electromagnetic Meter CAL-PCE-MFM

₹34,104.00

Description

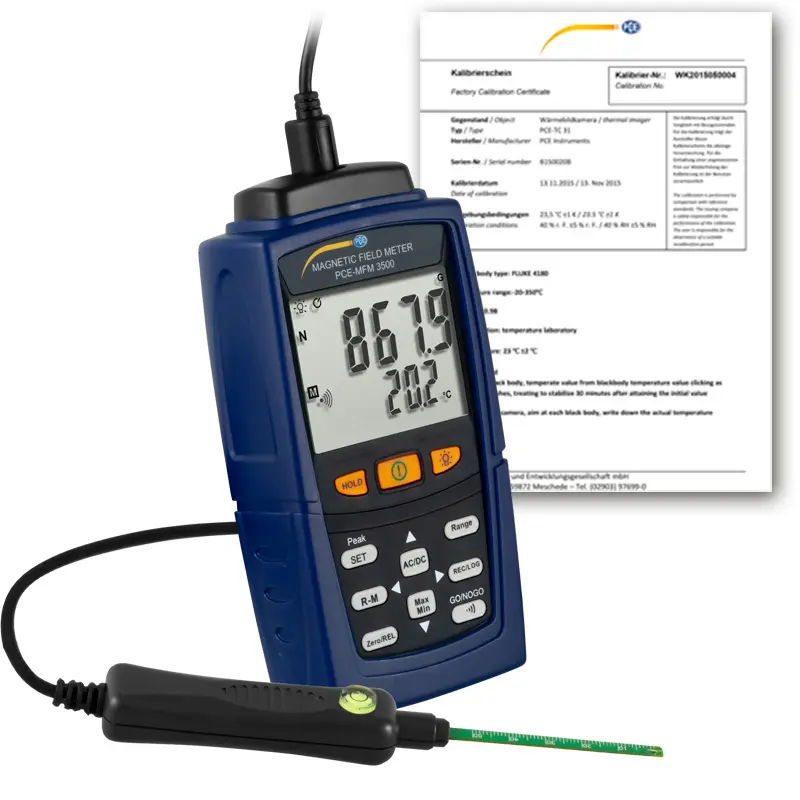

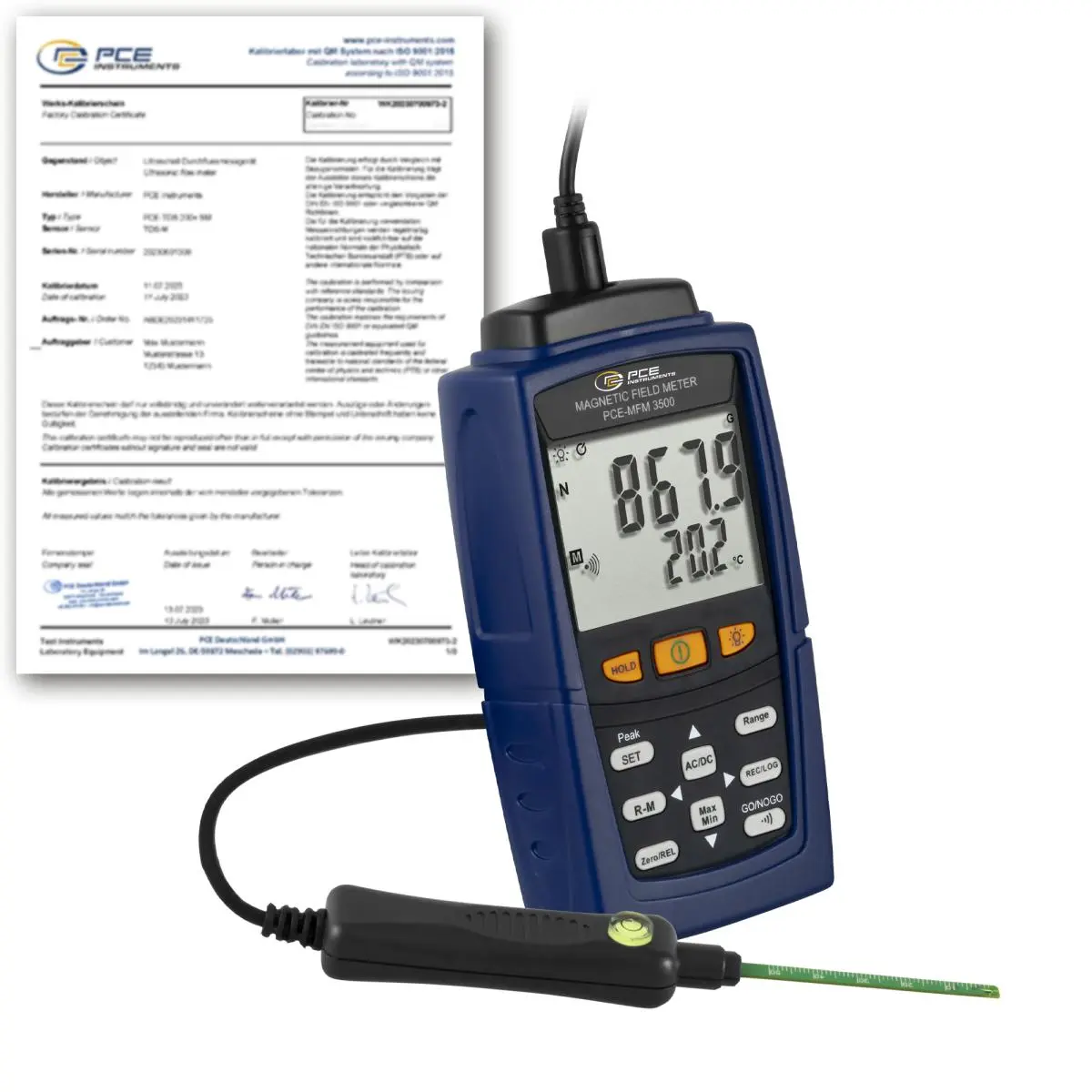

Magnetometer PCE-MFM 3500-ICA incl. ISO calibration certificate

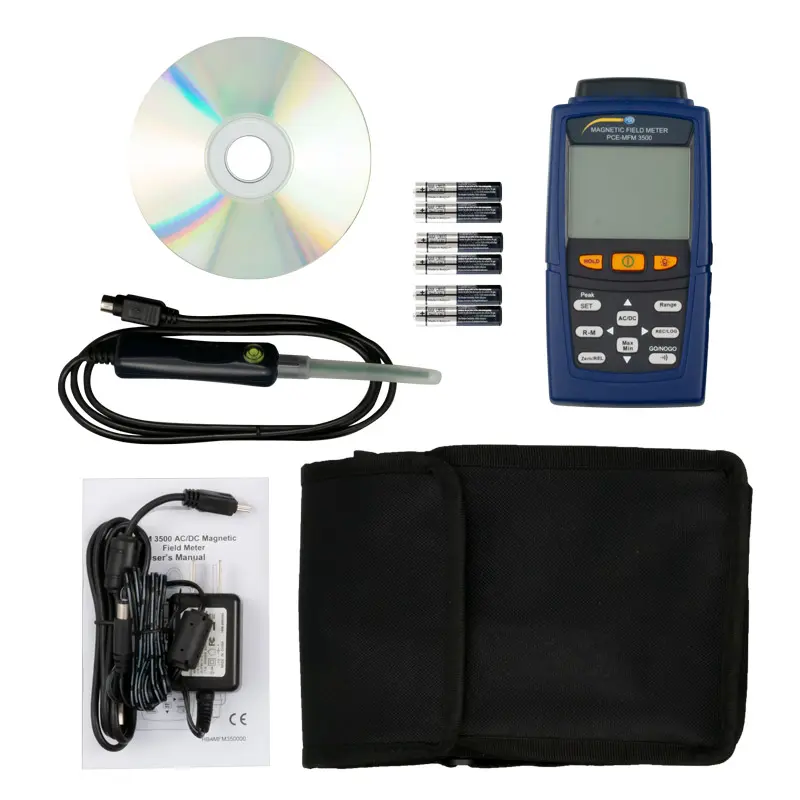

Gauss meter with external sensor / Measuring range up to 30,000 G / Leveling bubble / Built-up memory for up to 7,000 values / Software for live view and reading / Battery and also mains operation / Sensor cable approx. 1 m (3.3 ft) / Battery life approx. 100 hours

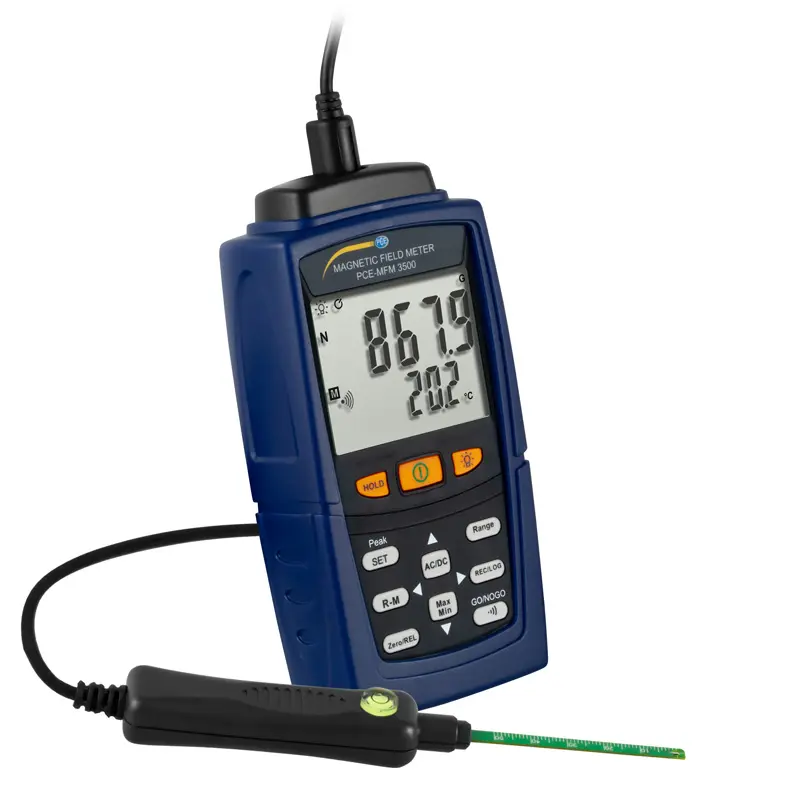

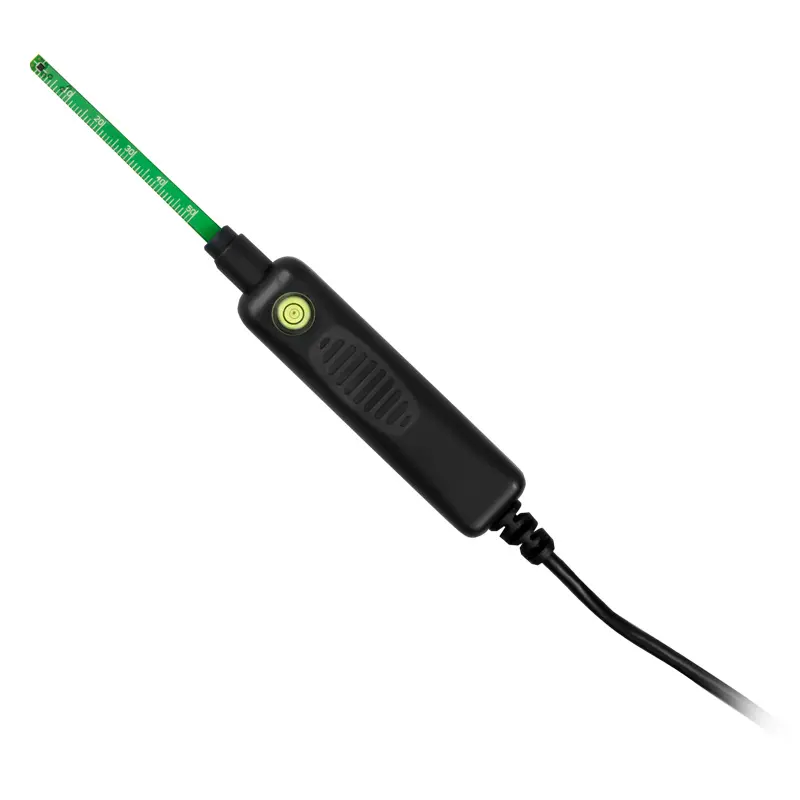

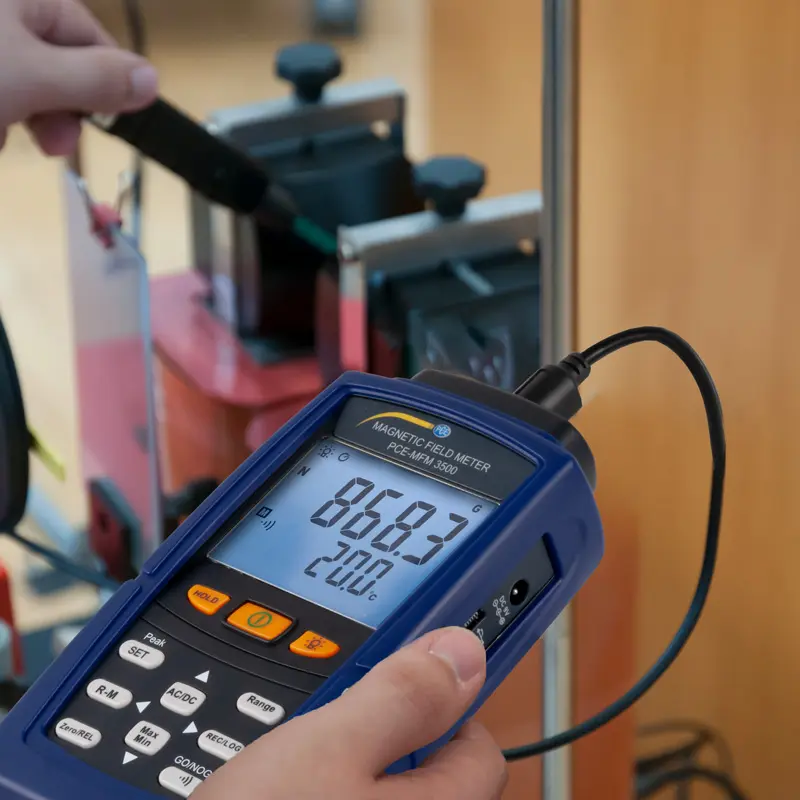

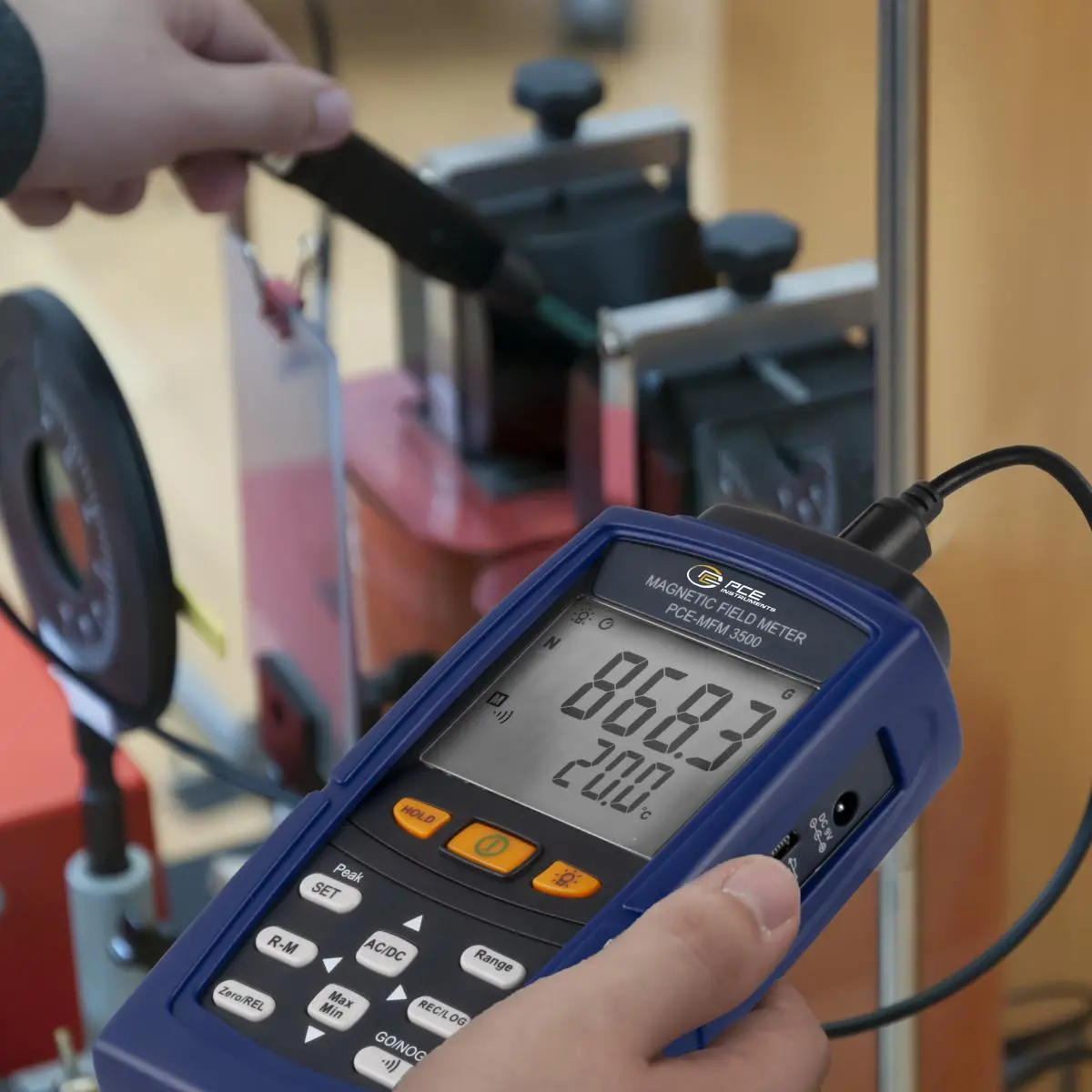

The magnetometer is a reliable measuring device for measuring the existing magnetic field. This magnetometer is suitable for measuring both static (permanent magnets) and alternating magnetic fields. The flat probe of the external probe on the magnetometer allows the operator to perform measurements even in very small openings. The measuring range of up to 30,000 G in the magnetometer covers a wide range of measuring tasks. In addition to measuring the magnetic field, the magnetometer also measures the temperature at the same time. The magnetometer also has an adjustable alarm function. This adjustable alarm function in the magnetometer warns the operator immediately as soon as a set measured value is exceeded.

As an additional function, the magnetometer has a memory function. Thanks to the built-in memory, measured values can be stored automatically as well as manually with the magnetometer. To analyze the measured data, the magnetometer can be connected to a PC via the mini-USB interface. With the software, the data stored on the magnetometermeter can be read out and analyzed. In addition, the software can be used for live viewing and operation of the magnetometer.

Highlights

- Adjustable alarm function

- Data memory with PC connection

- Temperature measurement

- Switchable AC / DC measurement

- Sensor alignment with bubble possible

- Rubber protective cover for the handset

- incl. ISO-Calibration Certificate

Specification

Magnetic field AC
Measuring range	0 ... 150 mT
Resolution	0,01 mT
Accuracy	±(5% +20 digits) at 23°C ±5°C, <80% r. h.

Magnetic field AC
Measuring range	0 ... 1500 mT
Resolution	0,1 mT
Accuracy	±(5% +20 digits) at 23°C ±5°C, <80% r. h.

Magnetic field AC
Measuring range	0 ... 1500 g
Resolution	0,1 g
Accuracy	±(5% +20 digits) at 23°C ±5°C, <80% r. h.

Magnetic field AC
Measuring range	0 ... 15000 g
Resolution	1 g
Accuracy	±(5% +20 digits) at 23°C ±5°C, <80% r. h.

Magnetic field DC
Measuring range	0 ... 300 mT
Resolution	0,01 mT
Accuracy	±(4% +10 digits) at 23°C ±5°C, <80% r. h.

Magnetic field DC
Measuring range	0 ... 2000 mT
Resolution	0,1 mT
Accuracy	±(4% +10 digits) at 23°C ±5°C, <80% r. h.

Magnetic field DC
Measuring range	2000,1 ... 3000 mT
Resolution	0,1 mT
Accuracy	N/A

Magnetic field DC
Measuring range	0 ... 3000 g
Resolution	0,1 g
Accuracy	±(4% +10 digits) at 23°C ±5°C, <80% r. h.

Magnetic field DC
Measuring range	0 ... 20000 g
Resolution	1 g
Accuracy	±(4% +10 digits) at 23°C ±5°C, <80% r. h.

Magnetic field DC
Measuring range	20001 ... 30000 g
Resolution	1 g
Accuracy	N/A

Temperature
Measuring range	-20 ... +50 °C
Resolution	0,1 °C
Accuracy	±1.0 °C

Temperature
Measuring range	-4 ... +122 °F
Resolution	0,1 °F
Accuracy	±1.8 °F

General technical data
Cable length	1 m
Measuring functions	MIN, MAX, HOLD, peak

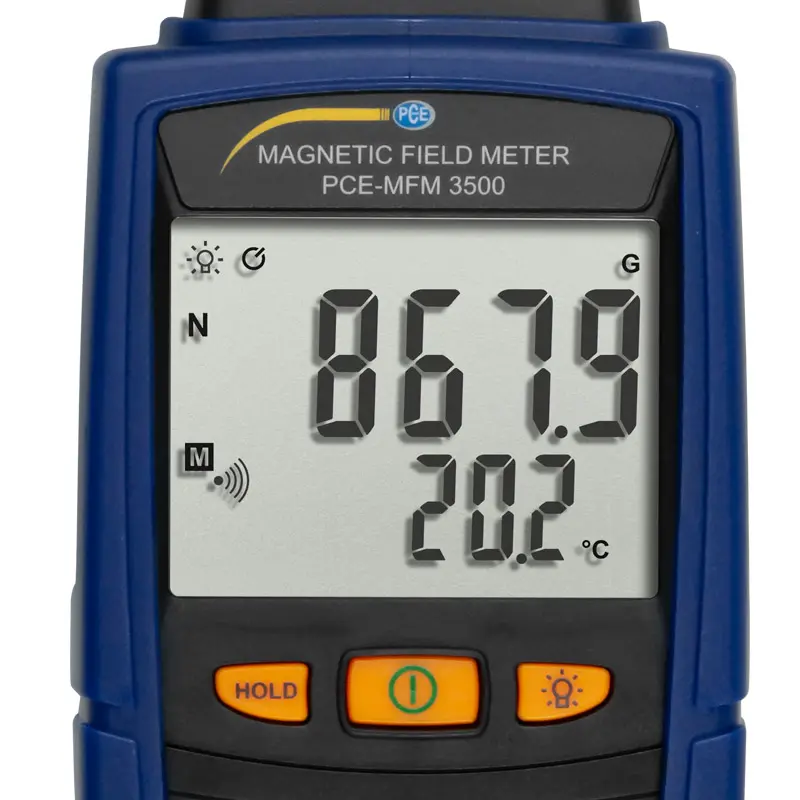

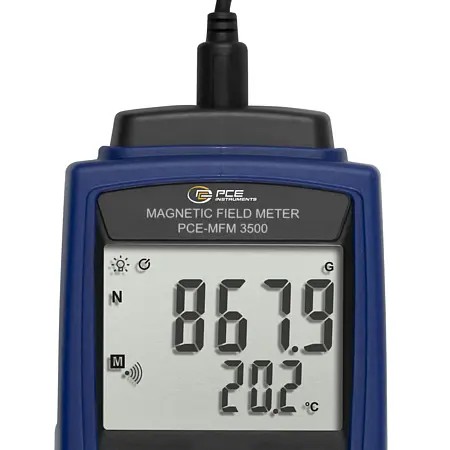

Display type	LCD
Measuring rate	1 Hz
Storage medium	Internal memory
Storage capacity	7000 Values
Memory capacity (additional information)	Manual: up to 200 values / automatic: up to 7000 values

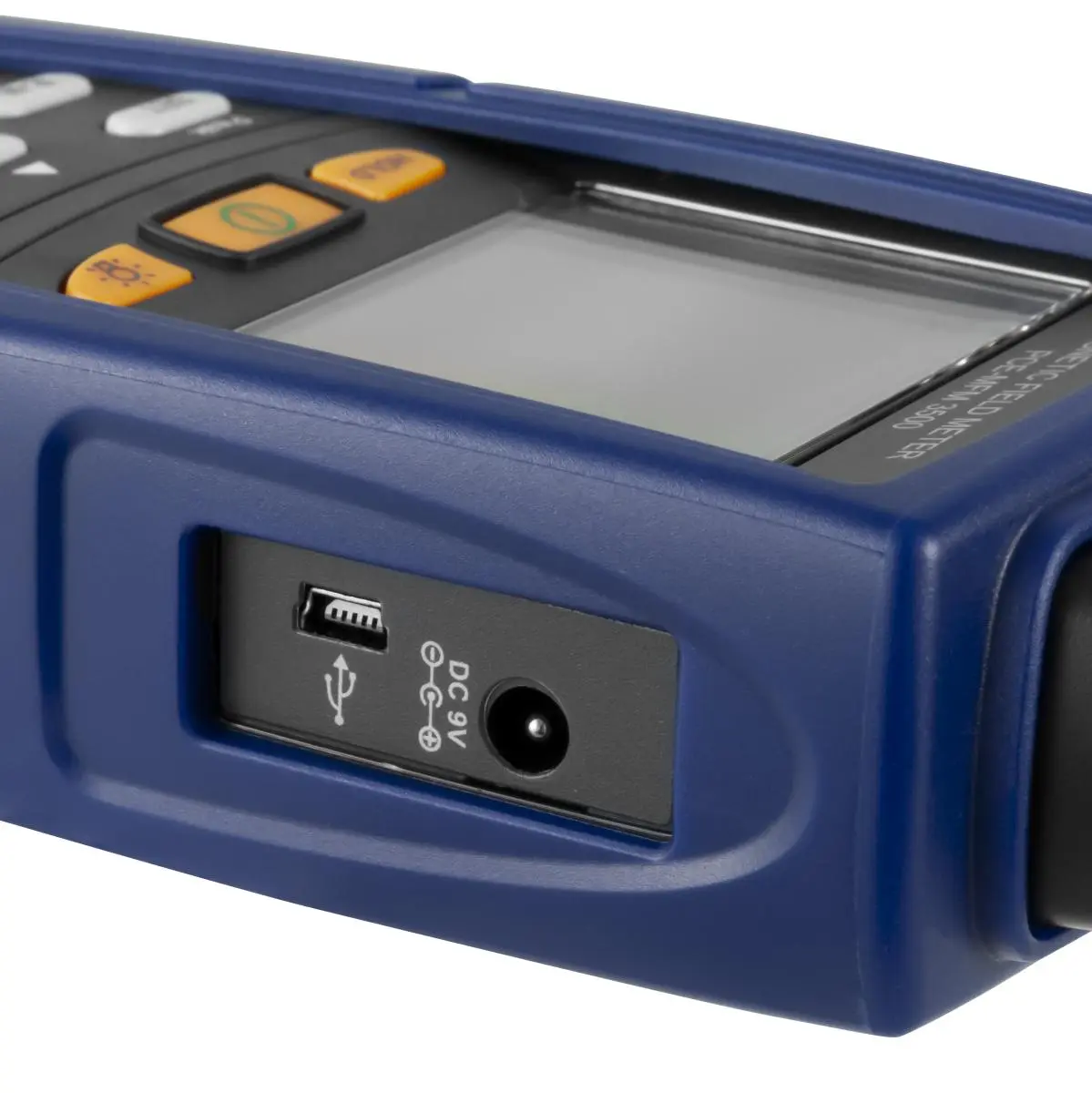

Interface	Mini-USB
Sensor	Hall sensor
Operating time	100 h
Automatic power-off	15 min
Alarm	optical, Acoustic
Alarm modes	If the measured value is within the set range, "GO" appears on the display. If the measured value is outside the set limits, "NOGO" appears on the display.
Menu language	English, English (GB)
Protection class (device)	IP20
Power supply	100 ... 240 V AC \| 50/60 Hz
Connector type	Device-europlug

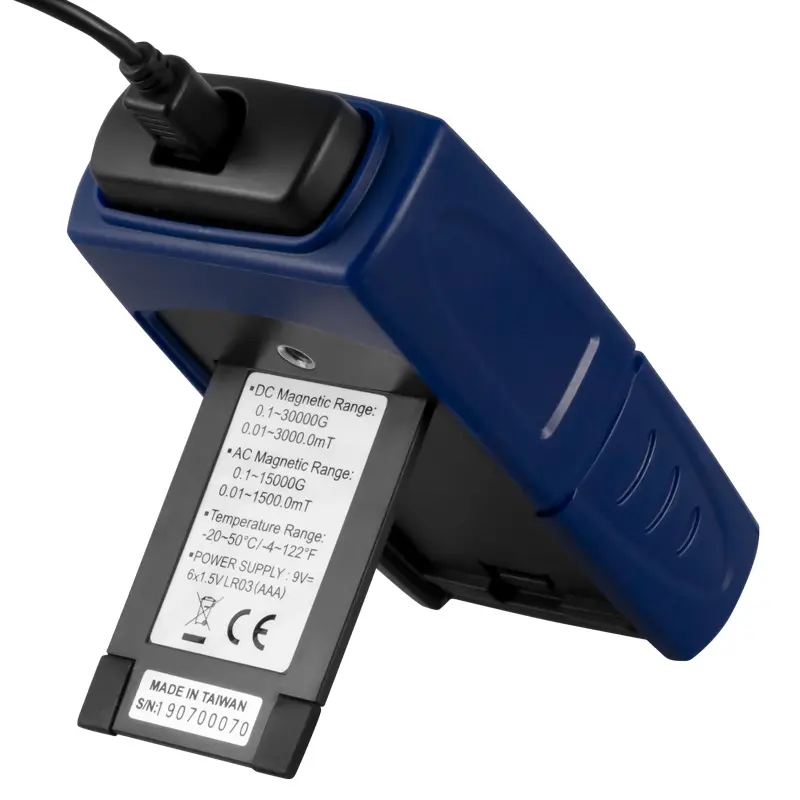

(Rechargeable) battery	6 x 1,5 V AAA battery , Alkali-manganese
Capacity	1200 mAh
Operating conditions	5 ... 40 °C , 0 ... 80 % RH
Storage conditions	0 ... 50 °C , 0 ... 70 % RH
Dimensions ( L x W x H )	156 x 73 x 35 mm
Weight	320 g
