Magnetometer / Magnetic Field Detector PCE-MFM 2400+

Magnetometer PCE-MFM 2400+

Order no.: PCE-MFM 2400+
GTIN (EAN): 4250348722539
₹122,385.00
₹144,414.30
price ex. (VAT / delivery)
:
4250348722539
PCE-MFM 2400+
Delivery time:1-2 working days

Description

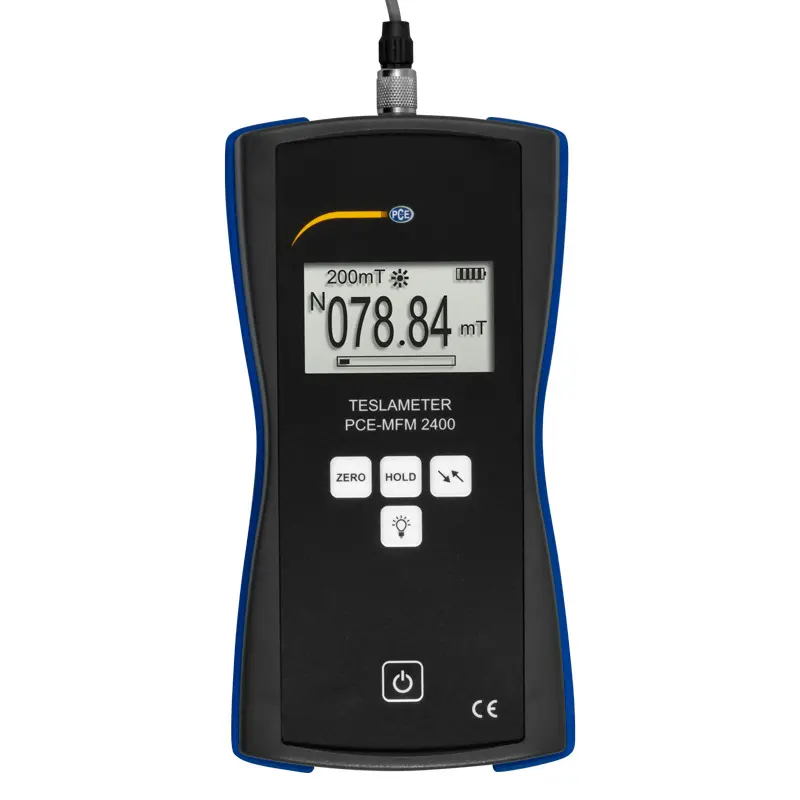

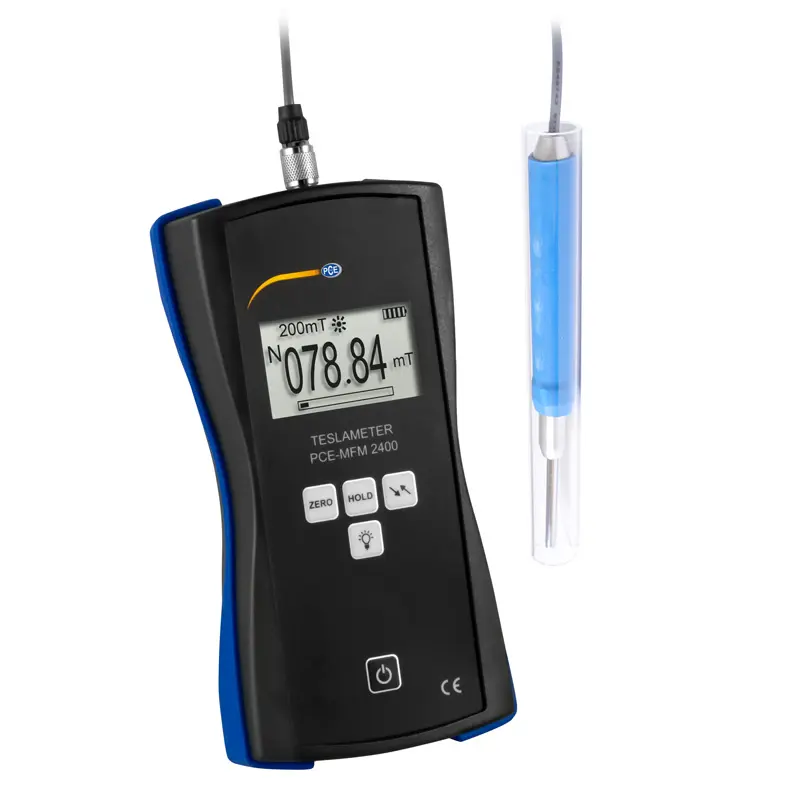

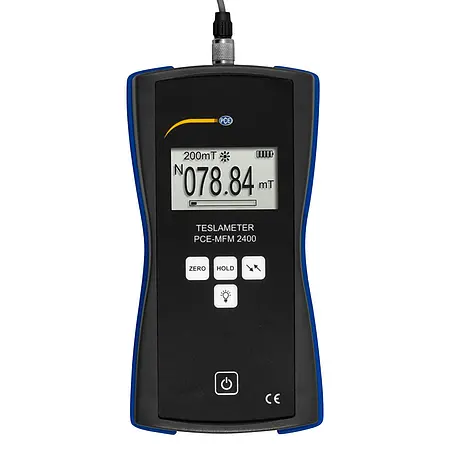

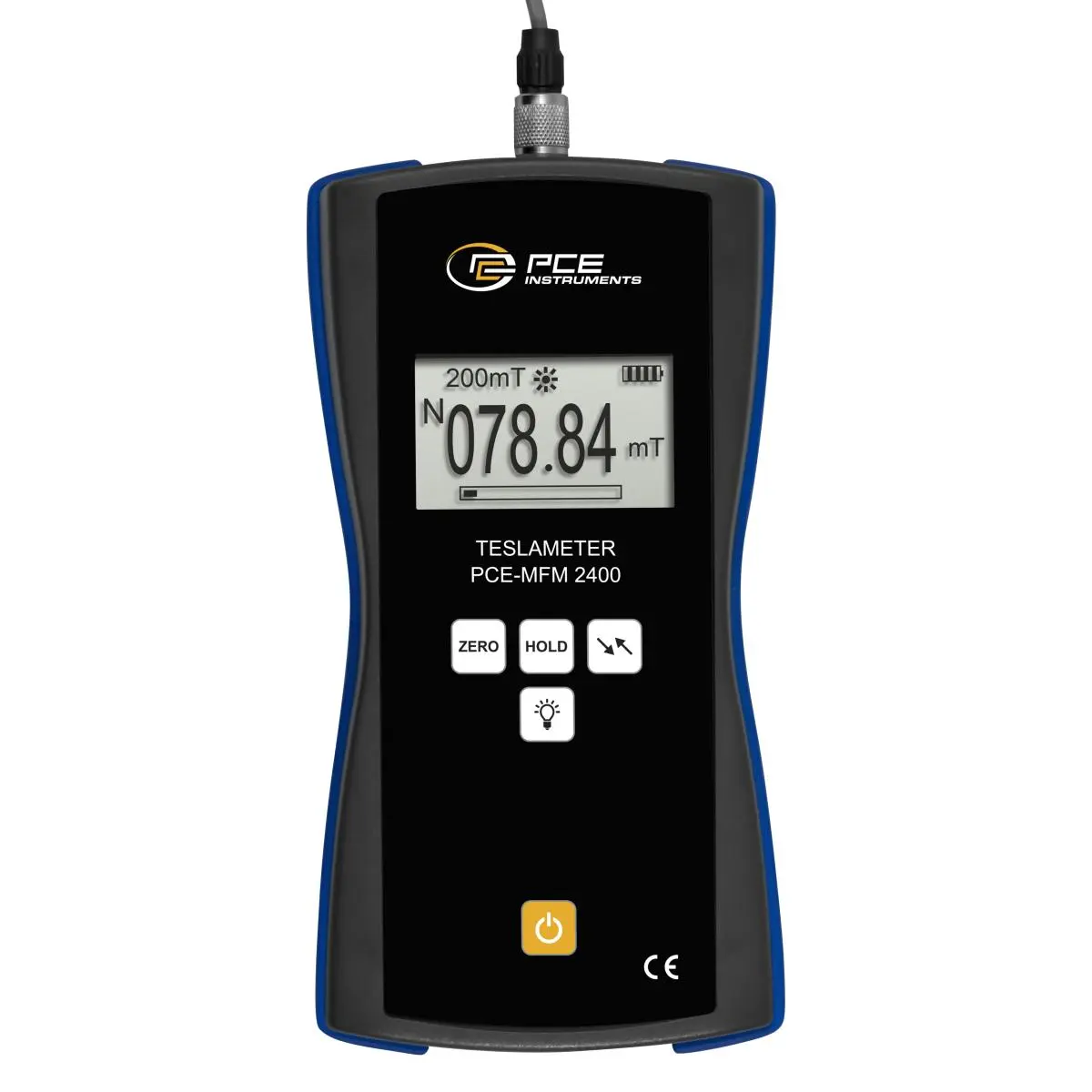

Magnetometer PCE-MFM 2400+
Precise magnetic field meter with an accuracy of 1% /
Automatic shutdown / Axial measurement / Background lighting /
Tesla and Gaussian measurements / For static magnetic fields


With a measuring range of 2,400 mT, the magnetometer covers a wide range of measuring tasks. The magnetometer has an accuracy of 1%. This makes the magnetometer a very precise measuring device. For example, relays and permanent magnets can be tested for the existing magnetic field with the magnetometer. The magnetometer is used in production processes or in quality control.

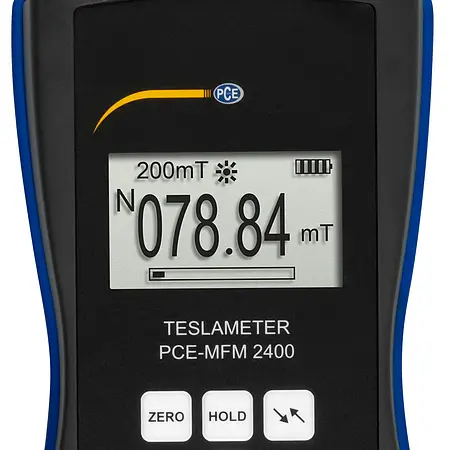

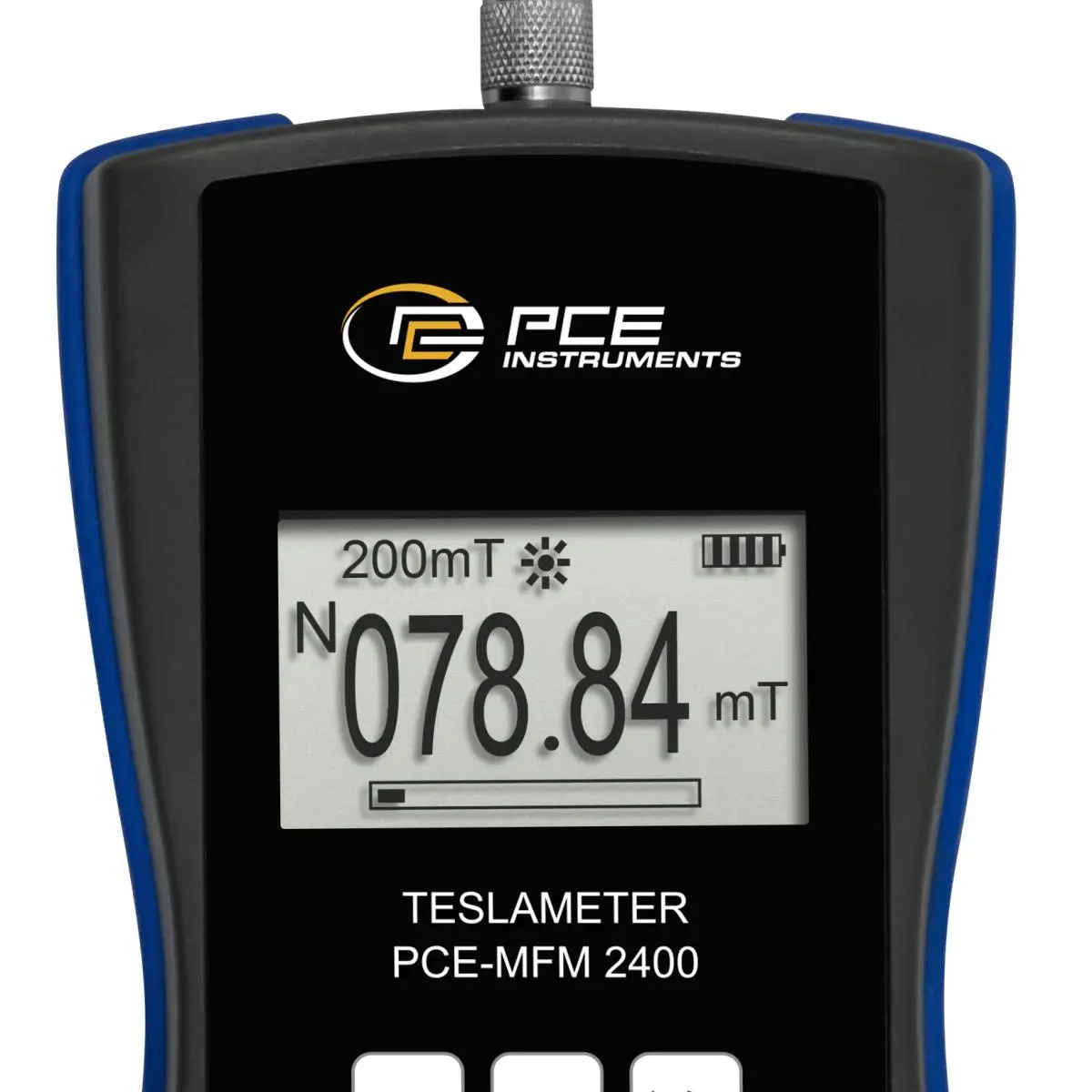

With the backlighting of the magnetometer, the measured values are always easy to read, even in poor lighting. Thanks to the automatic switch-off function, the magnetometer switches itself off automatically after 5 minutes. This ensures that the magnetometer's battery does not discharge completely.

Highlights

- Very precise measurement technology
- Measuring range up to 24,000 G and 2,400 mT

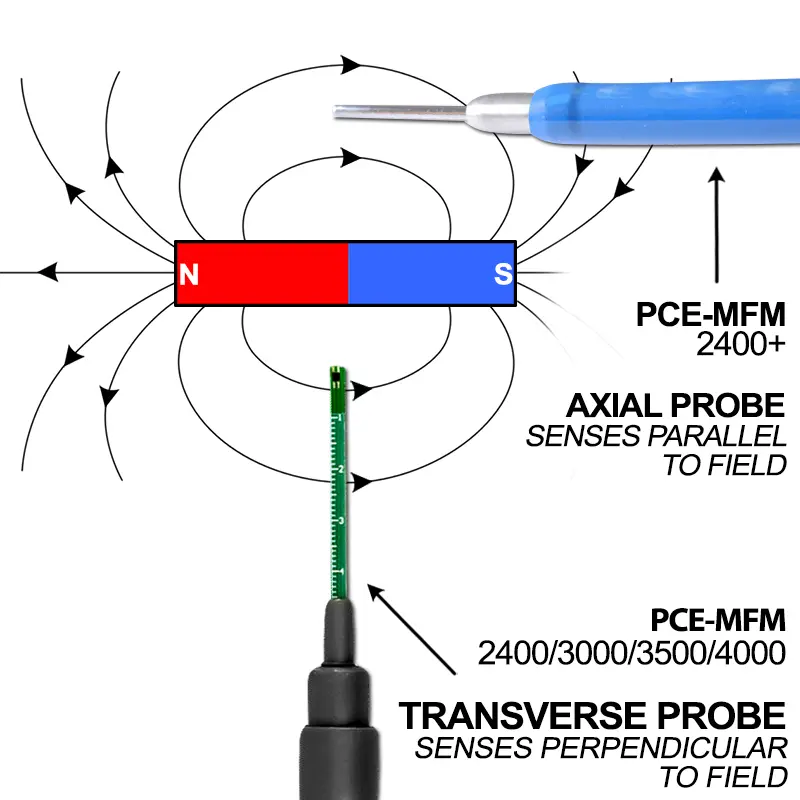

- Axial sensor
- For measuring static magnetic fields
- Automatic shutdown

Specification

Magnetic field DC
Measuring range  0 ... 200 mT
Resolution  0,01 mT
Accuracy  ±1% of Rd

Magnetic field DC
Measuring range  200 ... 2400 mT
Resolution  0,01 mT
Accuracy  ±1% of Rd

Magnetic field DC
Measuring range  0 ... 2000 g
Resolution  0,1 g
Accuracy  ±1% of Rd

Magnetic field DC
Measuring range  2000 ... 24000 g
Resolution  0,1 g
Accuracy  ±1% of Rd

General technical data
Cable length  2 m
Measuring functions  HOLD
Units  mT, g

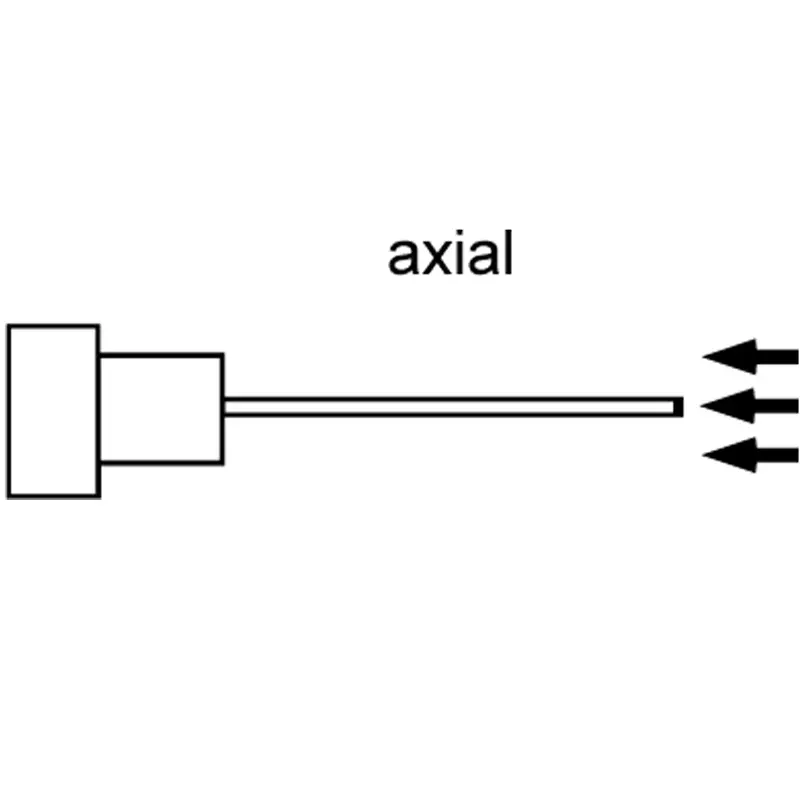

Measuring direction  axial

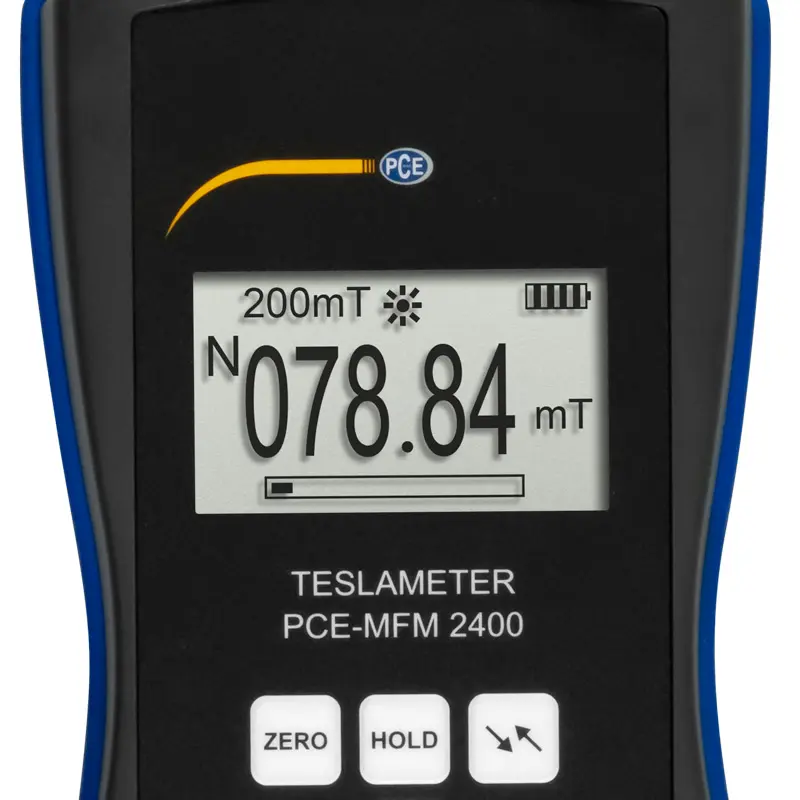

Display type  LCD with backlight
Measuring rate  1 Hz
Sensor  Hall sensor
Automatic power-off  5 min
Menu language  English, English (GB)
Protection class (device)  IP20
(Rechargeable) battery  1 x 9 V 9V block , Alkali-manganese
Capacity  640 mAh
Performance  5,76 Wh
Operating conditions  0 ... 50 °C , 0 ... 80 % RH
Storage conditions  -20 ... 50 °C , 0 ... 80 % RH
Dimensions ( L x W x H )  185 x 97 x 40 mm
Weight  310 g

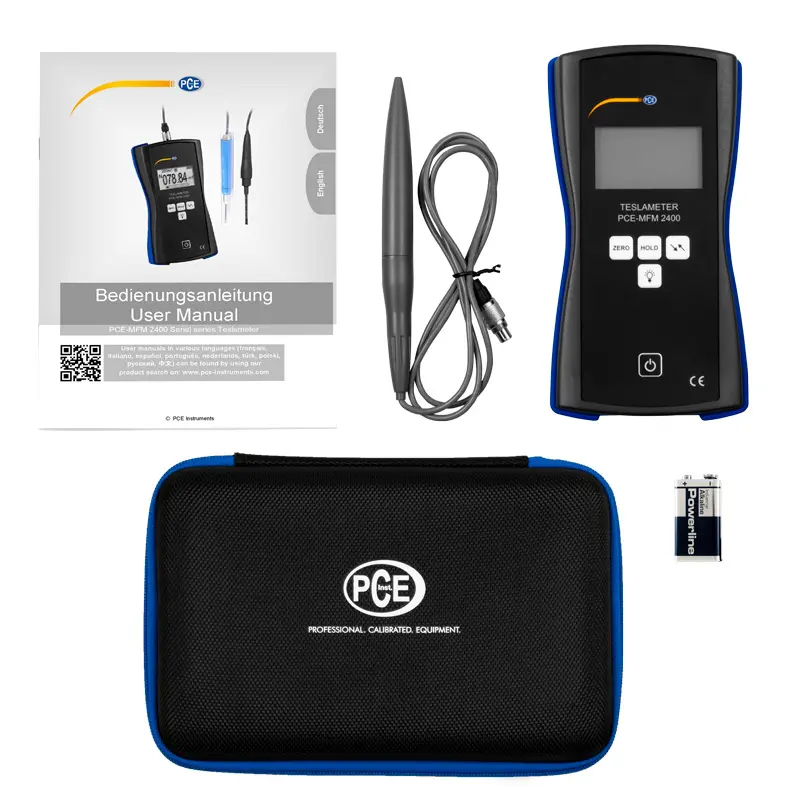

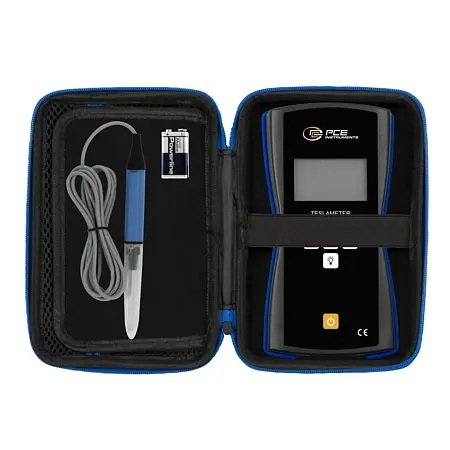

Delivery Scope

1 x Electromagnetic Field Meter PCE-MFM 2400+

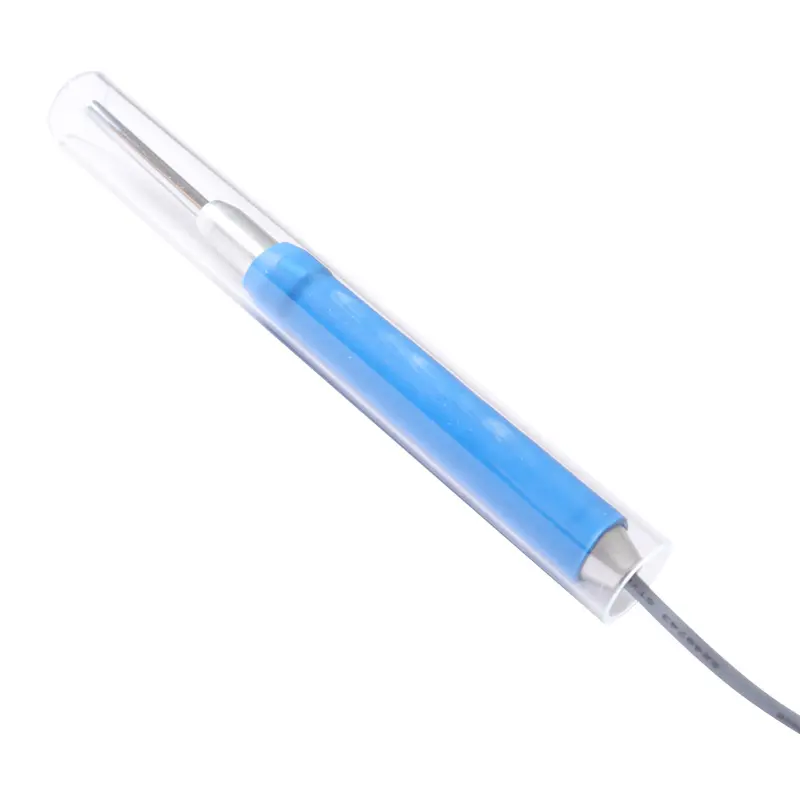

1 x Hall sensor (axial)
1 x Service bag
1 x 9V block battery
1 x Instruction manual
