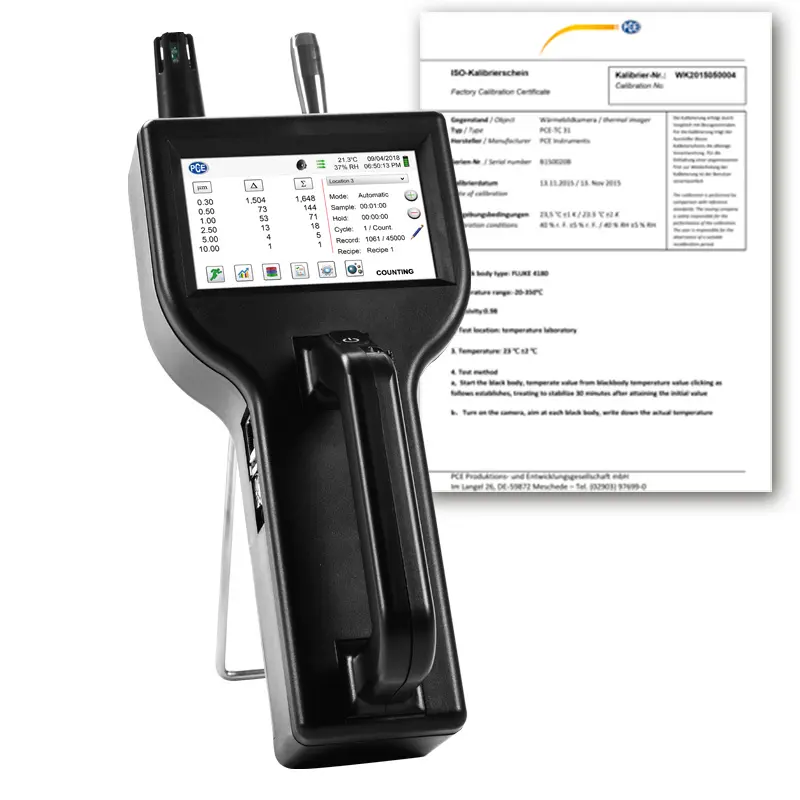

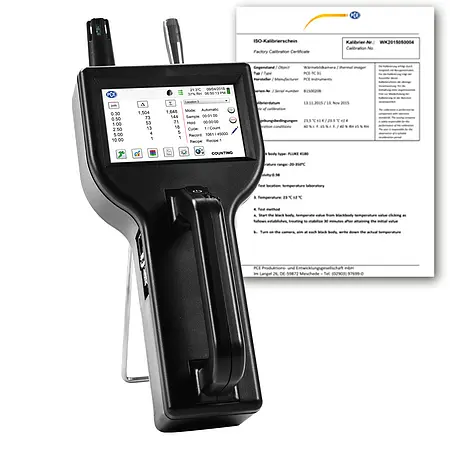

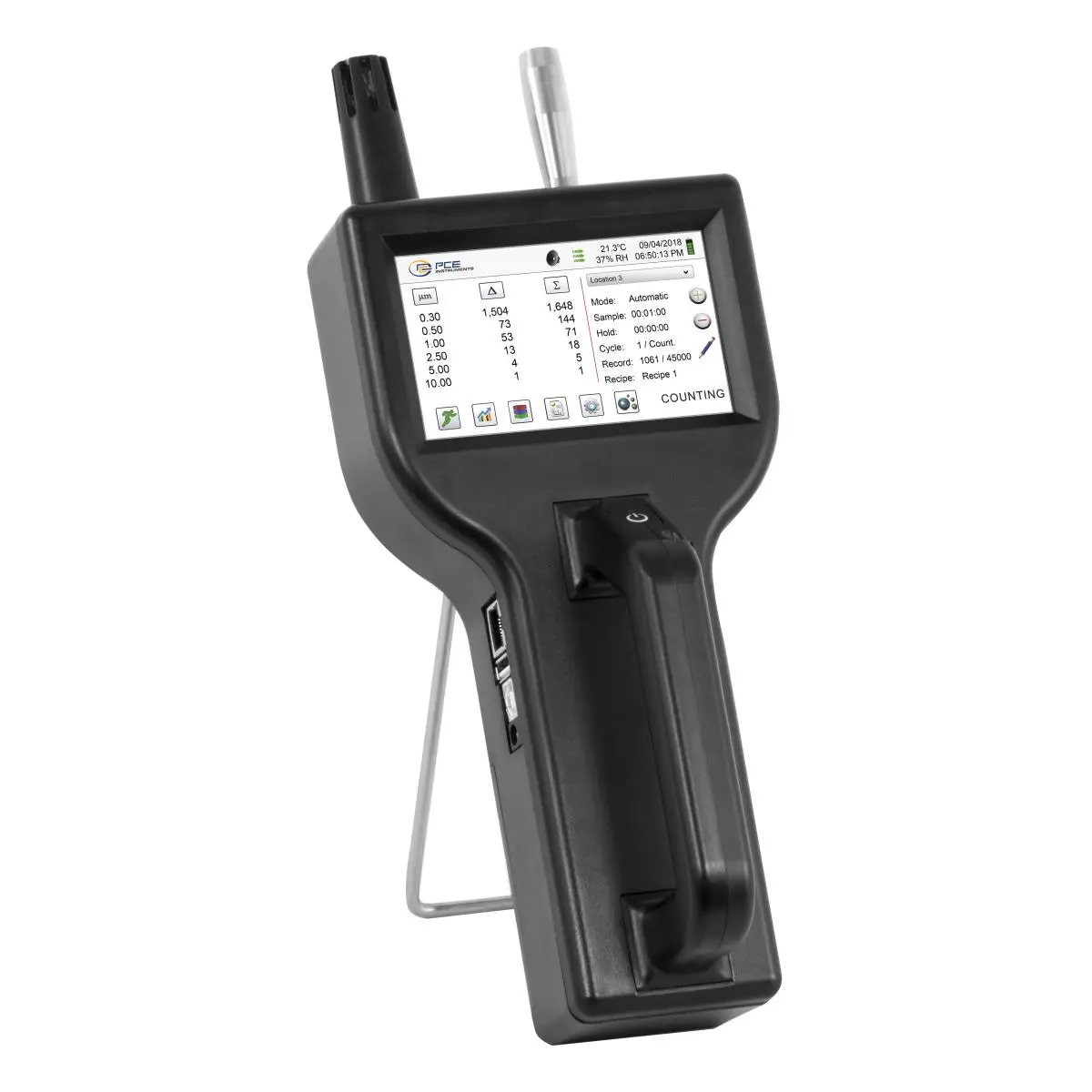

Dust Monitor PCE-PQC 10EU Incl. Calibration Certificate

Order no.: PCE-PQC 10EU

GTIN (EAN): 4250348720337

Accessory

PCE-PQC-WIFI Antenna for PCE-PQC series

₹52,464.00

Cleaning filter for PCE-PQC series

₹34,573.00

Isokinetic sensor for PCE-PQC series

₹13,143.00

Re-Calibration Certificate CAL-PCE-PQC

₹106,779.00

Description

Dust Monitor PCE-PQC 1xEU series incl. calibration certificate
Measurement of particle sizes up to 25 μm / Up to 6 parallel measuring channels / Internal memory / Reporting according to ISO 14644-1, EU GMP Annex I, FS 209E / Extrapolation of the mass concentration in μg / m³ / Ethernet, USB or (optional) Wifi connection

The dust monitor measures the concentration of particles such as dust, soot, pollens and many other aerosols in the air. To accurately determine the degree of pollution of the air, the dust monitor was developed. Pollution is mainly generated by combustion, material processing, manufacturing, power generation, vehicle engine emissions and the construction industry. With the help of the dust monitor the exact amount of dirt particles in the air can be measured.

Of greater importance is the degree of pollution of the air with pathogenic particles such as soot, which are released by the industry and especially by diesel vehicles without special filtering in the air. Such dispersion particles are responsible inter alia for reduced visibility, the inhalation of toxic substances and thus reduced labor productivity. It has also been known for some time that the particles also make a not inconsiderable contribution to many medical diseases such as asthma, bronchitis, skin and lung diseases. The dust monitor is designed for easy and quick use. The dust monitor operates in different modes (real-time, cumulative, differential, mass concentration, ...) and displays the results on the display.

Highlights

- Internal memory

- Particle sizes up to 25 μm

- Color display

- Handy

- 6 measuring channels

- ISO 14644-1, EU GMP Annex I, FS 209E

- Mass concentration

- Ethernet, USB

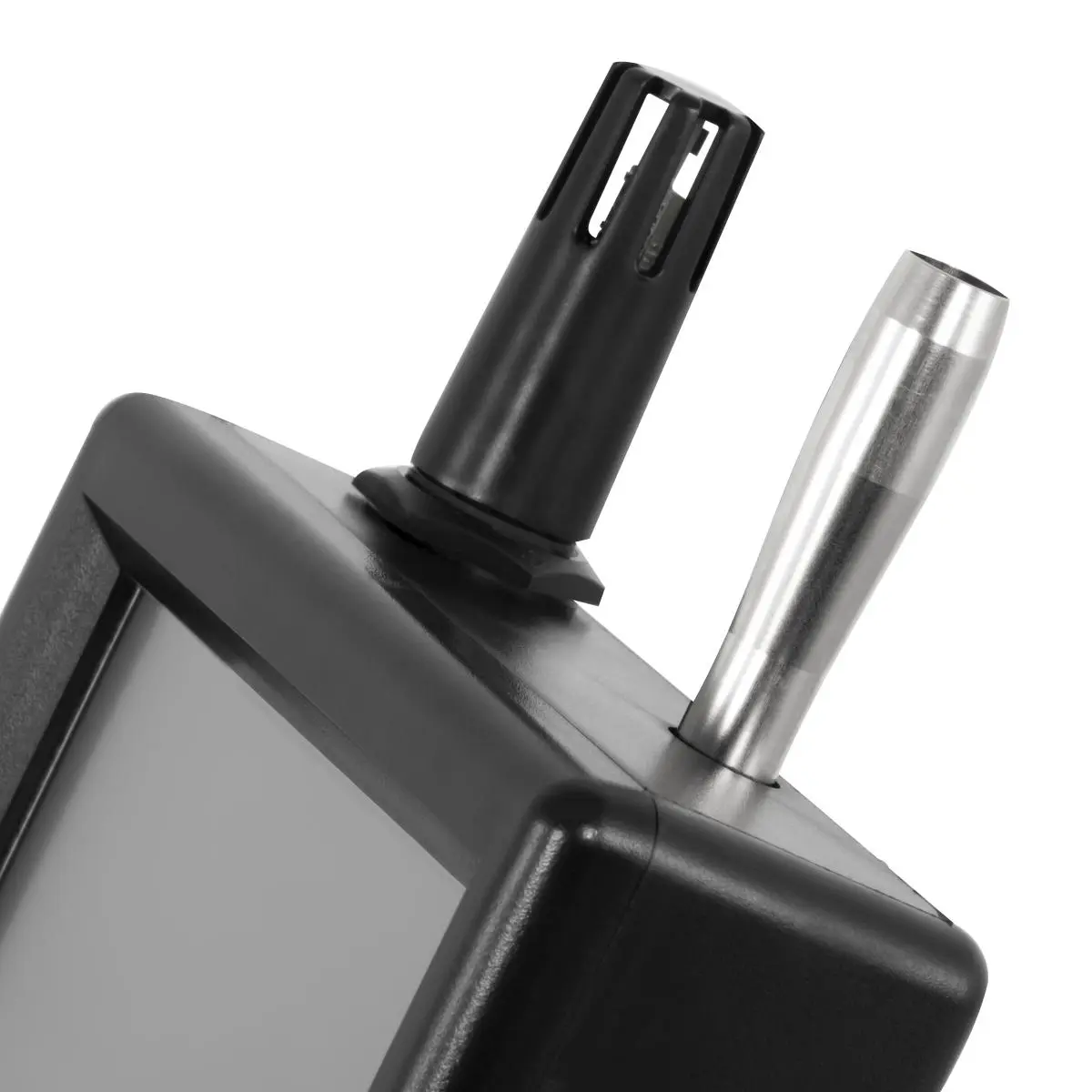

- Incl. temperature and humidity sensor

- Incl. calibration certificate traceable to NIST ISO 21501-4 and JIS B9921

Specification

Particle
Measuring channel sizes	0.3, 0.5, 1.0, 2.5, 5.0, 10
Measuring range	0,3 ... 25 µm
Counting efficiency	50 % at 0.3 µm, 100 % at >0.45 µm according to JIS
Flow volume	2,83 l/min

Relative humidity
Measuring range	15 ... 90 % RH
Resolution	1 % RH
Accuracy	±2 % RH

Temperature
Measuring range	0 ... 50 °C
Resolution	0,5 °C
Accuracy	±0.5 °C

General technical data
Number of measuring channels	6

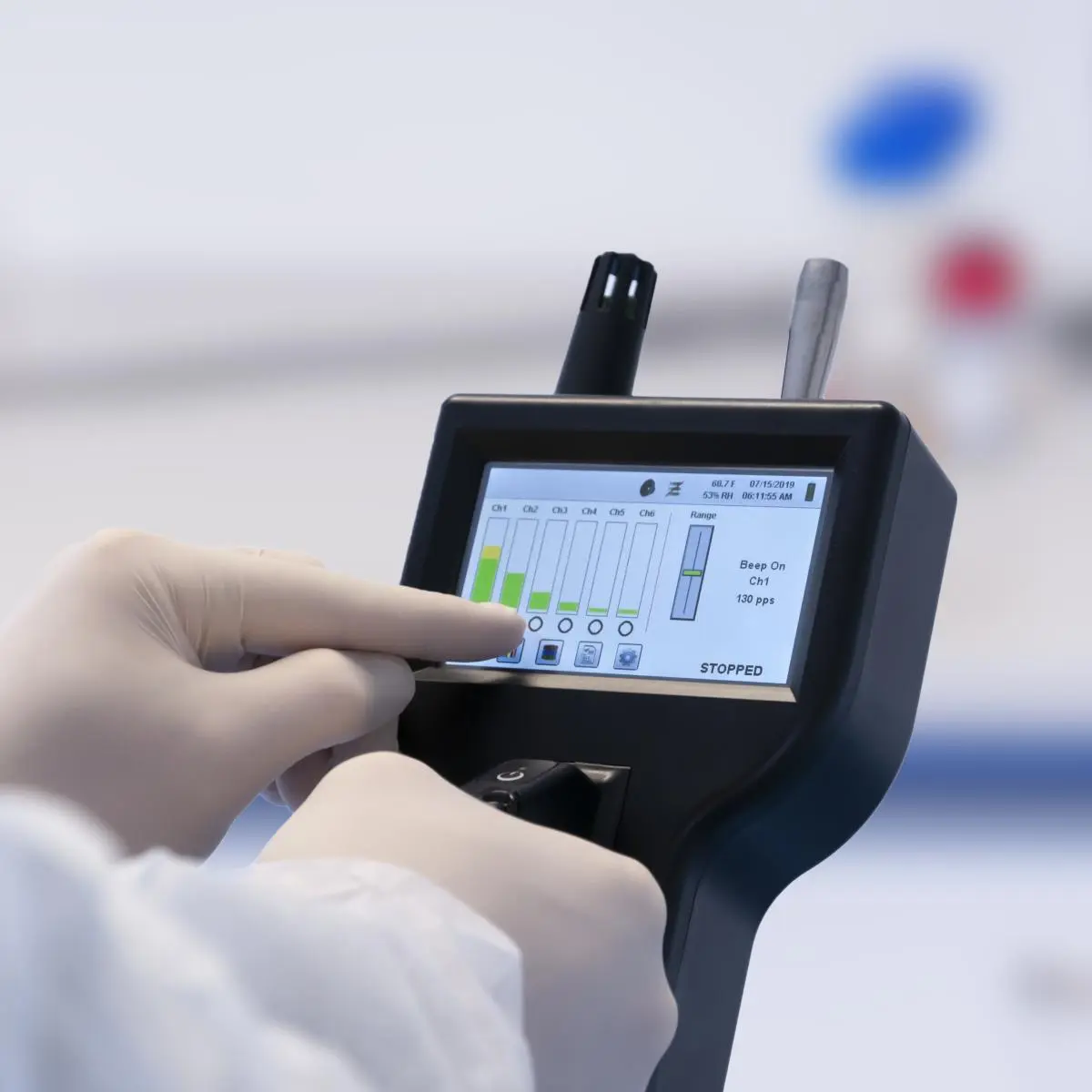

Display type	Colour touch display
Display size	4,3 Inch
Storage medium	Internal memory
Storage capacity	45000 Data records
Memory capacity (additional information)	Ring memory consisting of particle count, temperature and humidity, locations and times
Storage interval from	1 s
Storage interval to	99 h

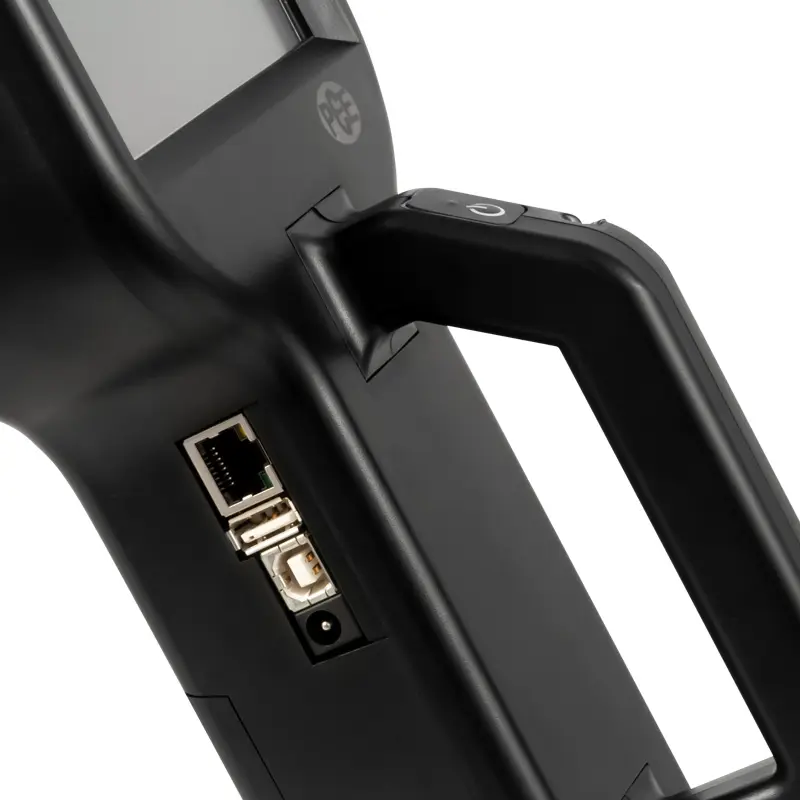

Interface	Ethernet, USB, USB-B
Standard(s)	ISO 21501-4, JIS B9921
Sensor	Temperature
Operating time	10 h
Light source	long-life laser diode
Alarm	optical, Acoustic
Alarm modes	1 ... 9,999,999 counts, adjustable
Calibration	Traceable to NIST
Menu language	English, English (GB)
Protection class (device)	IP20
Power supply	110 ... 240 V AC \| 50/60 Hz
Connector type	Device-europlug
(Rechargeable) battery	1 x 10,8 V internal , Lithium-ion battery
Capacity	5200 mAh
Operating conditions	5 ... 40 °C , 0 ... 95 % RH
Storage conditions	0 ... 50 °C , 0 ... 98 % RH
Dimensions ( L x W x H )	254 x 129 x 114 mm
Weight	1000 g
