Dust Monitor PCE-MPC 15

Order no.: PCE-MPC 15

GTIN (EAN): 4250348730275

Description

Dust Monitor for indicative measurement / Adjustable alarm limits / Data logger /
Micro USB charging interface / Measuring range 0 ... 1000 µg/m³ / Mass concentration /

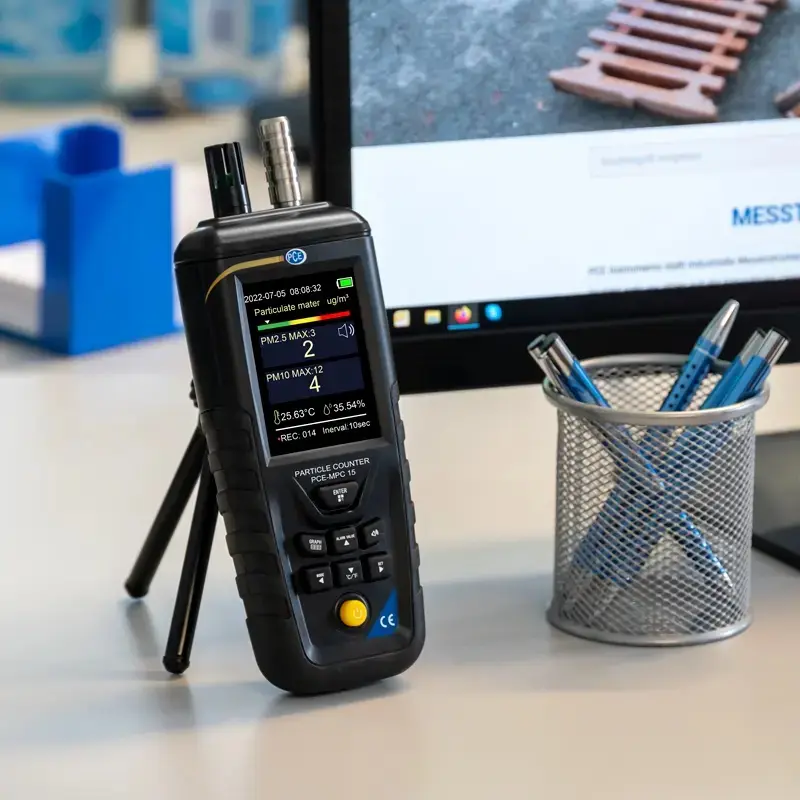

Approx. 9 hours of battery life / 3.2" color display / Carrying case / 1/4" tripod connection

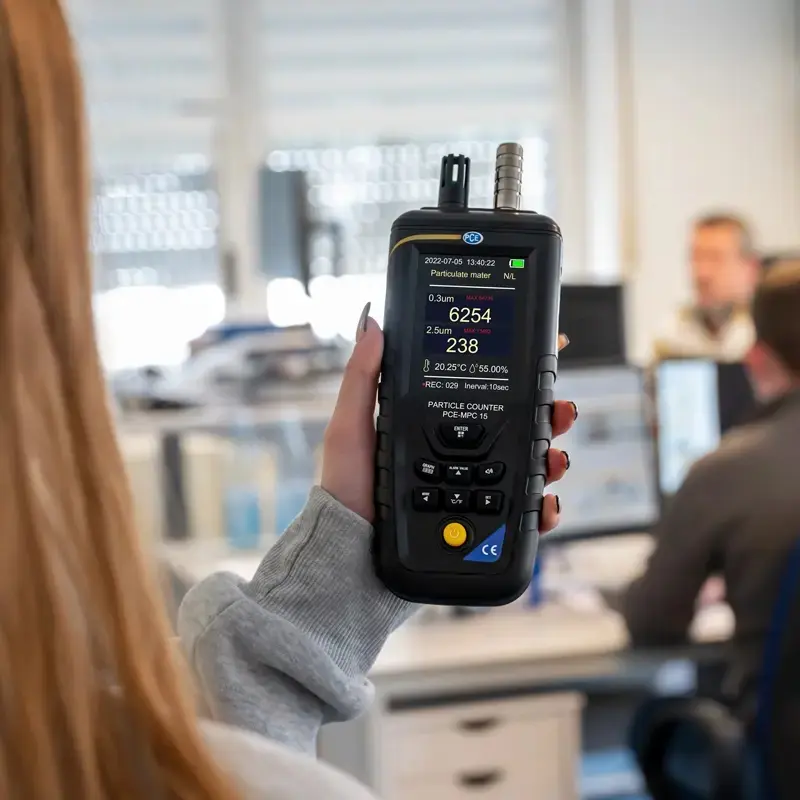

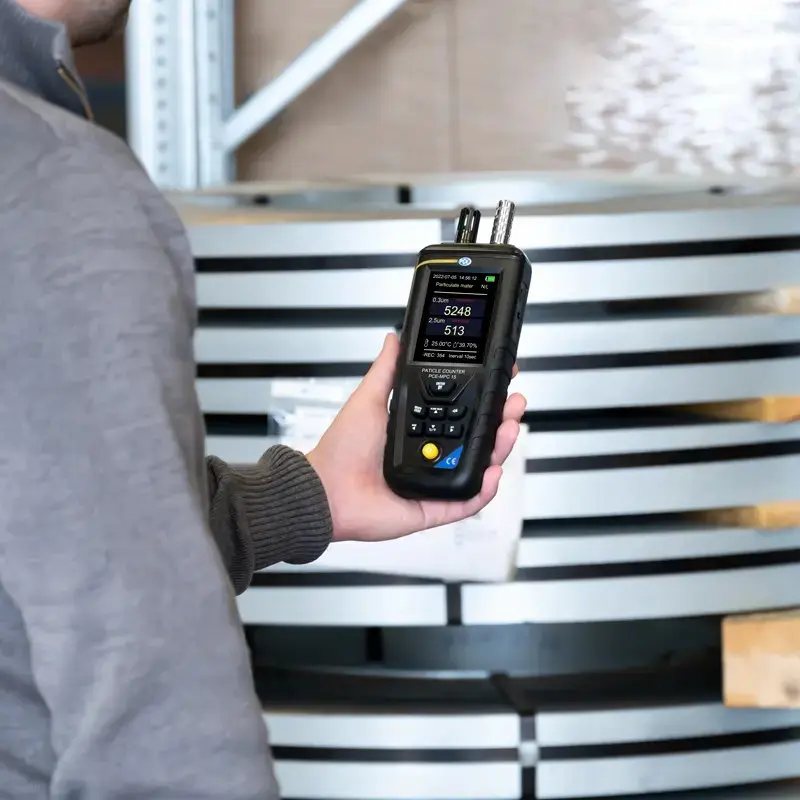

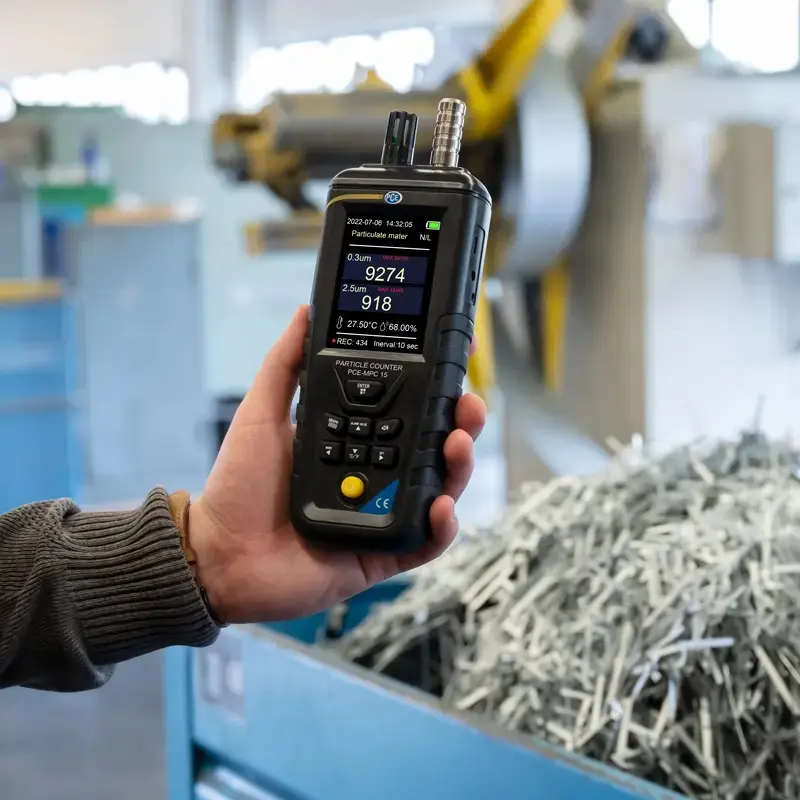

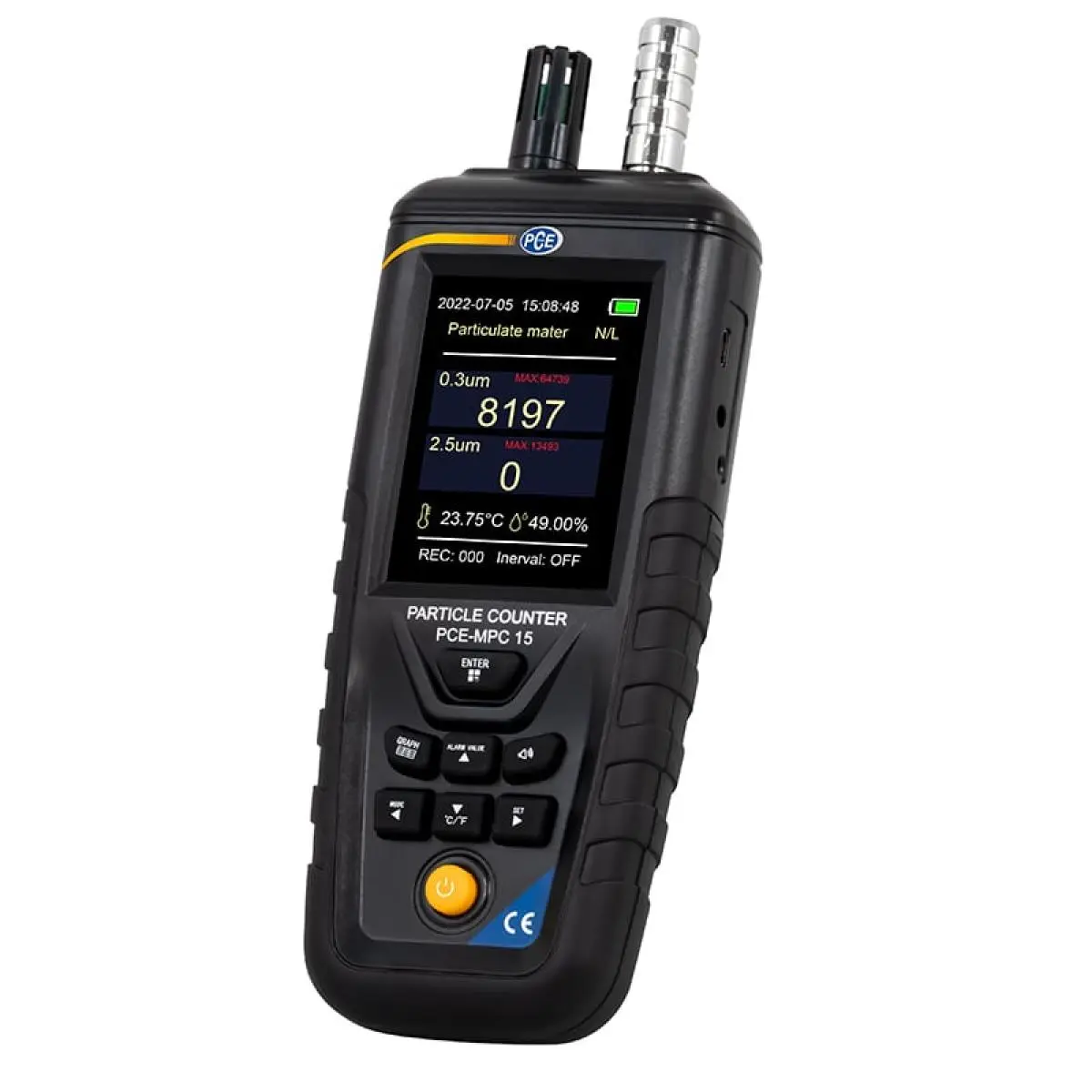

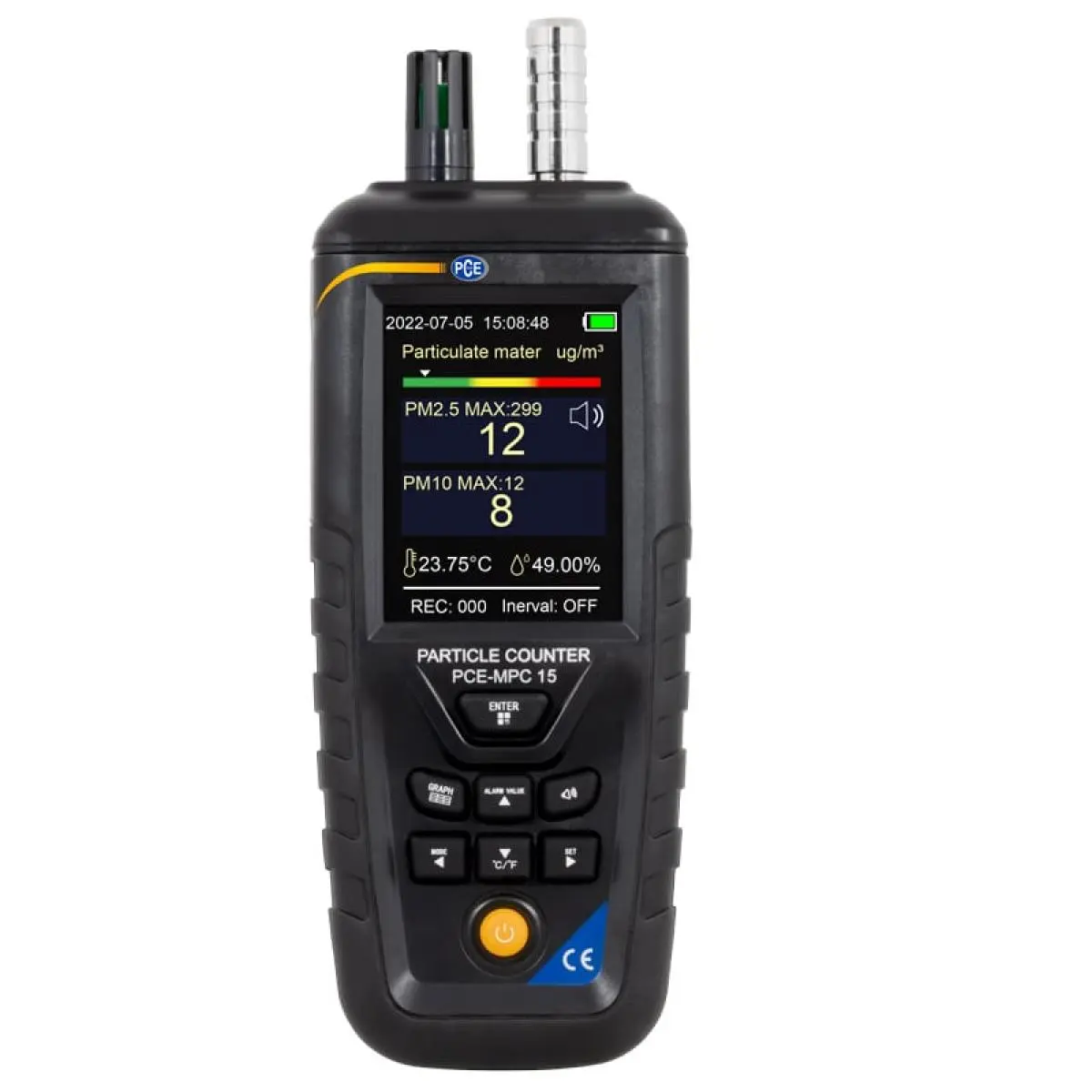

The dust monitor is used in offices, workshops or in laboratories to carry out indicative measurements of the environmental conditions. In addition to the number of particles, the dust monitor determines the mass concentration of PM2.5 and PM10 in the measuring range 0 … 1000 µg/m³. In addition, the temperature and the ambient humidity are measured. With the alarm limit function, limit values for PM2.5 can be set on the dust monitor.

During a measurement it is possible to record the measured values with the dust monitor. A memory with a storage capacity of approx. 12 measurement runs, each with 999 measurement points, is available for the dust monitor. The interval can be set at different times on the particle counter.

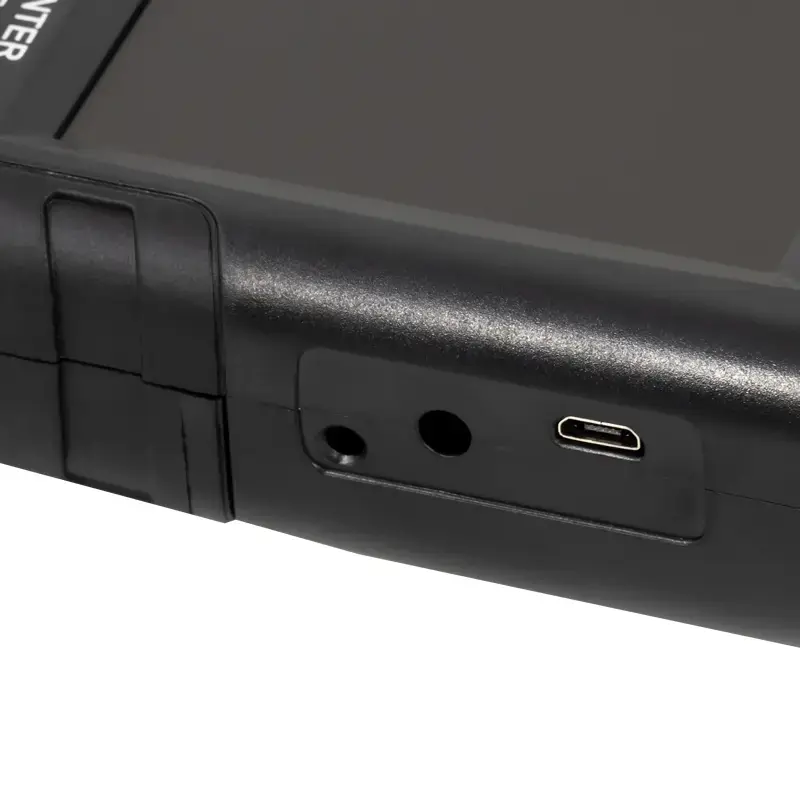

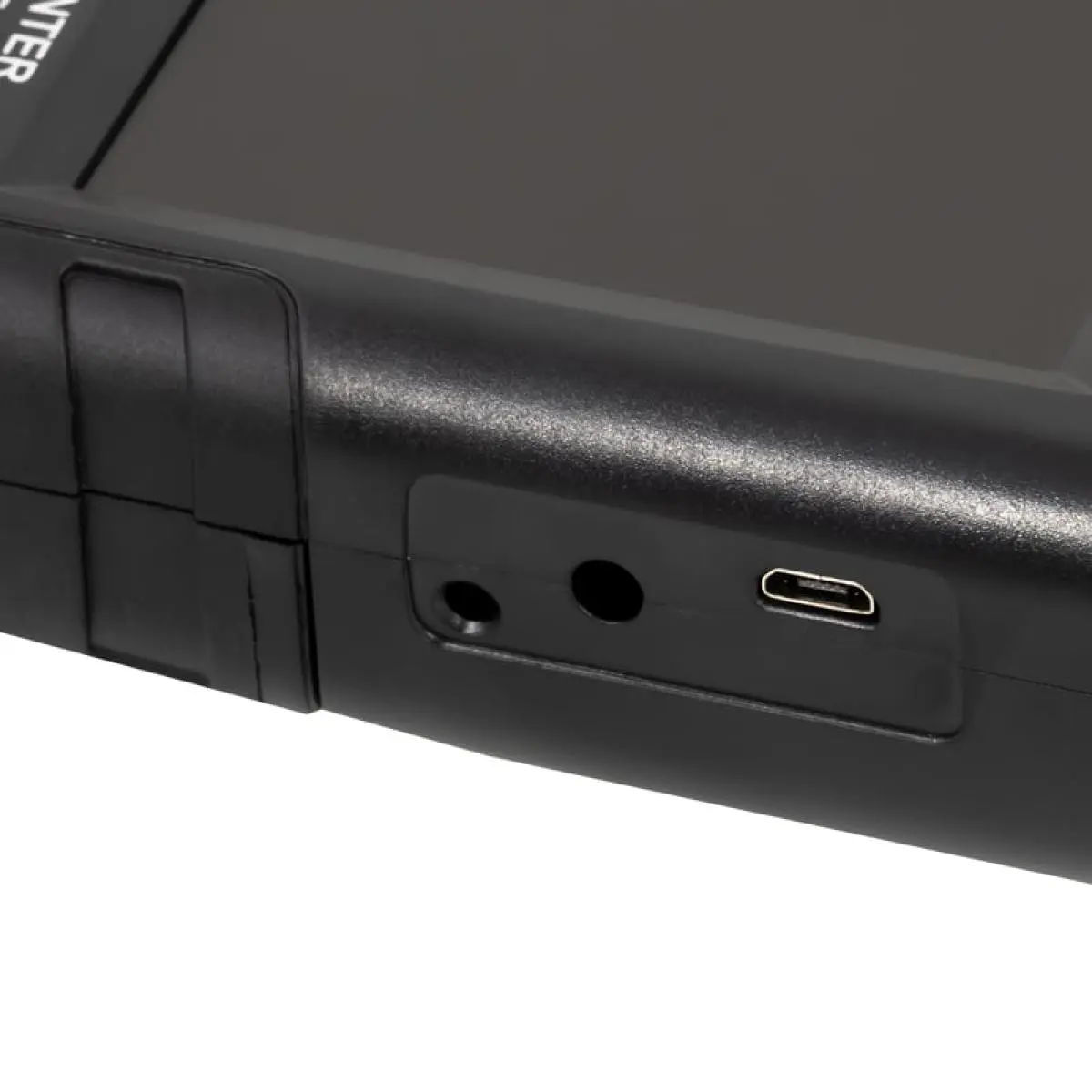

The 8 Wh battery can be charged via the micro USB interface. The battery used in the dust monitor enables an operating time of approx. 9 hours. Thus, the dust monitor can carry out measurements over an entire working day before it has to be recharged. Since the battery is not permanently installed in the dust monitor, it can be easily replaced.

Highlights

- Data storage for data logging

- Adjustable alarm when limit value is exceeded

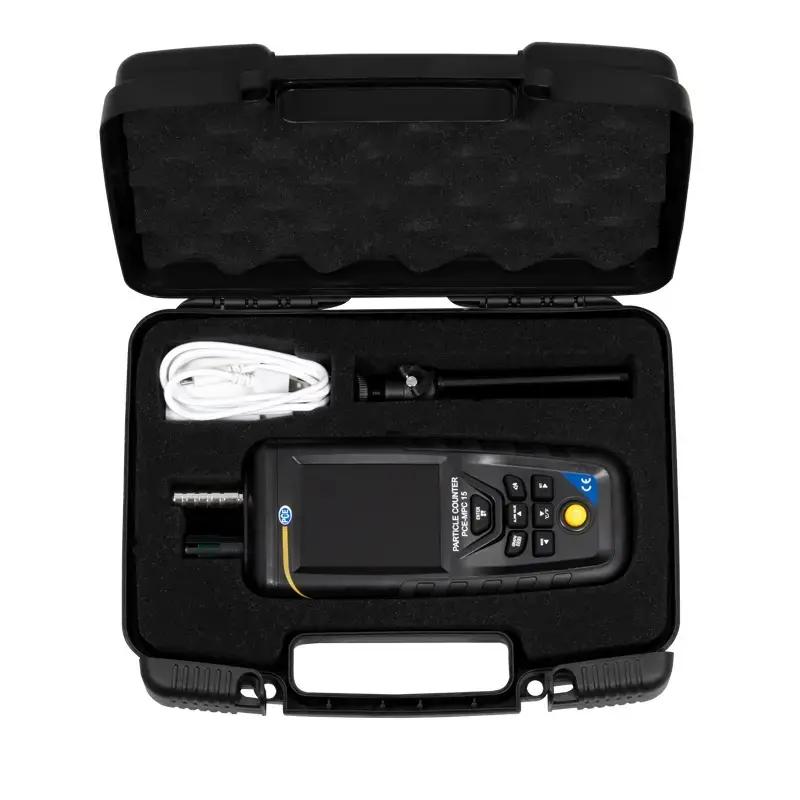

- Transport case for safe transport

- Suitable for indicative measurements

- Measuring range 0 ... 1000 µm/m³

- Interface: Micro USB only for charging

Specification

Particle
Measuring channel sizes	PM10, PM2,5
Measuring range	0 ... 100 µg/m³
Resolution	1 µm
Accuracy	±10 µg/m³

Particle
Measuring range	101 ... 1000 µg/m³
Resolution	1 µm
Accuracy	±10% relative to Mw.
Measuring channel sizes	PM2,5, PM10

Particle
Measuring range	0 ... 2000000 Particle/L
Resolution	1 µm
Accuracy	Reference measurement
Measuring channel sizes	0.3, 2.5

Relative humidity
Measuring range	0 ... 100 % RH
Resolution	0,01 % RH
Accuracy	±3 % RH

Temperature
Measuring range	-10 ... +60 °C
Accuracy	±2 °C

Temperature
Measuring range	14 ... 140 °F
Resolution	0,01 °F
Accuracy	±3.6 °F

General technical data

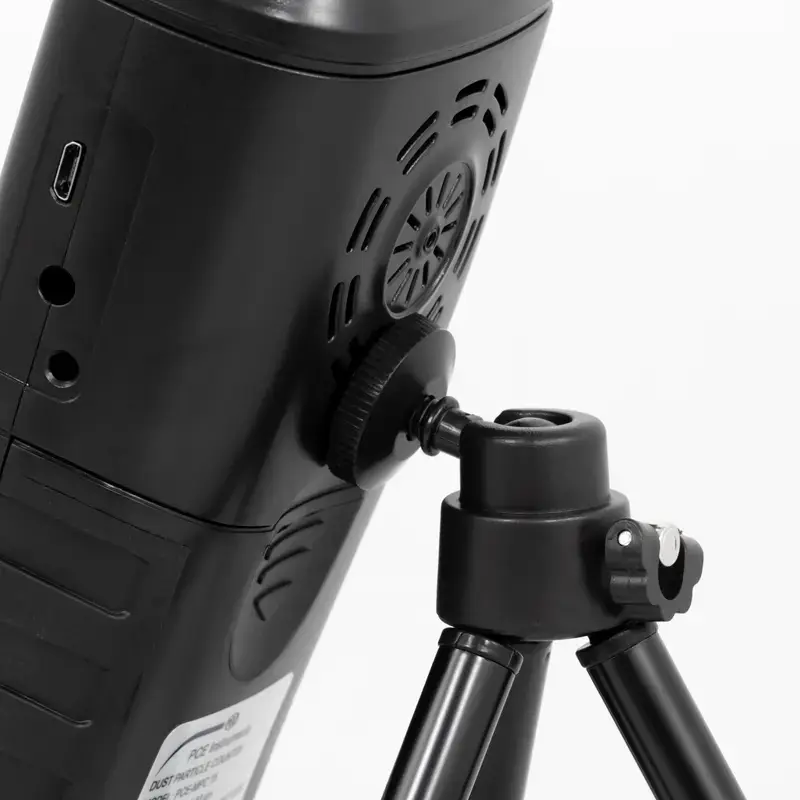

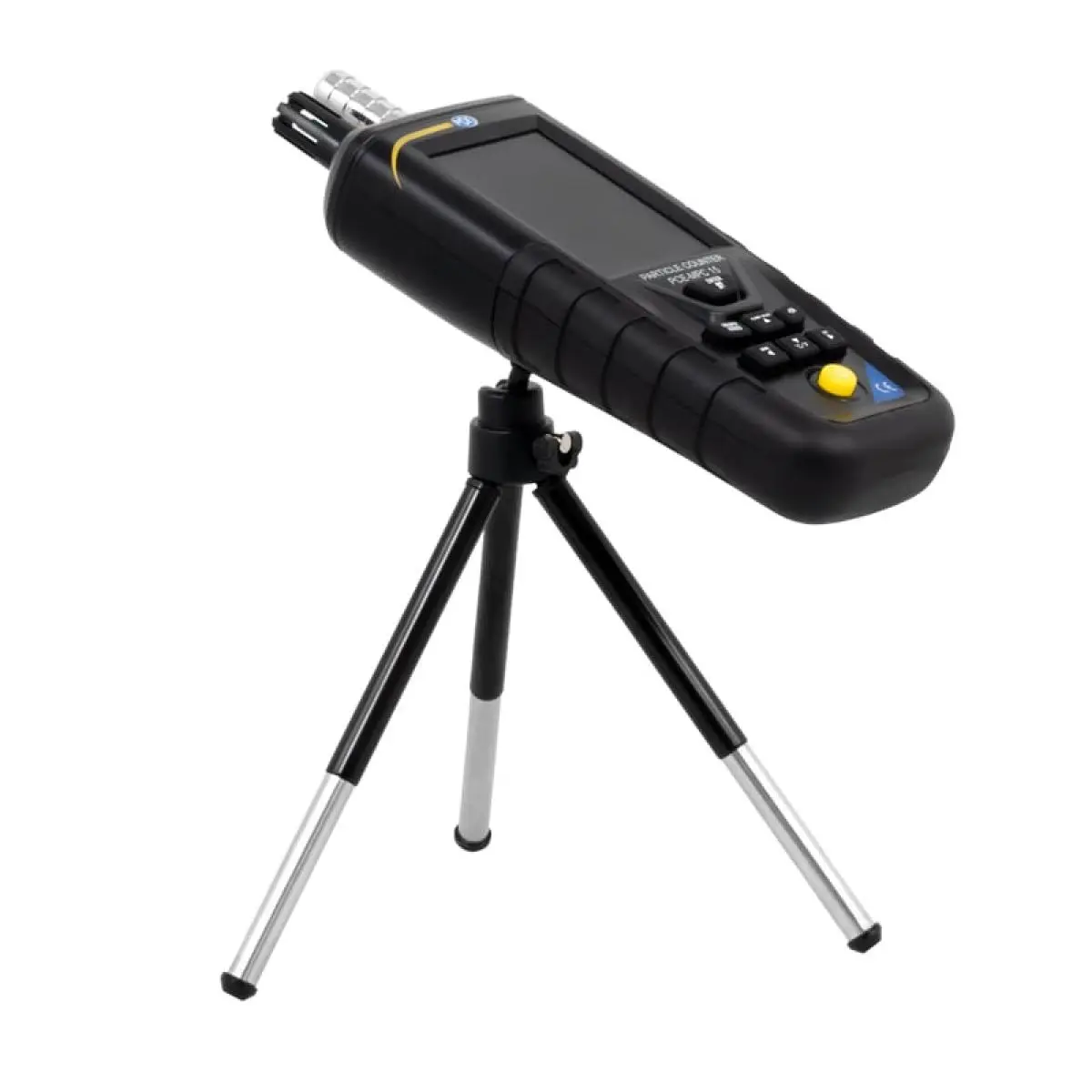

Connections	1/4 inch tripod connection
Display type	LC colour display
Display size	3,2 Inch
Storage medium	Internal memory
Storage capacity	11988 Values
Memory capacity (additional information)	Flash memory for approx. 12 measurement runs, one measurement run contains 999 measuring points
Storage interval from	10 s
Storage interval to	60 min.
Interface	Micro-USB
Sensor	Temperature
Response time	1 s
Warm-up time	10 s
Operating time	9 h
Automatic power-off from...to	15 ... 480 min.

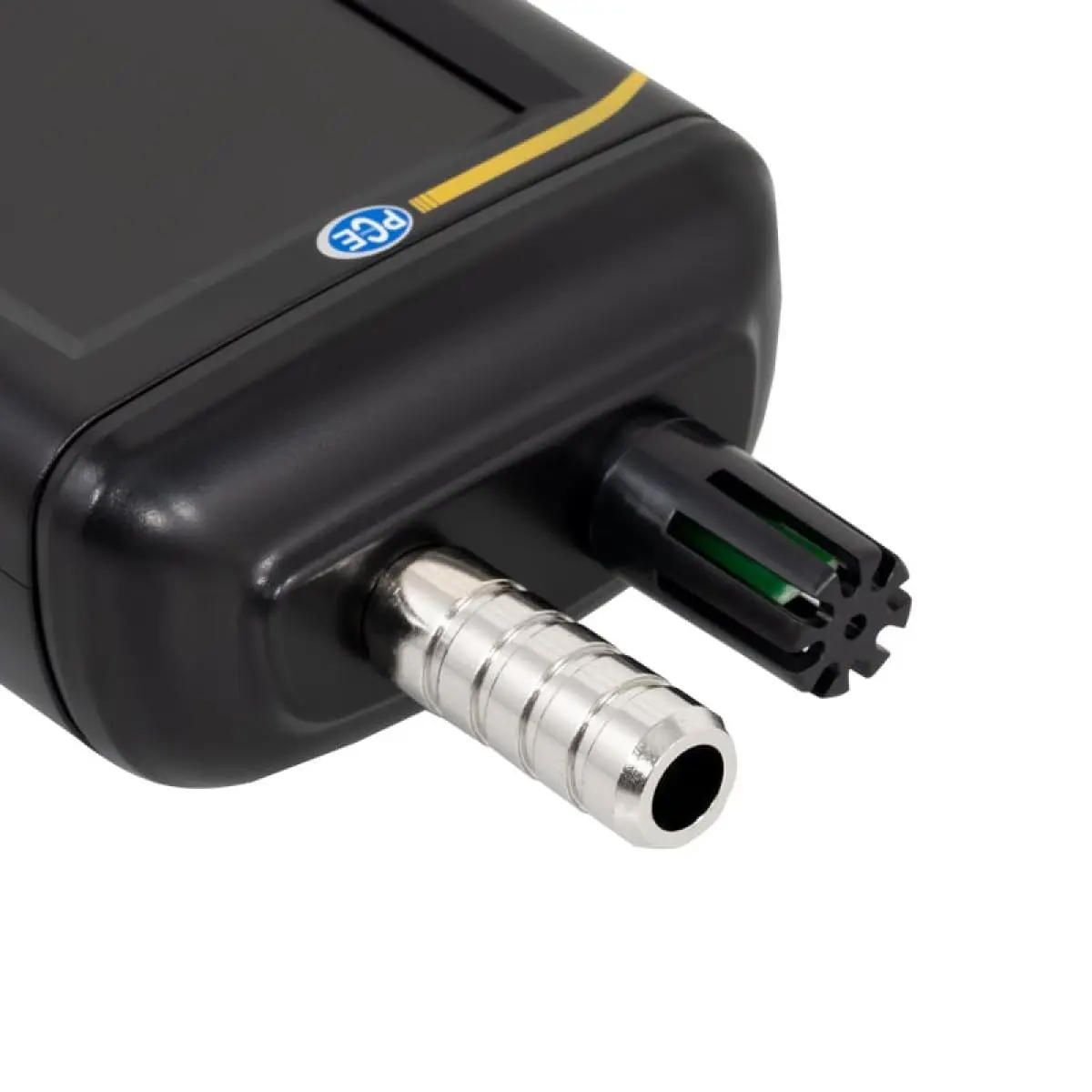

Dimensions	Intake: - Outside: Ø13 mm - Inside: Ø7 mm - Height: 35 mm
Menu language	English, Chinese, English (GB)
Protection class (device)	IP20
Power supply	100 ... 240 V AC \| 50/60 Hz
Connector type	Device-europlug

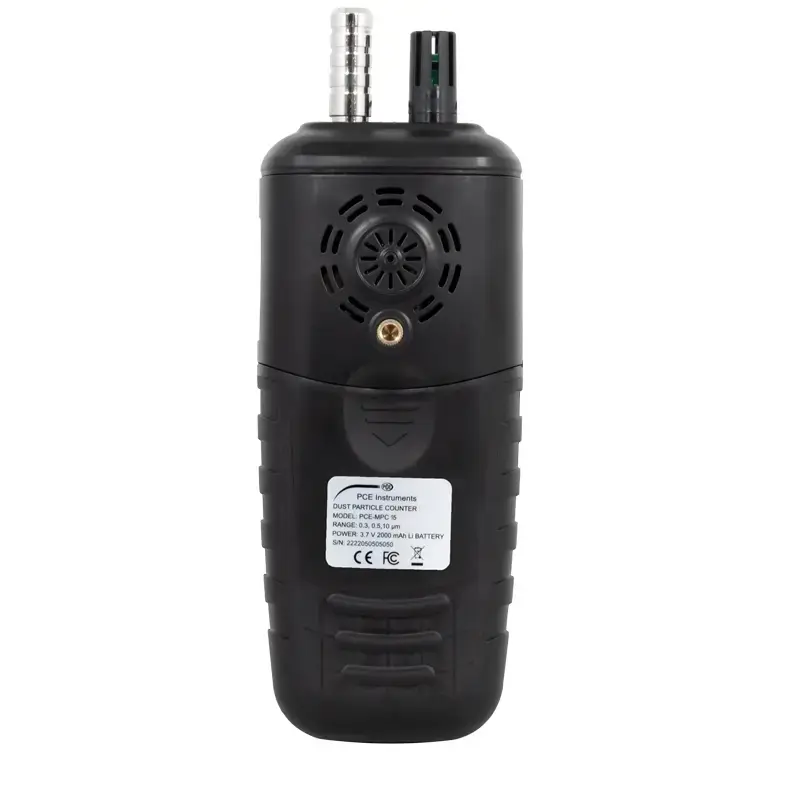

(Rechargeable) battery	1 x 3,7 V internal , Lithium-ion battery
Capacity	2200 mAh
Operating conditions	0 ... 50 °C , 0 ... 90 % RH
Storage conditions	0 ... 50 °C , 0 ... 90 % RH
Dimensions ( L x W x H )	222 x 80 x 46 mm
Weight	320 g
