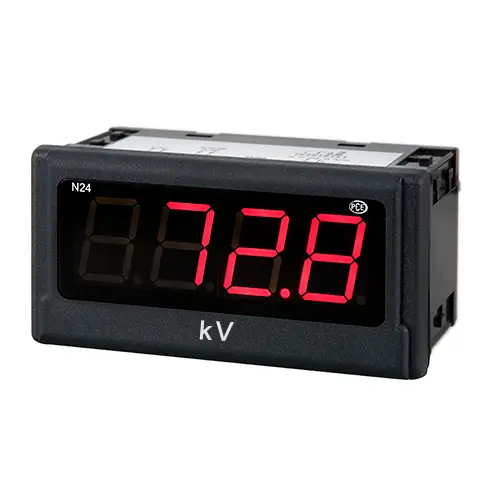

| General Technical Specifications of the Voltage Indicator PCE-N24H | |
| Input (arbitrary) | ± 100 V DC 0 ... 100 V DC |
| Accuracy | ± (0.2 % FS + 1 dgt.) |
| Internal resistance | 10 Ω ± 1 % |
| Scaling | 2-point-scaling |
| Display | 4-digit, 7-segments, LED, digit height: 20 mm |
| Display range | -1999 ... 9999 |
| Power Source for Sensor (arbitrary) | 24 V DC, max. 30 mA |
| Surrounding temperature | During
Operation: -10 °C ... +55 °C Storage: : -25 °C ... +85 °C |
| Diameters | 96 mm x 48 mm x 64 mm |
| Size of switch board | 92 mm x 45 mm (according to DIN) |
| Power Source (arbitrary) | 24
V AC 110 V AC 230 V AC 85 ... 253 V AC/DC 20 ... 40 V AC/DC |
| Power Consumption of sensor (arbitrary) | 24 V / 30 mA |
| Protection Class | Front: IP 65 |
| Weight | < 200 g |
| Assembly | Mounting
clips with clamp screws, Connection via plug board |
| Enclosure | Solid synthetic enclosure |
