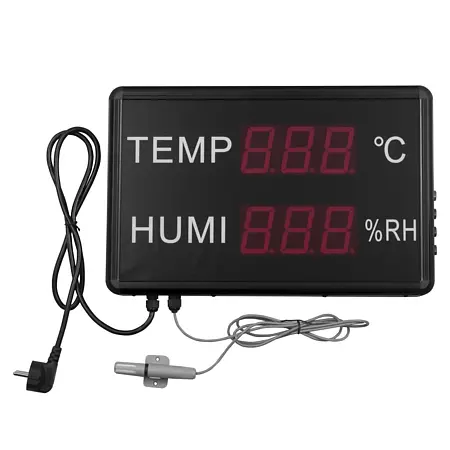

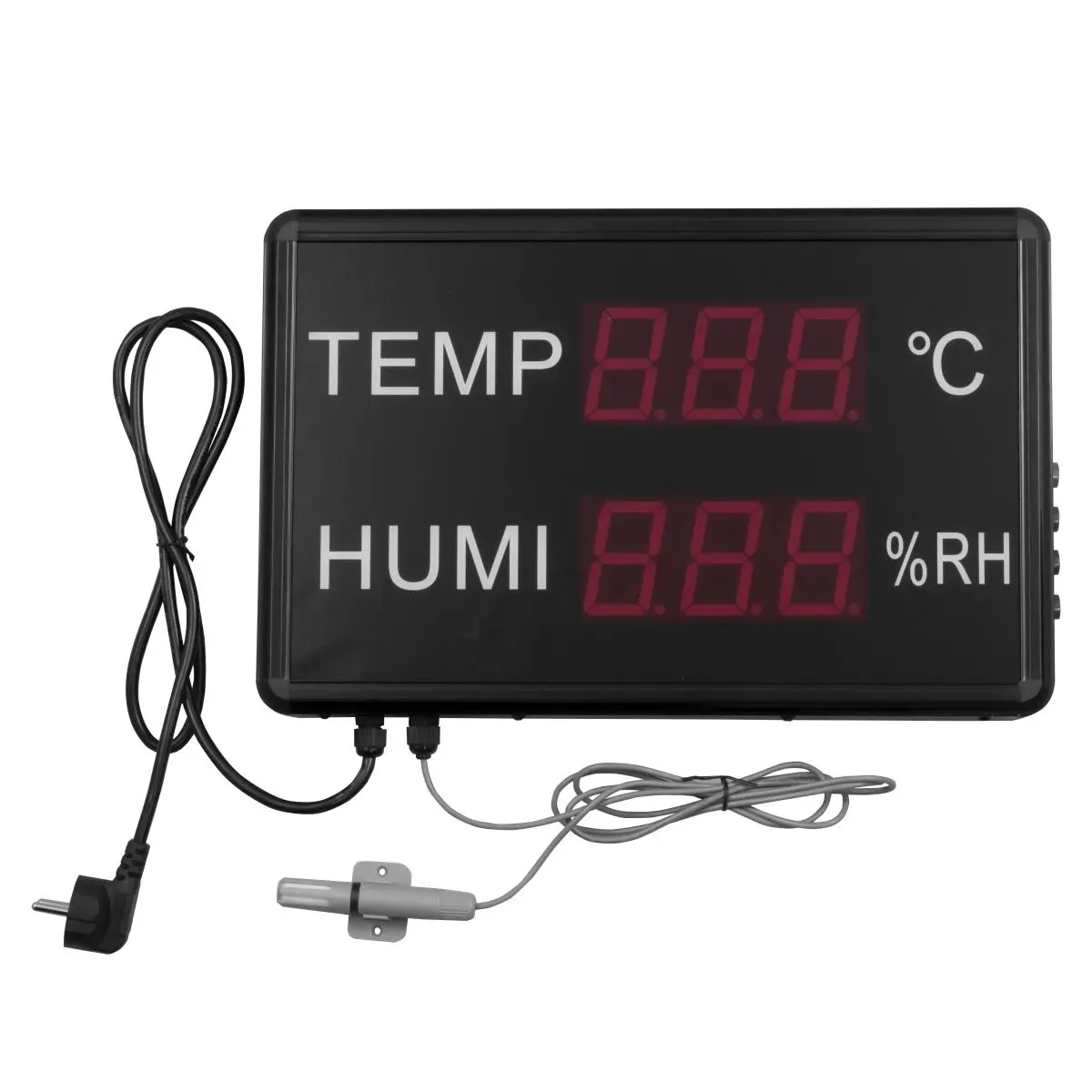

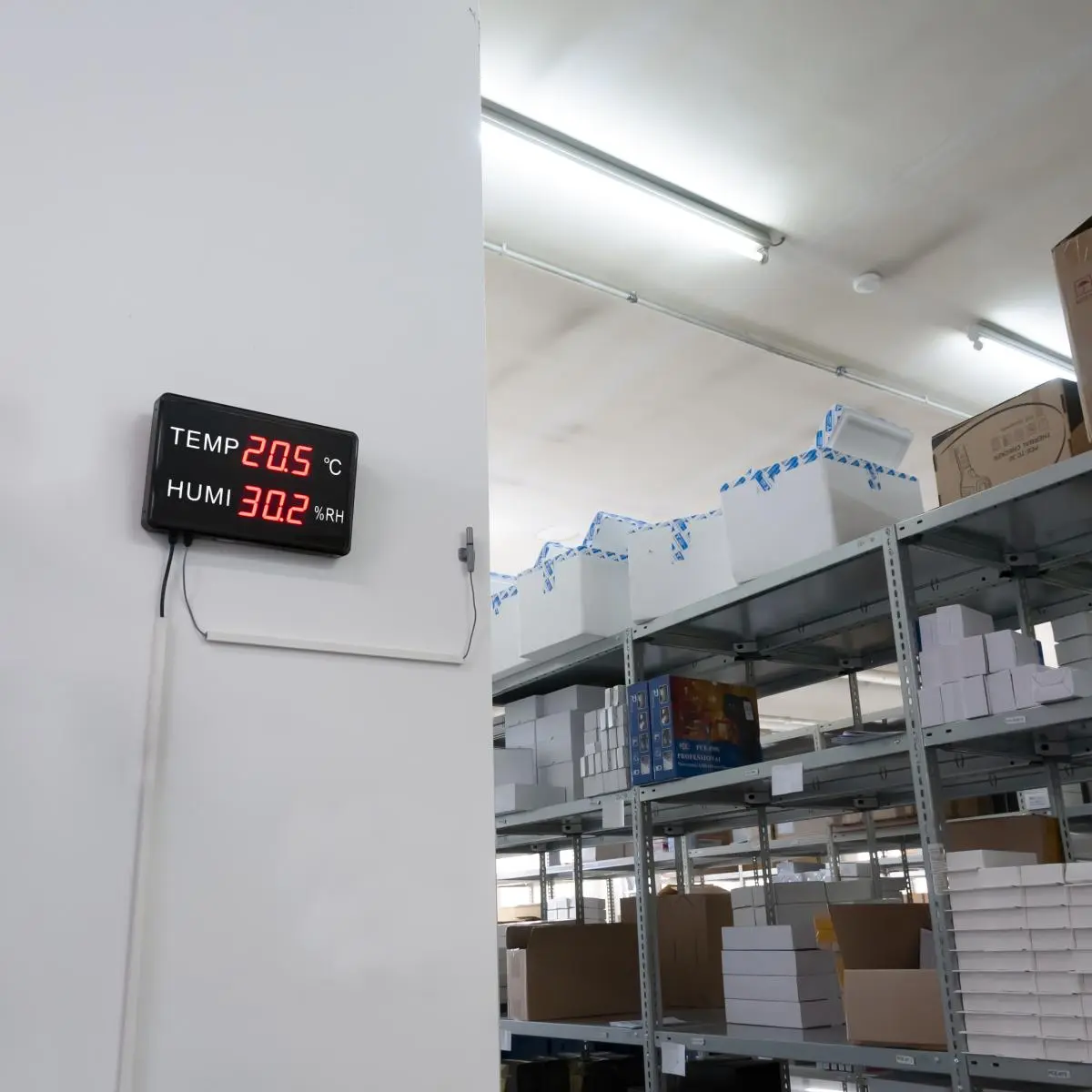

The Temperature Indicator is used to measure the environmental parameters of temperature and humidity. The Temperature Indicator finds its application in warehouses, open-plan offices, schools, etc. The Temperature Indicator has 55 mm high digits that indicate the temperature and humidity.

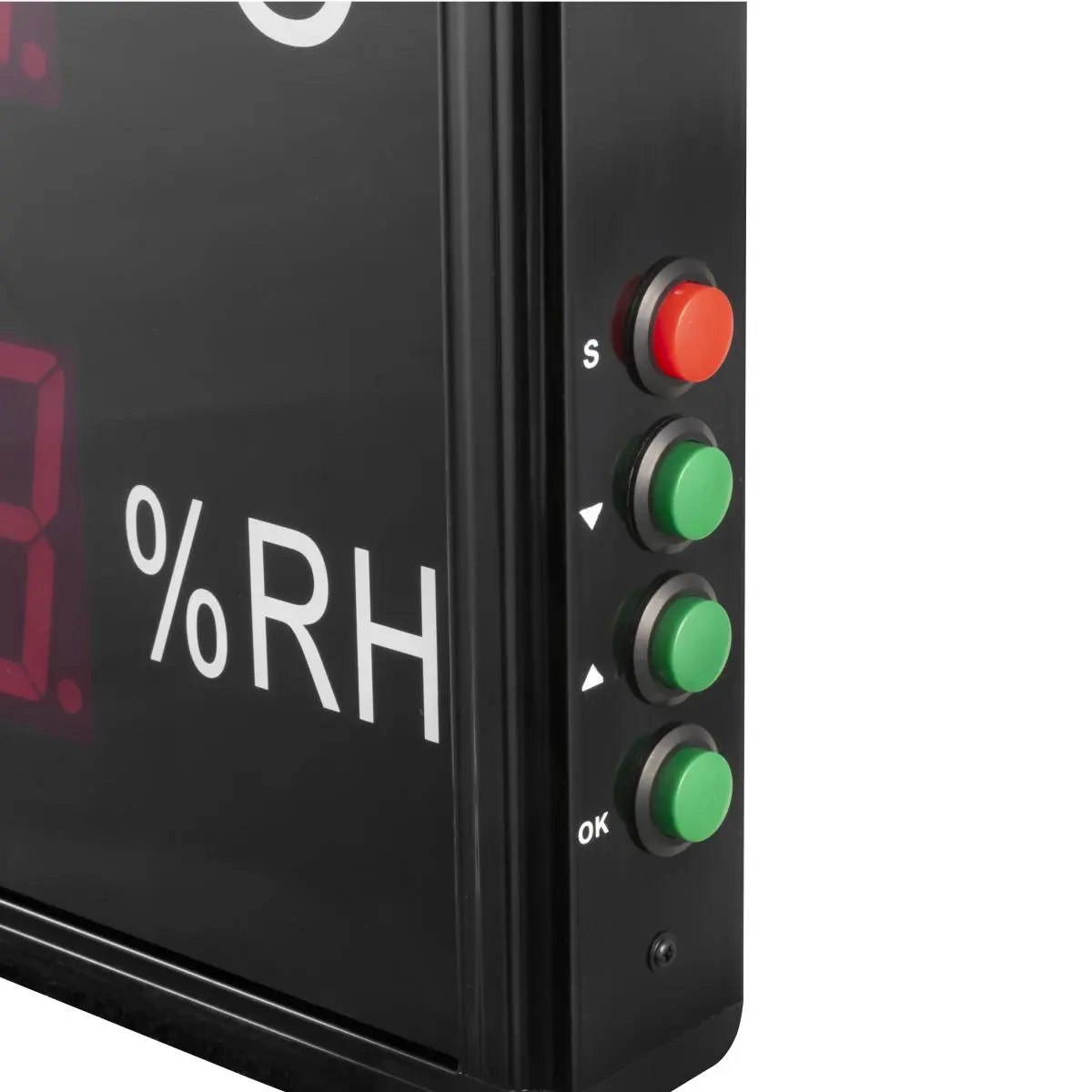

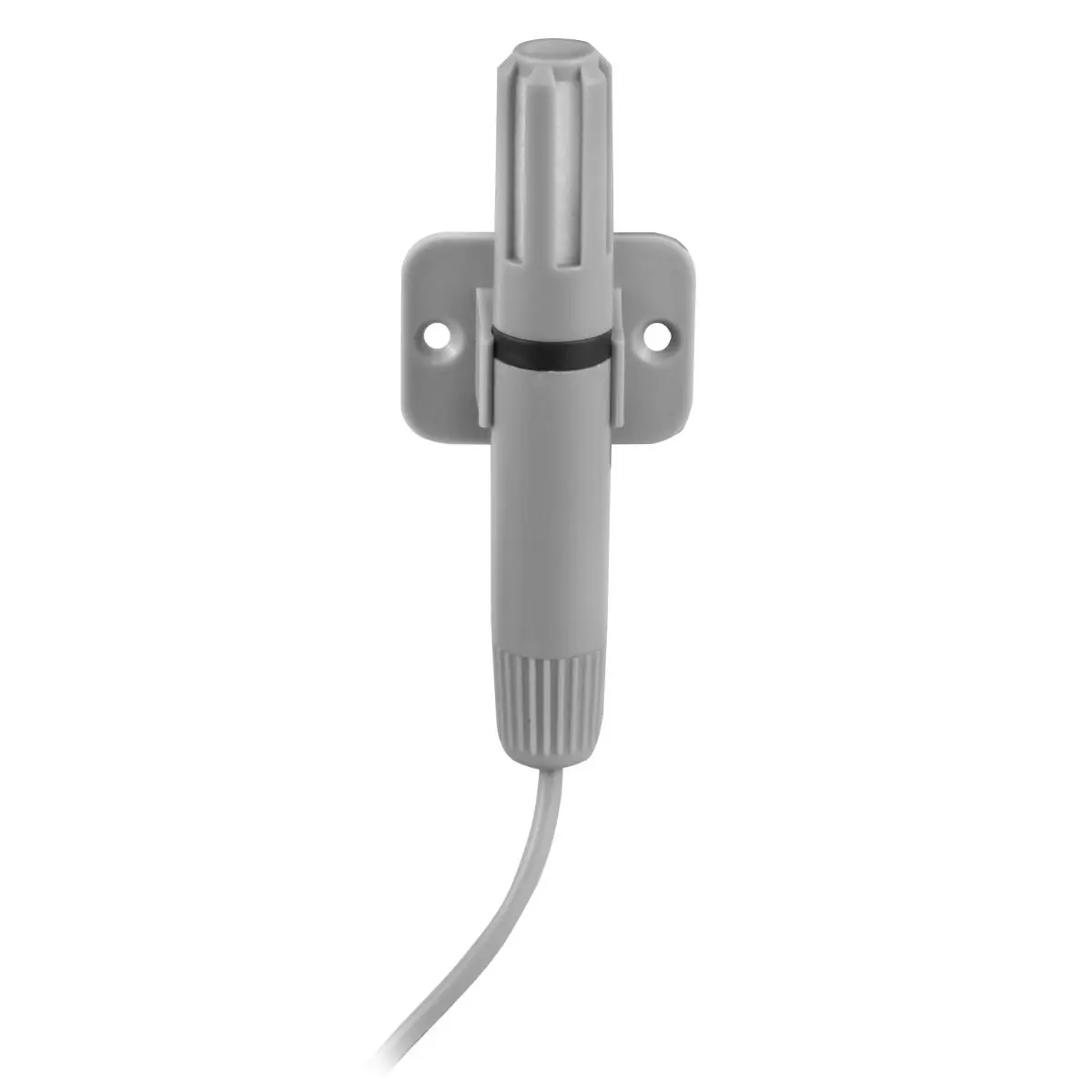

Due to the large size of the digits, the Temperature Indicator display can be read from distances up to 30 m. The temperature and humidity sensor of the Temperature Indicator is connected by a 2 m long cable. The Temperature Indicator is operated by 230 V AC mains voltage. Via the side-mounted buttons, alarm levels can be set on the Temperature Indicator.
| Relative humidity | |
| Measuring range | 0 ... 99 % RH |
| Resolution | 0,1 % RH |
| Accuracy | ±3 % RH |
| Temperature | |
| Measuring range | -40 ... -10 °C |
| Resolution | 1 °C |
| Accuracy | ±0.3 °C |
| General technical data | |
| Display type | LCD |
| Alarm | Acoustic |
| Dimensions | Sensor cable: approx. 2 m Power supply cable: approx. 1 metre |
| Visibility | 30 m |
| Protection class (device) | IP54 |
| Power supply | Primary: 100 ... 240 V AC 50/60 Hz Secondary: 12 V DC, 0.5 A |
| Connector type | Schuko plug |
| Operating conditions | -20 ... 70 °C , 0 ... 85 % RH |
| Storage conditions | -20 ... 70 °C , 0 ... 85 % RH |
| Dimensions ( L x W x H ) | 395 x 255 x 50 mm |
| Weight | 2500 g |
