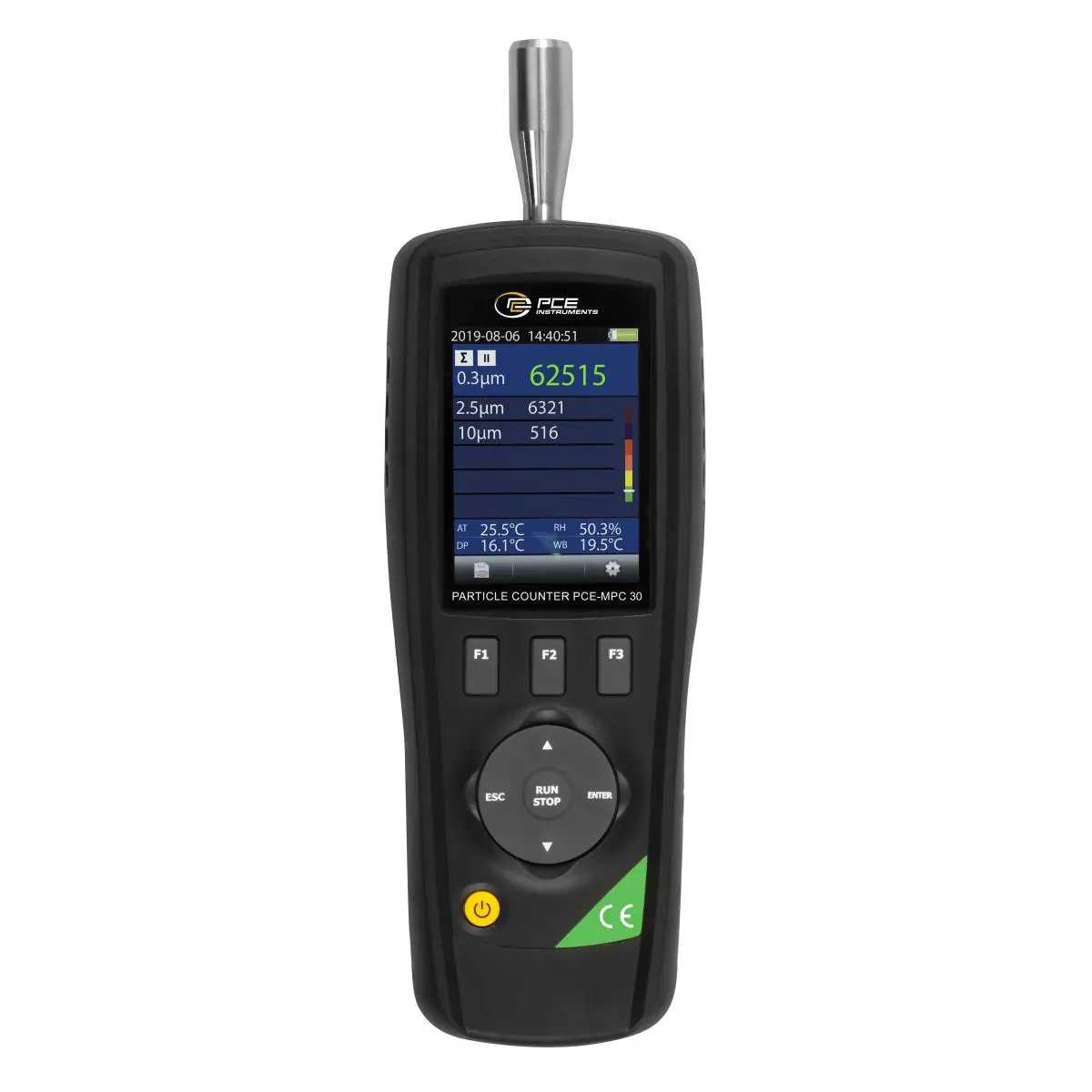

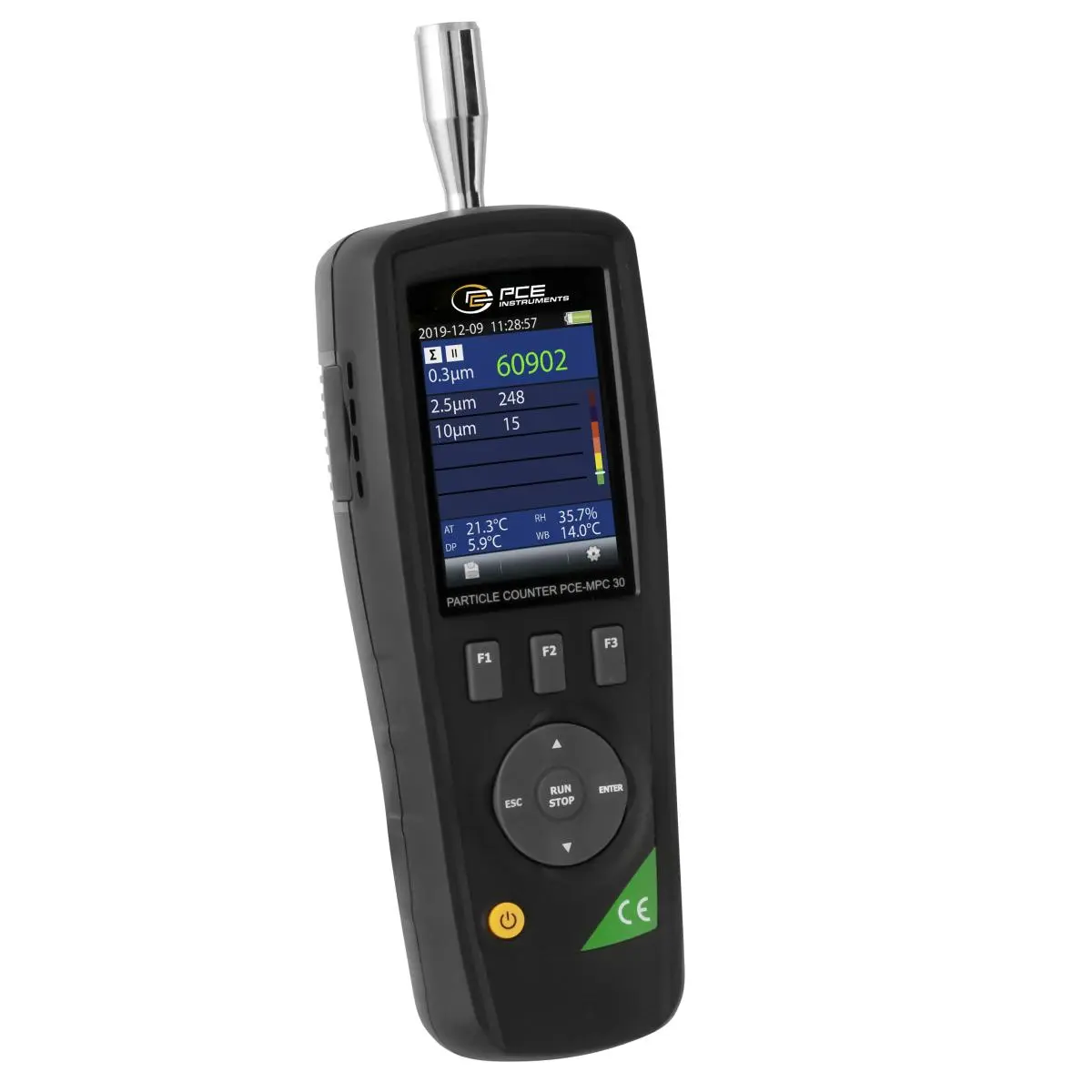

Hygiene Tester PCE-MPC 30

Order no.: PCE-MPC 30

GTIN (EAN): 4250348719287

Description

Hygiene Tester with data logger / HCHO measurement / battery for mobile use /

2.8 "TFT display / measurement of mass concentration / data storage on SD card

This Hygiene Tester has many functions. With the Hygiene Tester it is possible to determine the number of particles in the size of 0.3, 2.5 and 10 µm. In addition to measuring the particles, the Hygiene Tester can also measure the PM 2.5 and PM 10 mass concentration. The mass concentration of the Hygiene Tester determines the weight of the particles on one cubic meter.

In addition to particle measurement, the Hygiene Tester can also determine the formaldehyde content in ppm. During this HCHO measurement, the temperature, the ambient humidity and the dew point are determined and displayed by the Hygiene Tester. As a further important property, the Hygiene Tester can also store data. It is therefore possible with the Hygiene Tester to evaluate all measured values after a measurement.

Highlights

- Particle counter, HCHO, temperature measurement

- Measured value recording for later analyzes

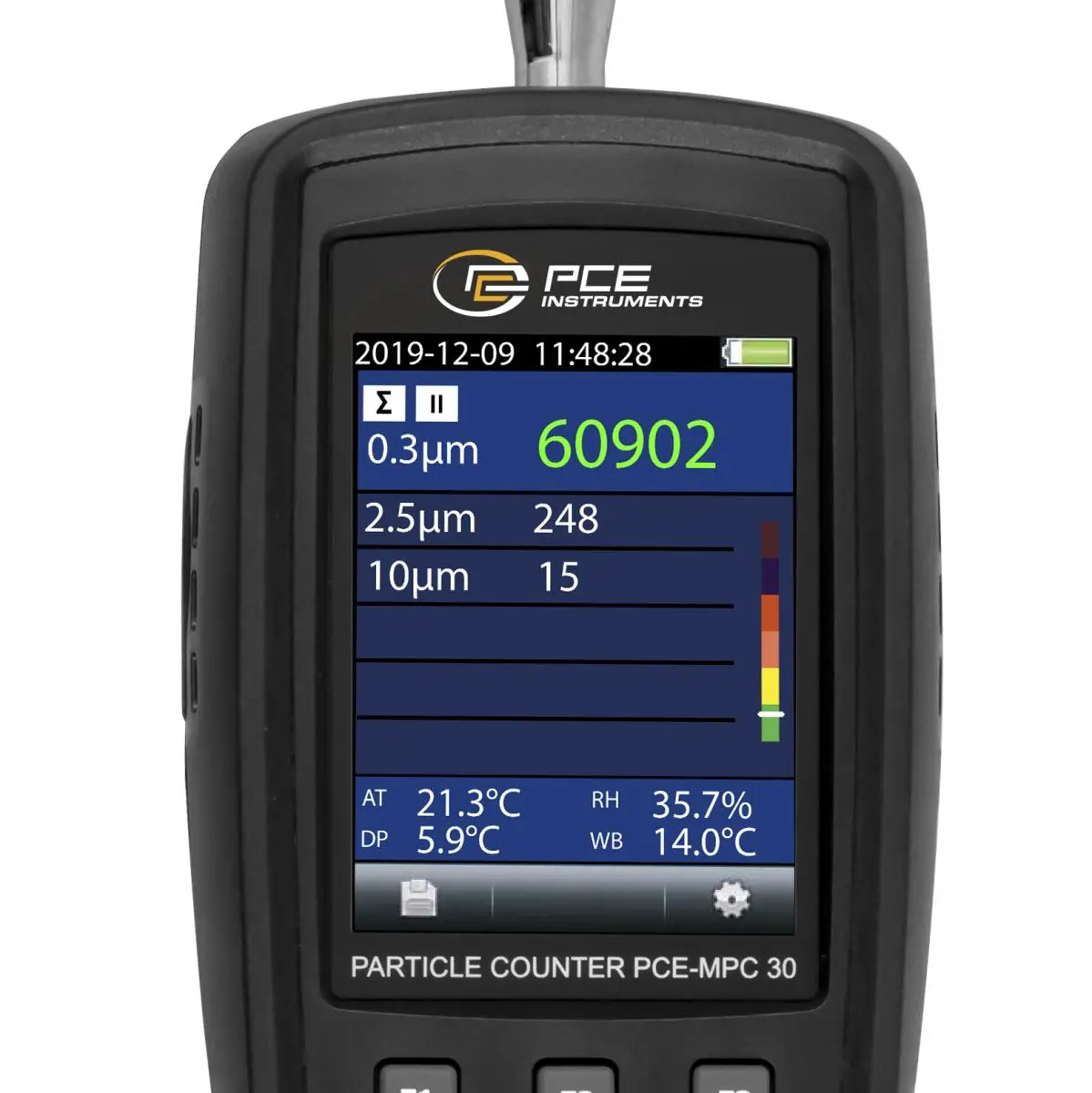

- Large 2.8 "LC display, 320 x 240 pixels

- Mass concentration PM 2.5 and PM 10

- Battery for mobile use

- Dew point and wet bulb temperature

Specification

Formaldehyde
Measuring range	0,01 ... 5 ppm
Resolution	0,01 ppm
Accuracy	±5 %

Particle
Measuring channel sizes	PM2,5, PM10
Measuring range	0 ... 2000 µg/m³
Resolution	1 µg/m³

Particle
Measuring channel sizes	0.3, 2.5, 10
Counting efficiency	50 % at 0.3 µm; 100 % at particle size > 0.45 µm
Flow volume	2,83 l/min
Coincidence error	<5% at 2,000,000 particles per ft³

Dew point
Measuring range	0 ... 10 °C
Resolution	0,1 °C
Accuracy	±2°C

Dew point
Measuring range	10 ... 40 °C
Resolution	0,1 °C
Accuracy	±1°C

Dew point
Measuring range	40 ... 50 °C
Resolution	0,1 °C
Accuracy	±2°C

Relative humidity
Measuring range	0 ... 20 %
Resolution	0,1 %
Accuracy	±5 %

Relative humidity
Measuring range	20 ... 80 %
Resolution	0,1 %
Accuracy	±3.5 %

Relative humidity
Measuring range	80 ... 100 %
Resolution	0,1 %
Accuracy	±5 %

Temperature
Measuring range	0 ... 10 °C
Resolution	0,1 °C
Accuracy	±2 °C

Temperature
Measuring range	10 ... 40 °C
Resolution	0,1 °C
Accuracy	±1 °C

Temperature
Measuring range	40 ... 50 °C
Resolution	0,1 °C
Accuracy	±2 °C

Temperature
Measuring range	32 ... 50 °F
Resolution	0,2 °F
Accuracy	±3.6 °F

Temperature
Measuring range	32 ... 104 °F
Resolution	0,2 °F
Accuracy	±1.8 °F

Temperature
Measuring range	105 ... 122 °F
Resolution	0,2 °F
Accuracy	±3.6 °F

General technical data
Display type	LC colour display with backlight
Display size	2,8 Inch
Display resolution	320 x 240 pixels
Storage medium	SD card
Storage capacity	5000 Data records

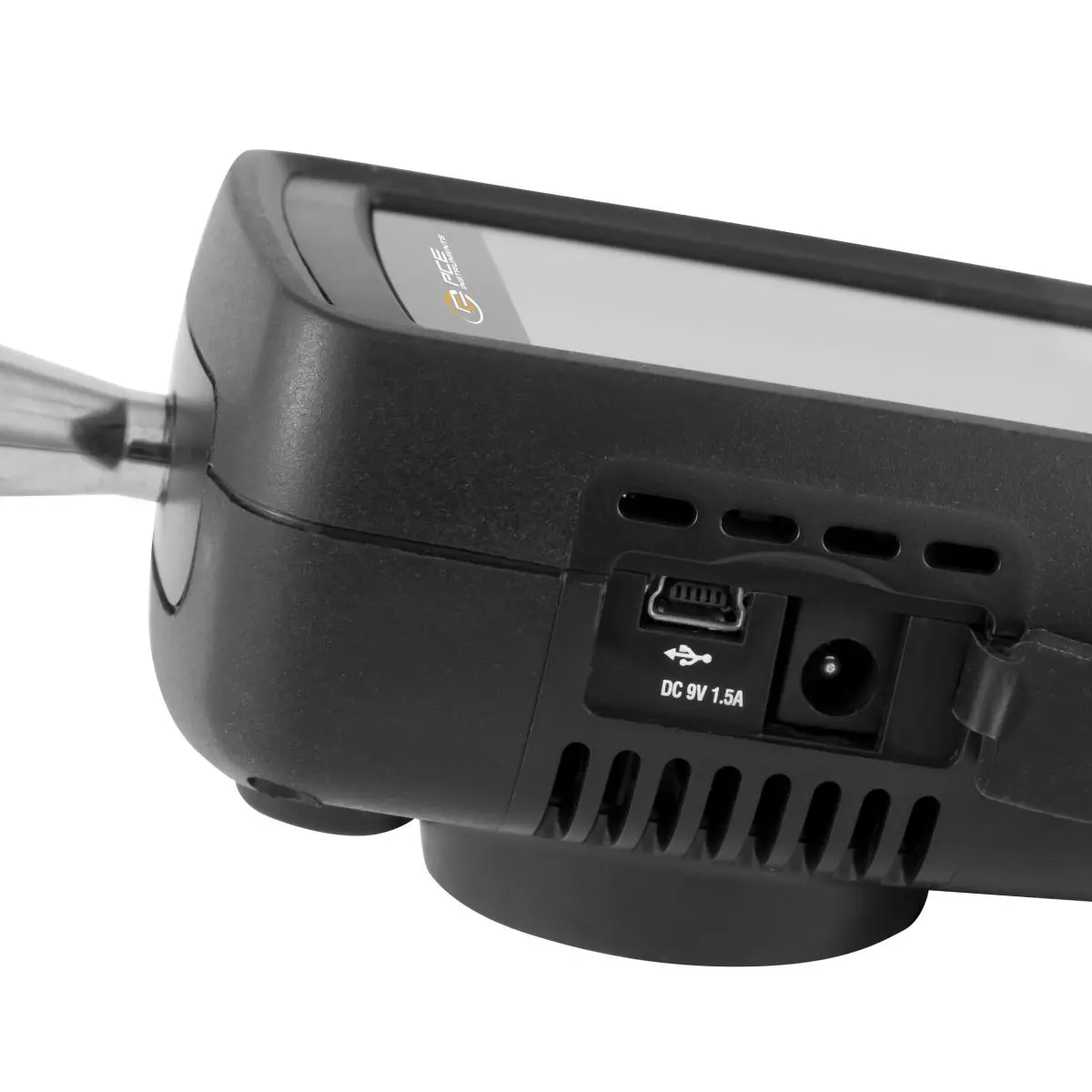

Interface	Mini-USB
Sensor	Temperature
Operating time	4 h
Automatic power-off from...to	3 ... 60 min.
Measurement mode	kumulativ, differential, Concentration
Menu language	English, French, German, Spanish, English (GB)
Protection class (device)	IP20
Power supply	100 ... 240 V AC \| 50/60 Hz
Connector type	Device-europlug
(Rechargeable) battery	1 x 7,4 V internal , Lithium-ion polymer battery
Capacity	1200 mAh
Operating conditions	0 ... 50 °C , 10 ... 90 % RH
Storage conditions	-10 ... 60 °C , 10 ... 90 % RH
Dimensions ( L x W x H )	240 x 75 x 57 mm
Weight	570 g
