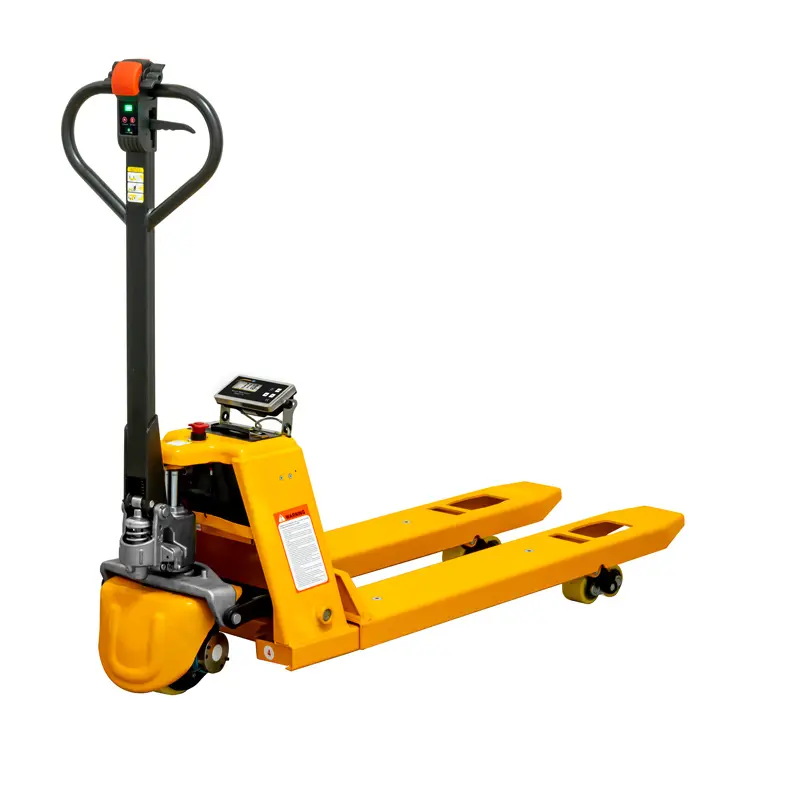

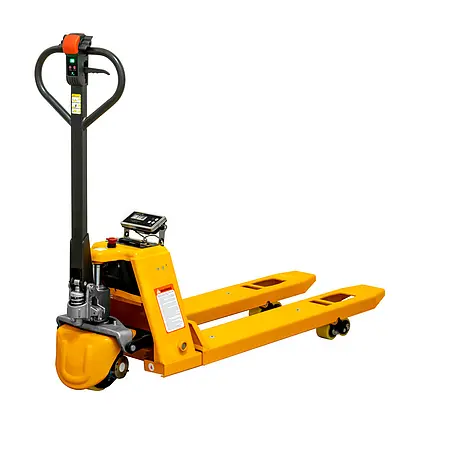

Hand Pallet Truck Scale PCE-EPT 1.5 with electric drive

Order no.: PCE-EPT 1.5

Question / Callback

Available in: 5-7 working days

Hand pallet truck scale / Weighing range 0 ... 1500 kg / Fork height 86 ... 196 mm / Quickly exchangeable battery / Faster and slower running / "Hold" and "tare" function /
Backlight / Rubber wheels / Optional with ISO calibration certificate / Electric drive

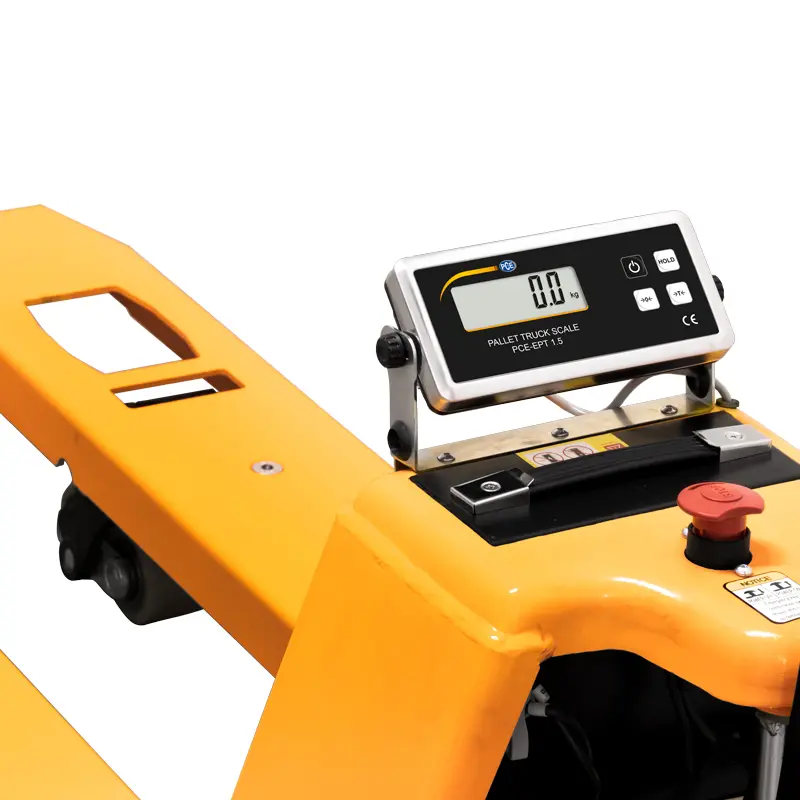

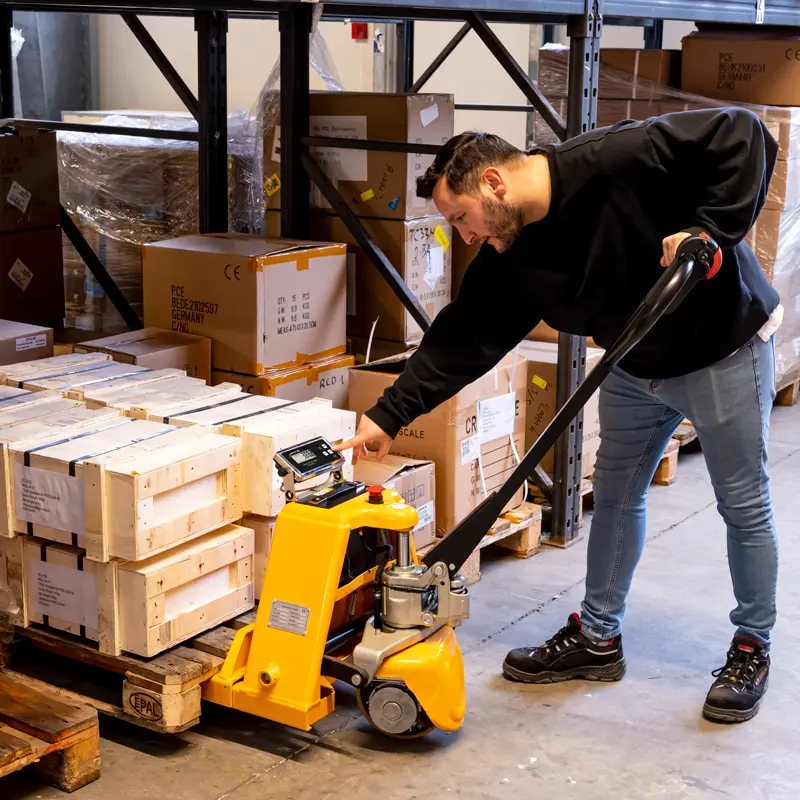

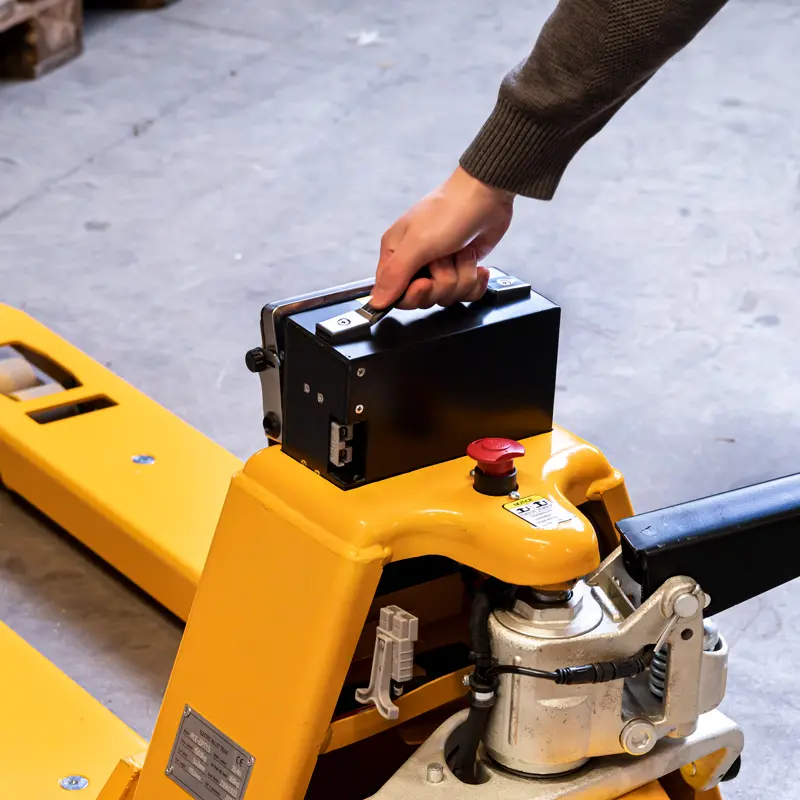

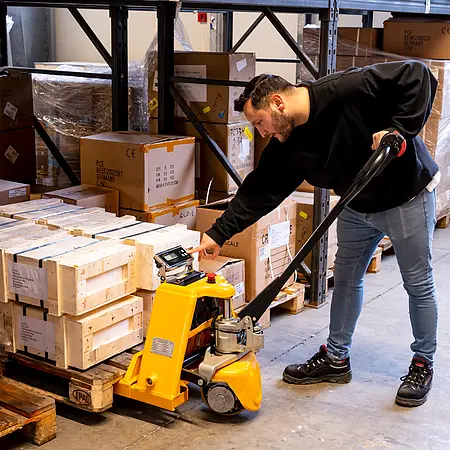

The hand pallet truck scale is a lift truck with an integrated electric motor drive. The pallet scale's 20 Ah battery can be recharged using the supplied power pack. If necessary, the battery in the hand pallet truck scale can be replaced with a fully charged battery in just a few steps. This ensures an almost uninterrupted workflow in, for example, 24/7 operation with the hand pallet truck scale.

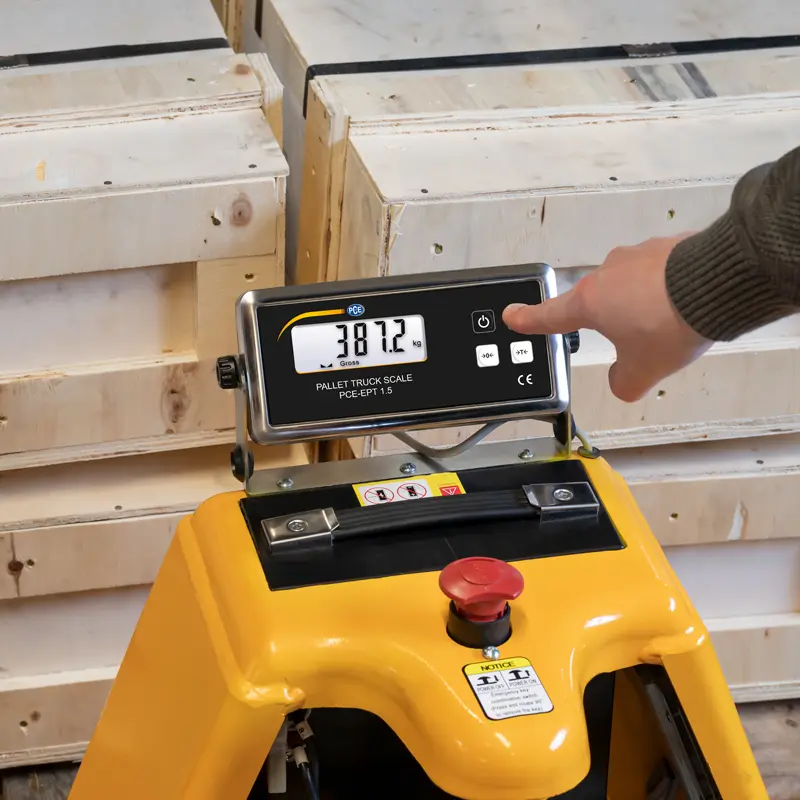

In addition, the hand pallet truck scale has a weighing function. This allows pallets to be weighed with the scale. The weight on the hand pallet truck scale is measured using four built-in load cells with a total measuring range of 0 ... 1500 kg. To facilitate weighing, a zero point and taring can be carried out.

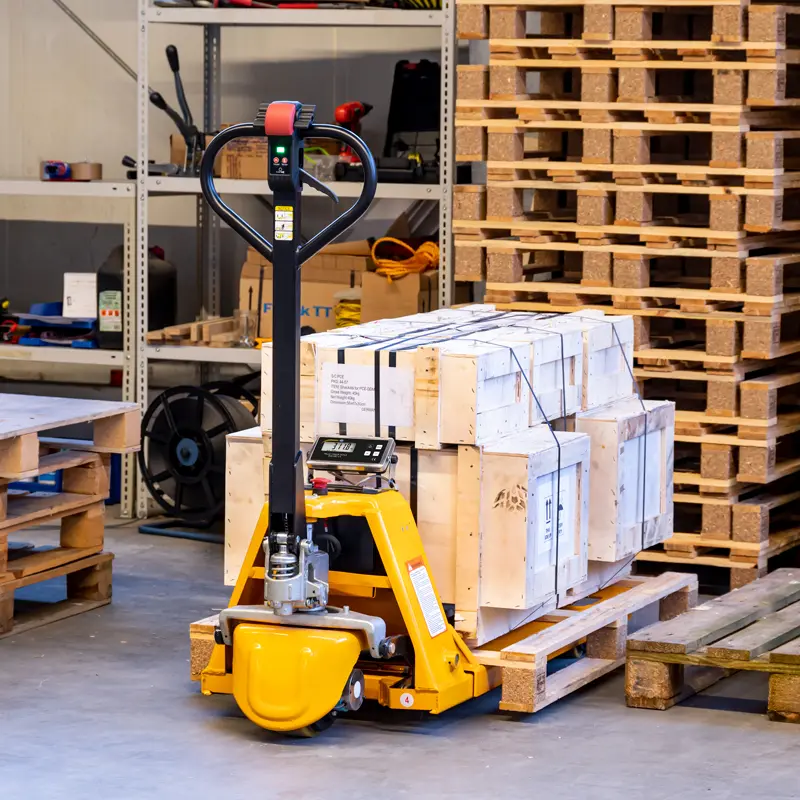

Thanks to the electric drive and the integrated weighing device, the hand pallet truck scale is the ideal support for every logistics or forwarding employee. This increases productivity and at the same time reduces the burden on employees. Optionally, the hand pallet truck scale can be equipped with an ISO calibration certificate.

- Weighing range 0 ... 1500 kg / 3306 lb
- Resolution 0.1 kg / 0.22 lb
- Quickly replaceable battery with a long service life
- Fork height 86 ... 196 mm / 3.3 x 7.7"
- Rubber wheels
- With electric drive
- Optionally with ISO calibration certificate

Weighing range	0 ... 1500 kg / 3306 lb
Resolution	0.1 kg / 0.22 lb
Accuracy	±0.2% of measuring range

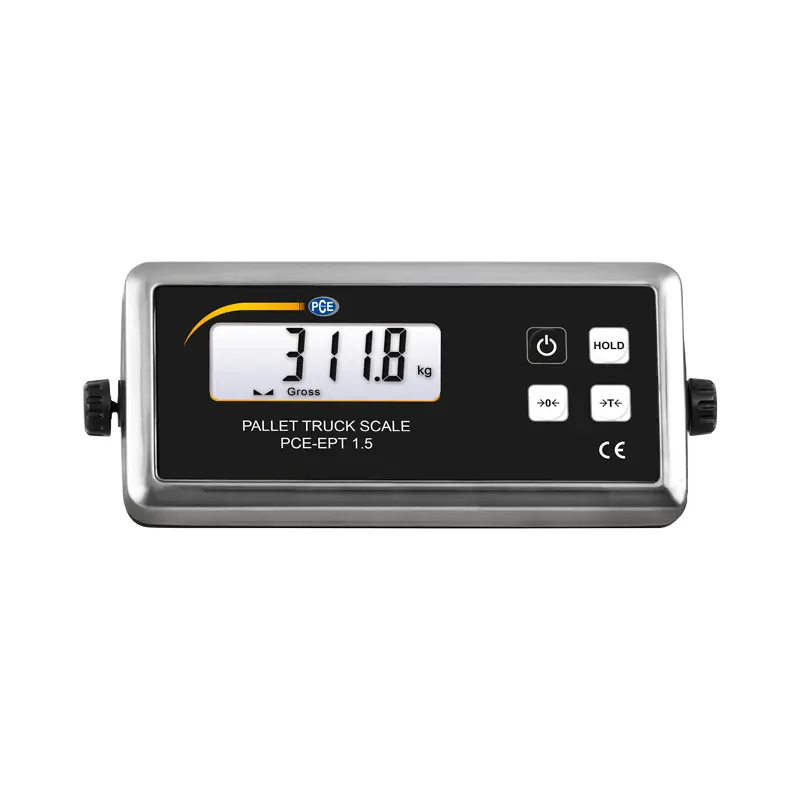

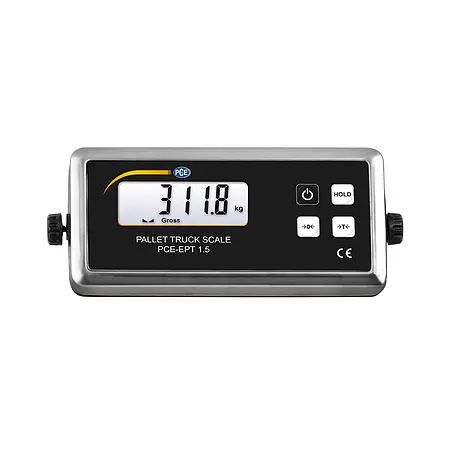

Display
Taring range	over the entire weighing range
Zero point (automatic)	to 10% of measuring range
Zero point (manual)	to 2% of measuring range
Digit height	20 mm / 0.78"
Power supply battery	3 x 1.5 V AA batteries
Power supply mains adapter	primary: 100 ... 240 V AC, 50/60 Hz, 0.3 A
	secondary: 6 V DC, 500 mA
Battery life with
backlight	ca. 30 hours
Battery life without
backlight	ca. 100 hours

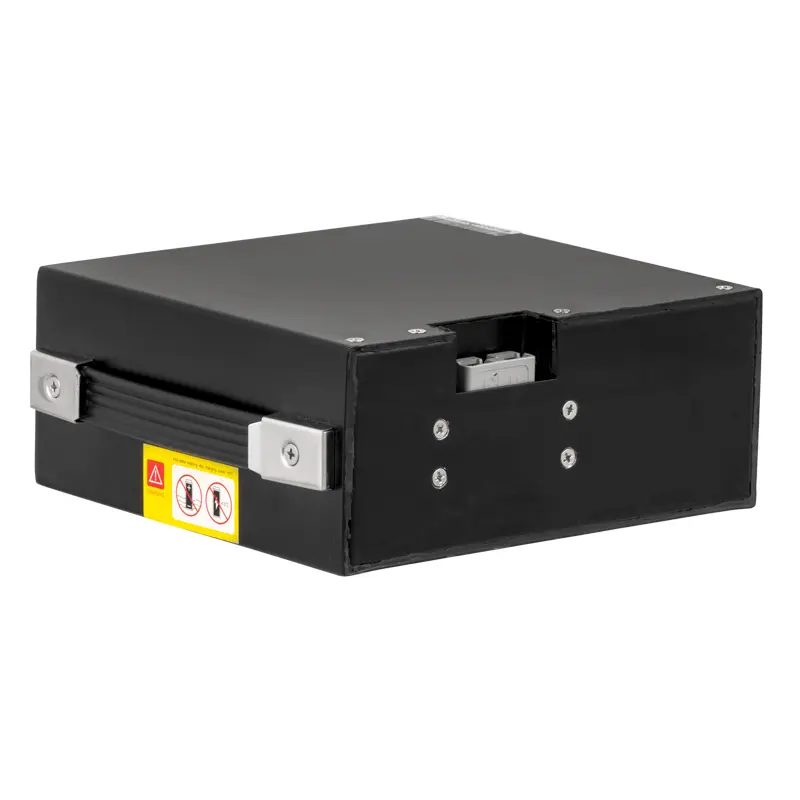

Battery pack
Power supply (battery)	24 V, 20 Ah
Power supply (mains adapter)	primary: 100 ... 240 V AC, 50/60 Hz, 1.6 A
	secondary: 29.4 V DC, 4 A
Weight battery	5 kg / 10 lbs

Further specifications

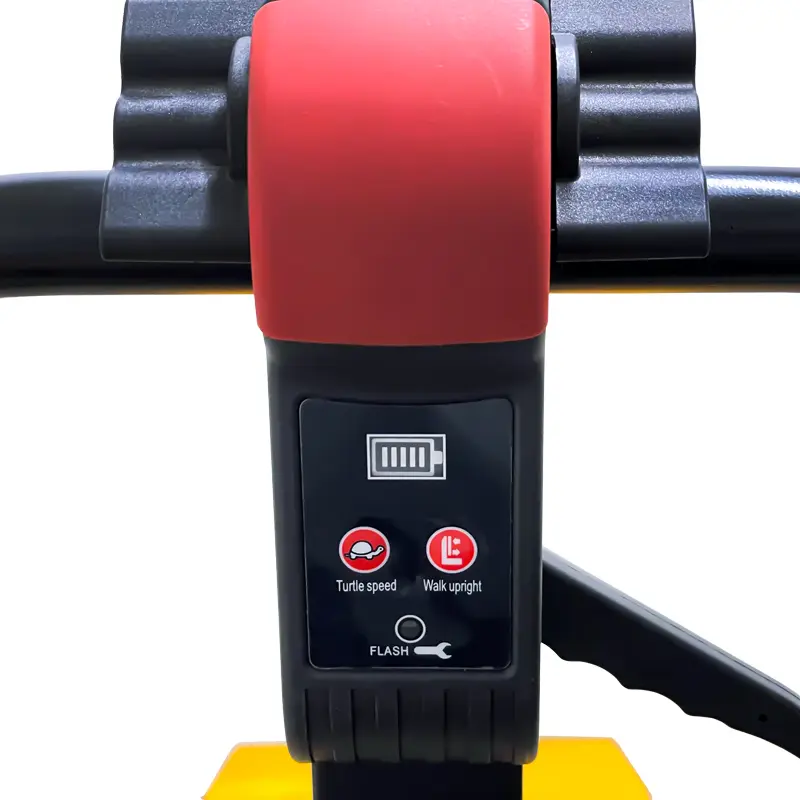

Functions	horn, slow and fast drive mode,
	drive with a vertical tiller
Speed (loaded)	4 km/h / 2.5 mph
Speed (unladen)	4.5 km/h / 2.8 mph
Maximum gradeability (loaded)	3 %
Maximum gradeability (unladen)	18 %
Motor power	450 W
Parking brake	electromagnetic
Tyres	PU
Tyre size (drive)	Ø150 x 70 mm / Ø5.9 x 2.75“

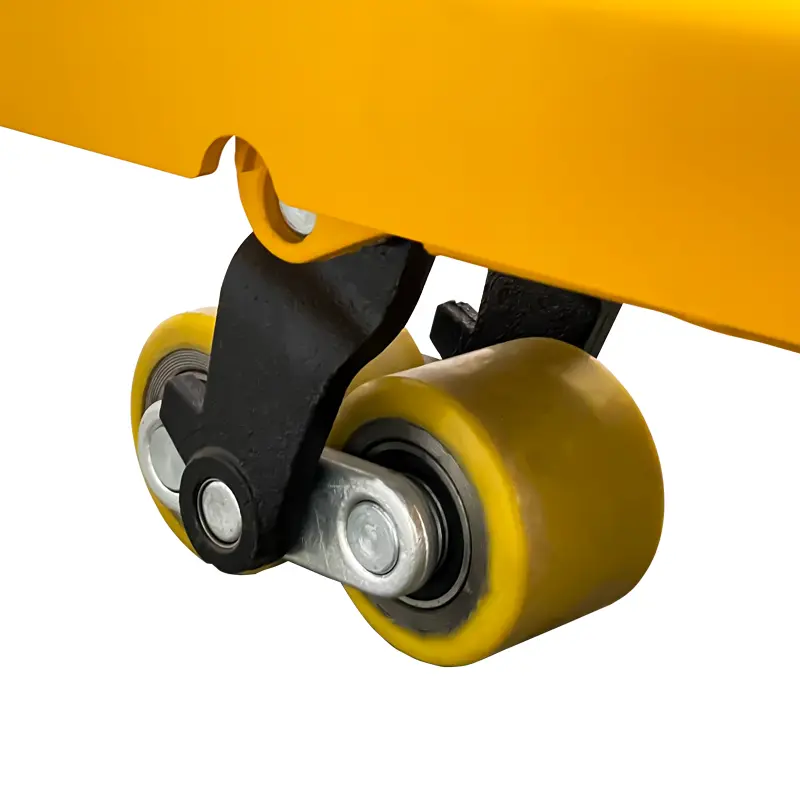

Tyre size (loading area)	4 x Ø80 x 60 mm / Ø3.15“ x 2.36“
Ambient conditions	-10 … 40 °C / 14 ... 104 °F; <85 % RH, non-condensing
Dimensions	dimensions can be found in the instructions
Weight	160 kg / 352 lb

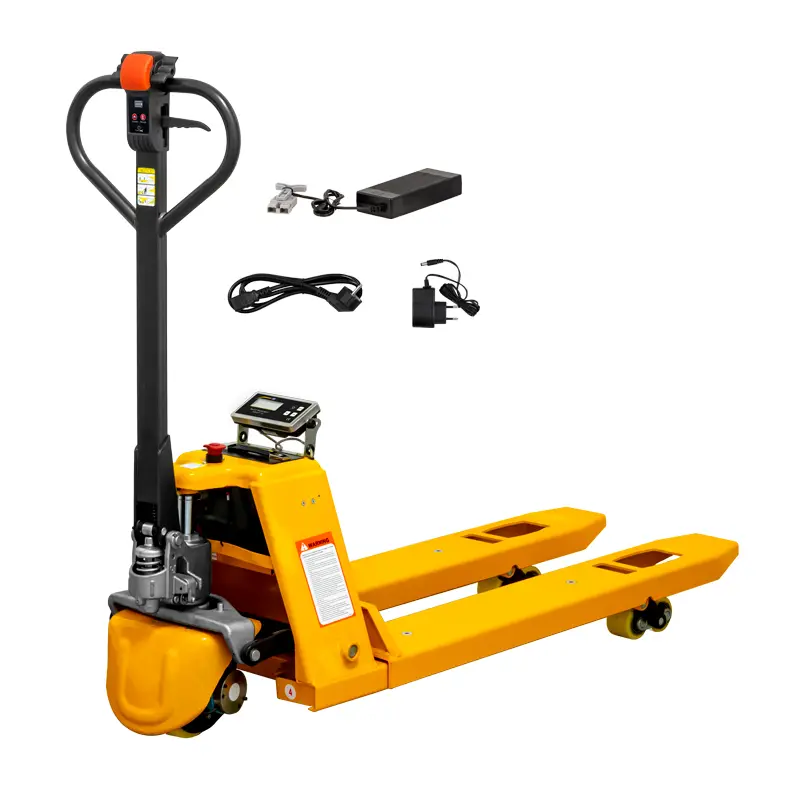

1 x Hand pallet truck scale PCE-EPT 1.5
2 x Mains power adapters
3 x 1.5V AA batteries
1 x 24V battery pack
1 x Instruction manual

Accessories

Calibration certificate for hand pallet truck scales up to 1.5t

Order no.: CAL-PCE-HW

Calibration certificate for hand pallet truck scales up to 1.5t

ISO calibration certificate, e.g. to comply with your DIN ISO 9000. For this we send the balance to our in-house calibration laboratory. You as the client, the measured values and the serial number are recorded in this ISO calibration certificate.

- Range up to 1.5t

N.B. Calibration certificates are issued specifically for the customer and are non-returnable.
