Wind Measurer PCE-TA 30

Order no.: PCE-TA 30
US$ 99.00
4250348706805
PCE-TA 30
ex. VAT, ex. delivery costs
Speed, Temperature, Volume/flow
Impeller
No
No
Available in: 1-2 days
Wind Measurer to measures air velocity, air flow and temperature/ different units can be selected  / flexible probe / HOLD function / auto shut-off to protect battery life  / easy to handle just with one hand with 4 keys

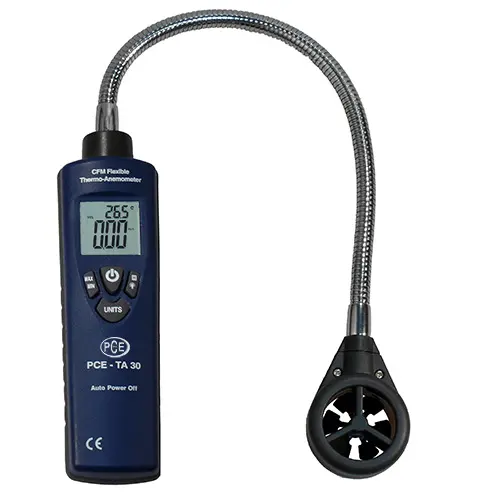

The PCE-TA 30 Wind Measurer can measure air velocity, air temperature and air flow. The PCE-TA 30 Wind Measurer shows measurement values in its large backlight LCD display. The Wind Measurer shows the current value on the display as well as max. and min. values. The PCE-TA 30 Wind Measurer has a flexible probe with a length o 40 cm which makes it possible to use in areas here there is limited space to measure, such as cooling systems. The PCE-TA 30 Wind Measurer is the ideal tool for the assembler to perform instantaneous measurements. Thanks to its auto shut-off the PCE-TA 30 Wind Measurer can protect battery life. The PCE-TA 30 is very easy to use just with 4 keys and it is suitable for its use in different sectors thanks to its compact design.

- Measures air velocity, temperature and flow
- Different units can be selected
- LCD display with simultaneous indication of air velocity and temperature
- Easy-to-use (with 4 keys)
- Indication of max. and min. values
- Data-Hold function
- Auto shut-off  (to protect battery life)
- Flexible probe
- Backlight display
- A box is delivered

Technical specifications
Measurement ranges with indication of the corresponding units:
  - m/s
 - ft/min
 - knots
 - km/h
 - mph
 - ft3/min
 - ºC		 1,0 ... 30,0
196 ... 5900
1,9 ... 58,0
3,6 ... 108,0
2,2 ... 67,0
0,0 ... 999,900
-10 ... 60,0
Resolution
 - m/s
 - ft/min
 - knots
 - km/h
 - mph
 - ft3/min
 - ºC		 0,01
1,0
0,1
0,1
0,1
0,1
0,1
Accuracy
 - m/s
 - ft/min
 - knots
 - km/h
 - mph
 - ºC		 ±3% ±0,2
±3% ±40
±3% ±0,4
±3% ±0,8
±3% ±0,4
±1,5
DisplayLCD display
Sensorflexible probe
probe length: 300 mm
Ø probe: 27,2 mm
Operating conditionsFlow meter:   0 ºC ... +40 ºC / <95% H.r.
thermal probe: 0 ºC ... +50 ºC / <80% H.r.
Power1 x  9 V battery
Auto shut-offyes, after 5 min of inactivity (to protect battery life)
Dimensions163 x 45 x 34 mm
EnclosureABS plastic
Weight257 g

Delivery contents:

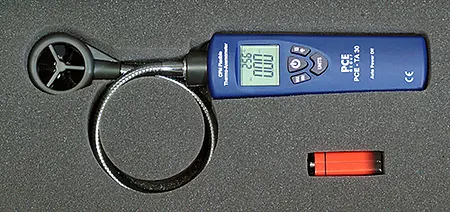

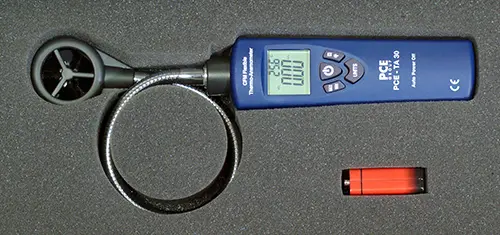

1 x PCE-TA 30 Wind Measurer with flexible probe
1 x battery
1 x box
1 x user's manual
