Order no.: PCE-IR 1600

Non-Contact Infrared Thermometer PCE-IR 1600

US$ 1,783.00
PCE-IR 1600
ex. VAT, ex. delivery costs
385 ... 1600 °C / 725 ... 2912 °F
Yes (integrated)
Yes (USB)
Available in: 1-2 days

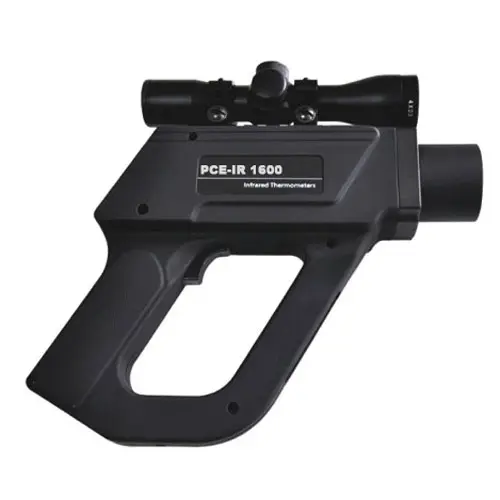

PCE-IR 1600 Non-Contact Infrared Thermometer
High-temperature infrared (IR) pyrometer gun measures temperatures up to 1600ºC / 2912°F

PCE-IR 1600 is a high-temperature non-contact infrared (IR) thermometer gun or pyrometer ideal for use in steel, metal and ceramic mold casting and other high-temperature industrial applications. Thanks to an impressive optical resolution of 300:1, the PCE-IR 1600 pyrometer can measure the temperature of very small objects. In addition, the pyrometer's emissivity can be adjusted according to the surface of the material to be measured.


The pyrometer's internal memory stores up to 2000 measurement protocols. The device includes a USB port, data cable and Windows-compatible software for quick and easy data transfer to a PC for further analysis.



- Adjustable temperature units: Celsius (°C) or Fahrenheit (°F)
- Adjustable emissivity
- Optical resolution of 300:1
- Max, min, hold, high / low alarm and auto shut-off functions
- Temperature offset capability
- Easy-to-use trigger control
- Laser
- Telescope
- LCD with backlight
- Internal memory stores up to 2000 measurement protocols
- USB port, data cable and Windows-compatible software for data transfer to PC

***ATTENTION*** Our temperature sensors are designed for industrial and laboratory surface temperature measurement ONLY. They are not designed or certified for body temperature measurement or for medical use.


Measuring range385 ... 1600°C / 725 ... 2912°F
Spectral1.6 μm
Accuracy± (0.3% T measurement ± 1°C / 1.8°F)
Reproducibility± (0.1% T measurement ± 1°C / 1.8°F)
Optical resolution300: 1
Response time100 ms
VisorDouble laser class II (<1 mW)

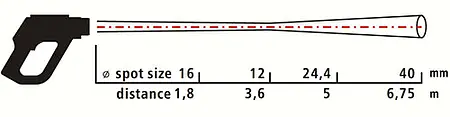

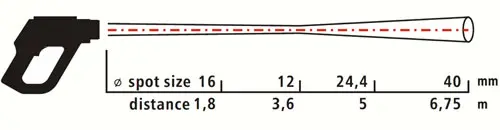

12 mm / .5 in @ 3.6 m
ScopeAll types
Additional functionsMIN / MAX / Scan / HOLD
Alarm functionsOptical and acoustic HIGH / LOW alarm
EmissivityAdjustable between 0.100 ... 1.000
Data storage2000 readings
Interface USB
SoftwareData cable and software included
LCD lightingThree-color alarm display
Tripod mounting deviceYes, for all standard tripods
Power supplyNi-MH rechargeable battery
Battery life5 h with laser and display illumination,
25 h without laser and display illumination
Adapter220V AC, 50 / 60Hz
Storage temperature-20 ... 60°C / -4 ... 140°F
Ambient temperature0 ... 50°C / 32 ... 122°F
Relative humidity10 ... 95% non-condensing
Dimensions264 x 203.5 x 60 mm / 10.4 x 8 x 2.4 in
Weight1000 g / 2.2 lbs

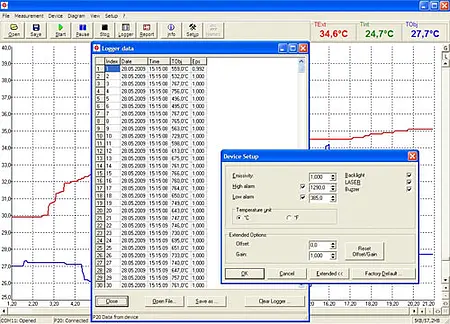

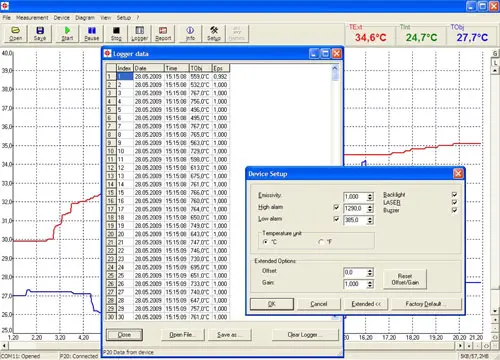

The Connect Report software for the PCE-IR 1000 Series high-temperature meter is included in delivery and offers the following options:

  • Change device settings
  • Download logger data
  • Display and record temperature-time progressions
  • Easy creation of image-based temperature reports

Delivery Scope

1 x PCE-IR 1600 non-contact infrared thermometer
1 x USB data cable
1 x Software
1 x Rechargeable battery
1 x Battery charger
1 x Carrying case
1 x User manual
