Surface Thickness Measuring Device PCE-CT 23BT-ICA incl. ISO Calibration Cert.

Order no.: PCE-CT 23BT-ICA
ISO Calibration Wireless

US$ 647.00
ex. VAT, ex. delivery costs
Available in: 10 - 14 days
Surface Thickness Measuring Device with 5-point calibration / various interfaces /

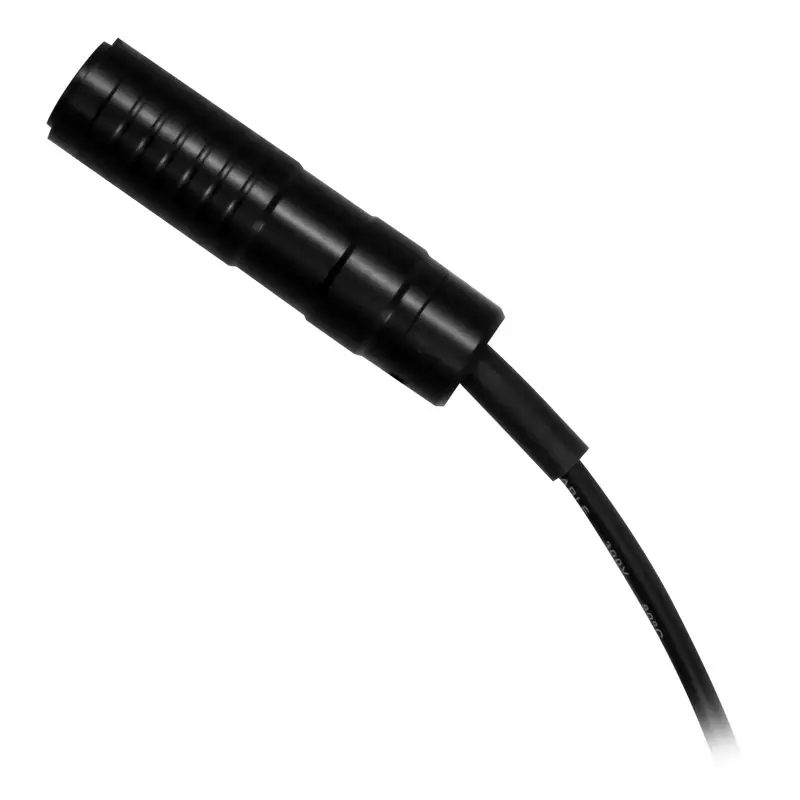

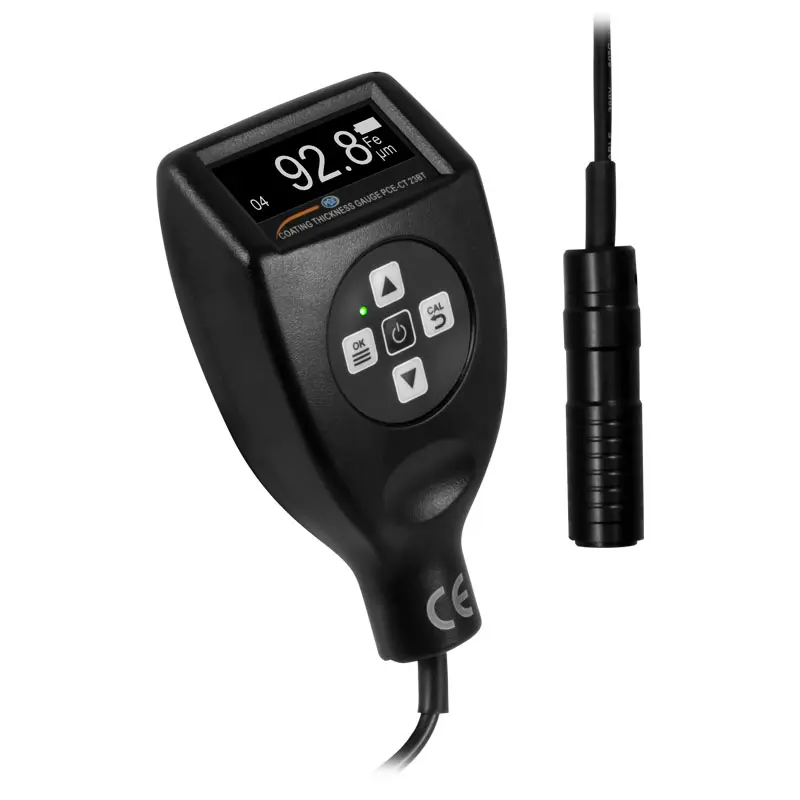

for measurement on ferrous and non-ferrous metals / app connection / external probe / data storage / incl. ISO Calibration Certificate

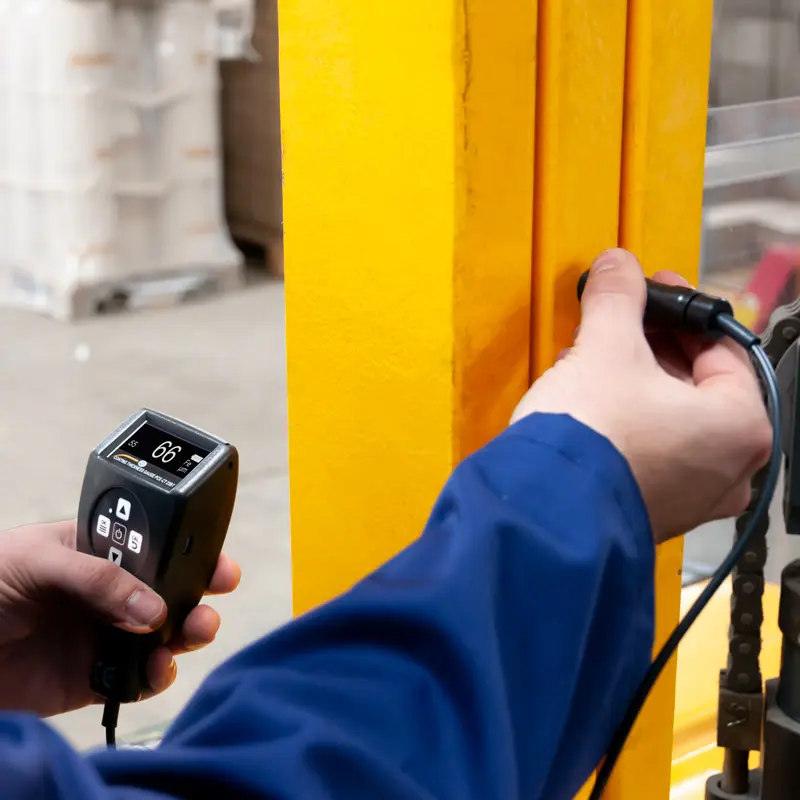

With this Surface Thickness Measuring Device, layer thicknesses on metallic surfaces can be reliably determined. The Surface Thickness Measuring Device has a measuring range of 1500 µm. This means that the Surface Thickness Measuring Device is used, for example, in a paint shop, for incoming goods inspection or for an expert.

With the Bluetooth interface on the Surface Thickness Measuring Device, all data can be transferred to a mobile iOS or Android device and exported as a CSV, PDF or TXT file. A live view with analysis of the measured values ​​is also possible via the free app with the Surface Thickness Measuring Device.

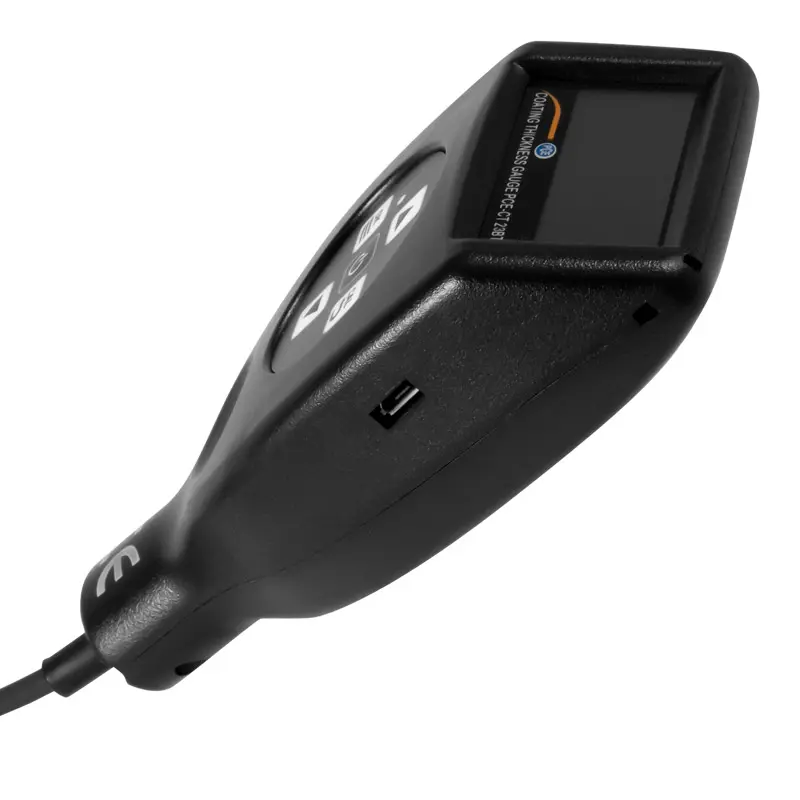

In addition to the Bluetooth interface, the Surface Thickness Measuring Device has a micro USB interface. All data can also be transferred to the PC and analyzed via this interface in the Surface Thickness Measuring Device. Another special feature of this interface is that the Surface Thickness Measuring Device can also be operated without batteries via this interface. As a result, many measurement processes are no longer dependent on the battery charge level.

- Micro USB and Bluetooth interface
- Calibration foils included
- Adjustable alarm thresholds

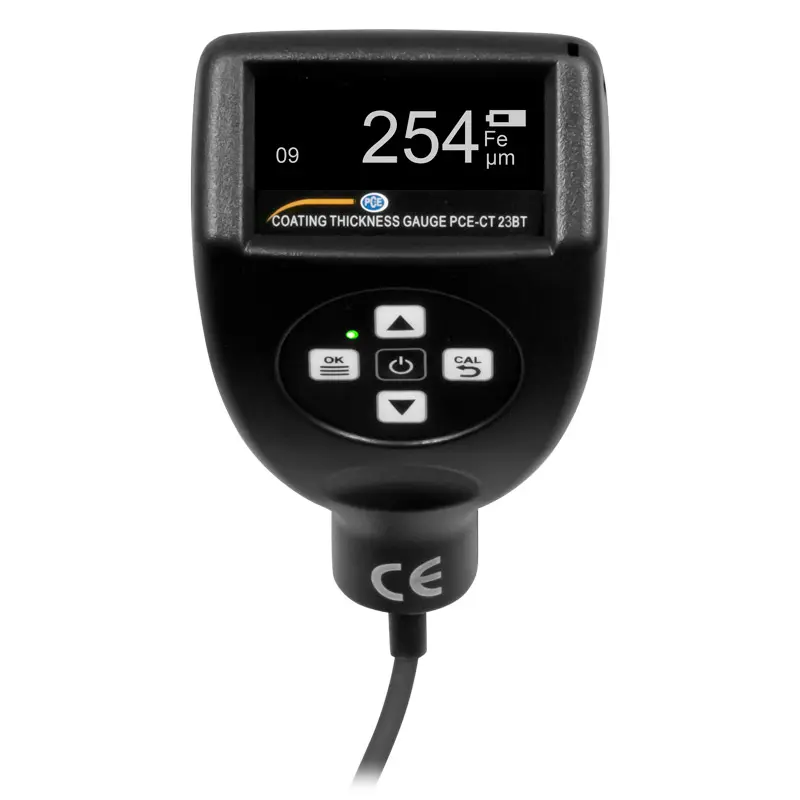

- Backlit display
- Data storage for up to 600 measured values
- Measuring range up to 1500 µm
- incl. ISO Calibration Certificate
Measurable substratesFe, NFe
Measuring range0… 1500 µm
Resolution0.1 µm (in the measuring range 0… 99.9 µm)
 1 µm (in the measuring range 100… 1500 µm)
Accuracy± (1 µm + 2% of the layer thickness)
Unitsµm, mil
Smallest curvatureconvex 5 mm, concave 5 mm
Smallest measuring area10 x 10 mm
Minimum thickness of the substrate   0.4 mm
InterfaceBluetooth, micro USB
Memory10 groups with 60 measurements each
Power supply2 x 1.5 V AA batteries, 5 V USB interface
Environmental conditions-10… 50 °C, 10… 85% RH
Dimensions126 x 69 x 35 mm (without sensor)
Weightapprox. 97 g (without batteries)

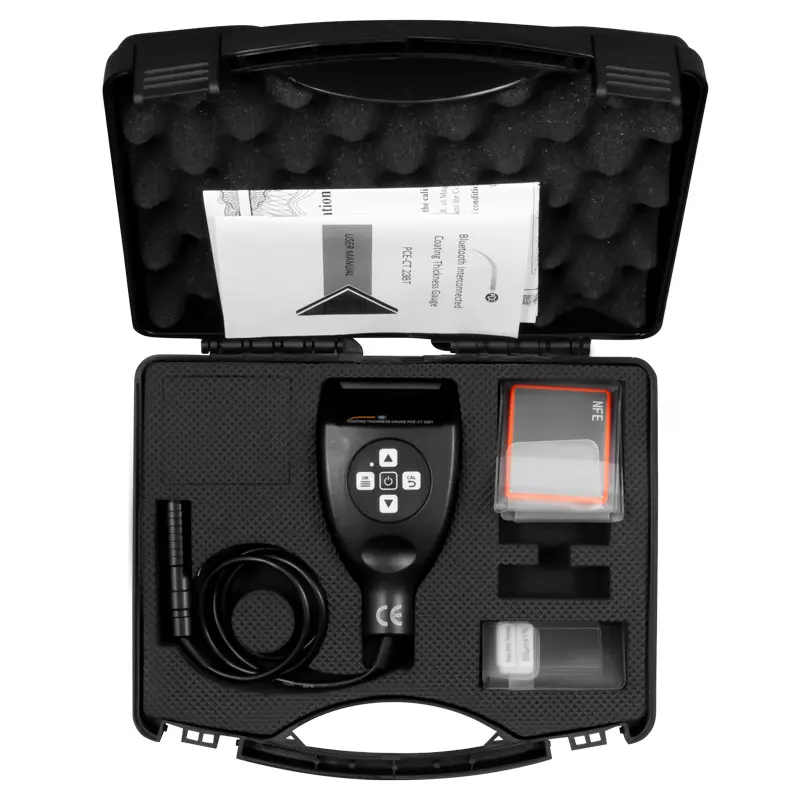

1 x PCE-CT 23BT-ICA Surface Thickness Measuring Device
5 x Calibration foil reference
1 x Fe zero standard
1 x NFe zero standard
1 x Wrist strap
2 x 1.5 V AA batteries
1 x Carrying case
1 x Instruction manual

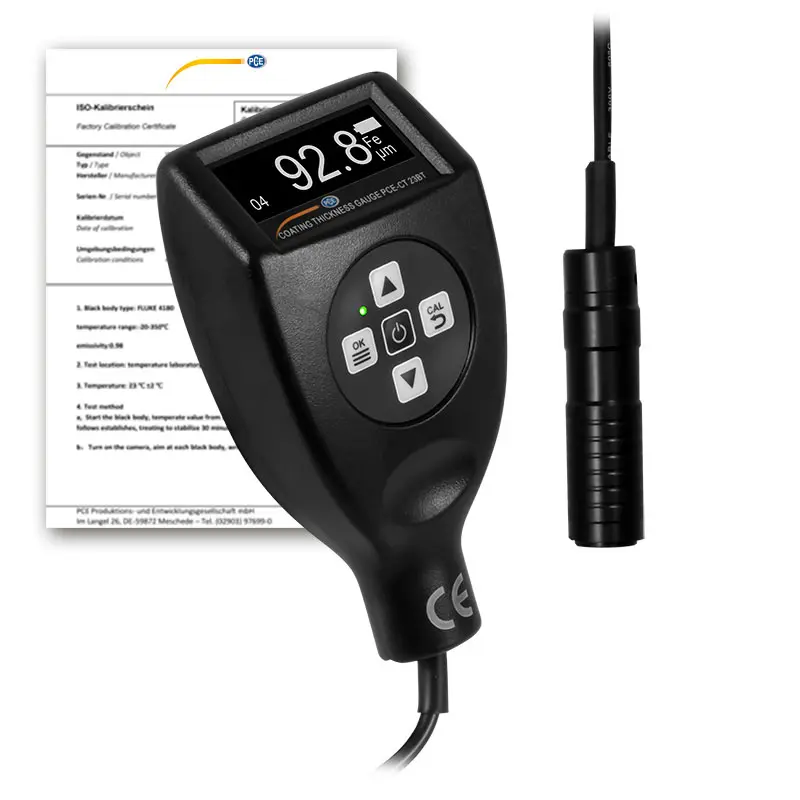

1 x ISO Calibration Certificate
