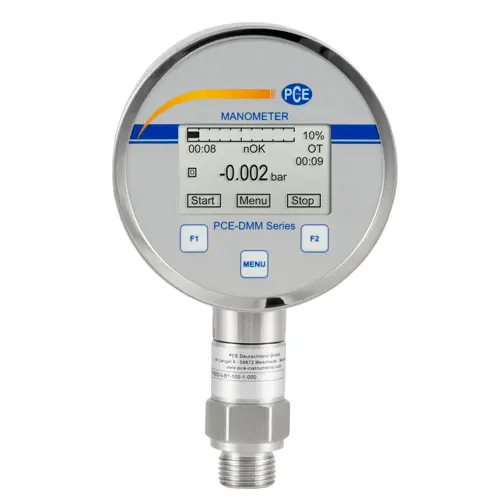

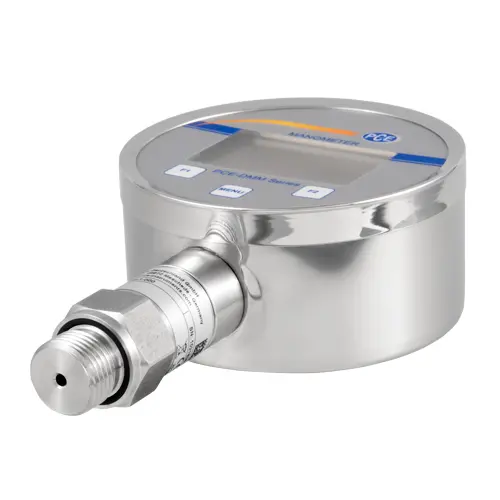

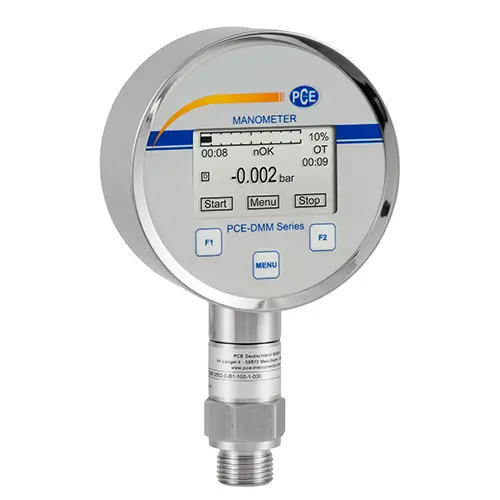

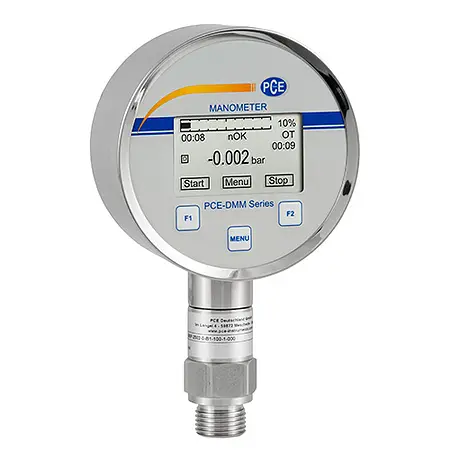

Pressure Gauge PCE-DMM 70

Order no.: PCE-DMM 70
US$ 1,319.00
ex. VAT, ex. delivery costs
Available in: 10 - 14 days
Digital Pressure Gauge pressure to 400 bar / Relative and absolute pressure measurement / ± 0.05% accuracy FSO / Storage

The pressure gauge is a precision instrument for leakage testing. The pressure gauge  is specifically designed for leak testing of pipe networks. The actual pressure gauge and the display of this precision instrument can be separated without tools. The measurement values are stored in the internal memory. In addition to the measured values the user can measure point numbers, etc. This recording interval can be set from one second to 99 seconds.

Moreover, the measured value can be stored for a specified time. The measurement and test duration and the number of measured values in the pressure gauge can be programmed. The housing of this leak detector is made of stainless steel. A special feature of this gauge is that the display and sensor are separated from each other. This has the advantage, that several sensors can be installed in the pipe network, but you can see all the values on just one display. Sensor and display are separable with no tools required.

- To 400 Bar
- Relative and absolute pressure measurement
- Memory and interface
- Sensor and display separable
- Backlit LCD Display
- Different units
- Stainless steel diaphragm
- Applications: leak testing in pipe networks, machinery and equipment
Nominal relative pressure in Bar0.
Nominal absolute pressure in bar

Overpressure in bar0.51125510102040
Burst pressure in bar1.51.51.537.97.515152550
Nominal relative / absolute pressure in bar1016254060100160250400
Overpressure in bar40808010821021060010501050
Burst pressure in bar50120120210420420100012501250
Negative pressure-1 ... 0 bar; Overload: 5 bar; Burst pressure: 7.5 bar
Vacuum resistance P ≥ 1 bar: unrestricted
General Specifications
Accuracy≥ 0.4 Bar: ≤ ± 0.05% FSO
< 0.4 Bar: ≤ ± 0.125% FSO
Measuring rate1/s or 2/s (adjustable)
Long term stability< ± 0.1% FSO
Temperature rangesFluid: -10 ... 55°C / 14 ... 131°F
Operating: -10 ... 55°C / 14 ... 131°F
Storage: -20 ... 70°C / -4 ... 158°F
Pressure port / housingStainless steel 1.4404
DiaphragmStainless steel 4.4435
Parts exposed to waterPressure port, seals, diaphragm
DisplayGraphic LCD
Digit height 5.5 mm (gauge)
Reading: max. 7 points, depending on the pressure range
Temperature display, time, 100-segment bar graph,
Adjustable backlighting
MemoryStorage of printing units and sensor temperature (min, hrs., Daily for a set time) max. 8,500 values, modes: cyclical, linear measurement interval adjustable
Power supply3 x 1.5V Duracell Plus Batteries, AA
Battery life1.5 years standby
Weightca. 680 g / 1.5 lbs

1 x Digital Pressure Gauge PCE-DMM 70 incl. Pressure Transmitter
