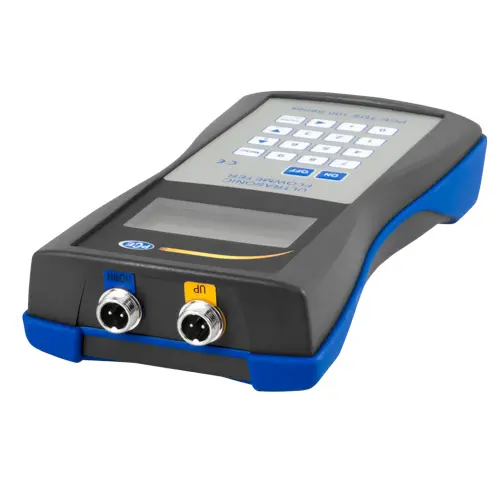

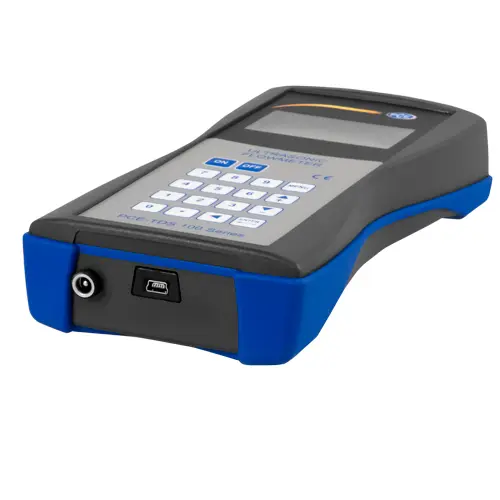

Portable Ultrasonic Flow Meter Kit PCE-TDS 100HSH

Order no.: PCE-TDS 100HSH
Topseller
US$ 2,343.00
4250348718846
PCE-TDS 100HSH
ex. VAT, ex. delivery costs
Available in: 1-2 days

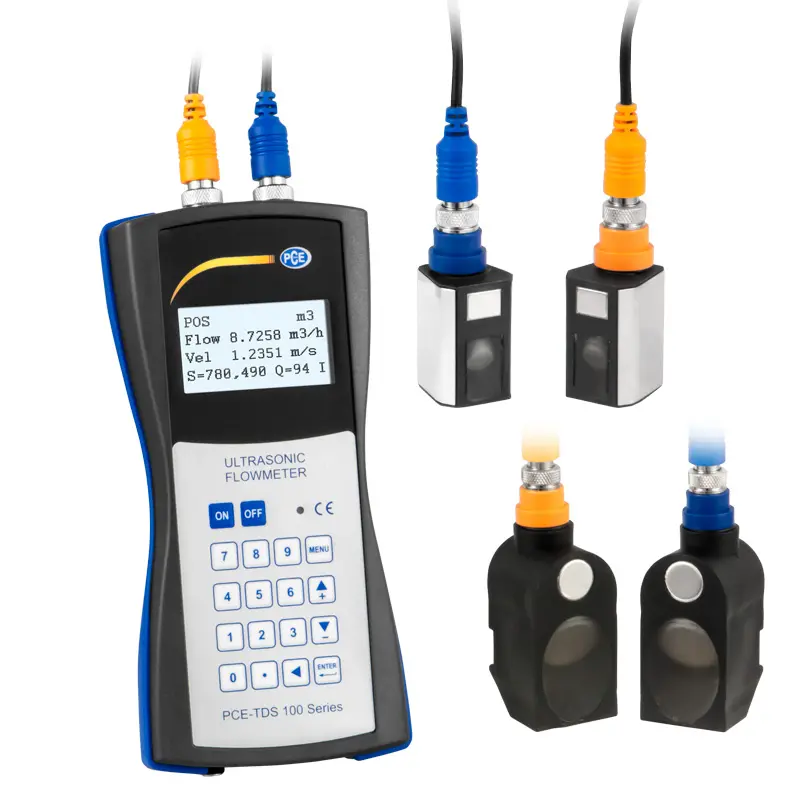

Portable Ultrasonic Flow Meter Kit PCE-TDS 100HSH
Measures liquid flow velocity in pipes and tubes with a diameter of 20 … 720 mm (approx. 3/4" ... 28")

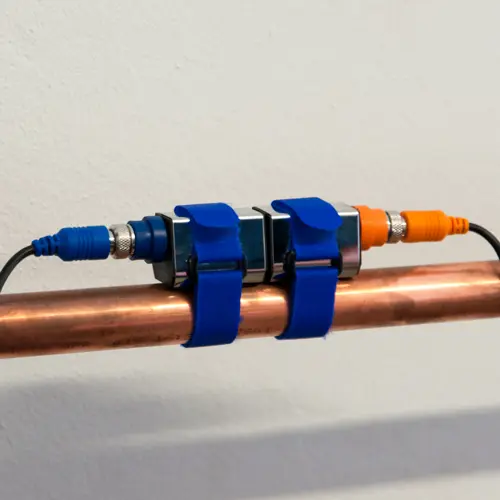

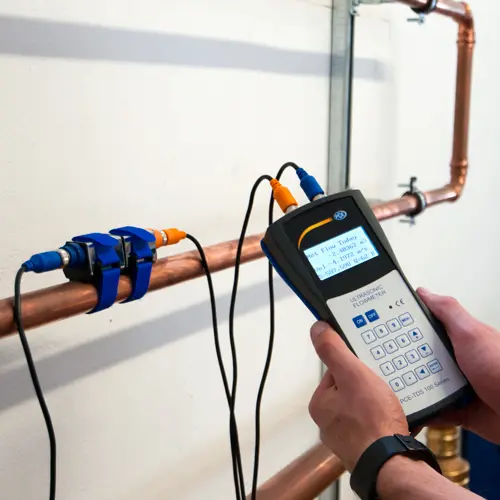

PCE-TDS 100HSH is a portable handheld clamp-on Portable Ultrasonic Flow Meter kit used for non-invasive, unobstructed and highly accurate measurements of the flow velocity of liquids in metal, plastic and rubber pipes and tubes with a diameter of 20 … 720 mm / approx. 3/4" ... 28". Ideal for use in oil and gas, water and wastewater, chemical, food and beverage, pharmaceutical, metals and mining, pulp and paper, power and heating, ventilation, air conditioning and refrigeration (HVACR) industries, this Portable Ultrasonic Flow Meter kit features user-friendly velcro-strap clamps that allow for quick and easy repositioning of the electroacoustic transducers.

Measurable liquids include: acetate, acetone, alcohol, ammonia, aniline, benzene, butyrate, chloroform, ethanol, ethyl alcohol, ethyl ether, ethylene glycol, freon R 12, petrol, glycerin, glycol, isobutanol, isobutane, isopentane, kerosene, linseed oil, methanol, methyl alcohol, engine oil, diesel oil, olive oil, peanut oil, paraffin oil, pentane, petroleum, 1-propanol, coolant, lubricating oil, silicone oil, transformer oil, trichlorethylene, 1, 1, 1 - trichloroethane, turpentine, distilled water and sea water.

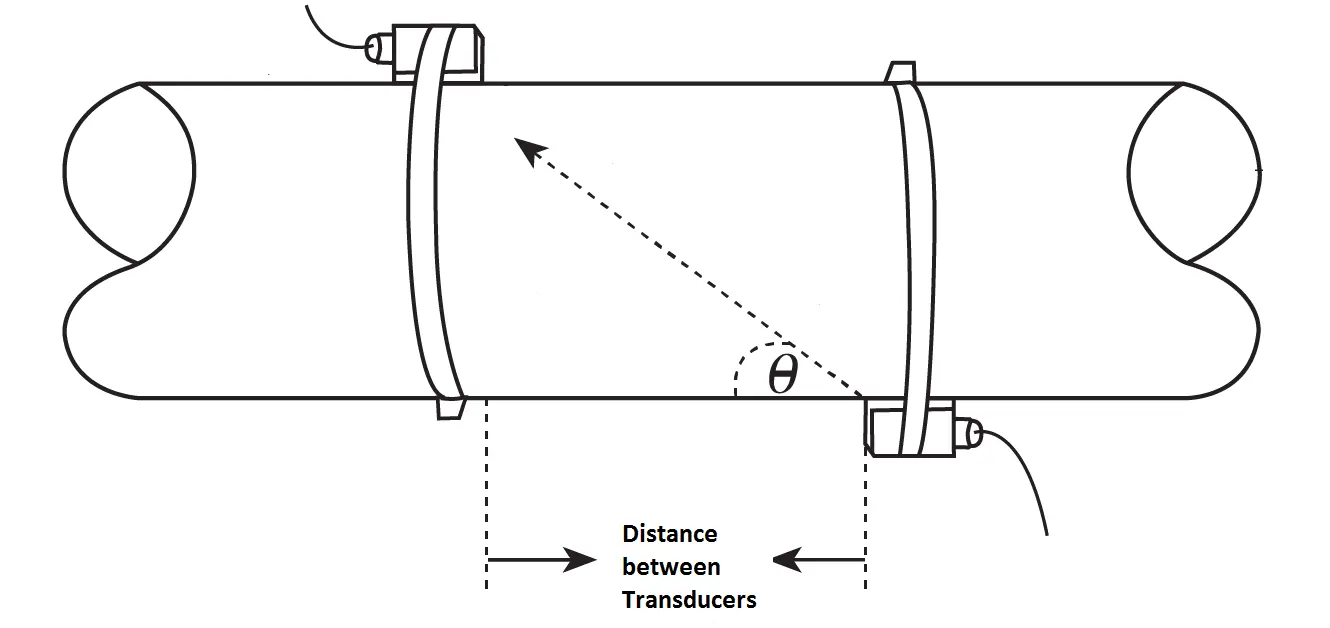

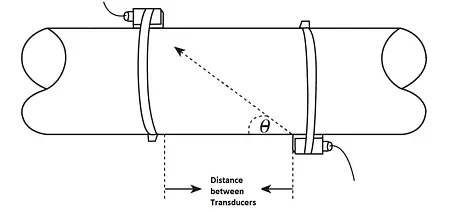

Calculation of flow velocity according to the transit-time principle follows the equation:

v = measured velocity
T1 = run time of the ultrasonic signal in the flow direction
T2 = run time of the ultrasonic signal against the flow direction
L = length of the ultrasonic wave
α = ultrasonic signal angle to the flow

The transit-time principle requires pipes to be full and have no bubbles and no particles.

Note: To transfer data to a computer, SOFT-PCE-TDS software is required. SOFT-PCE-TDS software sold separately - see accessories for details.

Each PCE-TDS series meter is assembled by PCE Instruments in Germany and and factory-calibrated (without any documentation). The reference display of the in-house test stand used by PCE for calibration has a valid DAkkS calibration certificate. This ensures traceability to the Physikalisch-Technische Bundesanstalt (PTB) German national standard. Please note that the meter's measured values depend on the pipe geometry, material and coating; the medium type, temperature and speed; and the sensor type and measuring method.


- 0.5% linearity
- 0.2% repeatability
- Bi-directional flow measurement
- Quick and adjustable response time
- Eliminates interfering frequencies
- Includes data logger functionality
- Stores up to 2000 measurement values
- Auto power-off battery-saving function (can be disabled)
- Saves time- and date-stamped measurement data to internal memory
- Rechargeable, battery-operated flow measuring device

Note: To transfer data to a computer, SOFT-PCE-TDS software is required. SOFT-PCE-TDS software sold separately - see accessories for details.
Measuring range-32 ... 32 m/s, -105 ... 105 ft/s
Resolution0.0001 m/s, 0.00033 ft/s
Accuracy for DN ≥ 50 mm:± 1.5% of measured value
for DN < 50 mm:± 3.5% of measured value
Reproducibility± 1.0% of measured value
UnitsMeters, feet, cubic meters, liters, cubic feet, gallon, oil barrel, liquid barrel, million gallon
Response time0 ... 999 seconds, freely configurable
Pipe diameterDN 15 ... 700, 20 … 720 mm / approx. 3/4" ... 28"
Measuring mediaAll liquids with an impurity <5% and a flow >0.03 m³/h
HeadsType M1 and S1
Cable lengthApprox. 5 m / 16.4 ft each (x 4)

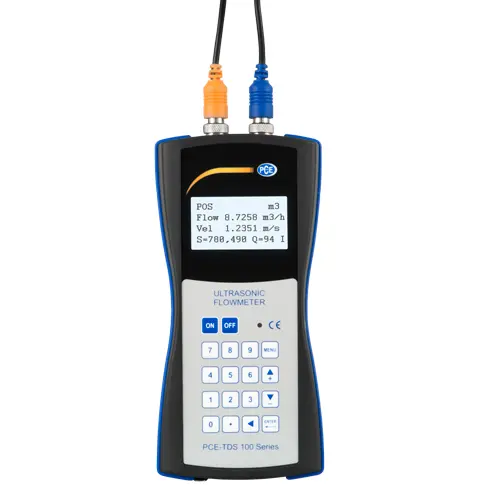

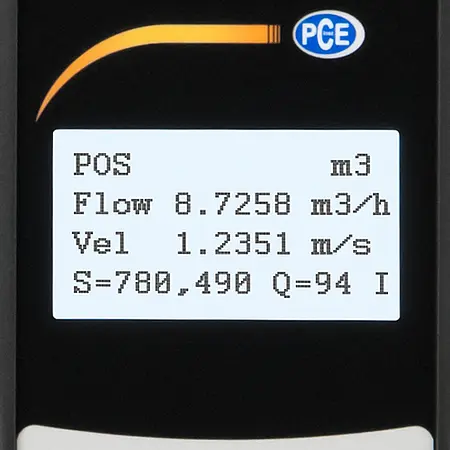

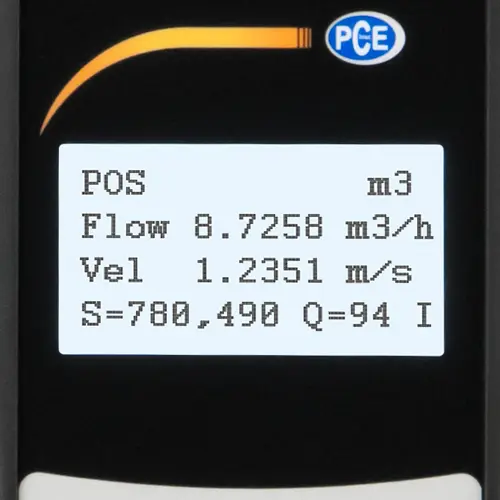

Display4 x 16 LCD, 7 digits for net flow, positive and negative flow
Power supply3 x  AAA Ni-H rechargeable batteries
Battery lifeApprox. 10 hours continuous use at full charge
Battery charger100 .. 240V / AC
InterfaceRS-232C
MemoryStores up to 60,000 values
Housing materialABS plastic
DimensionsDevice:
100 x 66 x 20 mm / 3.93 x 2.60 x 0.79 in
Transducers:
2 x M1 each 60 x 45 x 45 mm / 2.36 x 1.77 x 1.77 in
2 x S1 each 90 x 85 x 24 mm / 3.54 x 3.35 x 0.95 in
Operating temp.0 ... 70ºC / 32 ... 158ºF
Weight514 g / 1.14 lb (with batteries)

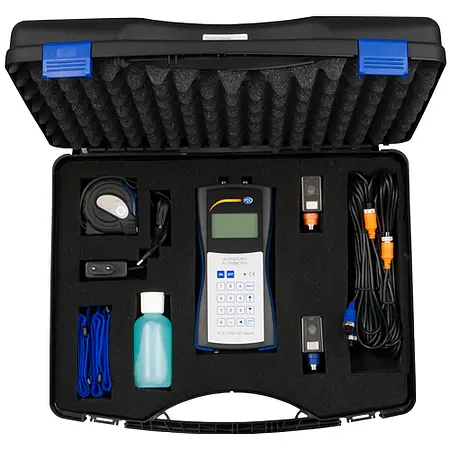

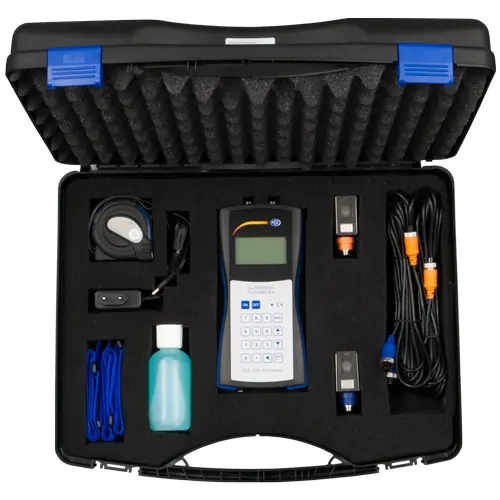

1 x PCE-TDS 100H Portable Portable Ultrasonic Flow Meter

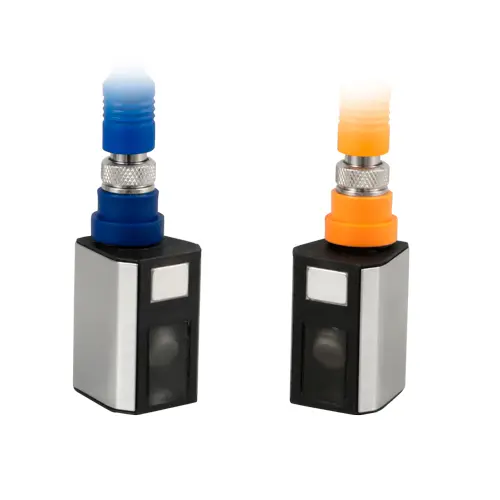

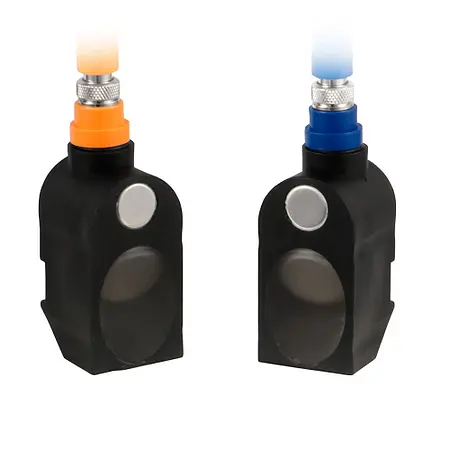

2 x Sensors TDS-M1
2 x Sensors TDS-S1
2 x 5 m / 16.4 ft transducer connection cables
4 x Velcro-strap clamps
3 x AAA Ni-H rechargeable batteries
1 x Battery charger
1 x Container of coupling gel
1 x Measuring tape
1 x Carrying case
1 x User manual

Note: To transfer data to a computer, SOFT-PCE-TDS software is required. SOFT-PCE-TDS software sold separately - see accessories for details.

Accessories

Order no.: CAL-PCE-TDS-ISO
ISO Calibration Certificate CAL-PCE-TDS-ISO

ISO calibration certificate for the flow meter, certifies traceability to test standards and is required to comply with ISO 9000 requirements.

- 2 different pipe diameters, each 1x speed


The calibration certificate is issued especially for the customer and therefore is exempt from the right of return.

US$ 495.00

ex. VAT, ex. delivery costs

Test Instruments manufacturer
Order no.: TT-GEL
Ultrasonic Contact Gel (100 ml)
The contact gel is used in ultrasonic material thickness measurements. The gel ensures good contact between the measuring head and the workpiece. The moderate temperature contact gel can be used at temperatures of -10 to 80°C / -14 to 176°F.

- Usable up to 80°C / 176°F
- Improves contact between the transducer head and the material to be measured
- Protects material surfaces from the transducer head
- 100 ml size
- See downloads for MSDS
US$ 26.00

ex. VAT, ex. delivery costs

Test Instruments manufacturer
Order no.: TDS-L1
Flow meter sensors TDS-L1
Flow sensor for DN300 ... DN6000 / media temperature -30 ... 160 °C suitable for ultrasonic flow meter PCE-TDS 100H

- For pipe sizes: 300 mm ... 6000 mm
- Media temperature: -30 ... 160 °C
- Dimensions: 91 x 52 x 44 mm
- Magnetic
- Splashproof: IP65
US$ 424.00

ex. VAT, ex. delivery costs

Test Instruments manufacturer
Order no.: TDS-M1
Replacement Transducers TDS-M1
TDS-M1 is a set of replacement transducers for PCE-TDS 100H but can also be ordered for the PCE-TDS 100HS for larger pipes. Temperatures from 0 to 160°C / 32 ... 320°F.

- For pipe and tube diameters of DN 50 … 700, 57 … 720 mm / approx. 2 ... 28"
- Transducer dimensions: 71 x 43 x 38 mm / 2.8 x 1.7 x 1.5 in
- Type M1 head
US$ 264.00

ex. VAT, ex. delivery costs

Test Instruments manufacturer
Order no.: TDS-S1
Replacement Transducers TDS-S1
TDS-S1 is a set of replacement transducers for PCE-TDS 100HS but can also be used be used with the PCE-TDS 100H for smaller pipes. Temperatures from 0 ... 160°C / 32 ... 320°F.

- For pipe and tube diameters of DN 15 … 100, 20 … 100 mm / approx. 3/4 ... 4"
- Transducer dimensions: 45 x 31 x 31 mm / 1.8 x 2.2 x 1.2 in
- Type S1 head
US$ 311.00

ex. VAT, ex. delivery costs

Test Instruments manufacturer
Order no.: SOFT-PCE-TDS
Software for PCE-TDS 100H / PCE-TDS 100HS
Software for programming, reading, and archiving the measurement data. The software kit consists of the interface cable and the software CD.

- Software includes data cable for PCE-TDS 100H and PCE-TDS 100HS
- Software license usable on 1 PC only
US$ 105.00

ex. VAT, ex. delivery costs

Test Instruments manufacturer
Order no.: TDS-HM
On-rail flow sensors TDS-HM
On-rail flow sensor for 50 ... 720 mm pipe diameter / temperatures up to 160°C / suitable for PCE-TDS 100H and PCE-TDS 100HS.

- For pipe sizes 50 ... 720 mm / approx. 2 ... 28"
- Medium temperature 0 ... 160 °C / 32 ... 320 °F
- Important. If you order the sensor later, we require the PCE-TDS 100 hand-held unit,
   in order to match the sensor to the hand-held unit.
US$ 628.00

ex. VAT, ex. delivery costs

Test Instruments manufacturer
Order no.: TDS-HS
On-rail flow sensors TDS-HS
On-rail flow sensor for 20 ... 108 mm pipe diameter / temperatures up to 160°C / suitable for PCE-TDS 100H and PCE-TDS 100HS.

- For pipe sizes 20 ... 108 mm / approx. 0.8 ... 4"
- Medium temperature 0 ... 160 °C / 32 ... 320 °F
- Important. If you order the sensor later, we require the PCE-TDS 100 hand-held unit,
   in order to match the sensor to the hand-held unit.
US$ 523.00

ex. VAT, ex. delivery costs

Test Instruments manufacturer
Order no.: Sensorkabel PCE-TDS 100 Series
Sensor Cables PCE-TDS 100 Series
5-meter sensor cables for PCE-TDS 100H and PCE-TDS 100HS
US$ 108.00

ex. VAT, ex. delivery costs

Test Instruments manufacturer
Order no.: K-Gel
K-Gel High Temperature Coupling Gel
The contact gel is used in ultrasonic material thickness measurements. The gel ensures good contact between the measuring head and the workpiece. The high temperature contact gel can be used at temperatures up to 350°C / 662°F.

- Usable up to 350°C / 662°F
- Content: 100 ml
Catalogue: Measuring Instruments / Test Meters / Thickness Gauge
US$ 131.00

ex. VAT, ex. delivery costs

Test Instruments manufacturer
