Clamp-on Ultrasonic Flow Meter PCE-TDS 100HS-TG50-ICA & Ultrasonic Thickness Meter & Cal.

Order no.: PCE-TDS 100HS-TG50-ICA
ISO Calibration
US$ 3,089.00
4250348726889
PCE-TDS 100HS-TG50-ICA
ex. VAT, ex. delivery costs
Available in: 10 - 14 days
Clamp-on Ultrasonic Flow Meter PCE-TDS 100HS-TG50-ICA & Ultrasonic Thickness Meter & ISO Calibration Certificates
according to the time difference method / for determining flow velocity and flow rate / Measuring method for liquids that are as homogeneous as possible
The Clamp-on Ultrasonic Flow Meter is required as part of a control measurement or for quickly determining the flow in a pipeline and is therefore a portable / easy-to-install measuring system. The Clamp-on Ultrasonic Flow Meter works according to the transit time difference method. The measuring principle of the Clamp-on Ultrasonic Flow Meter is quite simple.

Measuring a pipe obliquely with the flow takes less time than measuring against the flow. The stronger the current, the longer it takes to fight it and the faster you go with it. The difference between the flow times with the flow or against it therefore depends directly on the flow velocity of the river. The Clamp-on Ultrasonic Flow Meter uses this effect to determine flow velocity and flow rate.

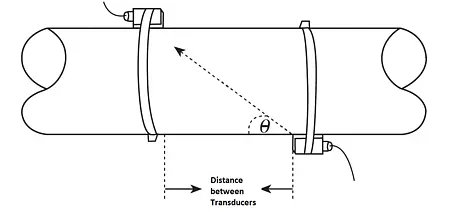

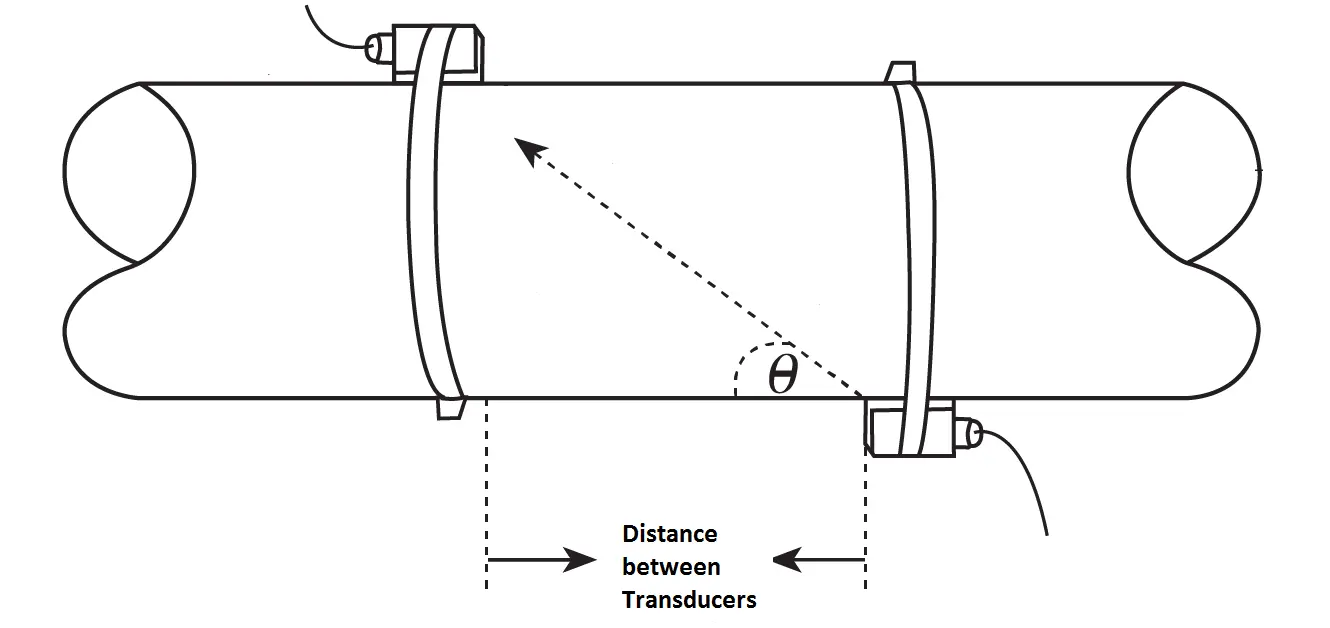

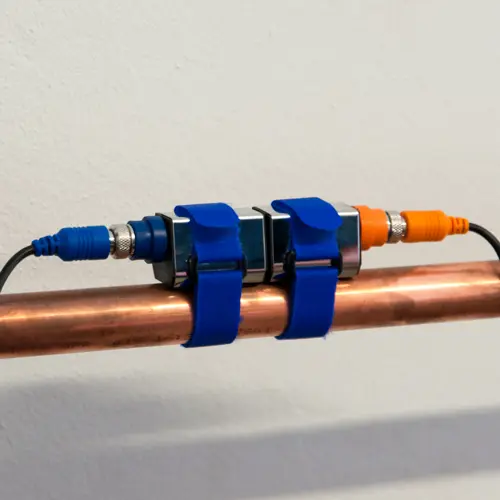

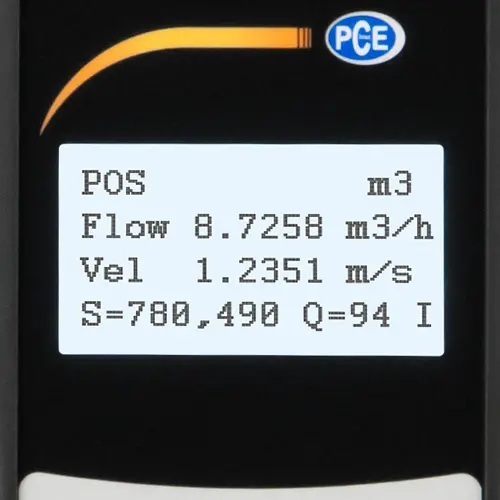

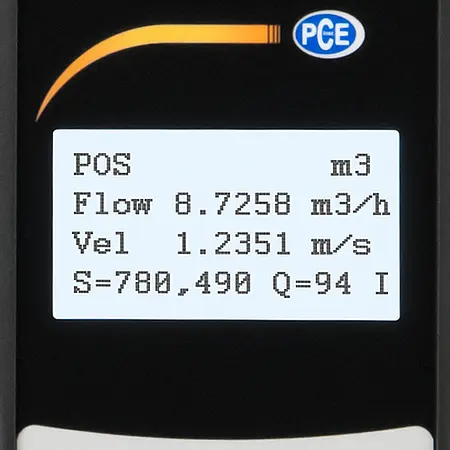

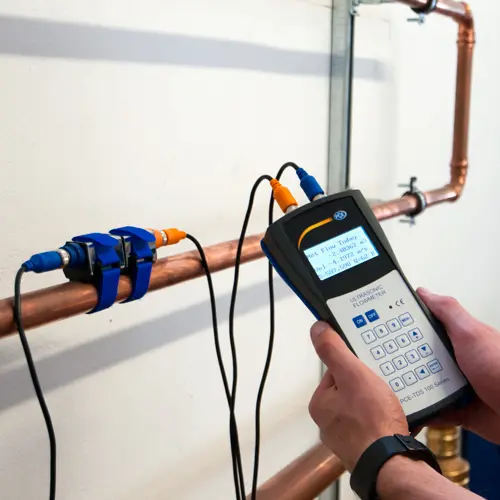

Electro-acoustic transducers (“piëzo effect”) send and receive short ultrasonic pulses through the medium flowing in the pipe. The transducers are offset in the longitudinal direction on both sides of the measuring tube. The non-destructive sensors are placed on the pipe and e.g. attached with a cable tie. The display shows the flow velocity within a short time. The Clamp-on Ultrasonic Flow Meter can be used to measure on metallic pipes, plastic pipes or rubber pipes.

Measurable liquids
Acetate, acetone, alcohol, ammonia, aniline, benzene, butyrate, chloroform, ethanol, ethyl alcohol, ether, ethyl ether, ethylene glycol, Freon R12, gasoline, glycerin, glycol, isobutanol, isobutane, isopentane, kerosene, linseed oil, methanol, methyl alcohol, motor oil , Diesel oil, olive oil, peanut oil, paraffin oil, pentane, petroleum, 1-propanol, coolant, lubricating oil, silicone oil, transformer oil, trichlorethylene, 1,1,1 - trichloroethane, turpentine, distilled water, sea water.


Ultrasonic Material Thickness Gauge with a measuring range of 1.0 ... 200 mm / integrated calibration block /  Interface cables and software(optional) / adjustable sound speed
The ultrasonic material thickness meter is a compact measuring device for metals, glass and homogeneous plastics. This ultrasonic testing device works with an external ultrasonic probe, this probe guides ultrasonic waves into the material to be tested. Different materials transmit ultrasound at different speeds, so you can select different ultrasound speeds on the ultrasound tester.

With the thickness gauge, you can determine the material thicknesses of metal, glass and plastics and other homogeneous materials in seconds. The operation on the ultrasonic testing device is very easy using the seven buttons. This measuring device can be calibrated on site with little effort using the integrated calibration block. All measured values can be transferred to the PC and analyzed using the optionally available software. The software also offers the option of exporting the data to Microsoft Excel.

Ultrasonic Flow Meter
- ideal for retrofitting
- installation without process interruption
- easy assembly
- accurate and reliable
- no pressure loss
- maintenance-free, no moving parts
- wear-free
- portable devices for control measurements
- incl. ISO calibration certificate

Ultrasonic Material Thickness Meter
- adjustable ultrasound velocity (for thickness measurements of different materials)
- measures thicknesses from 1.2 ... 200.00 mm / 0.05 ... 7.87"
- integrated steel calibration block
- delivery incl. transport case
- incl. ISO calibration certificate

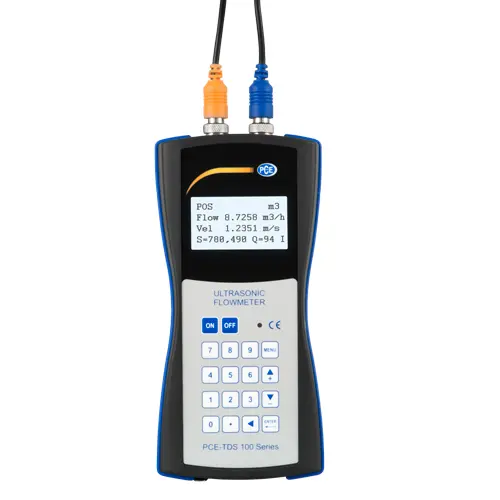

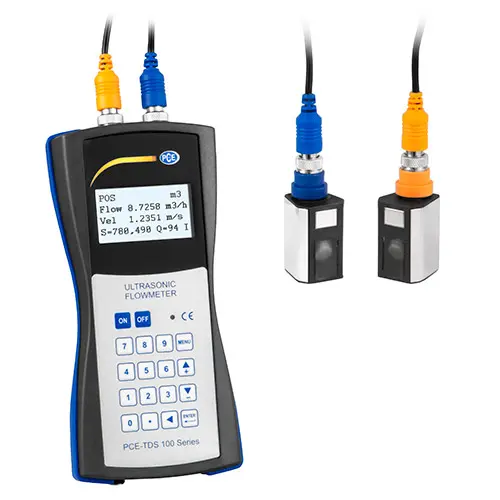

Ultrasonic Flow Meter PCE-TDS 100HS
Handheld measuring range -32 ... +32 m/s
Resolution 0.0001 m/s, 0.00033 ft/s
Accuracy for DN ≥ 50 mm:
for DN < 50 mm:
 ±1.5 % of measured value
±3.5 % of measured value
Reproducibility ±1.0 % of measured value
Media

All liquids with an impurity <5% and a flow >0.03 m³/h


Flow units

Cubic meter [m³]
Liter [l]
Gallon (USA) [gal]
Imperial gallon (UK) [igl]
Million USA gallon [mgl]
Cubic foot [cf]
Barrel (USA) [bal]
Imperial barrel (UK) [ib]
Oil barrel [ob]


Time settings

per day [/d]
per hour [/h]
per minute [/m]
and per second [/s]


Data logger 60,000 measurements

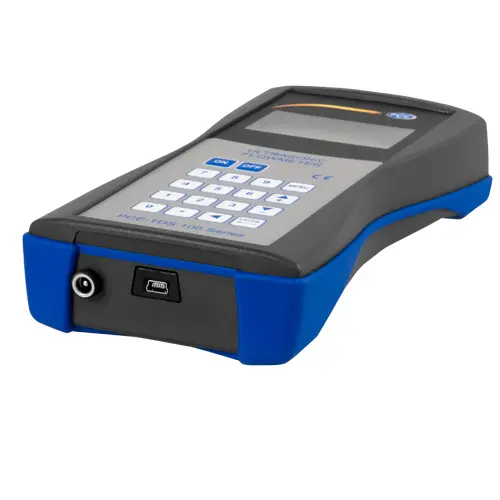

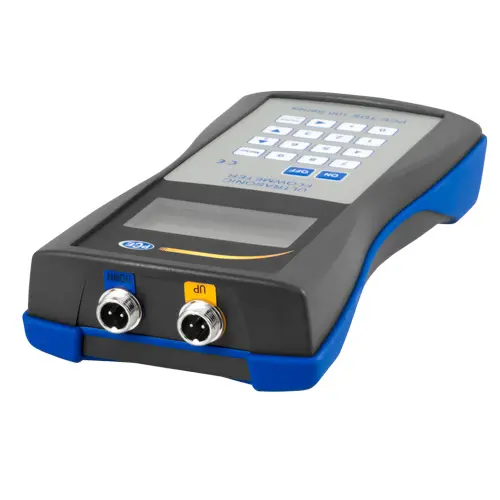

Interface USB (for online measurement and reading of the internal memory)
Protection IP 52
Power supply 3 x AA NiMH rechargeable battery / 2100 mAh (at full charge 12h running time)
100 … 240 V AC 50/60 Hz
Dimensions 214 x 104 x 40 mm / 8.4 x 4.1 x 1.5"
Weight 450 g / 15 oz
Sensor (only PCE-TDS 100 HS)             Nominal width  DN 15 … 100, 20 … 108 mm / approx. 3/4 ... 4"
Temperature of liquid -30 … 160 °C / -22 ... 320 °F
Dimensions 50 x 45 x 45 mm / 1.9 x 1.7 x 1.7"
Weight 75 g / 2.6oz

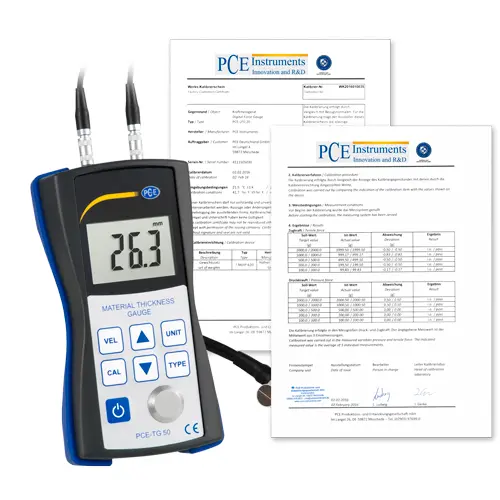

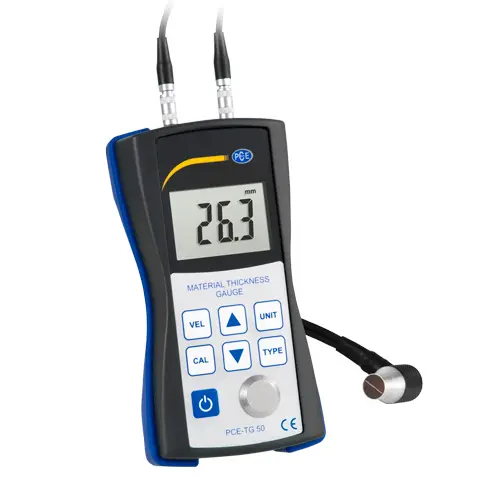

Ultrasonic Thickness Meter
PCE-TG 50
Measurement range            1.2 ... 200 mm / 0.05 ... 7.87 in (steel)
Accuracy ± 0.5% of rdg. ± 0.1 mm / ± 0.00393701 in
Transducer 5 MHz frequency, 8 mm / 0.32 inch diameter; Probe support surface: 10.2 mm / 0.4 in diameter; Head: 15.4 mm diameter / 0.61 in
Resolution 0.1 mm / 0.001 in
Ultrasound velocity 800 ... 9950 m/s / 2624.67 ... 32644.36 ft/s (adjustable)
Display 4-digit LCD
Operating conditions -10 ... 50°C / 14 ... 122°F; Relative humidity: < 80% RH
Calibration block 5.0 mm / 0.2 in steel (integrated)
Measuring units mm or in (adjustable)
Material temperature 0 ... 50°C / 32 ... 122°F (permanent); 50 ... 85°C / 122 ... 185°F (for 5 minutes, then 30 minutes cooling below 50° C / 122°F)
Data interface RS-232 port
Power supply 3 x 1.5V AAA batteries (approx. 250 hours of battery life)
Dimensions Approx. 142 x 77 x 40 mm / 5.6 x 3.1 x 1.6 inches (handset)
Weight Approx. 265 g / < 1 lb (handset with batteries and probe)

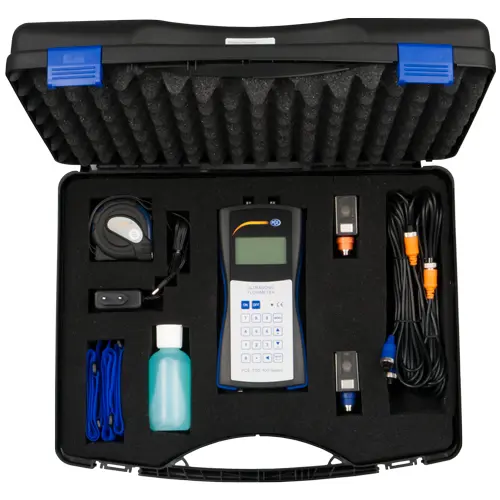

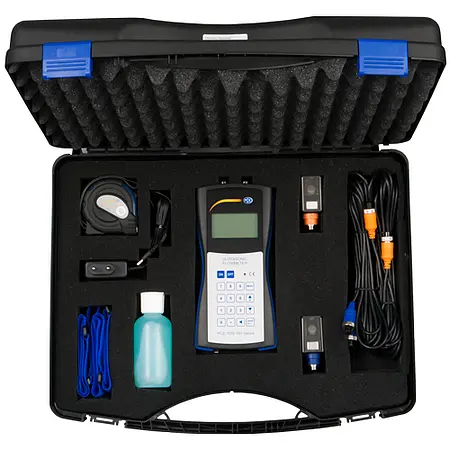

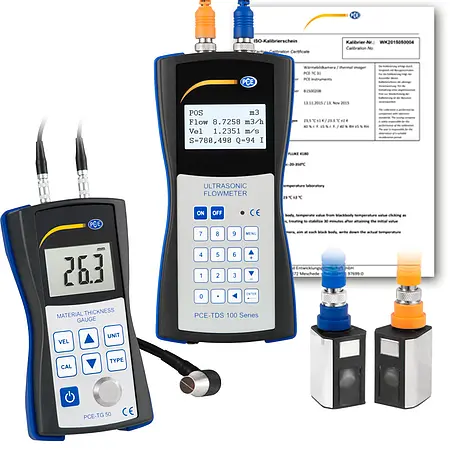

1 x Clamp-on Ultrasonic Flow Meter PCE-TDS 100HS
1 x Ultrasonic Material Thickness Meter PCE-TG 50

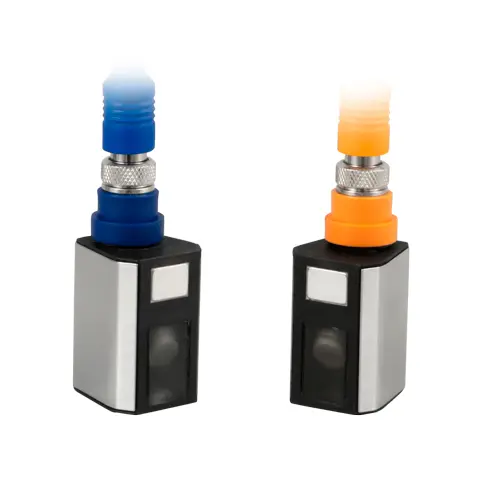

2 x Sensor TDS-S1
2 x 5 m / 16.4 ft transducer connection cables
2 x Velcro cable ties
1 x Mains power adapter
1 x Ultrasound contact gel
1 x PCE tape measure

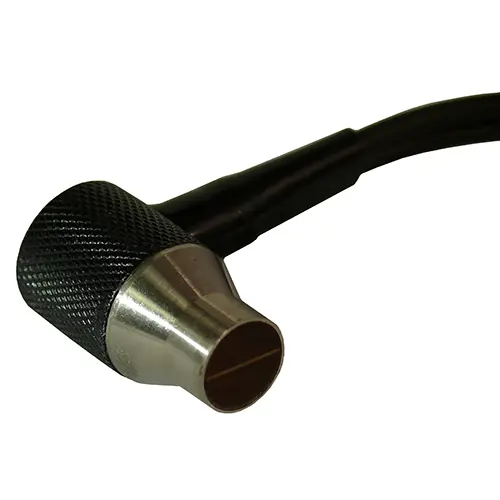

1 x Test head
3 x AAA batteries
1 x Coupling gel
2 x User manual

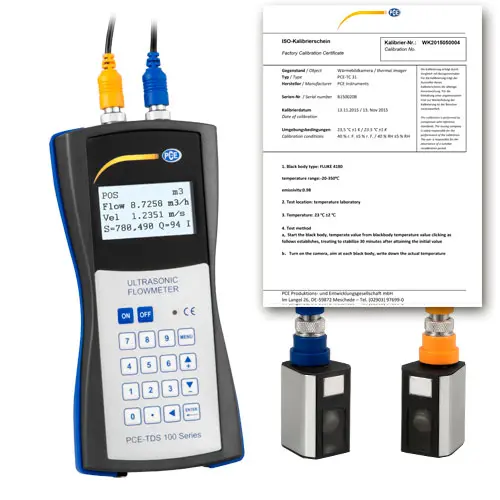

2 x ISO calibration certificates

Accessories

Order no.: TT-GEL
Ultrasonic Contact Gel (100 ml)
The contact gel is used in ultrasonic material thickness measurements. The gel ensures good contact between the measuring head and the workpiece. The moderate temperature contact gel can be used at temperatures of -10 to 80°C / -14 to 176°F.

- Usable up to 80°C / 176°F
- Improves contact between the transducer head and the material to be measured
- Protects material surfaces from the transducer head
- 100 ml size
- See downloads for MSDS
US$ 26.00

ex. VAT, ex. delivery costs

Test Instruments manufacturer
Order no.: CAL-PCE-TDS-ISO

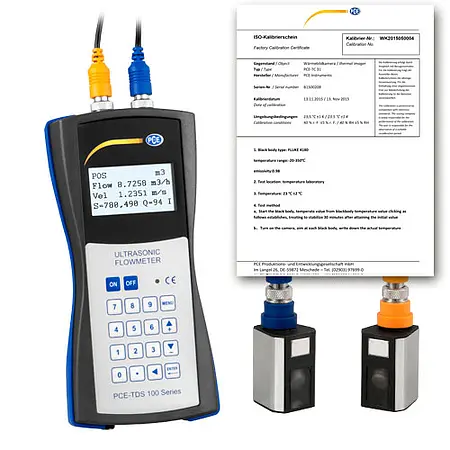

ISO Calibration Certificate CAL-PCE-TDS-ISO

ISO calibration certificate for the flow meter, certifies traceability to test standards and is required to comply with ISO 9000 requirements.

- 2 different pipe diameters, each 1x speed


The calibration certificate is issued especially for the customer and therefore is exempt from the right of return.

Manufacturer: PCE Instruments
US$ 450.00

ex. VAT, ex. delivery costs

Test Instruments manufacturer
Order no.: K-Gel
K-Gel High Temperature Coupling Gel
The contact gel is used in ultrasonic material thickness measurements. The gel ensures good contact between the measuring head and the workpiece. The high temperature contact gel can be used at temperatures up to 350°C / 662°F.

- Usable up to 350°C / 662°F
- Content: 100 ml
Catalogue: Measuring Instruments / Test Meters / Thickness Gauge
Manufacturer: PCE Instruments
US$ 131.00

ex. VAT, ex. delivery costs

Test Instruments manufacturer
Order no.: Sensorkabel PCE-TDS 100 Series
Sensor Cables PCE-TDS 100 Series
5-meter sensor cables for PCE-TDS 100H and PCE-TDS 100HS
Manufacturer: PCE Instruments
US$ 108.00

ex. VAT, ex. delivery costs

Test Instruments manufacturer
Order no.: SOFT-PCE-TDS
Software for PCE-TDS 100H / PCE-TDS 100HS
Software for programming, reading, and archiving the measurement data. The software kit consists of the interface cable and the software CD.

- Software includes data cable for PCE-TDS 100H and PCE-TDS 100HS
- Software license usable on 1 PC only
Manufacturer: PCE Instruments
US$ 105.00

ex. VAT, ex. delivery costs

Test Instruments manufacturer
Order no.: TDS-HM
On-rail flow sensors TDS-HM
On-rail flow sensor for 50 ... 720 mm pipe diameter / temperatures up to 160°C / suitable for PCE-TDS 100H and PCE-TDS 100HS.

- For pipe sizes 50 ... 720 mm / approx. 2 ... 28"
- Medium temperature 0 ... 160 °C / 32 ... 320 °F
- Important. If you order the sensor later, we require the PCE-TDS 100 hand-held unit,
   in order to match the sensor to the hand-held unit.
Manufacturer: PCE Instruments
US$ 628.00

ex. VAT, ex. delivery costs

Test Instruments manufacturer
Order no.: TDS-HS
On-rail flow sensors TDS-HS
On-rail flow sensor for 20 ... 108 mm pipe diameter / temperatures up to 160°C / suitable for PCE-TDS 100H and PCE-TDS 100HS.

- For pipe sizes 20 ... 108 mm / approx. 0.8 ... 4"
- Medium temperature 0 ... 160 °C / 32 ... 320 °F
- Important. If you order the sensor later, we require the PCE-TDS 100 hand-held unit,
   in order to match the sensor to the hand-held unit.
Manufacturer: PCE Instruments
US$ 523.00

ex. VAT, ex. delivery costs

Test Instruments manufacturer
Order no.: TDS-L1
Flow meter sensors TDS-L1
Flow sensor for DN300 ... DN6000 / media temperature -30 ... 160 °C suitable for ultrasonic flow meter PCE-TDS 100H

- For pipe sizes: 300 mm ... 6000 mm
- Media temperature: -30 ... 160 °C
- Dimensions: 91 x 52 x 44 mm
- Magnetic
- Splashproof: IP65
Manufacturer: PCE Instruments
US$ 424.00

ex. VAT, ex. delivery costs

Test Instruments manufacturer
Order no.: TDS-S1
Replacement Transducers TDS-S1
TDS-S1 is a set of replacement transducers for PCE-TDS 100HS but can also be used be used with the PCE-TDS 100H for smaller pipes. Temperatures from 0 ... 160°C / 32 ... 320°F.

- For pipe and tube diameters of DN 15 … 100, 20 … 100 mm / approx. 3/4 ... 4"
- Transducer dimensions: 45 x 31 x 31 mm / 1.8 x 2.2 x 1.2 in
- Type S1 head
Manufacturer: PCE Instruments
US$ 311.00

ex. VAT, ex. delivery costs

Test Instruments manufacturer
Order no.: TDS-M1
Replacement Transducers TDS-M1
TDS-M1 is a set of replacement transducers for PCE-TDS 100H but can also be ordered for the PCE-TDS 100HS for larger pipes. Temperatures from 0 to 160°C / 32 ... 320°F.

- For pipe and tube diameters of DN 50 … 700, 57 … 720 mm / approx. 2 ... 28"
- Transducer dimensions: 71 x 43 x 38 mm / 2.8 x 1.7 x 1.5 in
- Type M1 head
Manufacturer: PCE Instruments
US$ 264.00

ex. VAT, ex. delivery costs
